Optimize a Compact Ceiling AC for Maximum Efficiency in Small Rooms: Practical airflow, placement, and thermostat strategies to cool small rooms faster while reducing energy use.

Direct Answer

To optimize a compact ceiling AC for a small room, focus on three factors: correct placement, balanced airflow, and efficient thermostat settings. When airflow circulates freely and the unit isn’t fighting heat buildup or poor insulation, even a small ceiling cassette AC can cool a room quickly while using less electricity.

Small rooms amplify both good and bad design decisions. Proper layout, airflow direction, and consistent maintenance can significantly improve cooling performance.

Quick Takeaways

1. Correct AC placement can improve cooling efficiency by preventing trapped hot air.
2. Balanced airflow matters more in small rooms than raw cooling capacity.
3. Smart thermostat settings reduce energy use without sacrificing comfort.
4. Regular filter cleaning can noticeably improve compact ceiling AC performance.
5. Combining ceiling AC with fans improves circulation and reduces cooling load.

Introduction

After working on dozens of compact apartment renovations, I’ve noticed something interesting: most small rooms feel hot not because the air conditioner is weak, but because the space is working against it. When homeowners install a compact ceiling AC, they often assume the unit will automatically distribute cool air evenly. In reality, airflow patterns, furniture placement, and thermostat settings play a much bigger role.

I’ve seen perfectly good ceiling cassette units struggle simply because the airflow path was blocked or the thermostat was poorly configured. On the other hand, I’ve also seen tiny studio rooms cool down in minutes once the layout allowed air to circulate properly.

Before optimizing the AC itself, I usually analyze how the room is arranged. Mapping the furniture layout often reveals airflow bottlenecks. Using tools that help visualize how furniture placement affects air circulation in a small roomcan quickly show where cooling efficiency is being lost.

In this guide, I’ll break down the real factors that improve compact ceiling AC efficiency in small spaces — including a few mistakes I see surprisingly often.

save pin

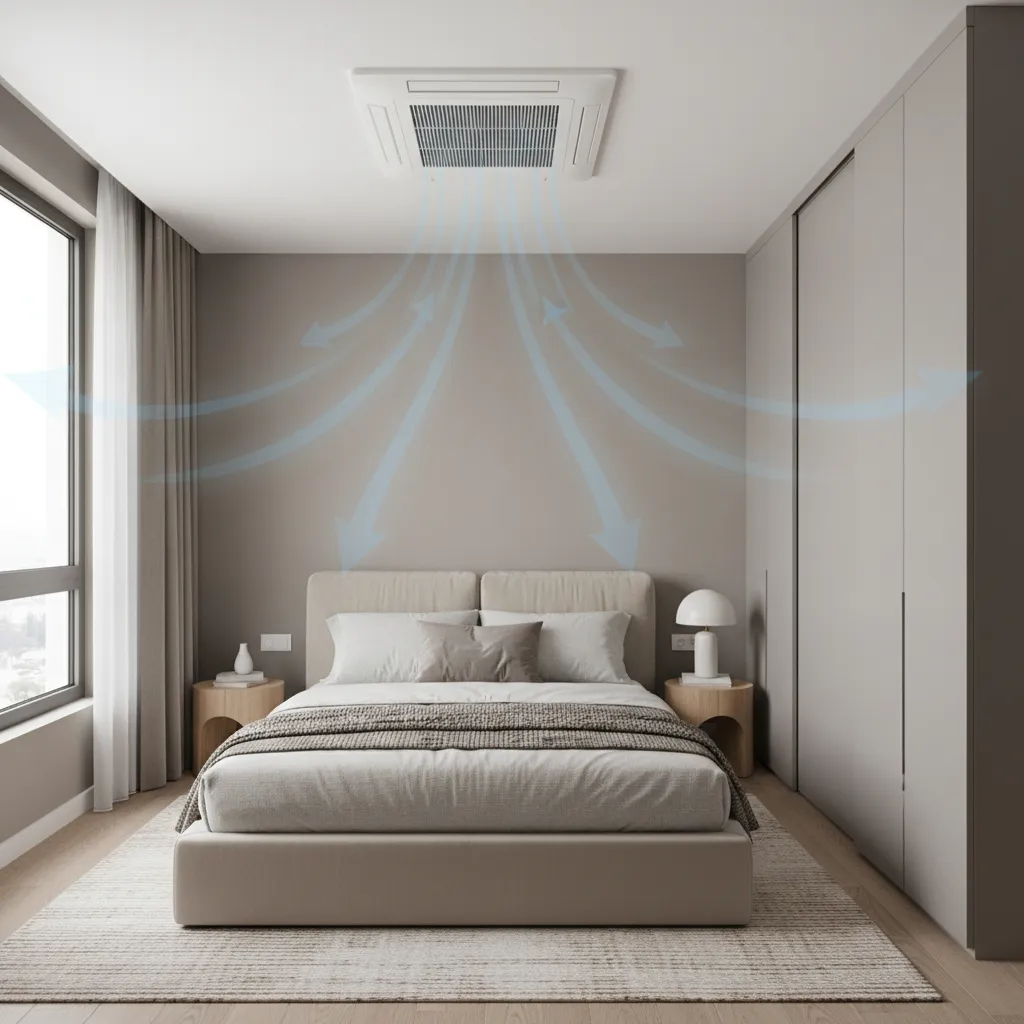

Understanding Airflow in Small Enclosed Spaces

Key Insight: In small rooms, airflow patterns determine comfort more than AC capacity.

One misconception I hear frequently is that stronger cooling solves everything. In reality, compact rooms develop "air pockets" where cool air never reaches.

Ceiling cassette units push air outward in multiple directions. But if furniture, tall wardrobes, or partitions block those paths, the cooled air simply circulates near the ceiling.

Common airflow blockers in small rooms:

1. Tall wardrobes placed directly under airflow vents
2. Loft beds trapping cool air above sleeping areas
3. Curtains blocking side vents
4. Improperly angled louvers

ASHRAE guidelines emphasize proper air distribution as a key factor in thermal comfort, especially in compact environments where air mixing happens quickly.

In practical projects, simply redirecting the airflow angle downward or clearing 1–2 feet of space around the unit often improves cooling speed dramatically.

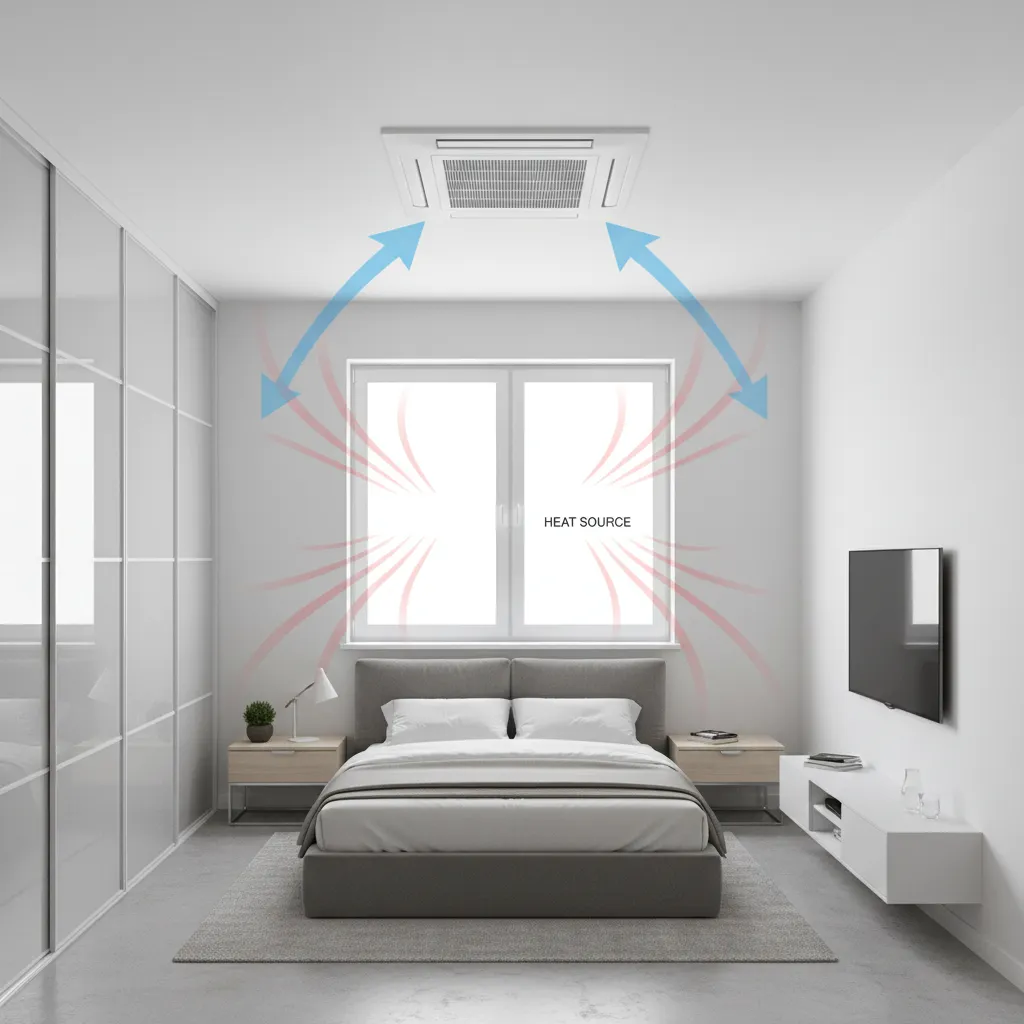

Ideal Placement for Compact Ceiling AC Units

Key Insight: The best location for a ceiling cassette AC is slightly off-center rather than directly in the middle of the room.

This might sound counterintuitive, but center placement sometimes creates uneven circulation. Cool air spreads evenly, but it may never reach heat sources like windows or electronics.

Best placement strategy:

1. Install closer to the room’s main heat source (window or sun-facing wall)
2. Keep at least 12–18 inches clearance around airflow outlets
3. Avoid placing directly above beds or desks
4. Align vents with the room's longest dimension

During renovation planning, I often simulate the room layout first. Visualizing ceiling placement alongside furniture using tools that help experiment with different room layouts before installationcan prevent costly repositioning later.

save pin

Improving Cooling Efficiency with Smart Thermostat Settings

Key Insight: Lower temperatures don’t cool rooms faster — they just make the AC run longer.

This is one of the most persistent myths. Many people set their thermostat to 16–18°C (60–64°F) hoping the room cools faster. In reality, AC compressors work at a fixed capacity.

Recommended thermostat strategy for small rooms:

1. Set temperature between 23–25°C (73–77°F)
2. Use auto fan mode instead of maximum speed
3. Enable eco or inverter mode if available
4. Avoid constant manual adjustments

According to the U.S. Department of Energy, raising your thermostat by 1°F for eight hours can reduce cooling energy use by up to 3%. In small rooms, the effect is often even more noticeable because the system cycles more frequently.

Reducing Energy Consumption in Small Apartments

Key Insight: Heat gain, not cooling power, is usually the real cause of inefficient AC operation.

If a small room heats up quickly, the AC must constantly compensate. The goal is to reduce incoming heat before it reaches the unit.

High-impact energy improvements:

1. Blackout curtains on sun-facing windows
2. Reflective window films
3. Sealing gaps around windows and doors
4. Switching to LED lighting

In many of my studio apartment projects, window heat gain accounted for nearly half of the cooling load during summer afternoons.

save pin

Maintenance Habits That Improve Performance

Key Insight: A clogged filter can reduce airflow by up to 15–20%, dramatically lowering cooling efficiency.

Compact ceiling AC systems rely heavily on unrestricted airflow. When filters accumulate dust, the system struggles to circulate air properly.

Essential maintenance checklist:

1. Clean air filters every 2–4 weeks during heavy use
2. Inspect drain lines every season
3. Check louver movement and airflow direction
4. Schedule professional servicing annually

In my experience, poor maintenance is the single most common reason people believe their AC unit is "too small" for the room.

Answer Box

The most effective way to optimize a compact ceiling AC is improving airflow, reducing heat gain, and maintaining clean filters. In small rooms, these three factors often matter more than increasing cooling capacity.

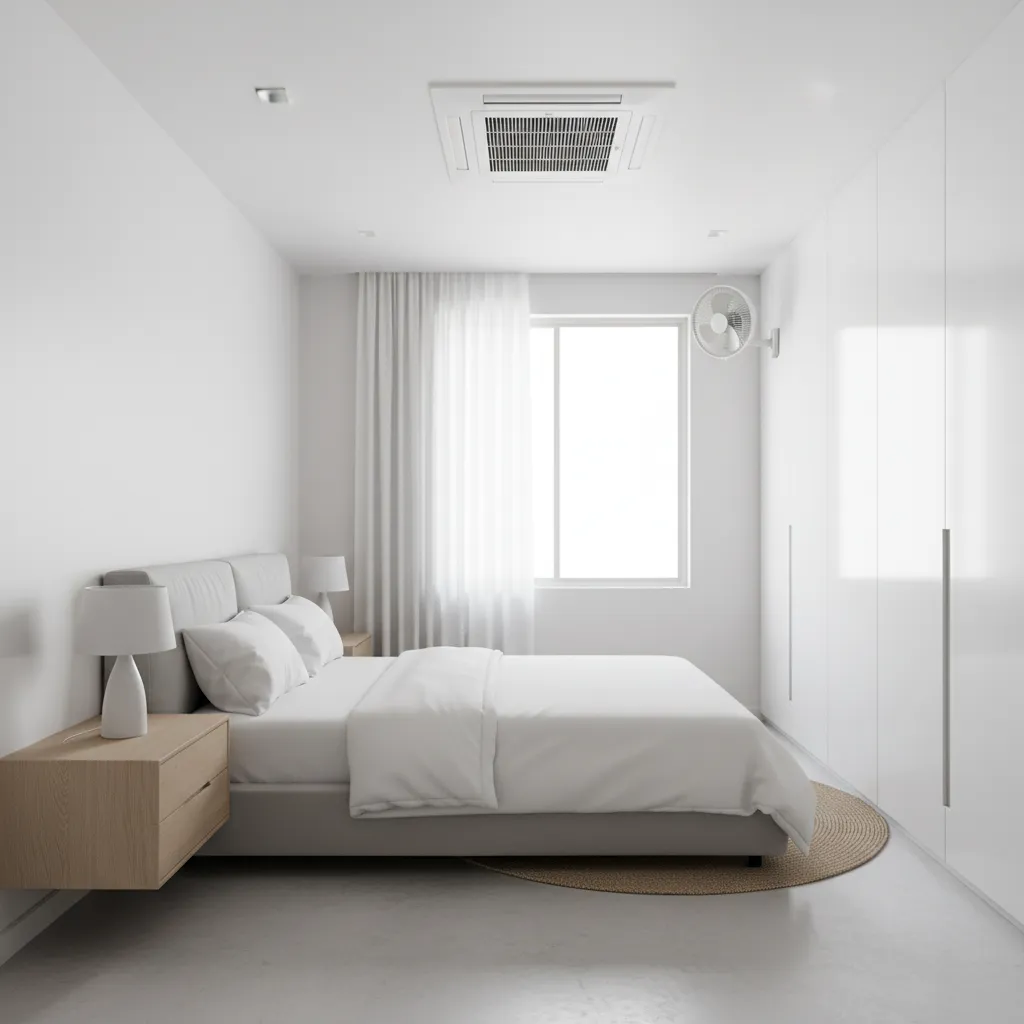

Combining Ceiling AC with Ventilation and Fans

Key Insight: Ceiling AC systems become significantly more efficient when paired with gentle air circulation.

A small circulation fan helps mix cool air near the ceiling with warmer air near the floor. This prevents temperature stratification, which is common in compact spaces.

Best fan strategies:

1. Use low-speed ceiling fans to distribute air
2. Position small desk fans to push air across the room
3. Avoid pointing fans directly at the AC intake

When I visualize airflow paths for clients, realistic room simulations help explain how air travels through the space. Tools that generate visual room renderings showing airflow and layout interactions make these patterns much easier to understand.

Final Summary

1. Airflow direction matters more than raw cooling power in small rooms.
2. Slightly off-center AC placement often improves air circulation.
3. Thermostat settings around 23–25°C balance comfort and energy use.
4. Reducing window heat gain dramatically improves cooling efficiency.
5. Regular filter cleaning keeps compact ceiling AC systems performing well.

FAQ

1. How do I optimize a ceiling AC for a small room?

Focus on airflow clearance, proper thermostat settings, and clean filters. These changes significantly improve compact ceiling AC efficiency.

2. What temperature should a small room AC be set to?

Most experts recommend 23–25°C (73–77°F). This range keeps rooms comfortable while minimizing energy use.

3. Why does my ceiling AC struggle to cool a small room?

Poor airflow, blocked vents, dirty filters, or high heat gain from windows often cause inefficient cooling.

4. Can fans improve ceiling AC efficiency?

Yes. Fans help distribute cool air evenly and reduce temperature stratification in compact rooms.

5. How often should ceiling AC filters be cleaned?

Every 2–4 weeks during heavy summer use for optimal airflow.

6. Does lowering the thermostat cool the room faster?

No. It only makes the AC run longer without increasing cooling speed.

7. Is a ceiling cassette AC good for small rooms?

Yes, when properly installed and optimized. Compact ceiling AC systems can cool small spaces efficiently.

8. What is the biggest mistake when installing a compact ceiling AC?

Blocking airflow with furniture or placing the unit where cool air cannot circulate properly.

References

U.S. Department of Energy – Energy Saver Cooling Guidelines

ASHRAE Thermal Comfort Standards
