Optimize Airflow in Affordable Tropical House Floor Plans: Practical layout strategies that improve natural cooling, reduce AC reliance, and make tropical homes comfortable year‑round

Direct Answer

Optimizing airflow in affordable tropical house floor plans comes down to three layout decisions: enabling cross ventilation, orienting openings toward prevailing winds, and using semi‑open buffer spaces like verandas. When rooms, windows, and circulation paths are aligned with airflow rather than aesthetics alone, homes stay significantly cooler without heavy reliance on air conditioning.

Quick Takeaways

1. Cross ventilation is the single most effective passive cooling strategy in tropical homes.
2. Room placement should follow wind direction rather than strict symmetry.
3. Verandas and shaded transition zones reduce indoor heat gain dramatically.
4. Window height, placement, and pairing matter more than window size.
5. Small layout tweaks can lower indoor temperature by several degrees.

Introduction

In more than a decade of designing homes in hot and humid climates, I’ve learned that airflow matters more than almost any finish, appliance, or cooling system. A well‑designed tropical house floor plan can feel naturally comfortable even on hot days. A poorly designed one can feel like a sealed oven—even with multiple air conditioners running.

Many homeowners assume cooling problems come from poor insulation or cheap materials. In reality, the layout itself is usually the problem. Rooms block airflow, windows face the wrong direction, or circulation corridors trap hot air.

When I work with clients developing early layouts, we often start by mapping airflow before we even talk about furniture. If you want to experiment with layout concepts visually, you can explore examples using a visual floor planning approach for testing airflow pathsto see how different room arrangements affect ventilation.

This guide breaks down the layout decisions that actually make a difference. These are the same strategies I’ve used across dozens of tropical residential projects where air conditioning is expensive, unreliable, or intentionally minimized.

save pin

Principles of Passive Cooling in Tropical Architecture

Key Insight: Passive cooling works best when the entire layout encourages air movement rather than treating ventilation as an afterthought.

Traditional tropical architecture—from Southeast Asia to the Caribbean—relies heavily on passive cooling. Long before modern HVAC systems existed, homes were designed around airflow patterns.

The most successful layouts usually follow four principles:

1. Long, narrow floor plans that allow air to pass through the house
2. Open circulation paths between rooms
3. Large shaded openings instead of sealed glass walls
4. Buffer spaces like courtyards or verandas

One mistake I often see in newer tropical housing developments is copying compact Western suburban layouts. Square floor plans with central corridors may work in temperate climates, but in humid regions they block wind movement.

Research from the World Green Building Council consistently shows that natural ventilation can significantly reduce cooling energy demand in warm climates. But that only works when airflow is built into the floor plan itself.

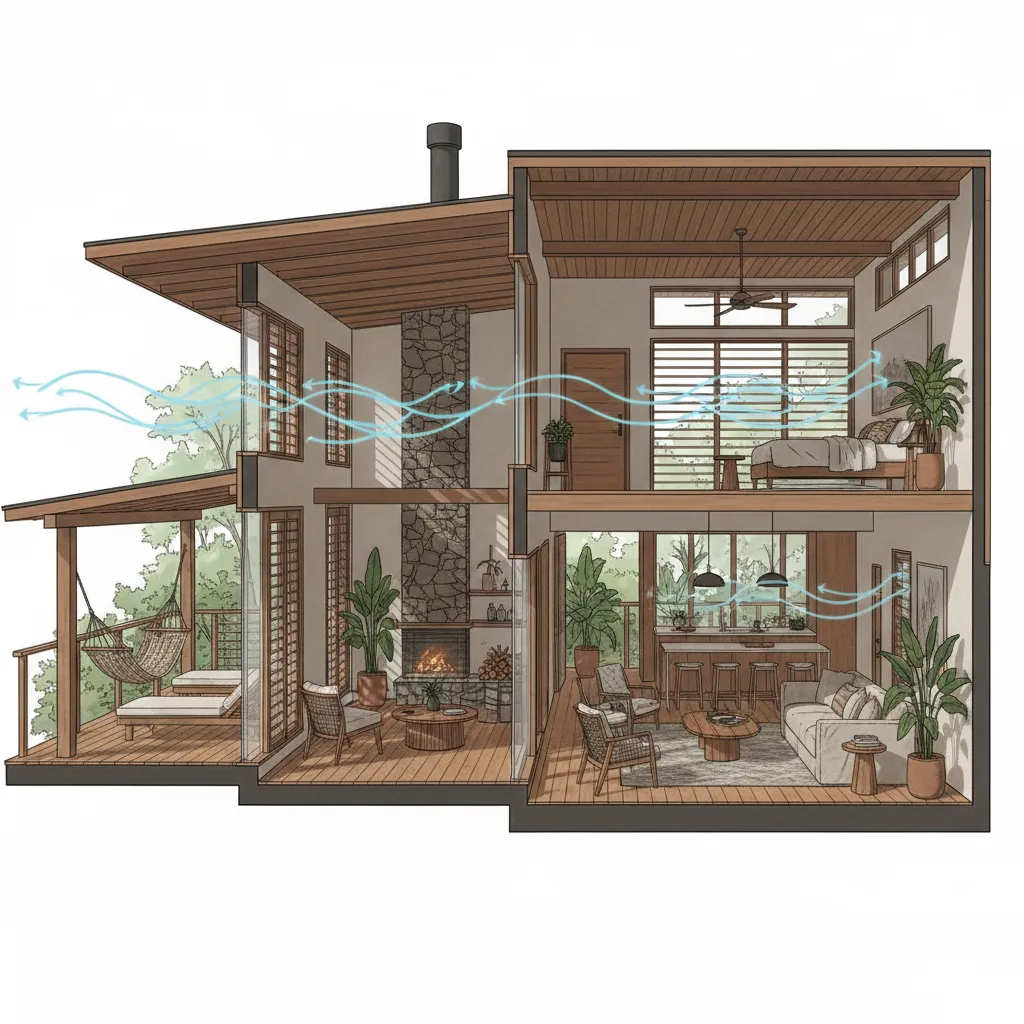

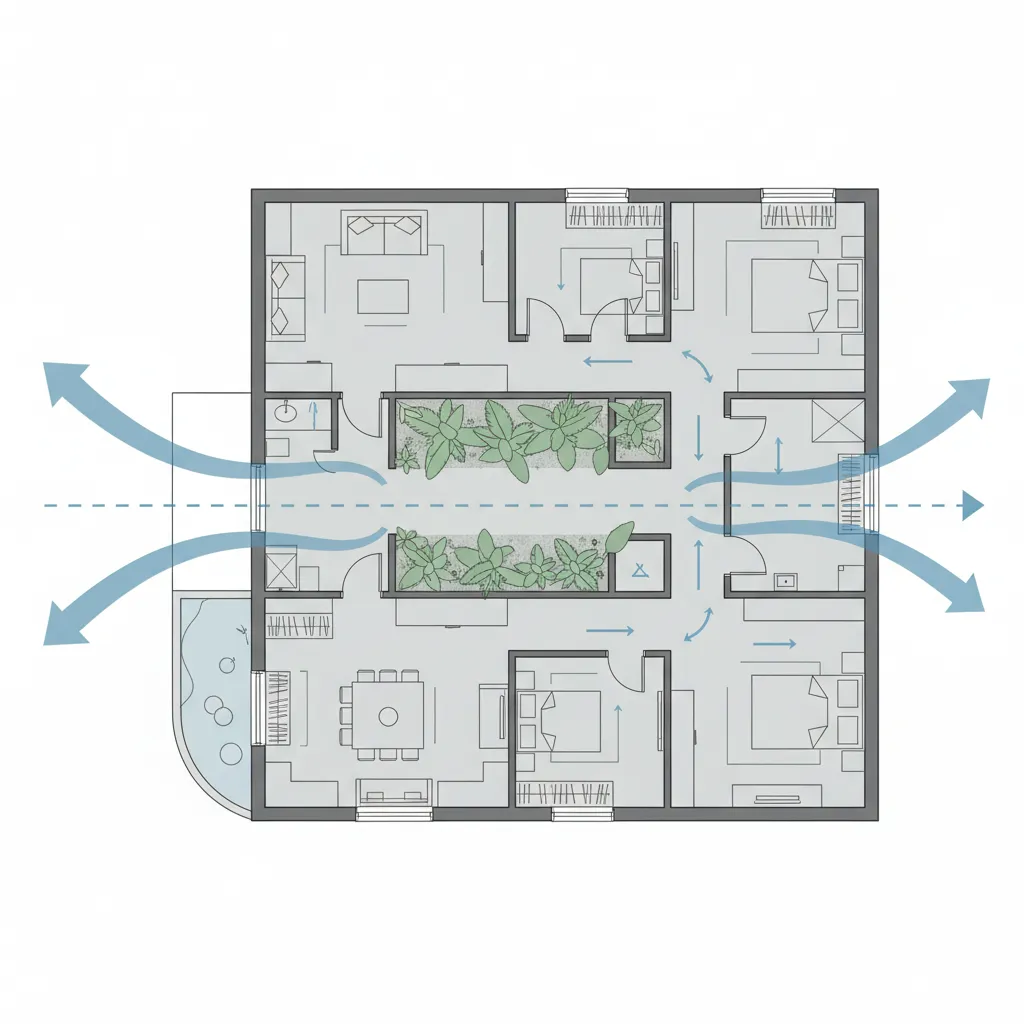

Designing Cross Ventilation Into Floor Plans

Key Insight: Cross ventilation requires two aligned openings on opposite walls—without obstacles interrupting airflow.

Cross ventilation is the backbone of tropical airflow design. Air enters from one side of the house and exits through the other, carrying heat and humidity away.

But achieving this is less obvious than it sounds.

In many homes I evaluate, windows technically exist on opposite walls, yet airflow still fails. Why? Because furniture, hallways, or partitions interrupt the path.

Effective cross ventilation usually follows this sequence:

1. Identify the prevailing wind direction.
2. Place primary openings on the windward side.
3. Place exit openings directly across or diagonally.
4. Avoid interior walls that block the path.
5. Use open doorways or louver panels between rooms.

When testing floor plan concepts, visualizing airflow paths helps identify these blockages early. Many designers simulate layouts using tools like a 3D floor layout visualization workflowto confirm that air paths remain unobstructed.

save pin

Room Placement Strategies for Natural Airflow

Key Insight: Rooms that generate heat or humidity should be placed downwind to prevent warm air from circulating through living areas.

Not every room contributes equally to indoor comfort. Kitchens, bathrooms, and laundry spaces generate heat and moisture, while bedrooms and living rooms require the coolest airflow.

In tropical homes, smart room placement makes a major difference.

Typical airflow‑optimized zoning:

1. Windward side: living room and common spaces
2. Central zone: circulation and flexible areas
3. Leeward side: kitchens, bathrooms, service areas
4. Corner positions: bedrooms with dual ventilation

A common hidden mistake is placing kitchens at the front of the airflow path. When that happens, warm cooking air travels through the entire home.

In several coastal projects I’ve worked on, simply relocating the kitchen toward the leeward side lowered perceived indoor heat significantly—even without adding mechanical cooling.

save pin

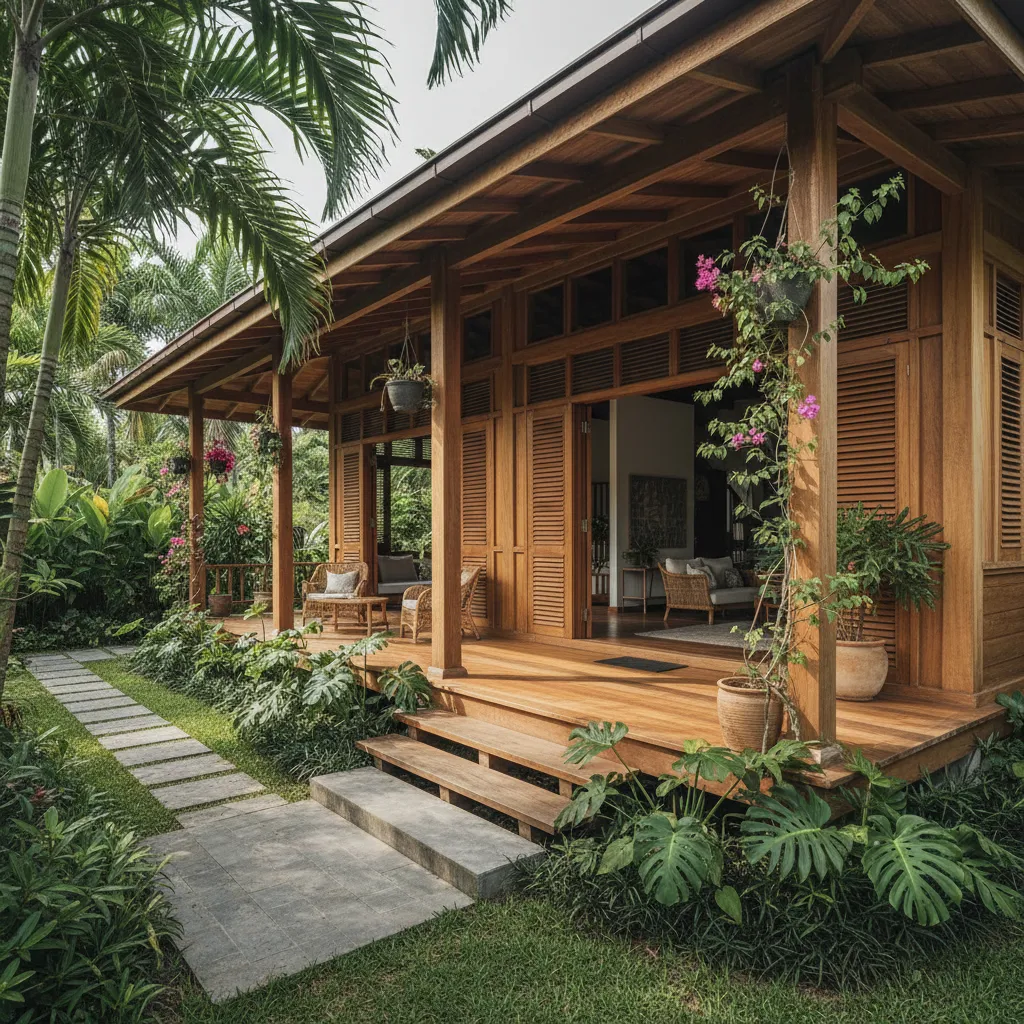

Using Verandas and Open Spaces for Cooling

Key Insight: Semi‑outdoor buffer spaces reduce heat gain before air even enters the home.

Verandas are often seen as aesthetic features, but they are actually powerful climate tools.

In tropical climates, shaded outdoor transition spaces serve three cooling functions:

1. They prevent direct solar heat from hitting interior walls.
2. They allow air to cool slightly before entering the home.
3. They create pressure differences that help airflow move.

Traditional Southeast Asian houses often wrap verandas around two or more sides of the structure. This design keeps walls shaded for most of the day.

Even small verandas can help. In compact affordable homes, a 1.5‑meter deep shaded porch can significantly reduce solar heat gain.

Answer Box

The most effective tropical floor plan improvements are enabling cross ventilation, aligning rooms with wind direction, and adding shaded buffer spaces. These passive strategies reduce indoor heat without increasing construction costs.

Optimizing Window Placement and Orientation

Key Insight: Window placement determines airflow efficiency more than total window area.

A common misconception is that larger windows automatically improve ventilation. In reality, poorly placed windows often create stagnant air pockets.

Better airflow comes from strategic pairing:

1. High windows release hot rising air.
2. Low windows pull in cooler air.
3. Offset openings create stronger pressure flow.
4. Louvered windows maintain airflow during rain.

Orientation also matters. East‑west window alignment often catches prevailing coastal breezes in tropical regions.

Design studies from tropical architecture research groups show that window positioning can improve airflow rates dramatically compared to randomly distributed openings.

Low Cost Layout Tweaks That Improve Thermal Comfort

Key Insight: Small layout adjustments often outperform expensive cooling systems.

Some of the most effective cooling improvements I’ve seen required almost no additional construction cost.

Here are layout tweaks I frequently recommend:

1. Shift interior walls slightly to create straight airflow paths.
2. Replace solid hallway walls with partial openings.
3. Align doorways across rooms to form wind corridors.
4. Add small high vents above doors.
5. Reduce deep enclosed corridors.

If you're testing layout variations during early planning, experimenting with a simple floor plan layout experimentation toolcan help reveal airflow improvements before construction begins.

save pin

Final Summary

1. Cross ventilation is essential for cooling tropical homes naturally.
2. Room placement should follow airflow, not just symmetry.
3. Verandas and shaded spaces significantly reduce indoor heat.
4. Window pairing improves airflow more than window size.
5. Small layout tweaks can dramatically improve comfort.

FAQ

What is the best layout for natural ventilation in tropical homes?

Long, narrow floor plans with openings on opposite walls work best. This allows consistent cross ventilation and prevents trapped warm air.

How do you improve ventilation in tropical homes without AC?

Use cross ventilation, shaded outdoor spaces, properly oriented windows, and airflow‑aligned room placement. These passive cooling tropical house layout strategies reduce indoor heat naturally.

Does ceiling height affect airflow?

Yes. Higher ceilings allow hot air to rise above the occupied zone, improving perceived comfort and supporting natural ventilation.

Are courtyards useful in tropical house design?

Courtyards can enhance airflow by creating pressure differences and allowing warm air to escape upward.

What direction should a tropical house face?

It depends on local prevailing winds, but aligning openings toward dominant breezes typically improves ventilation.

What are common tropical floor plan airflow mistakes?

Blocked ventilation paths, sealed corridors, misplaced kitchens, and windows that do not align with airflow directions.

Can small houses still have good airflow?

Yes. Even compact layouts can support cross ventilation with aligned windows and open circulation spaces.

What is cross ventilation in tropical house design?

Cross ventilation tropical house design uses opposing openings to move air across interior spaces, removing heat and humidity.

References

World Green Building Council – Passive design strategies for warm climates.

UN Environment Programme – Natural ventilation guidelines.

Regional tropical architecture research publications.
