Optimize Black and White Floor Plans for Print and Digital Presentation: Practical techniques architects and designers use to make monochrome floor plans clear, readable, and client‑ready across print, PDF, and online portfolios.

Direct Answer

To optimize black and white floor plans for print and digital presentation, focus on three essentials: clear line weight hierarchy, strong contrast, and export settings that preserve vector clarity. Well‑structured layouts, readable annotations, and the right paper scaling ensure your plans remain legible for both clients and contractors.

Quick Takeaways

1. Use three distinct line weights to establish hierarchy between walls, furniture, and annotations.
2. Maintain strong contrast; avoid mid‑gray tones that disappear when printed.
3. Export floor plans as vector PDFs whenever possible to preserve sharp lines.
4. Always test print at the final scale before sending plans to clients.
5. Simplified annotations improve readability more than adding more detail.

Introduction

Black and white floor plans are still the backbone of architectural communication. Even in an era of photorealistic rendering and immersive walkthroughs, most projects I’ve worked on eventually come down to a clean monochrome drawing that someone needs to print, mark up, or quickly review on a screen.

The challenge is that many otherwise good plans fall apart at the presentation stage. Thin lines vanish on paper, labels become unreadable on tablets, or exported PDFs look blurry when clients zoom in. These issues don’t come from bad design—they usually come from small technical decisions made too late in the workflow.

If you’re still refining your drafting process, it helps to first understand the fundamentals of creating clear layouts. This guide on building accurate floor plan layouts for design projectsexplains how many professionals structure their base drawings before moving into presentation optimization.

After working on residential interiors, developer presentations, and permit documentation for more than a decade, I’ve noticed a pattern: the most effective black and white floor plans are not the most detailed—they’re the most intentional. Every line weight, label, and export setting serves a purpose.

Below are the techniques designers consistently use to optimize floor plans for printing, high‑quality PDFs, and client presentations.

save pin

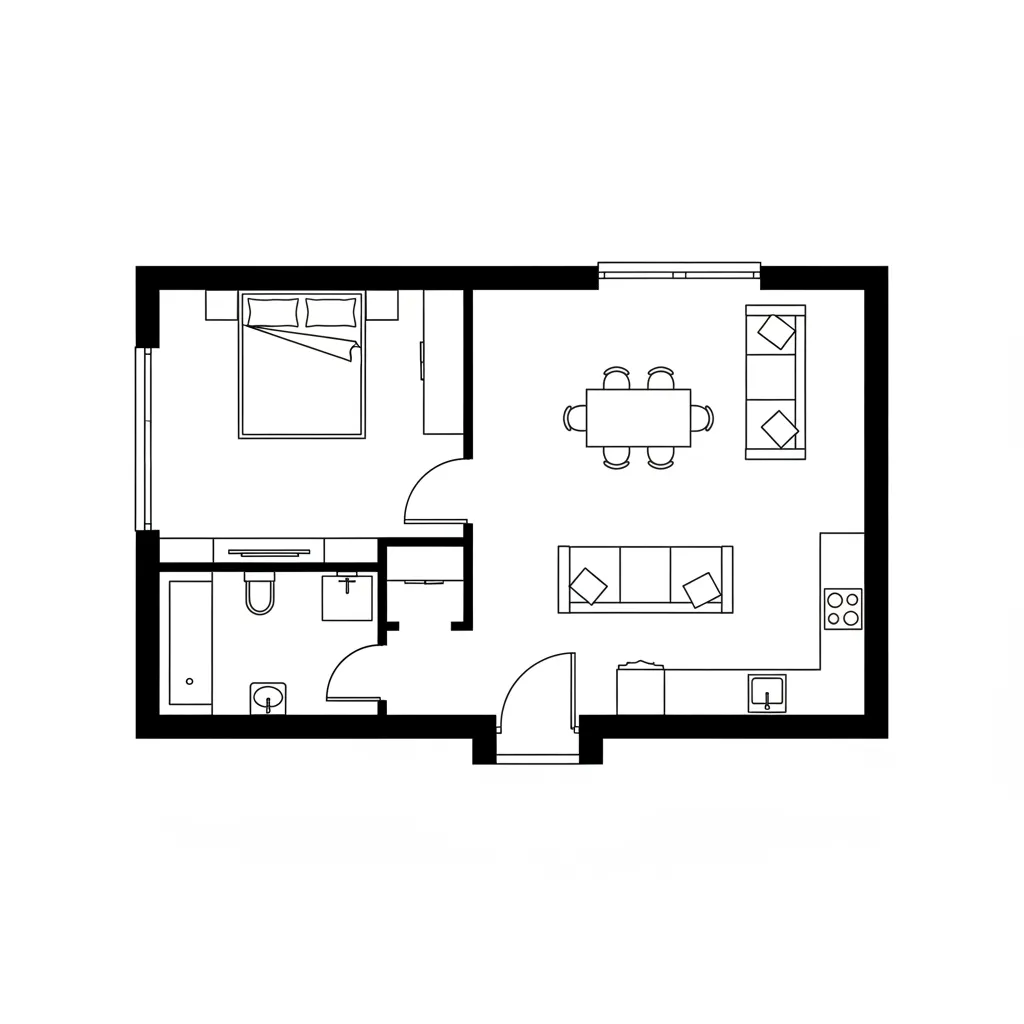

Preparing Black and White Floor Plans for Professional Presentation

Key Insight: The most professional floor plans are simplified before presentation, not after.

One common mistake I see is designers exporting their working drawings directly for presentation. Construction drawings often contain too many layers, symbols, and micro‑details that make sense during drafting but overwhelm clients.

Before exporting, create a dedicated presentation version of the plan.

Typical presentation adjustments include:

1. Hide technical construction layers
2. Remove redundant dimensions
3. Simplify furniture outlines
4. Highlight circulation areas
5. Standardize text size and alignment

Architectural firms frequently maintain two drawing sets: a technical documentation set and a presentation set. This separation keeps floor plans clean without sacrificing project accuracy.

According to the American Institute of Architects (AIA), drawing clarity and hierarchy significantly improve comprehension during design review meetings, especially for non‑technical stakeholders.

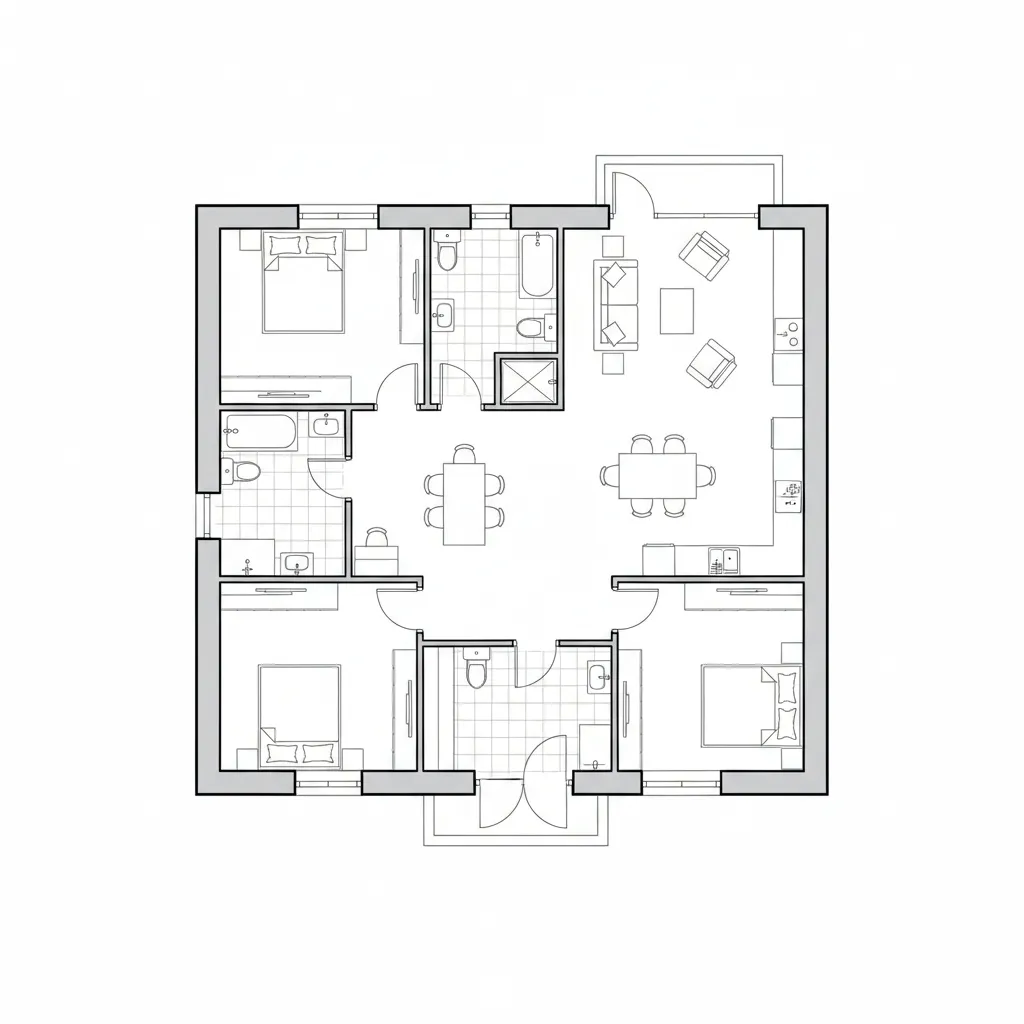

Choosing the Right Line Weights and Contrast

Key Insight: A clear line weight hierarchy is the single most important factor in black and white floor plan readability.

When every line has the same thickness, the drawing becomes visually flat. The viewer’s eye can’t distinguish structural elements from furniture or annotations.

Most professional drafting systems follow a three‑tier line hierarchy:

1. Primary lines (0.5–0.7 mm): exterior and structural walls
2. Secondary lines (0.25–0.35 mm): interior walls, windows, doors
3. Tertiary lines (0.13–0.18 mm): furniture, fixtures, annotations

This hierarchy ensures that when someone glances at the plan, the structure is immediately recognizable.

Another overlooked factor is grayscale usage. Designers often add subtle gray fills for materials or zones, but light gray tones frequently disappear when printed on standard office printers.

A safer strategy is:

1. Use pure black lines
2. Limit fills to strong grayscale differences
3. Test with both laser and inkjet printers

save pin

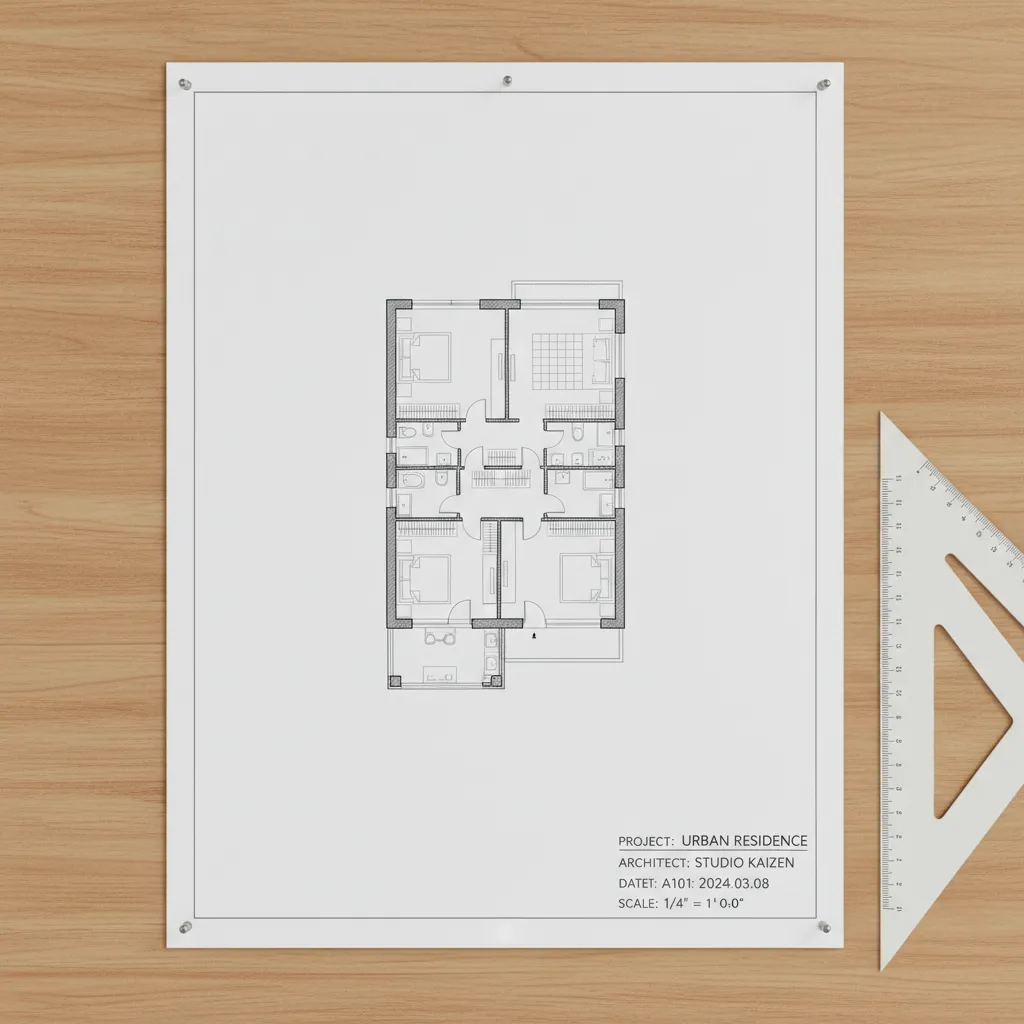

Optimizing Layout for Different Paper Sizes

Key Insight: Floor plans should be composed specifically for their final print format, not simply scaled to fit.

I’ve seen many floor plans that technically "fit" on paper but feel cramped because margins, title blocks, and labels were never adjusted.

Different formats require different layout strategies.

Typical scaling guidelines:

1. A1 / 24×36 in: full residential plans
2. A3 / 11×17 in: simplified client presentations
3. A4 / 8.5×11 in: quick reference layouts

For smaller formats, prioritize key elements:

1. Room names
2. Door swings
3. Main furniture pieces
4. Clear circulation paths

If the plan becomes crowded, it’s better to remove details than reduce everything to unreadable sizes.

Many designers use digital layout previews before printing. Tools that support visualizing room layouts and plan compositions in 3D planning environmentshelp catch scaling problems early in the process.

save pin

Export Settings for High Quality PDF and Image Files

Key Insight: Export settings often determine whether a floor plan looks professional or pixelated.

The best format for most architectural presentations is a vector PDF. Unlike raster images, vector lines stay sharp regardless of zoom level.

Recommended export settings:

1. Format: Vector PDF
2. DPI (if rasterized): minimum 300
3. Color mode: grayscale or pure black
4. Line merge: enabled
5. Font embedding: enabled

If the plan must be exported as an image for presentations or social media, PNG typically preserves detail better than JPEG.

Always test exports by zooming to 300–400%. If lines appear jagged or text becomes blurry, the export settings need adjustment.

Answer Box

The best way to optimize black and white floor plans is to combine clear line hierarchy, simplified presentation layers, and vector PDF exports. These three adjustments dramatically improve readability for both print and digital viewing.

save pin

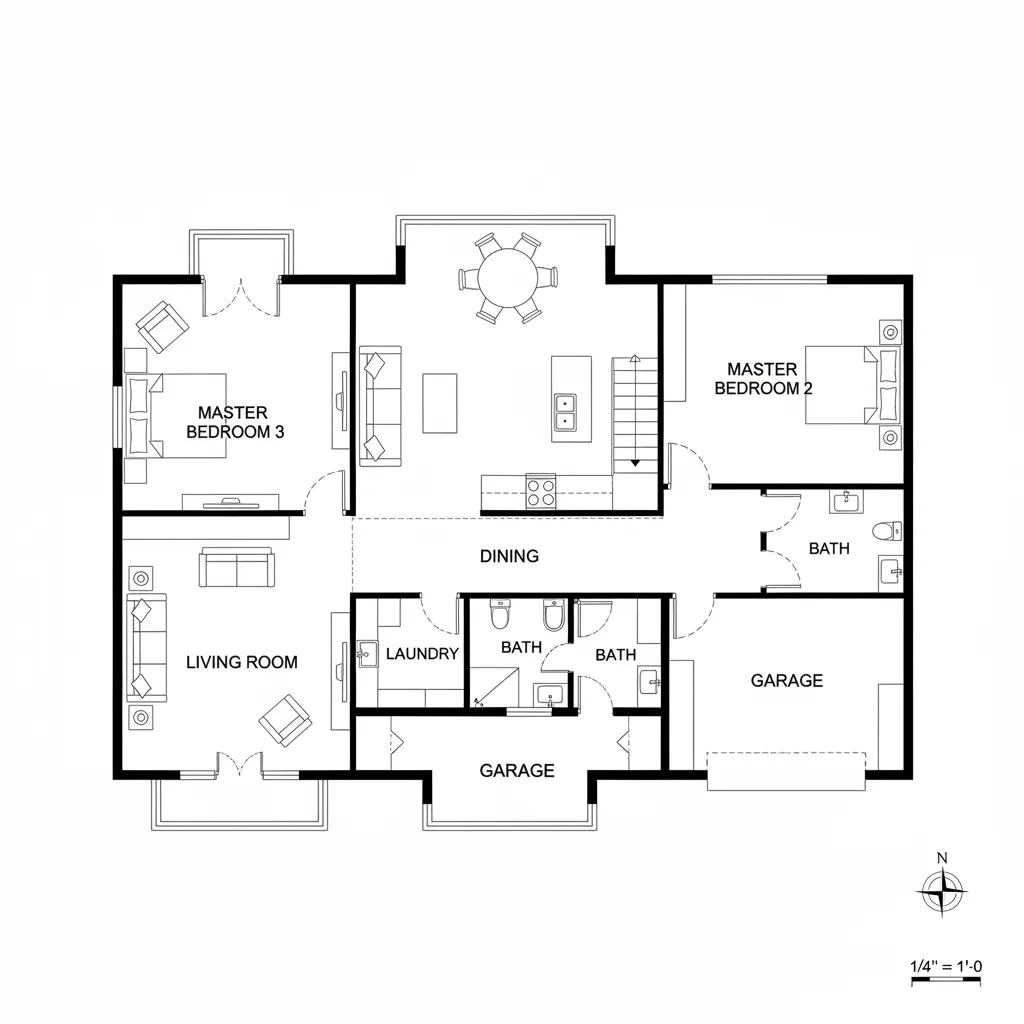

Improving Legibility for Client Presentations

Key Insight: Client‑facing floor plans should prioritize clarity over technical precision.

Architects often design drawings for other architects, but most clients don’t read plans regularly. If a floor plan requires explanation, it’s usually too complex.

Several adjustments improve readability immediately:

1. Increase room label size
2. Use simple furniture icons
3. Highlight primary circulation paths
4. Add subtle shading to distinguish zones

I often test client readability by showing the plan for five seconds. If someone can’t quickly identify the kitchen, living area, and bedrooms, the hierarchy needs improvement.

Interior designers presenting renovation concepts frequently pair simplified plans with visual previews. Many studios generate these using tools capable of producing realistic interior renderings from floor plans so clients understand spatial relationships faster.

Best Practices for Digital Sharing and Online Portfolios

Key Insight: Floor plans shared online must balance clarity with file efficiency.

Digital platforms compress images aggressively, which can destroy fine drafting details. Preparing a separate web‑optimized version prevents this.

Recommended digital export workflow:

1. Export master vector PDF
2. Create 300 DPI PNG version
3. Resize to ~2000 px width for web
4. Compress without reducing line clarity

Online portfolios also benefit from pairing floor plans with context images—room views, circulation diagrams, or zoning overlays—so viewers quickly understand spatial relationships.

Design studios increasingly include simplified floor plans alongside 3D visuals because they remain the fastest way to communicate layout logic.

Final Summary

1. Clear line weight hierarchy dramatically improves floor plan readability.
2. Presentation versions of drawings should remove unnecessary drafting layers.
3. Vector PDF exports preserve sharp lines for print and digital viewing.
4. Plans must be composed specifically for the intended paper size.
5. Simplified labels and furniture icons help clients understand layouts faster.

FAQ

What are the best line weights for black and white floor plans?

Most architects use three tiers: 0.5–0.7 mm for walls, 0.25–0.35 mm for interior elements, and 0.13–0.18 mm for furniture and annotations.

How do I optimize floor plans for printing?

Use strong line hierarchy, avoid light gray fills, export as vector PDF, and test print at the final scale before sharing.

Should floor plans be exported as PDF or image files?

PDF is best for professional use because vector lines remain sharp when zoomed or printed.

What resolution is best for exporting floor plans?

If exporting raster images, use at least 300 DPI to maintain crisp lines.

How can I improve floor plan readability for clients?

Increase label sizes, simplify symbols, highlight main circulation, and remove technical drafting details.

Why do floor plans look blurry after export?

This usually happens when raster export settings use low DPI or compression.

How do architects prepare 2D floor plans for printing?

They create presentation versions of drawings, adjust line weights, test scaling, and export high‑quality PDFs.

What is the best format for sharing floor plans online?

A compressed high‑resolution PNG combined with a downloadable PDF provides the best balance of clarity and accessibility.
