Optimize Hospital Floor Plan for Patient Flow and Efficiency: Practical hospital layout strategies that reduce bottlenecks, improve staff workflows, and create smoother patient circulation.

Direct Answer

To optimize a hospital floor plan for patient flow and efficiency, departments must be arranged according to real care pathways, minimizing travel distance between high‑interaction zones such as emergency, imaging, surgery, and inpatient wards. Effective layouts reduce cross‑traffic between patients, staff, and supplies while supporting clear wayfinding and streamlined workflows.

Hospitals that prioritize circulation patterns and operational adjacencies typically reduce delays, improve staff productivity, and enhance patient experience.

Quick Takeaways

1. Emergency, imaging, and operating rooms should sit close together to reduce patient transfer time.
2. Separate circulation paths for patients, staff, and supplies dramatically improve efficiency.
3. Data from real movement patterns should guide layout decisions rather than assumptions.
4. Bottlenecks often occur in corridors, triage areas, and outpatient waiting zones.
5. Iterative digital planning helps test layouts before construction or renovation.

Introduction

Designing a hospital floor plan is one of the most complex layout challenges in architecture. Over the past decade working on healthcare interiors, I've noticed that the difference between a stressful hospital and a smooth‑running one often comes down to circulation design.

Many hospitals look organized on paper but fail during daily operations. Patients get wheeled across long corridors, staff constantly backtrack between departments, and emergency teams lose precious minutes navigating inefficient layouts.

The goal when you optimize a hospital floor plan for patient flow is not simply fitting departments into a building. It's designing a system where movement feels natural and predictable. Digital planning tools have made this process easier; in many projects I start by modeling circulation scenarios using tools similar to those used to visualize complex healthcare layouts before construction begins.

In this guide I'll break down the layout principles that consistently improve hospital workflow, based on real project experience and healthcare design research.

save pin

Why Patient Flow Is Critical in Hospital Layout Design

Key Insight: Hospitals function efficiently only when the physical layout mirrors the real patient journey from entry to discharge.

In practice, hospitals operate as movement systems. Patients arrive through emergency or outpatient departments, move to imaging or diagnostics, then continue to treatment areas and eventually inpatient rooms.

If these departments are poorly connected, every transfer introduces delays.

Typical patient movement path:

1. Arrival and triage
2. Diagnostics or imaging
3. Treatment or surgery
4. Recovery or inpatient ward
5. Discharge or follow‑up services

A study published in the journal Health Environments Research & Design shows that poorly designed circulation can increase staff walking distance by over 30%. In large hospitals, that translates into thousands of lost staff hours annually.

One mistake I often see is designing departments independently rather than as a connected flow. A floor plan might look balanced architecturally but fail operationally.

Designing Efficient Department Adjacencies

Key Insight: The closer critical departments are to each other, the faster care delivery becomes.

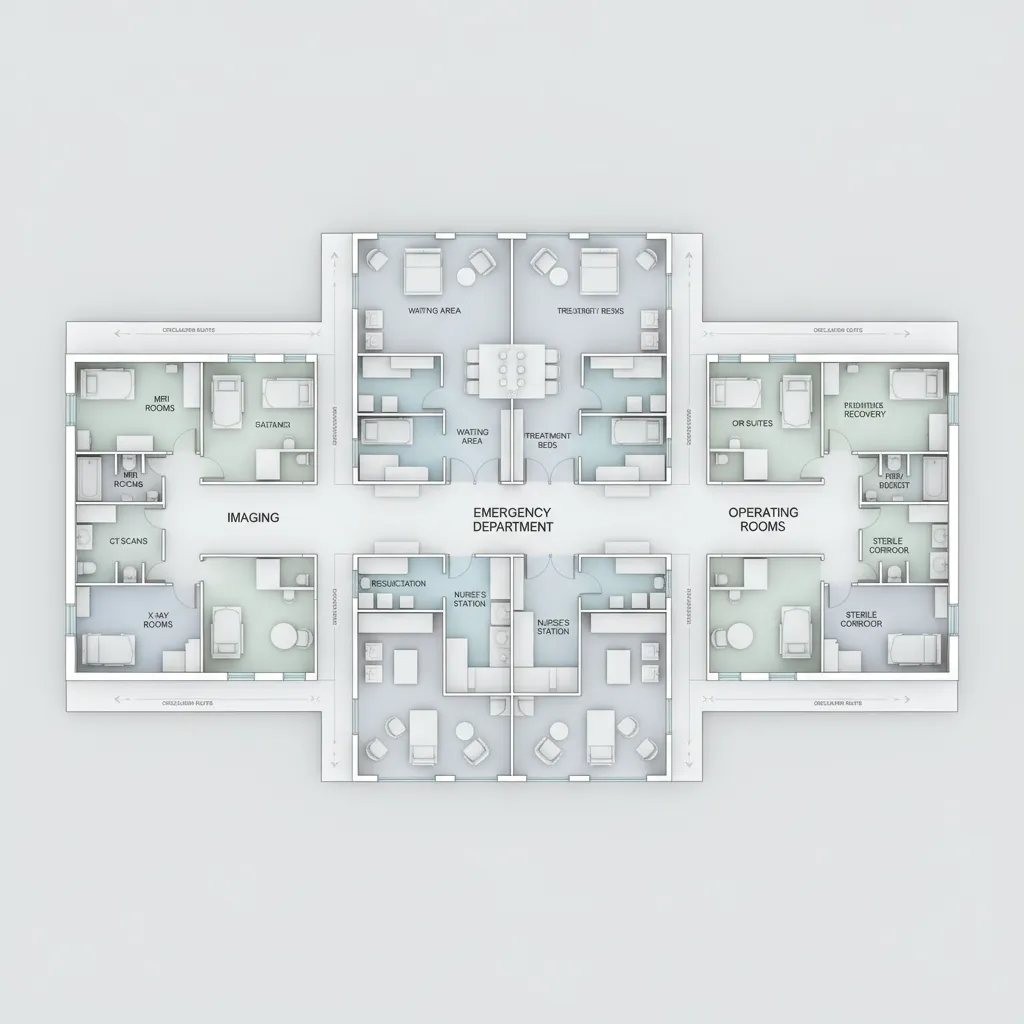

Adjacency planning is the backbone of efficient hospital layout design. Departments that frequently interact should share walls, corridors, or vertical access.

High‑priority adjacency relationships:

1. Emergency Department ↔ Imaging
2. Emergency Department ↔ Operating Rooms
3. Operating Rooms ↔ Intensive Care Units
4. Diagnostics ↔ Outpatient Clinics
5. Pharmacy ↔ Inpatient Wards

In several healthcare projects I've worked on, simply relocating imaging suites closer to the emergency department reduced patient transport time by several minutes per case. That may sound small, but during trauma care it matters enormously.

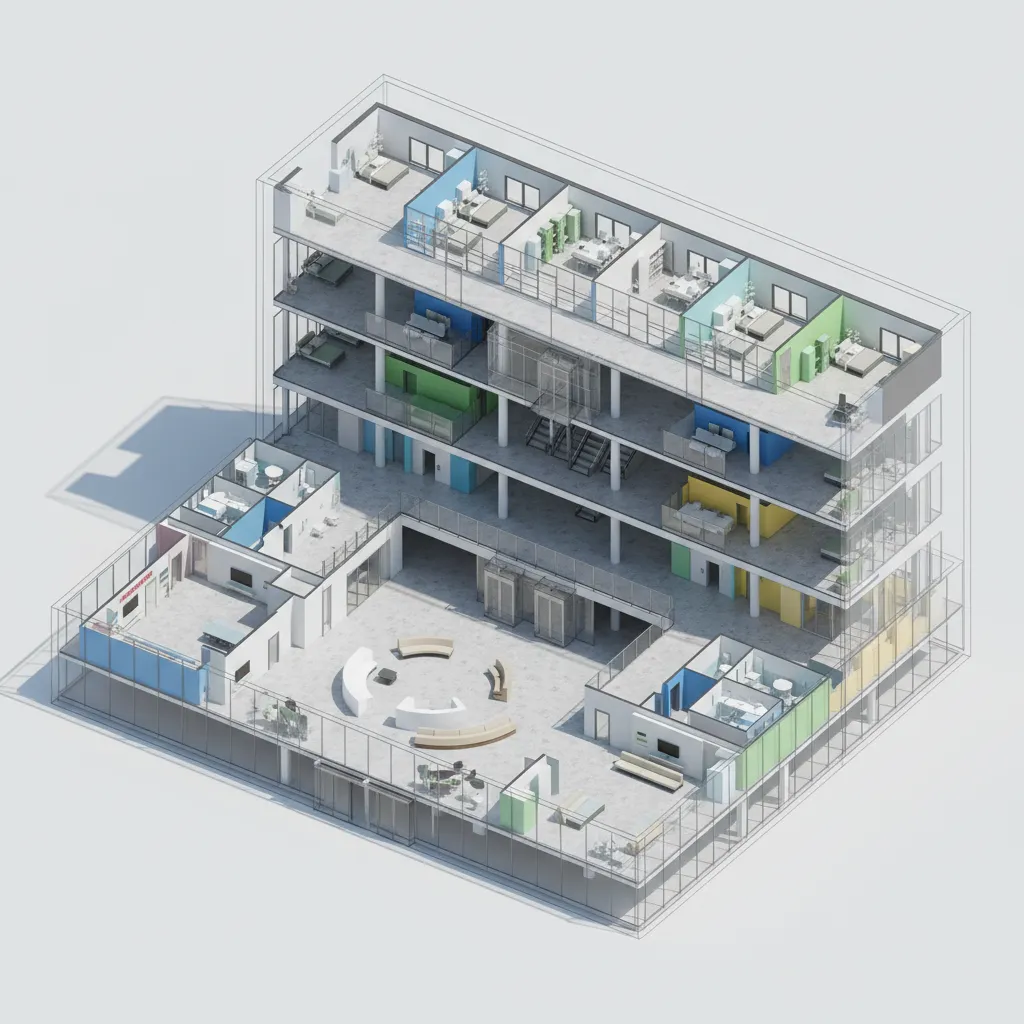

Digital layout simulation platforms help planners test these relationships visually. Many designers now rely on spatial modeling similar to workflows used to

save pin

build interactive 3D hospital floor plan simulations to evaluate adjacency options before construction.

Optimizing Staff Movement and Workflows

Key Insight: Staff travel distance often matters more than patient distance in hospital layout efficiency.

Nurses, technicians, and physicians move constantly throughout a shift. If the layout forces long walking routes between stations, productivity drops and fatigue increases.

Effective staff workflow strategies include:

1. Decentralized nurse stations closer to patient rooms
2. Medication rooms positioned centrally
3. Supply rooms distributed across departments
4. Direct staff corridors separate from public areas

One hidden problem many facilities overlook is supply movement. Equipment carts, linens, medications, and waste all require circulation paths. If these share the same corridors as patients and visitors, congestion builds quickly.

The best hospitals treat logistics movement almost like a second transportation system within the building.

Answer Box

The most efficient hospital floor plans prioritize adjacency, minimize walking distance, and separate circulation paths for patients, staff, and logistics. Layout decisions should reflect real healthcare workflows rather than purely architectural symmetry.

Reducing Bottlenecks in Emergency and Outpatient Areas

Key Insight: Bottlenecks usually occur where multiple circulation paths intersect.

Emergency departments and outpatient clinics handle the highest traffic volume, which makes them particularly vulnerable to congestion.

Common bottleneck locations:

1. Triage desks
2. Registration counters
3. Imaging waiting areas
4. Elevator lobbies
5. Corridor intersections

Design solutions that work well include:

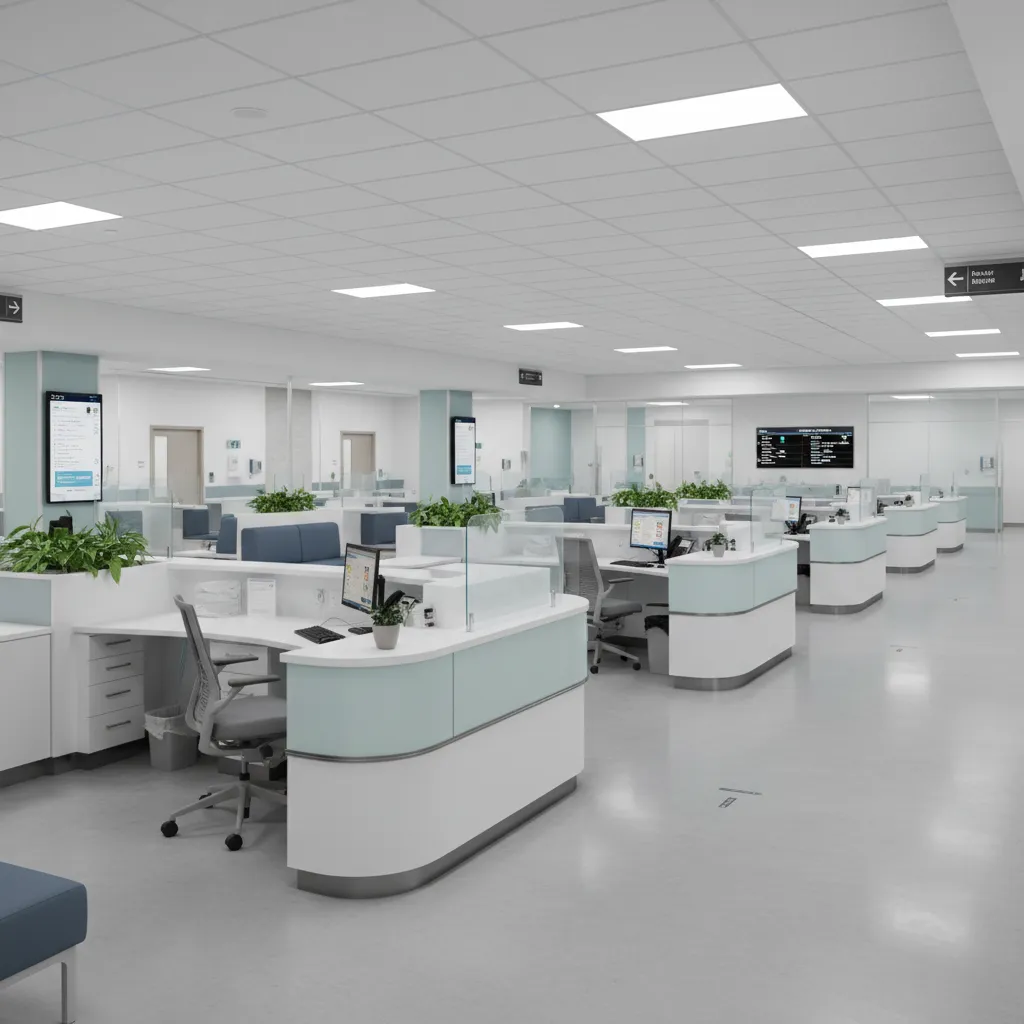

1. Multiple triage stations instead of a single entry point
2. Distributed waiting areas
3. Clear directional signage
4. Separate diagnostic circulation corridors

During one renovation project, we redesigned the emergency intake area by splitting triage into two parallel zones. Patient wait times dropped noticeably because arrivals no longer formed a single queue.

save pin

Using Data to Improve Hospital Layout Efficiency

Key Insight: Real operational data often contradicts planning assumptions.

Healthcare designers increasingly rely on movement data, sensor tracking, and operational metrics to refine layouts.

Common data sources include:

1. Patient transfer logs
2. Staff badge tracking
3. Electronic medical record timestamps
4. Emergency department throughput metrics

These datasets reveal actual circulation patterns, highlighting inefficiencies such as unnecessary staff walking loops or diagnostic delays.

Healthcare systems like the Cleveland Clinic and Kaiser Permanente have publicly discussed using operational analytics to redesign care pathways and reduce patient movement.

Practical Layout Optimization Strategies for Modern Hospitals

Key Insight: The most effective hospital layouts are modular, flexible, and designed for future workflow changes.

Healthcare delivery evolves constantly. A layout that works today may struggle in ten years if it lacks adaptability.

Practical strategies include:

1. Standardized room modules
2. Expandable diagnostic zones
3. Flexible outpatient clinic layouts
4. Centralized logistics corridors

Before committing to construction, I strongly recommend testing layouts digitally. Many healthcare planners now prototype circulation using systems similar to tools used to experiment with complex building workflow layoutsbefore finalizing plans.

save pin

Final Summary

1. Efficient hospital layouts mirror real patient care pathways.
2. Department adjacency directly affects treatment speed.
3. Staff travel distance significantly impacts operational productivity.
4. Emergency and outpatient zones require special circulation planning.
5. Data‑driven design produces more reliable hospital layouts.

FAQ

What is the most important factor in hospital floor plan efficiency?

Department adjacency and circulation design. When departments that frequently interact are located close together, patient transfers become faster and smoother.

How can hospitals optimize patient flow?

Hospitals optimize patient flow by reducing travel distances, separating circulation paths, and aligning layouts with real care processes.

Why do hospital layouts create bottlenecks?

Bottlenecks usually happen where multiple circulation routes intersect, such as triage desks, elevators, or diagnostic waiting areas.

What departments should be closest in a hospital?

Emergency, imaging, operating rooms, and intensive care units should have very short transfer routes.

How does layout affect hospital staff productivity?

Long walking distances reduce staff efficiency. Decentralized stations and distributed supply rooms help minimize unnecessary movement.

What tools help improve hospital facility layout efficiency strategies?

Digital floor plan modeling, workflow simulations, and movement data analysis are commonly used to evaluate layout performance.

Can hospital workflow optimization layout improve patient experience?

Yes. Faster transfers, clearer wayfinding, and shorter waiting times significantly improve patient satisfaction.

How often should hospitals review their layouts?

Major facilities typically reassess layout performance every few years, especially when services expand or patient volumes increase.
