Optimize Landscape CAD Blocks for Faster Design Workflows: Practical methods professional designers use to clean, organize, and standardize landscape CAD blocks for faster project delivery

Direct Answer

To optimize landscape CAD blocks for faster workflows, clean unnecessary layers, standardize scales, reduce file weight, and organize blocks into structured libraries. Well‑optimized CAD blocks load faster, reduce drawing lag, and allow designers to reuse elements consistently across projects.

Most performance issues in landscape drawings come from messy downloaded blocks—extra layers, oversized geometry, and inconsistent scaling. Fixing those early dramatically speeds up drafting and documentation.

Quick Takeaways

1. Clean CAD blocks by removing unused layers, hatches, and nested geometry.
2. Standardized block scales prevent constant resizing during design work.
3. Organized CAD libraries reduce search time and drafting friction.
4. Lightweight blocks significantly improve performance in large landscape plans.
5. Reusable block standards make multi‑project workflows far more efficient.

Introduction

Optimizing landscape CAD blocks is one of those things designers rarely talk about—but after working on dozens of residential and commercial landscape projects, I can tell you it’s one of the biggest hidden productivity multipliers.

Early in my career, I downloaded hundreds of free CAD blocks: trees, shrubs, outdoor furniture, paving patterns. The problem? Most of them were messy. Some had 20 layers inside a single plant symbol. Others were drawn at random scales or included thousands of unnecessary hatch lines. The result was predictable: slow files, broken drawings, and endless time spent fixing blocks instead of designing landscapes.

Over time, I developed a simple rule: every downloaded block must be optimized before entering the project library. Once that habit is in place, design speed improves dramatically. Teams spend less time troubleshooting and more time exploring layouts—especially when paired with visual planning tools like this guide on visualizing outdoor layouts before drafting detailed CAD drawings.

In this article, I’ll walk through the exact optimization process landscape designers use to clean, organize, and standardize CAD blocks so large planting plans and site layouts remain fast and manageable.

save pin

Why CAD Block Optimization Matters in Landscape Design

Key Insight: Poorly optimized CAD blocks are one of the most common causes of slow landscape drawings.

Landscape drawings often contain hundreds—or thousands—of repeated elements: trees, shrubs, paving modules, site furniture, lighting fixtures, and irrigation components. If each block carries unnecessary geometry or hidden layers, file size quickly explodes.

In large planting plans, I’ve seen a single unoptimized tree block increase file size by several megabytes. Multiply that by 300 trees and performance drops fast.

Common problems inside downloaded CAD blocks include:

1. Nested blocks inside blocks
2. Unused layers imported from other drawings
3. Overly dense hatch patterns
4. Incorrect units or scale factors
5. Embedded annotation objects

According to Autodesk documentation on CAD performance, repeated heavy blocks significantly increase regeneration time in large drawings. Cleaning these early prevents cumulative slowdowns later.

Cleaning Up Layers and Reducing File Size

Key Insight: The fastest way to improve CAD performance is removing unnecessary layers and simplifying geometry.

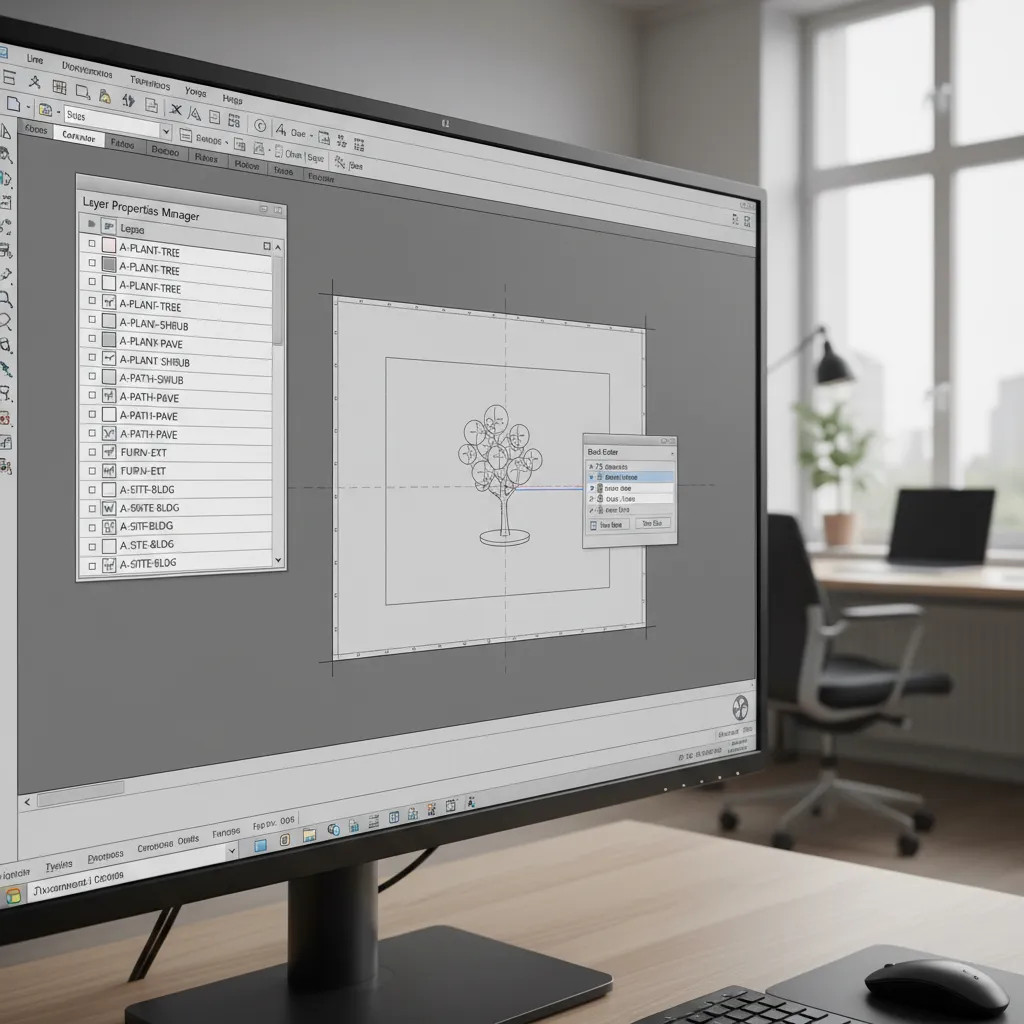

Whenever I download a new landscape block, the first step is opening it in a blank file and stripping it down.

Here is the quick cleanup process I recommend:

1. Run PURGE to remove unused layers and objects
2. Delete excessive hatch patterns
3. Explode and rebuild overly nested blocks
4. Simplify polylines with too many vertices
5. Audit the drawing to fix hidden errors

One surprising issue I frequently see: ornamental plant symbols with thousands of spline points. Visually they look nice, but they destroy performance in large planting plans. A simplified polyline version often works just as well.

save pin

Creating Organized Landscape CAD Libraries

Key Insight: A structured CAD block library saves more time than constantly downloading new symbols.

Many designers store blocks in random folders. The result is constant searching and duplicate downloads.

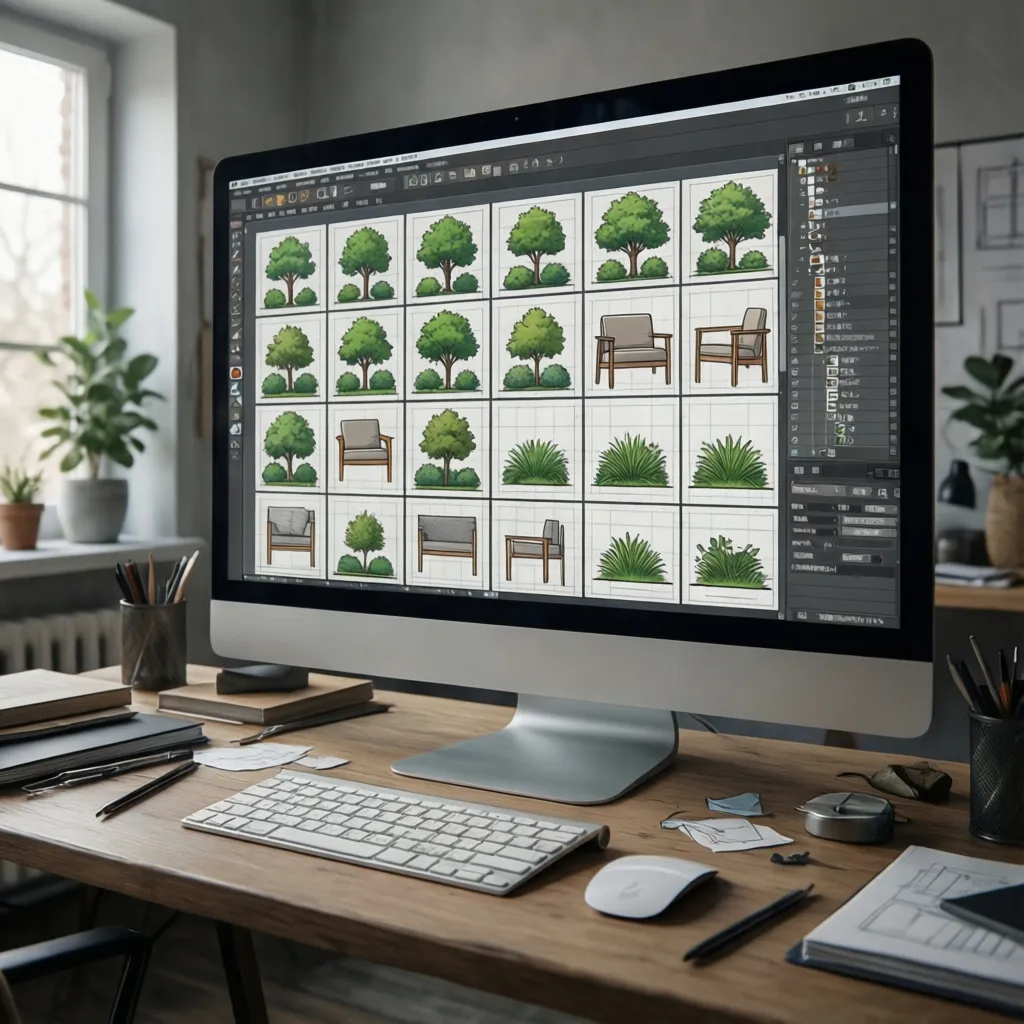

Instead, build a clear library structure:

1. Trees – plan view
2. Trees – elevation
3. Shrubs and planting symbols
4. Outdoor furniture
5. Paving patterns
6. Site details

Within professional studios, these folders are often standardized across the team so every designer uses identical symbols.

This consistency becomes even more important when combining CAD documentation with visual modeling workflows such as building quick spatial layouts before detailed landscape drafting.

save pin

Answer Box

Optimized landscape CAD blocks are lightweight, consistently scaled, and organized in structured libraries. Designers who clean blocks before using them avoid slow drawings, scaling errors, and repeated file troubleshooting.

Standardizing Blocks for Repeated Project Use

Key Insight: Standardized blocks eliminate one of the most frustrating problems in landscape drafting—scale inconsistencies.

Many free CAD blocks are created in different units: inches, millimeters, meters, or arbitrary scales. If not corrected, every placement requires manual adjustment.

The better approach is to standardize blocks once.

My typical process:

1. Insert the block into a test file
2. Verify drawing units
3. Scale to real‑world dimensions
4. Redefine insertion point
5. Save the cleaned block to the master library

Once standardized, these blocks can be reused across dozens of projects without modification.

Improving Performance in Large Landscape CAD Drawings

Key Insight: Performance problems in landscape plans usually come from repeated heavy blocks rather than drawing size alone.

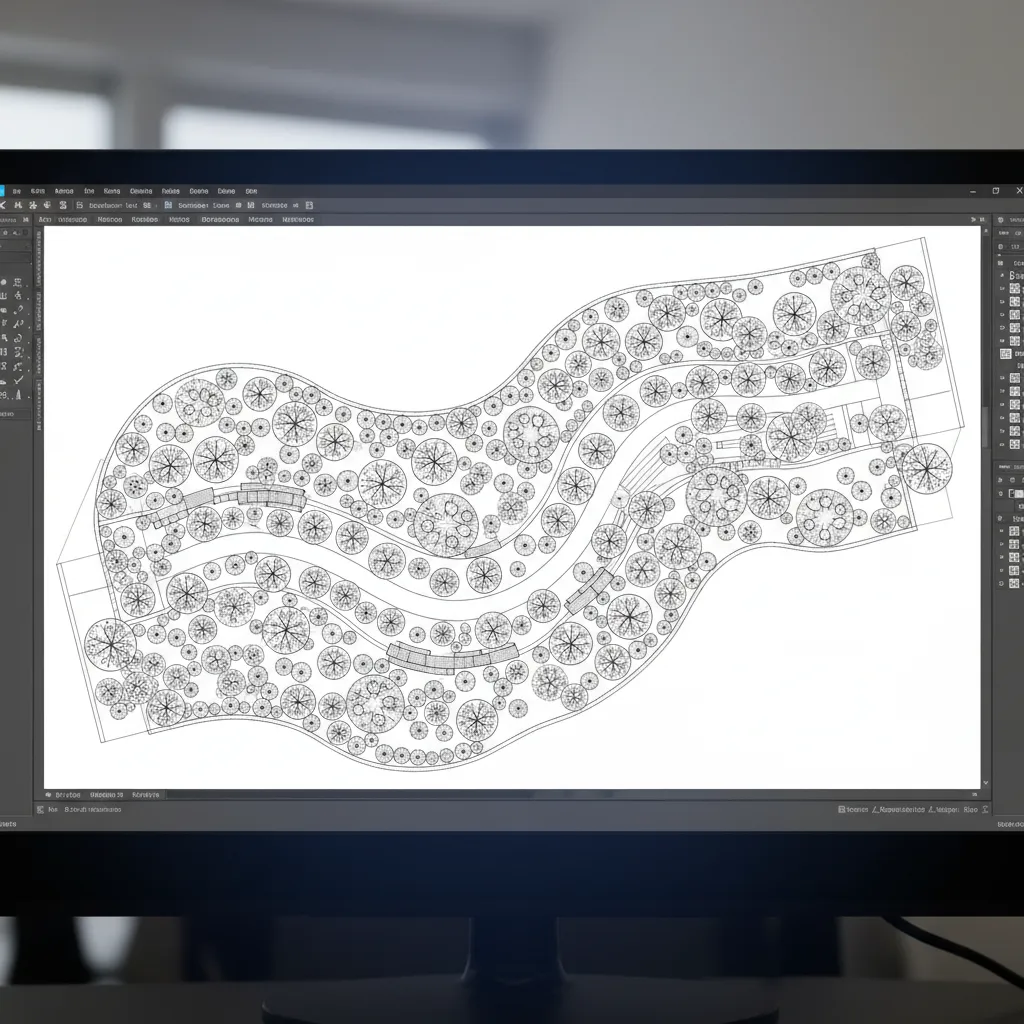

Large planting plans are especially vulnerable because the same block may appear hundreds of times.

To keep drawings responsive:

1. Use lightweight symbolic tree blocks for large plans
2. Avoid high‑detail hatching in early design phases
3. Limit nested blocks to two levels maximum
4. Replace spline-heavy graphics with polylines
5. Use layer states for visibility control

Many landscape architects also separate planting, hardscape, and irrigation into referenced drawings to reduce file load.

Workflow Tips for Faster Landscape Drafting

Key Insight: Workflow discipline matters as much as block quality.

After working on both residential gardens and large commercial landscapes, I’ve noticed that the fastest teams follow a consistent drafting workflow.

Effective workflow habits include:

1. Maintain a "cleaned" CAD block library separate from downloads
2. Assign naming conventions for plant symbols
3. Use template files with predefined layers
4. Review blocks before adding them to project drawings

Many firms now combine CAD drafting with visual planning and quick layout experimentation using tools like creating quick concept layouts before committing to detailed site drawings, which reduces redesign cycles dramatically.

Final Summary

1. Optimized CAD blocks dramatically improve drafting speed.
2. Cleaning layers and simplifying geometry reduces file size.
3. Structured libraries prevent repeated downloads and confusion.
4. Standardized scales eliminate constant resizing.
5. Efficient workflows compound productivity gains across projects.

FAQ

1. What does it mean to optimize CAD blocks?

It means cleaning layers, simplifying geometry, standardizing scale, and organizing blocks so they work efficiently in drawings.

2. Why do landscape CAD drawings become slow?

Most slowdowns come from repeated heavy blocks, complex hatches, and nested objects inside downloaded CAD symbols.

3. How do you reduce CAD file size in landscape drawings?

Run PURGE, remove unused layers, simplify splines, and replace detailed graphics with lightweight symbolic blocks.

4. How should landscape CAD libraries be organized?

Group blocks by categories like trees, shrubs, furniture, paving, and site details to make them easy to locate.

5. Should every downloaded CAD block be cleaned?

Yes. Many free files contain hidden layers and incorrect units that cause scaling problems later.

6. What is the best scale for landscape CAD blocks?

Blocks should match the drawing unit of your project—typically meters or feet for landscape plans.

7. Can optimizing blocks improve AutoCAD performance?

Yes. Lightweight blocks significantly reduce regeneration time and drawing lag.

8. What is the biggest mistake designers make with CAD blocks?

Adding downloaded blocks directly into project files without cleaning them first.
