Optimize Large Railway Station 3D Models for Performance: Practical techniques to reduce polygon load, speed up rendering, and keep detail in massive transportation hub models.

Direct Answer

Optimizing large railway station 3D models requires a combination of polygon reduction, Level of Detail (LOD) systems, efficient textures, and structured scene organization. The goal is to keep visual fidelity while dramatically lowering geometry, memory usage, and draw calls. When applied correctly, these techniques can reduce rendering load by more than half without noticeable visual loss.

Quick Takeaways

1. Use LOD systems so distant structures load simplified geometry automatically.
2. Replace repeated assets like benches and columns with instanced objects.
3. Texture atlases reduce memory usage and improve rendering efficiency.
4. Organized scene hierarchy dramatically speeds up editing and rendering.
5. Export optimized meshes and compressed textures for web visualization.

Introduction

Large railway station projects are some of the heaviest architectural models you can build. After working on several transportation visualization projects over the past decade, I’ve learned that performance issues almost always appear once the station model grows beyond a few million polygons.

The challenge isn't just geometry. Platforms, tracks, signage systems, seating areas, retail zones, and structural steel multiply quickly. Suddenly a "simple" station visualization becomes a 2‑gigabyte file that crashes browsers or slows renders to a crawl.

When teams start modeling these environments, they often focus on accuracy first and optimization later. That approach almost always creates problems. In practice, optimization must be baked into the modeling workflow from day one.

If you're studying large infrastructure scenes, it also helps to review how complete station environments are structured. A good reference example is this detailed step‑by‑step architectural rendering workflow for complex building scenes, which shows how scene structure affects final performance.

In this guide I'll walk through the same optimization strategies we use in large-scale architectural visualization projects—specifically for railway stations, transport hubs, and large civic interiors.

save pin

Challenges of Large Transportation Hub 3D Models

Key Insight: Railway stations become heavy models not because of a single object, but because of thousands of repeated elements.

A typical station includes tracks, platform canopies, lighting systems, ticket gates, escalators, seating rows, retail storefronts, and signage. Each category adds geometry and materials.

In one station project I worked on, more than 40% of the polygon count came from seating rows and structural beams alone—elements that appeared hundreds of times.

Common performance bottlenecks include:

1. Excessively detailed structural elements
2. High-resolution textures applied to distant objects
3. Duplicate meshes instead of instanced assets
4. Poor scene hierarchy
5. Too many unique materials

Transportation infrastructure projects also differ from residential architecture because of scale. A single platform canopy may span 200 meters, meaning even small inefficiencies multiply dramatically.

Reducing Polygon Count Without Losing Detail

Key Insight: Most architectural models can lose 40–70% of their polygons with almost no visible difference.

In large station scenes, the majority of geometry is rarely viewed up close. Tracks, beams, railings, and overhead structures often contain far more geometry than necessary.

Here are the reduction strategies I use most often:

1. Replace cylindrical geometry – Reduce segment counts for pipes, poles, and railings.
2. Use normal maps – Preserve visual detail without heavy geometry.
3. Simplify repeating assets – Benches, ticket gates, and signage rarely need high detail.
4. Merge static meshes – Combine nearby structural components.

A practical rule: if an object occupies less than 2% of the screen in the final view, it almost never needs complex geometry.

Many teams also prototype layout efficiency first using tools similar to this interactive 3D layout planning workflow for complex buildings, which helps reduce unnecessary modeling early.

save pin

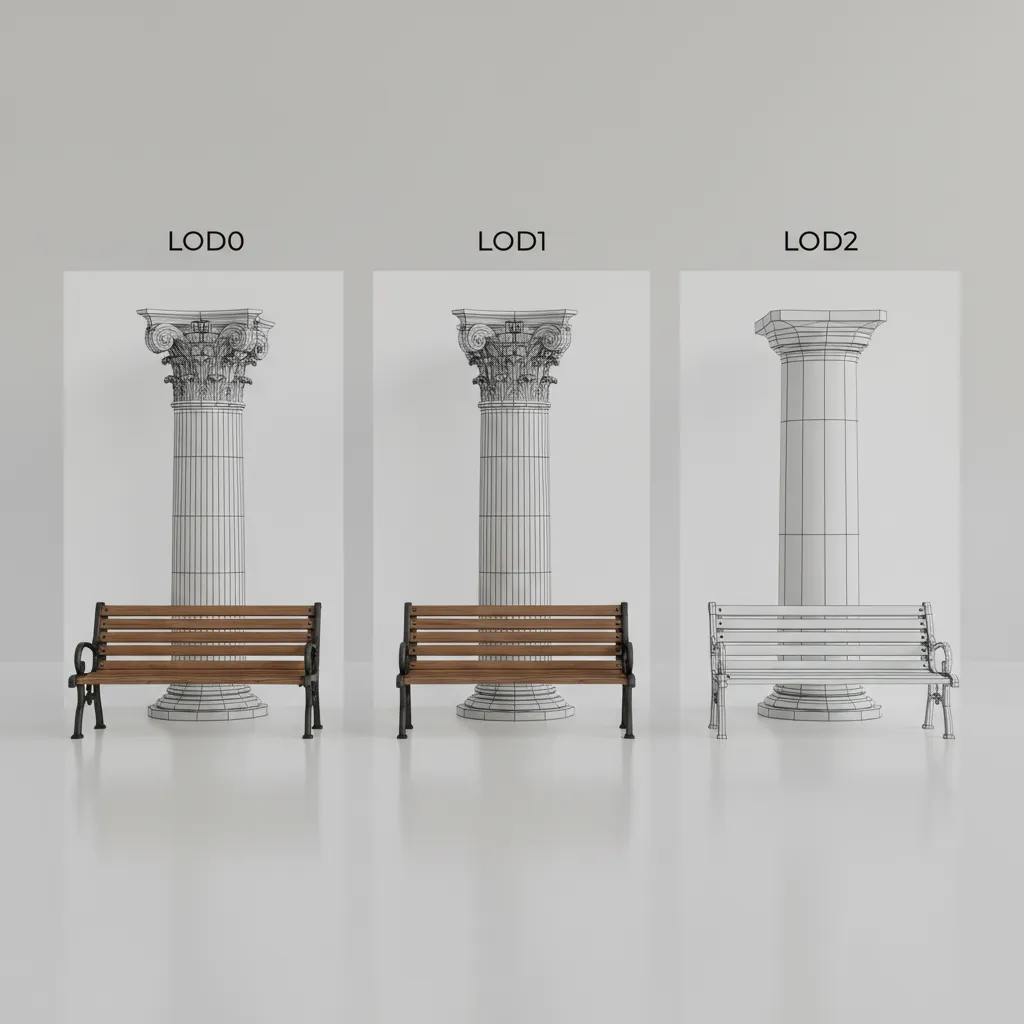

Using LOD and Instancing in Railway Station Models

Key Insight: Level of Detail systems are the single most powerful performance improvement for large station models.

LOD systems swap high‑detail meshes with simpler versions based on camera distance. In large environments like railway stations, most objects are viewed from far away.

A typical LOD pipeline looks like this:

1. LOD0 – full detail model for close views
2. LOD1 – 50% polygon reduction
3. LOD2 – 80% polygon reduction
4. LOD3 – simple silhouette or billboard

Instancing is equally important. Station environments contain hundreds of identical assets:

1. Seats
2. Columns
3. Lights
4. Signage panels
5. Ticket gates

Instead of duplicating meshes, instancing allows the engine to reuse a single object across the entire station. That dramatically reduces memory and draw calls.

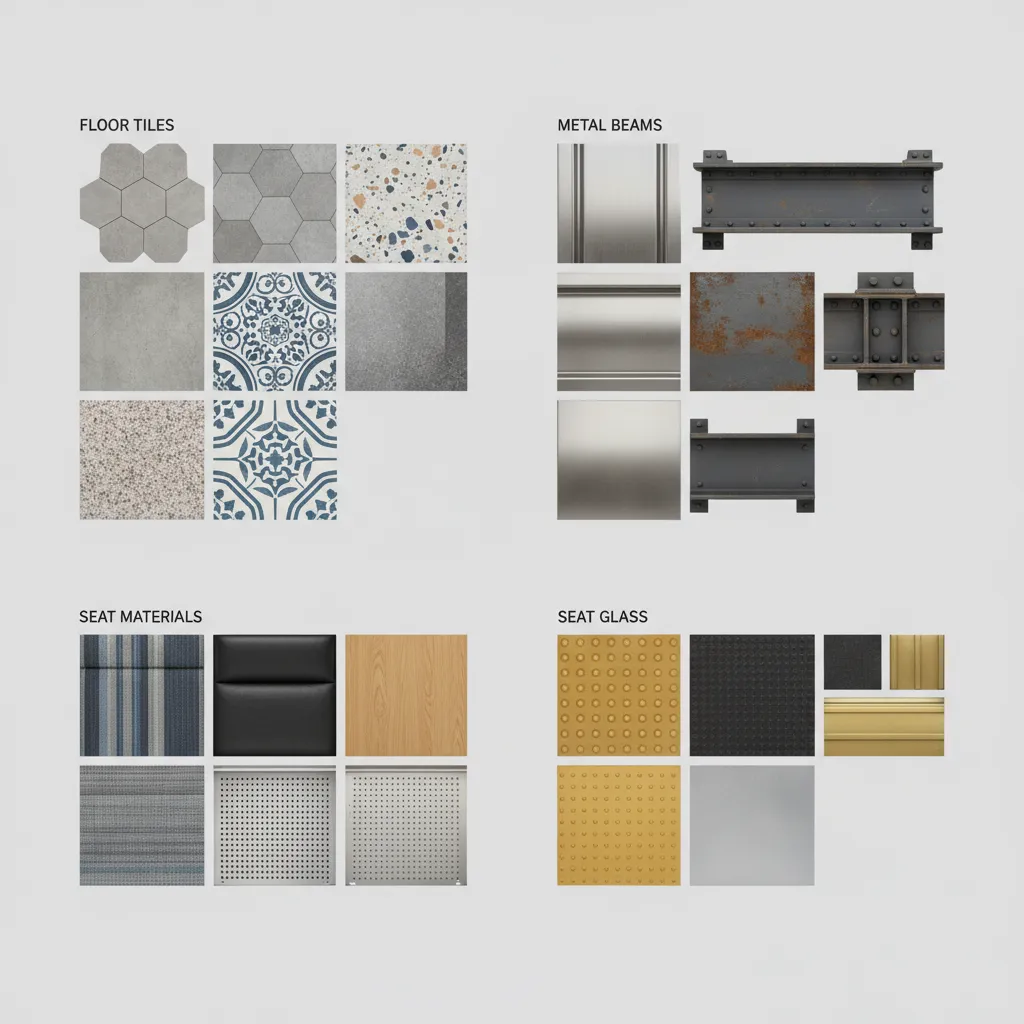

Texture Optimization for Large Architectural Scenes

Key Insight: Texture memory often becomes the hidden bottleneck in infrastructure models.

Many artists focus on geometry but ignore texture weight. In large railway stations, dozens of materials can easily exceed GPU memory limits.

Professional architectural visualization teams usually apply three rules:

1. Use texture atlases for repeating assets
2. Reduce 4K textures unless they appear in close shots
3. Reuse material libraries across the entire station

For example, platform floors, wall panels, and structural steel can often share a single atlas rather than multiple separate materials.

save pin

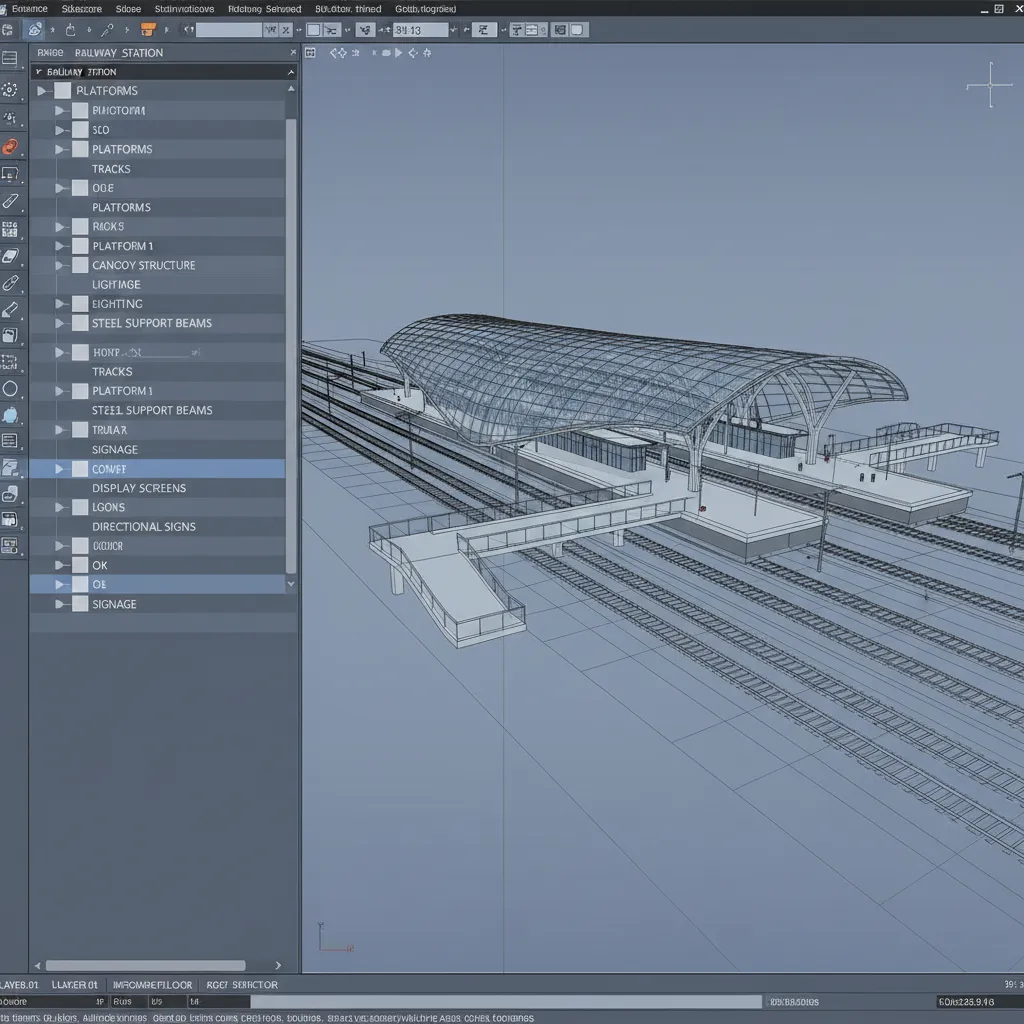

Scene Organization for Faster Rendering

Key Insight: Clean scene hierarchy improves both performance and team collaboration.

One overlooked optimization strategy is simply organizing the model properly. Disorganized scenes slow down both editing and rendering pipelines.

A typical structure for railway station scenes might include:

1. Station structure
2. Platforms
3. Tracks
4. Passenger areas
5. Retail zones
6. Mechanical systems
7. Lighting and signage

Grouping assets this way allows visibility control, selective exports, and easier debugging when performance issues appear.

Answer Box

The most effective way to optimize a railway station 3D model is combining polygon reduction, LOD systems, texture atlases, and instanced assets. Together, these techniques significantly lower memory usage and rendering time while preserving visual quality.

Export Optimization for Web and Visualization Platforms

Key Insight: Export settings can make or break the performance of large architectural scenes.

Even a well‑optimized model can perform poorly if exported incorrectly.

When preparing large station environments for web visualization or interactive presentations, I recommend focusing on these settings:

1. Mesh compression
2. Texture compression
3. Binary geometry formats
4. LOD inclusion
5. Material consolidation

If your goal is real-time walkthroughs, you can also explore workflows similar to this AI-assisted layout planning for large interior spaces, which helps reduce structural complexity before exporting final scenes.

save pin

Final Summary

1. Railway station models become heavy due to repeated assets and massive scale.
2. Polygon reduction can remove over half the geometry without visible quality loss.
3. LOD systems dramatically improve rendering performance in large scenes.
4. Texture atlases reduce GPU memory usage in complex environments.
5. Structured scene organization improves rendering and collaboration.

FAQ

1. How do you optimize a large railway station 3D model?

Use polygon reduction, LOD systems, instanced assets, optimized textures, and organized scene hierarchies to reduce memory and rendering load.

2. What is the best polygon count for large architectural scenes?

It depends on the platform, but real‑time environments usually perform best when individual scenes stay under 5–10 million visible polygons.

3. Why are railway station models so heavy?

Stations include thousands of repeated elements such as seating, lighting, structural beams, and signage systems that dramatically increase geometry.

4. What is LOD in architectural visualization?

LOD (Level of Detail) replaces detailed objects with simpler versions as camera distance increases, improving performance in large 3D environments.

5. Can texture size affect rendering performance?

Yes. Large textures consume GPU memory. Optimizing textures for large 3D environments improves loading time and rendering speed.

6. Should repeated station objects use instancing?

Yes. Instancing allows a single asset to appear many times without duplicating geometry, which significantly improves performance.

7. What tools help optimize large 3D architecture models?

Most professional modeling tools include polygon reduction, LOD generation, and texture baking features designed for large architectural projects.

8. How can I improve performance of big 3D models for web visualization?

Use compressed textures, optimized meshes, LOD systems, and efficient export formats to improve performance of big 3D models online.
