Optimizing 3D Model Splitting for Large or Complex Meshes: Practical workflows to split heavy 3D meshes faster while avoiding crashes, lag, and broken geometry

Direct Answer

Splitting large or complex 3D meshes works best when the model is simplified, cleaned, and strategically segmented before any cutting operation. By reducing unnecessary polygon density, fixing geometry issues, and using controlled cutting methods, you can split heavy models faster while preventing crashes and topology errors.

Quick Takeaways

1. Large meshes are difficult to split because boolean calculations scale with polygon count.
2. Preparing geometry before cutting dramatically reduces processing time.
3. Decimation and topology cleanup prevent crashes during mesh splitting.
4. Strategic cutting planes are more efficient than random manual separation.
5. Managing memory and exporting parts correctly improves downstream workflows.

Introduction

Anyone who has tried to split a dense 3D model knows the moment when the software freezes, the fan spins up, and you start wondering whether the file will recover. Splitting complex meshes is one of those tasks that sounds simple but quickly becomes painful when models contain millions of polygons.

In many professional projects I've worked on—especially architectural visualization and product modeling—the problem wasn't the cut itself. The real issue was what happened before the cut. High‑poly models imported from scans, CAD conversions, or asset libraries often contain excessive topology that slows every boolean operation.

When teams begin exploring workflows like building structured 3D layouts for architectural visualization, they often discover that large assets behave unpredictably during editing. The same thing happens with furniture meshes, environmental models, or scanned geometry.

The good news: once you understand why large meshes behave poorly—and how professionals prepare them—you can split even extremely dense models without lag or instability. The techniques below come directly from real production workflows used in visualization and game asset preparation.

save pin

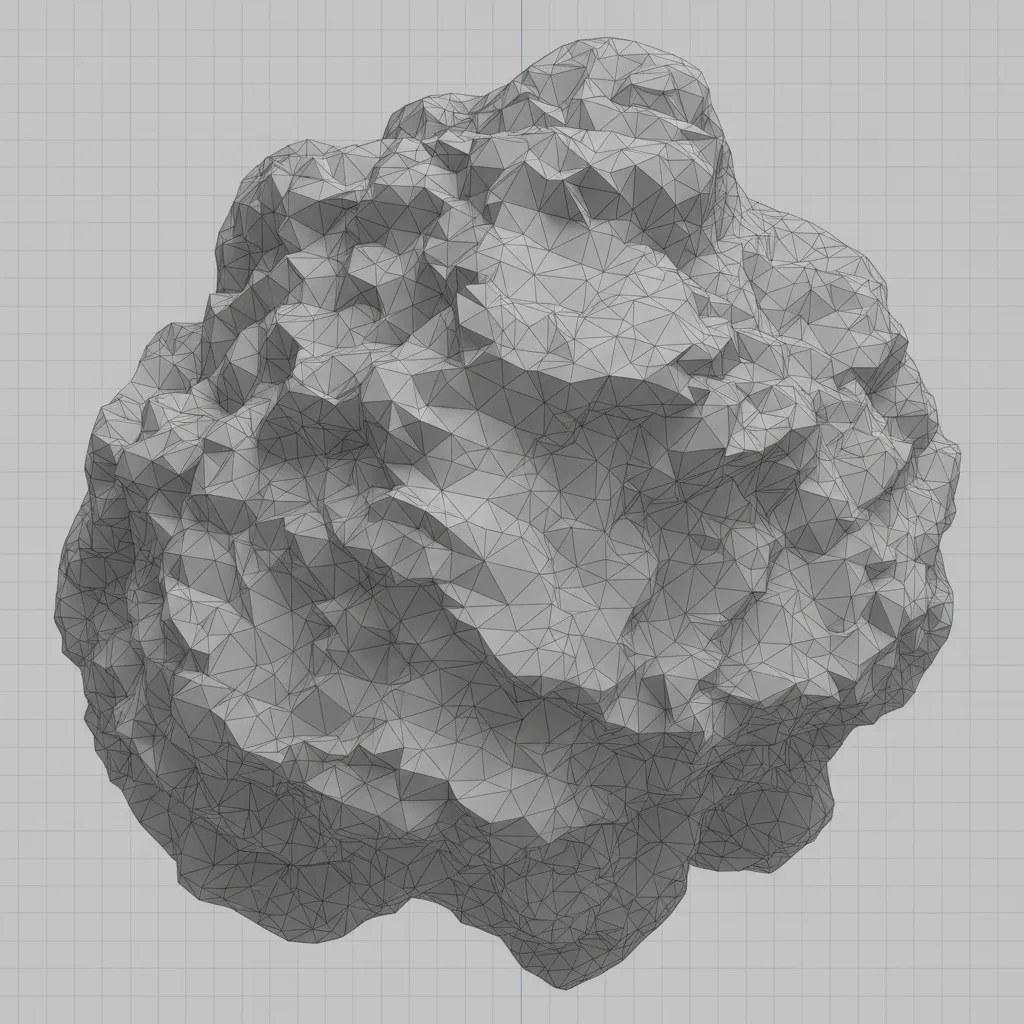

Why Large Meshes Are Hard to Split

Key Insight: Boolean and cutting operations become exponentially slower as polygon density increases.

Most 3D software must calculate intersections between thousands—or sometimes millions—of polygons during a cut. The more geometry involved, the more calculations the software must perform.

Three common factors make large meshes especially difficult to split:

1. Excessive polygon density – Many imported models contain far more detail than necessary.
2. Non‑manifold geometry – Overlapping faces or broken topology confuse boolean operations.
3. Single massive mesh objects – Large continuous geometry forces the software to process everything at once.

In production pipelines, it's common to receive models with millions of triangles that were originally designed for rendering rather than editing. Industry tools such as Blender, Maya, and Houdini all show similar behavior: when geometry exceeds manageable density, splitting becomes unstable.

Preparing a Model Before Performing a Cut

Key Insight: Cleaning topology before cutting can reduce processing time by more than half.

Experienced modelers rarely cut a mesh immediately after importing it. Preparation is essential.

Typical preparation steps include:

1. Merge duplicate vertices.
2. Remove internal faces or hidden geometry.
3. Check normals and surface consistency.
4. Convert problematic n‑gons into quads or triangles.
5. Separate obvious sub‑objects before performing precision cuts.

One overlooked problem I frequently see in real projects is invisible geometry. CAD exports often include internal surfaces that dramatically increase polygon count. Removing these elements can instantly improve splitting performance.

save pin

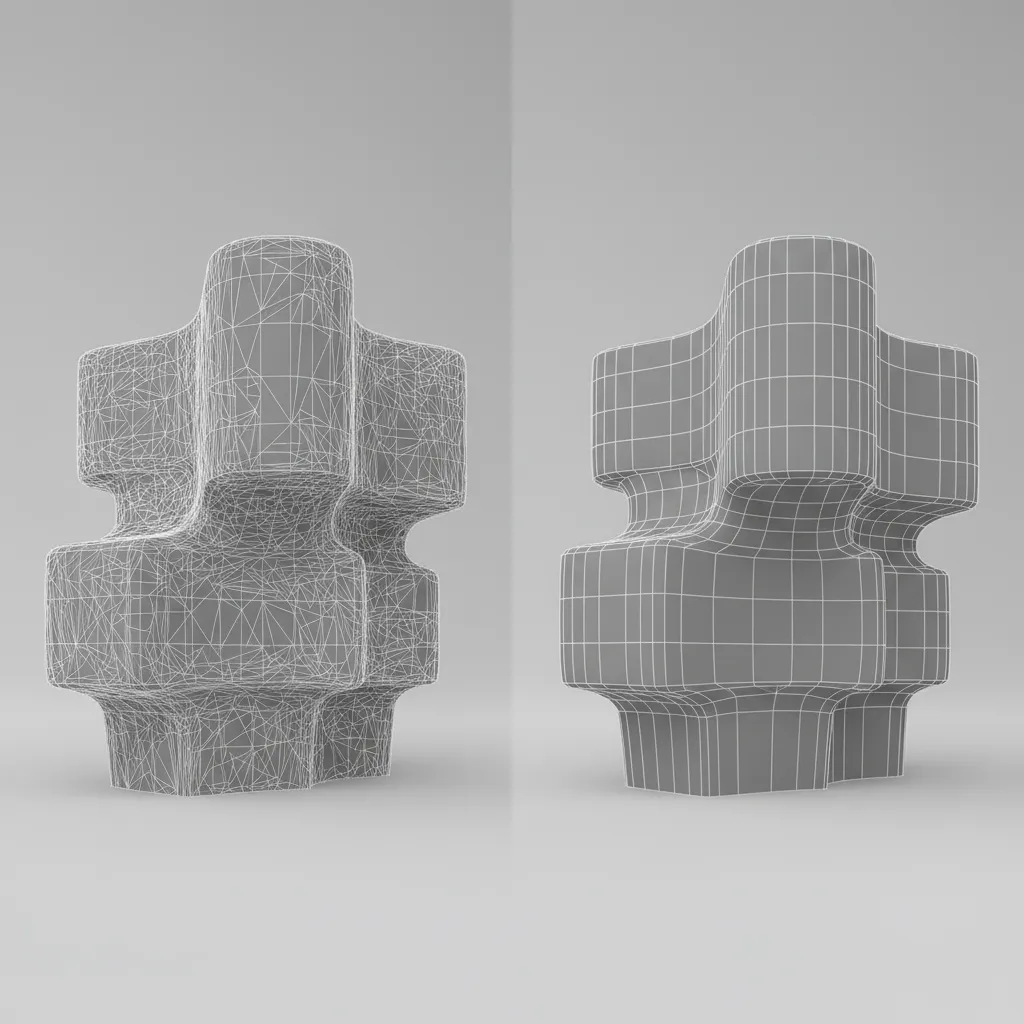

Reducing Polygon Complexity Safely

Key Insight: Controlled mesh reduction preserves visual detail while dramatically improving editing performance.

Reducing polygon count doesn't mean destroying the model's appearance. Modern decimation tools allow you to keep visual fidelity while simplifying topology.

Common reduction strategies:

1. Edge collapse decimation – Reduces polygons while preserving the silhouette.
2. Adaptive reduction – Keeps detail in high‑curvature areas.
3. Manual retopology – Best for extremely dense scans.

In architectural visualization pipelines, optimization is critical. When teams prepare environments using tools like creating detailed architectural layouts with an AI floor planning workflow, they often reduce asset complexity before editing geometry.

A good rule used in many studios: if a mesh is above one million polygons and you only need it for editing operations, reduce it before performing boolean cuts.

save pin

Efficient Splitting Techniques for Heavy Models

Key Insight: Strategic cutting tools outperform freeform editing when working with dense geometry.

Not all cutting methods perform equally. Choosing the right method dramatically affects speed.

Efficient splitting approaches include:

1. Plane cuts – Fastest option for large models.
2. Mesh separation by loose parts – Ideal when geometry already contains natural segments.
3. Voxel remesh then cut – Useful for messy scanned meshes.
4. Boolean difference with simple primitives – More stable than complex cutting objects.

In production work, experienced modelers often perform multiple smaller cuts rather than one massive boolean operation. This incremental approach keeps memory usage manageable and reduces error risk.

Memory and Performance Optimization Tips

Key Insight: System memory and viewport settings strongly affect mesh splitting performance.

Even powerful computers can struggle with dense geometry if scene settings are not optimized.

Performance improvements often come from small adjustments:

1. Disable subdivision modifiers during editing.
2. Switch viewport shading to solid mode.
3. Hide unrelated objects.
4. Work on isolated mesh sections.
5. Increase application memory limits when possible.

One practical technique used in large visualization projects is isolating parts of the scene before performing geometry edits. When working with full architectural scenes—especially when preparing assets for producing full interior renderings from structured 3D environments—isolating objects prevents unnecessary processing.

save pin

Exporting and Managing Separated Parts

Key Insight: Organized export workflows prevent errors when reusing separated mesh components.

After splitting a complex model, proper file management becomes critical.

Professional workflows usually follow these practices:

1. Name separated objects clearly.
2. Export parts as individual mesh files.
3. Preserve pivot points for reassembly.
4. Maintain consistent scale and orientation.
5. Use organized folder structures.

Failing to organize exported parts is a common mistake. I've seen projects where hundreds of pieces were separated successfully but became impossible to reassemble due to inconsistent naming or misplaced pivots.

Answer Box

The fastest way to split large 3D meshes is to simplify geometry, clean topology, and use structured cutting methods like plane cuts or controlled boolean operations. Preparing the model first reduces lag, prevents crashes, and produces cleaner separated parts.

Final Summary

1. Dense meshes slow splitting operations due to heavy polygon calculations.
2. Cleaning topology before cutting greatly improves stability.
3. Decimation tools reduce lag without losing visual detail.
4. Plane cuts and incremental splitting outperform complex booleans.
5. Proper export organization prevents workflow issues later.

FAQ

How do I split a large 3D mesh efficiently?

Prepare the model first by cleaning topology and reducing polygon count. Then use simple cutting methods like plane cuts or controlled boolean operations.

Why does my software freeze when cutting a high poly model?

High polygon counts dramatically increase intersection calculations. The software must process thousands or millions of faces during the cut.

What is the best workflow for splitting complex meshes?

Clean the mesh, reduce polygons, isolate the object, perform incremental cuts, and export separated parts with clear naming.

Should I decimate before performing a boolean cut?

Yes. Reducing unnecessary polygons improves stability and makes boolean calculations faster.

How can I reduce lag when splitting 3D models?

Disable modifiers, hide unused objects, reduce polygon density, and work on isolated sections.

What tools are best for cutting high poly 3D models?

Plane cuts, simple boolean tools, and mesh separation features are typically the most stable options.

Does topology affect mesh splitting?

Yes. Non‑manifold geometry, overlapping faces, and broken edges often cause splitting errors.

Can splitting a large mesh damage the model?

Improper cuts can create holes or non‑manifold edges. Always check geometry integrity after splitting.
