Optimizing Airflow in Kitchen Hood Cabinet Installations: Practical design adjustments that significantly improve range hood ventilation performance and kitchen air quality

Direct Answer

Optimizing airflow in a kitchen hood cabinet installation mainly comes down to three factors: cabinet clearance, smooth duct routing, and minimizing airflow resistance inside the cabinet cavity. When the hood has unobstructed intake space and a short, straight duct path, ventilation efficiency can improve dramatically.

In many kitchens I’ve redesigned, airflow problems weren’t caused by the hood itself but by cabinet construction that restricted air movement.

Quick Takeaways

1. Cabinet structure often restricts airflow more than the hood’s motor capacity.
2. Straight, short duct runs dramatically improve extraction efficiency.
3. Extra clearance above and around the hood reduces turbulence.
4. Cabinet modifications can increase real airflow without replacing the hood.
5. Testing airflow after installation prevents long-term ventilation issues.

Introduction

After working on dozens of kitchen renovations, I’ve noticed a pattern: homeowners blame their range hood when smoke or cooking odors linger, but the real issue is often poor cabinet airflow design. A perfectly capable hood can lose a huge portion of its efficiency if it’s squeezed into a poorly planned hood cabinet.

When you optimize kitchen hood cabinet ventilation, you’re essentially removing obstacles that block air from moving smoothly through the intake and duct system. Even small cabinet design choices—like internal panels, tight duct turns, or insufficient spacing—can reduce airflow significantly.

If you're planning a layout adjustment or cabinet redesign, experimenting with different configurations using a visual kitchen layout planning workflow for ventilation placementcan reveal airflow bottlenecks early in the design stage.

In this guide, I’ll walk through the exact cabinet and duct design decisions that make the biggest difference in real-world ventilation performance.

save pin

Why Cabinet Structure Affects Range Hood Airflow

Key Insight: The internal structure of a hood cabinet directly influences how efficiently air can move from the cooking surface into the duct system.

Many cabinets are built like storage boxes rather than airflow chambers. When installers squeeze a hood into that structure, airflow turbulence increases and extraction power drops.

Common structural issues include:

1. Thick cabinet framing that blocks intake air
2. Narrow openings around insert hoods
3. Internal shelf panels left above the hood
4. Decorative trim that reduces intake area

In professional kitchen design, we treat the hood cabinet like a ventilation chamber. The goal is to give the hood a clean pathway for air to move upward without obstruction.

The National Kitchen and Bath Association also recommends designing ventilation spaces that prioritize airflow rather than storage inside hood cabinets.

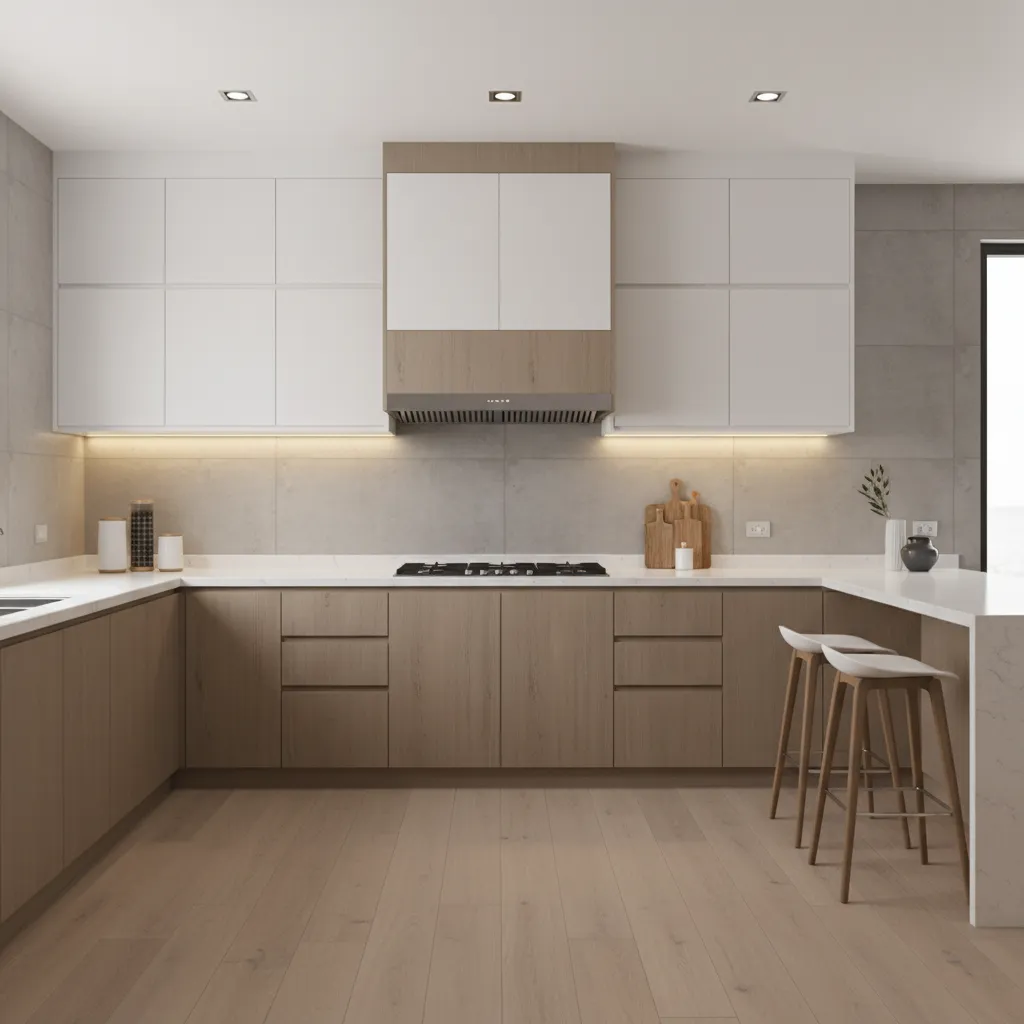

Ideal Clearance and Spacing for Hood Cabinets

Key Insight: Adequate clearance around the hood improves airflow capture and reduces turbulence inside the cabinet cavity.

A mistake I see frequently is cabinetry built too tightly around the hood body. While it may look sleek, it can choke airflow.

Recommended spacing guidelines:

1. Range hood height above cooktop: typically 24–36 inches
2. Side clearance inside cabinet: at least 1–2 inches
3. Open intake space below cabinet trim
4. Extra depth for insert hoods

Proper spacing allows air to funnel smoothly toward the hood intake rather than spilling outward into the kitchen.

save pin

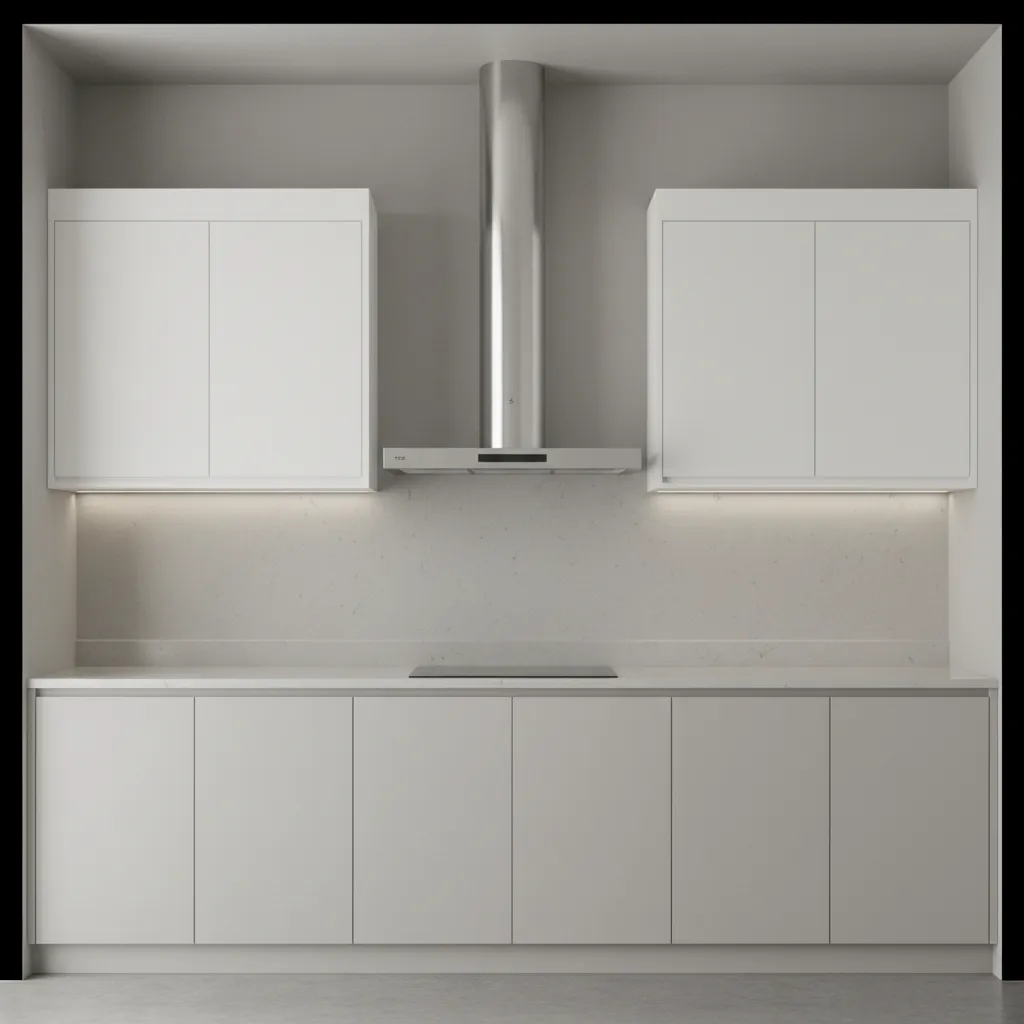

Best Duct Routing Strategies Through Cabinets

Key Insight: The shortest and straightest duct path always produces the best ventilation performance.

In airflow design, every turn adds resistance. Even powerful range hoods lose efficiency when duct paths zigzag through cabinets.

Best duct routing practices include:

1. Use straight vertical duct runs whenever possible
2. Avoid more than two 90‑degree turns
3. Use smooth metal ducts instead of flexible tubing
4. Keep duct length under recommended limits

ASHRAE ventilation guidelines consistently emphasize minimizing bends and transitions because each bend can reduce airflow efficiency.

When planning cabinet installations, I often visualize the duct path first using a 3D visualization of the full kitchen ventilation system to identify unnecessary turns before construction begins.

Reducing Air Resistance in Cabinet Ventilation Paths

Key Insight: Air resistance inside cabinets often comes from small obstacles that installers overlook.

These subtle restrictions add up. I’ve seen cabinets reduce airflow by 20–30% simply due to poor internal routing.

Common resistance sources:

1. Duct connectors squeezed against cabinet walls
2. Improper duct diameter reductions
3. Rough cut cabinet openings
4. Loose insulation blocking ducts

Solutions that consistently improve airflow:

1. Use a hole saw for smooth duct openings
2. Maintain consistent duct diameter
3. Seal connections with foil HVAC tape
4. Avoid compression of flexible ducts

These small installation details make a measurable difference in real extraction performance.

save pin

Cabinet Design Adjustments That Improve Extraction Power

Key Insight: Strategic cabinet modifications can significantly increase effective range hood performance without upgrading the hood.

When airflow is optimized, the same hood motor can move more air because resistance is reduced.

Design improvements I often recommend:

1. Open bottom hood cabinets instead of framed openings
2. Wider intake openings for insert hoods
3. Hidden ventilation gaps above trim panels
4. Removable access panels for duct maintenance

In many kitchen remodels, adjusting cabinet structure delivers better airflow gains than replacing the hood with a higher CFM model.

Testing cabinet configurations during planning using an AI assisted kitchen design simulation for cabinet ventilation layouts can reveal airflow limitations before installation.

Answer Box

The most effective way to optimize kitchen hood cabinet ventilation is to reduce airflow resistance. This means increasing cabinet clearance, using straight duct paths, and eliminating internal obstructions. Even small cabinet design improvements can significantly increase real ventilation performance.

Testing and Measuring Hood Cabinet Ventilation Performance

Key Insight: Measuring airflow after installation ensures the hood performs as designed.

Many homeowners assume their hood works properly simply because it turns on. In reality, airflow performance should be verified.

Simple testing methods:

1. Smoke test with incense to visualize airflow
2. Anemometer measurement at the hood intake
3. Noise monitoring to detect airflow turbulence
4. Check for air leaks around duct joints

Professional installers sometimes compare measured airflow with manufacturer CFM ratings to confirm that cabinet design isn’t restricting performance.

Final Summary

1. Cabinet structure strongly affects range hood airflow efficiency.
2. Straight duct routing dramatically improves ventilation performance.
3. Extra clearance inside cabinets reduces airflow turbulence.
4. Small installation mistakes can significantly reduce airflow.
5. Testing airflow after installation confirms proper ventilation.

FAQ

How can I improve airflow in a range hood cabinet?

Increase internal cabinet clearance, reduce duct bends, and remove internal obstructions that block airflow.

What is the best duct layout for cabinet range hoods?

A short, straight vertical duct run with minimal bends provides the best airflow performance.

Do cabinets reduce range hood efficiency?

Yes. Poorly designed cabinets can restrict intake airflow and create turbulence that lowers ventilation performance.

How much clearance should a hood cabinet have?

Most installations benefit from 1–2 inches of clearance around the hood body and adequate intake space below.

Can cabinet design increase range hood efficiency?

Yes. Optimizing kitchen hood cabinet ventilation often improves airflow without upgrading the hood itself.

Is flexible duct bad for kitchen ventilation?

Flexible ducts increase air resistance. Smooth metal ducts typically provide better airflow.

Why does my range hood feel weak?

Restricted duct routing, cabinet obstructions, or long duct runs are common causes.

How do professionals test hood airflow?

Installers often use anemometers, smoke tests, and airflow comparisons against manufacturer CFM ratings.

References

1. National Kitchen and Bath Association Kitchen Planning Guidelines
2. ASHRAE Residential Ventilation Standards
3. U.S. Department of Energy Kitchen Ventilation Recommendations
