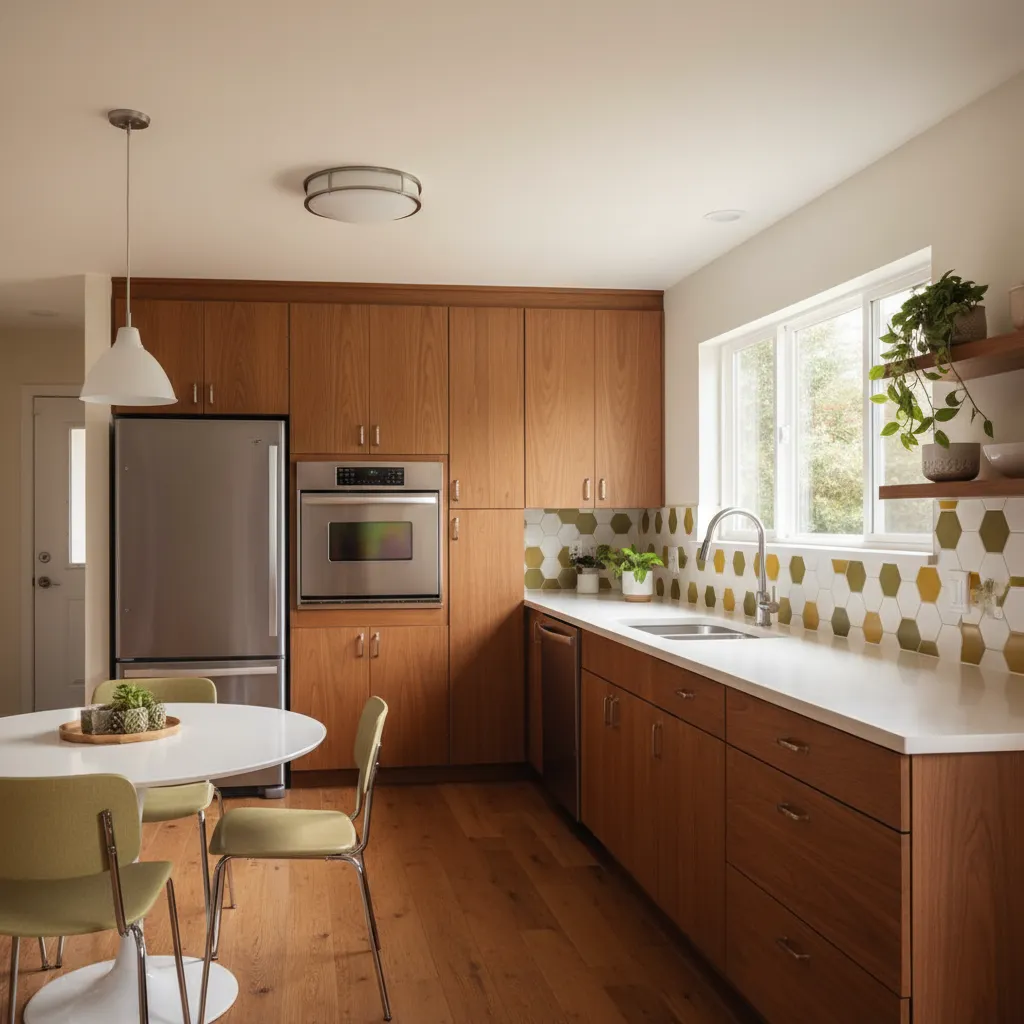

Optimizing Appliance Placement in a Mid‑Century Kitchen Layout: Design strategies that preserve the 1960s aesthetic while dramatically improving workflow and usability.

Direct Answer

The best way to optimize appliance placement in a mid‑century kitchen layout is to maintain the classic work triangle—refrigerator, sink, and range—while adapting spacing and clearances for modern appliances. Strategic placement preserves the clean geometry of 1960s kitchens while improving workflow efficiency and storage access.

Quick Takeaways

1. The refrigerator should sit at the outer edge of the kitchen work triangle to reduce traffic disruption.
2. Wall ovens were common in 1960s kitchens and still improve workflow when separated from the cooktop.
3. Maintaining 4–9 feet between triangle points keeps movement efficient without overcrowding.
4. Appliance panels and integrated cabinetry help modern appliances blend into retro kitchens.
5. Small mid‑century kitchens benefit most from vertical appliance stacking and corner optimization.

Introduction

When homeowners remodel a vintage kitchen, appliance placement usually becomes the biggest challenge. A mid century kitchen appliance layout was originally designed for smaller refrigerators, compact ranges, and far fewer countertop appliances. Once you introduce modern appliances into that footprint, workflow problems appear almost immediately.

After working on dozens of mid‑century remodels across California, I’ve noticed the same pattern: people try to preserve the retro look but accidentally destroy the kitchen’s usability. Doors collide. Refrigerators block pathways. And the cooking zone becomes cramped.

The key is not copying a 1960s kitchen exactly—it’s understanding the logic behind it. Those kitchens were designed around efficiency, compact zones, and visual simplicity. When you respect that logic, modern appliances can fit naturally into the space.

If you're exploring layouts before committing to a remodel, it helps to visualize appliance zones first. Many homeowners start by experimenting with a visual kitchen floor layout planning workflow for remodel projects, which makes it much easier to test appliance positions without moving a single cabinet.

In this guide, I’ll walk through the appliance placement strategies that consistently work in mid‑century kitchens—plus a few hidden layout mistakes that most renovation guides completely ignore.

save pin

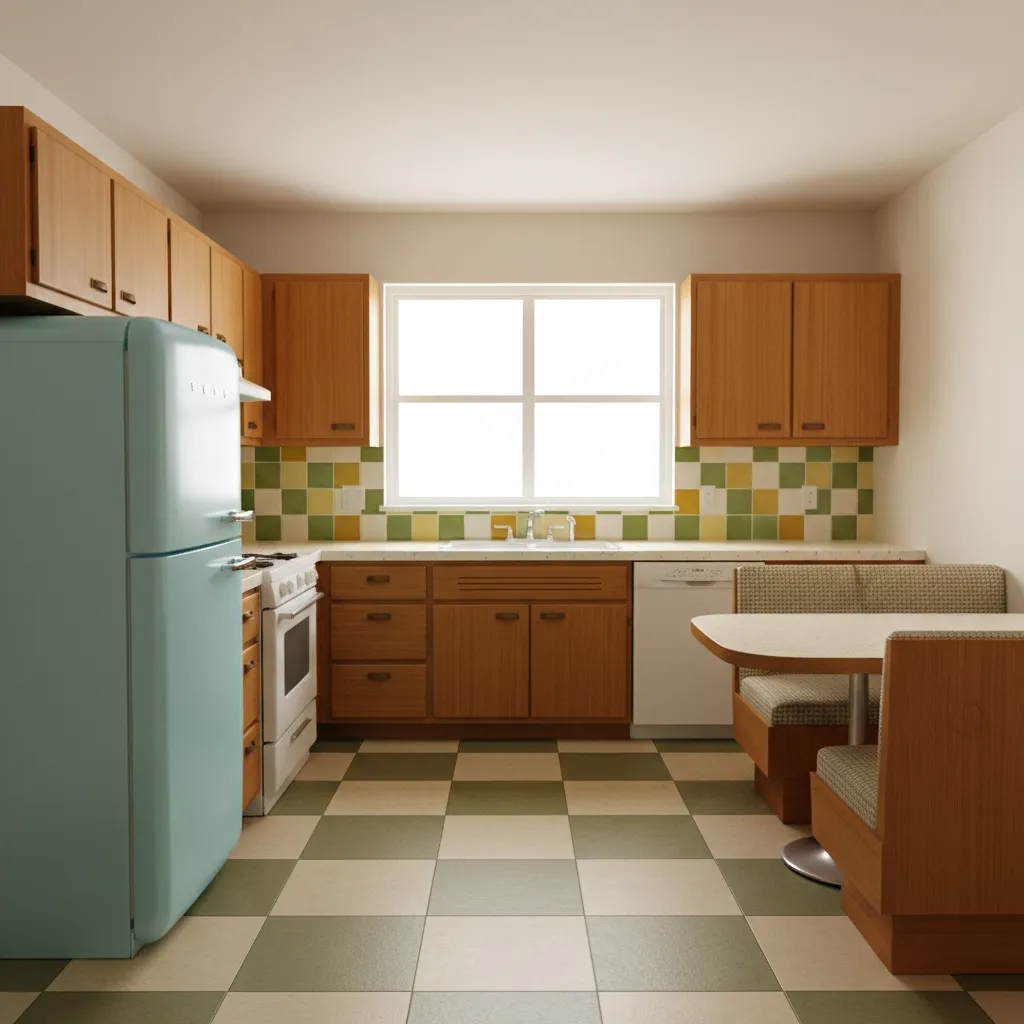

Typical Appliance Layouts in 1960s Kitchens

Key Insight: Most 1960s kitchens relied on compact linear or L‑shaped layouts that prioritized short walking distances between appliances.

Mid‑century kitchens were built for efficiency, not display. Appliances were positioned tightly around the sink and preparation area, creating a compact working core.

The three most common layouts I see in original homes are:

1. L‑shaped kitchens – the most common layout in suburban 1960s homes
2. Galley kitchens – efficient but narrow, typical in smaller houses
3. Single-wall kitchens – often paired with a dining area

What surprises many homeowners is that refrigerators were often placed slightly outside the main cooking area. Designers intentionally separated food storage from the cooking zone to prevent congestion.

That concept still works today. In fact, modern kitchen workflow studies from the National Kitchen & Bath Association continue to support similar zoning principles.

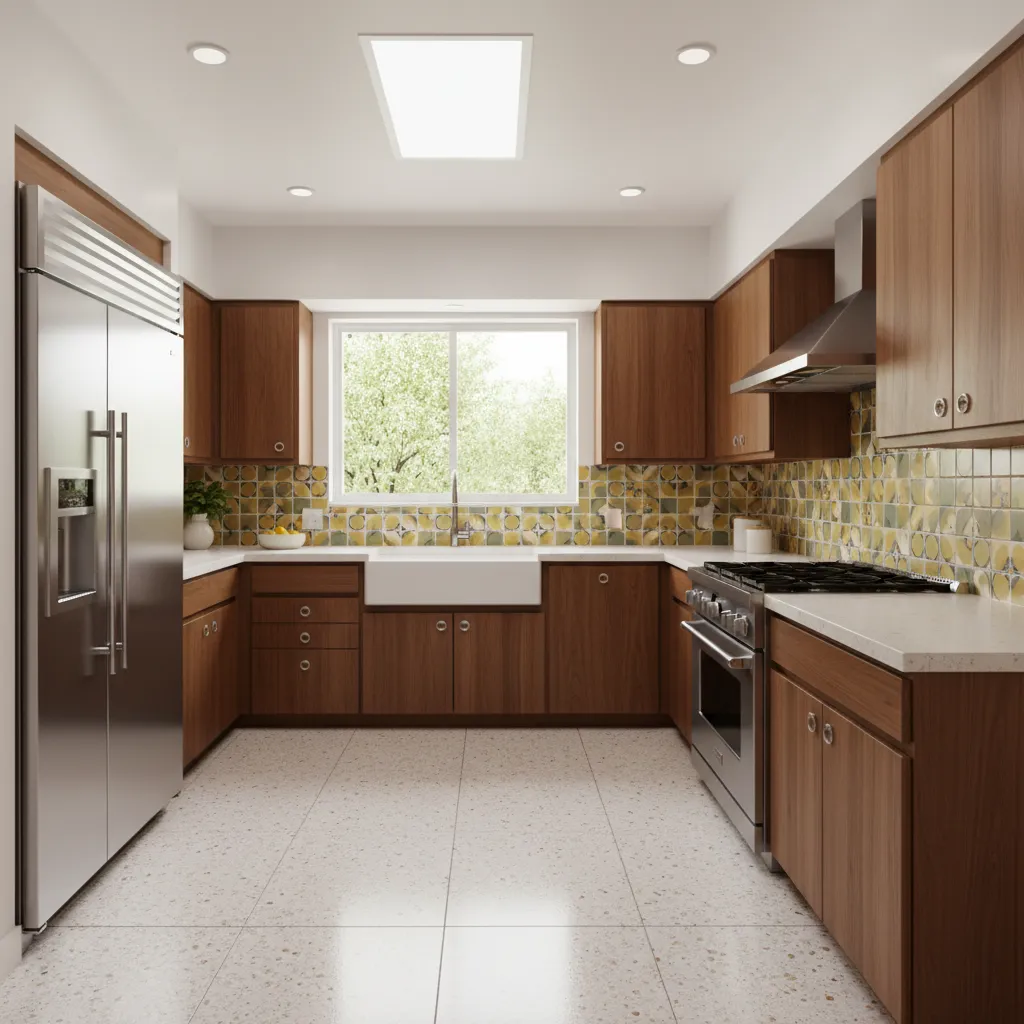

How the Classic Kitchen Work Triangle Applies to Retro Designs

Key Insight: The work triangle still works in retro kitchens, but modern appliances require slightly wider spacing.

The kitchen work triangle—sink, refrigerator, and range—originated during the mid‑20th century, so it naturally fits mid‑century layouts. However, today's appliances are larger and deeper than their 1960s counterparts.

In practice, I recommend these triangle dimensions for a retro remodel:

1. Each triangle leg: 4–9 feet
2. Total triangle perimeter: 13–26 feet
3. No major walkways cutting through the triangle

The hidden mistake I see constantly is oversized refrigerators breaking the triangle completely. A modern counter‑depth refrigerator can add six inches or more to cabinet depth, which subtly shifts the entire workflow.

One strategy that works particularly well is placing the refrigerator slightly outside the triangle while keeping the prep area between the sink and range.

save pin

Best Locations for Refrigerators, Ranges, and Wall Ovens

Key Insight: Separating cooking and baking appliances often improves workflow in mid‑century kitchens.

Many 1960s kitchens featured wall ovens paired with separate cooktops. This design actually solves several modern workflow issues.

Here are placements I recommend based on real renovation projects:

Refrigerator placement

1. Near kitchen entry
2. Outside the main cooking triangle
3. Adjacent to a landing counter

Range or cooktop placement

1. Centered along a main counter run
2. Flanked by at least 12–18 inches of landing space
3. Away from major traffic paths

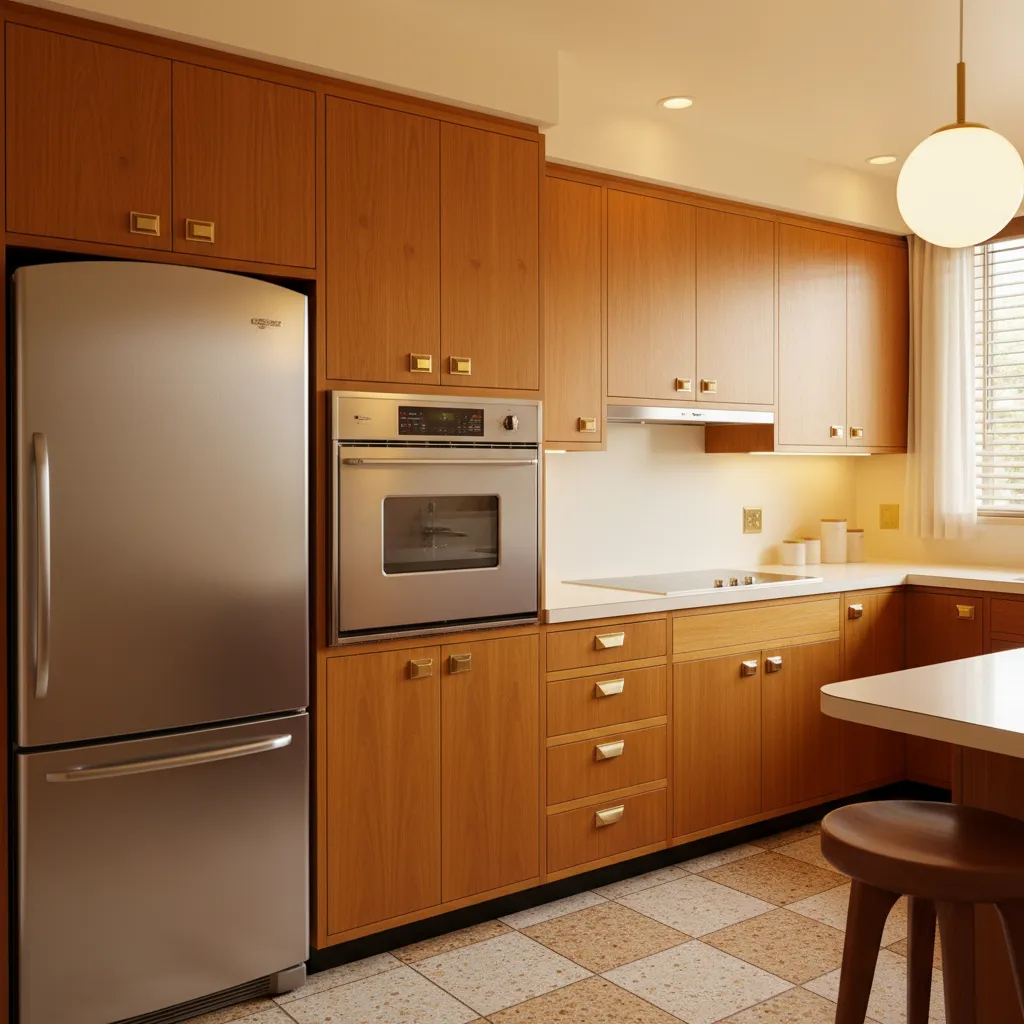

Wall oven placement

1. Integrated into tall cabinetry
2. Near prep areas
3. Often beside the refrigerator tower

When clients want to test these combinations, I often recommend experimenting with a step‑by‑step kitchen layout planning setup for appliance zones before construction begins. Visualizing cabinet runs prevents expensive layout corrections later.

Balancing Retro Style with Modern Workflow Efficiency

Key Insight: The biggest design challenge is hiding modern appliance scale while maintaining mid‑century visual balance.

Mid‑century kitchens relied on horizontal lines, light cabinetry, and uncluttered surfaces. Modern appliances—especially oversized refrigerators and pro ranges—can easily disrupt that rhythm.

Three techniques work particularly well:

1. Appliance panels to reduce visual contrast
2. Separated cooking zones using wall ovens
3. Continuous cabinet lines that conceal large appliances

Another overlooked trick is aligning appliance heights with cabinet rails. When appliance lines match cabinet geometry, the kitchen immediately feels more authentic to the era.

save pin

Answer Box

The most effective mid century kitchen appliance layout keeps the refrigerator near the entry, the sink centered for prep, and the range anchored along a main counter run. Preserving the work triangle while slightly expanding spacing for modern appliances delivers both authenticity and efficient workflow.

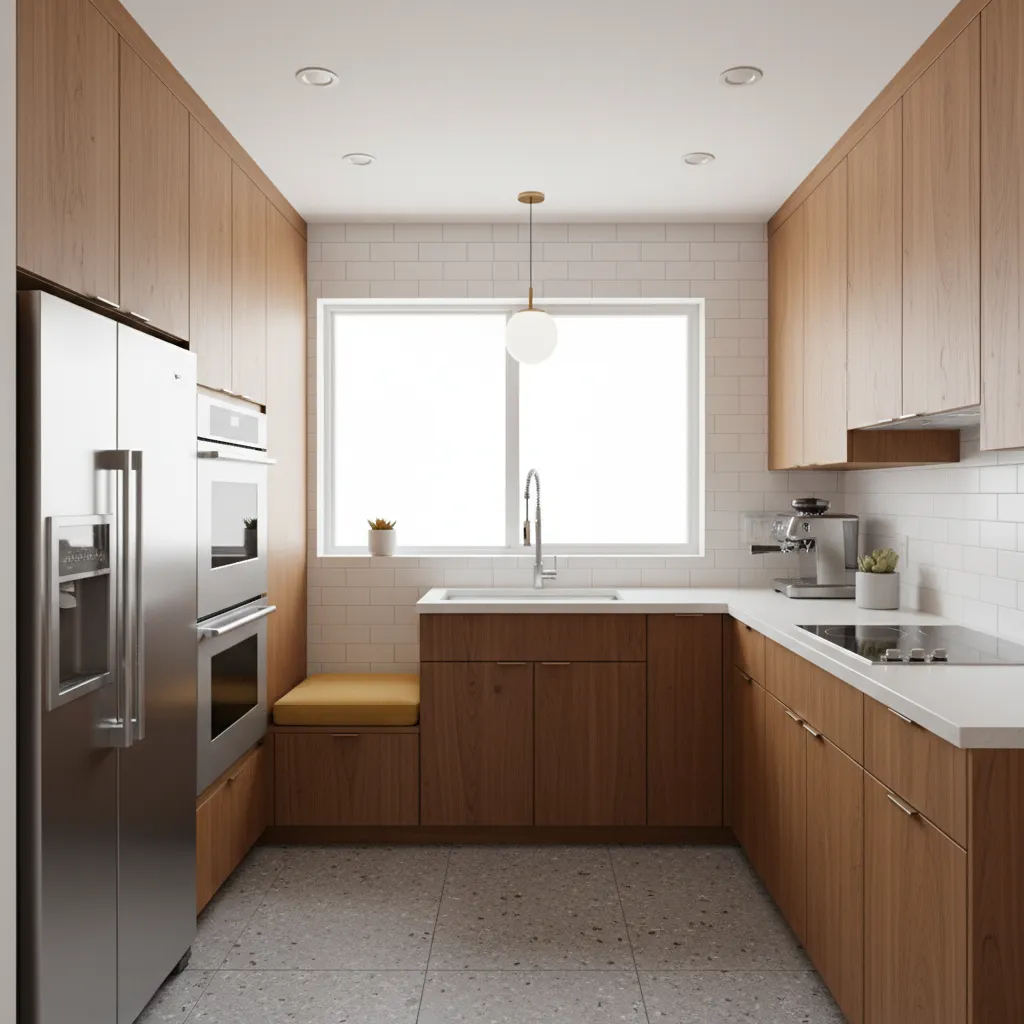

Small Mid‑Century Kitchen Layout Optimization Tips

Key Insight: Small retro kitchens benefit more from vertical appliance strategies than horizontal expansion.

In compact 1960s homes, kitchens often range from 90–130 square feet. Expanding the footprint is rarely possible, so the layout must become smarter instead.

These optimizations consistently improve small kitchen efficiency:

1. Stack wall ovens and microwaves vertically
2. Use counter‑depth refrigerators
3. Keep the sink centered for prep efficiency
4. Install shallow upper cabinets above appliances

One surprising improvement comes from relocating the refrigerator to the edge of the kitchen. This keeps family traffic out of the cooking zone—something early mid‑century designers understood very well.

save pin

Avoiding Layout Mistakes That Break the Vintage Look

Key Insight: Most retro remodels fail visually because appliance placement disrupts cabinet symmetry.

When I review renovation plans, I see the same mistakes repeatedly.

Common layout problems include:

1. Oversized refrigerators dominating the room
2. Ranges placed too close to corners
3. Wall ovens installed without proper landing space
4. Appliance doors blocking walkways

The fix is usually simple: align appliances with the cabinet grid. Mid‑century kitchens were incredibly geometric, and maintaining that structure preserves the vintage feel.

For homeowners planning a full renovation, it helps to first experiment with AI‑assisted interior layout concepts for retro kitchens. Testing several layouts often reveals workflow problems long before construction begins.

Final Summary

1. The classic kitchen work triangle still works in mid‑century layouts.
2. Refrigerators function best at the edge of the kitchen workflow.
3. Wall ovens support both retro aesthetics and modern ergonomics.
4. Symmetry and cabinet alignment preserve the vintage visual style.
5. Small kitchens benefit most from vertical appliance placement.

FAQ

What is the best mid century kitchen appliance layout?

A mid century kitchen appliance layout works best when the refrigerator, sink, and range form an efficient triangle with 4–9 feet between each point.

Were wall ovens common in 1960s kitchens?

Yes. Many 1960s kitchens used separate wall ovens and cooktops. This layout improved ergonomics and allowed more flexible cabinet design.

Where should a refrigerator go in a retro kitchen remodel?

Ideally near the kitchen entrance and slightly outside the cooking triangle to prevent traffic interruptions.

Can modern appliances fit in a 1960s kitchen layout?

Yes, but spacing must be adjusted because modern appliances are typically deeper and wider than original models.

How do you optimize appliance layout for a vintage kitchen?

Preserve the work triangle, maintain cabinet symmetry, and place large appliances where they won’t interrupt traffic flow.

What is the biggest mistake in retro kitchen remodels?

Installing oversized appliances that break cabinet alignment and disrupt the clean geometry of mid‑century design.

Are small mid century kitchen layouts still efficient?

Yes. With proper appliance placement and vertical storage strategies, small kitchens can remain highly functional.

How far apart should appliances be in a 1960s kitchen work triangle?

Each leg should measure roughly 4–9 feet, with a total perimeter between 13 and 26 feet.
