Optimizing Autodesk Inventor Models for Large Building and Floor Plan Layouts: Practical strategies experienced CAD users use to keep complex Inventor floor plan projects fast, stable, and manageable.

Direct Answer

To optimize Autodesk Inventor models for large building and floor plan layouts, reduce sketch complexity, organize rooms as reusable components, apply level‑of‑detail representations, and control exported geometry for visualization. These techniques dramatically reduce file size, rebuild time, and viewport lag when working with complex architectural layouts.

Quick Takeaways

1. Large Inventor floor plans slow down primarily due to oversized sketches and unnecessary parametric constraints.
2. Turning repeated rooms into components can reduce rebuild time by more than half in large projects.
3. Level of Detail (LOD) representations keep assemblies manageable during layout work.
4. Controlled export geometry prevents rendering workflows from crashing or producing huge files.

Introduction

Optimizing Autodesk Inventor models for large building layouts becomes essential once a project moves beyond a simple apartment or small office. I’ve worked with Inventor on several facility layout and architectural visualization projects, and the same pattern always appears: the model works fine until the floor plan grows past a certain complexity threshold.

Suddenly rebuild times spike, assemblies lag when rotating, and file sizes balloon into hundreds of megabytes. Most of the time, the cause isn't the building size itself—it's the modeling strategy.

Many designers try to treat an entire floor plan as one massive sketch. That approach works early on, but it becomes unstable fast. A modular workflow performs far better. If you're exploring digital layout workflows or testing modern planning tools, it's also helpful to see examples of how interactive 3D floor plan workflows are structured in practice.

In this guide, I’ll break down the specific strategies that keep large Inventor floor plan projects responsive and stable—even when you're modeling entire office floors, hospitals, or large residential complexes.

save pin

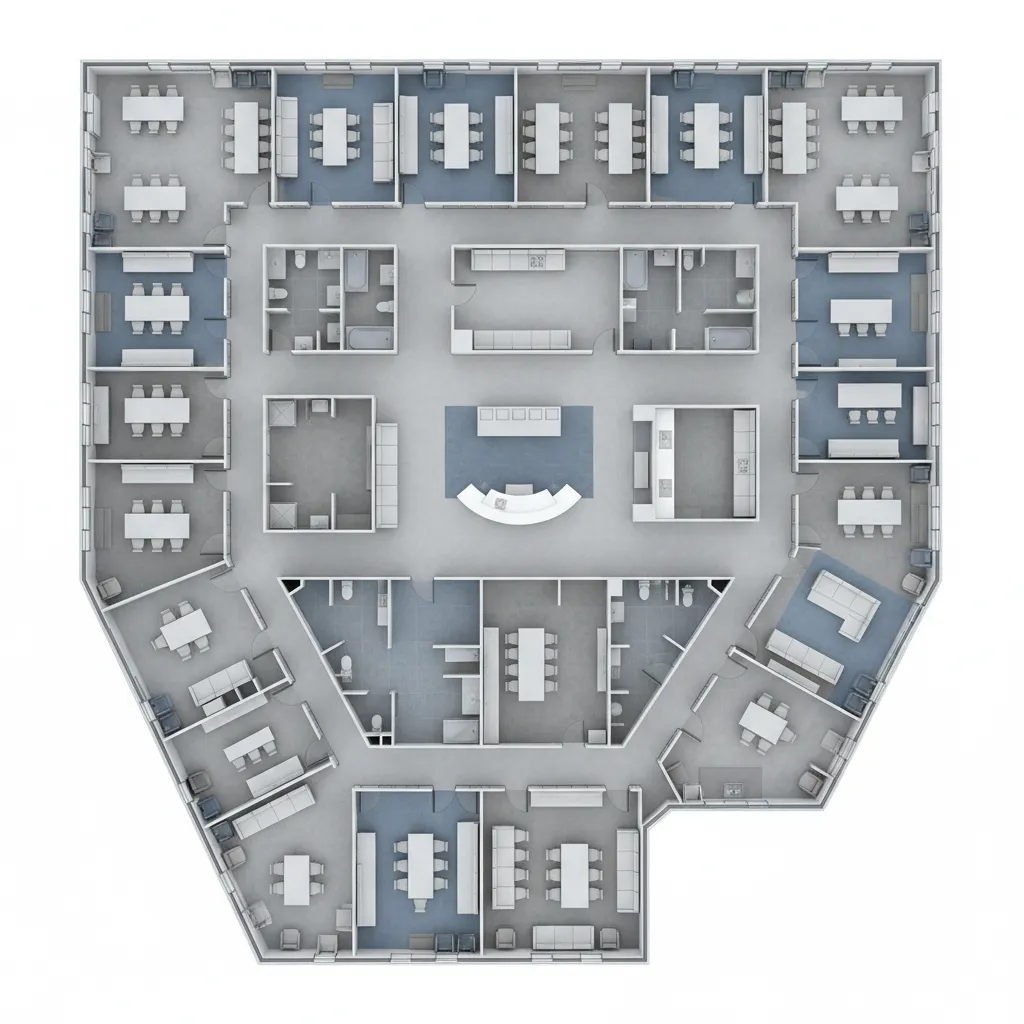

Challenges of Modeling Large Floor Plans in Inventor

Key Insight: The biggest performance bottleneck in large Inventor building models is usually sketch overload, not geometry size.

Inventor’s parametric engine recalculates constraints, dimensions, and relationships constantly. When a single sketch contains hundreds of lines representing every wall, door, and partition, every edit forces a full constraint recalculation.

This is why seemingly small changes—like moving one wall—can cause several seconds of rebuild delay.

Common issues in large building models include:

1. Sketches with hundreds of constraints
2. Overly detailed wall profiles
3. Repeating geometry recreated instead of reused
4. Large assemblies without level-of-detail management
5. Heavy imported geometry from BIM or CAD files

In several commercial floor plan projects I’ve reviewed, more than 70% of rebuild time was tied directly to oversized sketches rather than assembly complexity.

Reducing Sketch Complexity for Better Performance

Key Insight: Breaking a large floor plan into smaller sketches dramatically improves Inventor performance.

Instead of creating one "master floor plan sketch," divide the model into logical zones. Each zone should contain only the geometry needed for that specific area.

Practical workflow:

1. One sketch per room or corridor section
2. Separate sketches for structural walls vs partitions
3. Use reference geometry instead of repeating dimensions
4. Avoid excessive projected edges

Another mistake I often see is designers modeling wall thickness directly inside the sketch. A better approach is to sketch centerlines and apply thickness using features. This reduces constraint count and speeds up edits.

Architectural layout tools often follow a similar principle—minimal base geometry with derived elements layered on top. For example, digital layout workflows demonstrated in interactive floor plan creation environments used in early design stagesrely heavily on simplified base geometry for speed.

save pin

Using Components and Assemblies for Room Layouts

Key Insight: Treat rooms as reusable components instead of rebuilding them repeatedly.

Large building layouts almost always contain repeating room types: offices, bathrooms, hotel rooms, storage units, etc. Modeling each instance from scratch wastes computational resources.

A better structure is a modular assembly workflow.

Typical structure for large floor plans:

1. Main building assembly
2. Floor-level subassemblies
3. Room modules as components
4. Furniture as simplified placeholder models

Benefits of modular components:

1. Changes propagate automatically
2. Reduced modeling time
3. Faster rebuild cycles
4. Lower memory consumption

In one corporate office layout project I worked on, converting 120 identical office rooms into a single reusable component reduced rebuild time by nearly 60%.

save pin

Managing File Size and Model Stability

Key Insight: Stability issues in large Inventor projects usually come from imported geometry and unnecessary detail.

Architectural projects often import DWG, BIM, or STEP geometry. These files can include extremely dense geometry that Inventor must process continuously.

Best practices for file management:

1. Remove unnecessary small features
2. Simplify furniture models
3. Suppress invisible components
4. Use derived parts instead of full references
5. Purge unused sketches and work features

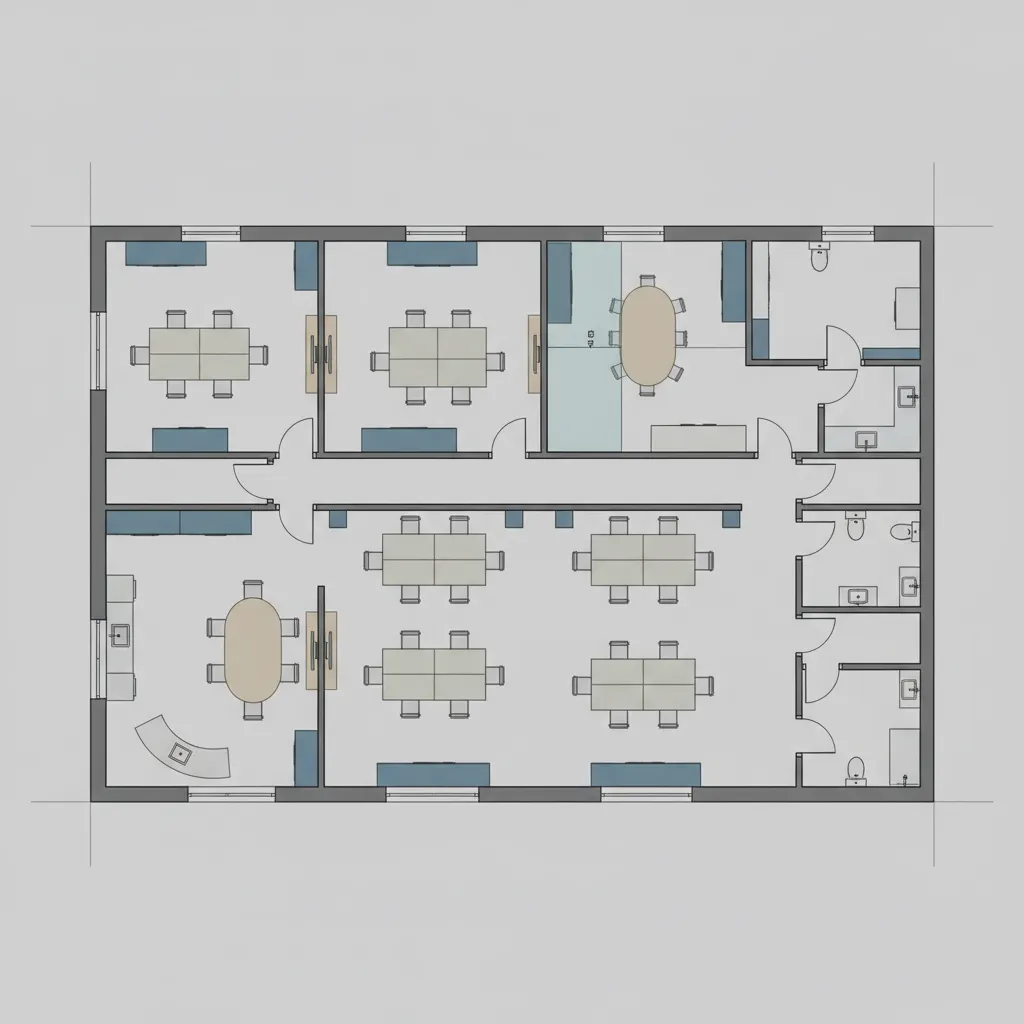

A common hidden cost: overly detailed furniture models. Chairs with complex fillets and mesh imports may look impressive, but they slow down large assemblies dramatically.

For layout planning, simplified "block models" work far better.

Level of Detail Strategies for Building Models

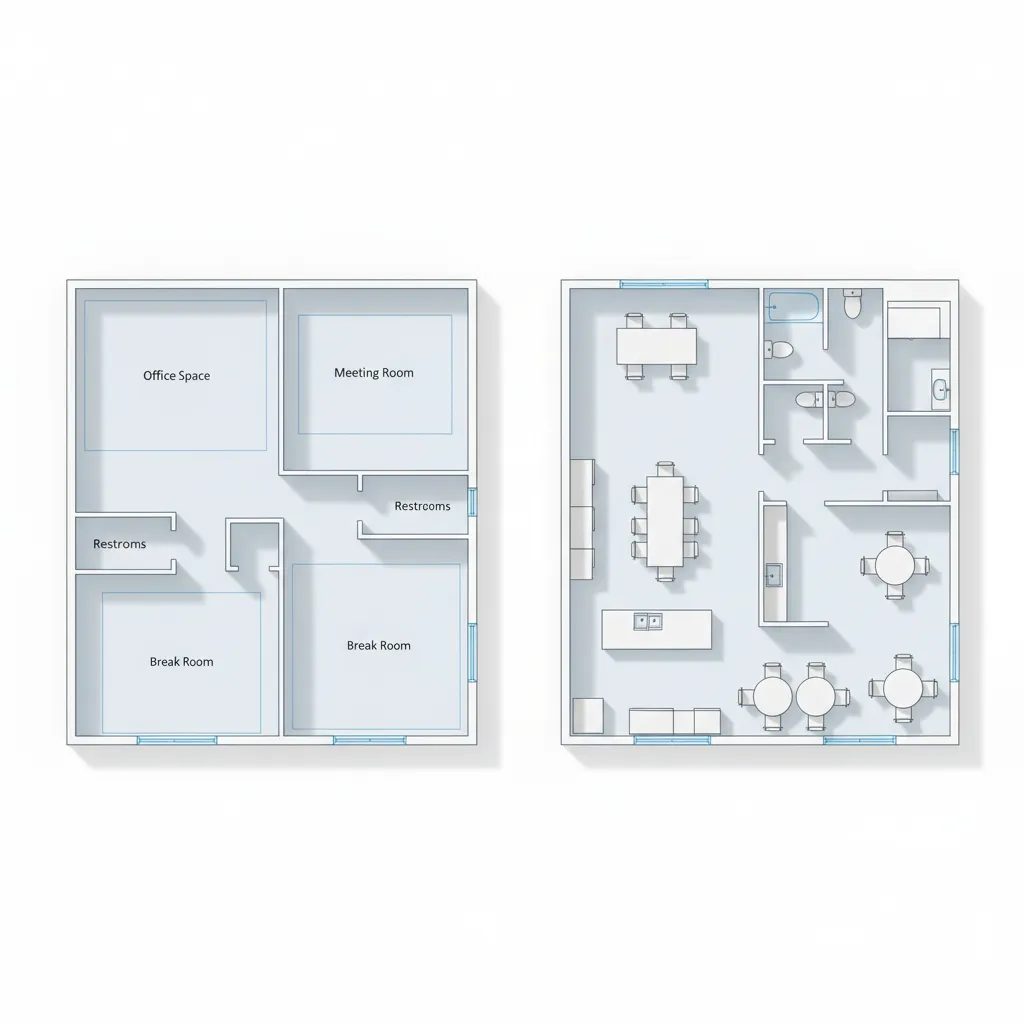

Key Insight: Level of Detail (LOD) representations are essential when assemblies exceed hundreds of components.

Inventor’s LOD system allows you to load simplified versions of assemblies while keeping the full model intact.

Recommended LOD structure for building layouts:

1. Concept LOD: walls and major rooms only
2. Layout LOD: rooms plus major furniture
3. Full Detail LOD: complete geometry

This allows designers to work quickly during planning while still preserving detailed models for documentation.

Many visualization workflows follow a similar layered approach before final rendering. For instance, interior visualization pipelines often prepare simplified geometry before producing final images such as those seen in high‑quality residential interior renderings.

save pin

Export Optimization for Rendering and Visualization

Key Insight: Exporting raw Inventor assemblies to rendering software often creates unnecessarily heavy scenes.

Before exporting a building layout for visualization:

1. Suppress internal components
2. Remove invisible structural elements
3. Convert small repeated elements to instanced geometry
4. Use simplified wall profiles

Preferred export formats for visualization:

1. FBX for rendering pipelines
2. STEP for cross‑platform workflows
3. OBJ for visualization tools

Exporting optimized geometry often reduces render scene size by 70–80% compared to exporting a full Inventor assembly.

Answer Box

The most effective way to optimize large Autodesk Inventor floor plan models is modular design: smaller sketches, reusable room components, simplified geometry, and level‑of‑detail assemblies. These strategies dramatically improve rebuild speed, stability, and rendering workflows.

Final Summary

1. Large Inventor floor plans slow down mainly due to oversized sketches.
2. Room components dramatically reduce rebuild time.
3. Simplified geometry improves stability and file size.
4. Level‑of‑detail assemblies keep large projects manageable.
5. Optimized exports prevent rendering pipeline overload.

FAQ

1. How do you optimize Autodesk Inventor large models?

Reduce sketch complexity, modularize assemblies, simplify geometry, and use level‑of‑detail representations.

2. Why does my Inventor floor plan model run slowly?

Large sketches, excessive constraints, and detailed imported geometry are the most common causes.

3. What is the best workflow for Inventor building layouts?

Use assemblies for floors, components for rooms, and simplified furniture models to keep the model manageable.

4. Can Inventor handle large architectural layouts?

Yes. With proper model structure and level‑of‑detail strategies, Inventor can manage very large building layouts efficiently.

5. How do I reduce Inventor file size for architecture models?

Suppress unused features, simplify imported geometry, and replace detailed furniture with lightweight models.

6. What are level‑of‑detail representations in Inventor?

They allow you to load simplified versions of assemblies so large models remain responsive during editing.

7. What export format works best for rendering Inventor building layouts?

FBX or OBJ usually works best for visualization pipelines and rendering tools.

8. Is Inventor suitable for large floor plan projects?

Yes, especially when applying best practices for large floor plan projects and optimized assembly structures.
