Optimizing Bathroom Drainage with Proper Floor Slope Design: Practical design strategies that prevent water pooling and improve long‑term bathroom drainage performance

Direct Answer

The ideal bathroom floor slope for efficient drainage is typically between 1:50 and 1:80, meaning the floor should drop about 1/4 inch per foot toward the drain. This gentle but consistent gradient allows water to flow naturally without creating uncomfortable footing or visible floor tilt.

Proper slope design, combined with correct drain placement and tile layout, prevents water pooling and significantly improves bathroom drainage performance over time.

Quick Takeaways

1. A bathroom floor slope of 1:50–1:80 provides the best balance between drainage and comfort.
2. Drain placement influences how evenly water flows across the bathroom floor.
3. Tile layout can either support or disrupt natural water movement.
4. Linear drains simplify slope design and reduce pooling risk.
5. Small construction mistakes often cause long‑term drainage issues.

Introduction

After working on dozens of bathroom remodels over the past decade, I’ve learned that most drainage problems don’t come from the drain itself—they come from poor slope design.

Homeowners often assume standing water means the drain is clogged. In reality, the bigger issue is usually an incorrect bathroom floor gradient or poorly planned tile layout. Even a few millimeters of error can cause water to collect in corners, behind the toilet, or near the shower threshold.

If you’re planning a renovation or trying to fix persistent puddles, understanding the ideal bathroom floor slope for drainage is the first step. Before adjusting slopes, I always recommend reviewing examples of interactive bathroom layout planning that visualizes drainage zones, because seeing the floor geometry often reveals problems immediately.

In this guide, I’ll break down the design principles I use in real projects—how slope angles work, where drains should be placed, and the hidden mistakes that quietly sabotage drainage performance.

save pin

Ideal Bathroom Floor Slope for Efficient Drainage

Key Insight: A consistent slope of 1:50 to 1:80 toward the drain ensures water moves quickly without compromising floor comfort.

In residential bathrooms, the sweet spot for drainage is a slope between 1:50 and 1:80. That means every 50–80 units of horizontal floor distance should drop one unit toward the drain.

From a design perspective, steeper slopes drain faster but feel uncomfortable underfoot. Too flat, and water simply sits on the tile.

Typical professional guidelines:

1. Shower floor slope: 1:50 (stronger drainage)
2. Main bathroom floor: 1:60–1:80
3. Accessible bathrooms: closer to 1:80 for safer footing

One mistake I frequently see in renovations is uneven slope transitions between shower and main floor areas. Contractors sometimes adjust the gradient only inside the shower pan, leaving the surrounding floor nearly flat.

The result? Water escapes the shower and pools outside it.

International plumbing standards—including guidelines referenced by the International Plumbing Code—consistently recommend around 1/4 inch per foot slope for shower drainage.

How Drain Placement Affects Floor Slope Performance

Key Insight: Poor drain placement forces complex slope geometry, increasing the chance of uneven drainage.

The position of the drain determines how easily the floor can slope toward it. Central drains require four directional slopes, while edge drains simplify the gradient.

Common drain placement options:

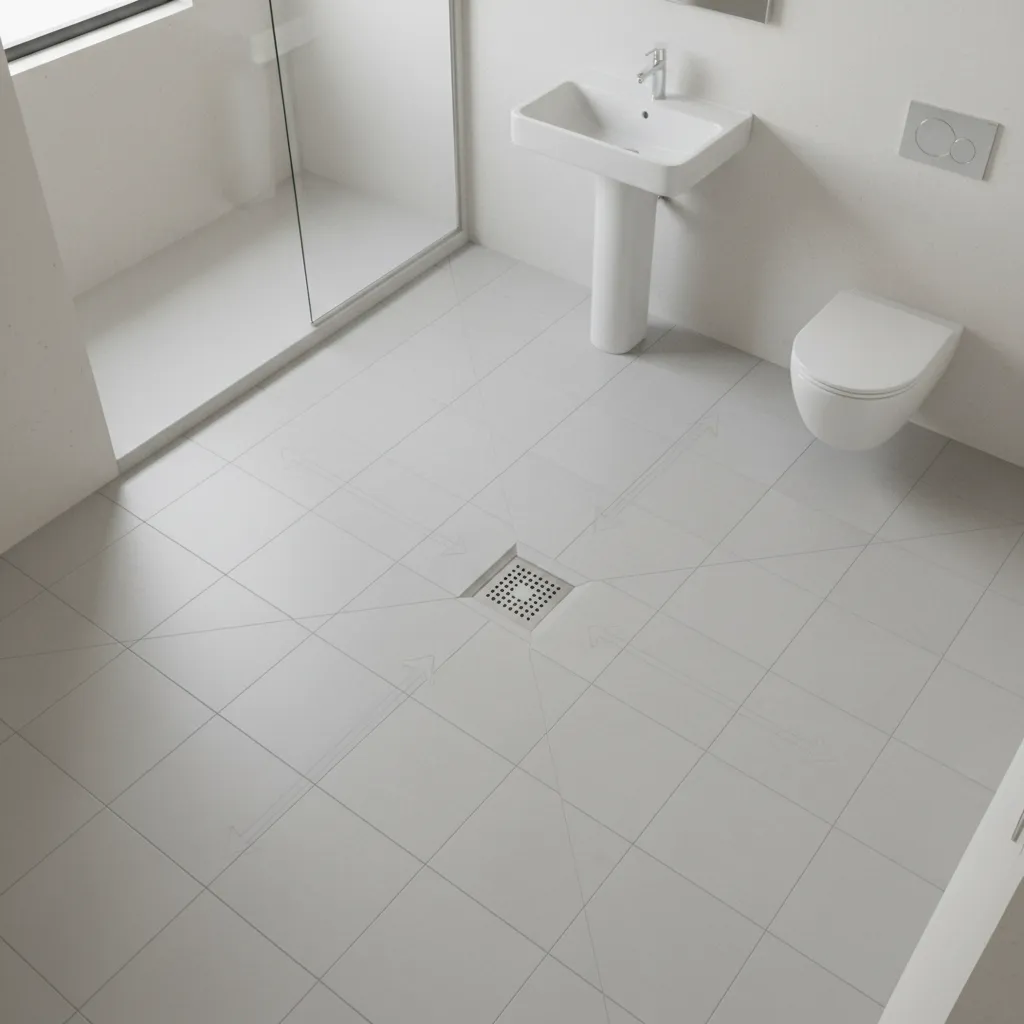

1. Center drain – traditional but requires four triangular slopes
2. Offset drain – slightly easier slope distribution
3. Wall‑edge linear drain – allows single directional slope

In small bathrooms especially, center drains often create subtle low spots along tile seams. Water collects there because the slope transitions aren't perfectly executed.

When planning layouts, visualizing slope direction early makes a big difference. Tools that simulate 3D bathroom floor layouts and drainage slopeshelp reveal where gradients might break before construction even begins.

save pin

Tile Layout Techniques That Improve Water Flow

Key Insight: Tile size and orientation directly influence how smoothly water travels across a sloped bathroom floor.

Tile layout is one of the most overlooked factors in bathroom drainage optimization.

Large tiles look modern, but they make it harder to maintain precise slope angles. Smaller tiles adapt better to changing gradients.

Practical tile strategies I often recommend:

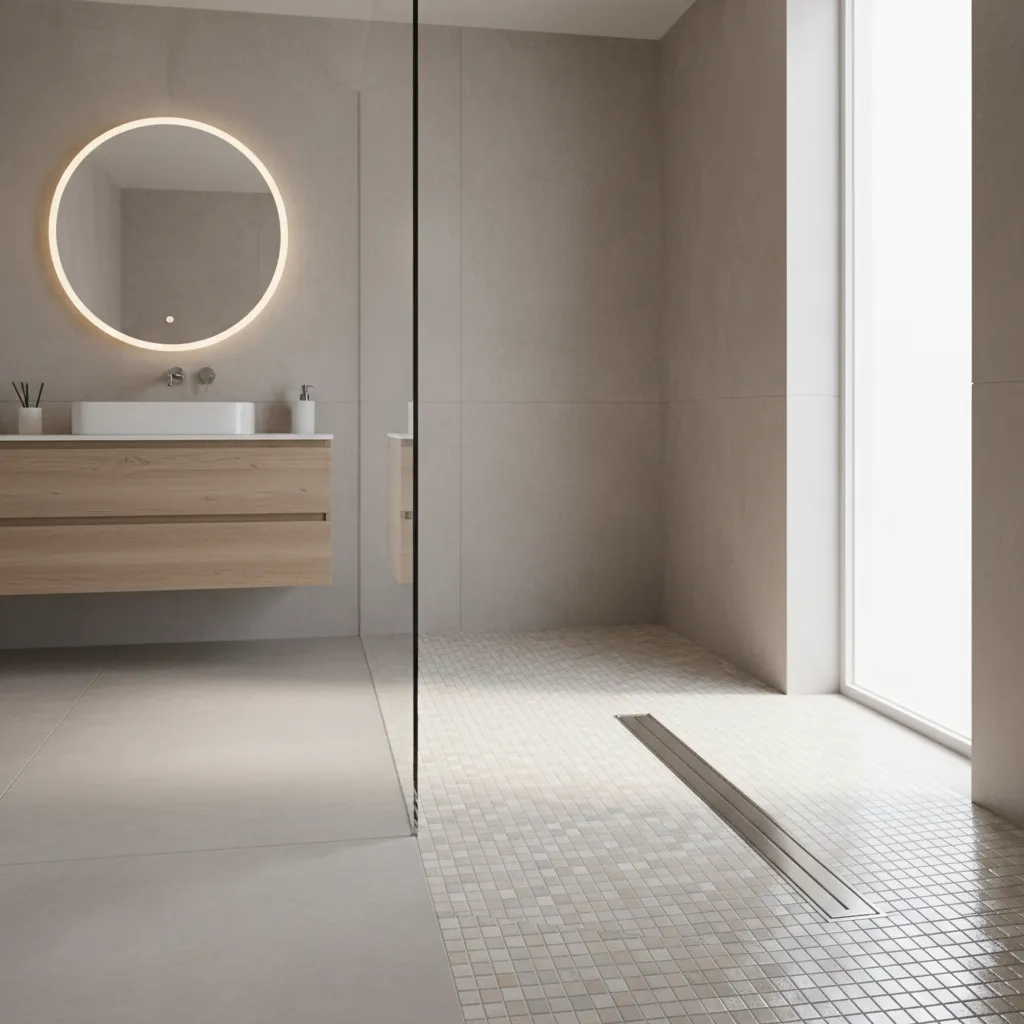

1. Mosaic tiles for shower floors (best slope adaptability)
2. Diagonal tile orientation to guide water toward drains
3. Consistent grout lines that follow slope direction
4. Avoid large-format tiles near multi-direction slopes

A hidden mistake many homeowners don't realize is that large 24-inch tiles can create microscopic "dams" along grout lines when installed on complex slopes.

Over time, those small interruptions slow water movement and cause puddles.

save pin

Using Linear Drains for Better Drainage Optimization

Key Insight: Linear drains simplify slope design by allowing a single directional gradient instead of multiple intersecting slopes.

Linear drains have become extremely popular in modern bathroom design—and not just for aesthetics.

From a drainage engineering perspective, they dramatically simplify floor geometry.

Advantages of linear drains:

1. Single-direction slope across the floor
2. Better compatibility with large tiles
3. Reduced risk of uneven slope intersections
4. Easier waterproofing integration

In my experience, most persistent drainage complaints come from bathrooms with traditional center drains and poorly executed four‑way slopes.

Switching to a wall‑edge linear drain often solves the problem entirely.

Answer Box

The most reliable way to optimize bathroom drainage is combining a 1:50–1:80 floor slope with strategic drain placement and slope‑friendly tile layouts. Linear drains and smaller tiles significantly reduce the risk of water pooling.

Preventing Future Water Pooling with Correct Slope Planning

Key Insight: Drainage issues often start during framing and subfloor preparation—not tile installation.

Many people blame tile installers when water pools, but the real issue usually happens earlier in construction.

Critical planning steps include:

1. Subfloor leveling before waterproofing
2. Pre‑slope mortar beds under shower liners
3. Drain height calibration
4. Consistent floor elevation transitions

Professional remodelers often map the slope before tiling begins. Reviewing floor plan layouts that highlight water flow paths can reveal whether slopes naturally guide water toward the drain.

This simple step can prevent thousands of dollars in future repairs.

Maintenance Practices to Preserve Drainage Efficiency

Key Insight: Even a perfectly designed slope can fail if drains and grout lines are poorly maintained.

Bathroom drainage efficiency slowly declines when buildup interferes with water movement.

Simple maintenance habits include:

1. Clean hair and soap buildup monthly
2. Reseal grout annually in wet zones
3. Inspect silicone edges around drains
4. Remove mineral buildup on tiles

According to plumbing maintenance studies, biofilm buildup inside drains can reduce drainage efficiency by more than 30% over time.

Final Summary

1. The ideal bathroom floor slope for drainage is 1:50–1:80.
2. Drain placement directly affects how slopes distribute across the floor.
3. Smaller tiles adapt better to sloped surfaces.
4. Linear drains simplify slope geometry.
5. Proper planning prevents long‑term drainage failures.

FAQ

What is the ideal bathroom floor slope for drainage?

The recommended slope is between 1:50 and 1:80, allowing water to flow efficiently toward the drain without creating steep or uncomfortable flooring.

How steep should a shower floor slope be?

Most plumbing codes recommend about 1/4 inch per foot toward the drain for shower floors.

Can bathroom floors be completely flat?

No. Even minimal slopes are required to prevent water pooling and ensure proper drainage.

Why does water pool near my shower entrance?

This usually indicates uneven slope transitions or incorrect drain positioning.

Do linear drains improve bathroom drainage?

Yes. Linear drains simplify slope design and reduce the chance of uneven drainage.

Are large tiles bad for shower floors?

Large tiles can make slope adjustments difficult. Smaller tiles typically handle gradients better.

How do I prevent water pooling on my bathroom floor?

Ensure correct floor slope, proper drain placement, and slope‑friendly tile layout.

What causes poor bathroom floor drainage?

The most common causes include incorrect slope angles, improper tile layout, or poorly positioned drains.
