Optimizing Borewell Placement in Small or Irregular Plots: Practical Vastu strategies for placing a borewell correctly when your plot shape or size limits ideal positioning

Direct Answer

Optimizing borewell placement in small or irregular plots requires prioritizing the northeast zone while adjusting position slightly within available open space. When the exact northeast corner is unavailable, Vastu practice allows nearby northern or eastern sectors while maintaining distance from foundations and septic systems.

With careful layout planning, even compact residential plots can align closely with traditional Vastu principles without compromising construction practicality.

Quick Takeaways

1. The northeast quadrant remains the preferred borewell zone even in small plots.
2. When northeast is blocked, north‑northeast or east‑northeast are acceptable alternatives.
3. Maintain structural clearance from walls, septic tanks, and foundations.
4. Coordinate borewell placement early with underground sump and plumbing layout.
5. Good planning can preserve Vastu alignment even in irregular or narrow plots.

Introduction

In my design work across dense urban neighborhoods, one of the most common questions I hear is how to manage borewell placement in small plots without violating Vastu principles. On paper, the answer looks simple: place the borewell in the northeast corner. In reality, compact plots rarely cooperate.

Driveways cut through the corner, setbacks reduce usable space, or the plot itself is trapezoidal instead of rectangular. I have worked on projects where the entire northeast zone was barely large enough for a garden, let alone a drilling rig.

This is where practical interpretation matters. Vastu guidelines were developed around spatial energy flow, but modern plots demand flexible planning. When I review layout options with clients, I often map borewell locations directly on a planning model like this interactive floor plan layout used for early residential site planning, which helps visualize clearance zones before construction begins.

In this guide, I’ll break down how professionals adapt Vastu borewell placement for constrained sites—while avoiding common mistakes that surprisingly many builders still make.

save pin

Challenges of Borewell Placement in Compact Plots

Key Insight: The biggest constraint in small plots is not direction—it’s the lack of functional clearance around the borewell.

Homeowners often focus entirely on direction, but experienced planners know that physical access and safety spacing usually create the real limitations.

Typical challenges I encounter include:

1. Driveway occupying the northeast corner
2. Mandatory municipal setbacks reducing usable space
3. Irregular or triangular plot geometry
4. Underground sump or septic tank conflicts
5. Drilling rig access requirements

In dense Indian or Southeast Asian neighborhoods, plots as small as 20×40 feet are common. In these cases, a strict "exact corner" interpretation of Vastu becomes unrealistic.

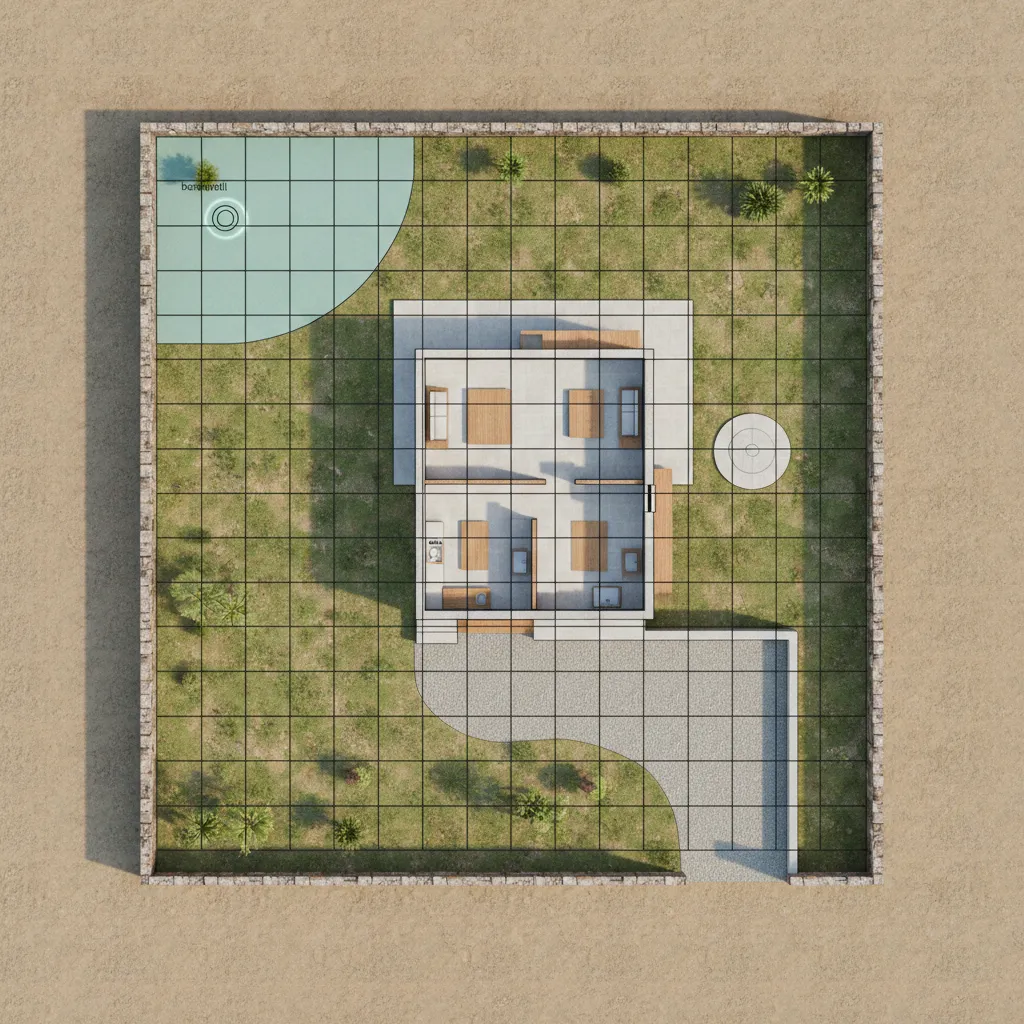

Architects typically divide the site into a 9‑grid or 16‑grid Vastu map. Even when the corner is unavailable, positioning within the northeast quadrant often satisfies the energetic principle without forcing impractical construction decisions.

Applying Vastu Principles When Ideal Space Is Limited

Key Insight: Vastu prioritizes energy zones rather than exact coordinates, which allows controlled flexibility.

One misconception I see frequently online is the idea that a borewell must be drilled exactly in the corner point. In practice, most Vastu consultants work with zones.

When evaluating constrained plots, I recommend this priority hierarchy:

1. Primary zone: Northeast (NE)
2. Secondary zone: North‑Northeast (NNE)
3. Secondary zone: East‑Northeast (ENE)
4. Avoid: South, Southwest, and center of the plot

This flexible interpretation preserves the water‑energy alignment associated with the northeast direction while adapting to modern site conditions.

In fact, many municipal planning authorities already force borewell offsets for safety reasons. As long as the water source remains within the broader northeast energy field, the traditional guideline is generally considered satisfied.

save pin

Best Alternative Zones When Northeast Is Not Available

Key Insight: If the northeast corner is blocked, positioning slightly north or east of that zone is usually the safest adjustment.

Over the past decade, I’ve noticed that most problematic placements come from people jumping too far away from the northeast area rather than adjusting within nearby sectors.

Practical alternatives include:

1. North‑Northeast along the northern boundary
2. East‑Northeast along the eastern setback
3. Northern strip within the first quarter of the plot

Locations to avoid:

1. Southwest corner
2. Center of the house footprint
3. Directly beside the main foundation

Professional planners often simulate these zones during layout planning. Tools similar to this 3D residential layout visualization used during site design help confirm that the borewell location stays clear of structural elements before excavation begins.

Answer Box

For small or irregular plots, the best borewell location remains within the northeast quadrant of the site. If the exact corner is unavailable, north‑northeast or east‑northeast positions are widely accepted alternatives that maintain Vastu alignment while accommodating construction constraints.

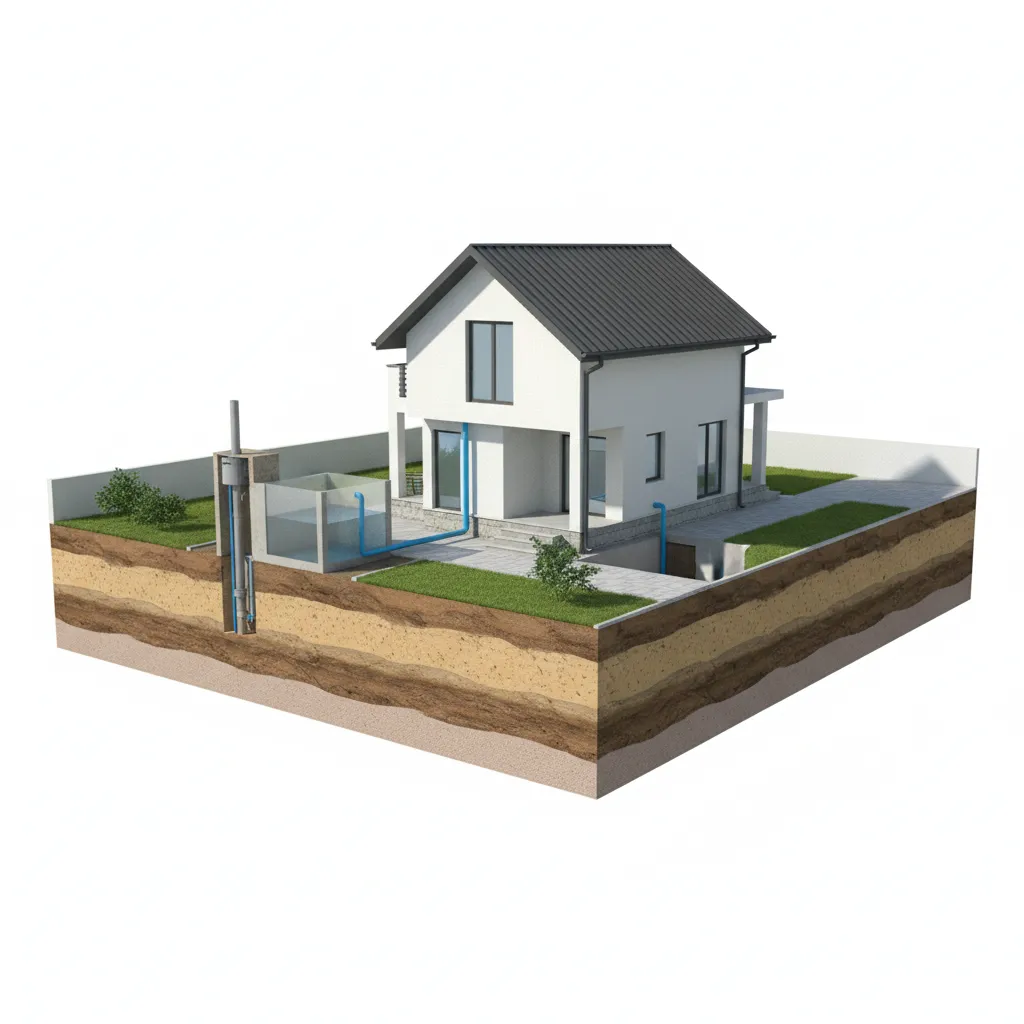

Coordinating Borewell with Underground Water Sump Layout

Key Insight: Borewell and sump planning should happen simultaneously—separating them often creates costly plumbing problems.

One mistake I repeatedly see on small plots is drilling the borewell first and then trying to "fit" the sump later.

This creates three issues:

1. Longer underground piping runs
2. Reduced pump efficiency
3. Higher installation costs

The better strategy is integrated planning:

1. Mark Vastu zones across the entire plot
2. Identify borewell position within the northeast quadrant
3. Place the underground sump slightly west or south of the borewell
4. Design direct plumbing routing toward the pump room

This coordinated layout keeps water systems compact and reduces maintenance risks.

save pin

Distance Guidelines from Building Walls and Boundaries

Key Insight: Structural clearance is just as important as direction for long‑term safety.

Across multiple residential projects, engineers consistently recommend minimum spacing between borewells and structural elements.

Typical guidelines include:

1. 3–5 feet from compound walls
2. 5–10 feet from building foundations
3. 10–15 feet from septic tanks
4. Clear drilling access from the street

These distances reduce vibration damage during drilling and prevent contamination risks later.

When space is extremely tight, I often sketch the entire service layout early using a digital room‑level layout planning workflow for compact homes. Seeing plumbing, walls, and utilities together prevents expensive repositioning during construction.

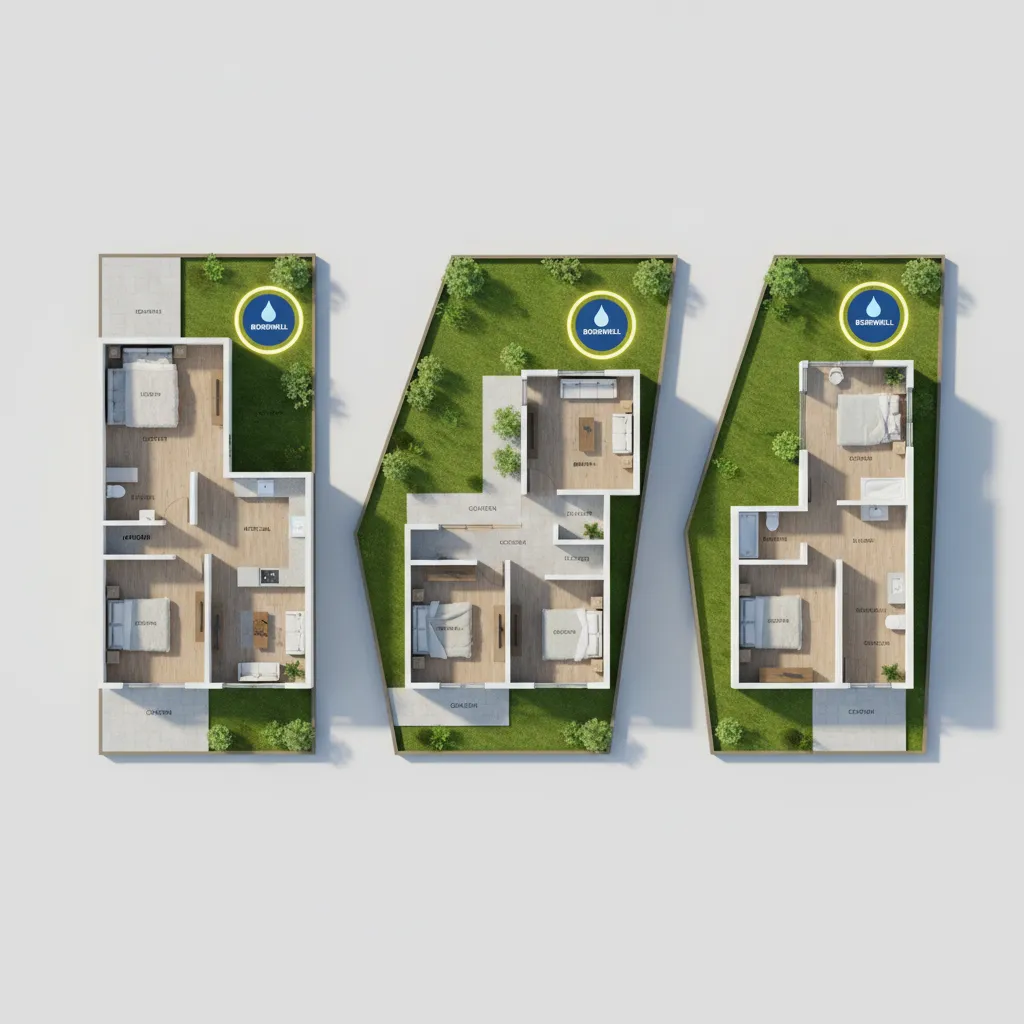

Layout Optimization Examples for Small Residential Plots

Key Insight: Smart layout adjustments can preserve Vastu alignment even on plots under 1000 square feet.

Here are examples I frequently implement:

Example 1: 30×40 rectangular plot

1. Borewell: northeast setback
2. Driveway shifted slightly west
3. Underground sump placed east‑central

Example 2: Irregular corner plot

1. Borewell placed in the closest northeast triangular section
2. Garden buffer added around drilling point
3. Utility piping routed along the east boundary

Example 3: Narrow urban plot

1. Borewell along north boundary near front setback
2. Sump aligned directly behind it
3. Pump room integrated into parking area

save pin

Final Summary

1. Northeast remains the most favorable borewell zone.
2. North‑northeast and east‑northeast are practical alternatives.
3. Clearance from walls and septic systems is essential.
4. Borewell and sump should be planned together early.
5. Even small plots can follow Vastu with smart layout adjustments.

FAQ

Can a borewell be placed in the north direction if the northeast is unavailable?

Yes. North‑northeast areas are generally considered an acceptable alternative when the exact northeast corner cannot be used.

Is borewell placement in small plots different from large plots?

The Vastu principles remain the same, but small plots require flexible positioning within the northeast quadrant.

What is the best borewell placement in small plots according to Vastu?

The best borewell placement in small plots is within the northeast sector or slightly toward the north‑northeast or east‑northeast.

How far should a borewell be from the house foundation?

Most engineers recommend at least 5–10 feet from the main building foundation to avoid structural stress.

Can the borewell and water sump be in the same area?

Yes. They are often placed close together in the northeast zone to reduce plumbing distance.

Is it bad to place a borewell in the east direction?

Pure east is sometimes acceptable, but east‑northeast is usually preferred for stronger alignment with Vastu water zones.

Does plot shape affect borewell Vastu?

Yes. Irregular plots often require adjusting placement within the northeast quadrant rather than using the exact corner.

What should be avoided near a borewell?

Avoid septic tanks, heavy structural foundations, and contamination sources within at least 10–15 feet.

References

1. Traditional Vastu architectural planning guidelines
2. Residential groundwater drilling practices
3. Urban residential site planning principles
