Optimizing Ceiling Fan Wiring for Smart Switches and Remote Controls: A practical guide to integrating smart switches, remotes, and modern automation while keeping ceiling fan wiring safe and fully functional.

Direct Answer

To optimize ceiling fan wiring for smart switches and remote controls, the fan motor and light must be wired on separate circuits—typically using the black wire for the fan and the blue wire for the light. Smart switches or receiver modules can then independently control each function without electrical conflicts.

Most integration problems occur when both fan and light share a single switched hot wire, which prevents smart automation from managing them separately.

Quick Takeaways

1. The blue wire usually controls the ceiling fan light kit.
2. Smart switches require separate fan and light circuits for reliable automation.
3. Remote receiver modules sit between power supply and fan wiring.
4. Combining multiple controllers often causes signal conflicts.
5. Modern smart homes benefit from dedicated fan and light switches.

Introduction

In the last decade of installing and redesigning smart homes, one wiring issue shows up again and again: ceiling fan smart switch wiring that doesn’t behave the way homeowners expect. Someone installs a smart light switch, pairs it with automation, and suddenly the fan stops responding—or both the light and fan activate together.

The root cause is almost always the same: the blue wire, which typically powers the fan light, is tied incorrectly or combined with the fan motor circuit.

After working on dozens of renovation projects across California, I’ve learned that successful smart fan integration depends less on the smart device itself and more on the wiring structure behind the wall. If the fan and light circuits aren’t separated, no automation platform can fix the limitation.

Before diving deeper into smart integrations, it helps to visualize how modern layout planning tools represent electrical zones and lighting paths. A good example is this walkthrough on visualizing lighting and electrical placement inside a 3D floor planning workflow, which mirrors how electricians map circuits during design.

Let’s break down how smart switches, remote modules, and the blue wire actually work together in a modern ceiling fan setup.

save pin

How Smart Switches Interact with Ceiling Fan Wiring

Key Insight: Smart switches control the hot wire feeding the fixture, so correct fan wiring determines whether automation can separate the fan and light.

Traditional wall switches simply interrupt power. Smart switches do the same thing electronically while adding wireless communication and automation rules.

But here’s the nuance many installers overlook: a single smart switch can only control one electrical circuit. If the ceiling fan light and motor share that same hot wire, the smart system cannot distinguish between them.

Typical wiring scenario:

1. Black wire → fan motor power
2. Blue wire → light kit power
3. White wire → neutral
4. Green/bare → ground

When the blue and black wires are tied together, the smart switch turns everything on simultaneously. That’s fine for basic setups but limits automation such as:

1. Voice‑controlled lighting only
2. Temperature‑based fan automation
3. Night lighting schedules

Professional electricians increasingly recommend separate smart switches for fans and lights because it avoids these limitations.

Role of the Blue Wire in Smart Lighting Control

Key Insight: The blue wire is the dedicated power line for the ceiling fan light kit, making it the critical path for smart lighting control.

Many homeowners assume the blue wire is optional because some fans operate without a light. But when automation enters the picture, this wire becomes essential.

In a smart-enabled system, the blue wire allows the lighting circuit to be controlled independently through:

1. Smart wall switches
2. Voice assistants
3. Automated lighting schedules
4. Mobile app control

Hidden mistake I see frequently in remodels: installers cap the blue wire and rely on a remote receiver to handle everything. That works temporarily but prevents future upgrades to separate smart switches.

Leaving the blue wire accessible preserves flexibility for future smart home upgrades.

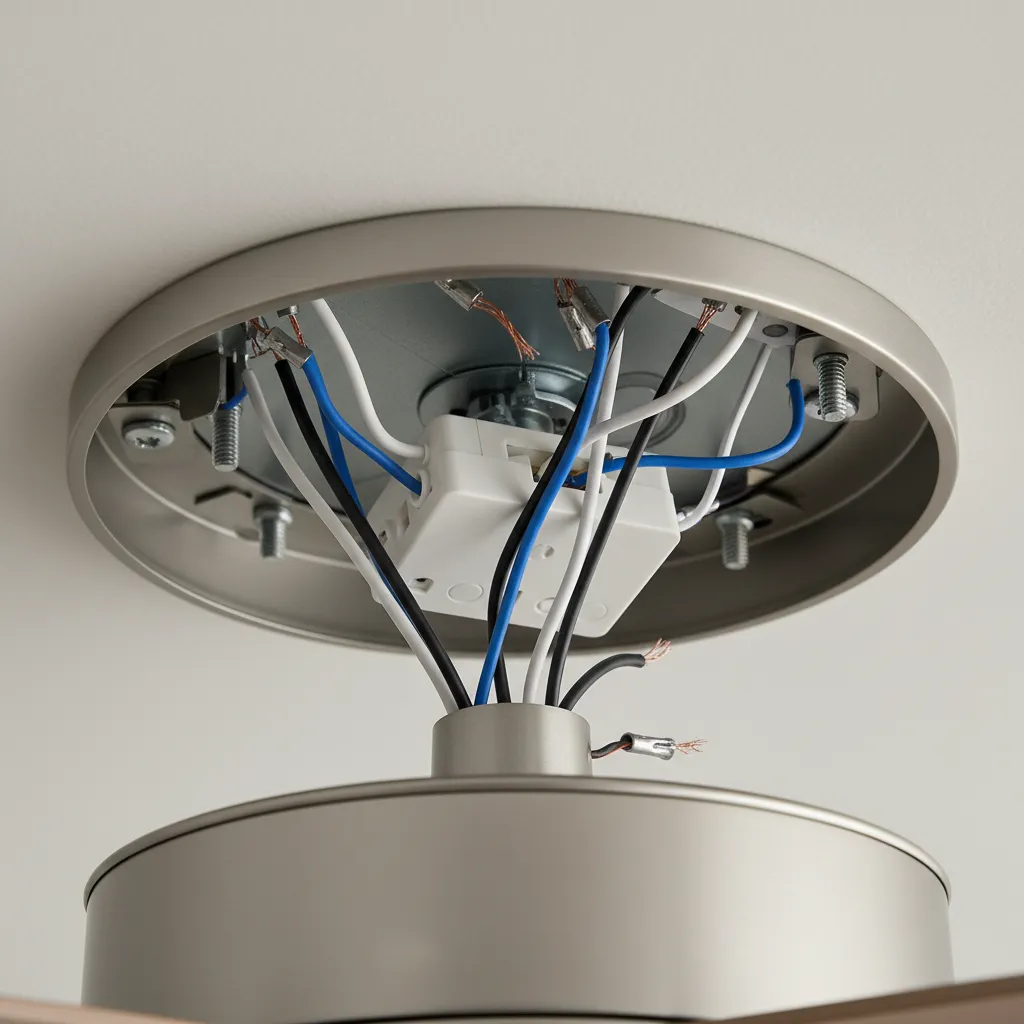

Wiring Ceiling Fans with Remote Receiver Modules

Key Insight: Remote receiver modules intercept incoming power and split it internally between fan motor and light circuits.

Most modern ceiling fans ship with a small receiver box installed inside the canopy. This receiver communicates with a handheld remote and distributes power to the appropriate wires.

Basic wiring flow:

1. House hot wire enters receiver.
2. Receiver sends power to fan motor wire.
3. Receiver sends separate power to blue light wire.

Advantages of receiver modules:

1. No extra wall switches required
2. Speed control through remote
3. Dimming capability for compatible lights

However, there is a trade‑off many guides ignore: receiver modules can interfere with smart switches.

If the smart switch cuts power to the receiver, the automation system may lose control or reset the fan.

save pin

Best Wiring Setup for Independent Fan and Light Control

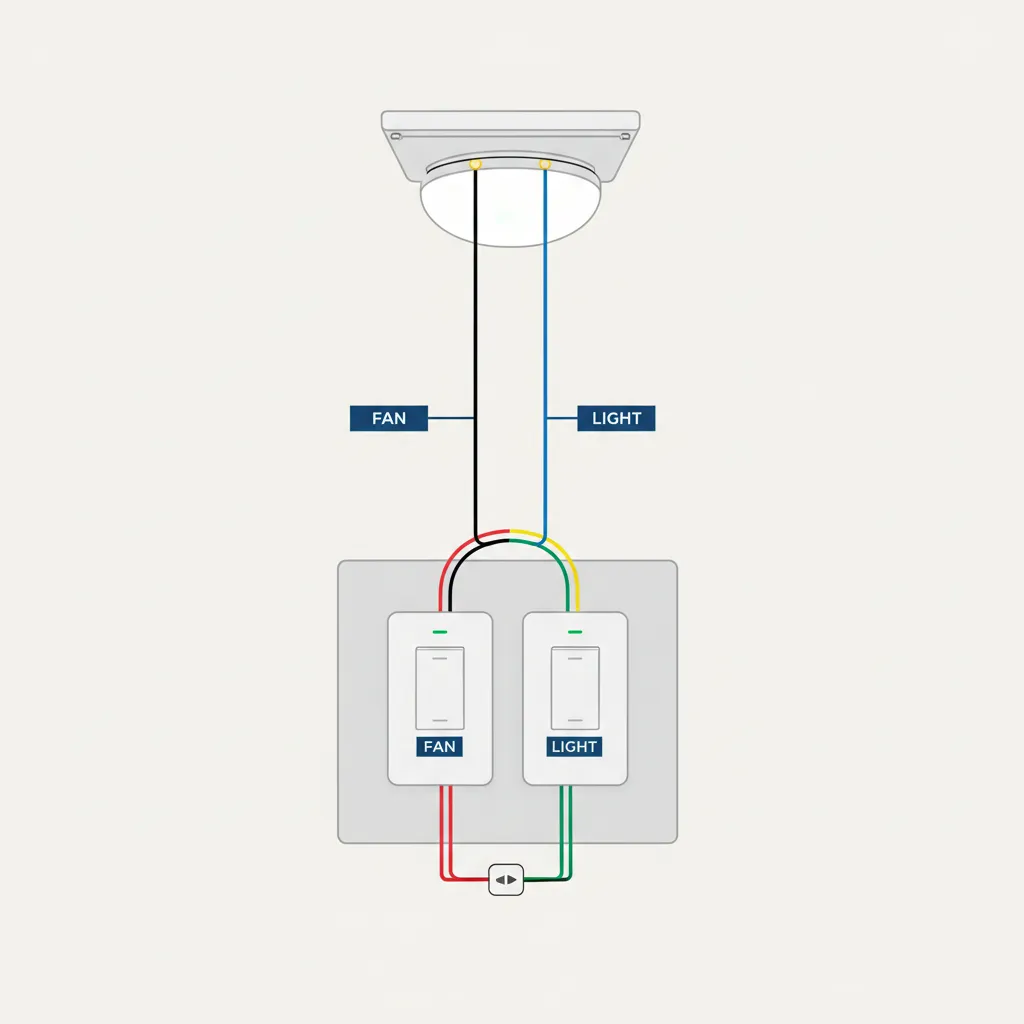

Key Insight: The most reliable smart configuration uses two wall switches—one controlling the black fan wire and the other controlling the blue light wire.

This layout is common in new construction because it provides the highest compatibility with smart home ecosystems.

Recommended configuration:

1. Switch 1 → fan motor (black wire)
2. Switch 2 → light kit (blue wire)
3. Neutral shared across both circuits

Benefits include:

1. Independent smart automation
2. No receiver conflicts
3. Better dimming control
4. More reliable voice assistant integration

When designing ceiling layouts or lighting plans, I often use tools similar to those shown in this guide to experiment with different lighting zones using an interactive room layout planner. Visualizing circuits early helps prevent wiring limitations later.

Avoiding Conflicts Between Smart Switches and Fan Controllers

Key Insight: Smart switches and built‑in fan controllers often compete for control of the same circuit, causing unpredictable behavior.

Common problems include:

1. Fan resetting when power cycles
2. Lights flickering with dimmers
3. Remote control losing pairing
4. Smart automations failing intermittently

From a design perspective, the safest approach is choosing one control system as the “primary brain.”

Typical decision framework:

1. Use smart switches when wall control and automation are priorities.
2. Use receiver modules when wiring access is limited.
3. Avoid stacking both unless explicitly supported.

This small decision often determines whether a smart home setup feels seamless or frustrating.

save pin

Recommended Wiring Configurations for Smart Homes

Key Insight: Smart homes perform best when ceiling fan wiring prioritizes circuit separation rather than relying on control accessories.

After years of projects, three configurations consistently deliver the best results.

Configuration 1: Dual Smart Switches

1. Separate fan and light circuits
2. Maximum automation compatibility
3. Preferred for renovations

Configuration 2: Smart Fan Controller Switch

1. Single wall control
2. Fan speed and light dimming
3. Requires compatible fan wiring

Configuration 3: Remote Receiver System

1. Best for existing single‑switch wiring
2. No wall rewiring required
3. Limited smart home integration

If you’re planning a full renovation or automation upgrade, visualizing fixture placement and wiring zones in advance can prevent costly rework. Many designers now prototype these layouts using tools similar to creating electrical‑ready floor plans before installation.

Answer Box

The most reliable ceiling fan smart switch wiring setup separates the fan motor and light circuits. Use the black wire for the fan and the blue wire for the light, each connected to its own smart switch or controller.

Final Summary

1. The blue wire powers the ceiling fan light kit.
2. Smart switches require separate fan and light circuits.
3. Remote receivers can limit smart automation flexibility.
4. Dual‑switch wiring provides the most reliable smart control.
5. Planning wiring early prevents costly smart home upgrades later.

FAQ

Can I connect a ceiling fan to a smart light switch?

Yes, but only the light should connect to a standard smart light switch. The fan motor typically requires a fan‑rated smart switch.

What does the blue wire do in a ceiling fan?

The blue wire carries power to the fan’s light kit and allows separate lighting control.

Can a smart switch control both fan and light?

Only if both are on the same circuit. However, this prevents independent control and limits automation.

Do ceiling fan remotes interfere with smart switches?

They can. Remote receiver modules may reset when smart switches cut power.

Is separate fan and light wiring necessary?

For full automation and voice control, separate circuits are strongly recommended.

What is the best ceiling fan smart switch wiring method?

Using two smart switches with separate wiring for the fan motor and blue light wire.

Can I install a smart ceiling fan without rewiring?

Yes. Remote receiver systems allow smart features without new wiring.

Why does my smart switch turn on both fan and light?

This usually means the blue and black wires are tied together on the same switched circuit.
