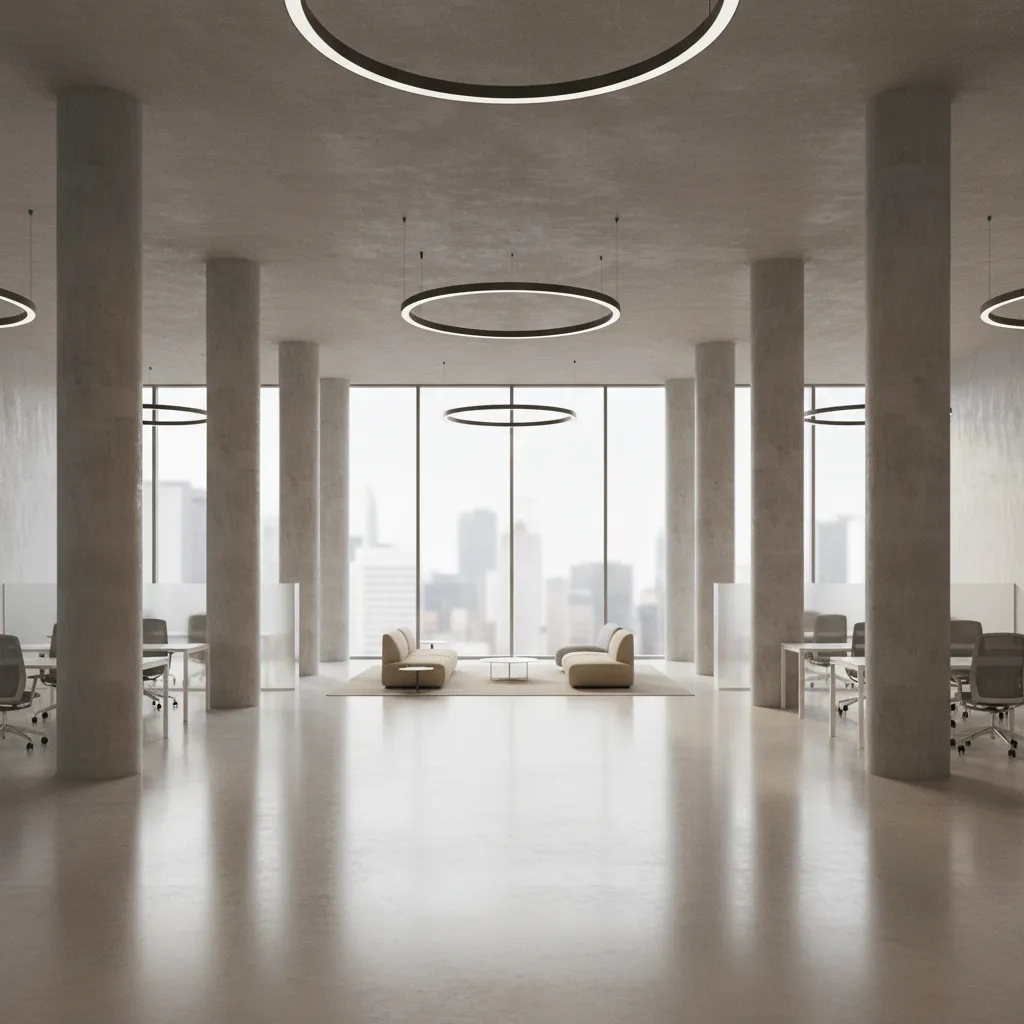

Optimizing Column Spacing for Maximum Interior Flexibility: Practical design strategies architects and developers use to increase column spacing while preserving structural efficiency and adaptable interior layouts.

Direct Answer

Optimal column spacing depends on structural system, building use, and cost tolerance, but most flexible interior layouts rely on spans between 25 and 40 feet. Wider spacing increases interior adaptability but requires stronger beams, deeper slabs, or advanced structural systems. The best solution balances span length, structural efficiency, and mechanical coordination.

Quick Takeaways

1. Most flexible commercial interiors use column spacing between 25 and 40 feet.
2. Increasing span length raises structural depth, material cost, and vibration risks.
3. Mechanical systems and ceiling coordination often limit column spacing before structure does.
4. Early grid planning prevents layout conflicts with walls, furniture, and circulation.
5. Long-span solutions work best when paired with integrated structural and architectural design.

Introduction

Column spacing is one of the most underrated decisions in building design. After working on dozens of office, residential, and mixed‑use projects, I can tell you that the difference between a rigid interior and a flexible one often comes down to the structural grid.

Clients frequently ask how to create open interiors that can adapt over time. The answer usually leads straight back to column spacing. Wider spans allow future layout changes, better daylight distribution, and more efficient circulation.

But pushing columns farther apart isn’t always the smartest move. Structural depth increases, mechanical routing becomes more complicated, and construction costs can rise quickly. When teams ignore these trade‑offs early, the building ends up paying for it later.

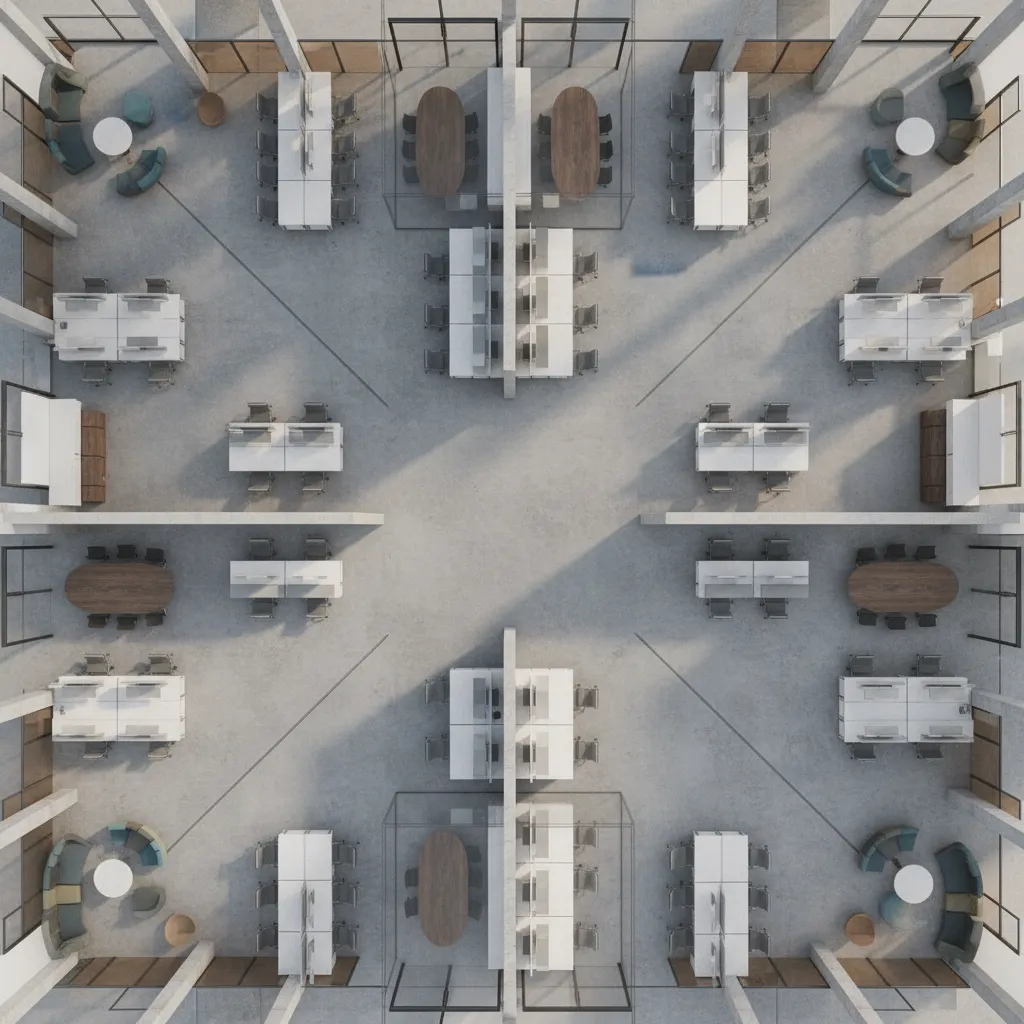

If you’re planning an open layout, it helps to first understand how column grids shape the entire floor plate. This overview of planning structural layouts using a 3D floor planning workflowshows how early grid decisions affect interior flexibility.

In this guide, I’ll break down how column spacing works in real projects, the structural limits you need to understand, and the design strategies that allow wider spans without destroying the construction budget.

save pin

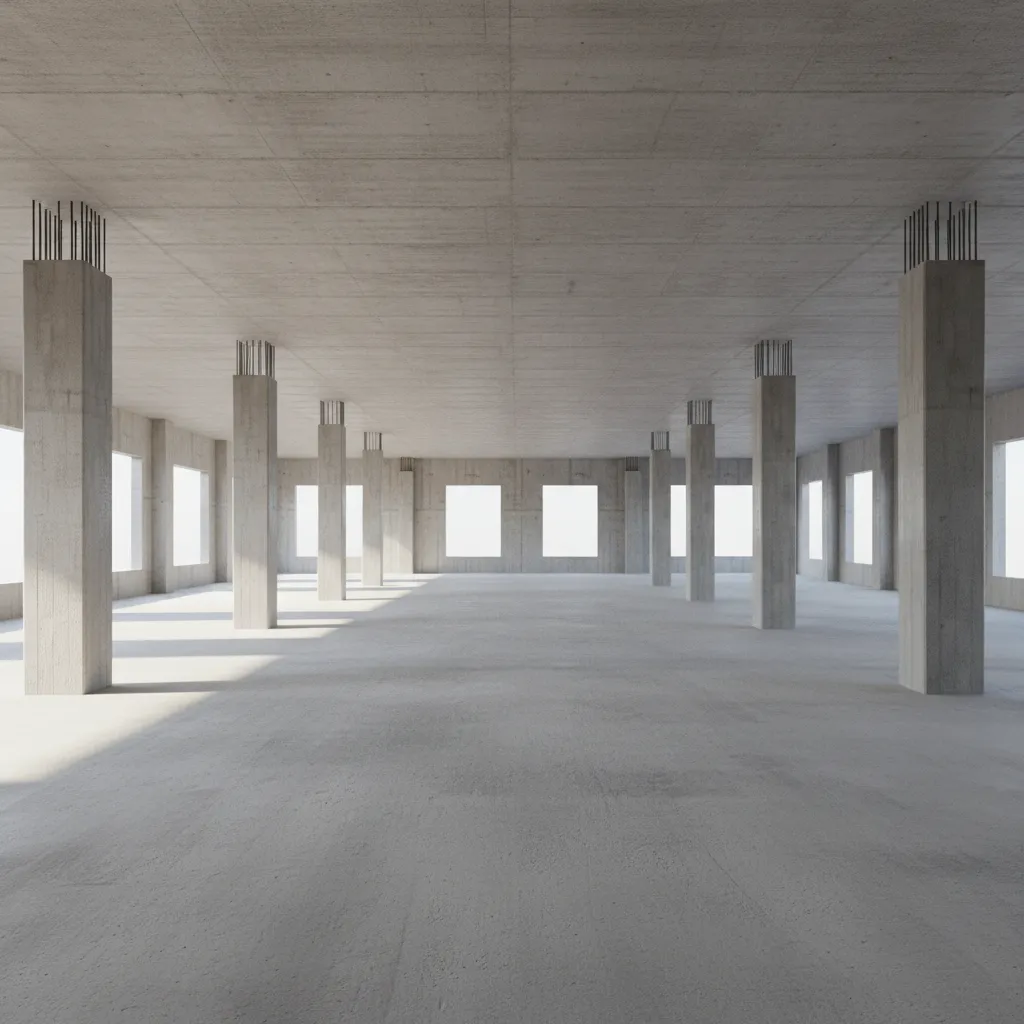

What Determines Column Spacing in Buildings

Key Insight: Column spacing is primarily determined by structural system capacity, floor loads, and the building’s functional layout requirements.

Many people assume column spacing is purely a structural calculation. In reality, it’s a negotiation between structure, architecture, and building systems.

Structural engineers calculate maximum spans based on beam strength, slab thickness, and load conditions. But architects influence the final grid through circulation paths, room sizes, and façade rhythm.

In office projects, for example, column spacing often aligns with modular planning systems that support workstation layouts and partition grids.

Typical factors affecting column spacing include:

1. Structural system type (steel, reinforced concrete, post‑tensioned slab)
2. Expected floor loads
3. Building height and lateral stability
4. Mechanical and duct routing
5. Parking layout alignment
6. Architectural module planning

The American Institute of Steel Construction notes that steel frame office buildings commonly use structural grids around 30 feet, because this range balances material efficiency with flexible planning.

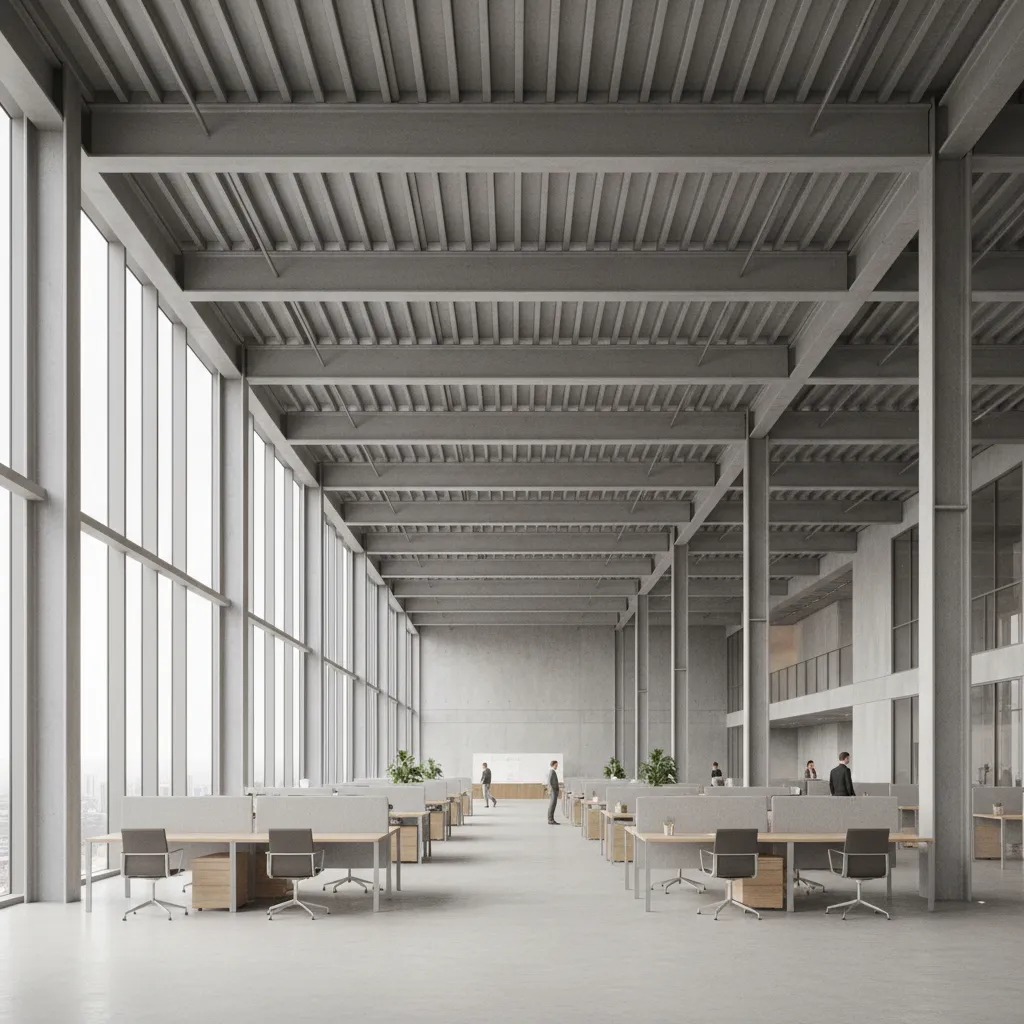

Structural Limits of Increasing Column Distance

Key Insight: The wider the span between columns, the deeper and heavier the structural system must become.

Designers often push for wide spans to eliminate interior obstacles, but structural physics doesn’t negotiate. Longer spans dramatically increase bending forces.

That leads to several structural consequences:

1. Deeper beams or thicker slabs
2. Higher material consumption
3. Greater floor vibration risk
4. Reduced ceiling clearance

For example, increasing a span from 30 feet to 40 feet doesn’t increase structural demand by just 33%. The required beam stiffness can increase far more because deflection grows exponentially with span length.

This is why some projects that initially target ultra‑wide spans end up scaling back once engineering calculations begin.

save pin

Balancing Span Length and Structural Cost

Key Insight: There is a cost sweet spot for column spacing where structural efficiency and interior flexibility overlap.

From experience, the most cost‑effective column spacing typically falls within a moderate range rather than at extreme spans.

Typical span efficiency ranges:

1. 20–25 ft: economical but limits layout flexibility
2. 25–30 ft: efficient and widely used in residential buildings
3. 30–35 ft: excellent balance for offices and mixed‑use
4. 35–40 ft: high flexibility but increased structural cost
5. 40+ ft: requires specialized long‑span systems

Many developers assume fewer columns always reduce cost. In reality, the opposite can occur. Extremely wide spans require stronger beams, thicker slabs, and larger foundations.

In several commercial projects I’ve worked on, a 32‑foot grid ended up being more economical than a 40‑foot grid while still allowing highly flexible tenant layouts.

Early layout testing using tools like a workflow for quickly testing structural grid layouts in early planning can reveal these cost trade‑offs before engineering drawings begin.

Design Strategies for Wider Column Spacing

Key Insight: Achieving wide column spacing usually requires combining structural innovation with smart architectural planning.

Rather than simply stretching the grid, experienced teams use targeted design strategies.

Common approaches include:

1. Post‑tensioned concrete slabs
2. Composite steel beam systems
3. Transfer girders
4. Long‑span trusses
5. Flat slab systems

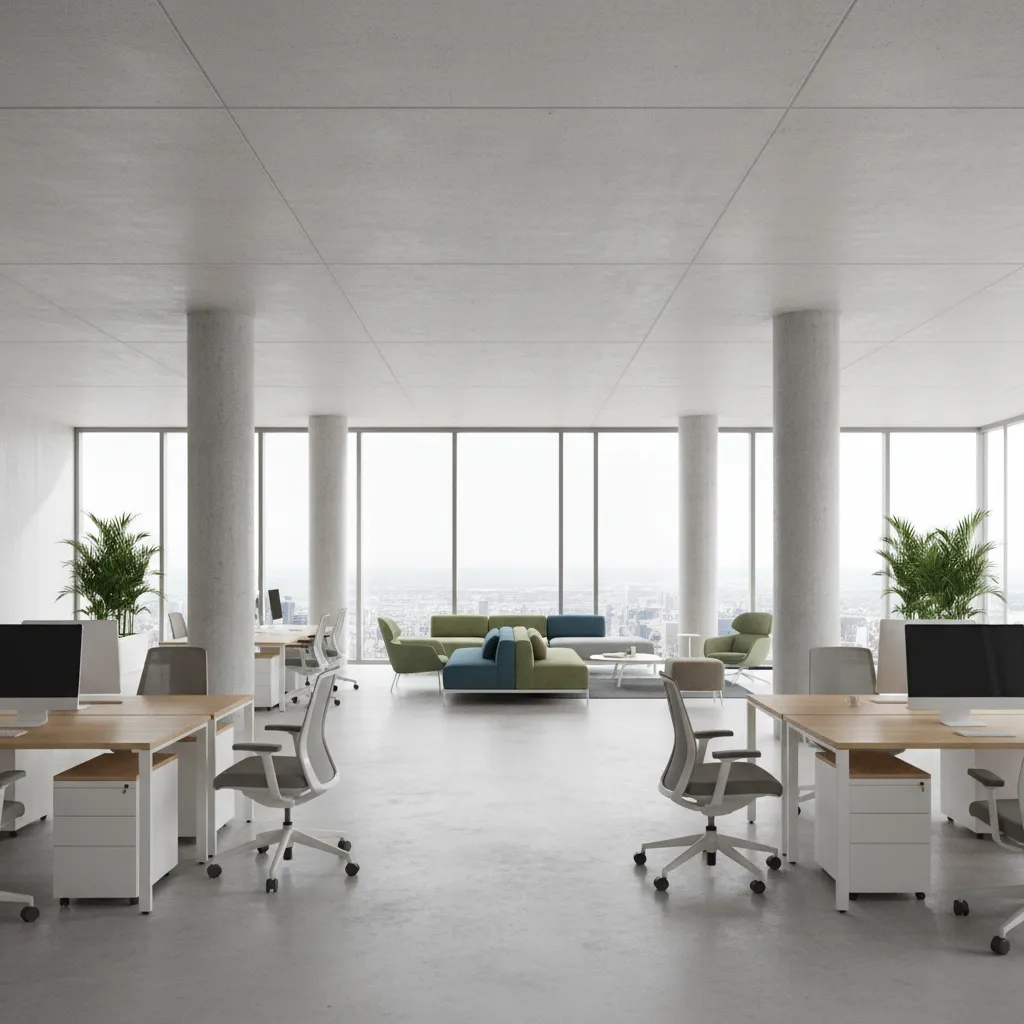

Post‑tensioned slabs are especially common in residential and hotel buildings because they allow spans beyond 30 feet while keeping slab thickness relatively low.

Another strategy is redistributing columns toward building cores or perimeter walls, freeing the central floor area for flexible planning.

save pin

Impact on Mechanical and Architectural Planning

Key Insight: Mechanical systems and ceiling coordination often become the real constraint when column spacing increases.

Many designers focus entirely on structure, but wide spans create mechanical challenges that are frequently underestimated.

Larger spans usually require deeper beams, which means less ceiling space for ducts, sprinklers, and lighting systems.

Common coordination challenges:

1. Duct routing conflicts
2. Lower finished ceiling heights
3. Lighting alignment issues
4. Acoustic ceiling limitations

In several office projects, increasing column spacing forced mechanical engineers to redesign entire duct networks because beam depth consumed valuable ceiling space.

This is why integrated planning between architects, structural engineers, and MEP engineers is essential early in the design phase.

Practical Column Spacing Ranges for Different Building Types

Key Insight: Different building types rely on different column spacing ranges based on functional requirements.

There isn’t a universal ideal spacing. Each building type optimizes its structural grid differently.

Typical column spacing guidelines:

1. Residential apartments: 20–30 ft
2. Office buildings: 30–35 ft
3. Retail spaces: 30–40 ft
4. Parking garages: 28–32 ft
5. Industrial buildings: 40–60 ft

Industrial facilities can achieve very wide spans because they often use steel truss systems designed specifically for large open areas.

When evaluating layouts, testing furniture, circulation, and partition layouts against the structural grid helps confirm whether the spacing actually supports future flexibility. This type of planning becomes easier when teams experiment with interactive room layout simulations for flexible interior planningbefore finalizing the structure.

save pin

Answer Box

The most effective column spacing for flexible interiors usually falls between 30 and 35 feet. This range balances structural efficiency, mechanical coordination, and adaptable interior layouts without requiring expensive long‑span systems.

Final Summary

1. Column spacing directly controls interior flexibility.
2. Most efficient grids fall between 25 and 35 feet.
3. Long spans increase structural depth and cost quickly.
4. Mechanical coordination often limits practical span length.
5. Early structural grid planning prevents expensive redesigns.

FAQ

What is optimal column spacing for an open floor plan?

Most open floor plans work best with column spacing between 30 and 35 feet, which balances flexibility and structural efficiency.

How far apart can structural columns be?

Typical buildings use 20–40 feet spacing, but specialized long‑span systems can exceed 60 feet in industrial or stadium structures.

Does wider column spacing always improve interior flexibility?

Not always. Wider spans can reduce ceiling height and increase structural cost, which may limit usable interior space.

What structural systems allow wide column spacing?

Post‑tensioned slabs, steel trusses, composite beams, and transfer girders are common solutions for wide spans.

Is column spacing different for residential and commercial buildings?

Yes. Residential buildings typically use smaller grids around 20–30 feet, while commercial offices often use 30–35 feet spacing.

What happens if column spacing is too small?

Too many columns reduce layout flexibility and can interfere with circulation, furniture placement, and tenant customization.

How does column spacing affect construction cost?

Increasing column spacing raises structural demands, which can significantly increase material and engineering costs.

Can column spacing be changed after design begins?

It’s technically possible but extremely expensive, which is why structural grid planning should happen early.
