Optimizing Dining Hall Seating Capacity and Traffic Flow in AutoCAD: Practical layout strategies to maximize seats while maintaining smooth circulation and comfortable dining experiences.

Direct Answer

Optimizing dining hall seating capacity and traffic flow in AutoCAD requires balancing table density with clear circulation paths. The most effective layouts use consistent grid spacing, defined service aisles, and realistic table clearances so guests and staff can move without congestion. When done correctly, a dining hall can increase seating by 10–20% without sacrificing comfort or safety.

Quick Takeaways

1. Dining hall layouts fail more often from poor circulation than from lack of seating.
2. Maintain at least 36–48 inches of primary walking aisle space.
3. AutoCAD grids make it easier to standardize table spacing across large rooms.
4. Service routes should be planned separately from guest circulation paths.
5. Testing flow scenarios early prevents costly redesigns later.

Introduction

When designers try to optimize dining hall seating capacity, the first instinct is usually to add more tables. After working on university cafeterias, corporate dining facilities, and event halls for more than a decade, I can tell you that's almost never the real solution. The bigger challenge is traffic flow.

A dining hall might technically fit more seats on paper, but if guests struggle to move between tables or staff can't navigate with trays, the space quickly becomes inefficient. I’ve seen dining halls lose operational efficiency even after expanding seating simply because circulation paths weren't planned correctly in the AutoCAD layout.

This is why experienced planners often test circulation before finalizing the seating grid. Tools that simulate layouts—such as this interactive visual floor planning workflow for large dining spaces—can reveal bottlenecks long before construction begins.

In this guide, I'll walk through the strategies I use to maximize seating in a dining hall layout while keeping traffic smooth, safe, and comfortable.

save pin

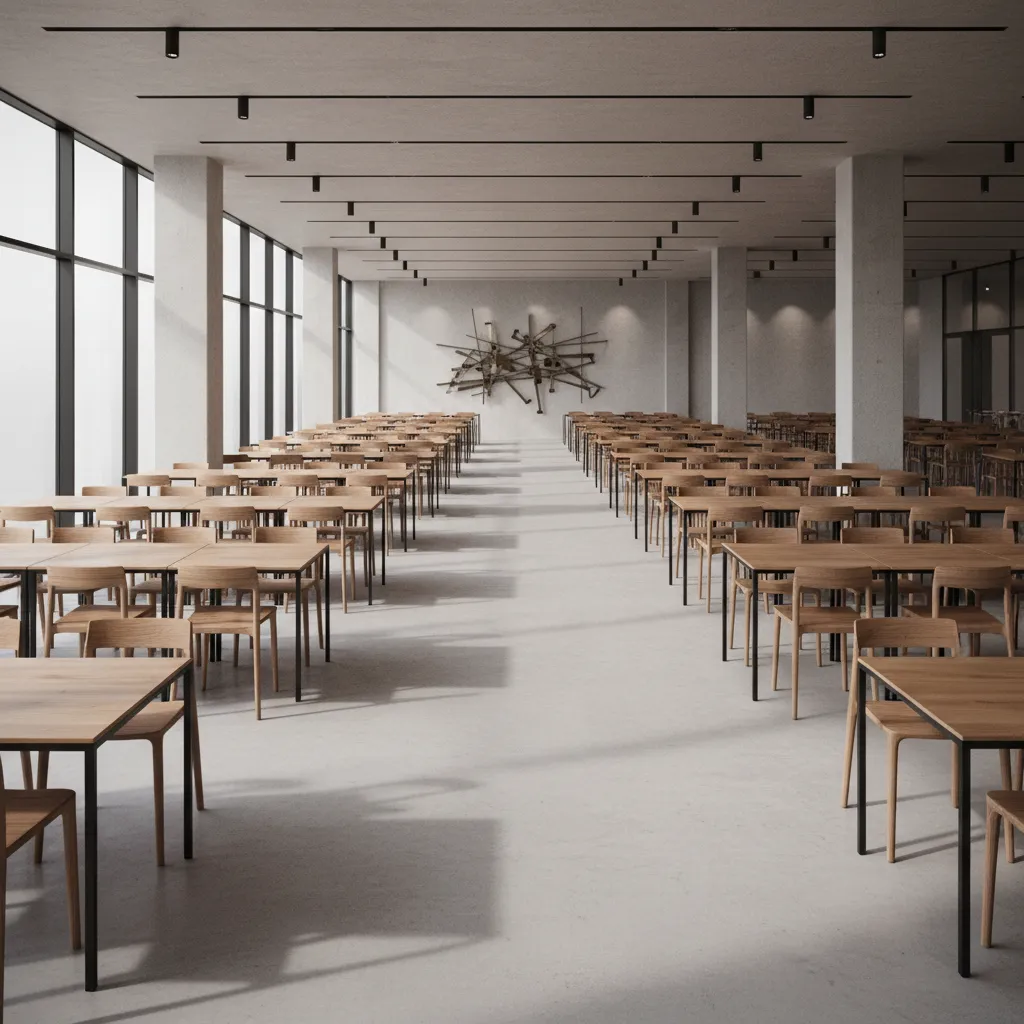

Balancing Seating Density and Comfort in Dining Halls

Key Insight: The most efficient dining halls optimize usable circulation space first, then fit seating into the remaining layout.

One common mistake I see in early AutoCAD dining hall circulation planning is designing around tables instead of movement. In real-world operation, people move constantly—guests entering, leaving, carrying trays, staff clearing tables, and service carts navigating aisles.

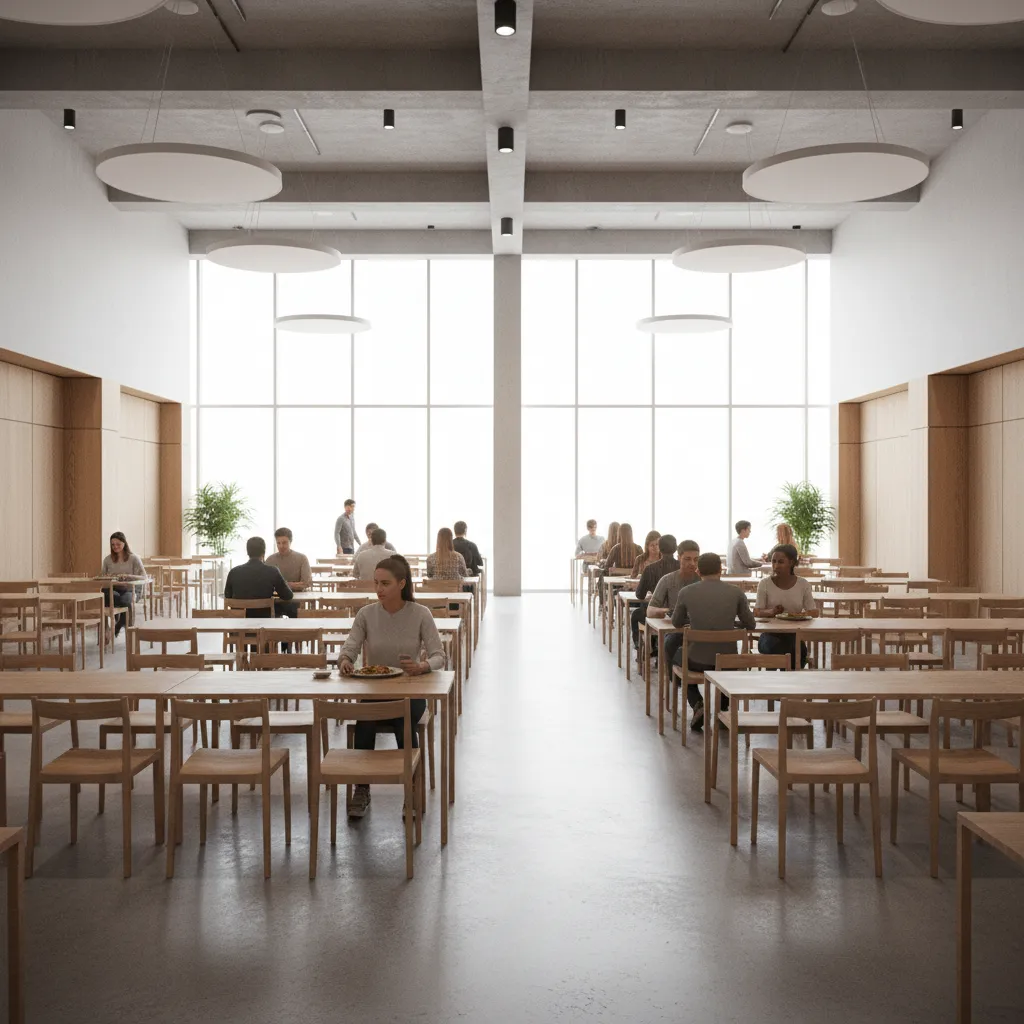

From my project experience, the comfortable density threshold usually falls into three seating bands:

1. Loose layout: 18–20 sq ft per seat (high comfort, lower capacity)
2. Balanced layout: 14–16 sq ft per seat (most common for institutional dining)
3. High-density layout: 11–13 sq ft per seat (events or short-duration dining)

University dining halls often target the middle range because it balances seating capacity with manageable noise levels and smoother movement.

The key lesson: circulation space isn't wasted space. It's operational infrastructure.

Planning Walking Paths and Service Routes

Key Insight: Guest circulation and service circulation should never compete for the same pathways.

In poorly planned dining halls, staff carrying trays end up navigating the same narrow aisles guests use to find seating. This creates congestion that slows service and increases accident risk.

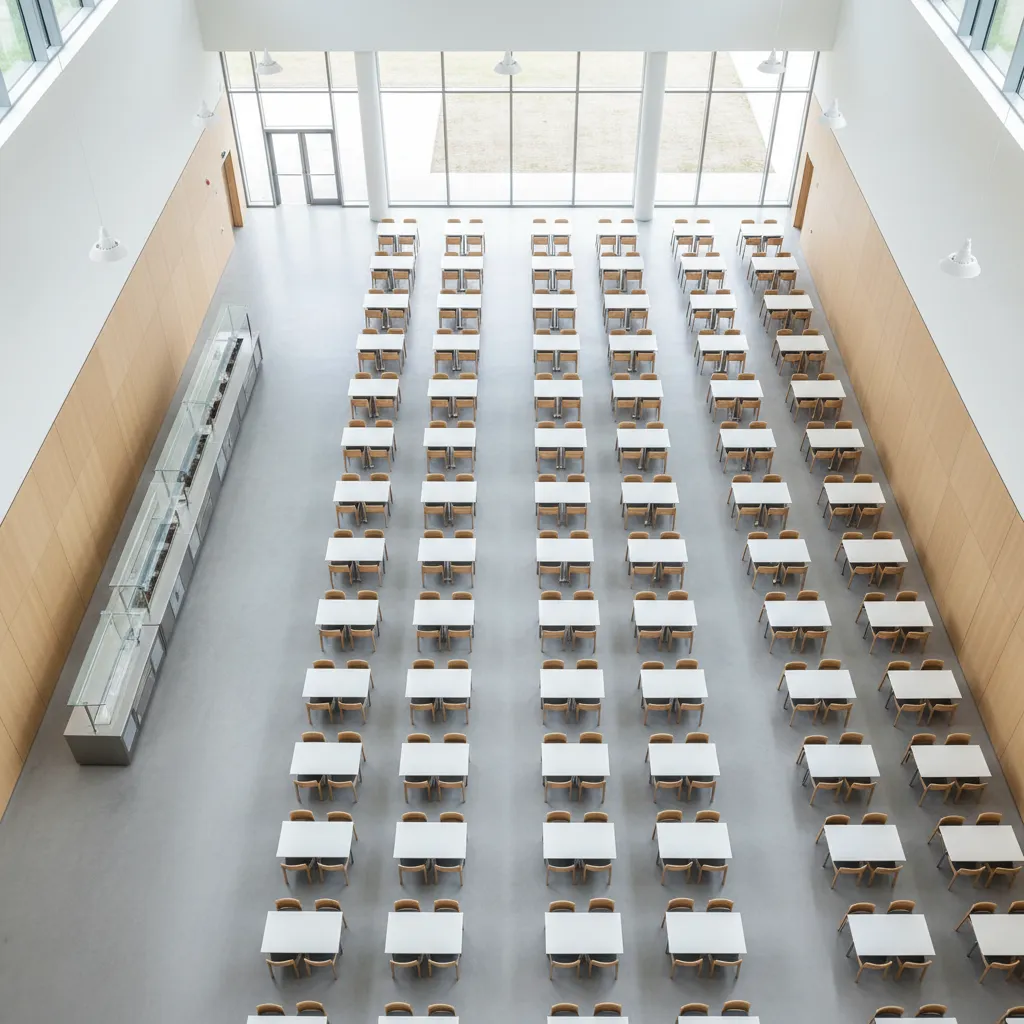

Instead, I recommend defining three circulation layers in your AutoCAD drawing:

1. Main aisles (primary guest movement)
2. Secondary aisles (table access)
3. Service routes (staff-only pathways)

Typical width standards used in commercial dining layouts:

1. Main aisles: 48–60 inches
2. Secondary aisles: 36–42 inches
3. Table access gaps: minimum 24 inches

Organizations like the National Restaurant Association emphasize maintaining clear service corridors because operational delays often come from staff congestion—not guest seating shortages.

save pin

Table Spacing Standards for Efficient Movement

Key Insight: Table spacing determines whether a dining hall feels spacious or chaotic, regardless of total seat count.

One overlooked factor in maximizing seating in a dining hall layout is chair clearance. Designers frequently measure from table edge to table edge, forgetting that chairs extend outward when occupied.

A practical spacing checklist I use in AutoCAD layouts:

1. Chair clearance behind seated guest: 18–20 inches
2. Walkway behind occupied chair: 36 inches minimum
3. Distance between table centers: typically 60–72 inches
4. Round tables: allow slightly wider circulation arcs

These numbers may seem conservative, but reducing them rarely increases usable capacity. Instead, cramped spacing causes traffic slowdowns that make the space functionally smaller.

Using AutoCAD Grids to Optimize Layout Planning

Key Insight: A consistent grid system is the fastest way to test multiple seating densities without rebuilding the entire drawing.

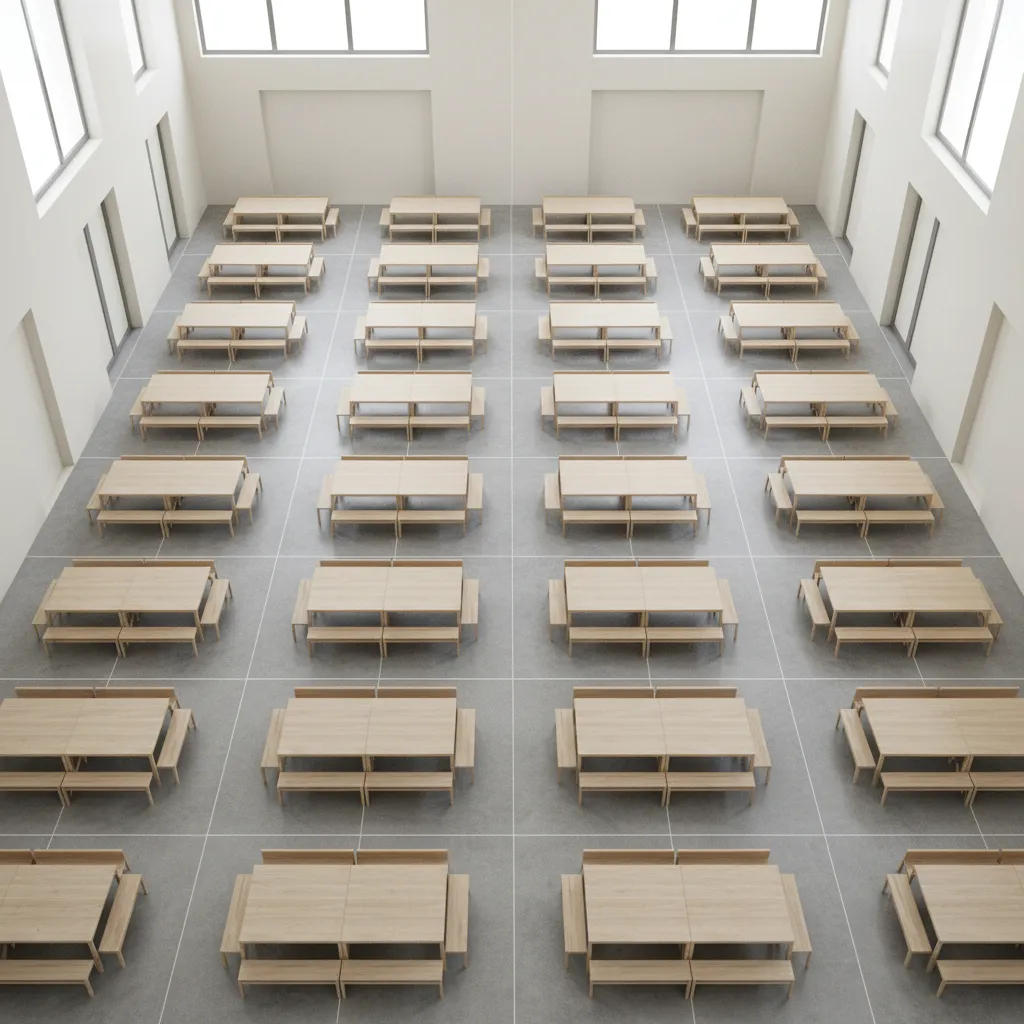

When planning efficient dining hall seating arrangements, I almost always start with a 24-inch grid overlay. This simplifies spacing calculations and helps maintain alignment across large rooms.

Typical grid strategies include:

1. 24-inch base grid for chairs and circulation
2. 60–72 inch modules for table placement
3. 120–144 inch blocks for table clusters

Once the grid is established, experimenting with layouts becomes much faster. Many designers now prototype these arrangements using tools like this interactive layout planner for dining and gathering spacesbefore translating the final structure into AutoCAD.

It dramatically reduces drafting time when exploring density options.

save pin

Strategies to Increase Seating Without Crowding

Key Insight: Increasing seating capacity usually comes from layout efficiency—not squeezing tables closer together.

Across several campus dining projects I've worked on, the most effective capacity improvements came from structural layout adjustments rather than tighter spacing.

High-impact strategies include:

1. Using rectangular tables instead of round tables
2. Creating shared bench seating along walls
3. Aligning tables into continuous rows
4. Removing awkward leftover circulation pockets
5. Using modular table sizes for flexible seating

In one university project, simply converting scattered round tables into aligned rectangular rows increased capacity by 17% while keeping all aisle widths intact.

This kind of improvement is often invisible until you analyze circulation paths carefully.

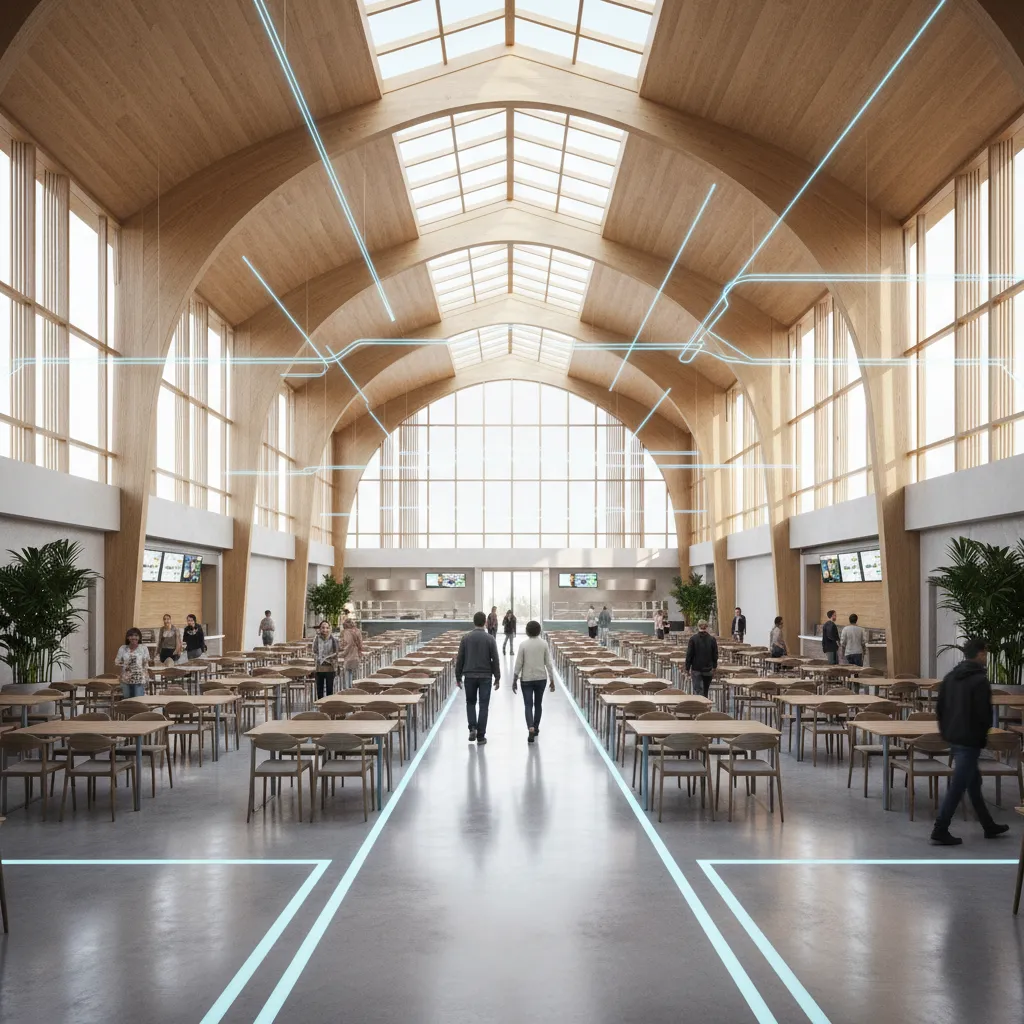

Testing Circulation Flow in Your AutoCAD Plan

Key Insight: A dining hall layout should be tested with realistic movement patterns before finalizing the plan.

Experienced designers don't just look at seating diagrams—they simulate movement.

In practice, I usually test three traffic scenarios:

1. Peak lunch rush
2. Simultaneous table clearing
3. Multiple entry points filling at once

Running these tests often reveals bottlenecks near beverage stations, tray returns, or buffet lines. Visualization tools like this AI-assisted interior layout visualization workflowmake it easier to preview how people will move through a dining hall before construction.

That step alone can prevent expensive redesigns later.

save pin

Answer Box

The best way to optimize dining hall seating capacity is to design circulation first, then fit tables into a structured grid. Maintain 36–60 inch aisles, realistic chair clearances, and separate service routes to keep traffic flowing smoothly.

Final Summary

1. Circulation planning is more important than table count.
2. AutoCAD grids simplify layout optimization.
3. Proper chair clearance prevents traffic bottlenecks.
4. Rectangular table alignment increases seating efficiency.
5. Testing traffic flow avoids operational problems.

FAQ

How much space should each seat have in a dining hall?

Most balanced layouts allocate 14–16 square feet per seat to maintain comfort while optimizing dining hall seating capacity.

What is the minimum aisle width in a dining hall?

Main aisles should be at least 48 inches wide, while secondary aisles can range between 36 and 42 inches.

Can AutoCAD help improve dining hall circulation planning?

Yes. AutoCAD allows designers to map seating grids, aisle widths, and movement paths precisely during dining hall circulation planning.

Are round or rectangular tables better for capacity?

Rectangular tables usually allow tighter alignment and more efficient use of floor space.

How do you maximize seating in a dining hall layout?

Focus on grid-based layouts, modular tables, and eliminating unused circulation pockets.

What causes the most traffic congestion in dining halls?

Common issues include narrow aisles, poorly placed beverage stations, and overlapping guest and staff routes.

Should service routes be separate from guest pathways?

Yes. Separating staff circulation improves safety and reduces operational delays.

How can designers test traffic flow before construction?

Simulation layouts and movement mapping allow designers to identify bottlenecks before building the space.
