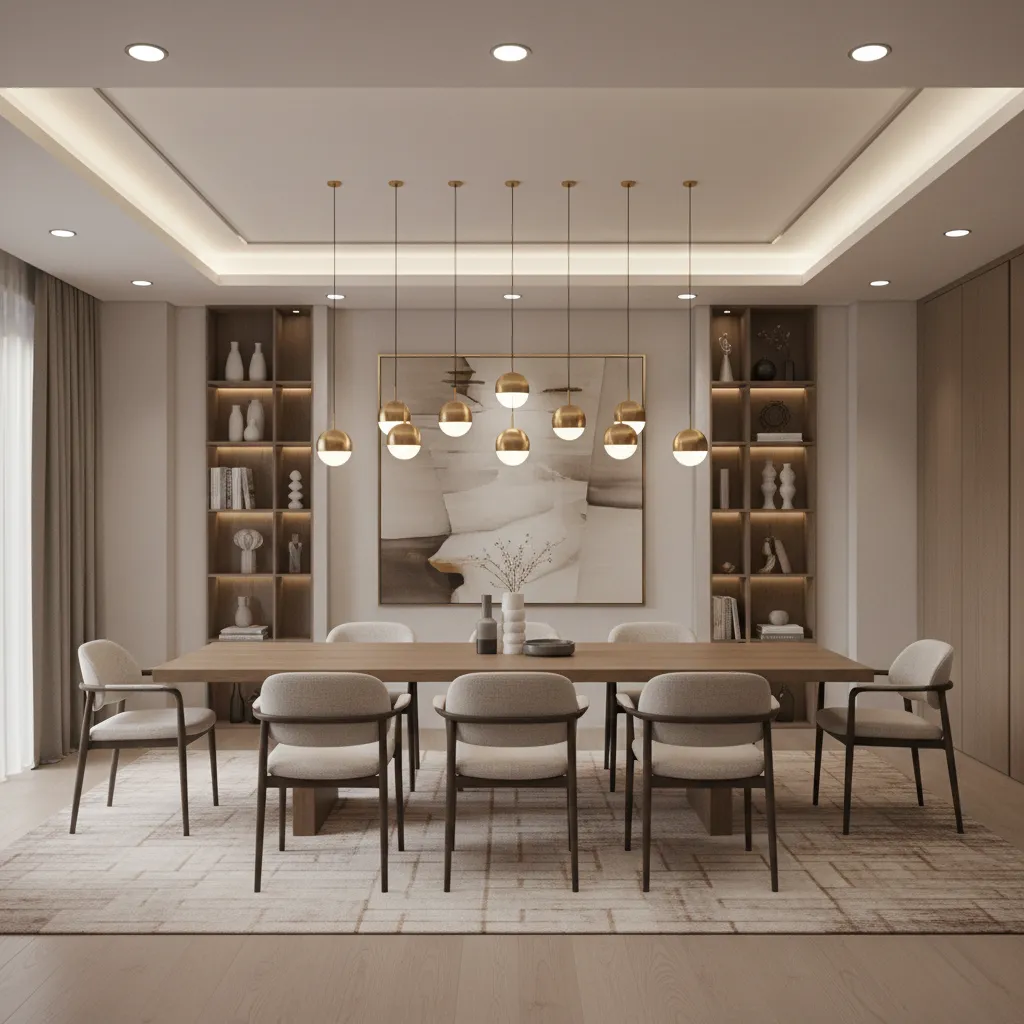

Optimizing Dining Room Lighting Layout with Low Ceilings: Practical lighting layout strategies that make low ceiling dining rooms feel brighter, taller, and more balanced

Direct Answer

The best way to optimize lighting for a low ceiling dining room is to combine wide beam lighting, multiple smaller fixtures, and balanced table illumination instead of relying on one central pendant. This approach spreads light evenly, reduces glare, and visually lifts the ceiling.

Thoughtful placement and layered lighting make even compact dining rooms feel brighter and more comfortable without lowering the ceiling visually.

Quick Takeaways

1. Wide beam lighting distributes brightness better in low ceiling dining rooms.
2. Several small fixtures usually outperform one large pendant.
3. Balanced lighting across the table prevents shadows and glare.
4. Wall and perimeter lighting can visually raise the ceiling.
5. Layered lighting creates atmosphere without sacrificing brightness.

Introduction

After designing dozens of compact dining areas over the past decade, I’ve learned that optimizing a low ceiling dining room lighting layout is less about fixture style and more about how light spreads through the space.

Many homeowners assume the solution is simply installing a flush mount or lowering the brightness of a pendant. In practice, those choices often create uneven lighting, harsh shadows on the dining table, or a room that feels dim despite having powerful bulbs.

The real challenge is geometry. Low ceilings compress the vertical lighting field, which means glare, shadowing, and brightness imbalance happen much faster than in rooms with taller ceilings.

Before adjusting fixtures, I often recommend mapping the room layout first. Visualizing the table placement and surrounding circulation space using tools like this interactive dining room layout planning workflowmakes it much easier to test lighting positions before installation.

In this guide, I’ll walk through the strategies I consistently use in client projects to brighten low dining rooms while maintaining comfort and visual balance.

save pin

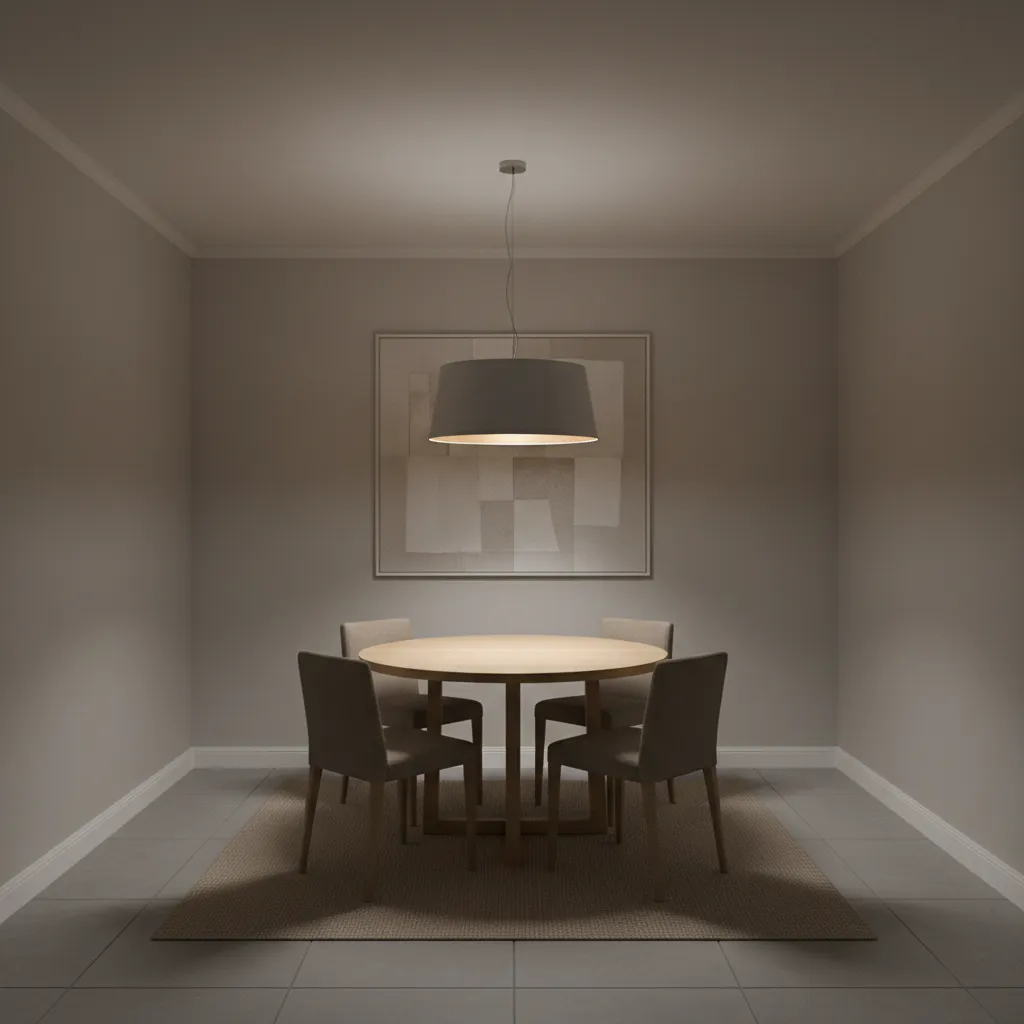

Lighting Challenges in Low Ceiling Dining Rooms

Key Insight: Low ceilings compress light distribution, which increases glare and creates uneven brightness around the dining table.

In rooms under about 8 feet tall, traditional pendant lighting behaves differently than expected. Instead of spreading comfortably through the room, light tends to concentrate directly beneath the fixture.

This creates three common problems I see repeatedly in projects:

1. Bright hotspots directly over the table
2. Dark edges around the dining room perimeter
3. Visual heaviness from oversized fixtures

Lighting designers often refer to this as a "compressed light cone." When ceiling height drops, the light beam hits the table much sooner, which intensifies brightness in a smaller area.

Industry lighting guides from the Illuminating Engineering Society also emphasize that dining lighting should prioritize visual comfort rather than maximum brightness. In low spaces, distribution matters far more than wattage.

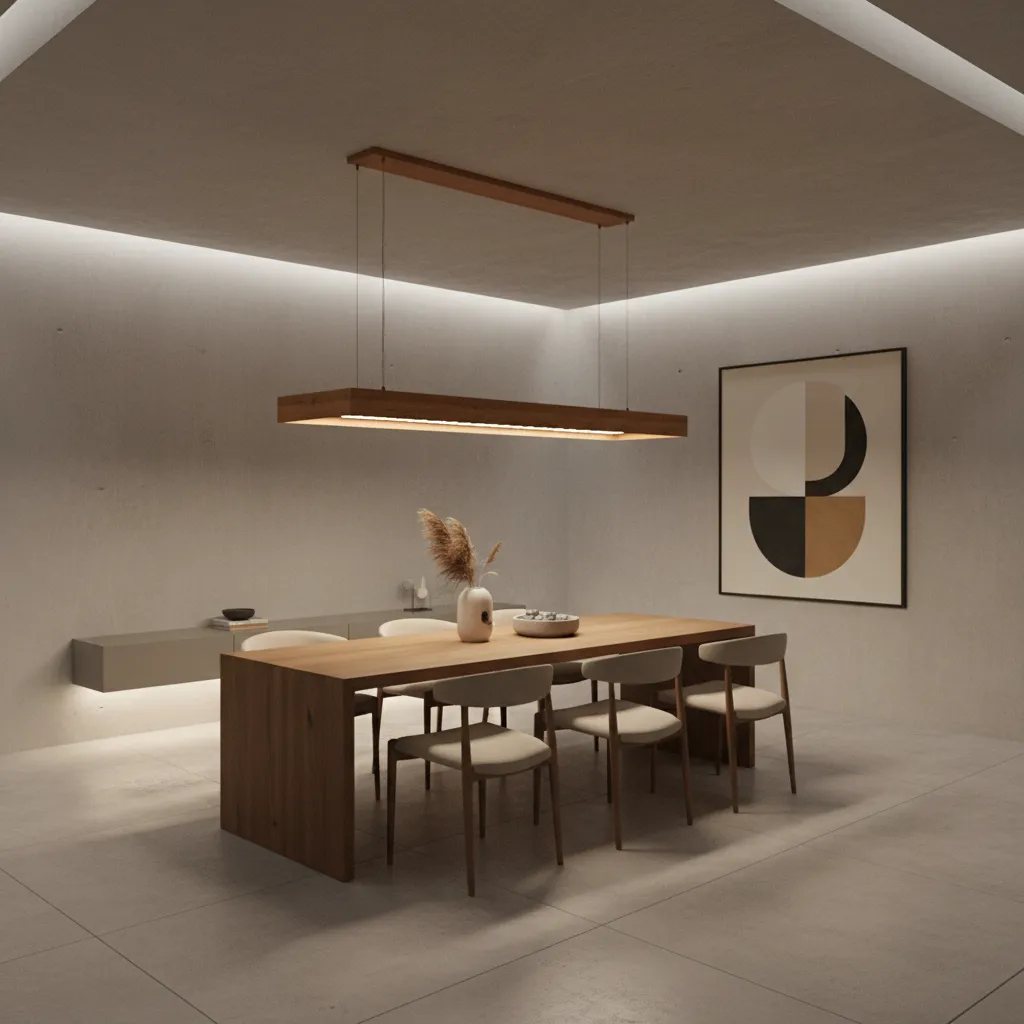

Choosing the Right Beam Spread and Bulb Brightness

Key Insight: Wide beam bulbs create smoother illumination in low dining rooms than narrow spotlight-style bulbs.

One overlooked factor in dining lighting is beam angle. Many decorative fixtures ship with bulbs designed for accent lighting rather than room illumination.

For low ceilings, I usually recommend:

1. Beam angles between 60° and 120°
2. Soft diffused LED bulbs
3. Total output around 800–1200 lumens for small tables

Narrow beams (25°–40°) create intense table glare in low rooms. Wider beams spread brightness across both the table and surrounding chairs.

A quick reference designers often use:

1. Small dining table (4 seats): 800–1000 lumens
2. Medium table (6 seats): 1000–1400 lumens
3. Large table (8 seats): 1400–1800 lumens

These ranges come from lighting recommendations used in residential lighting guidelines and are widely adopted in kitchen and dining design.

save pin

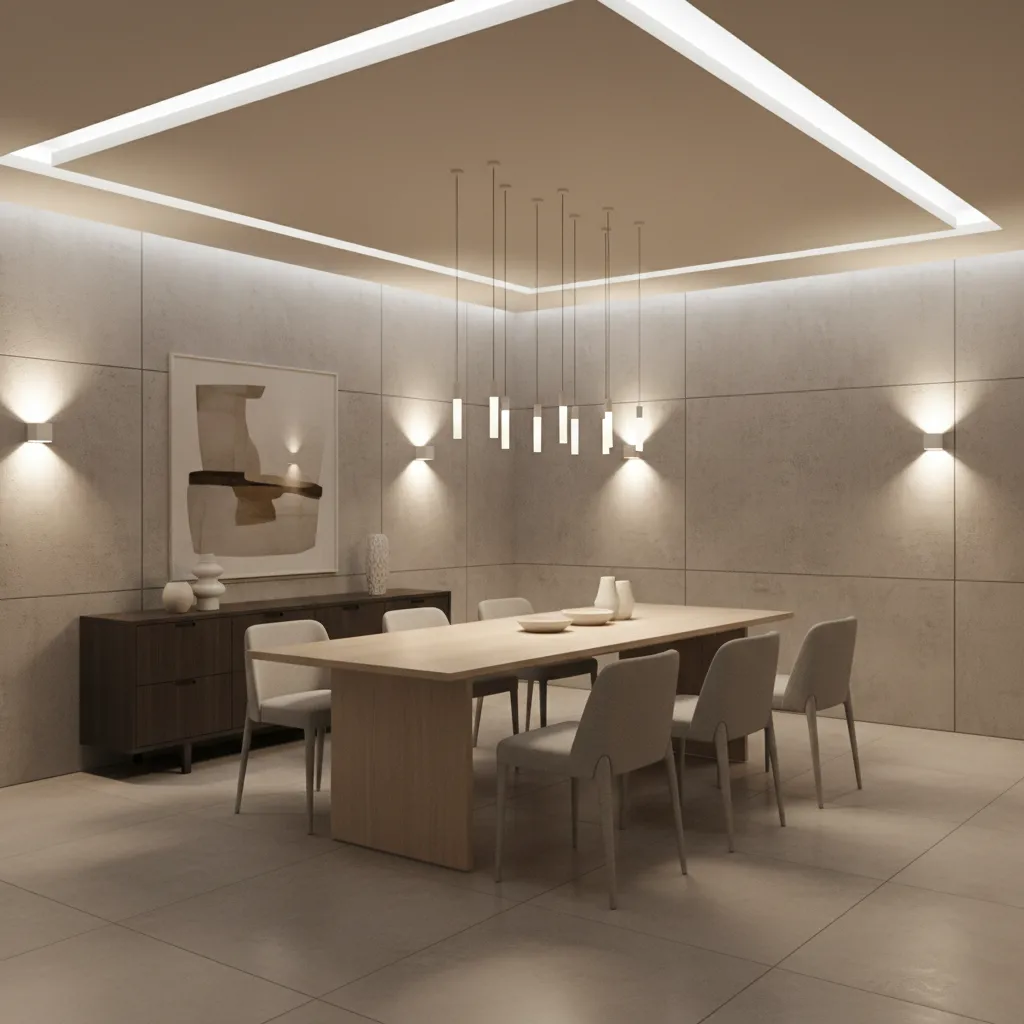

Layering Ambient and Task Lighting

Key Insight: The most comfortable dining rooms combine table lighting with subtle ambient lighting around the room perimeter.

One mistake I often see is relying entirely on a central fixture. That approach makes the dining table bright while the rest of the room disappears into shadow.

Instead, I design dining lighting using three layers:

1. Table lighting – primary light focused on dining activity
2. Ambient lighting – soft light that fills the room
3. Accent lighting – wall or cabinet lighting for depth

Common ambient lighting choices for low ceilings include:

1. Recessed perimeter lights
2. Wall sconces
3. Cove lighting

When I test layouts for clients, I often preview the lighting balance using this 3D interior lighting visualization workflow. Seeing how light interacts with surfaces before installation helps avoid over-lighting the table.

save pin

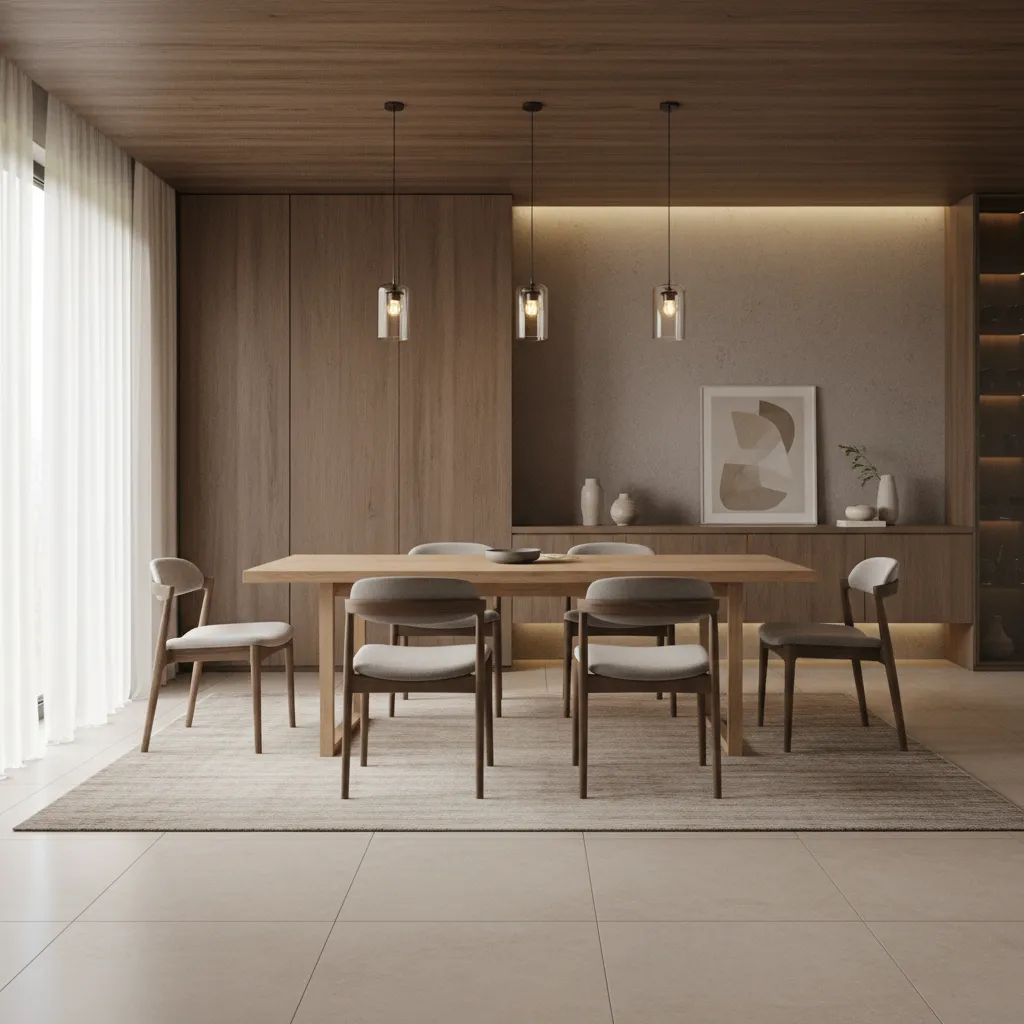

Using Multiple Small Fixtures Instead of One Large Pendant

Key Insight: Several small fixtures distribute light more evenly and visually reduce ceiling weight.

This is one of the most counterintuitive strategies, but it works extremely well.

Instead of installing a single large pendant over the dining table, I frequently use:

1. Two mini pendants
2. Three small glass pendants
3. A slim linear multi-light fixture

The benefits are significant:

1. Better light coverage across the table
2. Reduced glare directly beneath the fixture
3. Visually lighter ceiling appearance

Many restaurant interiors actually use this technique because it creates a more comfortable lighting environment while keeping ceilings visually open.

Balancing Light Across the Dining Table

Key Insight: Even lighting across the entire table surface improves both comfort and visual appeal.

A well-lit dining table should not have a bright center and dark edges. Balanced lighting makes food look better and keeps guests comfortable.

For rectangular tables, I typically follow this spacing approach:

1. Two pendants placed about one third in from each table end
2. Three pendants evenly spaced along the centerline
3. Linear fixtures centered along the table length

Before installing fixtures, it helps to visualize table proportions with a floor plan. Tools like this simple floor plan layout planning guideallow you to test spacing relative to table size and room dimensions.

save pin

Improving Visual Height with Lighting Placement

Key Insight: Strategic lighting placement can make a low ceiling appear visually taller.

Lighting affects perceived ceiling height more than most people realize.

Design strategies that increase visual height include:

1. Upward wall lighting that brightens vertical surfaces
2. Glass or open-frame pendants that feel visually lighter
3. Placing lights slightly wider than the table edges

A trick I often use in small dining rooms is combining subtle wall lighting with a minimal table fixture. When the walls glow softly, the ceiling no longer feels like it’s pressing down on the room.

Architectural lighting designers often call this "vertical illumination," and it’s widely used in hospitality interiors to make compact rooms feel more spacious.

Answer Box

The most effective low ceiling dining room lighting layout spreads light evenly rather than concentrating it in one spot. Wide beam bulbs, layered lighting, and multiple small fixtures create balanced brightness while maintaining comfortable visual height.

Final Summary

1. Low ceilings require wider light distribution, not stronger bulbs.
2. Multiple smaller fixtures often outperform one large pendant.
3. Layered lighting prevents dark edges around the room.
4. Balanced table illumination improves dining comfort.
5. Wall lighting can visually increase ceiling height.

FAQ

What is the best lighting for a low ceiling dining room?

Flush mounts, mini pendants, and wide beam LED bulbs usually work best. They distribute light evenly without visually lowering the ceiling.

How do you brighten a dining room with low ceilings?

Use layered lighting. Combine table lighting with wall sconces or recessed perimeter lights to spread brightness throughout the room.

Are pendant lights bad for low ceilings?

Not necessarily. Smaller pendants or short-drop fixtures often work well if they are spaced correctly and use wide beam bulbs.

How many lights should go over a dining table?

Two or three smaller pendants usually provide better coverage than one large fixture, especially in low ceiling dining rooms.

What bulb brightness works best for dining lighting?

Most dining tables work well with 800–1400 lumens depending on table size and room brightness.

Can lighting make a low ceiling look higher?

Yes. Wall lighting and upward illumination brighten vertical surfaces, which visually increases perceived ceiling height.

How far apart should dining pendants be?

For multiple pendants, spacing them 24–30 inches apart usually creates balanced lighting across the table.

What is the best lighting layout for a small dining space?

A combination of compact pendants, ambient wall lighting, and balanced bulb brightness typically creates the most comfortable small dining room lighting layout.

References

Illuminating Engineering Society Residential Lighting Guidelines

American Lighting Association Residential Lighting Handbook
