Optimizing Drop Panel Dimensions in Flat Slab Design: Practical engineering rules for sizing drop panels to improve punching shear resistance and material efficiency in flat slab systems.

Direct Answer

Optimizing drop panel dimensions in flat slab design means selecting a drop width and thickness that improves punching shear resistance while minimizing unnecessary concrete volume. In most practical designs, the drop width ranges from one‑third to one‑half of the column spacing, and the drop thickness is typically 1.25–1.5 times the slab thickness. The optimal configuration depends on punching shear demand, column size, and reinforcement layout.

Quick Takeaways

1. Drop panels primarily increase punching shear capacity around columns.
2. Typical drop thickness ranges between 1.25× and 1.5× the slab thickness.
3. Drop width often equals 0.33–0.50 of column spacing.
4. Oversized drops waste concrete without significant structural benefit.
5. Efficient reinforcement layout often matters more than simply increasing thickness.

Introduction

In many flat slab projects I’ve worked on, the biggest mistake engineers make with drop panels is oversizing them “just to be safe.” On paper it seems harmless, but on large buildings the extra concrete volume becomes expensive very quickly. Optimizing drop panel dimensions in flat slab design is really about balance: providing enough thickness and width to resist punching shear while keeping the structure efficient and buildable.

After reviewing dozens of commercial and residential flat slab layouts, I’ve noticed that drop panels are often treated as a fixed rule rather than a variable design parameter. In reality, adjusting the drop size can significantly influence punching capacity, bending performance, and reinforcement congestion. Many designers now use digital layout simulations to visualize slab behavior before finalizing structural geometry. For example, tools that help teams visualize structural layouts in a 3D floor planning environmentmake it easier to understand how slab thickness changes interact with column grids and architectural constraints.

This guide explains how experienced engineers actually optimize drop panel dimensions—what matters, what doesn’t, and where many structural calculations quietly become inefficient.

save pin

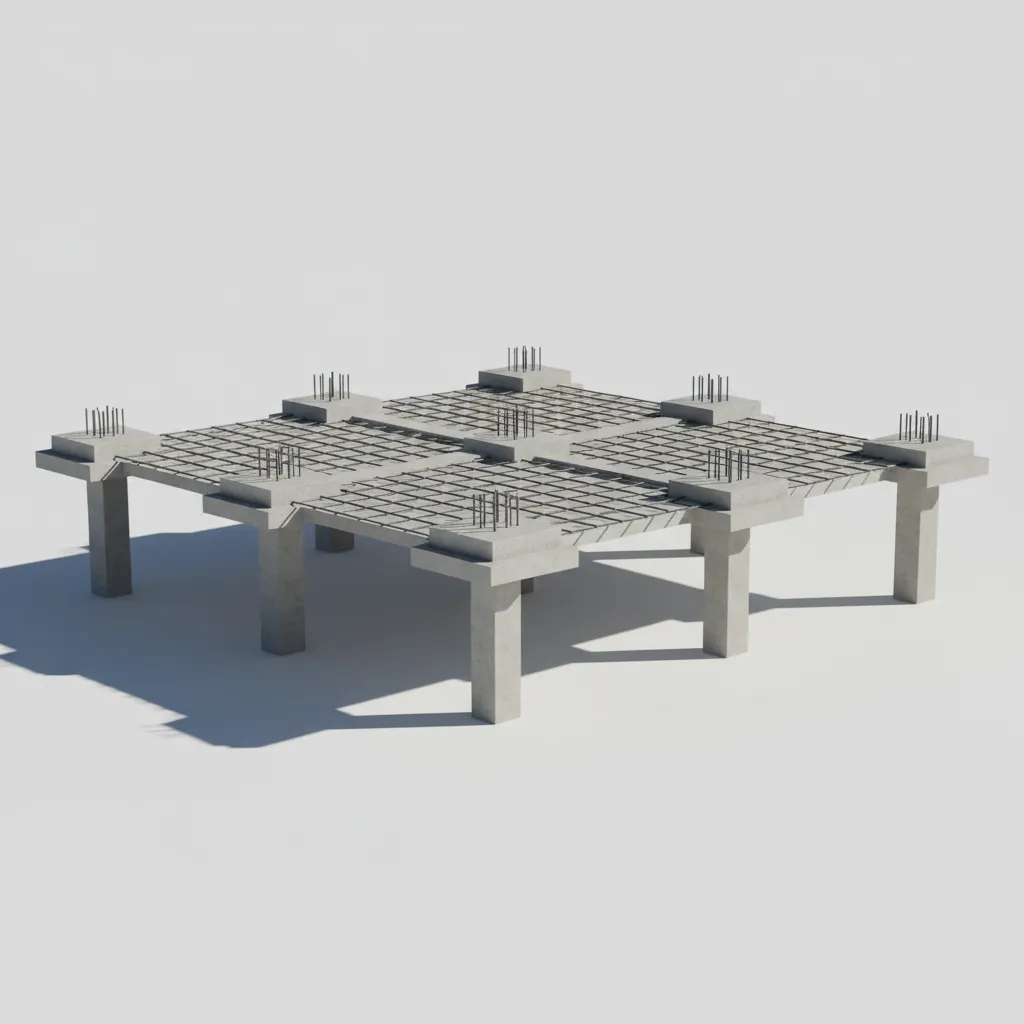

Purpose of Drop Panels in Flat Slab Systems

Key Insight: Drop panels exist primarily to increase punching shear resistance and negative moment capacity near columns.

Flat slabs transfer loads directly from the slab to columns. Without beams, the slab-column connection becomes the most critical structural zone. The drop panel thickens this region, increasing the effective depth of concrete and reducing shear stress around the column perimeter.

In practice, drop panels contribute to performance in three main ways:

1. Increase effective depth for punching shear resistance
2. Improve stiffness around the column zone
3. Provide additional space for negative reinforcement

However, one commonly overlooked issue is that excessively large drop panels often add weight without proportionally increasing shear capacity. The critical punching perimeter usually forms close to the column face, meaning extra width beyond a certain limit contributes little structural value.

ACI 318 and Eurocode guidelines both emphasize that drop panels should primarily enhance the critical shear perimeter rather than simply increase mass.

Key Parameters Affecting Drop Panel Performance

Key Insight: Column size, slab thickness, reinforcement ratio, and span length together determine the most efficient drop panel dimensions.

Drop panel optimization isn’t just about geometry. Several interacting parameters influence structural performance.

1. Column dimensions – Larger columns increase the punching perimeter.
2. Slab thickness – Determines base punching shear capacity.
3. Span length – Longer spans increase bending demand.
4. Reinforcement ratio – Influences moment resistance near supports.
5. Load intensity – Heavier loads require stronger column zones.

In my experience reviewing slab calculations, the column size is often underestimated during early optimization. A slightly larger column can sometimes reduce the need for an oversized drop panel entirely.

save pin

Optimal Drop Thickness and Width Ratios

Key Insight: Efficient drop panels follow proportional ratios rather than arbitrary thickness increases.

Most design standards recommend ratios instead of fixed dimensions. These ratios help maintain structural efficiency across different spans.

Typical practical guidelines used by engineers:

1. Drop thickness: 1.25–1.50 × slab thickness
2. Drop width: 0.33–0.50 × column spacing
3. Minimum extension beyond column face: about one‑sixth of the span

For example, in a building with a 200 mm slab thickness and a 7.5 m column grid:

1. Drop thickness ≈ 250–300 mm
2. Drop width ≈ 2.5–3.75 m

When coordinating with architectural layouts, many teams review slab geometry alongside spatial planning tools that allow them to generate and test floor plan layouts during structural coordination. This helps identify whether drop zones interfere with ceiling systems or MEP routing.

Balancing Structural Safety and Material Efficiency

Key Insight: The safest design is not always the thickest one—true optimization minimizes both risk and material waste.

A common hidden cost of poorly optimized drop panels is concrete overuse. On a high‑rise slab system, increasing drop thickness by just 50 mm across hundreds of column zones can add several tons of concrete.

Three strategies help balance safety with efficiency:

1. Increase column size instead of increasing drop thickness.
2. Use shear reinforcement or stud rails when shear demand is high.
3. Optimize reinforcement distribution before thickening concrete.

In several office tower projects I’ve reviewed, replacing oversized drops with shear studs reduced slab weight by nearly 8–12% without compromising safety.

save pin

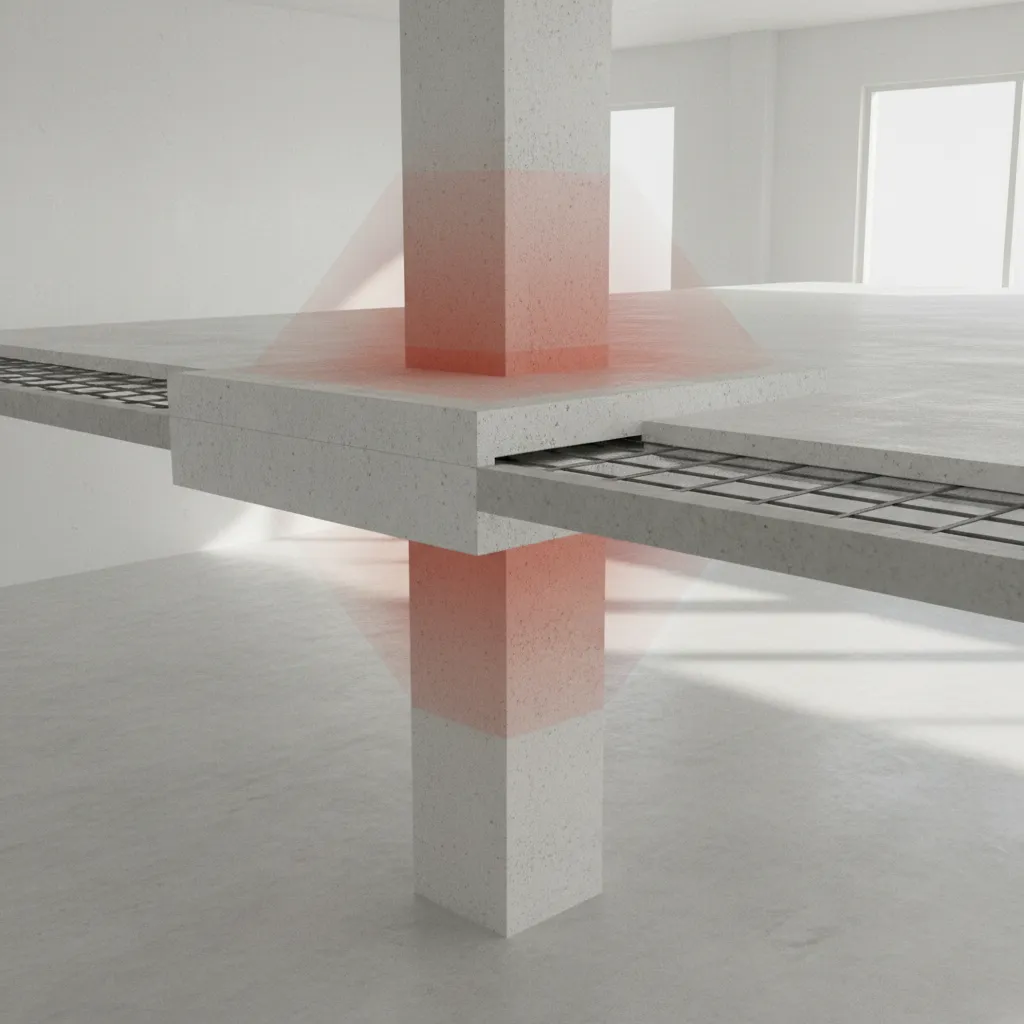

Impact on Punching Shear and Bending Capacity

Key Insight: Drop panels significantly improve punching shear capacity but have a more limited effect on global slab bending.

Punching shear is typically the governing design check in flat slabs. Increasing the effective depth around the column directly increases shear capacity.

The punching shear capacity improvement occurs because:

1. Effective depth increases
2. Critical shear perimeter expands
3. Shear stress distribution improves

However, many engineers assume drop panels also dramatically increase overall slab bending capacity. In reality, their influence is localized near the column zone.

For large spans, improving reinforcement layout or adjusting column spacing often has a bigger impact on bending performance.

Answer Box

The most efficient drop panel design increases punching shear capacity without excessive concrete volume. Typical optimized designs use drop thickness of 1.25–1.5 times slab thickness and width around one‑third to one‑half of the column spacing.

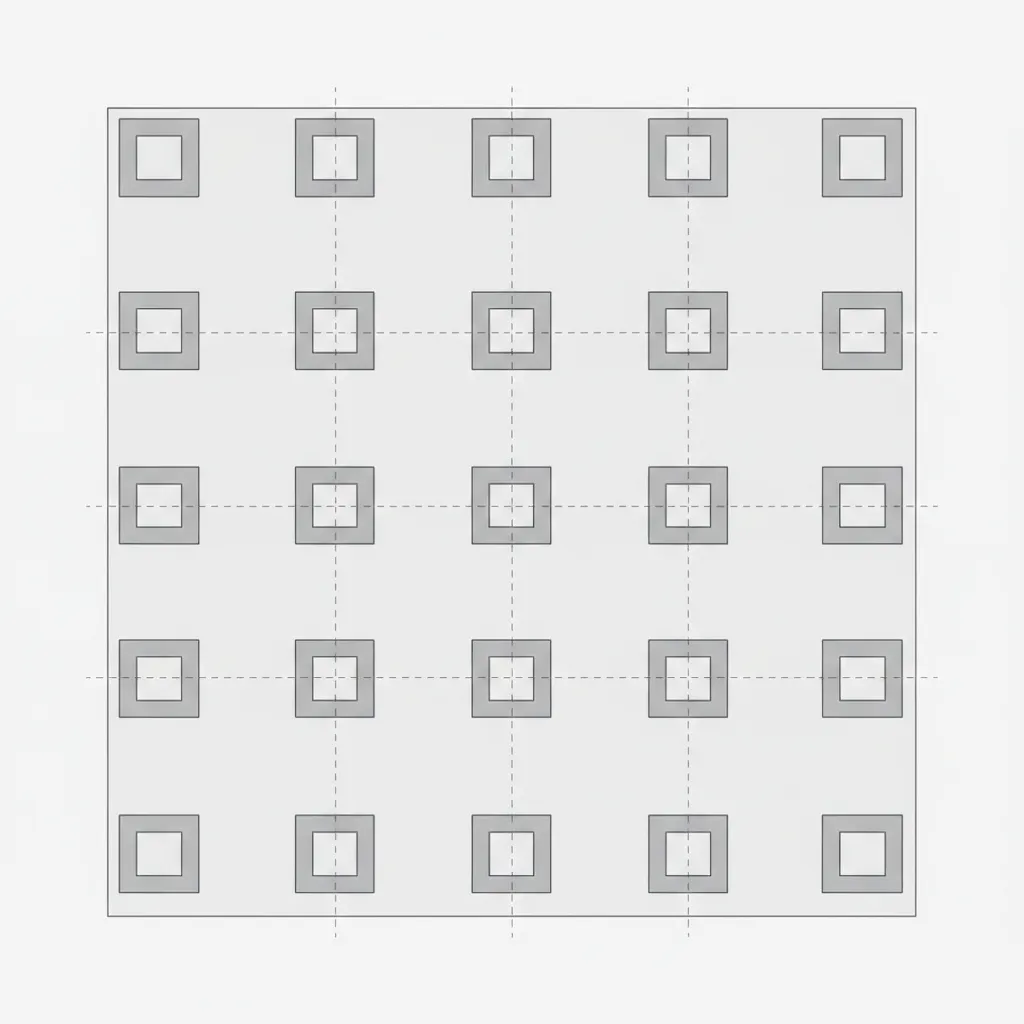

Common Optimization Strategies Used by Engineers

Key Insight: Experienced engineers optimize drop panels by adjusting multiple variables rather than relying on thickness alone.

Through years of structural coordination work, I’ve seen several reliable optimization strategies used in real projects.

1. Adjust column dimensions before increasing slab thickness
2. Introduce shear studs for high‑load zones
3. Optimize reinforcement congestion near supports
4. Use finite element analysis for large-span slabs
5. Coordinate drop zones with architectural ceiling design

Visualization also helps teams identify conflicts early. Many project teams create structural previews to generate realistic building interior visualizations for coordination, ensuring drop zones do not interfere with lighting systems or HVAC layouts.

save pin

Final Summary

1. Drop panels primarily improve punching shear resistance around columns.
2. Optimal drop thickness is typically 1.25–1.5 times slab thickness.
3. Drop width often equals one‑third to one‑half of column spacing.
4. Oversized drops increase cost without proportional structural benefit.
5. Column size and reinforcement layout strongly influence optimal design.

FAQ

What is the optimal drop panel size in a flat slab?

Typically one‑third to one‑half of the column spacing, depending on shear demand and column size.

How thick should a drop panel be?

Most designs use a drop thickness between 1.25 and 1.5 times the slab thickness.

Why are drop panels used in flat slabs?

They increase punching shear resistance and strengthen the slab around column connections.

Can drop panels replace shear reinforcement?

Not always. In high‑load buildings, shear studs or stirrups are often required in addition to drop panels.

Do drop panels improve bending strength?

They slightly improve negative moment capacity near columns but mainly affect punching shear performance.

What happens if drop panels are too large?

They increase concrete volume and weight without significant structural benefit.

Are drop panels required in all flat slabs?

No. Many modern flat slabs rely on shear reinforcement instead of drops, especially in commercial buildings.

How do engineers optimize drop panel dimensions in flat slab design?

By balancing column size, slab thickness, reinforcement ratio, and punching shear demand.

References

1. ACI 318 Building Code Requirements for Structural Concrete
2. Eurocode 2: Design of Concrete Structures
3. Park & Gamble – Reinforced Concrete Slabs
