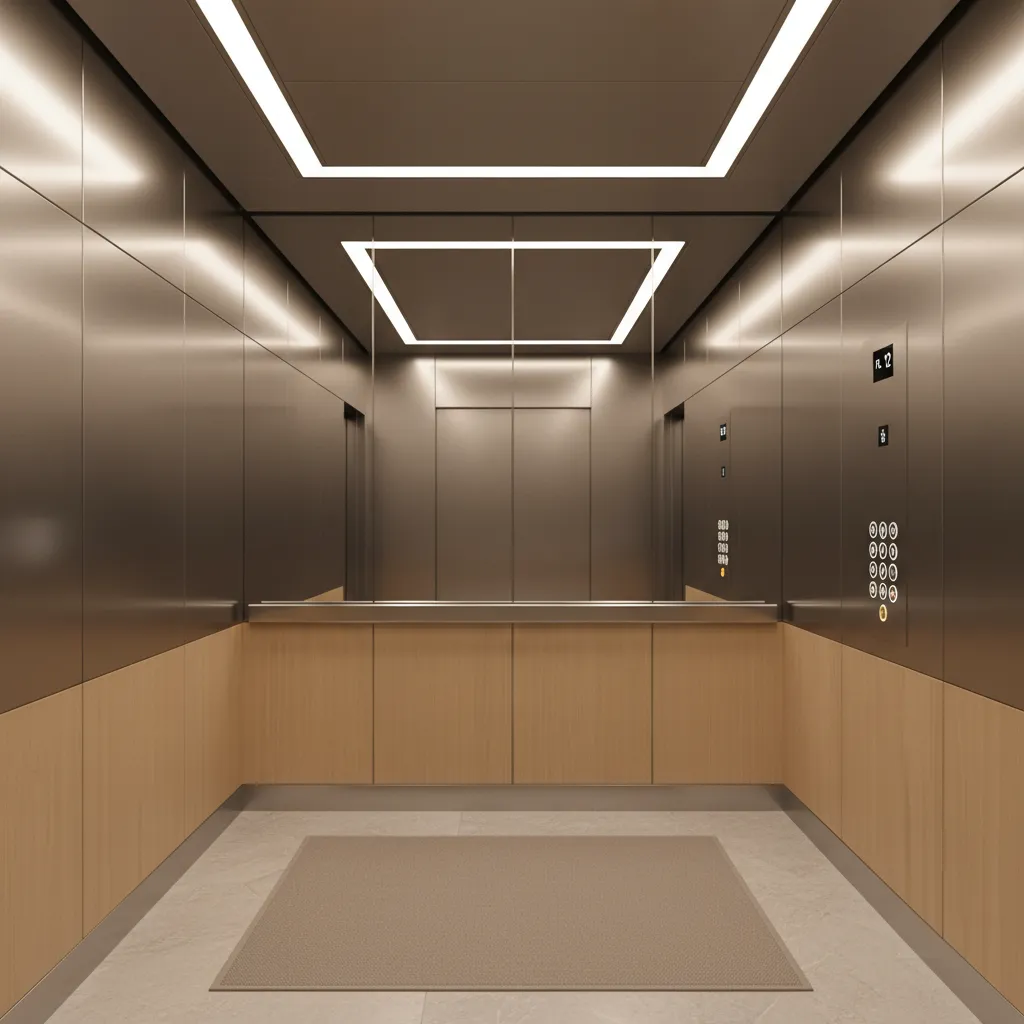

Optimizing Elevator Interior Lighting and Space Perception: Design strategies that make elevator cabins feel brighter, larger, and more comfortable without structural renovation.

Direct Answer

Optimizing elevator interior lighting and space perception relies on three core strategies: layered LED lighting, reflective surfaces such as mirrors or polished metals, and light color palettes that visually expand boundaries. When combined with well‑designed ceiling panels and balanced illumination levels, even small elevator cabins can appear noticeably larger and more comfortable.

Quick Takeaways

1. Layered LED lighting improves brightness while reducing harsh shadows.
2. Mirrors and reflective panels visually double perceived cabin depth.
3. Light colors and subtle textures prevent elevators from feeling confined.
4. Ceiling lighting design determines how evenly the cabin feels illuminated.
5. Energy‑efficient lighting must still prioritize passenger comfort.

Introduction

In many of the commercial and residential projects I’ve worked on over the past decade, the elevator interior is often treated as an afterthought. Yet passengers experience that small space dozens of times per week. Poor lighting or cramped visual design can make even a premium building feel dated.

Elevator interior lighting design isn’t just about brightness. It’s about perception. The right lighting layout, reflective materials, and ceiling treatment can make a 1.6‑meter cabin feel dramatically more open. Conversely, a poorly designed cabin with strong overhead glare or dark panels can make a larger elevator feel claustrophobic.

Many architects now simulate cabin layouts before construction using tools similar to a visual 3D layout planning workflow for interior spaces, which helps test how light interacts with reflective surfaces and panel colors.

Below are practical strategies I regularly apply when optimizing small elevator cabins for both aesthetics and comfort.

save pin

Why Lighting Is Critical in Elevator Interior Design

Key Insight: Lighting is the primary factor shaping how spacious and comfortable an elevator cabin feels.

Elevators are enclosed environments with limited natural light. That means artificial lighting completely defines how materials, dimensions, and depth are perceived.

In several residential tower projects I consulted on in Los Angeles, simply replacing a single central light panel with layered perimeter lighting made the cabin appear almost 20–30% brighter without increasing wattage.

Common lighting mistakes in elevator interiors:

1. Single harsh overhead fixture creating shadows on walls
2. Lighting positioned directly above mirrors causing glare
3. Dark ceiling panels absorbing light
4. Uneven brightness between walls and floor

According to the Illuminating Engineering Society (IES), evenly distributed lighting significantly improves perceived visual comfort in small enclosed spaces. In elevator cabins, this directly influences how safe and spacious the environment feels.

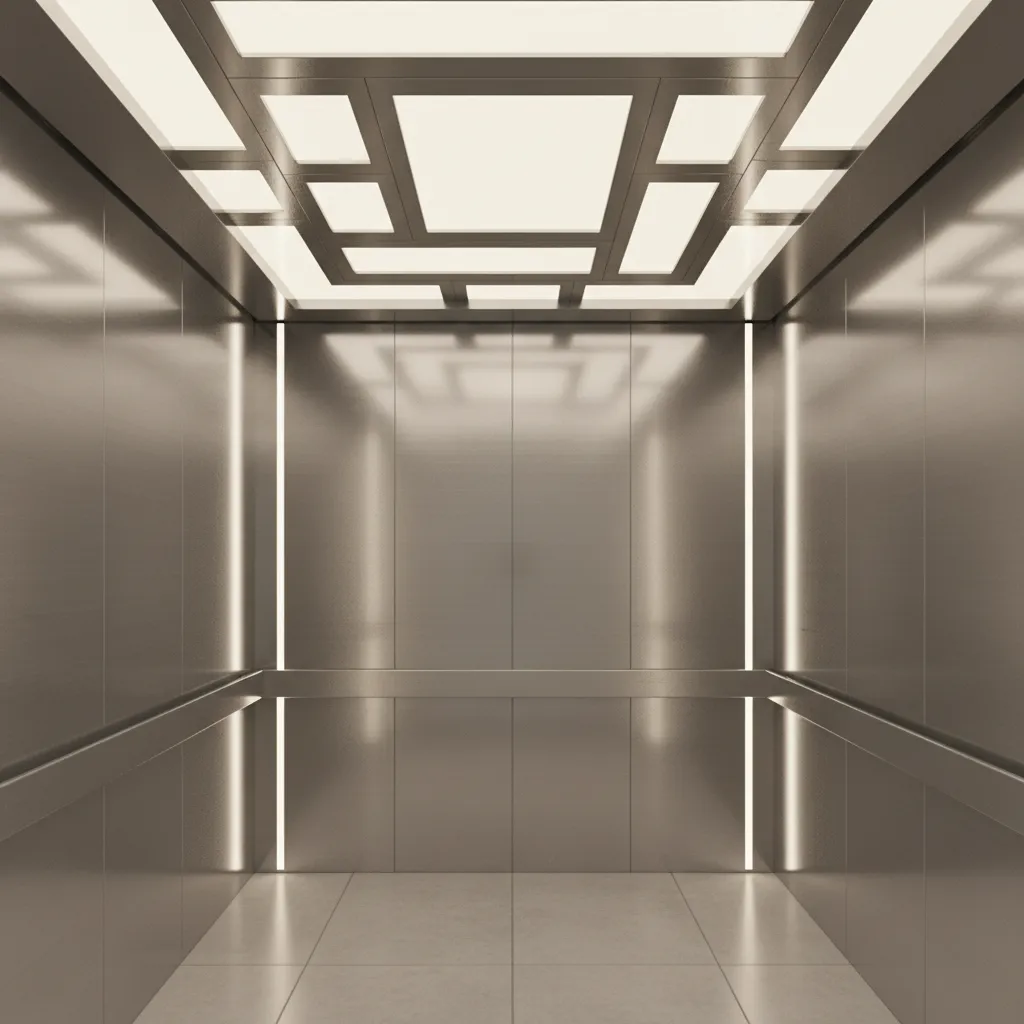

LED Lighting Strategies for Modern Elevator Cabins

Key Insight: LED strip systems integrated into ceiling frames provide the most effective balance of brightness, efficiency, and visual softness.

LED technology changed elevator interior lighting dramatically over the last decade. Traditional fluorescent panels often produced uneven illumination and consumed more power.

Modern elevator cabins typically use three lighting layers:

1. Perimeter LED strips – create soft indirect lighting around the ceiling frame
2. Central diffused panel – provides overall illumination
3. Accent lights – highlight mirrors or wall textures

Design teams often test these combinations with digital visualizations similar to a realistic room layout and lighting preview tool, which allows designers to evaluate brightness balance before installation.

Recommended LED specifications:

1. Color temperature: 3500K–4000K
2. CRI (Color Rendering Index): above 90
3. Diffused lens to avoid hotspots
4. Integrated dimming control for energy savings

This setup produces soft, shadow‑free illumination that makes elevator interiors feel calm and visually open.

save pin

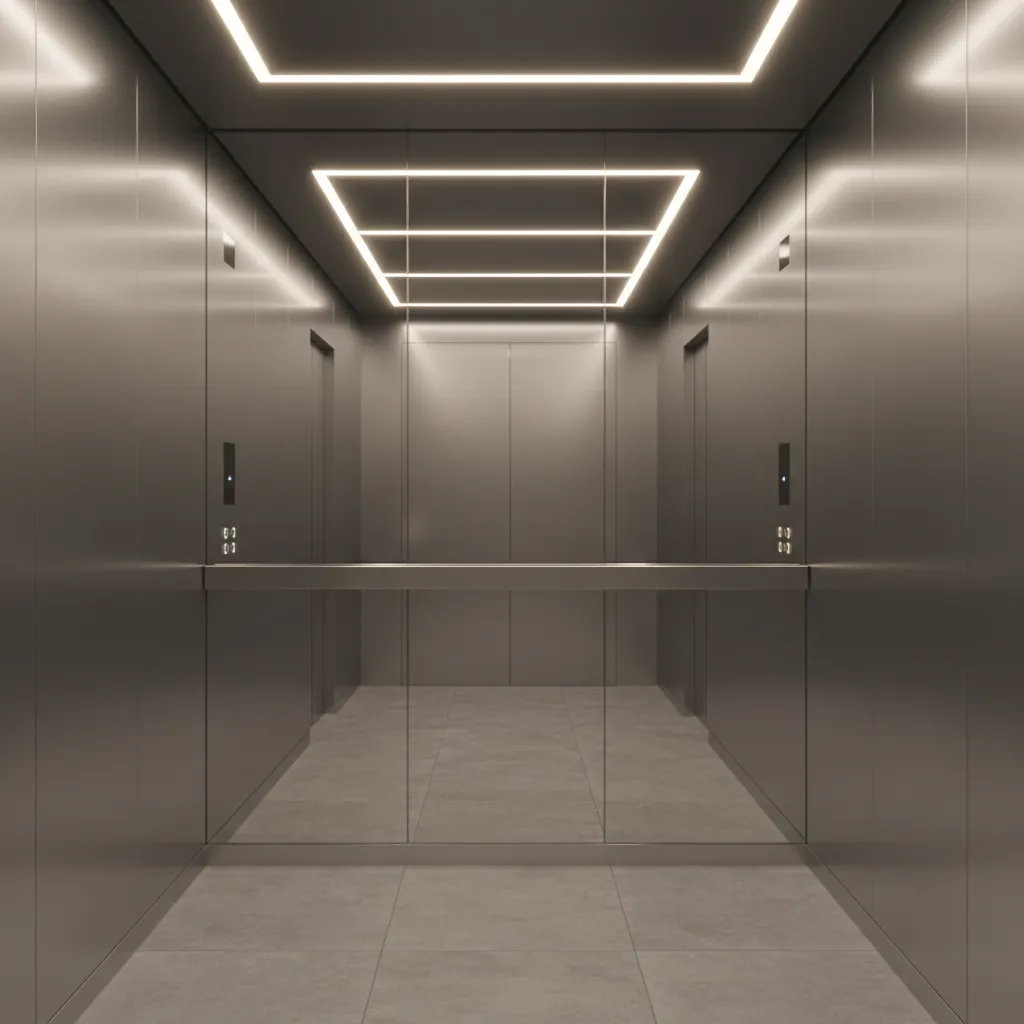

Using Mirrors to Enhance Perceived Space

Key Insight: Mirrors are the most powerful visual trick for making elevator interiors appear larger.

When positioned correctly, mirrors double the perceived depth of the cabin. However, improper placement can create visual confusion or glare.

Best mirror placements in elevator cabins:

1. Full‑height rear wall mirror
2. Partial side mirrors with brushed metal framing
3. Segmented mirror panels to avoid overwhelming reflections

Hidden design mistake many buildings make:Installing mirrors directly opposite bright lighting sources. This creates harsh reflections that make the cabin feel more stressful rather than larger.

Instead, the lighting should wash the mirror surface indirectly.

Architectural design studies from elevator manufacturers like KONE and Otis frequently highlight mirrors as one of the most cost‑effective upgrades for improving perceived cabin space.

save pin

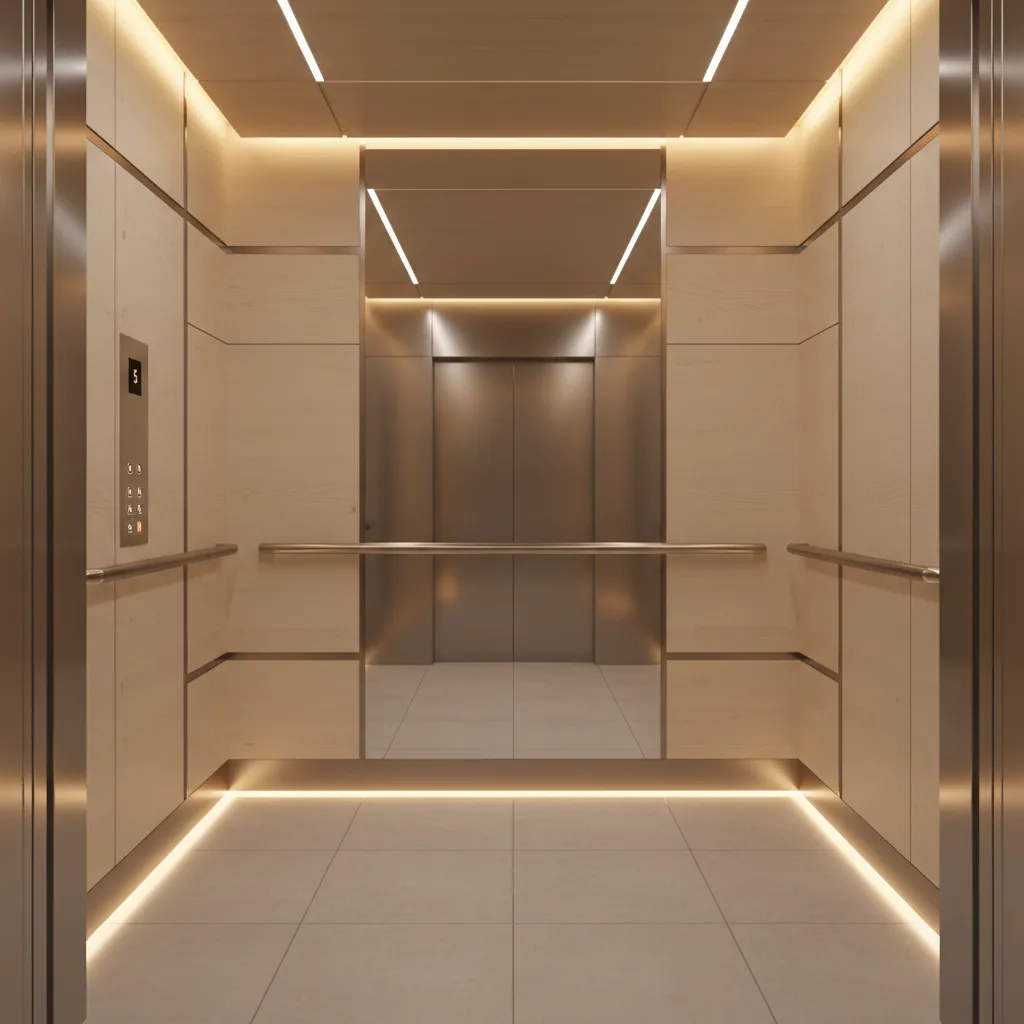

Color and Texture Choices That Make Cabins Feel Larger

Key Insight: Light neutral palettes combined with subtle vertical textures visually stretch elevator interiors.

Color psychology plays a surprisingly large role in elevator perception. Dark or heavily patterned wall panels visually shrink the cabin.

Materials that work best:

1. Brushed stainless steel
2. Light laminate panels
3. Back‑painted glass
4. Champagne‑tone metal finishes

Design combinations that expand visual space:

1. Light walls + reflective ceiling panels
2. Vertical grain metal textures
3. Thin horizontal accent lines

Many design teams prototype these materials digitally using tools that generate photorealistic interior visualization for architectural spaces to preview how finishes interact with lighting before fabrication.

Answer Box

The most effective way to improve elevator interior lighting and space perception is combining perimeter LED lighting, reflective surfaces, and light color finishes. Together, these elements reduce shadows and visually expand the cabin.

Balancing Energy Efficiency and Visual Comfort

Key Insight: Energy‑efficient lighting should never sacrifice visual comfort or passenger safety.

Elevators operate almost continuously in busy buildings, so lighting efficiency matters. But aggressive energy reduction can lead to dim cabins or flickering LEDs.

Best balance strategy:

1. LED systems with motion‑activated dimming
2. High‑efficiency diffusers to spread light evenly
3. Smart controllers reducing output during idle periods

According to the U.S. Department of Energy, LED lighting can reduce energy consumption by up to 75% compared with traditional systems, while lasting significantly longer.

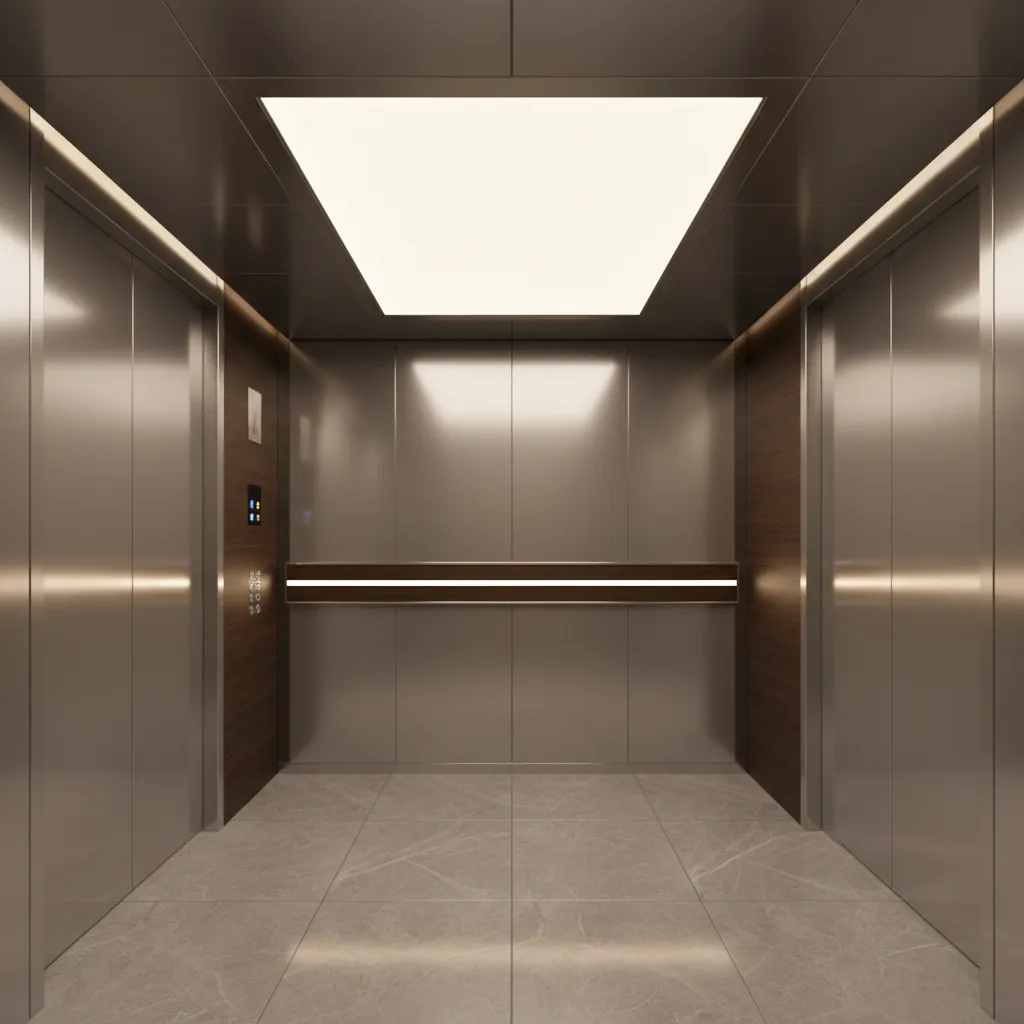

Designing Elevator Ceilings for Better Light Distribution

Key Insight: Ceiling design determines how evenly light spreads across the cabin.

The ceiling is often the most overlooked element in elevator interiors. Yet it functions as both a lighting platform and a visual focal point.

Common ceiling design options:

1. Backlit acrylic panels
2. Metal grid ceilings with integrated LEDs
3. Edge‑lit floating ceiling panels
4. Mirror‑finish stainless steel ceilings

Design tip from real projects:Edge‑lit ceilings paired with brushed metal frames create the illusion that the light source is floating, which subtly increases perceived height.

save pin

Final Summary

1. Layered LED lighting dramatically improves elevator interior brightness.
2. Mirrors are the fastest way to expand perceived cabin space.
3. Light neutral finishes prevent elevators from feeling cramped.
4. Ceiling design controls overall light distribution.
5. Efficient lighting must still prioritize visual comfort.

FAQ

1. What is the best lighting for elevator cabins?

Layered LED lighting with diffused panels and perimeter strips provides even illumination and improves elevator interior lighting design.

2. How can I make a small elevator look bigger?

Use mirrors, light color panels, and indirect ceiling lighting to expand perceived space.

3. What color temperature works best for elevator lighting?

Most designers prefer 3500K–4000K because it feels bright without looking cold.

4. Are mirrors safe in elevator interiors?

Yes. Elevator mirrors are typically tempered or laminated safety glass.

5. Do LED lights save energy in elevators?

Yes. LED systems consume significantly less power and last much longer than fluorescent lights.

6. What materials make elevators look modern?

Brushed stainless steel, glass panels, champagne metal finishes, and integrated LED lighting.

7. How bright should elevator lighting be?

Most elevator cabins operate comfortably between 200 and 300 lux.

8. What ceiling design works best for elevator lighting?

Backlit panels and edge‑lit ceilings distribute light evenly while making the cabin appear taller.
