Optimizing Hatch Performance in Large AutoCAD Drawings: Practical ways to reduce hatch lag and keep complex AutoCAD files responsive in large architectural and engineering projects.

Direct Answer

Optimizing hatch performance in AutoCAD large drawings requires reducing pattern complexity, controlling hatch scale, limiting associative updates, and using lightweight hatch patterns whenever possible. Most slowdowns happen because dense hatch geometry forces AutoCAD to regenerate thousands of line segments repeatedly. Adjusting hatch density and project workflow can dramatically reduce lag.

Quick Takeaways

1. Dense hatch patterns dramatically increase regeneration time in large drawings.
2. Lightweight patterns and solid fills perform significantly faster than complex patterns.
3. Associative hatches are convenient but can slow performance in large projects.
4. Managing hatch scale early prevents thousands of unnecessary hatch segments.
5. Breaking massive hatch areas into logical zones improves drawing responsiveness.

Introduction

Optimizing hatch performance in AutoCAD is something almost every architect or CAD manager eventually struggles with. The moment a drawing reaches hundreds of hatches—or worse, thousands—the file suddenly becomes sluggish. Zooming lags, regenerations take forever, and even simple edits feel heavy.

After working on large residential and commercial projects, I noticed the issue rarely comes from the drawing size itself. The real culprit is usually hatch density. A single overly detailed hatch pattern can contain tens of thousands of tiny line segments, and AutoCAD has to calculate them constantly.

Ironically, many teams accidentally create this problem while trying to make drawings look more detailed. But production drawings don't need ultra‑dense patterns to communicate material information.

If you're building layouts or planning spaces before adding detail, it helps to structure geometry cleanly first. I often recommend starting with a clear layout workflow like this step‑by‑step guide for creating precise 3D floor plans for layout planningbefore introducing detailed hatch layers.

In this guide, I'll walk through the practical methods I use to reduce hatch lag in large AutoCAD files, including a few overlooked mistakes that even experienced users make.

save pin

Why Hatches Slow Down Large AutoCAD Files

Key Insight: Hatches slow AutoCAD because most patterns are generated as thousands of individual vector lines that must regenerate constantly.

Many users assume a hatch is a simple visual fill, but internally AutoCAD builds the pattern using repeated geometry. The denser the pattern and the larger the boundary, the more geometry AutoCAD must calculate.

Three factors usually cause major performance drops:

1. Extremely small hatch scales
2. Very large boundary areas
3. Complex predefined patterns

For example, a concrete hatch covering a large slab might generate tens of thousands of pattern elements. Each zoom, pan, or regen forces AutoCAD to recompute them.

According to Autodesk documentation on drawing regeneration behavior, objects with high geometric repetition significantly increase regeneration workload compared to simple fills.

In practice, I often see drawings where a single hatch contributes more geometry than the walls themselves.

Choosing Lightweight Hatch Patterns

Key Insight: Simple hatch patterns or solid fills dramatically outperform complex decorative patterns.

When performance matters, pattern selection is the easiest optimization. Some traditional hatch patterns were designed decades ago when drawings were printed at large scales. Using them today at small scales often creates unnecessary density.

Recommended lightweight options:

1. SOLID fill
2. ANSI31 (simple diagonal pattern)
3. ANSI32 or ANSI37 with moderate scale

Patterns that often cause heavy lag include:

1. AR-CONC
2. AR-SAND
3. Custom complex tile patterns

In construction documents, readability matters far more than visual realism. I often replace complex material hatches with simpler patterns and rely on legends for clarification.

This small decision alone can cut regeneration time dramatically.

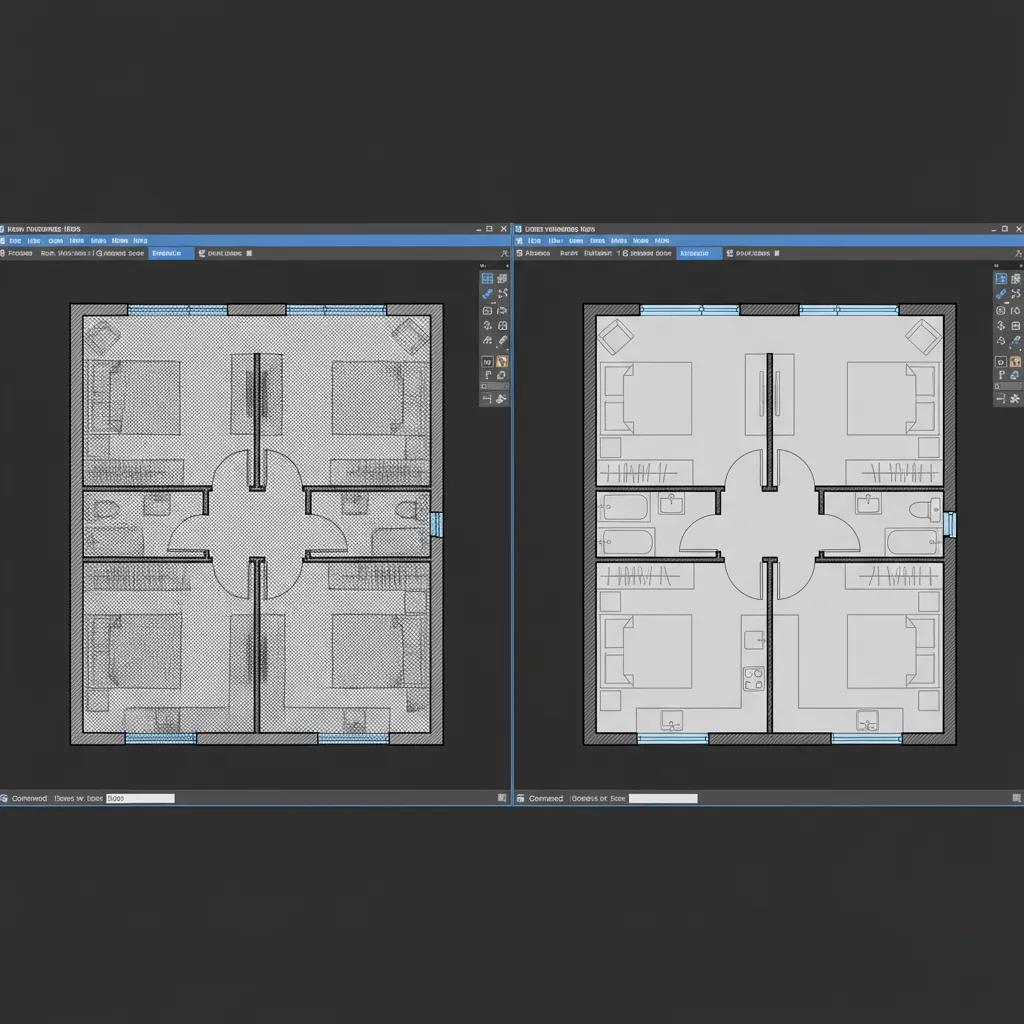

Managing Hatch Scale and Density

Key Insight: Incorrect hatch scale is the most common cause of hatch lag in large AutoCAD drawings.

When hatch scale is too small, AutoCAD must repeat the pattern thousands of times within the boundary.

A quick rule I use when setting hatch scale:

1. Architectural plans: scale between 20–100 depending on drawing units
2. Large site plans: scale between 200–500
3. Detail drawings: adjust only where visual clarity requires it

Another overlooked issue is copying hatches between drawings with different units. The hatch scale may look correct visually but internally creates extremely dense pattern repetition.

Breaking large surfaces into logical zones can also help. Instead of hatching an entire building footprint, hatch rooms or structural areas separately.

save pin

Using Associative Hatches Efficiently

Key Insight: Associative hatches improve editing but can slow large projects when boundaries frequently change.

Associative hatches automatically update when boundary objects change. That sounds convenient—and it is during early design stages.

But in large architectural models with hundreds of walls and partitions, constant updates can slow performance dramatically.

A practical workflow many experienced drafters follow:

1. Use associative hatches during early layout phases.
2. Lock layout geometry once the plan stabilizes.
3. Convert heavy hatch areas to non‑associative.

This prevents AutoCAD from recalculating hatch boundaries every time a wall moves.

If you're organizing space layouts before final drafting, using structured planning tools like this interactive room layout planning workflow can reduce the need for constant hatch updates later.

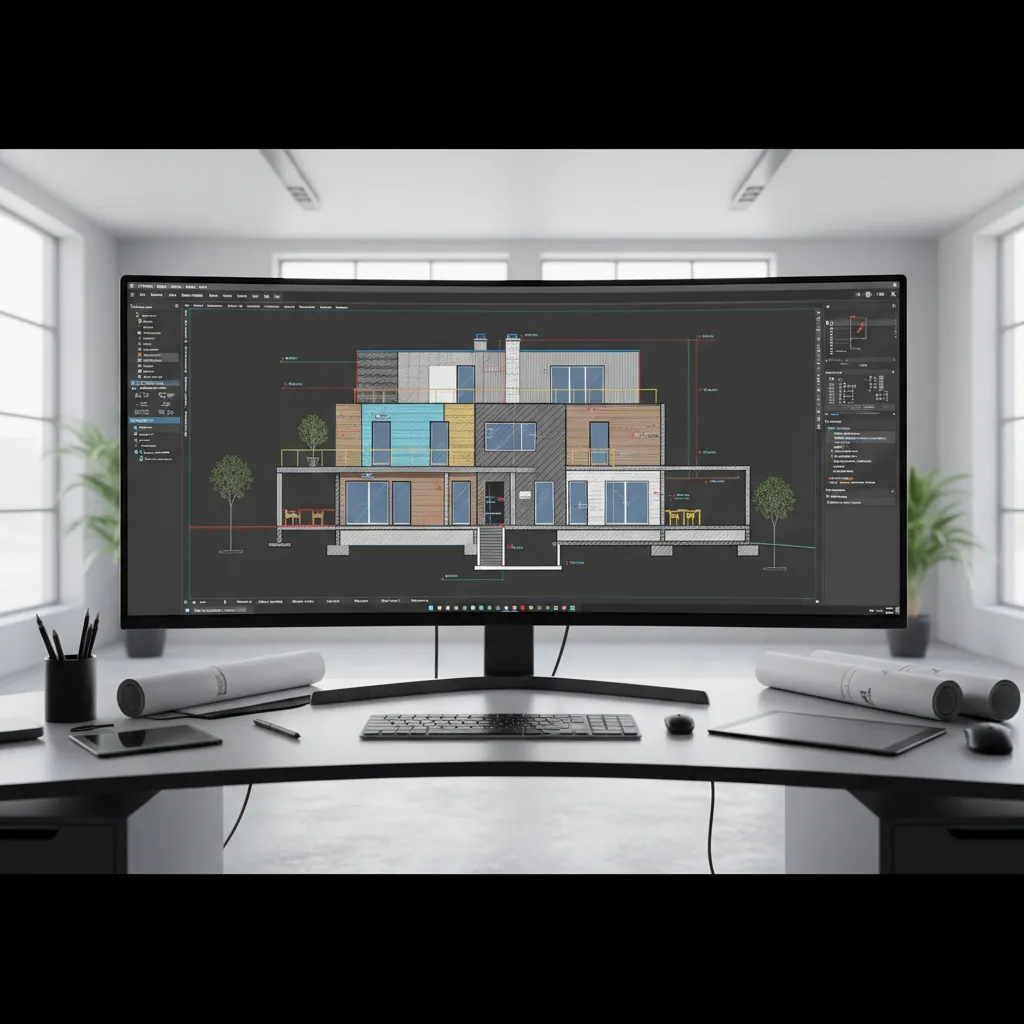

Reducing Regeneration Time in Hatch-Heavy Drawings

Key Insight: Regeneration lag often comes from too many hatch objects updating simultaneously.

Beyond pattern choice, there are several system-level settings that help improve performance.

Helpful adjustments:

1. Turn off unnecessary layers containing heavy hatch objects
2. Use HPQUICKPREVIEW carefully in large files
3. Limit annotation scales when using annotated hatches
4. Avoid overlapping hatch boundaries

Another trick I frequently use is temporarily disabling hatch display while editing complex geometry. This prevents constant regeneration during drafting.

Large firms often standardize hatch layers specifically for performance reasons.

save pin

Best Practices for Managing Hatches in Large Projects

Key Insight: The best way to optimize hatch performance is to treat hatches as documentation elements—not modeling elements.

In many projects, hatches are added too early and become part of the modeling workflow. That approach creates unnecessary performance problems.

A better workflow used in many architecture studios:

1. Create clean geometry first.
2. Add hatches during documentation stage.
3. Keep hatch layers separate from structural layers.
4. Use simplified patterns for large coverage areas.

When visual presentation matters, renderings communicate materials much better than dense CAD patterns. In fact, many teams now generate visualization separately using tools designed for realistic presentation, such as workflows similar to this process for creating photorealistic home renderings.

Answer Box

The fastest way to optimize hatch performance in AutoCAD is to use simpler patterns, increase hatch scale, reduce associative updates, and avoid hatching extremely large areas. Most drawing slowdowns come from overly dense hatch geometry rather than file size.

Final Summary

1. Dense hatch patterns create thousands of geometric elements.
2. Solid fills and simple ANSI patterns perform best.
3. Correct hatch scale prevents excessive pattern repetition.
4. Associative hatches should be limited in finalized drawings.
5. Separate documentation hatches from modeling workflows.

FAQ

Why is my AutoCAD drawing slow after adding hatches?

Dense hatch patterns create thousands of geometric lines. AutoCAD must regenerate them constantly, which slows navigation and editing.

What is the best hatch pattern for performance in AutoCAD?

SOLID fills and simple ANSI patterns such as ANSI31 are typically the fastest options.

How can I optimize hatch performance AutoCAD users struggle with?

Increase hatch scale, simplify patterns, limit associative updates, and avoid hatching extremely large boundaries.

Does associative hatch slow AutoCAD?

Yes. Associative hatches update whenever boundaries change, which can increase regeneration time in large drawings.

What hatch scale should I use in architectural drawings?

It depends on units, but scales between 20 and 100 often balance clarity and performance.

Can too many hatches crash AutoCAD?

Extremely dense hatch objects may cause large memory usage and slow regeneration, which can lead to instability.

Why does hatch lag when zooming?

Zooming forces AutoCAD to redraw hatch geometry. Dense patterns increase redraw time.

What are the best hatch settings for large AutoCAD drawings?

Use larger hatch scale, simple patterns, limited associative updates, and separate hatch layers for documentation.
