Optimizing Helmet 3D Models for Games and Real Time Rendering: Practical techniques to reduce polygon count, bake detail, and prepare helmet assets for smooth performance in modern game engines.

Direct Answer

Optimizing helmet 3D models for games means reducing polygon count, creating efficient topology, and transferring high‑detail sculpt information into normal maps. A game‑ready helmet usually relies on clean retopology, baked textures, and engine‑ready materials to maintain visual quality while keeping real‑time performance stable.

Quick Takeaways

1. Most game helmets perform best between 3k–15k polygons depending on platform and camera distance.
2. Retopology should follow hard edges and panel lines to preserve shape after optimization.
3. Normal map baking transfers high‑poly detail into low‑poly geometry without extra polygons.
4. Proper UV layout and texture compression dramatically reduce real‑time rendering cost.
5. Always test assets inside the game engine rather than relying only on modeling software previews.

Introduction

When developers first build a helmet asset, they usually focus on design and detail. The result often looks great in a modeling viewport—but once it enters a real‑time engine, the polygon count becomes a problem. I have seen this repeatedly in production pipelines. A beautifully sculpted helmet that runs at millions of triangles can instantly destroy frame rate in VR or multiplayer scenes.

Optimizing helmet 3D models for games is about translating that high‑detail design into something lightweight but visually convincing. Over the past decade working on real‑time environments and interactive design tools, I’ve noticed that beginners often try to solve performance issues too late in the pipeline. The smarter workflow is planning optimization from the moment the model is created.

If you are still building base assets, studying practical layout workflows can help. A good starting point is exploring how designers visualize spatial layouts with a professional 3D planning workflow, which shows how efficient geometry planning affects performance even before optimization begins.

This guide breaks down the exact process professionals use to convert a detailed helmet model into a production‑ready asset for Unreal Engine, Unity, and VR applications.

save pin

Why Optimization Matters for Helmet Assets

Key Insight: Helmet assets often appear in close‑up gameplay, making them visually important but performance‑sensitive.

In first‑person games, helmets may appear in cutscenes, character customization screens, or inventory previews. That means the model must hold up visually while remaining efficient enough to render alongside dozens of other assets.

Many artists underestimate the hidden cost of unoptimized props. A single inefficient helmet multiplied across NPCs or multiplayer avatars can dramatically increase GPU workload.

Common performance risks include:

1. Overly dense bevels and chamfers
2. Unnecessary internal geometry
3. Complex boolean leftovers
4. Poor UV layout causing large textures

Major studios often set strict triangle budgets. According to publicly shared guidelines from Unreal Engine documentation and several AAA art pipelines, small character props typically fall into these ranges:

1. Mobile games: 1k–4k triangles
2. Console/PC multiplayer: 5k–12k triangles
3. Cinematic assets: 15k–30k triangles

The key lesson is simple: visual complexity should come from textures and shading rather than geometry.

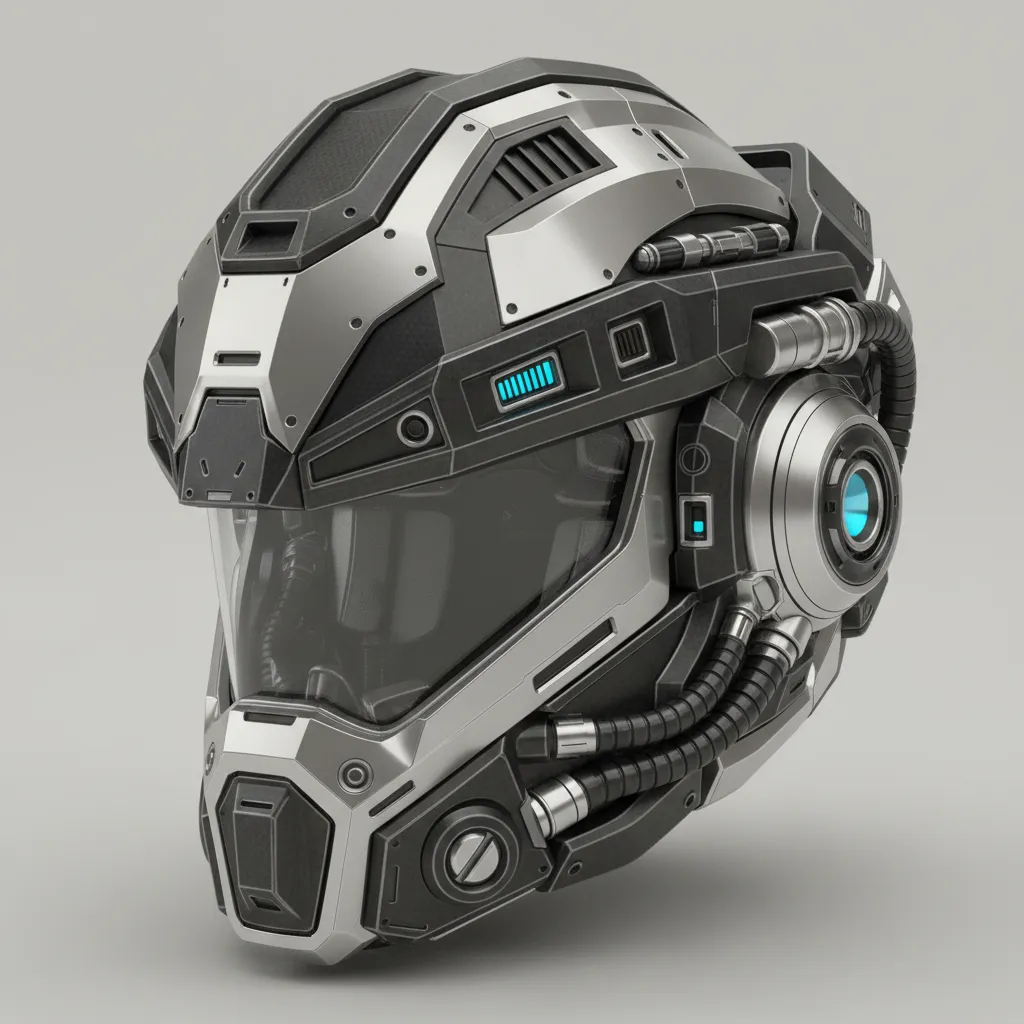

Reducing Polygon Count Without Losing Detail

Key Insight: Strategic edge removal and silhouette preservation reduce polygons while keeping the helmet visually intact.

One of the most common mistakes I see is aggressive decimation. Automatic tools can destroy the hard surface structure of a helmet, creating shading artifacts and uneven edges.

A better workflow focuses on silhouette priority.

Areas that require high density:

1. Helmet outline and silhouette
2. Visor edges
3. Mechanical joints

Areas where polygons can be reduced:

1. Flat armor panels
2. Hidden interior surfaces
3. Large smooth curves

In professional pipelines, artists often create a high‑poly version first and then rebuild a low‑poly mesh manually. This ensures edge flow remains predictable for baking and shading.

Another helpful workflow concept appears in environment design pipelines like using AI assisted floor planning to organize complex spaces efficiently. The same principle applies to modeling: organized structure leads to better optimization.

save pin

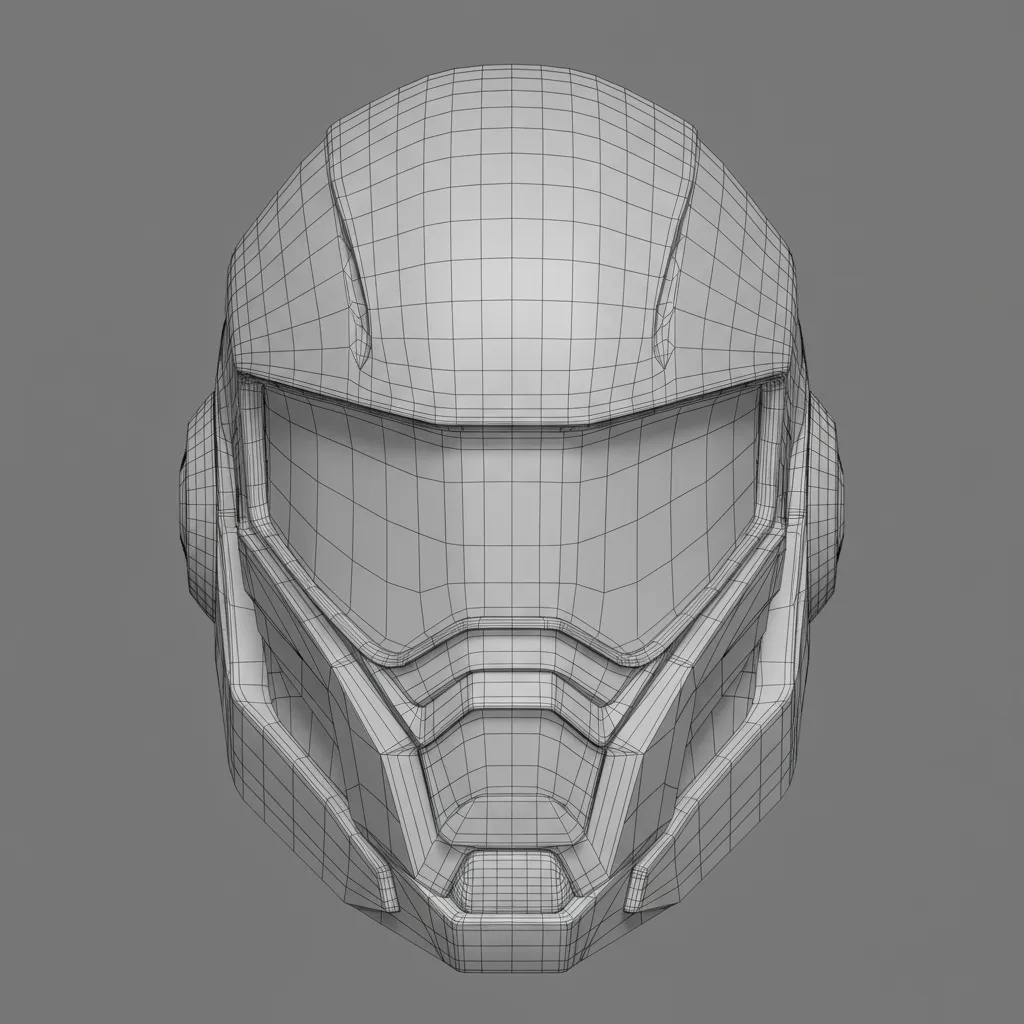

Retopology Techniques for Hard Surface Helmets

Key Insight: Clean edge loops around mechanical panels produce stable shading and predictable normal map baking.

Helmet retopology differs from organic characters because the surface is primarily mechanical. Instead of muscle flow, topology must follow panel seams and structural lines.

Professional retopology workflow:

1. Duplicate the high‑poly helmet as reference.
2. Block the primary shape using low‑density quads.
3. Add loops only where edges change direction.
4. Separate floating details like bolts and vents.

A trick many experienced artists use is floating geometry. Instead of cutting every detail into the base mesh, small pieces like screws or vents sit slightly above the surface and rely on baked maps.

This keeps topology extremely clean while preserving detail.

save pin

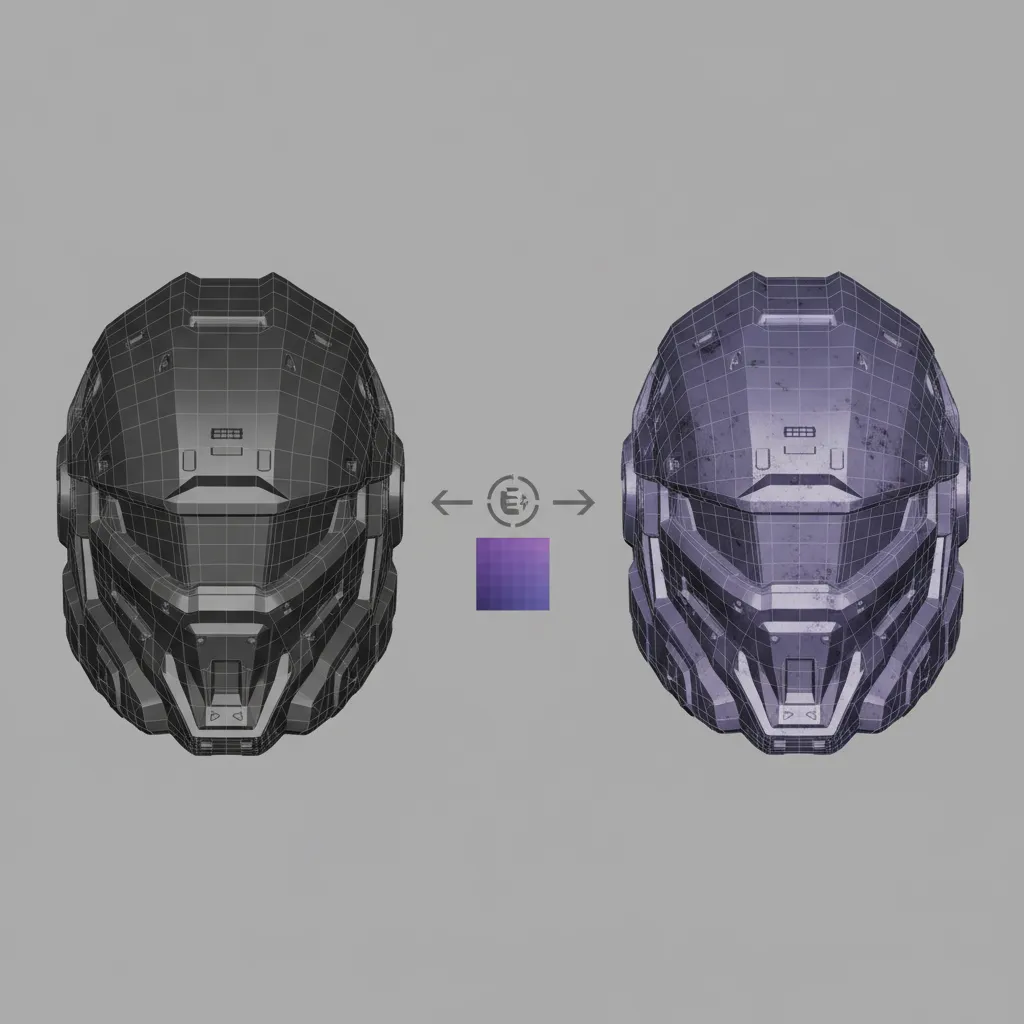

Using Normal Maps and Baking for Helmet Details

Key Insight: Normal map baking transfers sculpted detail into texture data, allowing a low‑poly helmet to look high‑resolution.

Normal maps are the backbone of modern game asset optimization. They store surface direction data that simulates depth when lit in a game engine.

Typical baking workflow:

1. Create a high‑poly helmet with full detail.
2. Build a clean low‑poly retopology version.
3. Unwrap UVs carefully.
4. Bake normal maps and ambient occlusion.

The high‑poly version might contain millions of polygons, but the final in‑game mesh remains lightweight.

Tools commonly used for baking include:

1. Marmoset Toolbag
2. Substance 3D Painter
3. Blender baking tools

Industry workflows described by studios like Ubisoft and Epic Games consistently emphasize baking as the main technique for preserving hard‑surface detail.

Answer Box

The most effective way to optimize a helmet 3D model is to combine manual retopology, silhouette preservation, and high‑to‑low normal map baking. This approach maintains visual quality while dramatically lowering real‑time rendering cost.

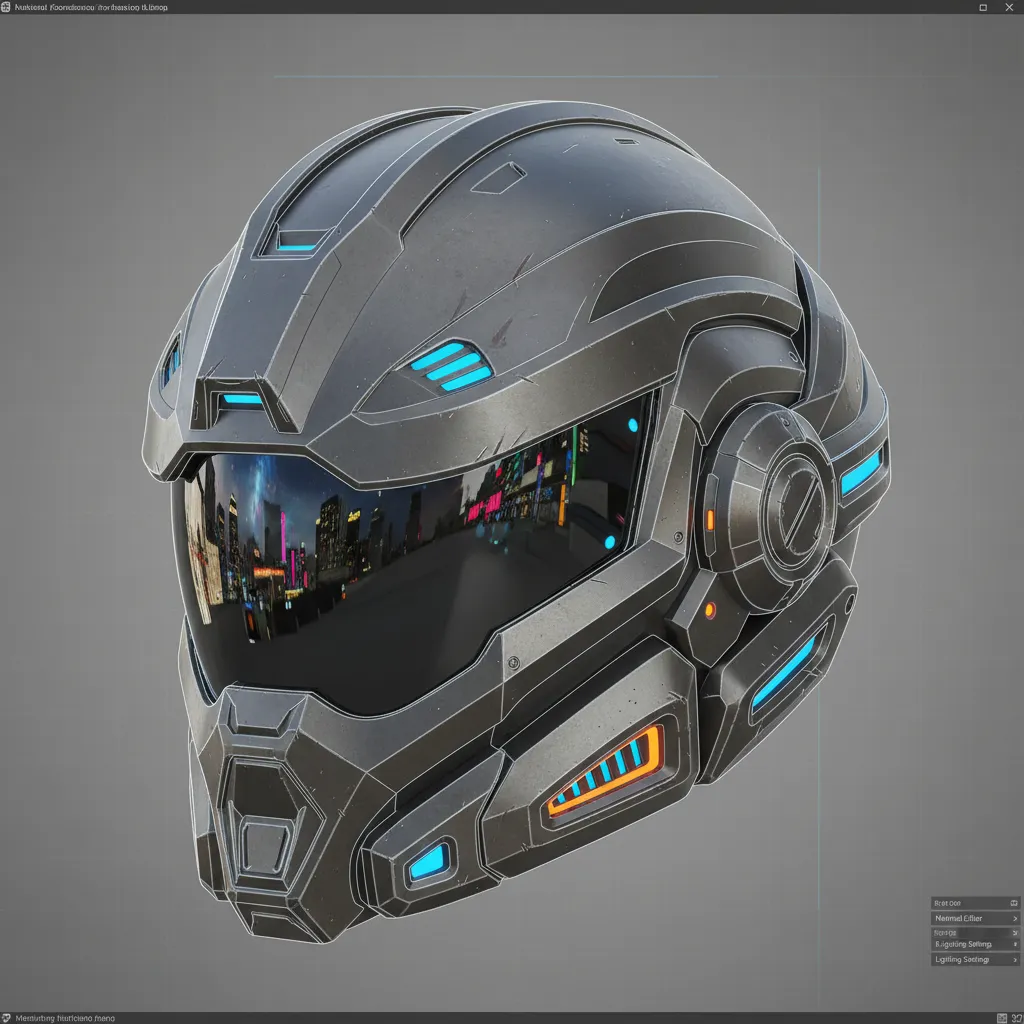

Preparing Helmet Models for Game Engines

Key Insight: Optimization is incomplete until the helmet asset is configured correctly for engine rendering pipelines.

Even a well‑modeled asset can perform poorly if export settings and materials are not optimized.

Game‑ready preparation checklist:

1. Apply transforms and freeze scale
2. Triangulate mesh if required by engine
3. Export FBX with smoothing groups
4. Use PBR material setup
5. Compress textures for platform targets

Many real‑time pipelines also rely on visualization tools such as high quality real time interior rendering environmentsto preview lighting accuracy before assets enter production scenes.

This step prevents unexpected shading issues once the asset reaches the engine.

save pin

Performance Testing in Unreal Engine and Unity

Key Insight: True optimization can only be confirmed through engine profiling tools.

Modeling software cannot accurately simulate full game performance. Once the helmet enters Unreal or Unity, it interacts with lighting, shadows, post‑processing, and animation systems.

Key testing metrics include:

1. Triangle count
2. Draw calls
3. Texture memory usage
4. Shader complexity

Both Unreal Engine and Unity provide built‑in tools for this:

1. Unreal Engine: Stat commands and GPU Visualizer
2. Unity: Frame Debugger and Profiler

In VR projects especially, even small inefficiencies become noticeable because frame rate targets are much higher.

Final Summary

1. Efficient helmet assets rely on clean topology and controlled polygon budgets.
2. Silhouette preservation matters more than internal geometry density.
3. Normal map baking replaces heavy geometric detail.
4. Game engine testing is essential for confirming optimization results.
5. Well‑optimized helmets balance visual realism and real‑time performance.

FAQ

How many polygons should a game helmet have?

Most game‑ready helmets range from 3k to 15k polygons depending on platform and camera distance.

What is the best way to optimize helmet 3D models for games?

Use retopology to reduce geometry, bake high‑poly detail into normal maps, and test the asset inside a game engine.

Do helmets need quad topology for game engines?

Game engines ultimately render triangles, but clean quad topology helps with retopology, UV mapping, and normal map baking.

What texture maps are usually used for helmet assets?

Typical PBR workflows include normal maps, roughness maps, metallic maps, base color, and ambient occlusion.

How do you reduce polygon count on a helmet model?

Remove unnecessary edge loops, simplify flat surfaces, and rebuild the mesh using retopology.

Why do helmet models use normal maps?

Normal maps allow a low‑poly helmet to display high‑detail surface lighting without adding geometry.

Should I optimize before or after texturing?

Optimization should happen before baking and texturing so the texture maps match the final low‑poly mesh.

Can a helmet 3D model be reused across engines?

Yes. A properly optimized FBX asset with PBR textures usually works in Unreal Engine, Unity, and most modern pipelines.
