Optimizing Kitchen Island Layouts for Appliances and NEC Outlet Compliance: Design a kitchen island that supports appliances while meeting NEC outlet rules without sacrificing workflow or aesthetics.

Direct Answer

Designing a kitchen island that supports appliances while meeting NEC outlet compliance requires separating appliance zones from required countertop outlet zones. Dedicated circuits should serve built‑in appliances, while code‑required outlets must remain accessible for small appliances along usable countertop edges.

The most effective layouts plan electrical access early, align outlets with real workflow zones, and avoid placing appliances where they eliminate required receptacle coverage.

Quick Takeaways

1. Kitchen islands require NEC‑compliant outlets whenever countertop width exceeds code thresholds.
2. Built‑in appliances must run on dedicated circuits separate from small‑appliance outlet circuits.
3. Appliance placement can accidentally remove required outlet coverage.
4. Pop‑up and concealed outlets help maintain both aesthetics and compliance.
5. Large islands benefit from zoning the surface into prep, appliance, and landing areas.

Introduction

In many of the kitchen remodels I've worked on, the biggest design conflict isn't cabinets or finishes. It's the tension between appliance placement and NEC outlet compliance on a kitchen island. Homeowners want microwaves, wine fridges, charging stations, and sometimes even dishwashers built into the island. But electrical codes still require accessible outlets along usable countertop surfaces.

This becomes a real planning problem. If appliances occupy too much island space, the design can accidentally violate outlet spacing requirements or force awkward receptacle placements.

Over the past decade designing residential kitchens, I've found that the best results come from planning appliance zones first, then layering electrical strategy on top of that. When the layout is modeled early using tools that allow homeowners to experiment with functional kitchen island layout scenarios, outlet placement becomes much easier to solve.

In this guide I'll walk through the layout strategies designers and electricians use to support appliances while keeping islands fully compliant and functional.

save pin

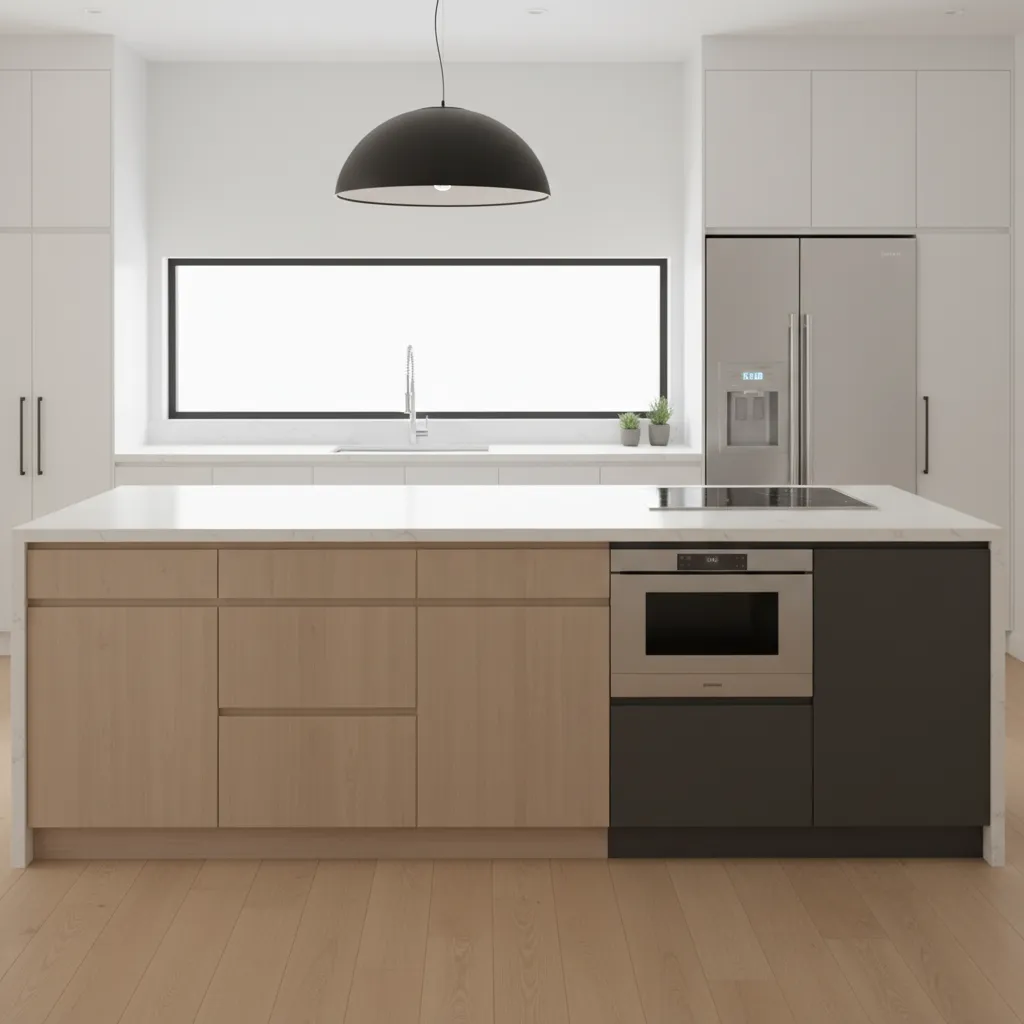

Planning Appliance Zones on Kitchen Islands

Key Insight: The most successful islands divide the surface into appliance zones and usable countertop zones before electrical planning begins.

When appliances are randomly added to an island design, outlet conflicts almost always appear later. Instead, experienced kitchen designers plan three functional zones first.

1. Prep zone – open countertop used for chopping and food prep.
2. Appliance zone – microwave drawers, beverage coolers, or warming drawers.
3. Landing zone – small surfaces beside appliances for temporary placement.

The prep zone is where NEC outlet requirements typically apply. Appliance zones are powered separately with dedicated circuits.

In one recent remodel in Pasadena, relocating a microwave drawer from the center of the island to the end panel restored enough countertop width to legally place the required receptacle.

This small adjustment avoided cutting a visible outlet into a quartz waterfall panel.

Balancing NEC Outlet Requirements with Appliance Placement

Key Insight: Appliances reduce the amount of qualifying countertop space, which directly affects where outlets must be installed.

Many homeowners assume every island simply needs one outlet. That's rarely accurate.

Under modern NEC guidance, outlets are required when the island countertop exceeds minimum dimensions. Appliances built into the island can interrupt this requirement if they occupy too much of the usable surface.

Common layout mistakes include:

1. Installing a microwave exactly where an outlet must be placed.
2. Using decorative panels that eliminate accessible receptacle locations.
3. Placing appliances in the center of otherwise continuous countertop areas.

The workaround designers often use is shifting appliances slightly off center and preserving uninterrupted countertop sections where outlets can legally be installed.

save pin

Electrical Circuits for Microwaves, Dishwashers, and Wine Coolers

Key Insight: Island appliances must almost always run on dedicated circuits separate from the required small‑appliance outlet circuits.

Mixing appliance loads with countertop outlet circuits is one of the most common electrical design mistakes in kitchen islands.

Typical circuit planning looks like this:

1. Microwave drawer – dedicated 20A circuit
2. Dishwasher – dedicated circuit with GFCI protection
3. Wine cooler – dedicated or shared appliance circuit
4. Countertop outlets – small appliance branch circuits

According to the National Electrical Code, kitchen small‑appliance circuits are intended for portable countertop equipment like mixers, coffee makers, and blenders.

Separating circuits prevents overloads and improves safety.

When clients want to visualize how appliances and outlets interact before construction, I often recommend tools that allow them to map appliance positions and electrical access inside a kitchen floor plan.

Designing Islands with Hidden or Pop Up Outlets

Key Insight: Hidden outlets can satisfy code requirements without interrupting modern island aesthetics.

Many homeowners worry that visible outlets will ruin a minimalist island design. Fortunately, newer solutions solve this problem.

Popular outlet solutions include:

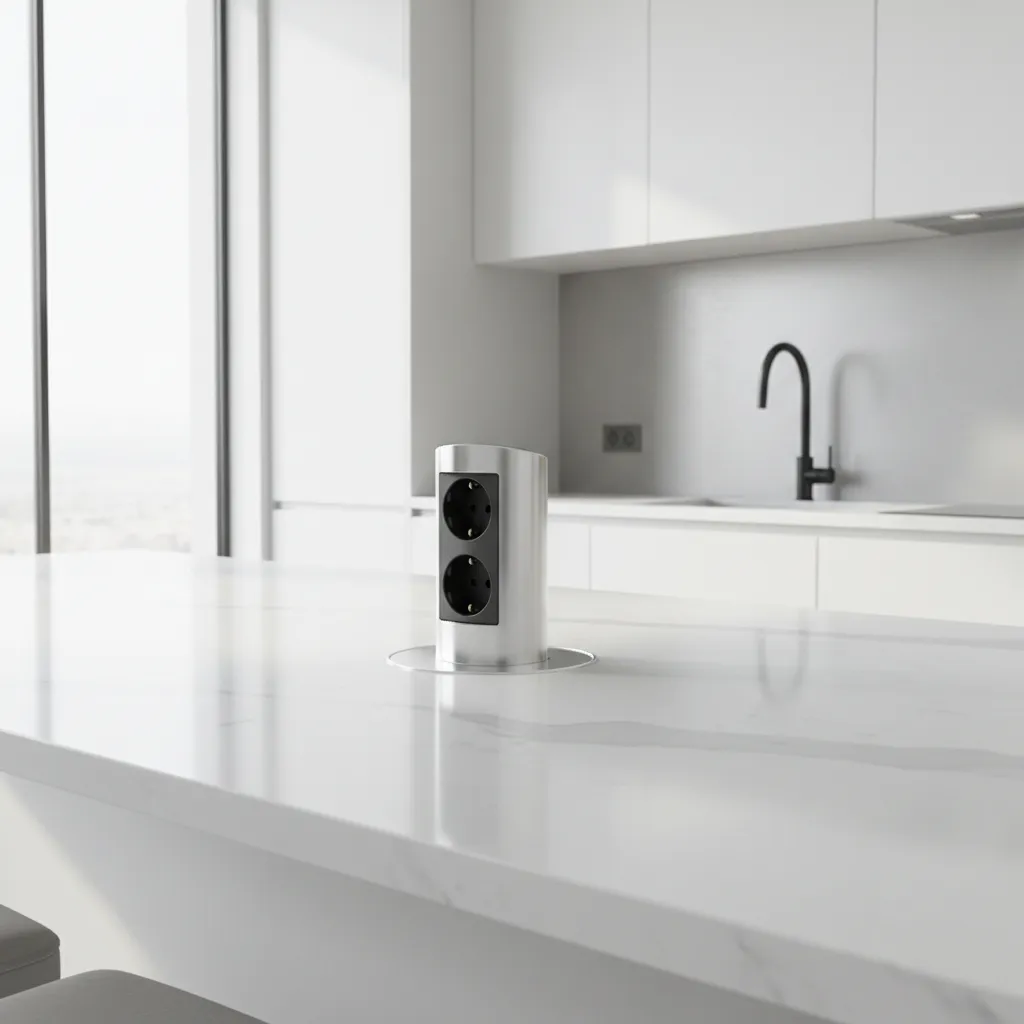

1. Pop‑up countertop receptacles
2. Under‑counter mounted outlets

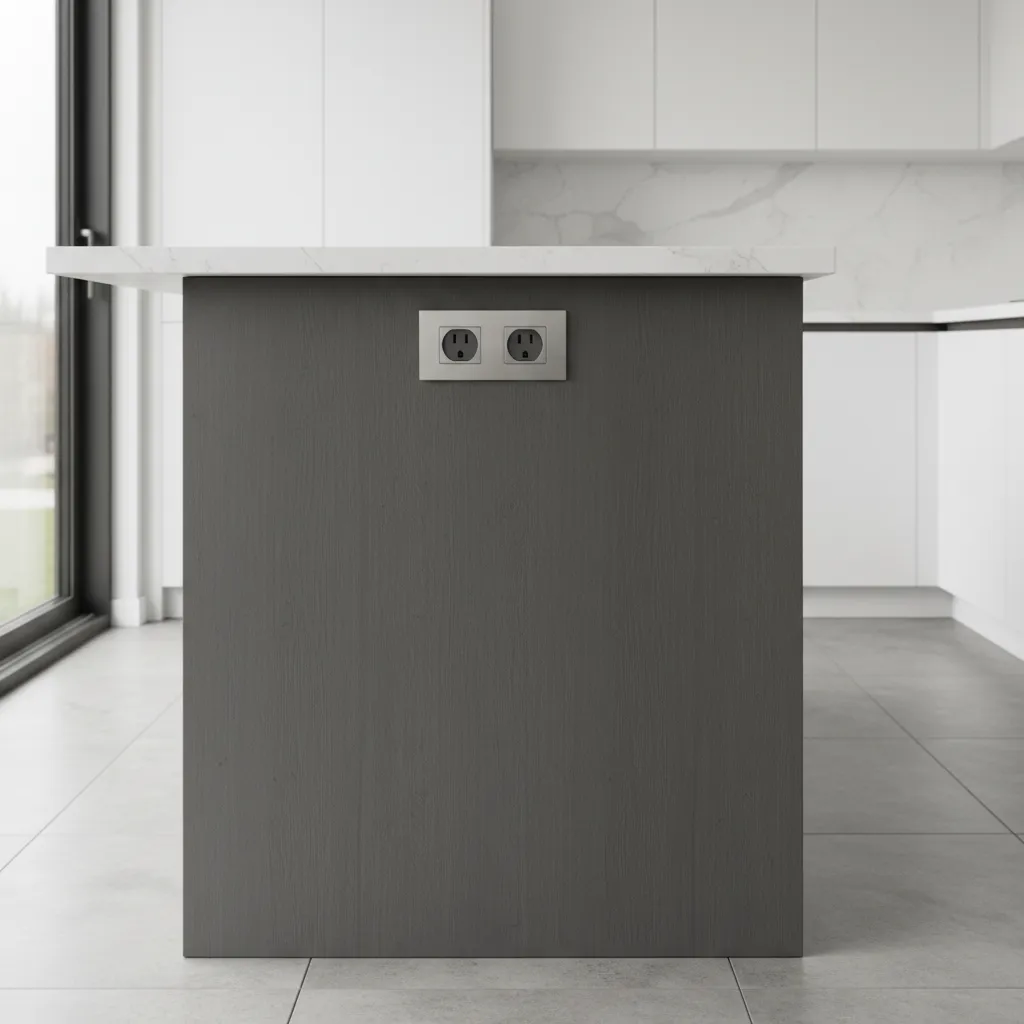

3. End‑panel recessed outlets
4. Drawer‑integrated charging outlets

Each option must still remain accessible and compliant with electrical codes.

Pop‑up outlets work particularly well on large prep islands where visible wall outlets aren't possible.

save pin

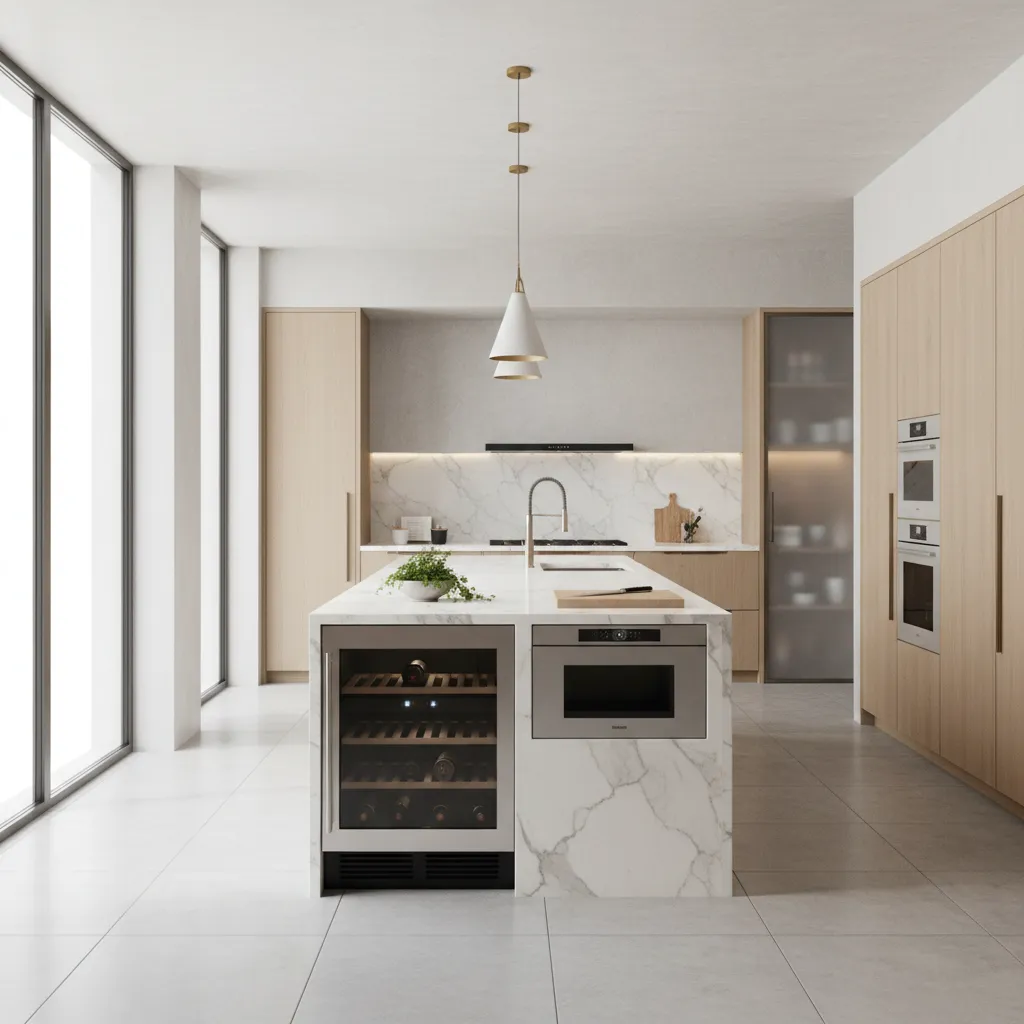

Spacing and Workflow Considerations for Large Islands

Key Insight: Appliance placement should support kitchen workflow before outlet positioning is finalized.

Oversized islands introduce a different challenge: workflow disruption.

When too many appliances are installed in the island, prep movement becomes inefficient.

Designers typically evaluate three movement paths:

1. Prep to cooktop
2. Sink to dishwasher
3. Refrigerator to prep zone

If the island houses appliances, they should support these movements rather than block them.

High‑quality kitchen visualizations help homeowners see this relationship clearly. Many designers rely on tools that allow them to visualize the entire island layout in realistic 3D before installation.

save pin

Future Proofing Kitchen Island Electrical Access

Key Insight: Electrical flexibility is often more valuable than adding more appliances.

A mistake I see in many remodels is designing the island only for current appliances.

Technology changes quickly. Coffee systems, charging drawers, and smart appliances are becoming common additions.

Future‑proofing strategies include:

1. Installing conduit pathways inside the island.
2. Leaving accessible junction boxes for future outlets.
3. Using multi‑device outlet boxes where possible.
4. Allowing extra cabinet space for appliance upgrades.

Planning this during the design phase costs very little but prevents expensive modifications later.

Answer Box

The best kitchen island layouts separate appliance zones from countertop outlet zones. Dedicated circuits power built‑in appliances, while NEC‑required outlets remain accessible along usable prep surfaces. Early layout planning prevents code conflicts and preserves workflow.

Final Summary

1. Kitchen islands require careful coordination between appliance placement and outlet code.
2. Dedicated circuits must power built‑in appliances.
3. Usable countertop areas determine where outlets must be installed.
4. Hidden or pop‑up outlets help maintain modern island aesthetics.
5. Future‑ready electrical access prevents costly remodel changes.

FAQ

Do kitchen islands require outlets?

Yes. Most kitchen islands require outlets when the countertop exceeds minimum size thresholds defined by NEC guidelines.

Where should outlets be placed on a kitchen island?

Outlets should be installed on accessible sides of the island near usable countertop areas where portable appliances may be used.

Can a microwave share a circuit with island outlets?

No. Microwaves typically require a dedicated circuit separate from the small‑appliance outlet circuits.

Are pop up outlets allowed on kitchen islands?

Yes. Many pop‑up outlets are designed specifically to meet NEC requirements while maintaining clean island surfaces.

How many outlets should a kitchen island have?

The number depends on the island size and usable countertop sections defined under NEC spacing guidelines.

What is the best island layout for outlets and appliances?

The best island layout for outlets and appliances separates prep areas from appliance zones while maintaining accessible receptacles.

Can a dishwasher be installed in a kitchen island?

Yes. Dishwashers are commonly placed in islands, but they require dedicated electrical connections and proper plumbing planning.

What are common kitchen island electrical design mistakes?

Placing appliances where outlets must be installed, failing to plan circuits early, and ignoring countertop usability are the most common issues.
