Optimizing Kitchen Island Plumbing Layout for Small and Large Kitchens: Practical layout strategies to design efficient kitchen island plumbing with smarter pipe routing, proper drain slope, and space‑saving solutions.

Direct Answer

An optimized kitchen island plumbing layout minimizes pipe length, preserves proper drain slope, and allocates enough cabinet space for traps, vents, and appliances. The key is planning the pipe path before the island is built, especially when integrating sinks, dishwashers, or garbage disposals.

In both small and large kitchens, efficient routing under the floor and thoughtful cabinet layout determine whether the plumbing will remain accessible, quiet, and maintenance‑friendly.

Quick Takeaways

1. Kitchen island plumbing works best when pipe routing is planned before cabinetry installation.
2. Small islands require compact trap placement and shorter horizontal drain runs.
3. Large islands benefit from dedicated routing channels under the floor slab.
4. Maintaining proper drain slope is more important than minimizing pipe distance.
5. Appliance placement directly affects pipe efficiency and maintenance access.

Introduction

Designing an efficient kitchen island plumbing layout is one of those tasks that looks simple on paper but becomes complicated fast during construction. After working on dozens of kitchen remodels, I can say the plumbing under the island is often where projects quietly lose efficiency.

Homeowners typically focus on the visible parts — countertops, sinks, and lighting — while the pipe routing underneath gets treated as an afterthought. That approach leads to longer drain runs, awkward cabinet layouts, and sometimes noisy plumbing.

Before any pipe is installed, the smartest step is to map the island position and appliance locations. Many designers now start by visualizing the layout using tools that simulate cabinet depth and pipe paths. If you're still sketching ideas, this workflow for planning an efficient kitchen workspace layoutmakes it easier to see how appliances, sinks, and plumbing zones interact.

In this guide, I'll walk through the planning logic professionals use to design efficient island plumbing — including the hidden mistakes that often make maintenance harder later.

save pin

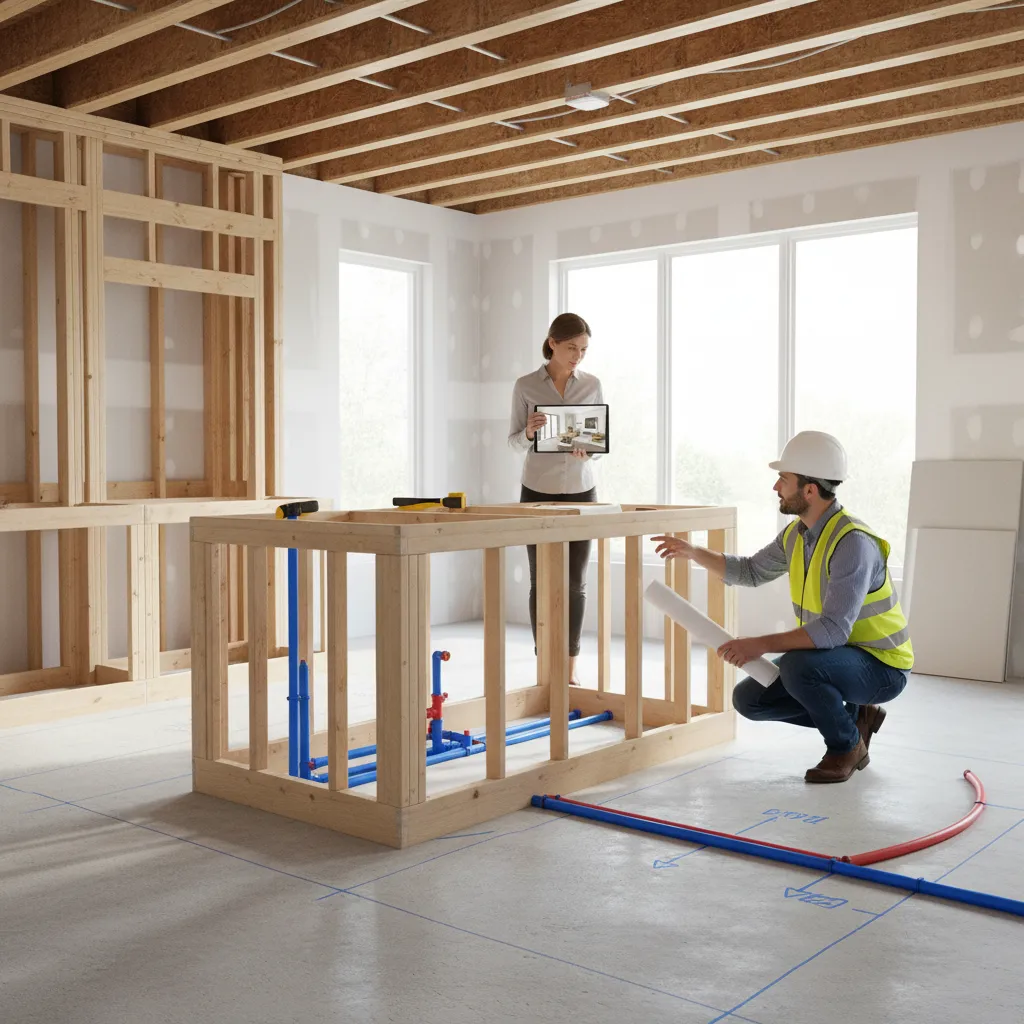

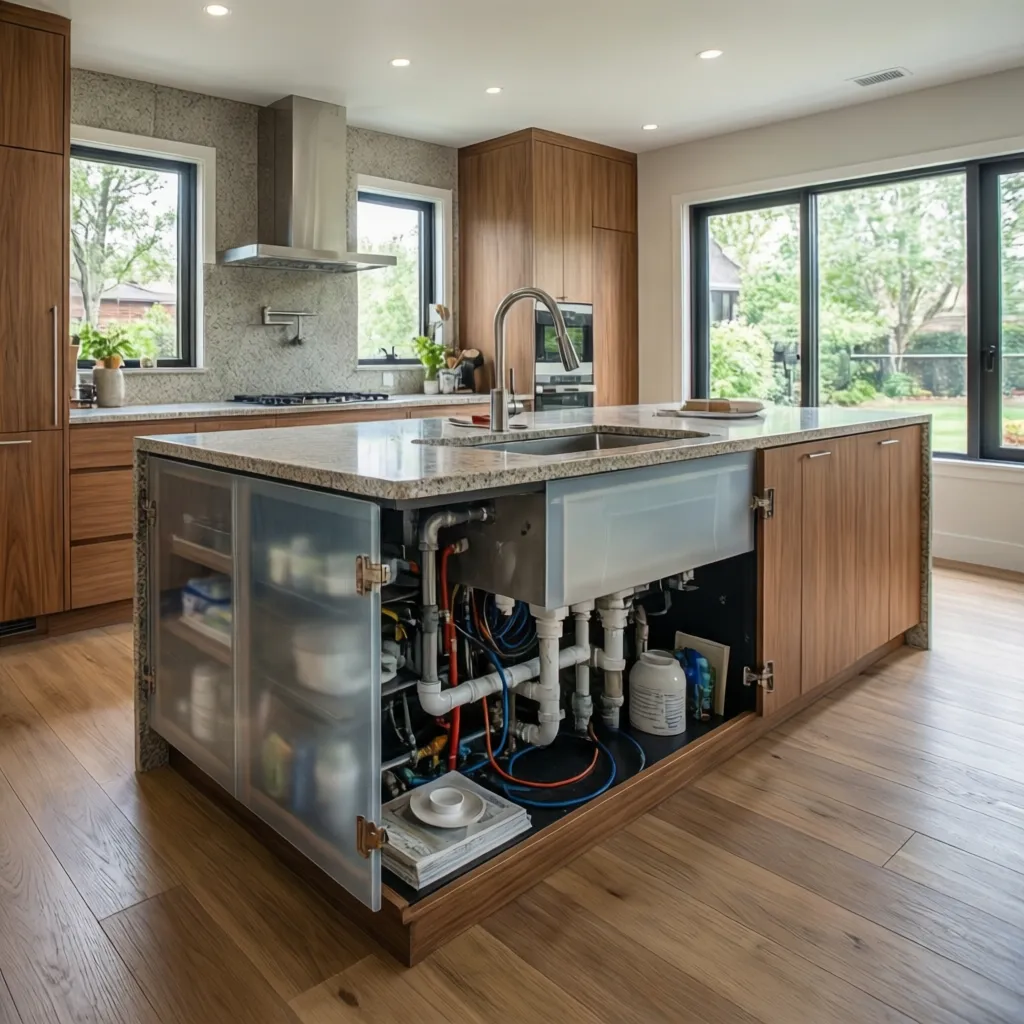

Planning the Plumbing Layout Before Building the Island

Key Insight: The most efficient island plumbing layouts are designed before the island frame is built, not after cabinets are installed.

One of the most common issues I see during remodels is plumbers forced to route pipes around cabinet framing that was already built. That leads to unnecessary bends, longer runs, and limited service access.

When planning ahead, the plumbing path should be aligned with three structural elements:

1. Floor joist direction
2. Main drain stack location
3. Cabinet interior clearance

A practical planning sequence I recommend:

1. Place the island based on work triangle efficiency.
2. Determine the sink centerline.
3. Identify the shortest route to the main drain.
4. Reserve cabinet space for the P‑trap and cleanout.

According to guidance from the International Residential Code (IRC), horizontal drainage piping must maintain a consistent slope of roughly 1/4 inch per foot for most residential drain lines. Planning early ensures this slope can be maintained without raising the island floor.

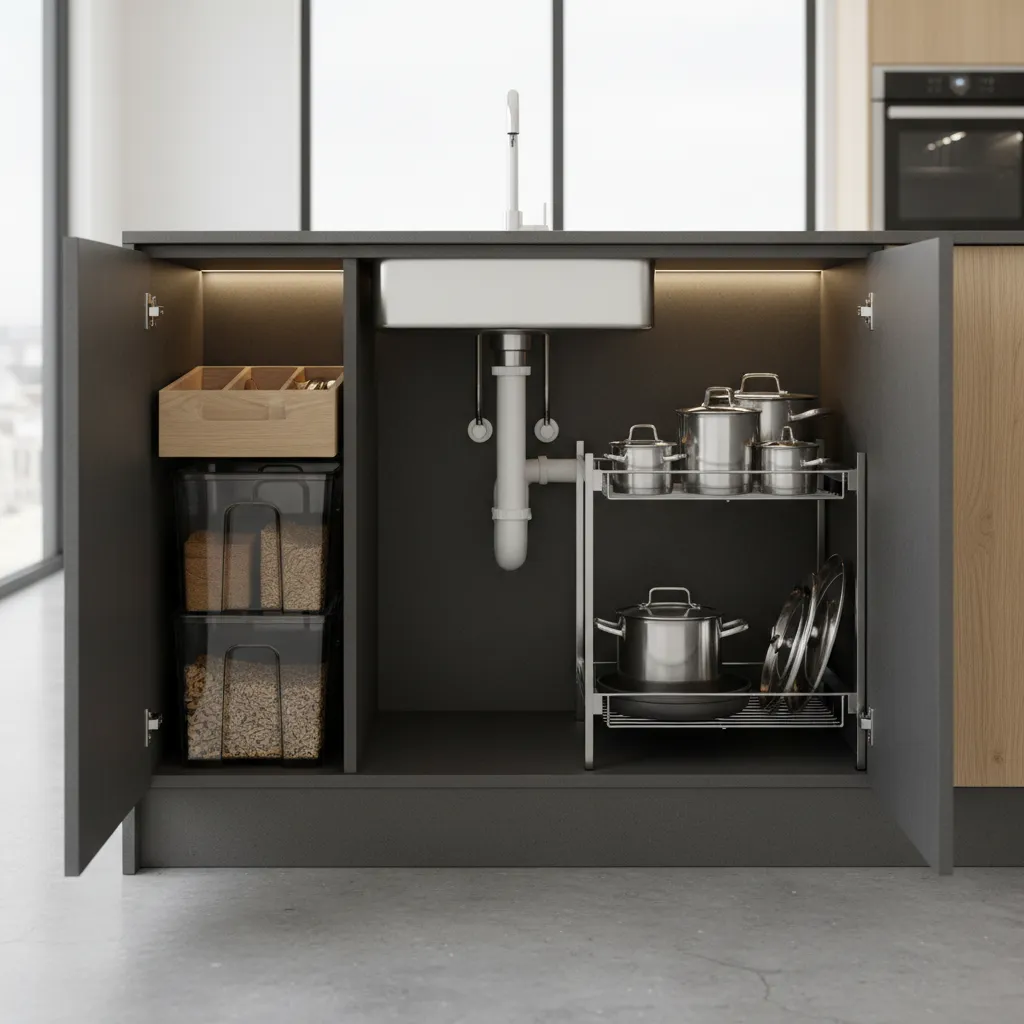

Space Constraints in Small Kitchen Islands

Key Insight: In small islands, plumbing efficiency depends more on vertical organization than horizontal pipe routing.

Compact kitchen islands often leave only a narrow cabinet base to house the sink plumbing. In these projects, every inch inside the cabinet matters.

Typical constraints in small islands include:

1. Limited depth for the P‑trap
2. Shared space with trash bins
3. Reduced clearance for dishwasher connections

Design strategies that work well:

1. Use a rear‑mounted trap configuration
2. Install shallow sink basins
3. Keep the drain line close to the cabinet back wall
4. Position the dishwasher adjacent to the sink cabinet

In several Los Angeles remodels I've worked on, switching to a slightly smaller sink bowl freed enough cabinet space to keep the drain path straight — which reduced clogging issues later.

save pin

Efficient Pipe Routing Under Large Kitchen Islands

Key Insight: Large islands allow cleaner pipe routing, but poor planning can still create unnecessarily long drain runs.

With wider islands, designers often assume plumbing becomes easier. In reality, the extra space can tempt installers to route pipes inefficiently.

The most effective layouts use a direct routing channel beneath the island:

1. Main drain enters near the sink cabinet
2. Vent line rises through an interior cabinet wall
3. Appliance supply lines run parallel to the drain

For large kitchens, I often recommend modeling the island footprint and plumbing corridors first using tools similar to this process for visualizing kitchen floor layouts before construction. Seeing the routing in 3D helps prevent conflicts with structural beams or floor joists.

Industry best practice suggests limiting horizontal drain runs whenever possible. Shorter runs reduce the chance of sediment buildup and improve long‑term drainage performance.

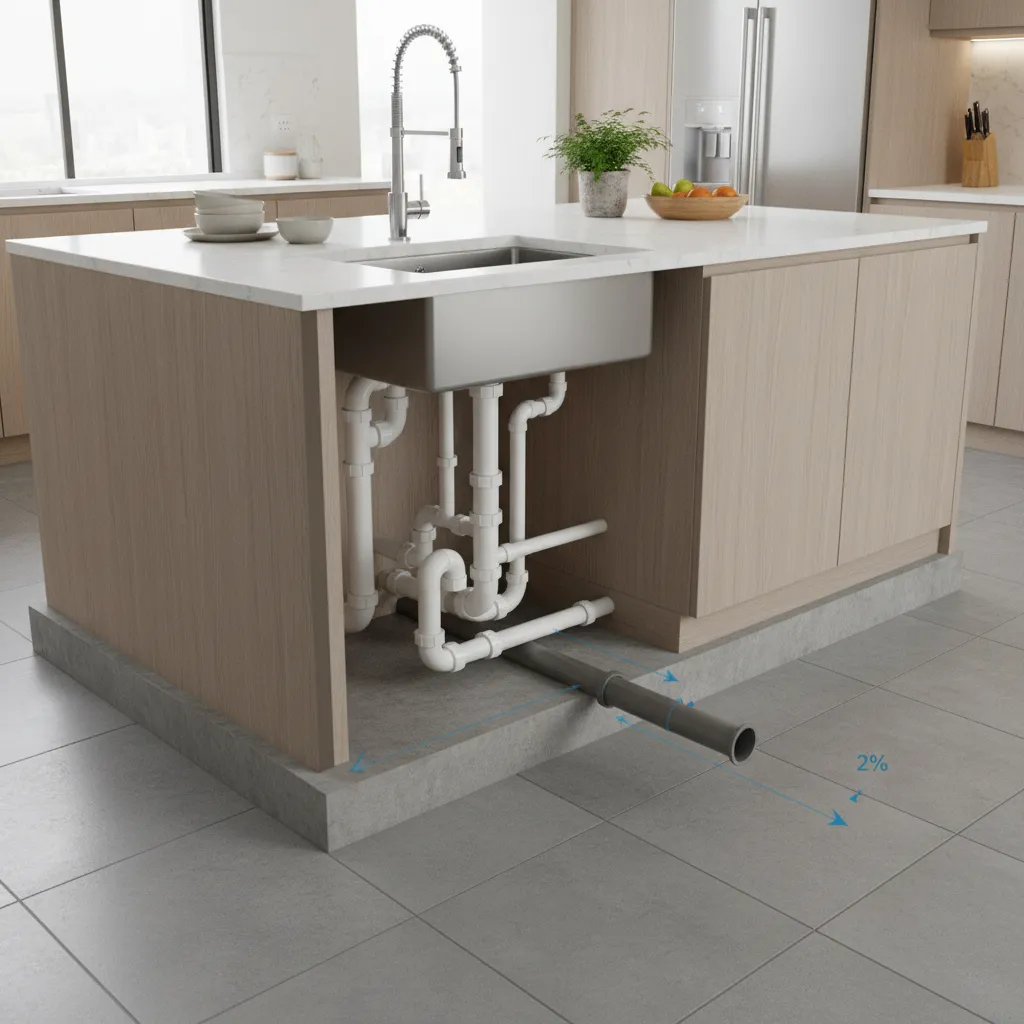

Optimizing Drain Slope and Pipe Length

Key Insight: Correct drain slope matters more than minimizing pipe length.

Homeowners often assume the shortest pipe route is always the best one. In plumbing design, that’s not necessarily true.

If a short run compromises the slope, water flow slows and solids accumulate in the pipe.

General drain slope guidelines:

1. 1/4 inch per foot for pipes under 3 inches
2. 1/8 inch per foot for larger pipes
3. Avoid sudden direction changes
4. Limit the number of elbows

From experience, the biggest hidden cost appears when installers must raise the island floor slightly to achieve proper slope. That adjustment can affect cabinet alignment and countertop height.

save pin

Answer Box

The most efficient kitchen island plumbing layout balances three factors: short drain runs, correct slope, and enough cabinet space for traps and appliances. Planning pipe routing before cabinetry installation prevents costly adjustments later.

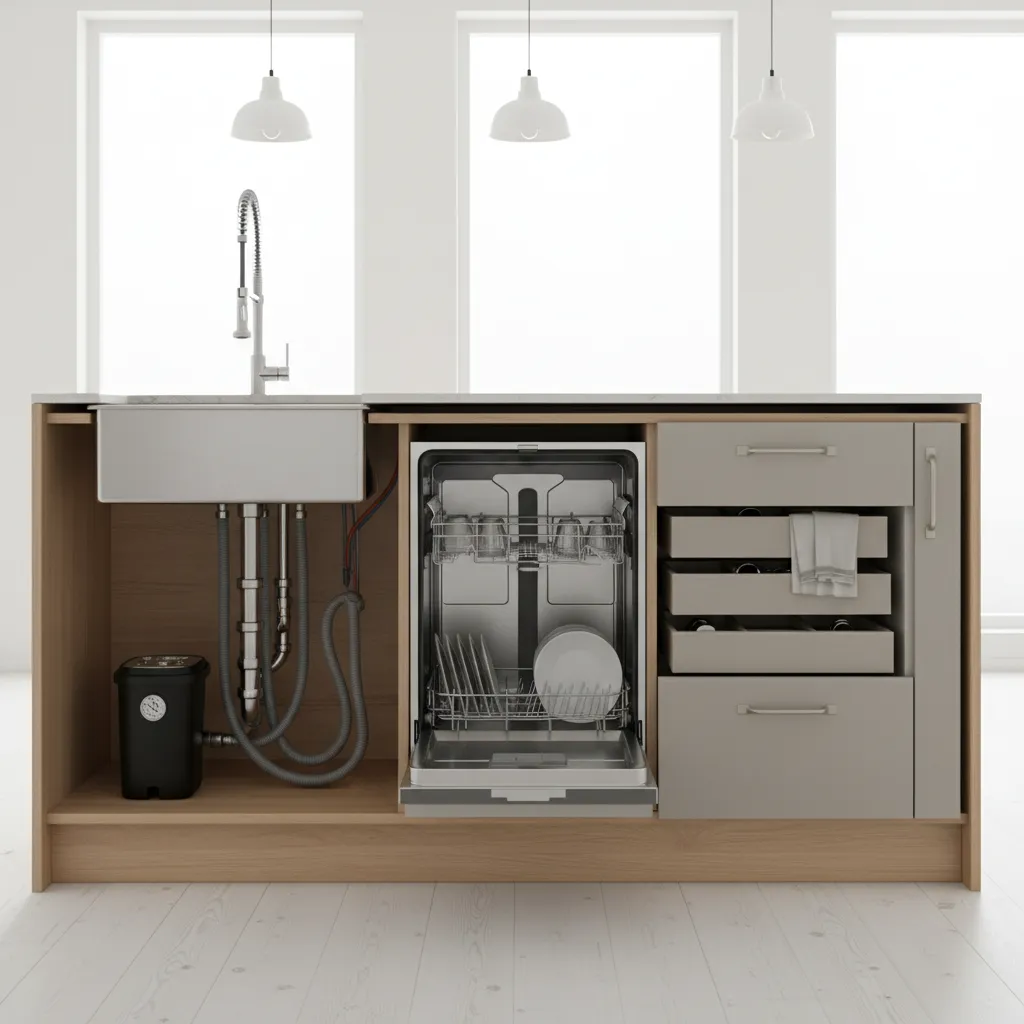

Integrating Sink, Dishwasher, and Garbage Disposal

Key Insight: Appliance placement determines how complex the island plumbing becomes.

The moment you add a dishwasher or disposal to an island sink, the plumbing network expands significantly. Poor placement forces pipes and hoses to cross inside the cabinet.

The most efficient configuration usually follows this order:

1. Sink in the center cabinet
2. Dishwasher on the drain‑side cabinet
3. Garbage disposal directly beneath the sink

This arrangement allows:

1. Short dishwasher drain hoses
2. Direct disposal discharge into the trap
3. Better maintenance access

When I design kitchens, I also model appliance clearances early using interior visualization tools similar to those used for previewing functional kitchen layouts before renovation. Seeing how appliances open and interact with plumbing zones helps avoid cramped installations.

save pin

Layout Mistakes That Reduce Plumbing Efficiency

Key Insight: The biggest plumbing inefficiencies usually come from cabinet design decisions, not the pipes themselves.

Across many kitchen renovations, a few mistakes appear repeatedly.

Common layout errors include:

1. Placing the sink too far from the main drain line
2. Forgetting access panels for maintenance
3. Blocking the trap with drawers or shelving
4. Overcrowding the sink cabinet with storage systems

One overlooked issue is noise. Long horizontal drain runs beneath islands can amplify water sounds. Keeping pipes shorter and properly supported significantly reduces this problem.

Final Summary

1. Plan kitchen island plumbing before cabinet construction begins.
2. Small islands require careful cabinet space management.
3. Large islands still benefit from short, direct pipe routes.
4. Correct drain slope is essential for reliable drainage.
5. Appliance placement strongly affects plumbing efficiency.

FAQ

How do you design a kitchen island plumbing layout?

Start by locating the main drain line and aligning the island sink to the shortest route. Maintain proper drain slope and reserve cabinet space for traps and appliance connections.

What is the best pipe routing for an island sink?

The best pipe routing for an island sink runs directly from the sink cabinet to the nearest floor drain connection while maintaining a consistent slope.

Does a kitchen island sink require special plumbing?

Yes. Island sinks typically require specialized venting methods such as loop vents or air admittance valves because there is no nearby wall vent.

How much space is needed for kitchen island sink plumbing?

Most installations require at least 24–30 inches of cabinet width to accommodate the sink, P‑trap, and water supply lines comfortably.

Can a dishwasher be installed in a kitchen island?

Yes. Dishwashers are commonly installed next to island sinks and share the same drain and water supply lines.

What slope is required for kitchen island drains?

Residential plumbing codes typically require about 1/4 inch of slope per foot for drain pipes smaller than 3 inches.

What are common mistakes in kitchen island plumbing layout?

Common issues include long horizontal drain runs, poor cabinet access, incorrect slope, and appliance placements that block maintenance access.

Is kitchen island plumbing difficult to install?

It can be more complex than wall plumbing because pipes must run beneath the floor and require proper venting solutions.
