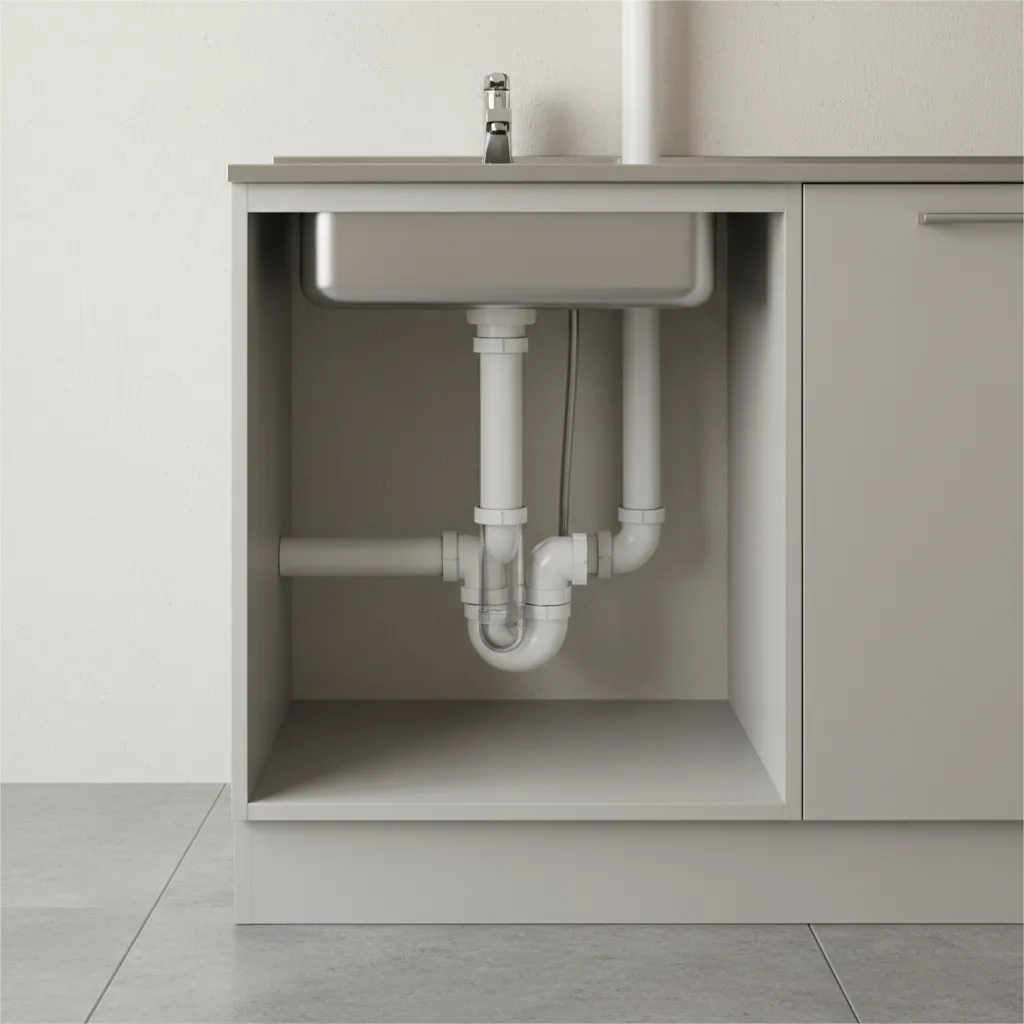

Optimizing Kitchen Sink Vent Pipe Layout for Better Drainage: Practical vent pipe layout strategies that improve kitchen sink drainage, reduce gurgling, and prevent slow drains during remodels or new installations.

Direct Answer

An optimized kitchen sink vent pipe layout keeps air pressure balanced inside the drain system so wastewater flows smoothly. The most reliable layouts place the vent close to the trap arm, minimize horizontal runs, and maintain proper pipe diameter. When vent placement is wrong, drainage slows down, traps siphon dry, and sinks start gurgling.

Quick Takeaways

1. The vent pipe should connect close to the sink trap to stabilize pressure quickly.
2. Shorter vent paths with fewer bends dramatically improve drainage performance.
3. Improper vent sizing is a common cause of slow or noisy kitchen drains.
4. Remodel layouts often require creative vertical vent routing to maintain airflow.
5. Well-designed venting prevents trap siphoning and recurring clogs.

Introduction

After working on dozens of kitchen remodels and plumbing coordination projects, one thing becomes obvious: a poorly planned kitchen sink vent pipe layout causes far more drainage problems than most homeowners expect. Slow draining, bubbling sounds, and sewer odors are often blamed on clogs, but many times the real issue is the vent design.

In real projects, I frequently see sinks installed far from the vent stack or connected with excessive pipe bends. On paper the plumbing technically works, but in daily use the airflow inside the drain system becomes unstable. That imbalance creates suction that fights against the water leaving the sink.

When planning kitchen layouts, the relationship between cabinets, appliances, and plumbing lines matters just as much as aesthetics. If you're mapping out a new kitchen configuration, studying a step-by-step kitchen layout planning example for cabinet and plumbing coordinationhelps reveal how vent placement interacts with sink position.

In this guide, I’ll break down the practical rules plumbers rely on to improve drainage performance. We'll cover trap-to-vent distance, pipe diameter decisions, routing strategies during remodels, and the hidden design mistakes that cause long-term plumbing issues.

save pin

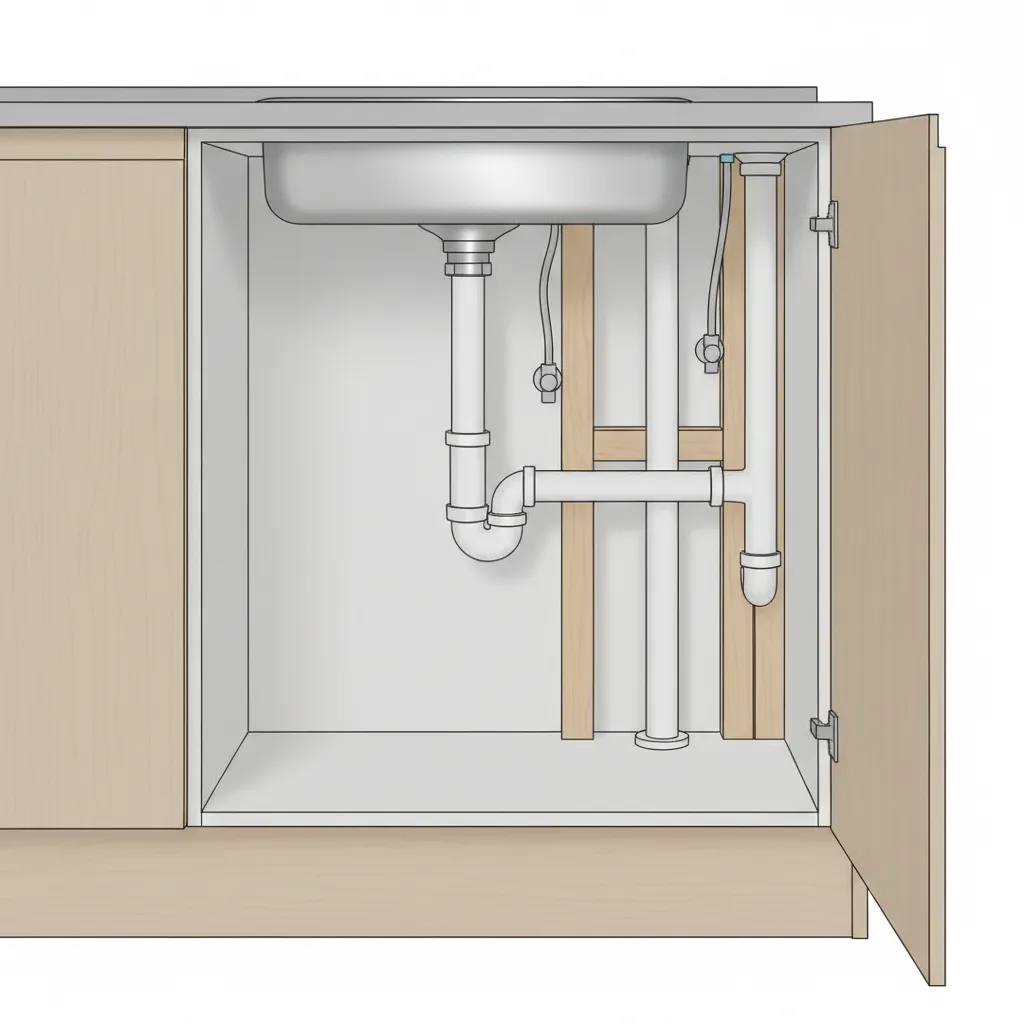

Why Vent Pipe Placement Affects Drainage Efficiency

Key Insight: The closer the vent pipe connects to the sink trap arm, the more stable the drainage airflow becomes.

Drain systems rely on air pressure balance. When water flows down a pipe, it pushes air ahead of it and pulls air behind it. Without a nearby vent opening, the moving water creates suction that slows the flow and may even pull water out of the trap.

From experience, sinks installed on long horizontal runs before reaching a vent are far more likely to produce gurgling noises. That sound is air fighting to enter the pipe through the sink instead of through a vent.

Typical airflow problems caused by poor vent placement include:

1. Slow draining despite no blockage
2. Gurgling noises in the sink or dishwasher line
3. Trap seal loss that allows sewer odor
4. Recurring clogs due to weak water velocity

According to International Residential Code plumbing guidelines, proper venting ensures the drainage system operates at near‑neutral pressure, which allows gravity to move wastewater efficiently.

save pin

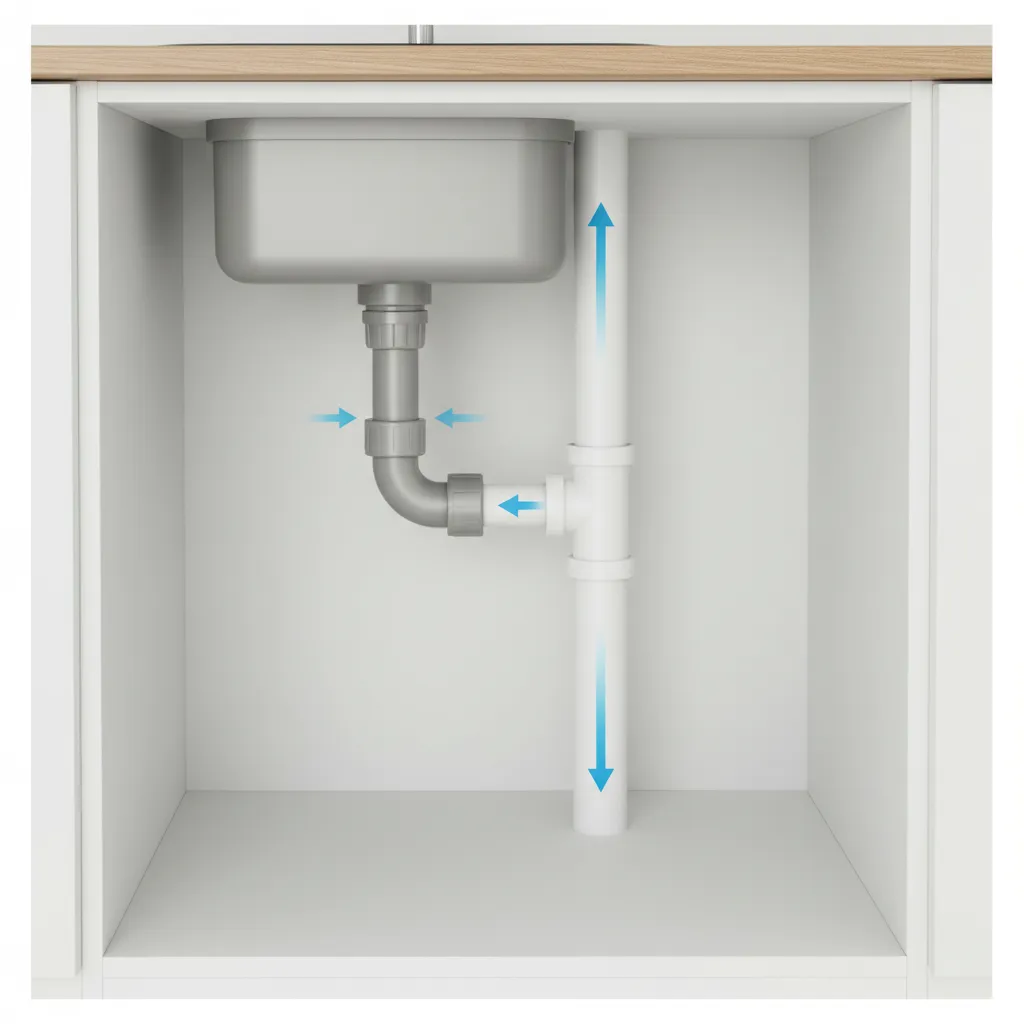

Ideal Distance Between Kitchen Sink Trap and Vent

Key Insight: Most kitchen sinks perform best when the vent connection is within 2–5 feet of the trap arm.

While plumbing codes vary slightly by region, the practical rule used by many plumbers is keeping the vent connection as close as possible to the trap without interfering with cabinetry.

Typical trap‑to‑vent distances:

1. 1.5-inch pipe: maximum about 3.5 feet
2. 2-inch pipe: maximum about 5 feet
3. Larger pipes allow slightly longer runs but rarely appear in residential sinks

One mistake I see in remodels is relocating the sink island or window wall without updating the vent path. The original vent might end up several feet farther away than code intends.

When that happens, homeowners sometimes add air admittance valves as a quick fix. While those can work, a properly routed vent stack almost always delivers more consistent drainage performance.

Choosing the Right Vent Pipe Diameter

Key Insight: Undersized vent pipes restrict airflow and can cause the same symptoms as a blocked drain.

Many people assume the vent pipe diameter doesn't matter much because it only carries air. In reality, airflow resistance increases dramatically in narrow pipes, especially when moisture and grease accumulate over time.

Common vent sizing for kitchen sinks:

1. 1.5 inch vent – acceptable for single fixture in some codes
2. 2 inch vent – preferred for modern kitchens with dishwasher connection
3. Shared vent stacks may be larger depending on fixture load

In homes with heavy kitchen use, I usually recommend 2‑inch venting even if the minimum code allows smaller pipes. The additional airflow keeps drainage stable when multiple fixtures operate simultaneously.

When designing plumbing paths around cabinets and walls, tools that visualize vertical pipe runs alongside structural framing can help avoid conflicts. A 3D floor planning workflow for mapping plumbing paths inside walls often reveals where vents can rise without interfering with cabinetry or windows.

Reducing Bends and Horizontal Runs in Vent Pipes

Key Insight: Every additional bend in a vent pipe reduces airflow efficiency and increases condensation buildup.

Ideally, vent pipes should travel vertically as soon as possible. Long horizontal vent sections tend to collect moisture, grease vapor, and debris from the drain system.

Problems caused by excessive vent bends include:

1. Condensation accumulation
2. Grease vapor buildup
3. Airflow turbulence
4. Harder maintenance access

A simple routing principle many plumbers follow:

1. Connect the vent close to the trap arm
2. Turn upward quickly using a sanitary tee
3. Keep vertical rise consistent until reaching the main vent stack

Answer Box

The most effective kitchen sink vent pipe layout connects the vent near the trap arm, uses a 2‑inch pipe when possible, and minimizes horizontal runs. Proper vent placement stabilizes pressure and dramatically improves drainage performance.

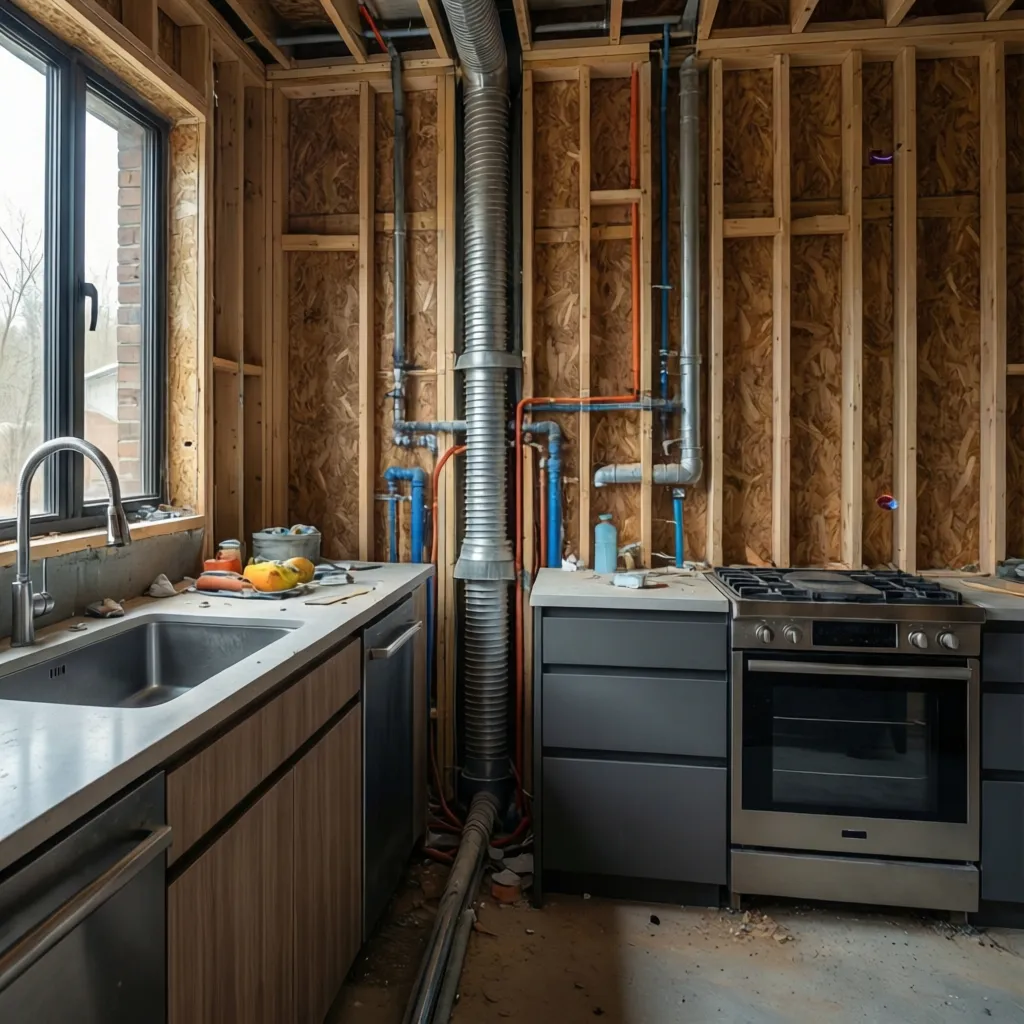

Vent Routing Strategies for Kitchen Remodels

Key Insight: Remodeling often requires rerouting vents vertically through nearby walls rather than extending long horizontal pipes.

Modern kitchen renovations frequently move sinks to islands or large windows. That design shift complicates traditional venting methods.

Practical vent routing strategies used in remodels:

1. Use nearby partition walls to run vertical vent pipes
2. Connect island sinks with loop vent systems
3. Share vent stacks with adjacent fixtures when allowed
4. Relocate vent stacks during major renovations

Before committing to cabinet placement, it's often helpful to preview how plumbing will interact with walls and floor joists. Reviewing a visual floor plan layout that maps cabinetry, plumbing, and appliance zoneshelps avoid vent conflicts that only appear during installation.

save pin

Performance Improvements from Proper Vent Design

Key Insight: A well‑optimized vent system improves not only drainage speed but also long‑term plumbing reliability.

When venting works correctly, water flows smoothly and traps maintain their water seal. In homes where vent layouts were corrected during renovation, the difference is usually immediate.

Common improvements homeowners notice:

1. Faster sink drainage
2. No gurgling noises
3. Reduced odor issues
4. Fewer recurring clogs
5. More consistent dishwasher draining

The hidden benefit is maintenance reduction. Systems with balanced airflow accumulate less grease buildup because wastewater moves through the pipes with stronger velocity.

Final Summary

1. Vent placement near the trap arm dramatically improves drainage stability.
2. Keeping vent runs short and vertical prevents airflow resistance.
3. Two‑inch vent pipes perform better in modern kitchens.
4. Remodel projects often require creative vent routing.
5. Optimized vent layouts reduce long‑term plumbing problems.

FAQ

What is the best kitchen sink vent pipe layout?

The best kitchen sink vent pipe layout connects the vent within a few feet of the trap arm and rises vertically with minimal bends.

How far can a kitchen sink be from the vent pipe?

Typically 3.5–5 feet depending on pipe diameter and local plumbing codes.

Can poor venting cause a slow kitchen drain?

Yes. Improper venting creates suction in the pipe, which slows water flow even when there is no clog.

What size vent pipe is best for a kitchen sink?

A 2‑inch vent pipe is often recommended for kitchens with dishwashers or heavy daily use.

Does every kitchen sink need a vent?

Yes. Every plumbing fixture requires venting to maintain proper air pressure inside the drainage system.

Can an air admittance valve replace a vent pipe?

Sometimes, but traditional vent pipes generally provide more reliable long‑term airflow.

Why does my sink gurgle when draining?

Gurgling usually means air cannot enter the drainage system properly due to a poor vent pipe layout.

How do I improve kitchen drain vent performance?

Shorten vent distance, reduce pipe bends, and confirm correct pipe diameter for the fixture load.

References

1. International Residential Code (IRC) Plumbing Venting Guidelines
2. Uniform Plumbing Code Venting Standards
3. National Kitchen & Bath Association Planning Guidelines
