Optimizing Large Hospital 3D Models in Rhino for Performance and Accuracy: Practical workflows that keep complex hospital models fast, organized, and reliable during large-scale Rhino projects

Direct Answer

Optimizing large hospital 3D models in Rhino requires structured layers, efficient use of blocks, controlled polygon density, and disciplined file management across floors and departments. When applied correctly, these methods dramatically improve viewport performance and reduce file size without sacrificing design accuracy.

In large healthcare projects, performance problems usually come from duplicated geometry, disorganized layers, and overly detailed imported CAD elements. Cleaning and structuring the model early prevents most slowdowns later.

Quick Takeaways

1. Use blocks for repeating hospital rooms to reduce file size and editing time.
2. Organized layer systems prevent confusion when modeling dozens of departments.
3. Reducing unnecessary polygons improves Rhino viewport speed dramatically.
4. Splitting floors and departments into logical groups keeps complex models manageable.
5. Clean exports improve rendering speed in visualization tools.

Introduction

Large hospital models are some of the most demanding architectural projects you can build in Rhino. I have worked on several healthcare visualization projects where a single building contained hundreds of rooms, dozens of departments, and extremely complex floor plans. Without optimization, the model quickly becomes slow, unstable, and frustrating to work with.

Many designers focus only on geometry accuracy when building a Rhino 3D hospital floor plan. But performance management is equally important. Hospitals often include repeating patient rooms, mechanical spaces, and long circulation corridors, which means the modeling strategy directly affects speed and usability.

If you are still developing the base geometry of the building, starting with a structured planning workflow makes everything easier later. For example, many teams first map spatial relationships using a visual workflow for building detailed 3D floor layoutsbefore importing the structure into Rhino.

In this guide, I will walk through the exact techniques I use to optimize Rhino workflow for large hospital models. These strategies come from real-world architectural visualization projects where files regularly exceeded hundreds of megabytes.

save pin

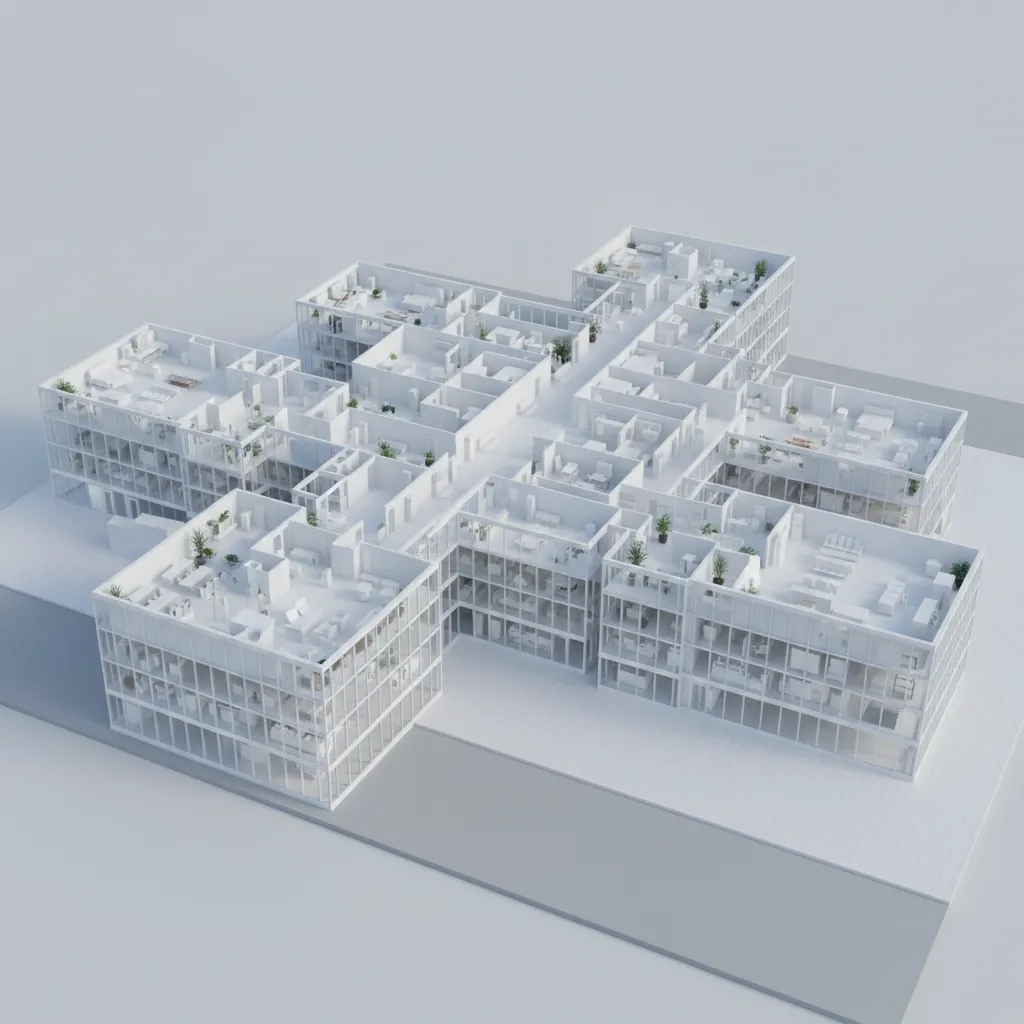

Challenges of Modeling Large Hospitals in Rhino

Key Insight: Hospital models become slow mainly due to duplicated geometry, heavy imported CAD files, and uncontrolled polygon counts.

Hospitals are fundamentally different from typical residential or office buildings. Instead of dozens of rooms, they may include hundreds of medical spaces such as patient wards, diagnostic rooms, surgical suites, laboratories, and staff zones.

The most common performance challenges include:

1. Extremely large CAD imports containing unnecessary detail
2. Repeated geometry modeled manually instead of using blocks
3. Too many layers with inconsistent naming
4. Heavy furniture or equipment models
5. Large numbers of curves and surfaces from 2D drawings

According to McNeel’s Rhino modeling guidelines, viewport lag usually occurs when models exceed several million polygons combined with unoptimized block structures. In hospital environments, that threshold can be reached quickly.

The key is to treat the building like a structured system rather than a single model file.

Layer Organization for Complex Medical Facilities

Key Insight: A strict layer hierarchy is the foundation of managing large architectural models in Rhino.

When I start a hospital project, the first step is defining a layer structure that mirrors how healthcare buildings are organized in reality.

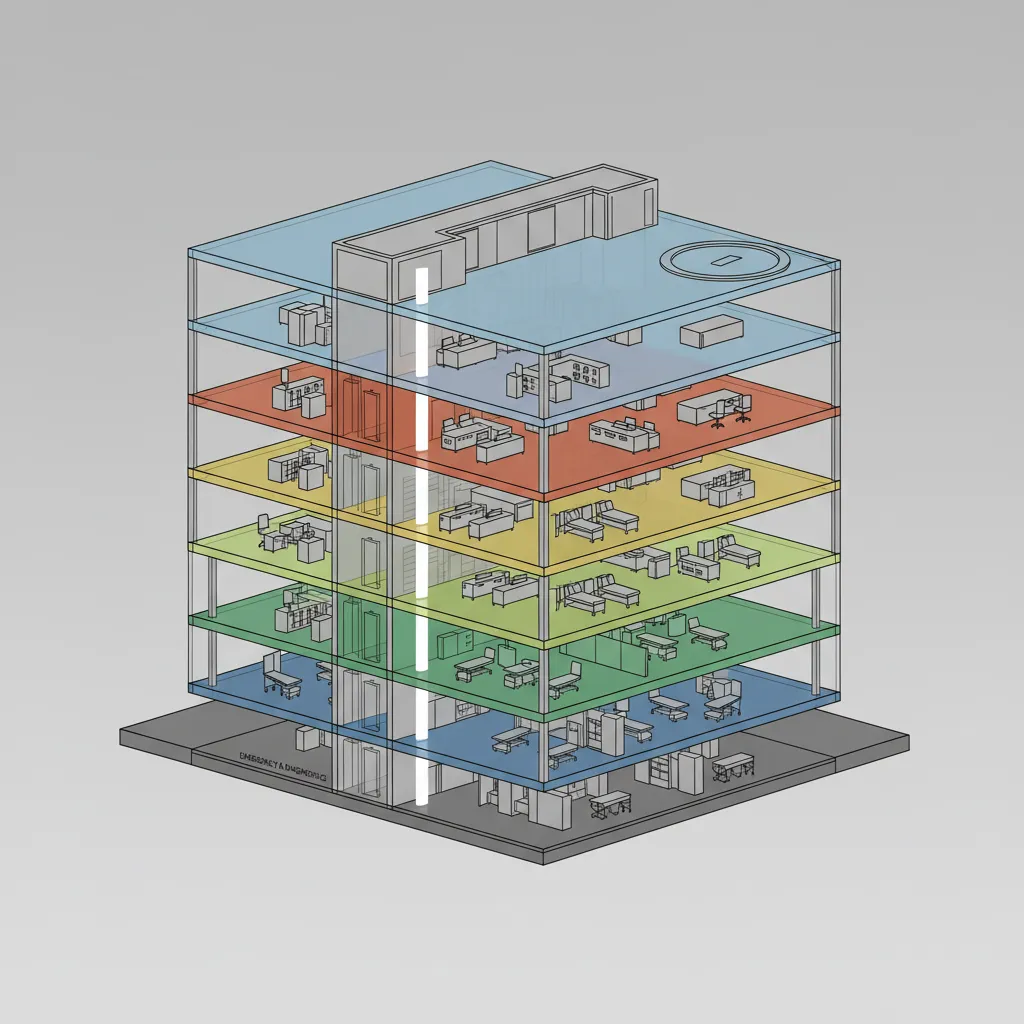

A typical structure might look like this:

1. 01_Structure
2. 02_Circulation
3. 03_Patient Rooms
4. 04_Operating Rooms
5. 05_Medical Equipment
6. 06_Mechanical Systems
7. 07_Furniture

Inside each main layer, I create sublayers for floors:

1. Level_01
2. Level_02
3. Level_03

This structure provides two advantages:

1. Designers can isolate departments quickly.
2. Viewport performance improves because unnecessary layers can be turned off.

In healthcare design teams, this mirrors how real hospital departments are organized, which makes collaboration easier between architects, planners, and visualization teams.

save pin

Reducing Polygon Density Without Losing Detail

Key Insight: Smart simplification of geometry preserves visual quality while dramatically improving Rhino performance.

Many Rhino hospital models slow down because of unnecessary surface complexity. Imported CAD details such as door handles, hinges, or medical equipment screws often contain thousands of polygons that are irrelevant for architectural modeling.

Common simplification strategies include:

1. Replace complex equipment models with simplified proxies
2. Convert detailed curves into simplified surfaces
3. Use mesh reduction for imported geometry
4. Remove hidden geometry inside walls or ceilings

A trick I frequently use is keeping two versions of certain assets:

1. Lightweight modeling version for Rhino
2. High-detail version for final rendering

This approach is widely used in architectural visualization pipelines because modeling performance and rendering detail often require different asset densities.

Managing Multiple Floors and Departments Efficiently

Key Insight: Dividing the hospital model into logical floor-based structures prevents file overload.

Large hospitals rarely work well as a single monolithic Rhino file. Instead, experienced teams often break the building into manageable segments.

A typical workflow includes:

1. Create separate files for each floor.
2. Reference them into a master building model.
3. Keep heavy departments such as operating suites isolated.
4. Load or unload floors depending on the task.

This method is similar to strategies used in large BIM environments where referencing systems keep complex projects stable.

Before building detailed layouts, many planners prototype department zoning using a visual room planning workflow that organizes departments before modeling. Translating those zones into Rhino layers later makes the process far smoother.

save pin

Using Blocks and Instances for Repeating Hospital Rooms

Key Insight: Blocks are the single most powerful optimization tool for hospital models.

Hospitals are filled with repeated room types. Patient rooms, bathrooms, exam rooms, and storage spaces often repeat dozens or even hundreds of times.

Instead of modeling each room individually, create a block definition and reuse it across the building.

Example repeating elements in hospitals:

1. Standard patient rooms
2. Bathroom units
3. Nurse stations
4. Equipment modules
5. Bed layouts

The advantages are significant:

1. File size remains smaller.
2. Editing one block updates every instance.
3. Viewport speed improves dramatically.

On one healthcare visualization project I worked on, converting repeated rooms into blocks reduced the Rhino file size by nearly 40%.

Export Optimization for Visualization and Rendering

Key Insight: A clean export pipeline prevents performance loss when transferring hospital models into rendering software.

Large Rhino files often move into visualization platforms for rendering, walkthroughs, or presentations. Exporting unoptimized geometry can create extremely heavy scenes.

Best practices for export optimization:

1. Purge unused layers and objects
2. Convert unnecessary NURBS surfaces to meshes
3. Remove hidden geometry
4. Merge duplicate materials

When preparing final visuals, teams often transition the geometry into dedicated visualization workflows such as high quality architectural rendering environments for interior spaces to produce client presentations.

Answer Box

The most effective way to optimize large hospital models in Rhino is combining structured layers, block-based repetition, reduced polygon density, and floor-based file segmentation. These techniques keep complex healthcare buildings responsive and manageable.

Final Summary

1. Hospital models require structured layer systems for clarity.
2. Blocks dramatically reduce duplication and file size.
3. Polygon reduction improves viewport performance.
4. Splitting floors into separate files keeps large projects stable.
5. Clean exports improve rendering efficiency.

FAQ

Why do large hospital models slow down Rhino?

Most slowdowns come from duplicated geometry, excessive polygon counts, and unoptimized CAD imports.

What is the best way to manage large architectural models in Rhino?

Use organized layers, blocks for repeating elements, and separate files for different floors or departments.

How do I reduce polygon count in Rhino architecture models?

Simplify imported meshes, remove hidden geometry, and replace detailed objects with lightweight proxies.

Should hospital rooms be modeled individually?

No. Repeating spaces like patient rooms should be created as blocks to improve performance and consistency.

What layers should a hospital Rhino model include?

Common layers include structure, circulation, patient rooms, medical equipment, mechanical systems, and furniture.

How large can a Rhino hospital model become?

Major hospital projects can easily exceed hundreds of megabytes if not optimized.

What is the best workflow for a Rhino 3D hospital floor plan?

Start with structured floor layouts, organize departments logically, and convert repeating spaces into blocks.

Can Rhino handle large healthcare facilities?

Yes, but performance depends heavily on optimization techniques and modeling discipline.
