Optimizing Lighting and Airflow in False Ceilings With Two Fans: Practical design strategies to balance airflow, lighting comfort, and ceiling aesthetics in large living rooms with dual fans

Direct Answer

Optimizing lighting and airflow in a false ceiling with two fans requires careful spacing between fans, thoughtful downlight placement outside blade sweep zones, and layered lighting such as cove or indirect strips. When done correctly, the ceiling delivers balanced illumination while both fans circulate air evenly without disrupting light distribution.

Quick Takeaways

1. Keep lights outside the fan blade sweep to prevent flicker and uneven lighting.
2. Two ceiling fans should be spaced based on room width, not centered by default.
3. Cove lighting softens shadows created by moving fan blades.
4. Balanced airflow often requires offset fan placement rather than symmetry.
5. Smart controls help coordinate lighting intensity with fan speed.

Introduction

Designing a false ceiling with two fans sounds simple until you actually try to balance lighting and airflow. I have worked on dozens of living room ceiling projects where homeowners loved the visual layout but later complained about flickering lights, uneven brightness, or stagnant airflow zones.

The core challenge is that fans and lights compete for the same ceiling real estate. Ceiling fans need clear rotational space, while downlights require strategic spacing for even illumination. When these systems overlap poorly, you get shadows, glare, and airflow dead spots.

In larger living rooms especially, the ceiling becomes a functional system rather than just decoration. Before placing fixtures, I often sketch airflow paths and lighting cones to visualize how both systems interact. If you want to experiment with layouts yourself, this interactive layout tool for planning living room furniture and ceiling arrangementshelps visualize spacing before construction begins.

In this guide I'll break down practical design strategies I've learned from real projects: where to place lights around fans, how to maintain smooth airflow, and how modern lighting layers solve problems most ceiling plans ignore.

save pin

Why Lighting Placement Matters in Two Fan Ceiling Designs

Key Insight: Lighting fails most often in dual fan ceilings because fixtures are placed directly within fan blade rotation zones.

When a downlight sits inside the blade sweep area, the spinning blades repeatedly block the light beam. The result is the classic "strobe shadow" effect on walls and floors. Many contractors center lights visually rather than functionally, which causes this issue.

Through trial and error across multiple projects, I follow a simple rule: lights should sit at least 8–12 inches outside the fan blade radius.

Typical Fan Lighting Conflict Zones

1. Inside blade sweep: causes flicker and shadow movement
2. Too close to fan motor: uneven light spread
3. Between two fans: overlapping shadows

Instead, create a lighting ring around each fan rather than lighting under it.

Interior lighting studies from the Illuminating Engineering Society show that evenly spaced perimeter lighting produces more uniform illumination than centralized ceiling fixtures in large rooms.

Best Downlight Positions Around Ceiling Fans

Key Insight: The most effective layout uses symmetrical light clusters around each fan instead of a strict grid.

Many living rooms with two fans are rectangular. If you follow a rigid grid layout, lights will inevitably fall under blades. Instead, think in circular zones around each fan.

Recommended Downlight Layout

1. 4 lights forming a square around each fan
2. Minimum 2.5–3 ft distance from fan center
3. Beam angle 36–60 degrees for living spaces
4. Spacing between lights roughly equal to ceiling height

Example for a 10 ft ceiling:

1. Light spacing: about 8–10 ft
2. Fan blade radius: ~26 inches
3. Safe light distance from blades: 12 inches outside sweep

If you're unsure about spacing, visualizing it in a

save pin

3D floor layout simulator for testing ceiling fan and lighting positions makes conflicts obvious before installation.

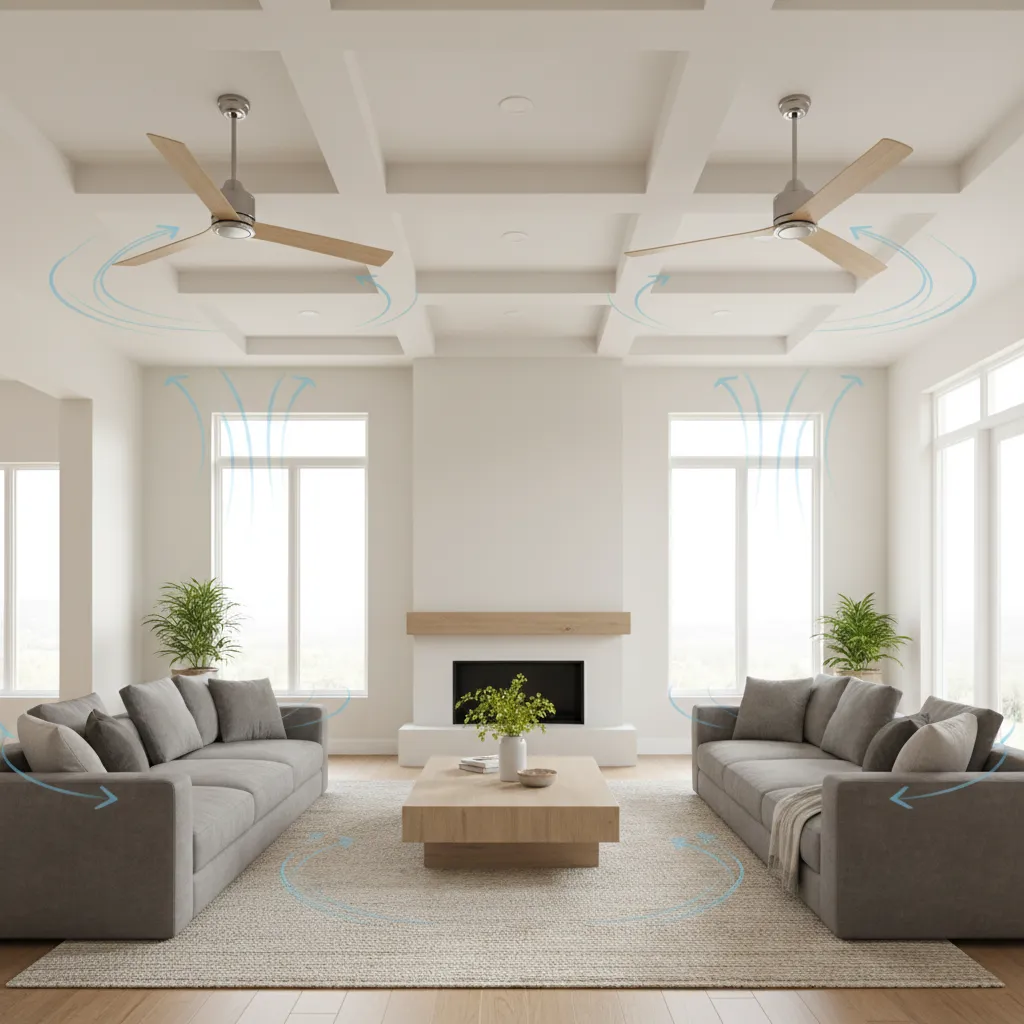

Balancing Airflow Across Large Living Rooms

Key Insight: Two ceiling fans should improve airflow distribution, but poor spacing often creates overlapping turbulence instead.

Most people assume fans should be perfectly symmetrical. In reality, airflow works more like overlapping circles than straight coverage.

Common Airflow Mistakes

1. Fans placed too close together
2. Both fans centered on the room
3. Furniture blocking airflow paths

Better Placement Strategy

1. Keep 6–8 ft between fan centers
2. Align fans along the room's longest axis
3. Avoid placing fans directly above tall cabinets

HVAC airflow guidelines recommend distributing air movement sources rather than stacking them centrally. This principle applies to ceiling fans as well.

save pin

Combining Cove Lighting With Dual Fan Layouts

Key Insight: Cove lighting compensates for shadow patterns created by rotating fan blades.

Even with well‑placed downlights, moving blades create subtle shadow variation. Cove lighting adds a continuous glow that stabilizes overall brightness.

In several recent living room renovations I designed, adding perimeter LED coves improved perceived brightness by nearly 30% without increasing glare.

Why Cove Lighting Works Well

1. Indirect light reduces fan shadow flicker
2. Creates ceiling depth
3. Improves ambient brightness
4. Allows fewer downlights

A layered approach works best:

1. Ambient: cove lighting
2. Task: downlights
3. Accent: wall washers or pendant lights

Smart Lighting and Fan Control Systems

Key Insight: Coordinating fan speed and lighting intensity dramatically improves comfort in dual‑fan rooms.

Older homes rely on separate switches, which makes it difficult to maintain the right atmosphere. Smart systems allow scenes that coordinate airflow and lighting together.

Useful Smart Features

1. Adaptive lighting based on time of day
2. Automatic fan speed adjustments
3. Voice or app control
4. Energy monitoring

For example:

1. Evening mode: dim lights to 40%, fans on low
2. Summer cooling mode: fans medium, lights neutral white
3. Entertainment mode: perimeter lighting only

save pin

Design Tips for Energy Efficient Ceiling Layouts

Key Insight: The most energy‑efficient ceiling designs rely on airflow distribution first and lighting efficiency second.

Designers often focus on fixture quantity, but airflow efficiency can reduce cooling demand far more than lighting upgrades alone.

Energy‑Smart Ceiling Guidelines

1. Use LED downlights under 12W
2. Select DC motor ceiling fans
3. Combine fans with cross ventilation
4. Use dimmers to reduce lighting load

According to the U.S. Department of Energy, ceiling fans allow thermostats to be set roughly 4°F higher while maintaining comfort.

Before committing to a final design, I usually generate a quick visual preview using a realistic home interior rendering preview for ceiling lighting and airflow layout. Seeing the ceiling in 3D often reveals spacing issues that drawings miss.

Answer Box

The best false ceiling design with two fans keeps lighting outside blade sweep zones, spaces fans 6–8 feet apart, and uses layered lighting like coves plus downlights. This combination prevents shadow flicker while maintaining consistent airflow across large living rooms.

Final Summary

1. Keep all downlights outside the fan blade sweep zone.
2. Two fans should be spaced according to room airflow patterns.
3. Cove lighting stabilizes brightness around rotating blades.
4. Smart controls improve comfort and energy efficiency.
5. Visualizing layouts early prevents costly ceiling redesigns.

FAQ

How far should lights be from a ceiling fan?

Lights should sit at least 8–12 inches outside the fan blade sweep radius to avoid flickering shadows.

What is the best downlight layout for two ceiling fans?

A circular cluster of four lights around each fan works better than a strict grid layout.

Can downlights be placed between two ceiling fans?

Yes, but spacing must avoid overlapping blade shadows. Often one or two lights centered between fans works best.

Do ceiling fans affect lighting quality?

Yes. Rotating blades can interrupt light beams and create moving shadows if lights are positioned incorrectly.

What is the best lighting for a false ceiling with fans?

A combination of perimeter cove lighting and strategically placed downlights creates balanced illumination.

How do you balance airflow with two ceiling fans?

Place fans 6–8 feet apart and align them along the room's longest dimension for smoother air circulation.

How many lights are needed in a living room with two fans?

Most medium living rooms need 6–8 downlights plus indirect lighting for comfortable brightness.

Is false ceiling lighting design with fans difficult?

It requires careful coordination, but proper spacing and layered lighting make the design straightforward.
