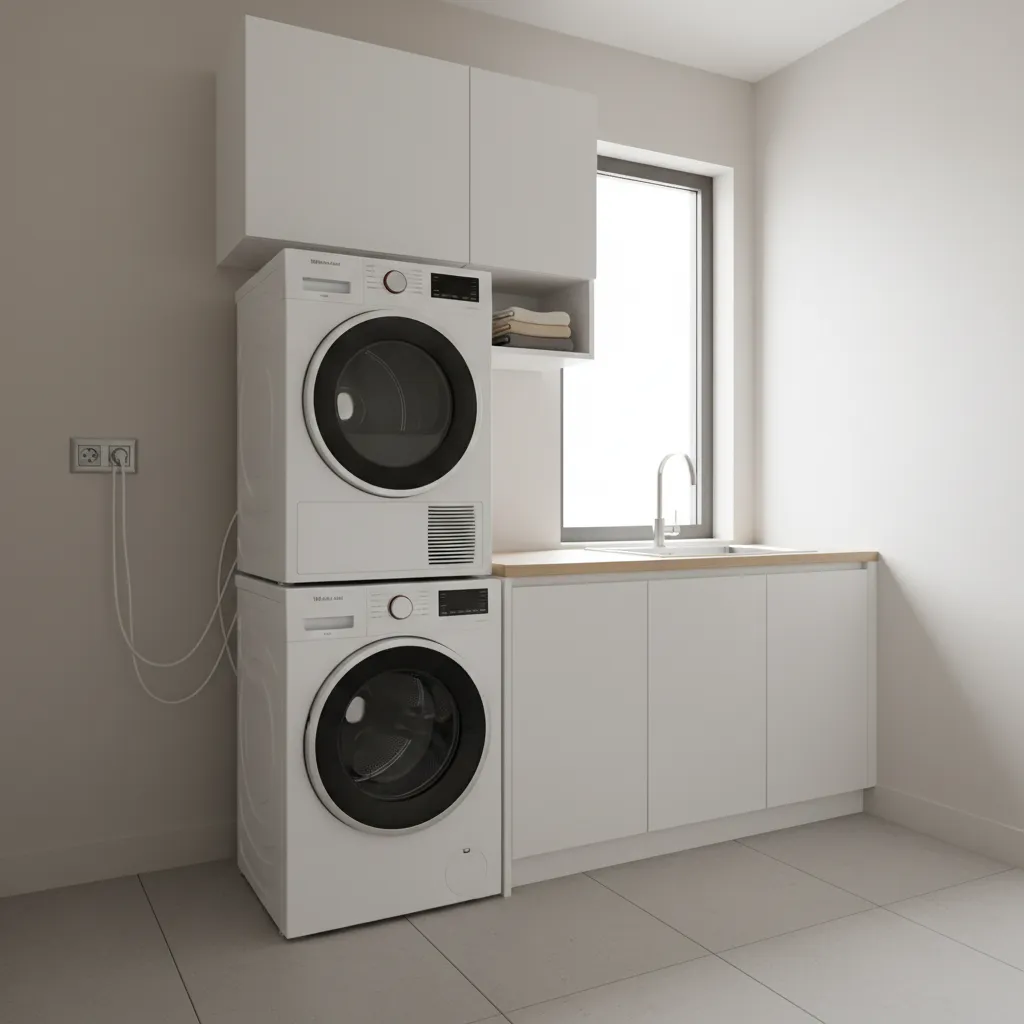

Optimizing Outlet Placement for Small or Stacked Laundry Rooms: Practical outlet height and layout strategies that make compact laundry rooms safer, cleaner, and easier to maintain.

Direct Answer

Optimizing outlet placement for small or stacked laundry rooms means positioning electrical outlets high enough to clear appliances, accessible for maintenance, and offset from water connections. For stacked washer dryer units, outlets are typically placed 48–60 inches from the floor and slightly to the side rather than directly behind the machines.

This layout prevents crushed cords, improves safety, and makes future appliance servicing much easier in tight laundry spaces.

Quick Takeaways

1. Stacked washer dryer outlets usually work best between 48–60 inches above the finished floor.
2. Side-wall outlet placement often prevents cord damage behind compact appliances.
3. Leave at least 2–3 inches of plug clearance to avoid crushed power cables.
4. Separate outlets from water valves whenever possible for safety and access.
5. Design layouts so outlets remain reachable without removing appliances.

Introduction

After working on dozens of compact homes and apartment renovations, one pattern shows up constantly: the laundry room gets designed last. When that happens, outlet placement becomes an afterthought—and in small laundry rooms, that mistake causes real problems.

I’ve seen stacked machines installed where the plug literally can’t be reached without pulling out a 200‑pound appliance. I’ve also seen cords crushed behind dryers because the outlet was placed exactly where the machine presses against the wall.

Good laundry room outlet placement is less about electrical theory and more about spatial thinking. You need to consider appliance depth, ventilation clearance, maintenance access, and even future upgrades.

Before deciding where outlets should go, it helps to map the entire room layout first. A simple digital layout tool can help visualize clearances and appliance positioning—especially useful when planning how to organize a compact laundry room layout before installation.

In this guide, I’ll walk through the outlet strategies that actually work in tight laundry spaces, including stacked washer dryer setups, shallow closets, and narrow utility rooms.

save pin

Challenges of Outlet Placement in Small Laundry Rooms

Key Insight: In small laundry rooms, the biggest outlet placement mistake is assuming appliance depth equals wall clearance.

Many washers and dryers are listed as 28–30 inches deep, but the real installed depth is often 33–36 inches once hoses, plugs, and vent connections are included. If outlets are placed directly behind the machines without planning for this extra space, cords become compressed.

Over time, compressed plugs can damage wiring insulation or force the appliance to sit too far forward.

Common design constraints in compact laundry rooms include:

1. Stacked appliances with limited rear access
2. Narrow closet-style laundry enclosures
3. Shared plumbing and electrical walls
4. Minimal service clearance

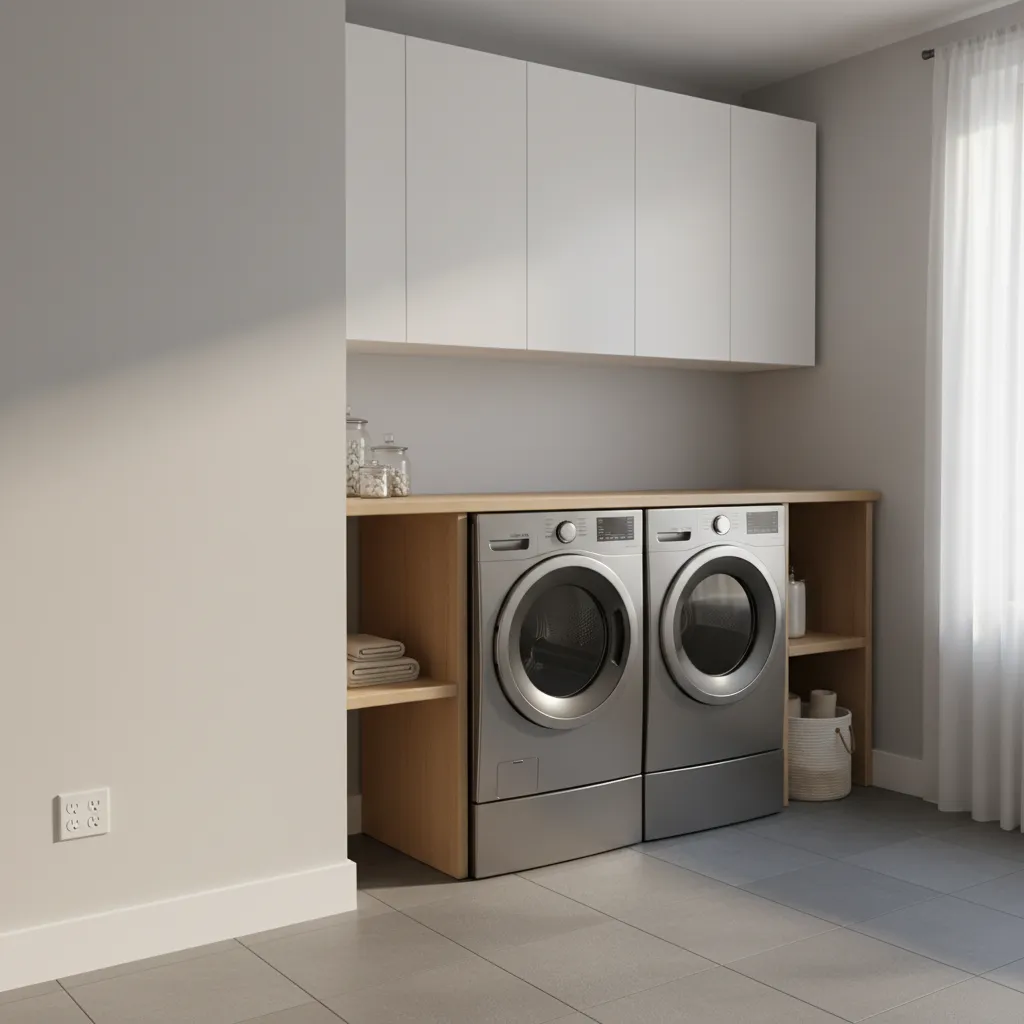

In many remodels I’ve worked on, simply shifting the outlet 6–10 inches to the side solved multiple installation issues. This small adjustment prevents cord compression while keeping the outlet reachable.

Best Outlet Height for Stacked Washer Dryer Units

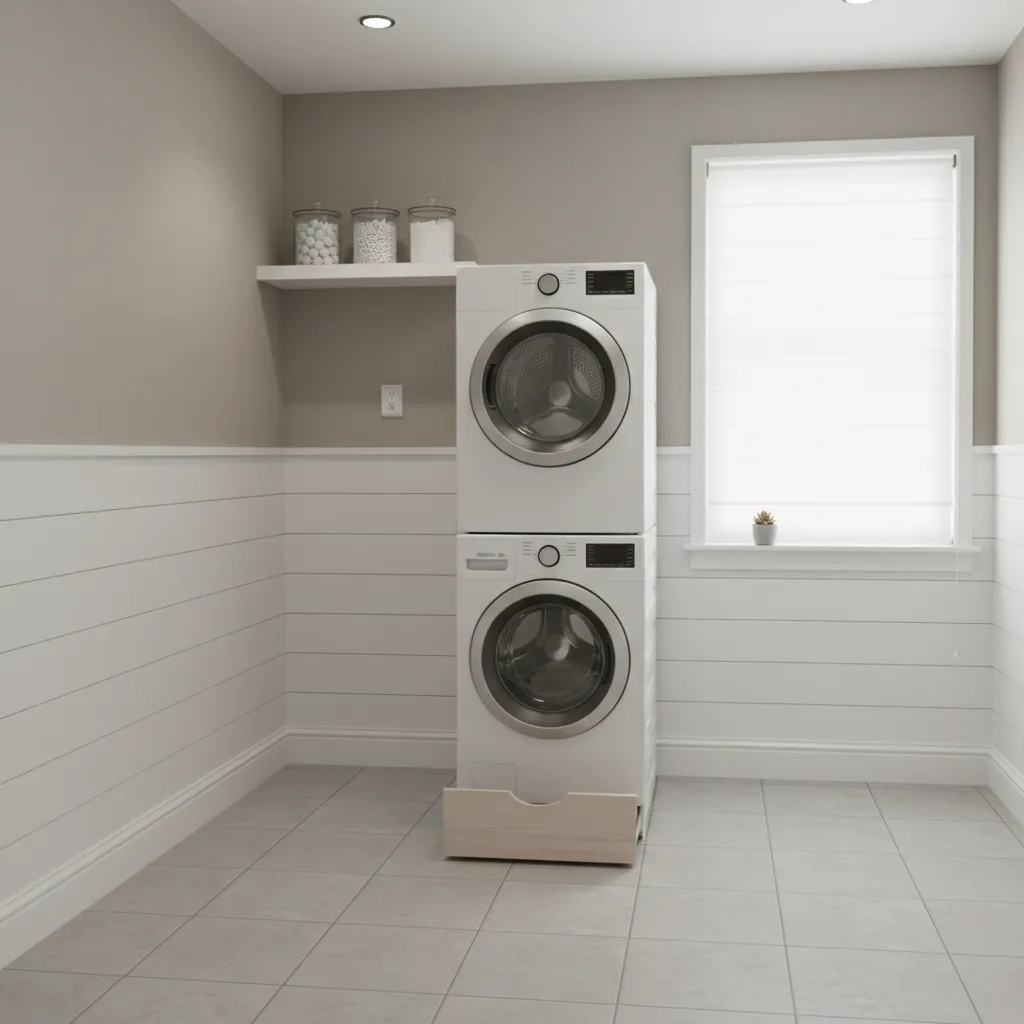

Key Insight: The best outlet height for stacked washer dryer units typically falls between 48 and 60 inches above the finished floor.

Stacked appliances concentrate electrical and plumbing connections in a vertical zone. If outlets are placed too low, they end up trapped behind the washer. Too high, and cords may not reach comfortably.

Recommended outlet heights based on installation experience:

1. 48–52 inches: ideal for most stacked washer dryer combinations
2. 54–60 inches: useful when outlets share space with water valves
3. Below 42 inches: generally avoid for stacked units

Appliance manufacturers often recommend side-wall outlet positioning rather than placing them directly behind stacked units. This approach improves accessibility during servicing.

When planning the layout, visualizing appliance clearance with a scaled floor plan makes a big difference. Tools used for mapping appliance spacing and wall clearances in small utility roomscan quickly reveal where plugs and hoses will interfere with machine depth.

save pin

Space Saving Outlet Placement Strategies

Key Insight: The most efficient outlet layouts in small laundry rooms place power sources slightly outside the appliance footprint.

Instead of placing outlets directly behind the washer or dryer, designers often position them along adjacent wall zones that remain accessible.

Space-saving placement strategies I frequently recommend:

1. Offset outlets 6–12 inches from the appliance centerline
2. Place outlets inside a side cabinet wall
3. Install recessed outlet boxes for tight installations
4. Separate washer and dryer outlets for easier servicing

Recessed outlet boxes are particularly helpful in shallow laundry closets. These reduce plug protrusion and prevent appliances from pushing forward.

save pin

Cable and Plug Clearance Behind Appliances

Key Insight: Plug clearance is one of the most overlooked details in compact laundry electrical design.

Standard plugs can extend 1.5–2 inches from the wall, and dryer plugs can extend even farther depending on the configuration. Without enough space, cords bend sharply or become crushed.

Minimum clearance guidelines that work well in practice:

1. 2 inches clearance for standard washer plugs
2. 3 inches clearance for dryer power cords
3. 4 inches total rear service space when possible

Professional installers often leave additional depth to accommodate vent ducts and water hoses, which typically occupy more space than the electrical plug.

Answer Box

The most effective laundry room outlet placement for stacked or compact appliances keeps outlets 48–60 inches high and slightly offset from the appliance centerline. This prevents cord damage, improves service access, and keeps electrical connections clear of water lines.

Designing a Maintenance Friendly Laundry Electrical Layout

Key Insight: Good outlet placement should allow maintenance without moving the entire appliance stack.

This is a detail many homeowners don’t realize until the first repair visit. If the technician can’t reach the outlet, the entire washer dryer unit must be removed.

Maintenance-friendly electrical layouts usually include:

1. Side-wall outlet placement
2. Clearly separated water and electrical zones
3. Dedicated outlets for washer and dryer
4. Visible shutoff access

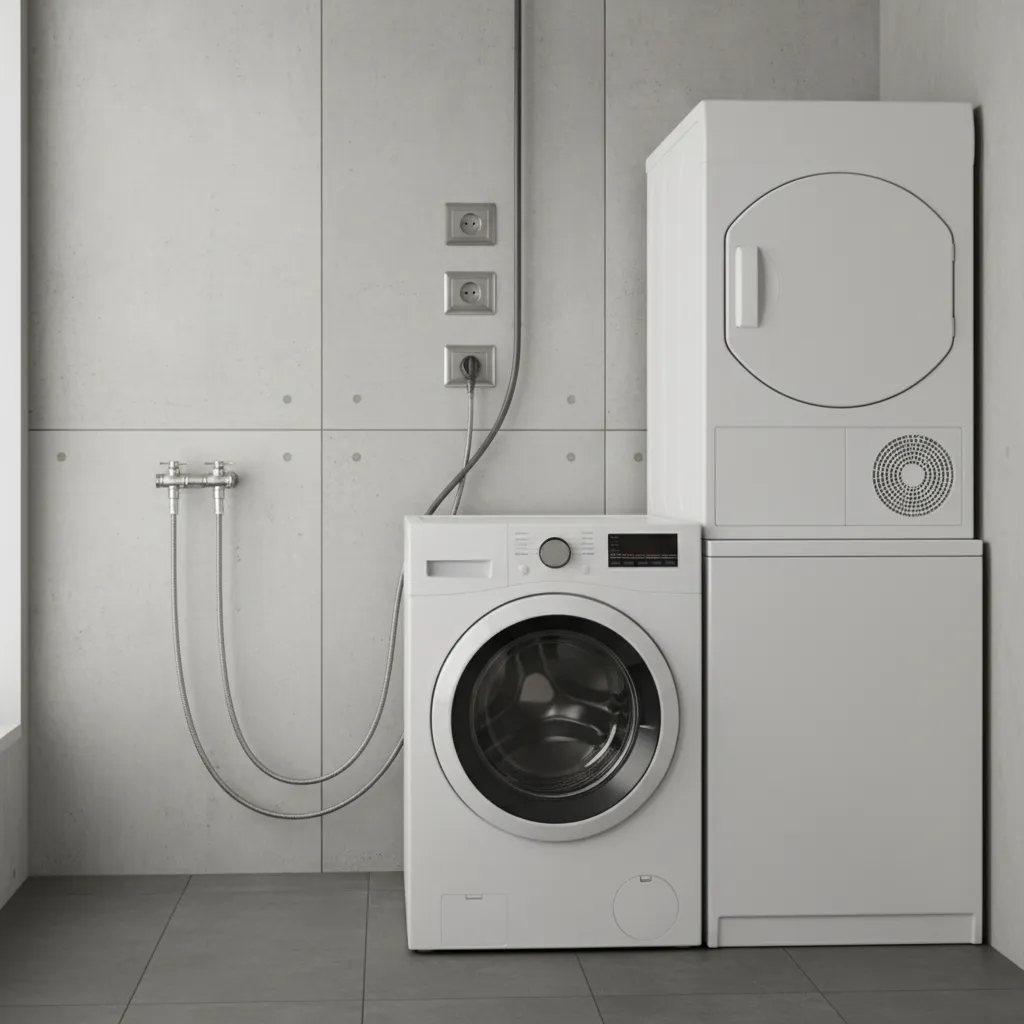

Contractors frequently design these zones in a vertical service column along one wall, which keeps plumbing and power organized and reachable.

save pin

Future Proofing Laundry Room Outlet Placement

Key Insight: Future-proof laundry layouts anticipate appliance changes, not just current models.

Washer and dryer dimensions evolve frequently. High-efficiency machines, heat pump dryers, and smart appliances may require different electrical positioning.

Future-proof planning steps include:

1. Leave extra vertical space above connections
2. Avoid placing outlets at appliance-specific heights
3. Allow extra wall width for upgraded machines
4. Use flexible conduit or accessible wiring paths

When visualizing upgrades or renovations, high‑fidelity room visualization helps evaluate how appliances, cabinets, and outlets interact in tight spaces. Many designers simulate this using tools that create realistic previews of appliance placement in small laundry rooms before construction begins.

Final Summary

1. Stacked washer dryer outlets work best between 48–60 inches high.
2. Side-wall outlets prevent crushed plugs in tight laundry rooms.
3. Allow at least 2–3 inches for plug clearance.
4. Separate electrical outlets from water valves whenever possible.
5. Design layouts so outlets remain accessible for maintenance.

FAQ

What is the best outlet height for stacked washer dryer units?

Most installations work best between 48 and 60 inches above the finished floor, keeping outlets above the washer and reachable beside the stacked unit.

Can washer and dryer outlets be behind the appliances?

They can, but it’s usually not ideal in small spaces. Offset outlets reduce plug compression and make maintenance easier.

How far should outlets be from water valves?

Electric outlets should be offset from water supply boxes whenever possible to reduce moisture risk and improve service access.

Do stacked washer dryers need special outlet placement?

Yes. Stacked units often require higher outlet placement and side-wall positioning to prevent cords from being trapped behind the washer.

What clearance should be left behind a washer dryer?

Most installations benefit from 3–4 inches of rear clearance to accommodate hoses, vents, and power cords.

Is recessed outlet installation worth it?

In tight laundry closets or shallow rooms, recessed outlets prevent appliances from sticking out and protect cords.

How do professionals plan laundry room outlet placement?

Designers usually map appliance dimensions, plumbing zones, and service access before fixing outlet heights.

Why does laundry room outlet placement matter so much?

Poor laundry room outlet placement can cause crushed cords, difficult repairs, and unsafe proximity to water connections.
