Optimizing Porch Roof Design for Better Shade Drainage and Durability: Smart porch roof adjustments improve shade, prevent water problems, and extend structural lifespan without rebuilding the entire structure

Direct Answer

Optimizing porch roof design means adjusting roof pitch, orientation, overhang depth, and structural support so the roof sheds water efficiently, creates usable shade, and resists long‑term weather damage. In most residential projects, the biggest improvements come from correcting roof slope, extending strategic overhangs, and improving ventilation around the roof structure.

Quick Takeaways

1. A porch roof pitch between 3:12 and 6:12 usually balances drainage and structural simplicity.
2. Deeper overhangs dramatically improve afternoon shade and outdoor comfort.
3. Poor ventilation often causes more porch roof damage than rain.
4. Structural connectors and bracing extend roof lifespan far more than thicker beams alone.
5. Orientation matters as much as materials when designing a high‑performance porch roof.

Introduction

After designing dozens of outdoor living spaces across California and the Southwest, I’ve noticed something surprising: most porch roof problems are not caused by bad materials. They come from poor porch roof design decisions early in the planning stage.

Homeowners often focus on shingles, paint, or decorative columns. But the real performance factors are slope, drainage path, sun orientation, airflow, and structural reinforcement. If those aren’t right, even expensive materials will age quickly.

When I start a new project, I usually sketch the layout digitally first using tools similar to a simple way to visualize porch layout and roof coverage before building. Seeing the roof geometry early helps avoid shade problems, water pooling, and structural stress.

In this guide I’ll walk through the design choices that make the biggest difference in porch roof performance, based on what actually works in real builds.

save pin

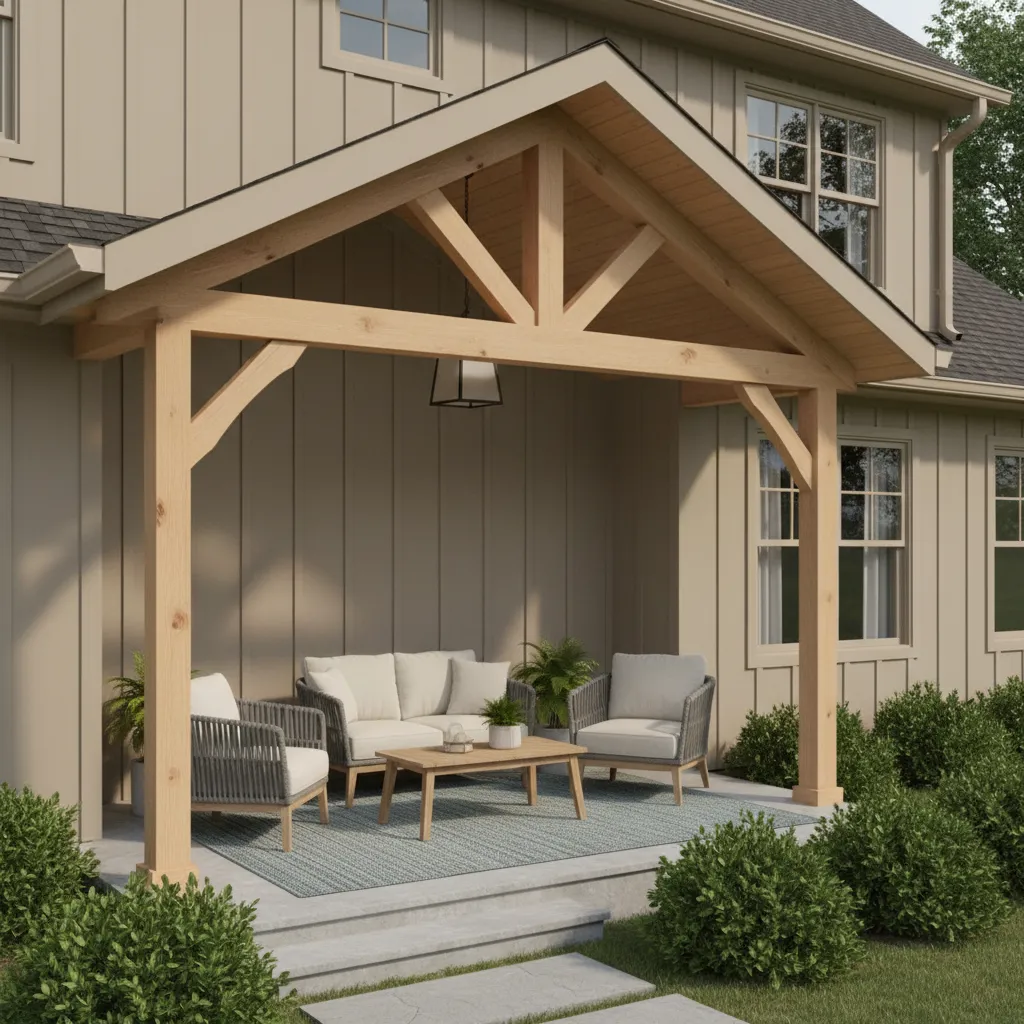

Key Design Factors That Affect Porch Roof Performance

Key Insight: Porch roof performance depends on how four elements work together: slope, overhang depth, ventilation, and structural load distribution.

Most design mistakes happen when one of these factors is optimized while the others are ignored. For example, increasing overhangs improves shade but also increases wind load. A steeper pitch improves drainage but changes how sunlight enters the space.

In my projects, I evaluate porch roof performance using four checkpoints:

1. Roof pitch relative to rainfall or snow load
2. Sun orientation and shade coverage
3. Drainage direction and water runoff control
4. Structural load transfer to beams and posts

According to the International Residential Code (IRC), roof slope must match both roofing material requirements and expected environmental loads. Ignoring this balance is one of the fastest ways to shorten roof lifespan.

Choosing the Ideal Roof Pitch for Rain and Snow

Key Insight: The best roof pitch for porch roofs typically falls between 3:12 and 6:12 because it drains water effectively without creating unnecessary structural complexity.

In wetter climates, I rarely recommend pitches below 3:12. Shallow roofs look modern, but they slow water runoff and increase the risk of pooling near flashing or joints.

Here is how different pitch ranges behave in real projects:

1. 1:12–2:12: Modern appearance but higher drainage risk
2. 3:12–4:12: Balanced solution for most porches
3. 5:12–6:12: Best for heavy rain or snow regions
4. Above 7:12: Excellent drainage but visually dominant

The National Roofing Contractors Association consistently recommends steeper slopes in regions with heavy precipitation because faster runoff reduces membrane stress and flashing failure.

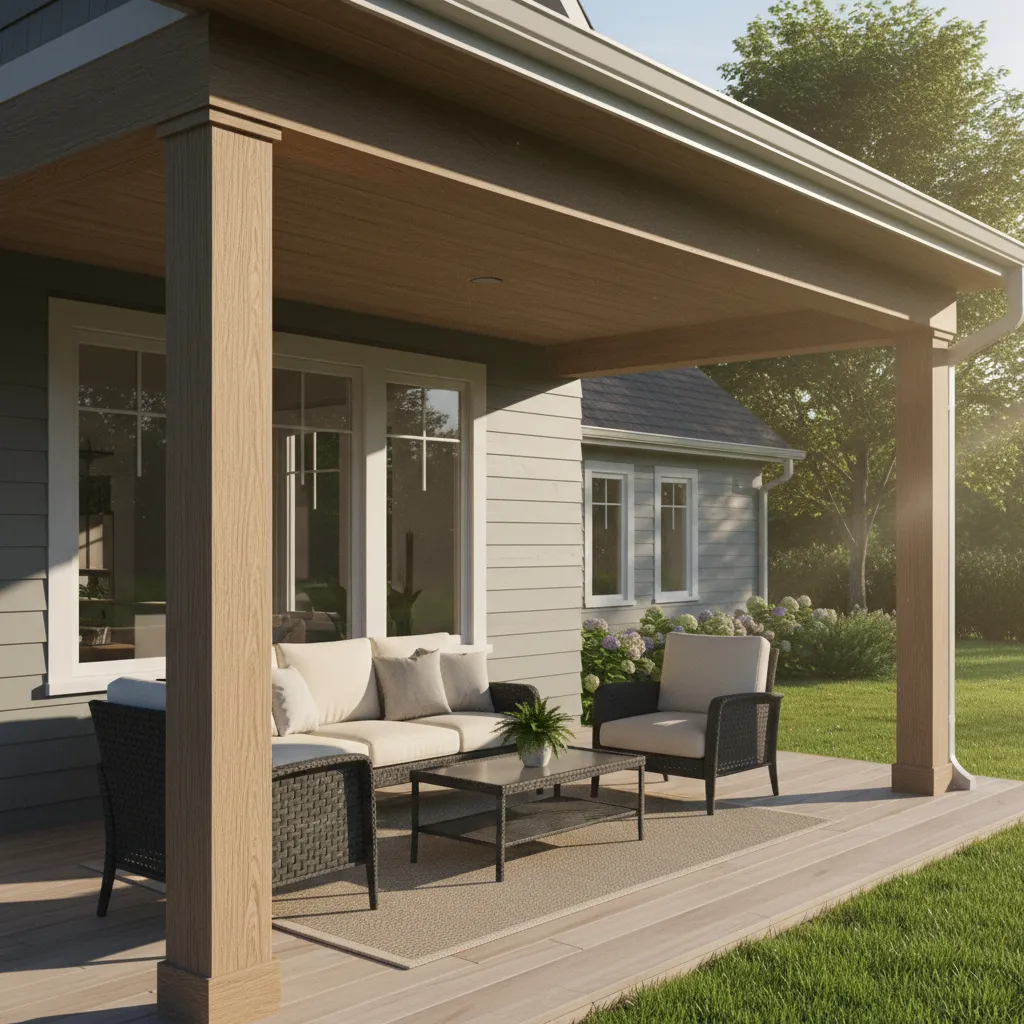

Designing Porch Overhangs for Maximum Shade

Key Insight: Overhang depth—not roofing material—is the primary factor controlling porch shade quality.

Many homeowners assume the roof alone will block sun. In reality, sun angles change dramatically throughout the day and year. A shallow overhang might shade the porch at noon but allow direct sunlight in the late afternoon.

In my design process, I typically evaluate overhang depth using three considerations:

1. Sun direction during summer afternoons
2. Porch seating locations
3. Desired winter sunlight penetration

Typical overhang guidelines I use:

1. 4–6 ft: strong shade for south‑facing porches
2. 3–4 ft: moderate shade for east orientation
3. 5–7 ft: needed for west‑facing porches

Before finalizing dimensions, I often generate quick layout previews using tools similar to a visual way to test porch roof proportions and sun exposure in 3D. This makes shade performance much easier to evaluate.

save pin

Ventilation and Moisture Control for Porch Roofs

Key Insight: Poor ventilation silently destroys porch roofs by trapping moisture inside the structure.

This issue appears frequently in covered porches attached to houses. Warm interior air escapes into the porch roof cavity and condenses against cooler roofing materials.

Over time this causes:

1. Wood rot in rafters
2. Mold growth in roof cavities
3. Warping of soffits and fascia
4. Premature paint failure

Solutions I commonly implement include:

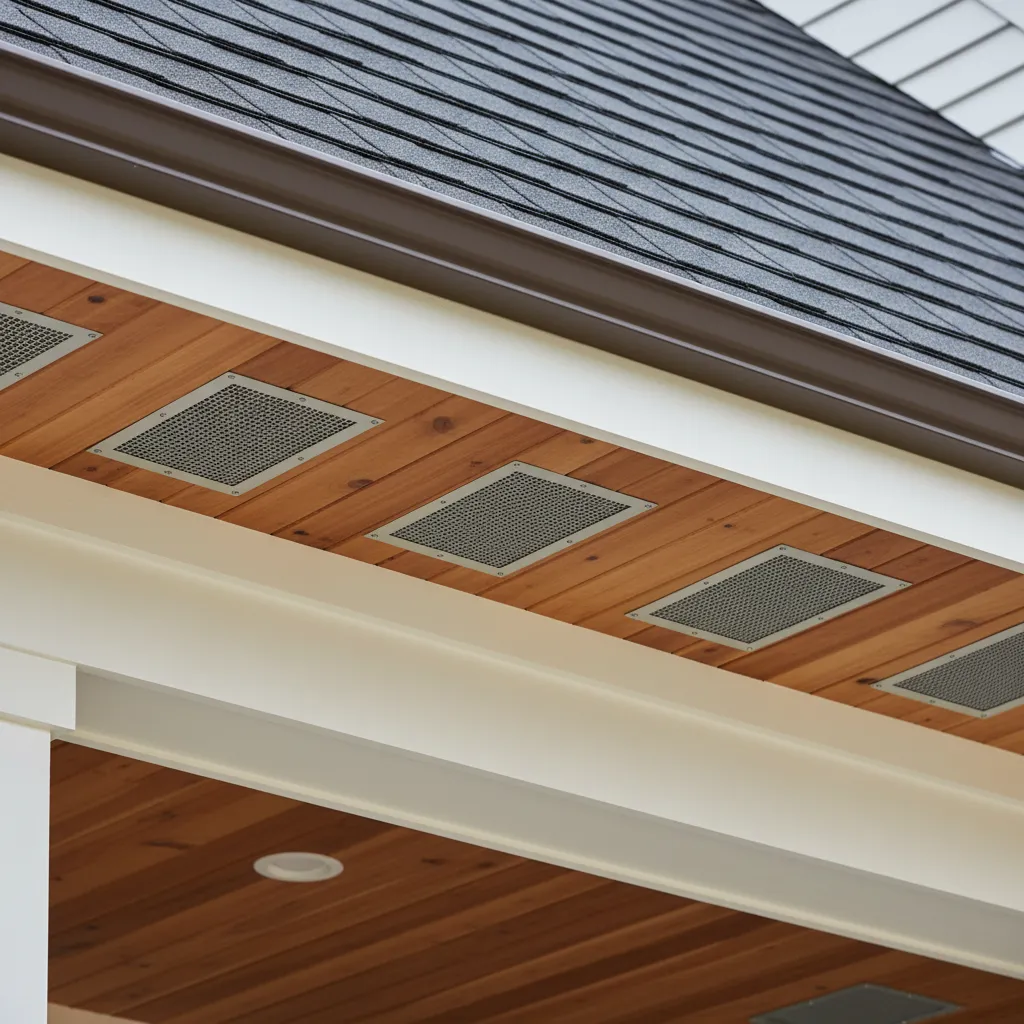

1. Soffit vents along the eaves
2. Continuous ridge vents
3. Ventilated beadboard porch ceilings
4. Moisture barriers at roof‑to‑wall connections

The U.S. Department of Energy emphasizes that ventilation reduces moisture buildup and extends roof system durability significantly.

save pin

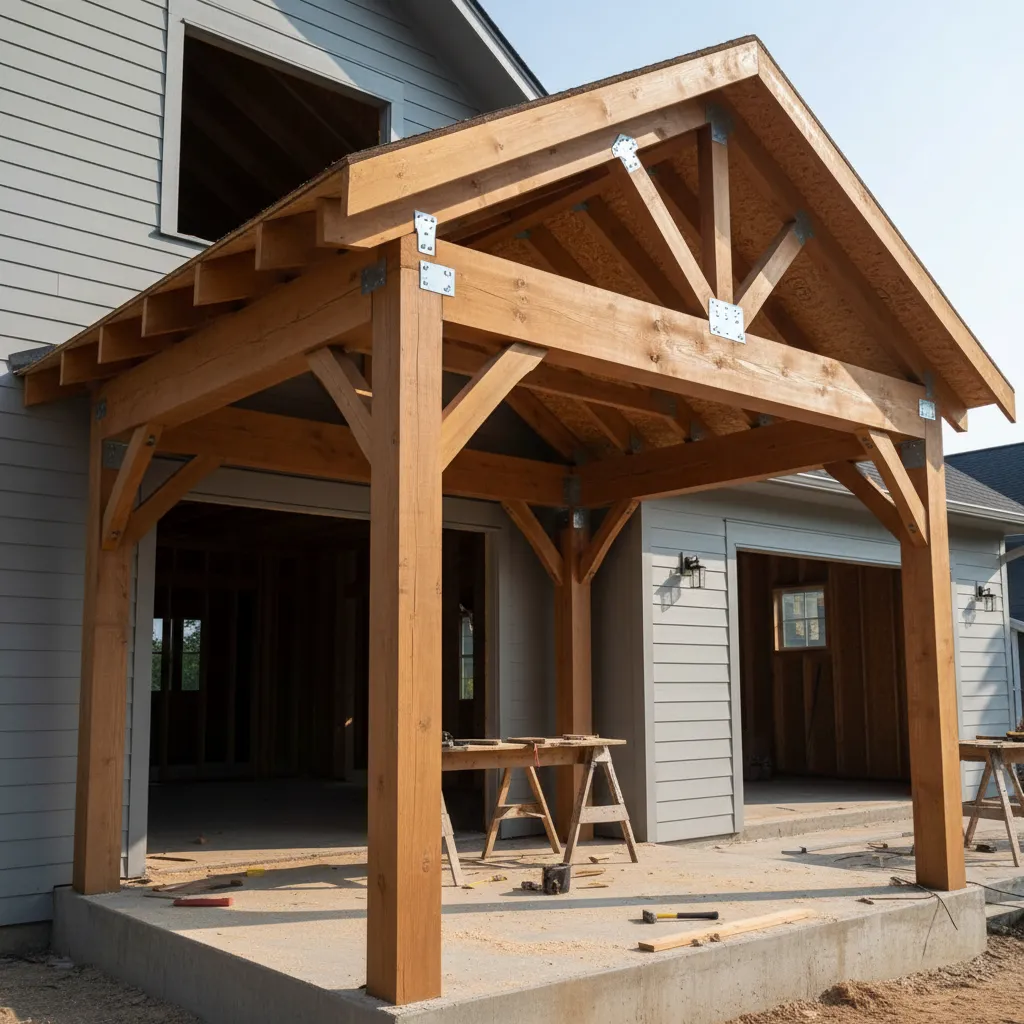

Structural Reinforcements for Long Term Durability

Key Insight: Strong connections matter more than oversized lumber when improving porch roof durability.

One mistake I see often is relying solely on thicker beams while ignoring structural connectors. Wind uplift and lateral forces are what typically damage porch roofs over time.

In my projects, these reinforcements make the biggest difference:

1. Hurricane ties connecting rafters to beams
2. Steel post bases anchored into concrete footings
3. Diagonal bracing between posts and beams
4. Continuous load path from roof to foundation

Studies from the Federal Alliance for Safe Homes show that metal connectors dramatically improve structural performance in high wind conditions.

Answer Box

The most effective way to optimize porch roof design is combining proper pitch, adequate overhang depth, good ventilation, and reinforced structural connections. When these four factors work together, porch roofs last longer and perform better in all weather conditions.

Balancing Aesthetics and Structural Efficiency

Key Insight: The most successful porch roofs look simple because their structural logic is well resolved.

Design trends often push homeowners toward decorative roof forms, but overly complex structures increase cost and reduce durability.

When balancing appearance and performance, I follow three practical rules:

1. Align porch roof slope with the main house roof whenever possible
2. Limit unnecessary roof intersections
3. Keep beam spans within engineering comfort ranges

Once the structure works correctly, visual refinement becomes much easier. I often finalize designs using realistic visualizations similar to a photorealistic preview of how the finished porch roof integrates with the home. Seeing the full composition prevents proportion mistakes.

save pin

Final Summary

1. Porch roof slope strongly affects drainage and long term durability.
2. Overhang depth is the most important factor for shade quality.
3. Ventilation prevents hidden moisture damage.
4. Structural connectors improve lifespan more than larger beams.
5. Simple roof geometry usually performs better than complex designs.

FAQ

What is the best roof pitch for a porch roof?

Most porch roofs perform best between 3:12 and 6:12 pitch. This range balances water drainage, structural simplicity, and visual proportion.

How far should a porch roof overhang extend?

Typical overhangs range from 3 to 6 feet. West‑facing porches often need deeper overhangs to block low afternoon sun.

Can a flat porch roof drain properly?

Technically yes, but flat designs require excellent waterproof membranes and internal drainage systems. Sloped roofs are usually more reliable.

How can I improve porch roof durability?

Improve drainage slope, install proper flashing, add ventilation, and reinforce structural connections. These changes greatly improve porch roof durability.

Does porch roof orientation matter?

Yes. South and west orientations receive the most sun, which affects shade needs and overhang depth.

What materials work best for porch roofs?

Asphalt shingles, metal roofing, and polycarbonate panels are common. Material choice should match roof pitch and climate conditions.

How do I optimize porch roof slope and overhang together?

Start with proper drainage slope, then adjust overhang depth to control sunlight and rain splash. Both elements must be designed together.

Do porch roofs need ventilation?

Yes. Even open porches benefit from soffit or ridge ventilation to prevent moisture buildup in the roof structure.

References

1. International Residential Code (IRC)
2. National Roofing Contractors Association
3. U.S. Department of Energy Building Guides
4. Federal Alliance for Safe Homes
