Optimizing Strobe Patterns on Factory Truck Lights for Visibility and Safety: How to configure brighter, clearer, and safer warning light patterns on work trucks and utility vehicles

Direct Answer

The best way to optimize strobe patterns on factory truck lights is to balance flash speed, brightness, and synchronization so the signal stands out without blinding drivers. Effective configurations typically combine alternating patterns, moderate flash intervals, and synchronized modules across multiple lights. This approach maximizes visibility in both daylight and night conditions.

Quick Takeaways

1. Alternating strobe patterns are easier for drivers to detect than random flashing.
2. Moderate flash speeds usually outperform extremely fast strobes for long‑distance visibility.
3. Synchronized truck lights create a stronger warning signal than unsynchronized flashing.
4. Brightness must be adjusted for night driving to avoid glare and driver distraction.
5. Efficient controllers reduce electrical load on factory lighting systems.

Introduction

After working on dozens of fleet retrofits and emergency lighting upgrades, I’ve learned that optimizing strobe patterns on factory truck lights is rarely about simply making lights brighter. In fact, many trucks I inspect already have powerful LEDs—but the warning signal still performs poorly because the pattern configuration is wrong.

Drivers often complain about two opposite problems: warning lights that are too chaotic to read quickly, or strobes so aggressive that they actually create glare. Both issues reduce safety instead of improving it.

What most guides miss is that visibility depends on three interacting factors: pattern timing, directional contrast, and synchronization across the vehicle. When these three elements are tuned properly, even moderate‑power lights become dramatically more noticeable.

When I explain pattern layout to fleet managers, I often recommend sketching positions visually first. Tools that see a visual walkthrough of planning complex lighting layouts in a 3D spacecan help teams quickly visualize how signals appear from different angles.

In this guide, I’ll break down how professionals optimize truck strobe configurations for real‑world conditions—from highway work zones to construction yards.

save pin

Why Strobe Pattern Choice Affects Visibility

Key Insight: The human eye detects contrast and rhythm faster than brightness alone, which is why pattern choice dramatically affects warning effectiveness.

Many operators assume that the brightest pattern is automatically the safest. In reality, the brain processes motion patterns before intensity. A structured flash rhythm—like alternating left/right pulses—creates a recognizable signal faster than chaotic blinking.

In field tests performed by several transportation safety agencies, drivers recognized directional alternating strobes significantly sooner than randomized flash bursts. That difference translates directly into braking distance.

Common effective pattern structures:

1. Alternating side‑to‑side strobes
2. Double flash with pause
3. Sequential directional sweep
4. Quad burst warning pattern

Hidden mistake many installers make:

1. Mixing too many pattern styles across different lights
2. Using default factory flash settings
3. Allowing asynchronous flashing across modules

Consistency across lights often matters more than raw brightness.

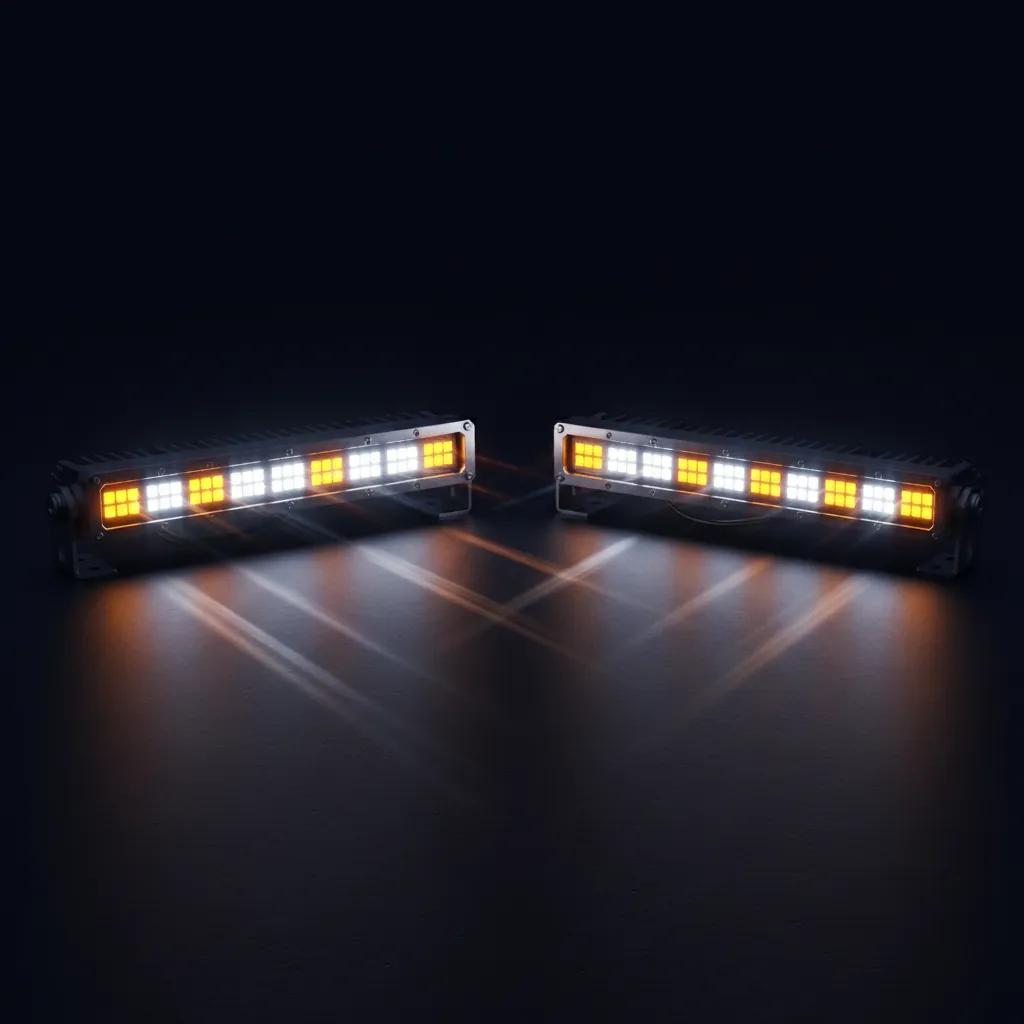

Fast vs Slow Strobe Patterns for Different Conditions

Key Insight: Extremely fast strobe patterns often reduce long‑distance visibility because flashes blend together at highway speeds.

This is one of the most counterintuitive things I explain to fleet owners. Ultra‑fast flashing may look impressive up close, but at 300–500 feet the signal becomes visually noisy.

Moderate timing intervals tend to perform better in real traffic.

Typical performance comparison:

1. Very fast (10+ flashes/sec): strong close‑range attention but poor distance recognition
2. Moderate (4–6 flashes/sec): best overall detection distance
3. Slow pulse (1–3 flashes/sec): excellent clarity but slightly slower reaction time

For highway maintenance vehicles, the sweet spot usually sits between 4 and 5 flashes per second combined with alternating patterns.

save pin

Balancing Brightness and Driver Safety

Key Insight: Maximum brightness is not always safer—controlled intensity prevents glare while maintaining visibility.

Overly bright strobes create glare at night, especially with modern high‑intensity LEDs. I’ve seen cases where drivers approaching a work truck couldn’t judge distance because the light was overwhelming.

Best brightness practices:

1. Use daytime running intensity and reduced nighttime mode
2. Avoid direct eye‑level mounting whenever possible
3. Angle lights slightly outward instead of straight back

Organizations like SAE and transportation safety agencies frequently recommend multi‑intensity controllers for vehicles that operate both day and night.

Synchronizing Multiple Truck Lights for Better Warning Signals

Key Insight: Synchronizing all strobe modules creates a unified warning signal that is easier for drivers to interpret.

Unsynchronized lights create visual chaos. Instead of one strong signal, approaching drivers see multiple unrelated flashes.

When lights pulse in coordinated patterns, the vehicle communicates a clear warning message.

Effective synchronization layouts:

1. Front lights synchronized with alternating rhythm
2. Rear lights running mirrored patterns
3. Side markers following slower auxiliary pulses

Fleet installers often simulate light placement before installation. Visual planning tools that map vehicle light positions in a quick 3D layout simulationmake it easier to test how warning patterns appear from different angles.

save pin

Answer Box

The most effective truck strobe setup combines synchronized lights, moderate flash speeds, and adaptive brightness levels. Alternating patterns generally provide the clearest warning signal in both daytime and nighttime environments.

Daytime vs Nighttime Strobe Optimization

Key Insight: The optimal strobe configuration changes significantly between daylight and nighttime conditions.

In daylight, ambient brightness competes with warning lights. At night, the problem flips—lights can become overwhelming.

Recommended configuration differences:

1. Daytime: higher brightness, wider flash angles
2. Nighttime: reduced intensity, slightly slower pattern timing
3. Fog or snow: lower brightness with wider spacing

Before installing additional lights, some teams prefer to experiment with placement and coverage before installing additional lightsto ensure the warning pattern remains readable from multiple directions.

save pin

Reducing Electrical Load on the Factory Lighting System

Key Insight: Efficient controllers and LED modules reduce strain on the factory electrical system while maintaining strong visibility.

Older work trucks often run multiple accessories—strobes, radios, inverters, and cameras—on the same electrical system. Poorly configured lighting can overload circuits.

Electrical optimization tips:

1. Use LED modules instead of halogen strobes
2. Install a dedicated fused power distribution block
3. Choose programmable controllers instead of relay chains
4. Synchronize lights to reduce overlapping peak draw

Modern LED warning systems consume a fraction of the power older xenon strobes required, which significantly improves reliability for fleet vehicles.

Final Summary

1. Moderate flash speeds provide the best long‑distance visibility.
2. Synchronized strobe lights create clearer warning signals.
3. Brightness should adapt to day and night driving conditions.
4. Alternating patterns outperform chaotic flashing.
5. Efficient controllers reduce electrical strain on trucks.

FAQ

What is the best strobe pattern for truck warning lights?

Alternating double‑flash patterns are widely considered the best strobe pattern for truck warning lights because they are easy for drivers to recognize from long distances.

How fast should truck strobe lights flash?

Most effective configurations use 4–6 flashes per second. This range balances visibility and clarity without creating visual noise.

Can multiple truck strobe lights be synchronized?

Yes. Most modern LED controllers allow synchronization across multiple lights so they flash in coordinated patterns.

Are brighter strobe lights always safer?

No. Excessive brightness can cause glare at night and make it harder for drivers to judge distance.

What is the brightest strobe pattern for vehicle lights?

Rapid quad‑flash or alternating burst patterns typically appear brightest because they concentrate multiple flashes in short intervals.

How do you optimize strobe lights for visibility on trucks?

Combine synchronized modules, alternating patterns, and moderate flash speeds while adjusting brightness for day and night conditions.

Do strobe lights drain a truck battery?

Modern LED strobes use very little power, but poorly wired systems or multiple high‑intensity modules can increase electrical load.

Should work trucks use different strobe patterns than emergency vehicles?

Yes. Work trucks usually use slower, highly visible patterns designed for construction zones rather than rapid emergency response flashes.

References

1. SAE International Vehicle Warning Lighting Standards
2. Federal Highway Administration Work Zone Safety Guidance
3. National Institute for Occupational Safety and Health Vehicle Visibility Research
