Optimizing Tile Layout for Large Format Tiles: Practical layout strategies to avoid lippage, narrow cuts, and alignment issues when installing large floor tiles.

Direct Answer

Optimizing tile layout for large format tiles means planning the starting point, offset pattern, and grout spacing so cuts stay balanced and tile edges remain level. Because large tiles magnify alignment errors, installers should center layouts, avoid excessive offsets, and dry‑fit rows before applying adhesive.

Quick Takeaways

1. Large format tiles require tighter layout planning because minor alignment errors become highly visible.
2. A 1/3 offset pattern usually prevents lippage better than a traditional 1/2 brick layout.
3. Centering the layout helps prevent awkward narrow tile cuts along walls.
4. Dry laying several rows first reveals spacing and alignment issues early.
5. Consistent substrate leveling matters more than grout width when using large tiles.

Introduction

Large format tile layout planning is very different from working with traditional 12×12 tiles. Over the past decade, I’ve worked on dozens of residential projects where homeowners chose 24×48 porcelain slabs or oversized floor tiles for that sleek, modern look. The visual payoff can be stunning—but only if the layout is planned carefully.

The problem is that large tiles amplify mistakes. A small alignment error that would disappear with small tiles becomes obvious across a 10‑foot span. Narrow wall cuts suddenly look awkward, and uneven floors can create noticeable lippage between tile edges.

That’s why professional installers often spend more time planning the layout than installing the tile itself. Tools that help visualize layouts—like this guide to planning precise floor layouts before construction begins—can save hours of adjustment later.

In this guide, I’ll walk through the layout strategies I rely on when installing large tiles, including offset rules, cut planning, and alignment techniques that prevent common installation problems.

save pin

Why Large Format Tiles Require Different Layout Planning

Key Insight: Large tiles magnify small layout mistakes, which makes planning the starting grid far more important than with standard tiles.

Tiles larger than 15 inches on one side are generally considered large format tiles. Because each tile covers more surface area, any variation in floor flatness or alignment becomes more noticeable.

Common layout challenges with large tiles include:

1. Lippage between neighboring tiles
2. Uneven grout line alignment
3. Narrow wall cuts that disrupt visual balance
4. Pattern distortion across long sightlines

The Tile Council of North America recommends tighter floor flatness tolerances for large tiles—typically no more than 1/8 inch variation within 10 feet. That’s much stricter than standard tile installations.

From a design perspective, large tiles also emphasize long visual lines. If those lines drift even slightly, the human eye notices immediately.

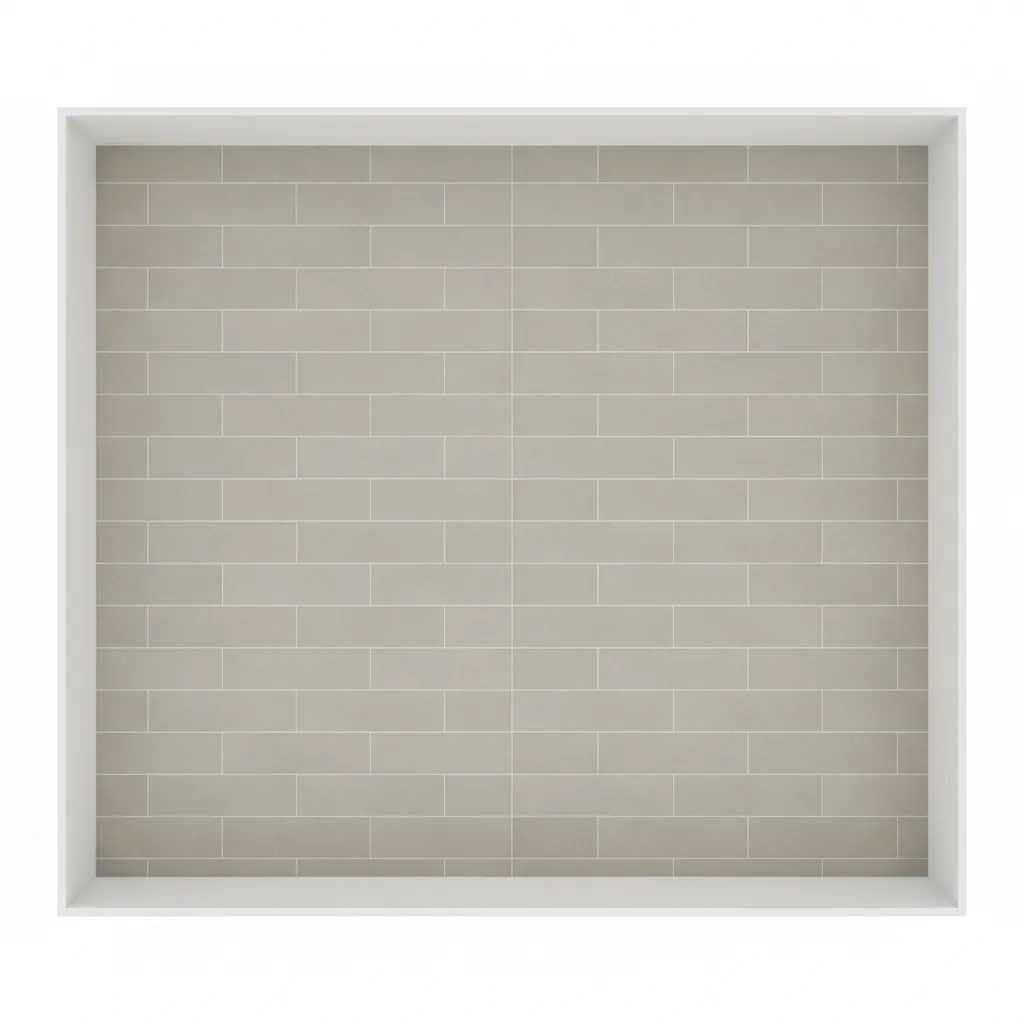

Spacing and Offset Rules for Large Tiles

Key Insight: The classic 50% brick offset often causes lippage with large tiles, which is why many installers switch to a 33% offset.

Many homeowners love the look of a brick pattern layout. The issue is that large porcelain tiles often have slight warping along their length due to firing in the kiln.

When a 50% offset is used:

1. The highest point of one tile meets the lowest point of another
2. This creates visible height differences along grout lines
3. Lippage becomes difficult to eliminate

Recommended offset options:

1. 33% offset (most common professional choice)
2. Grid layout for ultra‑large tiles
3. Random stagger under 33%

Manufacturers such as Dal‑Tile and Marazzi often specify maximum offsets in their installation guides for large tiles.

save pin

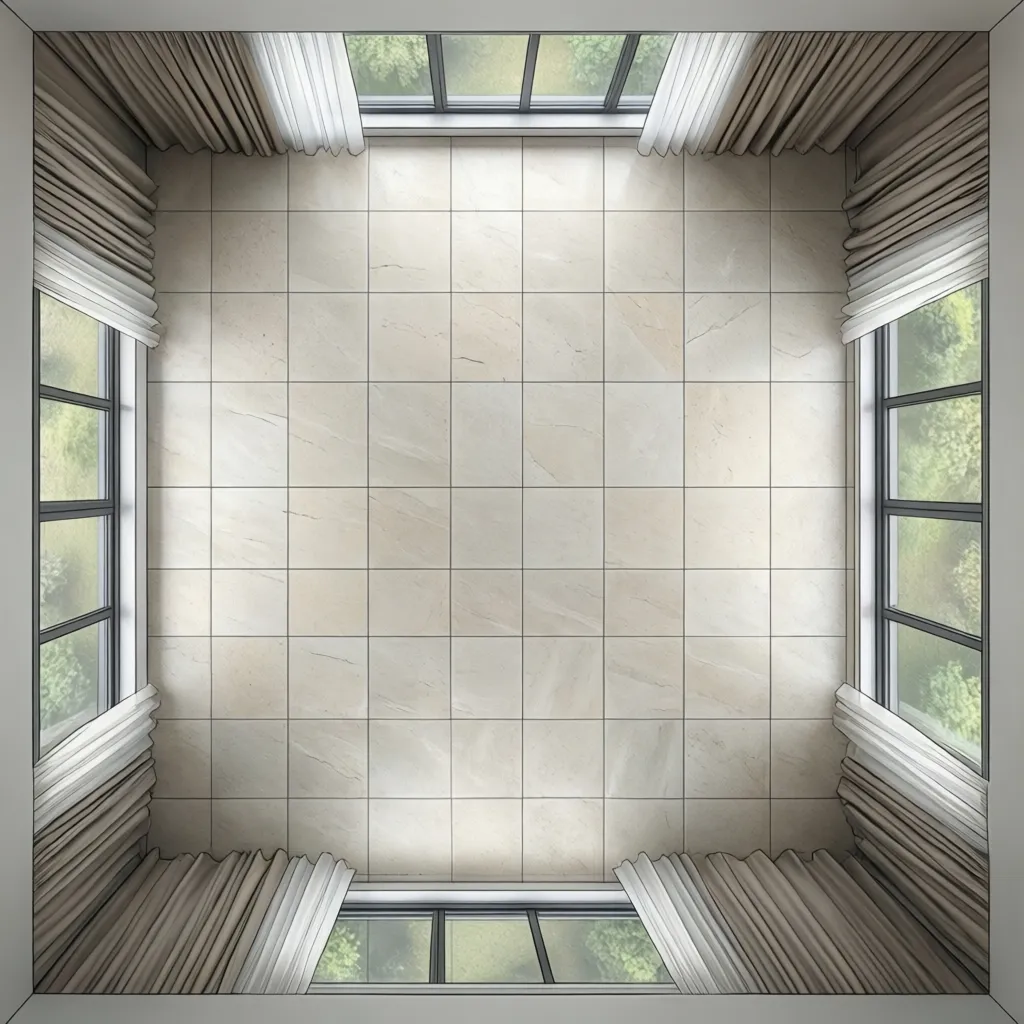

Minimizing Narrow Edge Cuts with Large Tiles

Key Insight: Balanced cuts on both sides of a room always look better than a single thin tile strip along one wall.

One of the biggest visual mistakes in large tile layout is ending up with a 1‑inch strip along the wall.

To prevent this:

1. Measure the full room width.
2. Divide by tile size plus grout spacing.
3. Adjust the starting line to balance the cuts.

Example:

1. Room width: 144 inches
2. Tile width: 24 inches
3. Instead of ending with a 3 inch cut on one side, shift the layout to create two 12 inch cuts.

Balanced edges feel intentional and symmetrical, which is why designers often align layouts to the room centerline.

save pin

Managing Lippage Through Layout Alignment

Key Insight: Proper alignment lines and leveling systems reduce lippage more effectively than increasing grout width.

Lippage occurs when adjacent tile edges sit at different heights. Large format tiles make this problem more noticeable.

Professional installers rely on several techniques:

1. Laser level reference lines
2. Tile leveling clip systems
3. Consistent mortar coverage
4. Directional installation across the longest sightline

Another overlooked trick is aligning tiles with the main walking path of the room. This makes any small variation far less noticeable visually.

If you're visualizing tile flow within a full interior plan, tools used for building a detailed 3D floor layout before installation help reveal alignment problems before installation begins.

Answer Box

The best layout for large format tiles typically centers the grid in the room, uses a 33% offset instead of 50%, and balances tile cuts on opposite walls. Dry‑fitting rows before installation helps identify alignment or spacing issues early.

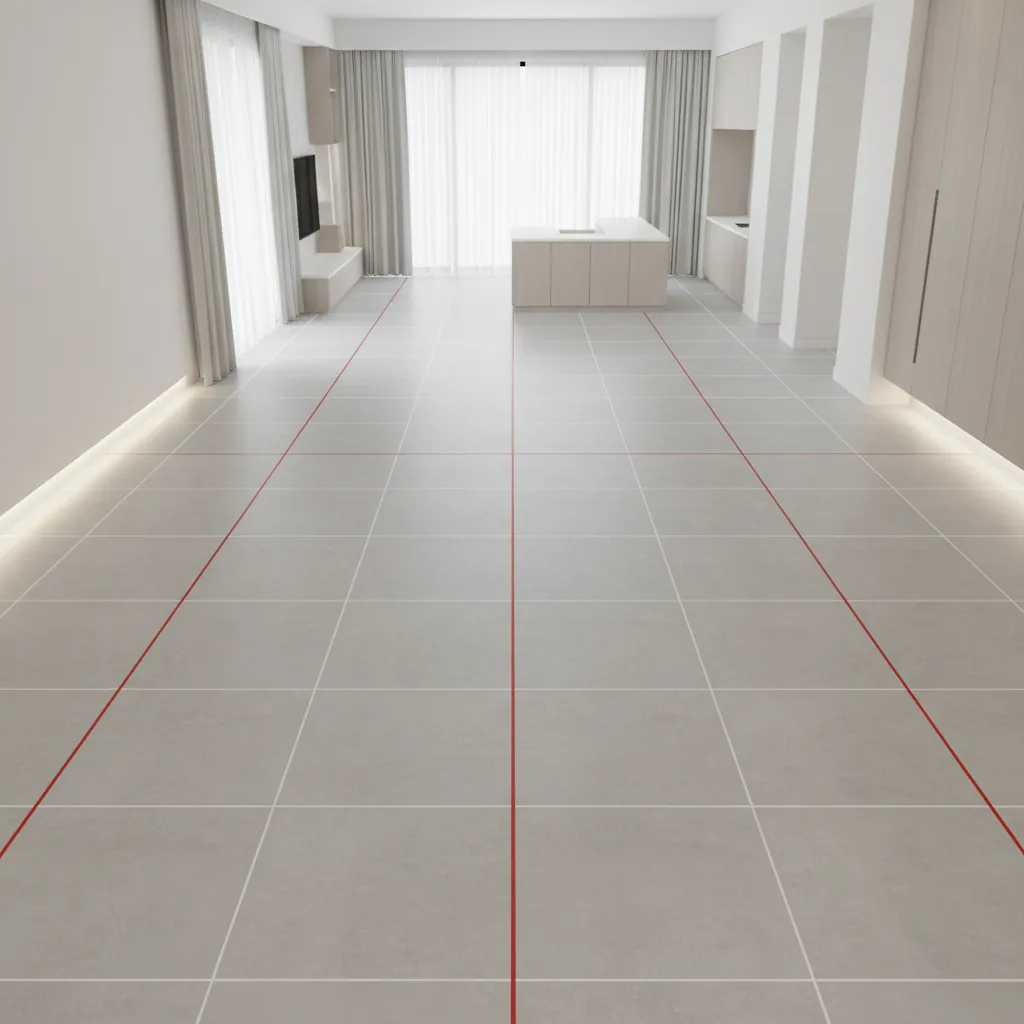

Centering the Layout for Visual Balance

Key Insight: Starting from the room center produces the most visually balanced large tile installation.

Many DIY installations start from one wall, but that approach often leads to awkward cuts on the opposite side.

A centered layout approach works better:

1. Mark the centerline of the room.
2. Create a perpendicular reference line.
3. Start the tile grid from that intersection.

This technique ensures that:

1. Both sides of the room have equal tile cuts
2. Patterns align with architectural features
3. Long grout lines stay visually straight

save pin

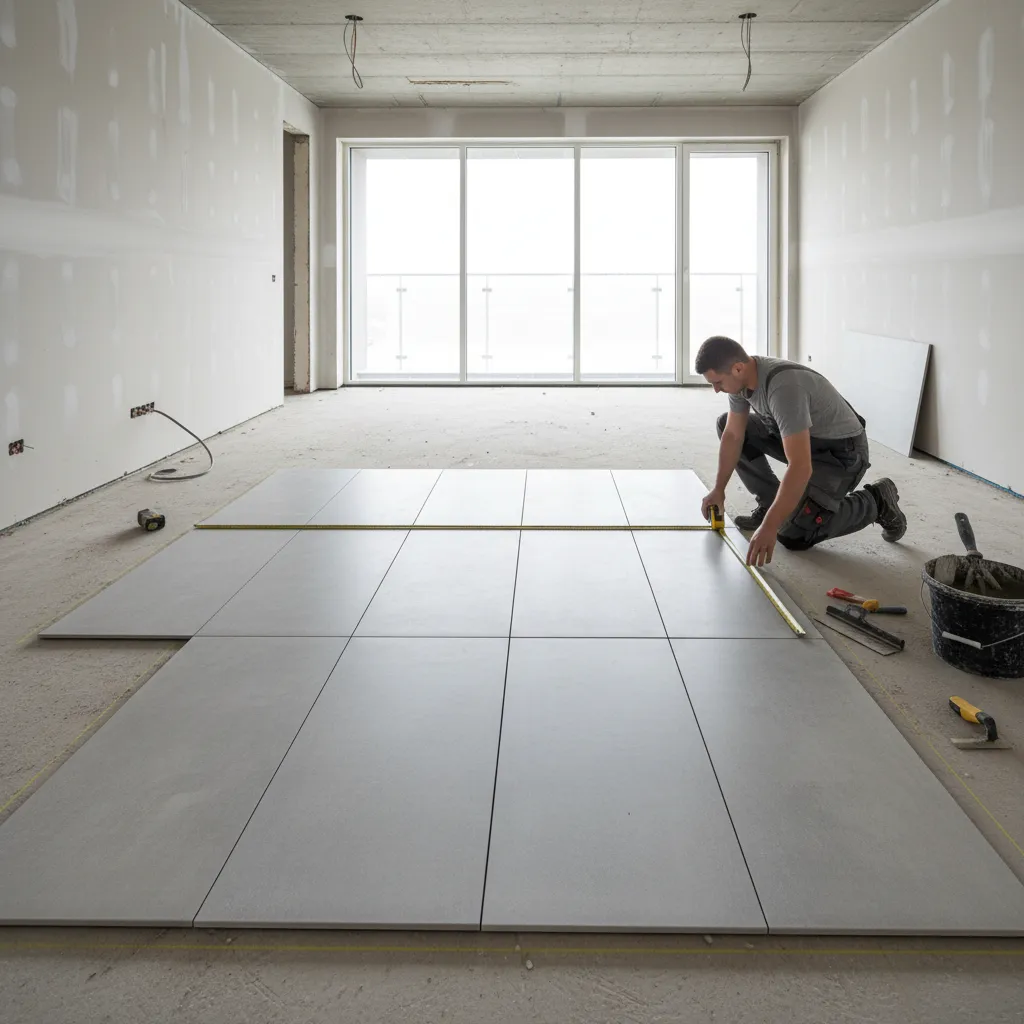

Dry Layout Techniques for Large Tile Floors

Key Insight: A dry layout reveals alignment problems before mortar is applied, saving significant time and cost.

Before mixing thinset, experienced installers place several rows of tiles on the floor to test the layout.

Effective dry layout checklist:

1. Lay out two or three rows across the room
2. Insert actual spacers between tiles
3. Check edge cuts at both walls
4. Confirm pattern alignment through doorways

This step is particularly helpful when working across connected spaces like kitchens and living areas. Planning layouts with a visual kitchen and floor layout planning workflow can help maintain tile alignment between rooms.

Final Summary

1. Large format tiles require more precise layout planning than standard tiles.
2. A 33% offset pattern typically prevents lippage better than a 50% brick pattern.
3. Centered layouts create balanced edge cuts and cleaner visual lines.
4. Dry fitting tiles before installation prevents costly layout mistakes.
5. Accurate alignment lines and leveling systems are essential for large tiles.

FAQ

What size tile counts as large format?

Tiles with at least one side longer than 15 inches are generally classified as large format tiles.

What is the best offset for large floor tiles?

Most professionals recommend a 33% offset pattern to reduce lippage caused by slight tile warping.

How do you prevent narrow tile cuts with large tiles?

Measure the room and shift the layout so both walls receive balanced cuts rather than leaving a thin strip.

Should large tiles start from the center of the room?

Yes. Starting from the centerline usually creates the most symmetrical and visually balanced layout.

Do large tiles need wider grout lines?

Not necessarily. Proper floor leveling and alignment are more important than grout width.

Can large format tiles be installed in a brick pattern?

Yes, but the offset should usually be limited to 33% rather than 50%.

Why does lippage happen with large tiles?

Slight tile warping combined with uneven floors often causes edges of neighboring tiles to sit at different heights.

What is the most common large tile layout mistake?

Failing to test the layout beforehand, which can lead to narrow wall cuts and misaligned grout lines.
