Optimizing Ventilation and Underlayment for Metal Roof Retrofit Systems: Practical design strategies that improve airflow, moisture control, and long term performance when installing metal roofing over existing shingles.

Direct Answer

Optimizing ventilation and underlayment in a metal roof retrofit system means creating a continuous airflow path beneath the metal panels while installing a high‑performance underlayment that manages moisture and temperature swings. When done correctly, the system reduces condensation, improves energy efficiency, and significantly extends the lifespan of both the metal roofing and the structure below.

Quick Takeaways

1. Proper airflow beneath metal panels prevents condensation and heat buildup.
2. Synthetic underlayment performs better than traditional felt in retrofit conditions.
3. Ventilation gaps or battens dramatically improve moisture control.
4. Poor airflow is the hidden reason many metal retrofits fail early.
5. A layered system design works better than relying on underlayment alone.

Introduction

In more than a decade of consulting on roof retrofits, one pattern shows up repeatedly: metal roofs installed over shingles fail early not because of the metal itself, but because ventilation and underlayment were treated as secondary details.

Metal roof retrofit systems can perform incredibly well when designed correctly. But if airflow beneath the panels is restricted, trapped heat and moisture quickly create condensation, decking damage, and insulation problems.

Homeowners often assume the metal panel is the performance layer. In reality, the system beneath it does most of the heavy lifting. I’ve inspected projects where a simple ventilation channel could have prevented thousands of dollars in repairs.

If you're planning a retrofit installation, it's worth understanding how airflow, underlayment selection, and layering strategy interact. Visualizing airflow paths before installation—using tools like this interactive layout planning environment for structural layouts—can help contractors avoid costly design oversights.

save pin

How Ventilation Impacts Metal Roof Performance

Key Insight: Metal roofing performs best when continuous airflow removes heat and moisture from beneath the panels.

Metal panels heat up and cool down faster than asphalt shingles. Without airflow beneath them, temperature swings drive condensation against the roof deck.

Over time this trapped moisture can lead to:

1. Deck rot
2. Mold growth in attic spaces
3. Reduced insulation performance
4. Premature corrosion on fasteners

The Metal Construction Association consistently emphasizes ventilation as a critical factor in roof system durability, especially in retrofit installations where an old roofing layer already traps heat.

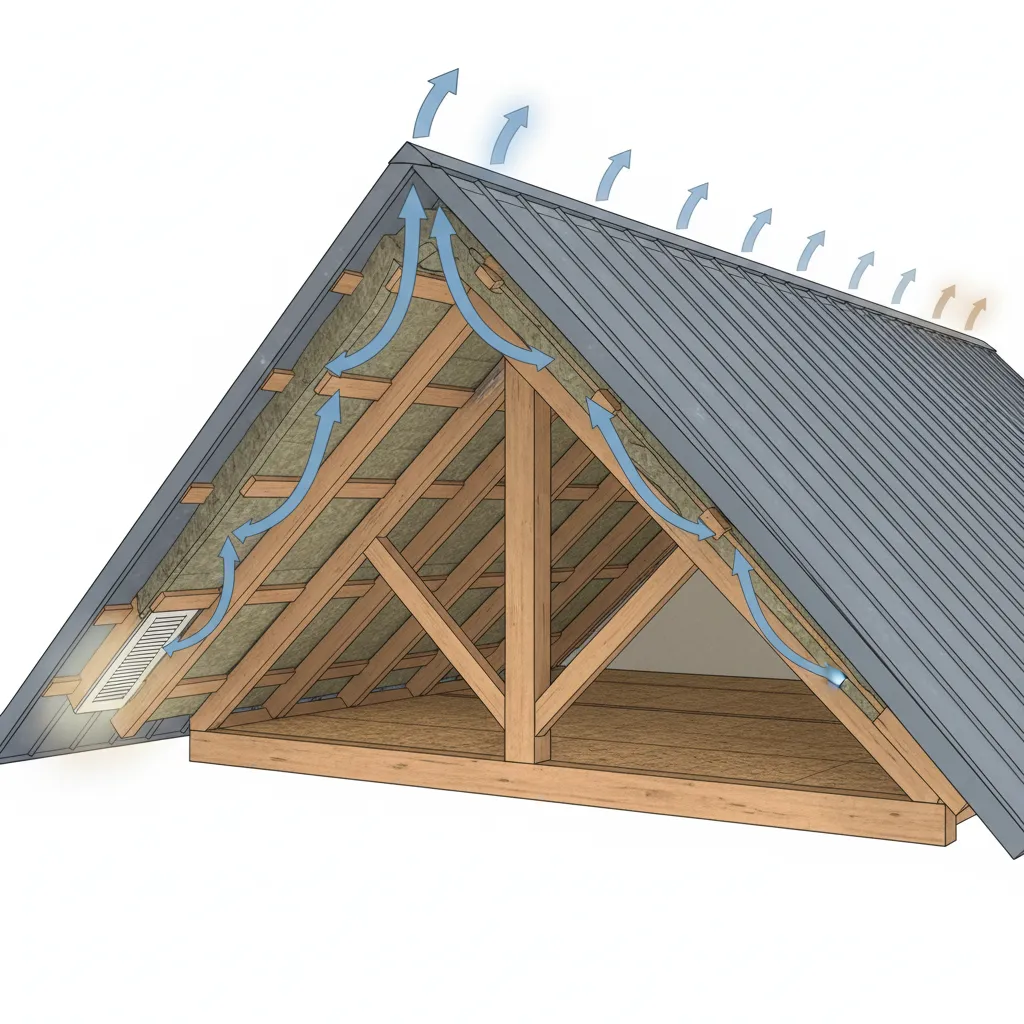

Typical airflow pathway in a well-designed retrofit system:

1. Soffit intake ventilation
2. Air channel beneath metal panels
3. Ridge vent exhaust

This stack‑effect airflow removes both heat and moisture before they accumulate.

Role of Underlayment in Retrofit Roofing Systems

Key Insight: Underlayment acts as the system’s moisture safety layer, especially when retrofitting over aging shingles.

When installing metal roofing over shingles, the existing roof surface is rarely perfectly flat or moisture‑free. Underlayment becomes the critical barrier protecting the deck.

In retrofit systems I typically recommend synthetic underlayment rather than traditional felt for several reasons:

1. Higher tear resistance during installation
2. Better resistance to temperature cycling
3. Lower water absorption
4. Improved slip resistance for installers

According to the International Roofing Expo technical sessions, synthetic materials maintain performance far longer in metal roofing assemblies where heat levels are higher than typical asphalt roofs.

The hidden mistake many contractors make is assuming underlayment alone solves condensation. It does not. Underlayment manages water—but ventilation removes moisture.

Airflow Design for Metal Roof Over Shingle Installations

Key Insight: Creating a dedicated ventilation cavity dramatically improves the performance of metal roof retrofit systems.

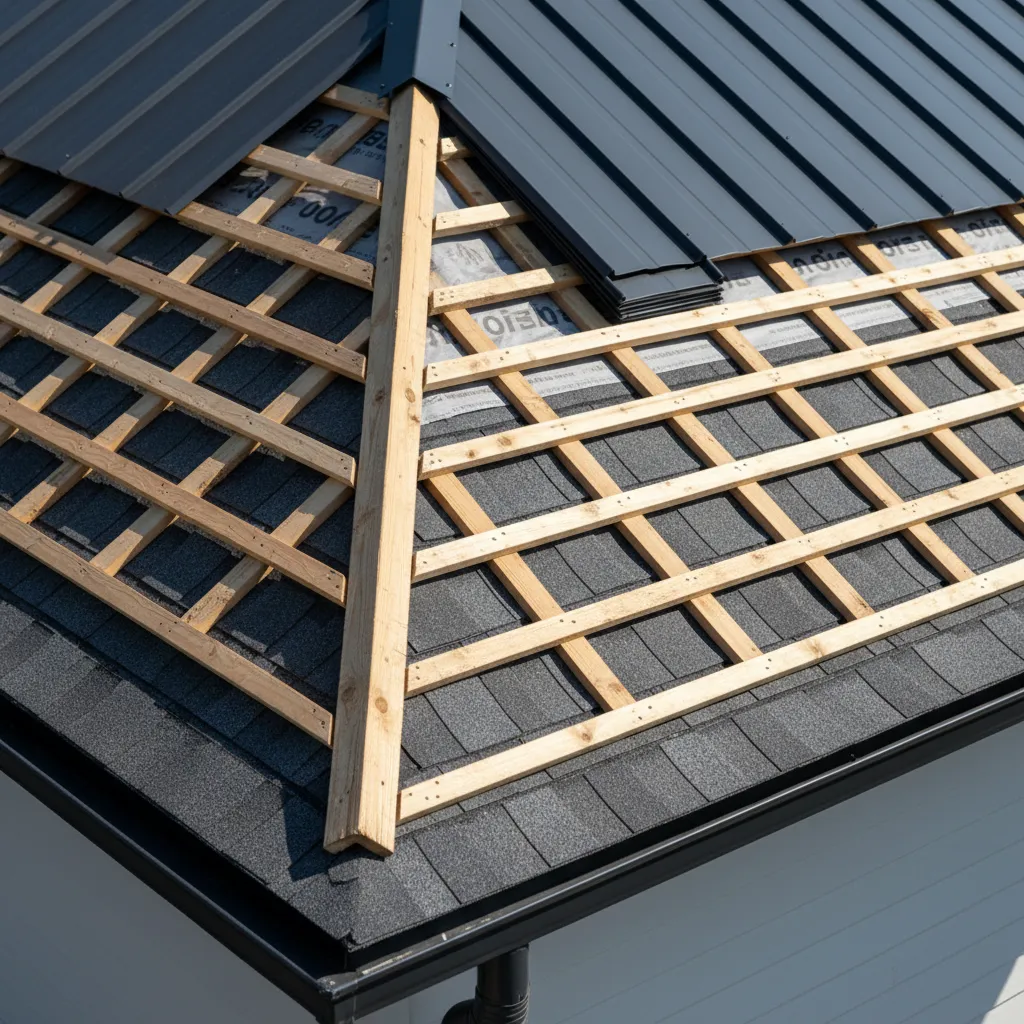

Instead of placing metal panels directly over shingles, many high‑performance systems use vertical battens or furring strips to create an air gap.

Common airflow configurations include:

1. Batten system – wood or metal strips creating a ventilation channel.
2. Counter‑batten system – two directional layers improving drainage and airflow.
3. Ventilated spacer mats – synthetic mesh layers used in some retrofit designs.

This design approach allows air to move freely from eaves to ridge, preventing condensation buildup.

Contractors evaluating layout spacing often map the system digitally before installation. A

save pin

smart planning tool for structural airflow layouts can help visualize batten spacing, ridge vents, and intake openings.

Combining Synthetic Underlayment with Ventilation Layers

Key Insight: The best retrofit systems treat underlayment and ventilation as a coordinated system rather than separate components.

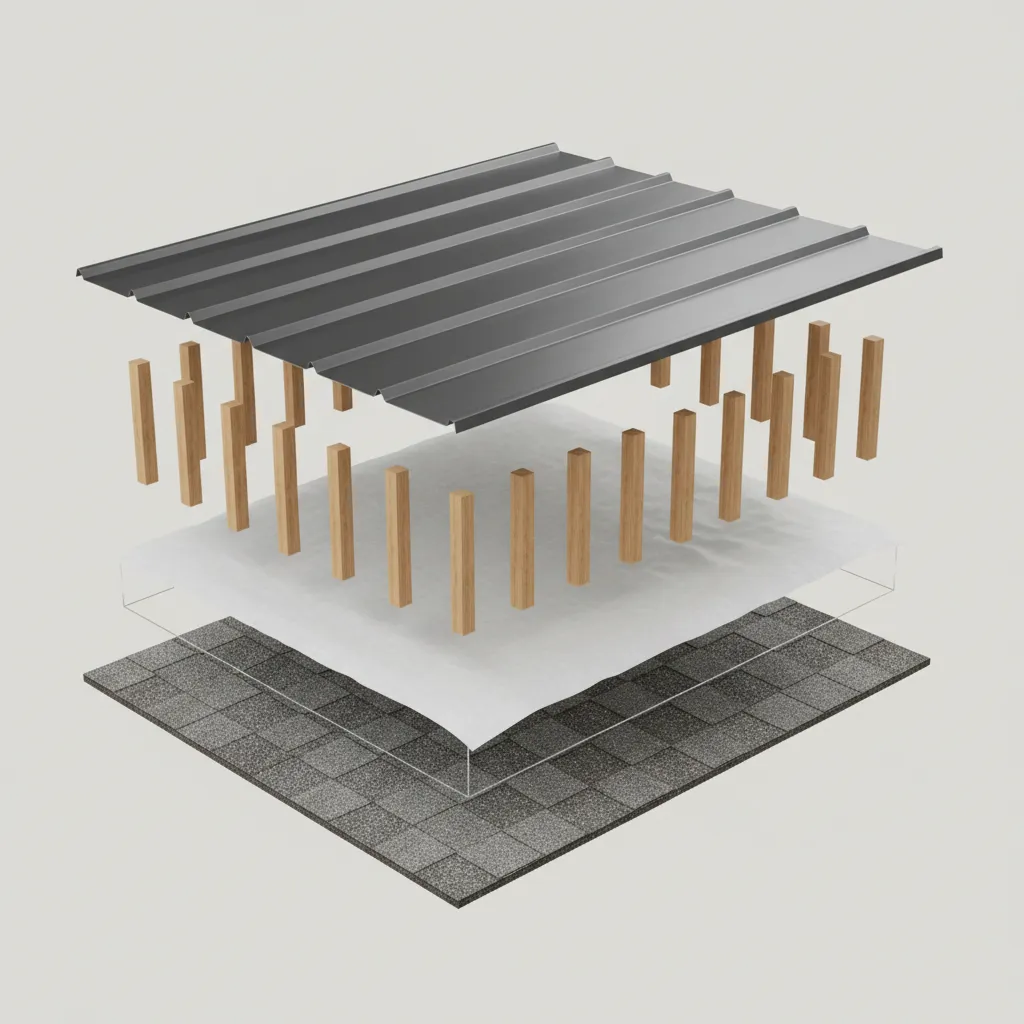

In high‑performance installations, the roof assembly typically follows a layered structure:

1. Existing asphalt shingles
2. Synthetic underlayment layer
3. Vertical battens or spacer system
4. Metal roofing panels

Each layer serves a specific role:

1. Underlayment blocks moisture intrusion
2. Battens create airflow
3. Metal panels provide weather protection

This layered system significantly reduces the risk of condensation forming under the metal surface.

One often overlooked benefit is sound reduction. The air gap created by battens dampens rain noise—something homeowners frequently worry about with metal roofs.

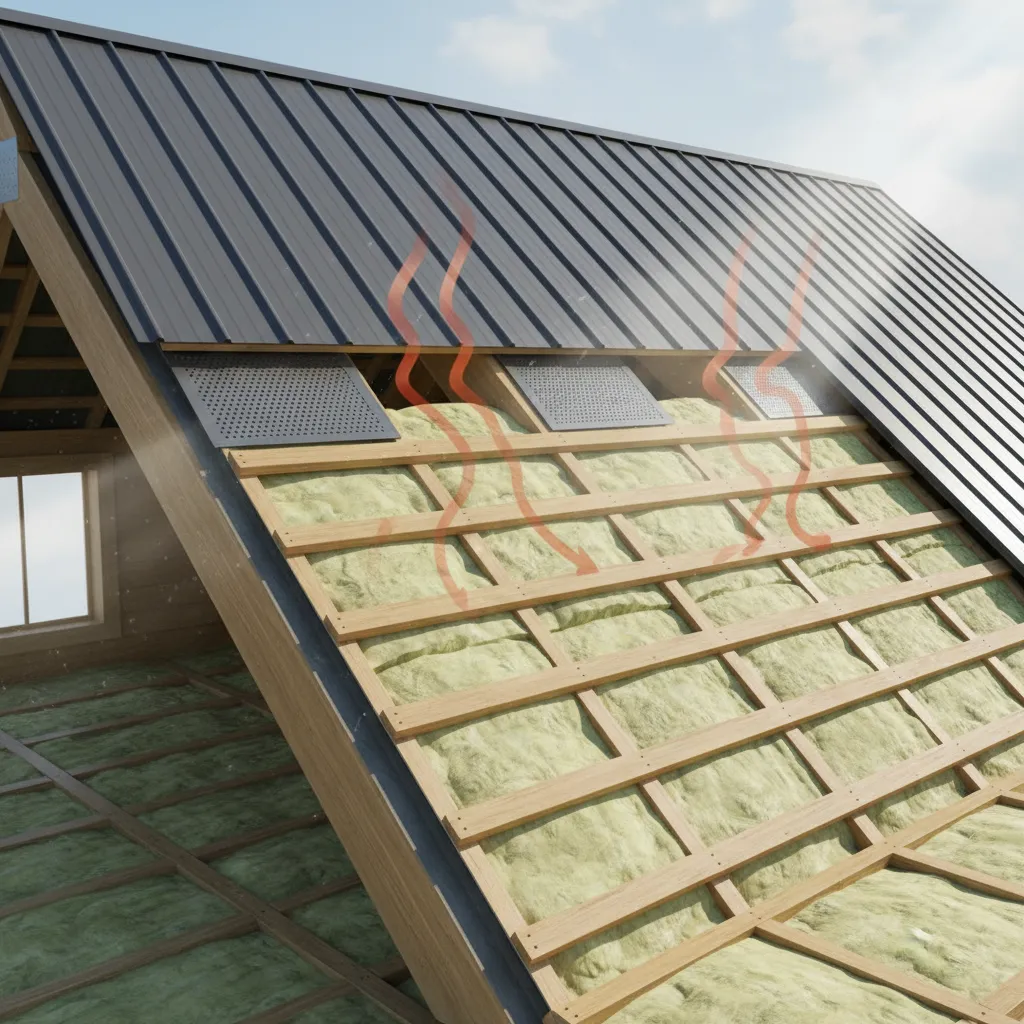

Energy Efficiency and Moisture Control Benefits

Key Insight: Proper ventilation can lower attic temperatures and reduce HVAC loads.

Metal roofs reflect more solar radiation than asphalt shingles, but ventilation determines how much of that heat enters the home.

When airflow removes trapped heat beneath the panels:

1. Attic temperatures drop
2. Cooling costs decrease
3. Insulation maintains effectiveness
4. Moisture accumulation is minimized

Research published by Oak Ridge National Laboratory shows ventilated roof assemblies can reduce peak attic temperatures significantly during summer months.

This is particularly important in humid climates where condensation risk is highest.

save pin

Best Practice Installation Sequence for Long Term Performance

Key Insight: The installation sequence determines whether ventilation pathways remain functional.

After reviewing dozens of retrofit projects, the most reliable installation workflow follows a consistent order:

1. Inspect and repair existing shingles and decking.
2. Install high‑performance synthetic underlayment.
3. Add vertical battens to create ventilation channels.
4. Ensure soffit intake vents remain unobstructed.
5. Install ridge vent system.
6. Mount metal roofing panels.

Skipping the inspection step is a surprisingly common mistake. Installing new metal panels over damaged decking only hides the problem temporarily.

If you're comparing roof layouts or planning ventilation channels, this

save pin

visual planning tool for mapping structural layers can help illustrate how airflow paths move from soffit to ridge.

Answer Box

The most effective metal roof retrofit systems combine synthetic underlayment with a dedicated ventilation cavity created by battens or spacer systems. This layered approach removes heat and moisture, preventing condensation while improving energy efficiency and long‑term durability.

Final Summary

1. Ventilation is the most critical factor in metal roof retrofit durability.
2. Synthetic underlayment performs better under high heat conditions.
3. Batten systems create essential airflow channels.
4. Ventilated assemblies reduce condensation and energy loss.
5. A layered installation strategy delivers the longest roof lifespan.

FAQ

1. Do metal roofs installed over shingles need ventilation?

Yes. Ventilation for metal roof over shingles installations prevents condensation and heat buildup that can damage roof decking.

2. What is the best underlayment for a metal roof retrofit?

Most professionals recommend synthetic underlayment because it resists heat, moisture, and tearing better than asphalt felt.

3. Can metal roofing be installed directly over shingles?

Yes, but adding battens or ventilation spacers improves airflow and system performance.

4. How does ventilation improve metal roof energy efficiency?

Airflow removes trapped heat beneath panels, reducing attic temperature and lowering cooling costs.

5. What causes condensation under metal roofs?

Warm moist air meeting cooler metal surfaces creates condensation when ventilation is insufficient.

6. What spacing is recommended for ventilation battens?

Spacing varies by panel system, but many installers use 16–24 inch intervals for consistent airflow.

7. Is a ventilation layer necessary in cold climates?

Yes. Ventilation reduces ice dam risk and moisture accumulation during winter.

8. What is a retrofit metal roofing ventilation system?

It is a layered roofing assembly designed to create airflow channels beneath metal panels installed over existing roofing.
