Orthographic vs Perspective Bike 3D Model Views Explained: Understand when orthographic or perspective views are better for analyzing, designing, and presenting bicycle 3D models.

Direct Answer

Orthographic and perspective views present bicycle 3D models in fundamentally different ways. Orthographic views show accurate proportions without distortion, making them ideal for measurement and engineering analysis. Perspective views mimic human vision with depth and foreshortening, which makes them better for realistic visualization and product presentation.

Quick Takeaways

1. Orthographic views preserve exact dimensions and eliminate perspective distortion.
2. Perspective views simulate real-world camera vision and depth.
3. Designers rely on orthographic views for modeling accuracy and alignment.
4. Marketing and product visualization typically use perspective renders.
5. Choosing the right view depends on whether accuracy or realism matters more.

Introduction

When working with a bike 3D model, one of the first decisions designers make is how the model should be viewed. In my experience working with visualization workflows across product design and architectural rendering, the choice between orthographic vs perspective bike 3D model views often determines whether the viewer understands the geometry correctly or simply enjoys the image.

I have seen many designers confuse these two viewing modes. They export a perspective render when engineers need accurate alignment, or they show orthographic projections in marketing materials where the product ends up looking strangely flat.

Interestingly, the same visualization principles appear across many industries. The way designers manage camera angles and spatial accuracy in product modeling is similar to how interior visualization tools handle layout previews, such as in this example of visualizing realistic interior spaces with 3D rendered perspectives.

In this guide, I will break down how orthographic and perspective views work, why each exists, and when designers should choose one over the other when presenting bicycle 3D models.

save pin

What Orthographic Views Mean in Bicycle 3D Modeling

Key Insight: Orthographic views display a bicycle 3D model without perspective distortion, allowing accurate measurement and precise geometry inspection.

Orthographic projection removes depth-based scaling. Objects do not shrink as they move farther away from the camera. As a result, every part of the bicycle maintains true proportion.

This makes orthographic views the standard for technical modeling and CAD workflows.

Typical orthographic views used in bicycle modeling include:

1. Side view
2. Top view
3. Front view
4. Rear view

These views allow engineers to evaluate:

1. Frame geometry
2. Wheel alignment
3. Clearance between components
4. Precise component spacing

According to common CAD visualization standards used in tools like SolidWorks and Blender, orthographic projections are required whenever dimensional accuracy is critical.

For example, when reviewing a bike frame design, a side orthographic view immediately reveals chainstay length, seat tube angle, and wheelbase relationships.

How Perspective Views Represent Bicycle Geometry

Key Insight: Perspective views simulate human vision, creating depth and realism that make a bicycle model easier to interpret visually.

Perspective projection mimics how our eyes and cameras see the world. Objects farther away appear smaller, and parallel lines may converge toward vanishing points.

This creates a more natural-looking representation of a bicycle.

Perspective views are commonly used for:

1. Product marketing images
2. E-commerce product pages
3. Concept presentations
4. Design portfolio renders

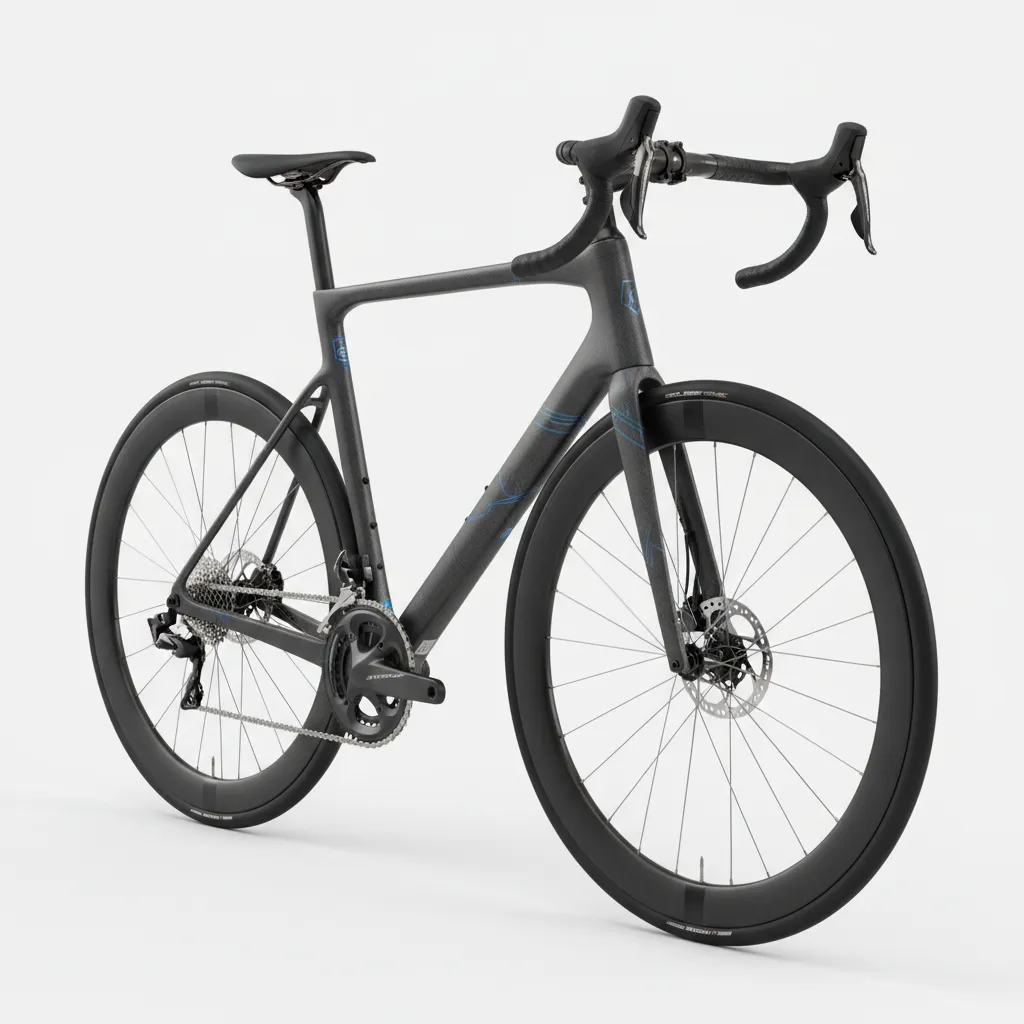

For instance, when a brand launches a new road bike, they rarely present it using orthographic projections. Instead, they render a three-quarter perspective view that highlights frame curves, wheel depth, and material finishes.

In rendering workflows, designers often adjust:

1. Camera focal length
2. Viewing angle
3. Lighting direction
4. Depth perspective

Those choices strongly influence how aggressive or aerodynamic the bicycle appears.

save pin

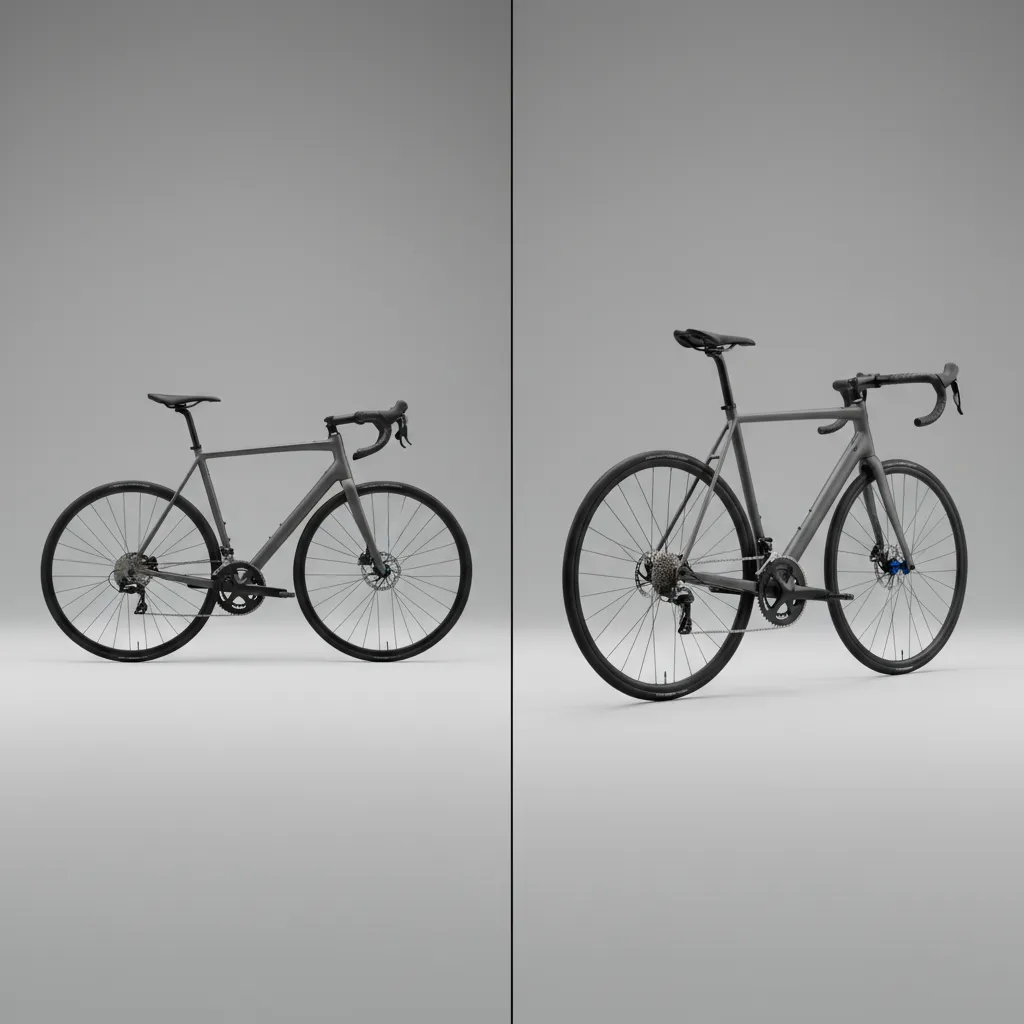

Key Differences Between Orthographic and Perspective Bike Views

Key Insight: The main difference is accuracy versus realism—orthographic prioritizes measurement accuracy while perspective emphasizes visual depth.

Here is a practical comparison designers often use:

1. Orthographic view – no perspective distortion, true scale maintained
2. Perspective view – realistic depth and camera distortion
3. Orthographic – best for engineering and modeling
4. Perspective – best for presentations and visual storytelling

Another difference many beginners overlook is how proportions appear.

In perspective mode:

1. Front wheels may appear larger
2. Rear triangles may look compressed
3. Handlebars may seem wider depending on camera position

These effects are visually appealing but can mislead technical analysis.

This same distinction appears in spatial design tools used for layout planning. When switching between flat planning views and immersive visualization, users experience a similar shift between accuracy and realism, such as when mapping room layouts with an AI powered floor planning workflow.

save pin

When Designers Prefer Orthographic Bike Model Displays

Key Insight: Orthographic views are essential whenever a bicycle model must be analyzed for engineering accuracy.

Professional designers usually switch to orthographic mode during technical stages of development.

Common scenarios include:

1. Frame geometry evaluation
2. Component placement
3. Manufacturing preparation
4. Technical documentation

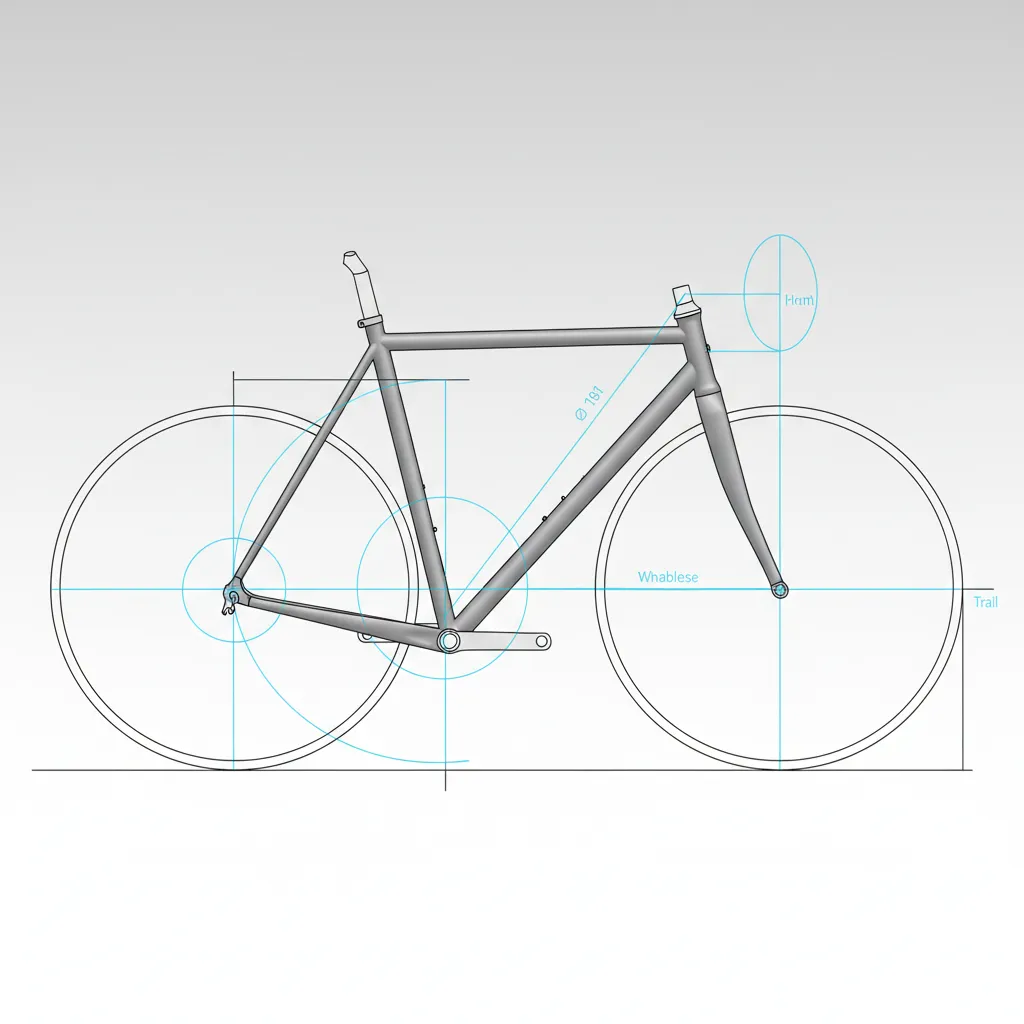

For example, frame builders frequently review:

1. Head tube angle
2. Chainstay length
3. Seat tube positioning
4. Wheel clearance

In orthographic side view, these measurements remain visually reliable.

A hidden mistake many beginners make is attempting to judge geometry inside perspective viewports. Even slight camera angles can distort proportions enough to cause design misinterpretations.

save pin

When Perspective Rendering Is Better for Presentation

Key Insight: Perspective rendering communicates design intent and aesthetics far better than orthographic projections.

When the goal is storytelling or product appeal, perspective views dominate.

Bike brands frequently use:

1. Three-quarter front perspective
2. Low angle hero shots
3. Dynamic motion perspectives

These angles highlight:

1. Frame curvature
2. Aerodynamic tubing
3. Wheel depth
4. Material finishes

Marketing teams prefer perspective renders because they help customers imagine the bike in real life.

Visualization professionals across industries rely on similar techniques when presenting spatial environments, such as creating immersive layout previews before a space is built.

Choosing the Right View Type for Different Use Cases

Key Insight: The best approach is not choosing one view over the other but switching between them depending on the design stage.

Experienced 3D designers typically follow this workflow:

1. Modeling stage – orthographic views for accuracy
2. Geometry validation – orthographic multi-view alignment
3. Concept review – perspective preview renders
4. Marketing visuals – perspective hero shots

This hybrid approach ensures that:

1. The bike model remains dimensionally correct
2. The final visuals still feel realistic and engaging

In practice, most professionals constantly toggle between orthographic and perspective modes while modeling.

Answer Box

Orthographic views display bicycle 3D models with true proportions and no distortion, making them ideal for engineering and geometry analysis. Perspective views introduce depth and visual realism, which makes them better suited for presentations, marketing renders, and product visualization.

Final Summary

1. Orthographic views maintain accurate bicycle proportions.
2. Perspective views create realistic depth and visual appeal.
3. Engineers rely on orthographic projections for geometry validation.
4. Marketing visuals almost always use perspective rendering.
5. Professional workflows typically switch between both view modes.

FAQ

What is an orthographic bike 3D model view?

It is a projection that displays a bicycle without perspective distortion, preserving true proportions and dimensions.

What is a perspective bike 3D model view?

A perspective view simulates camera vision, making distant parts appear smaller and creating realistic depth.

Which is better for bike design, orthographic or perspective?

Orthographic views are better for technical design because they preserve measurement accuracy.

Why do bike renders often use perspective views?

Perspective renders look more realistic and visually appealing, which helps in marketing and product visualization.

Can orthographic views show depth?

No. Orthographic projections remove depth scaling, which keeps all elements proportionally consistent.

Is orthographic vs perspective bike 3D model comparison important?

Yes. Understanding orthographic vs perspective bike 3D model views helps designers choose the correct visualization for analysis or presentation.

Which view is best for bicycle geometry analysis?

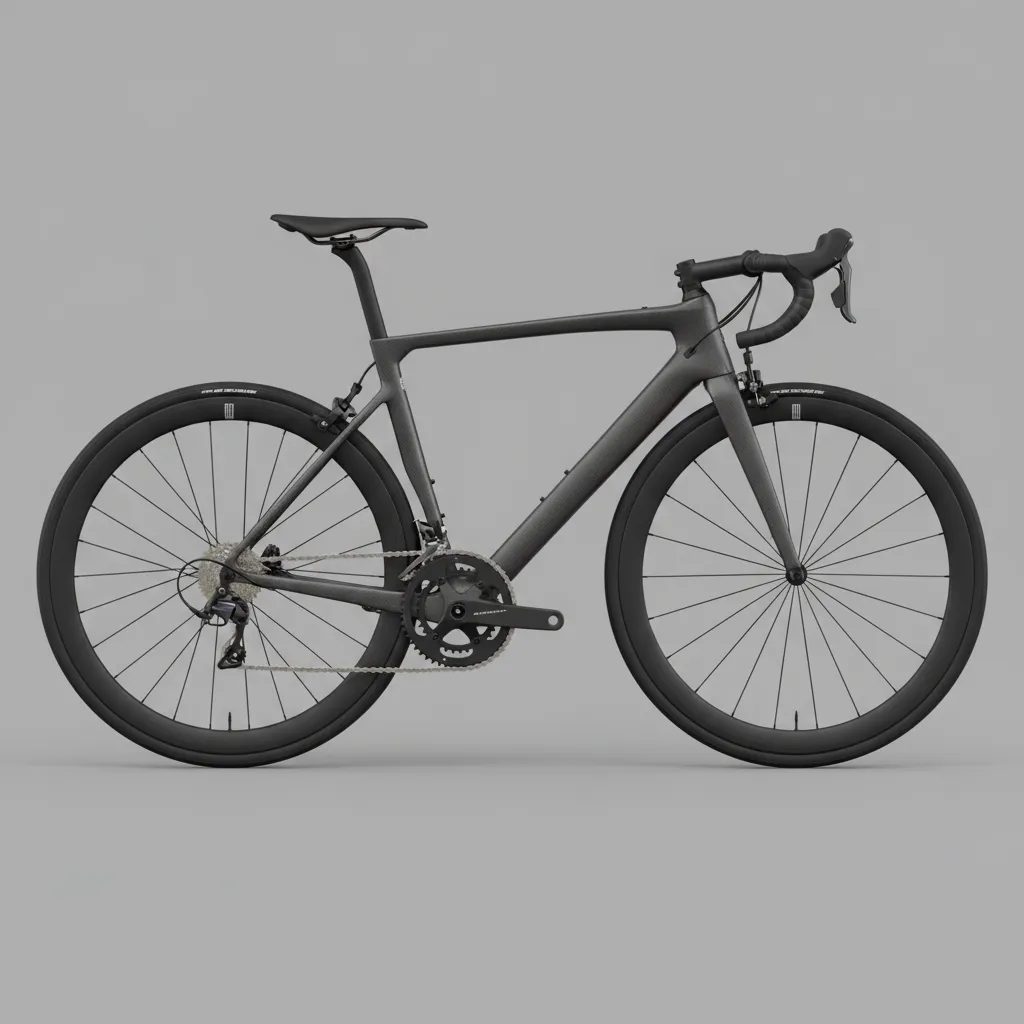

Orthographic side and top views are typically used to inspect frame geometry.

Do professional 3D artists use both view types?

Yes. Most modeling workflows switch between orthographic and perspective views depending on the task.
