Outdoor Ceiling Fan Installation Safety and Weather Protection Guide: Learn how to install and protect outdoor ceiling fans safely so your patio stays comfortable without electrical or weather risks.

Direct Answer

Outdoor ceiling fan installation must follow three core safety principles: use the correct wet or damp rated fan, secure it to a structural ceiling box designed for fans, and protect electrical connections from moisture. When installed with weather‑rated hardware and proper electrical protection, outdoor ceiling fans can safely operate in patios, pergolas, and covered outdoor spaces for many years.

Quick Takeaways

1. Wet rated fans are designed for direct rain exposure, while damp rated fans require a covered outdoor ceiling.
2. A ceiling fan must always mount to a fan‑rated electrical box secured to structural framing.
3. Moisture‑sealed wiring connections dramatically reduce electrical failure outdoors.
4. Regular inspections prevent corrosion, loose mounting, and motor damage.
5. Weather protection extends both safety and the lifespan of outdoor ceiling fans.

Introduction

Outdoor ceiling fan installation looks simple at first glance. I have installed or specified hundreds of them in patios, covered decks, and outdoor kitchens over the past decade, and the biggest problems rarely come from the fan itself. They come from how it's installed.

Homeowners often assume any ceiling fan can work outdoors if the patio has a roof. Unfortunately that shortcut leads to rusted motors, electrical hazards, and fans shaking loose after a season or two.

The safest outdoor ceiling fan installation always combines three things: the correct weather rating, proper electrical protection, and a mounting system that can handle the fan's movement and weight.

When clients are planning patio layouts, I often recommend visualizing placement first using tools like interactive patio layout planners that show airflow coverage before installation. It prevents awkward fan locations and reduces the temptation to mount a fan where the structure can't safely support it.

In this guide I'll walk through the safety details many tutorials skip — including the hidden installation mistakes that shorten a fan's life or create electrical risk.

save pin

Understanding Damp Rated vs Wet Rated Outdoor Ceiling Fans

Key Insight: The difference between damp rated and wet rated outdoor ceiling fans determines whether your fan can safely handle humidity or direct rain exposure.

One of the most common mistakes I see is installing a damp‑rated fan in a location that actually receives rain or wind‑driven moisture. The fan may work initially, but corrosion slowly damages the motor housing and wiring.

Here's the practical difference designers and electricians rely on.

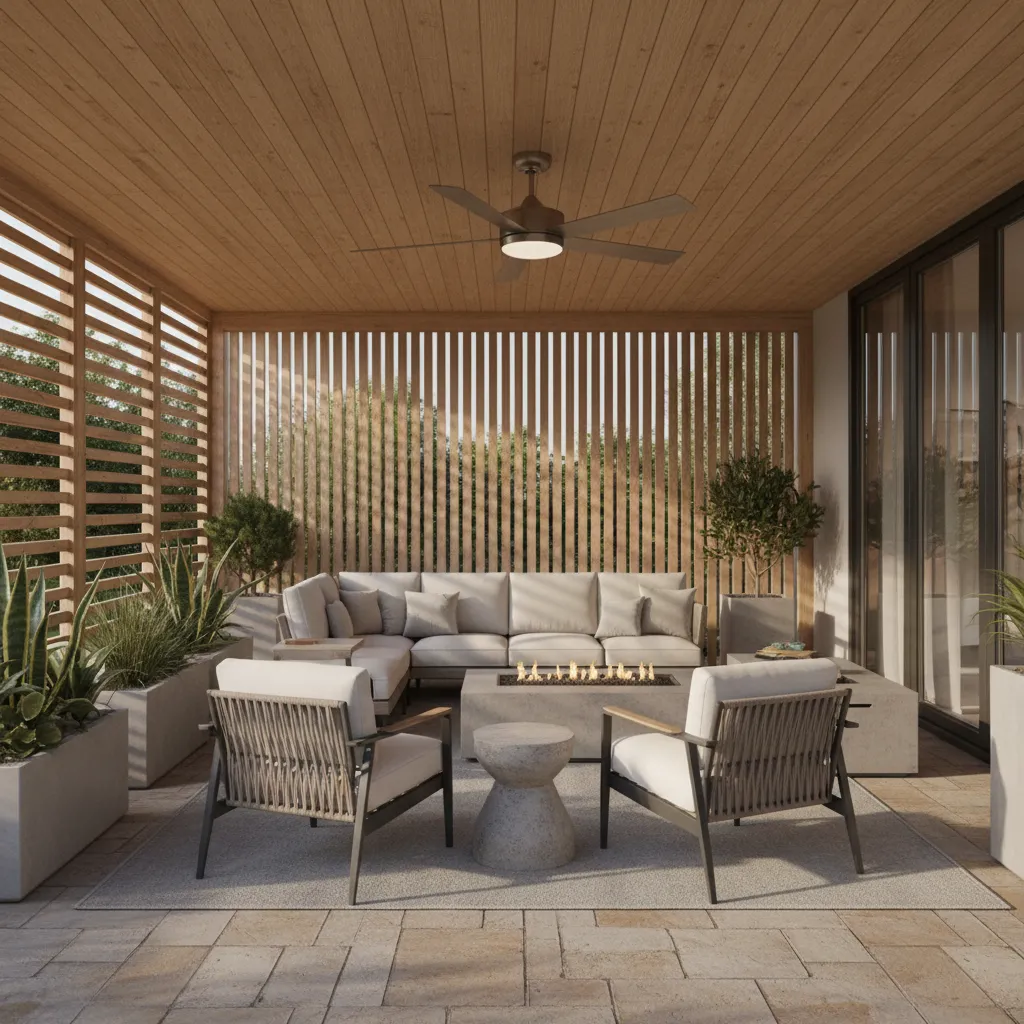

1. Damp Rated FansDesigned for covered patios and porches
2. Protected from direct rain
3. Handles humidity and indirect moisture

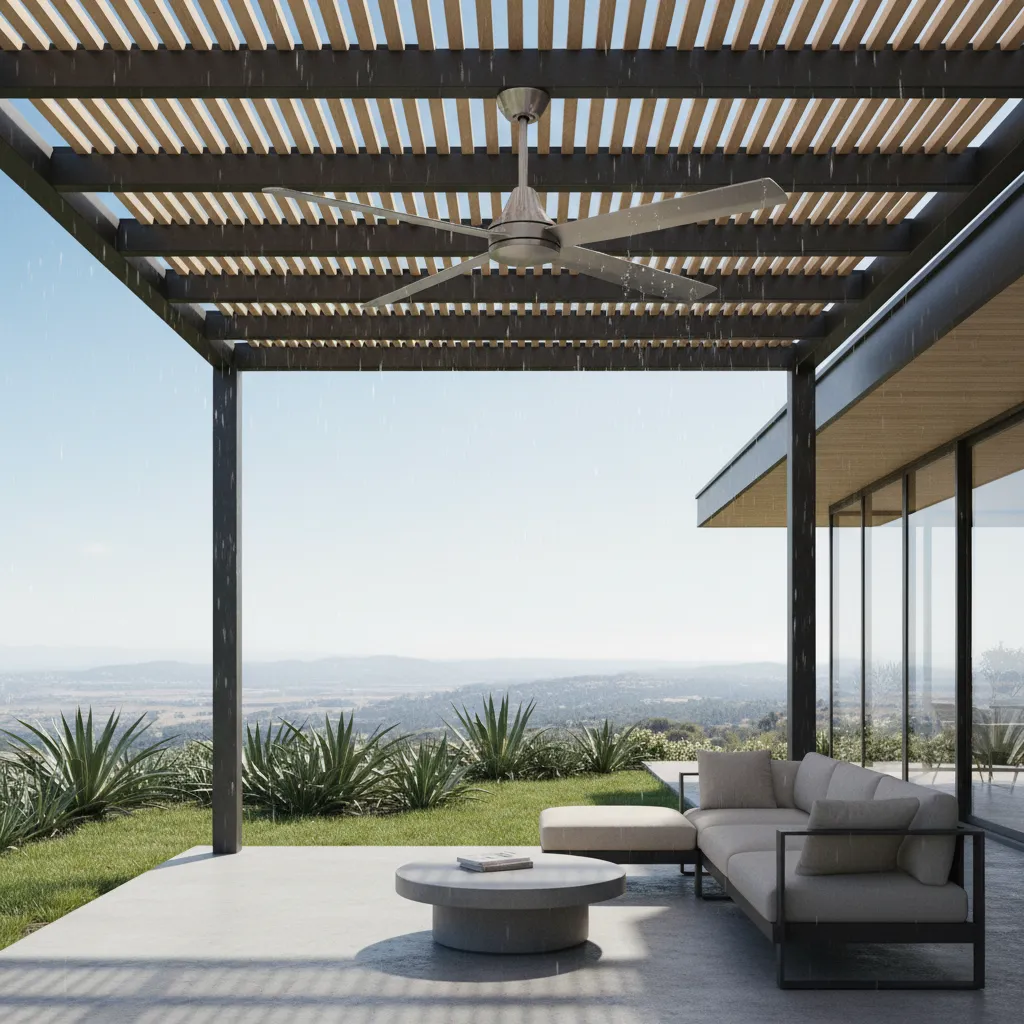

4. Wet Rated FansFully sealed motor housing
5. Safe for direct rain exposure
6. Suitable for pergolas and open patios

According to guidelines from UL and ETL certification standards, wet rated fans undergo additional water exposure testing that damp rated models do not.

In real projects, my rule is simple:

1. If wind can blow rain onto the fan, choose wet rated.
2. If the ceiling is fully enclosed and protected, damp rated may be sufficient.

Electrical Safety Considerations for Outdoor Installations

Key Insight: Moisture protection and proper grounding are the two most critical electrical safety elements in outdoor ceiling fan installation.

Outdoor wiring failures rarely happen immediately. Instead, moisture slowly penetrates connections and causes corrosion or short circuits.

Safe outdoor fan wiring typically includes:

1. GFCI protected circuits
2. Weatherproof electrical boxes
3. Sealed wire connectors rated for outdoor use
4. Proper grounding of the fan body

The National Electrical Code (NEC) requires outdoor outlets and circuits in damp or wet locations to include GFCI protection. This dramatically reduces shock risk if moisture reaches the wiring.

In one patio renovation project in Santa Monica, we discovered a standard indoor junction box had been used for an outdoor fan. After two winters, condensation had already corroded the wire connections. Replacing the box with a weather‑rated fan box eliminated the issue entirely.

save pin

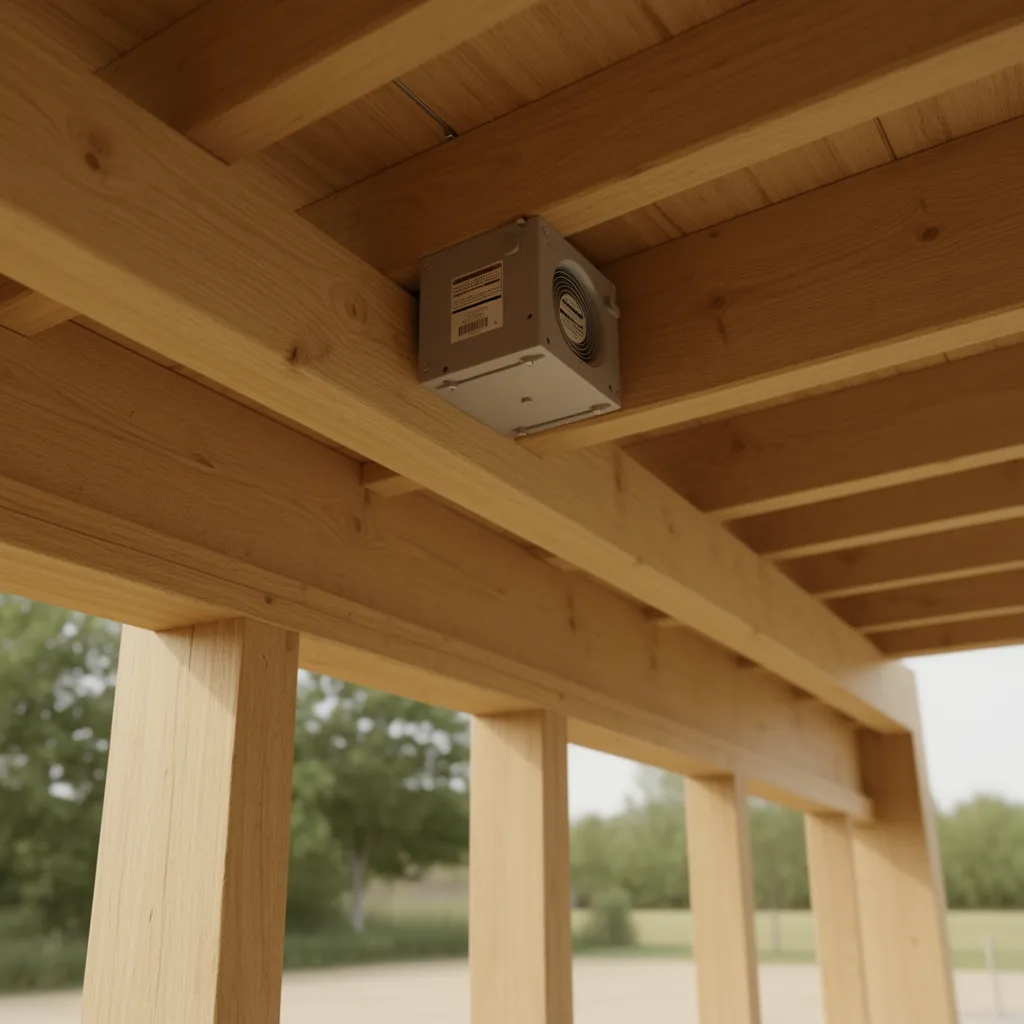

Proper Mounting Hardware and Ceiling Support

Key Insight: Outdoor ceiling fans must mount to a fan‑rated electrical box attached directly to structural framing, never drywall or thin patio panels.

Ceiling fans constantly move. Even small vibrations multiply over time, which means the mounting hardware carries far more stress than a standard light fixture.

Safe mounting requires:

1. UL listed fan‑rated ceiling box
2. Direct attachment to joists or support brace
3. Corrosion resistant screws or bolts
4. Downrod rated for outdoor use

Many patios use aluminum panels or beadboard ceilings that cannot support fan loads. In those cases, installers must secure a brace between joists above the ceiling surface.

When homeowners plan layouts using tools like 3D patio planning tools that visualize ceiling fixtures and structural spacing, it becomes much easier to position fans where joists exist.

Protecting Ceiling Fans From Rain and Moisture

Key Insight: Even wet rated fans last significantly longer when partially protected from direct rain and wind.

This is one of those hidden realities most product guides ignore. Wet rated fans are designed to survive rain — not necessarily to endure years of constant exposure.

In my experience, fan lifespan increases dramatically when you reduce water exposure through simple design strategies.

1. Install fans under roof overhangs when possible
2. Avoid placement near roof drip lines
3. Choose corrosion resistant finishes
4. Use sealed LED light kits

Materials also matter. Stainless steel hardware and ABS blades outperform standard steel and wood in humid climates.

save pin

Common Installation Mistakes to Avoid

Key Insight: Most outdoor ceiling fan failures come from small installation shortcuts rather than product defects.

After reviewing many failed installations, a few mistakes appear again and again.

1. Using indoor ceiling fans outdoors
2. Installing damp rated fans in open patios
3. Mounting to non‑fan rated electrical boxes
4. Skipping GFCI protection
5. Ignoring ceiling clearance requirements

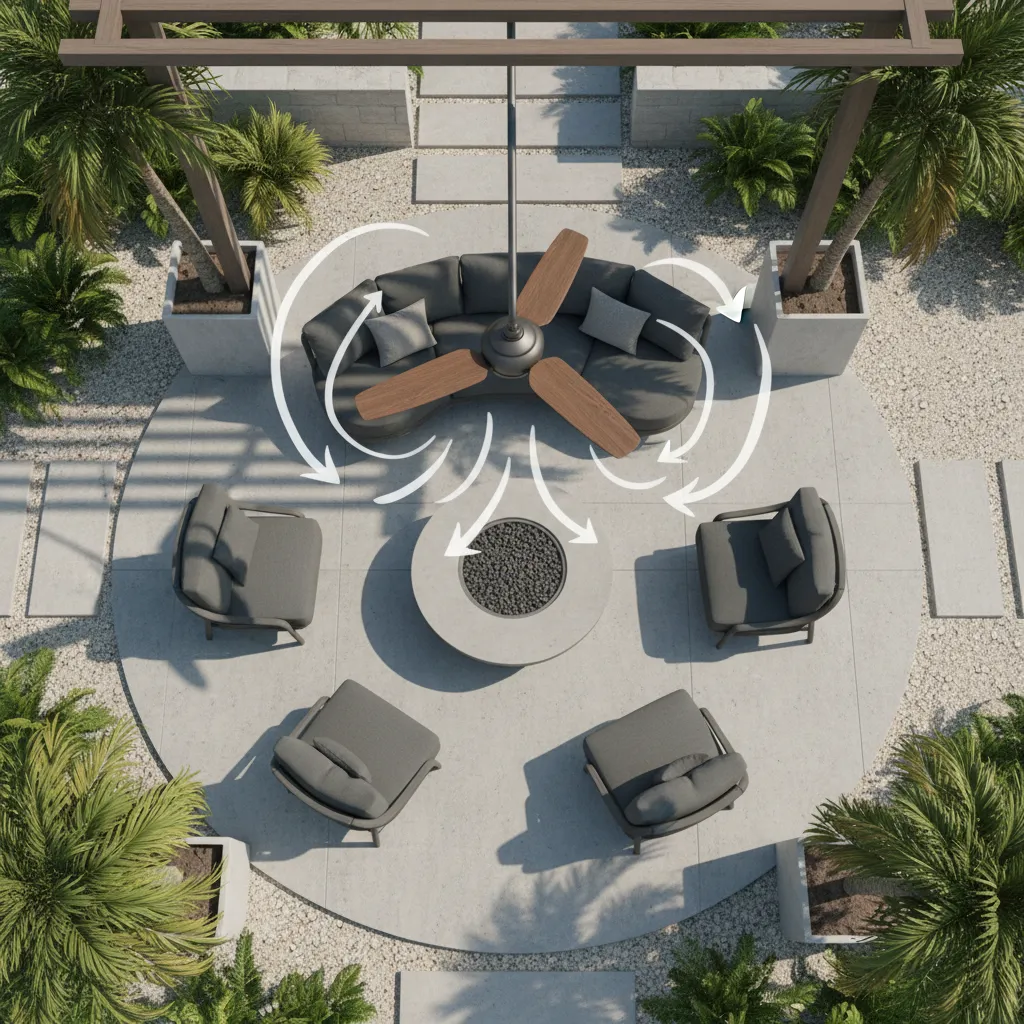

Another surprisingly common issue is airflow misplacement. Fans installed too close to walls or beams produce poor airflow.

Before installation, I recommend mapping coverage using visual airflow and furniture layout simulations for patio planning. This helps determine the best fan size and placement before drilling into the ceiling.

save pin

Inspection and Maintenance for Long Term Safety

Key Insight: Annual inspection prevents most safety issues and dramatically extends outdoor ceiling fan lifespan.

Outdoor fans operate in harsher conditions than indoor fans, so periodic inspection is essential.

A simple maintenance checklist includes:

1. Tighten mounting screws and downrod connections
2. Inspect blades for cracks or warping
3. Check wiring for corrosion
4. Clean dust, pollen, and debris from the motor housing
5. Test wobble or vibration while operating

Many manufacturers recommend checking outdoor fan hardware at least once per year, especially in coastal or humid environments.

Answer Box

The safest outdoor ceiling fan installation uses a wet or damp rated fan, a fan‑rated electrical box secured to framing, and weather‑sealed wiring connections. Proper placement and annual inspection significantly reduce electrical risk and extend the fan's lifespan.

Final Summary

1. Choose wet rated fans for rain exposure and damp rated fans for covered patios.
2. Always install fans on fan‑rated electrical boxes secured to structural framing.
3. GFCI protection and sealed wiring prevent outdoor electrical hazards.
4. Strategic placement reduces moisture damage and improves airflow.
5. Annual inspection keeps outdoor ceiling fans safe and stable.

FAQ

Can I install a regular indoor ceiling fan outside?

No. Indoor fans are not designed to handle moisture or humidity and can become unsafe outdoors.

What is the difference between damp rated and wet rated outdoor ceiling fans?

Damp rated fans are for covered patios. Wet rated fans can safely operate in direct rain exposure.

Do outdoor ceiling fans need GFCI protection?

Yes. Outdoor circuits should use GFCI protection to prevent shock hazards if moisture reaches the wiring.

How high should an outdoor ceiling fan be installed?

The blades should be at least 7 feet above the floor and about 8–9 feet for ideal airflow.

Can rain damage a wet rated outdoor ceiling fan?

Wet rated fans are designed to handle rain, but partial protection improves lifespan.

How do I protect outdoor ceiling fans from rain?

Install them under roof overhangs, avoid drip lines, and choose corrosion resistant materials.

How often should outdoor ceiling fans be inspected?

At least once a year to check mounting hardware, wiring, and blade stability.

Is outdoor ceiling fan installation difficult?

Installation is similar to indoor fans but requires weather‑rated wiring components and structural mounting.

References

National Electrical Code (NEC) Outdoor Wiring Guidelines

UL Certification Standards for Ceiling Fans

American Lighting Association Installation Recommendations
