Passive Cooling Optimization for Low Cost Tropical Homes: Practical airflow, shading, and heat reduction strategies that keep tropical homes comfortable without expensive mechanical cooling.

Direct Answer

Passive cooling optimization for low cost tropical homes focuses on maximizing airflow, reducing solar heat gain, and releasing accumulated heat through roof and wall design. The most effective strategies combine proper building orientation, cross ventilation, deep shading, and heat-reflective roofing materials. When these elements work together, indoor temperatures can drop several degrees without relying on air conditioning.

Quick Takeaways

1. Orienting homes to prevailing winds can significantly improve indoor airflow and reduce heat buildup.
2. Roof design often matters more than wall insulation in tropical climates.
3. Cross ventilation requires both inlet and outlet openings placed at different pressures.
4. External shading blocks heat before it enters the building envelope.
5. Affordable materials like bamboo, clay tiles, and ventilated metal roofs improve passive cooling.

Introduction

After working on residential projects in Southeast Asia, Central America, and coastal regions of Africa, one thing becomes obvious quickly: passive cooling is not a luxury in tropical housing. It is the difference between a livable home and an overheated one.

Passive cooling tropical house design is often misunderstood as simply “adding more windows.” In reality, airflow, shading, and roof performance interact as a system. If one element is poorly designed, the entire cooling strategy fails.

I have seen affordable homes where indoor temperatures remained comfortable even during 95°F afternoons simply because orientation, roof ventilation, and window placement were handled correctly. I have also seen modern concrete houses with large windows become heat traps despite having expensive finishes.

Today, architects and builders increasingly rely on early-stage planning tools to test layouts and airflow patterns before construction. For example, many teams now experiment with layouts using simple tools that help generate early floor plan concepts for tropical homes, which makes it easier to evaluate ventilation paths and solar exposure early in the design process.

In this guide, I’ll walk through the practical strategies I’ve seen work repeatedly in real tropical housing projects. More importantly, we’ll also look at the subtle mistakes that quietly sabotage passive cooling performance.

save pin

Principles of Passive Cooling in Tropical Architecture

Key Insight: Passive cooling works best when heat is prevented, airflow is encouraged, and stored heat is released at night.

Tropical climates introduce two simultaneous problems: intense solar radiation and high humidity. Mechanical cooling systems address symptoms, but passive strategies target the source of the heat load.

In most tropical regions, three design priorities determine thermal comfort:

1. Limit direct solar heat gain
2. Encourage continuous air movement
3. Allow hot air to escape vertically

Many designers focus heavily on insulation, but in tropical environments insulation alone rarely solves overheating. The real challenge is stopping solar radiation before it enters the building envelope.

Research from the International Energy Agency consistently shows that shading and ventilation strategies can reduce indoor cooling demand by 20–40% in warm climates.

A surprisingly common mistake I see in affordable housing projects is over-sealing buildings in an attempt to mimic temperate-climate construction. In the tropics, buildings need to breathe.

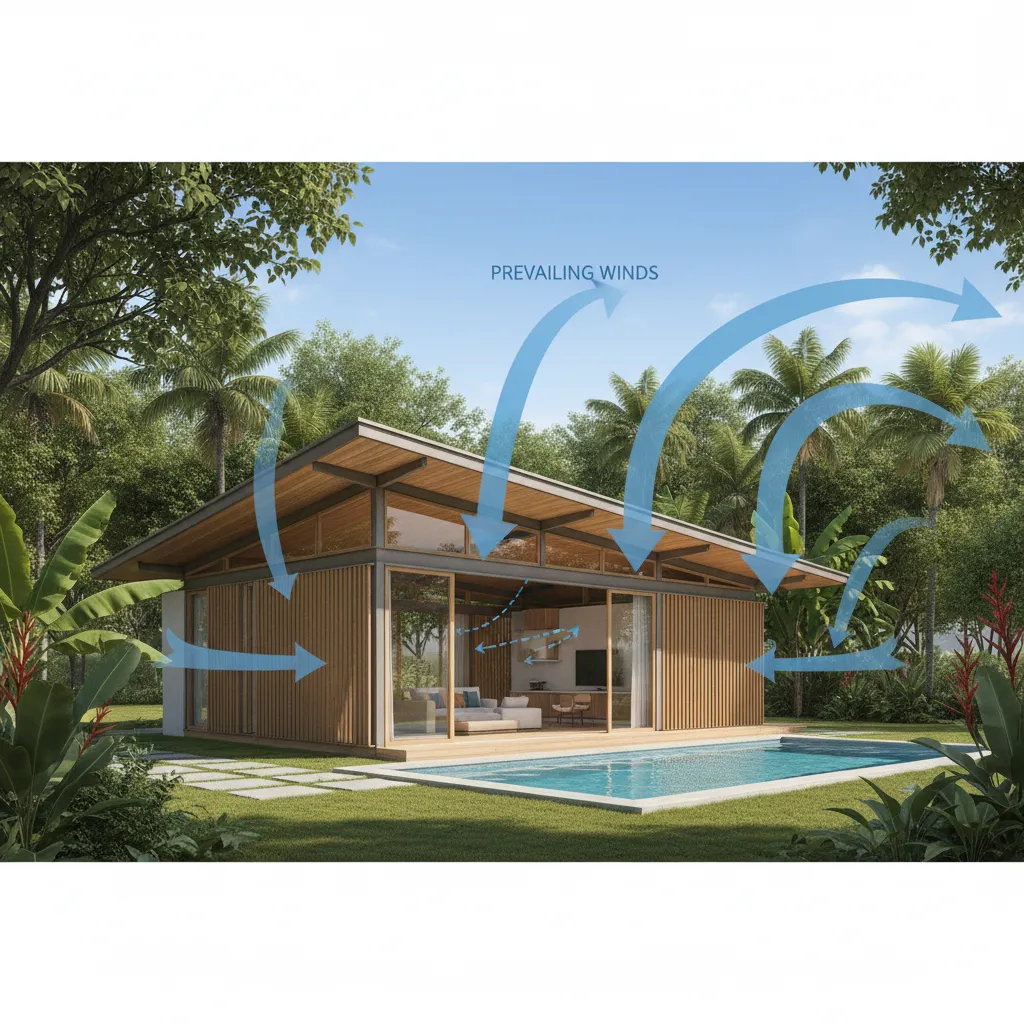

Building Orientation for Maximum Airflow

Key Insight: Correct orientation can improve natural ventilation more than increasing the number of windows.

Wind direction is one of the most underutilized resources in tropical architecture. Yet many housing developments are planned purely around plot efficiency instead of airflow.

In practical terms, homes should align so their longer sides face prevailing winds. This increases the pressure difference between openings, which strengthens cross ventilation.

Typical orientation strategies include:

1. Positioning the longest facade perpendicular to prevailing winds
2. Avoiding dense building rows that block wind corridors
3. Using narrow building depths (6–8 meters) for better airflow penetration
4. Elevating floors slightly to allow air movement underneath

When planning layouts, architects often test wind paths during the early design phase. Many designers visualize airflow using interactive 3D layout simulations for testing room orientation and circulation, which makes ventilation issues visible before construction.

save pin

Roof and Ceiling Design for Heat Reduction

Key Insight: In tropical homes, the roof is the largest source of heat gain and the most powerful opportunity for passive cooling.

Solar radiation hits the roof directly for most of the day. If heat becomes trapped in the roof cavity, the entire house behaves like an oven.

The most effective roof strategies I’ve implemented include:

1. Ventilated double roofs
2. High reflective roofing materials
3. Large overhangs
4. Raised ceilings or vented ridge caps

A ventilated roof assembly allows hot air to escape before it radiates into living spaces. This technique is widely used in traditional Indonesian and Caribbean architecture.

Common heat-reducing roof materials include:

1. Clay tiles with ventilation gaps
2. Light colored metal roofs with radiant barriers
3. Palm or thatch systems in rural contexts
4. Composite insulated panels for modern projects

One hidden issue many developers overlook is attic ventilation. Even inexpensive ridge vents or gable vents can significantly reduce interior temperatures.

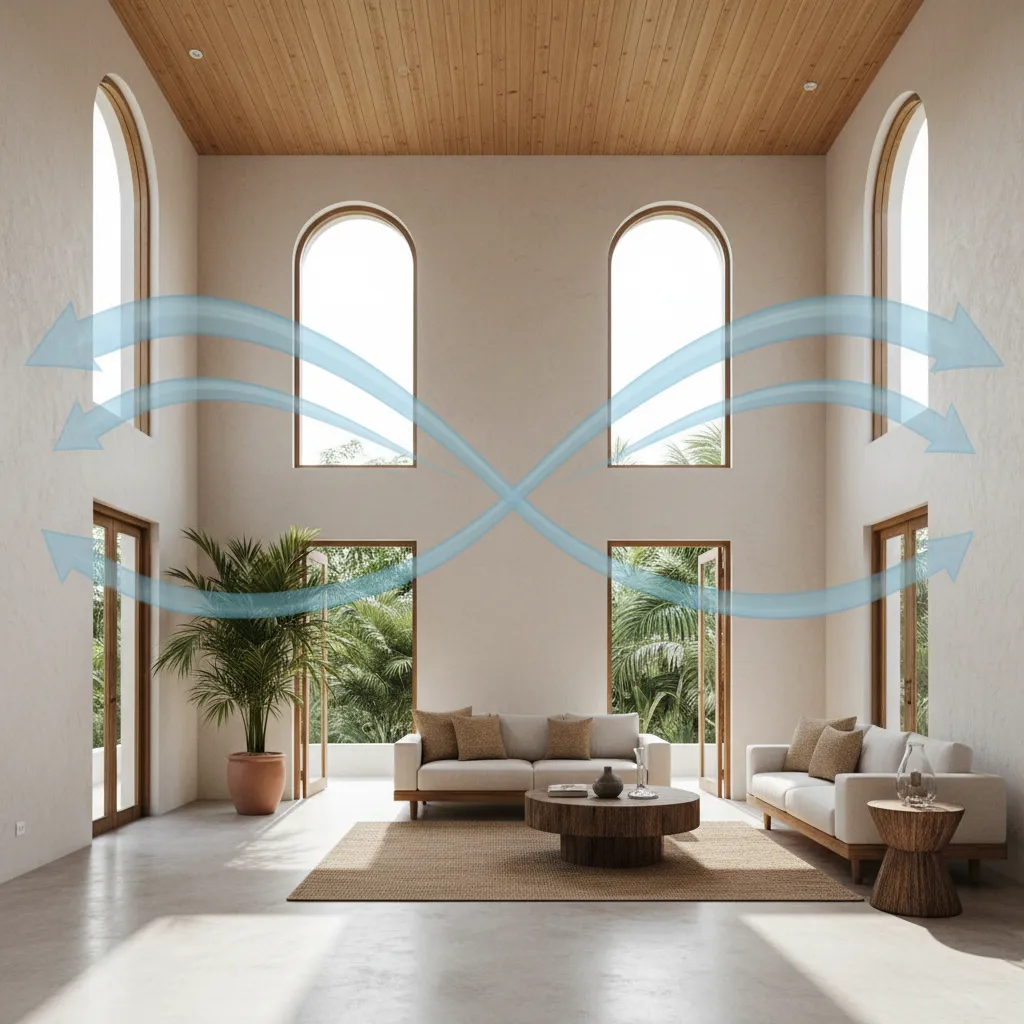

Window Placement and Cross Ventilation Strategies

Key Insight: Effective cross ventilation requires pressure differences between openings, not just multiple windows.

Many homes fail to achieve real airflow because openings are poorly positioned or identical in size.

Air moves when pressure differences exist between the windward and leeward sides of a building. This means inlet and outlet openings should be designed intentionally.

Effective cross ventilation strategies include:

1. Positioning windows on opposite walls
2. Using larger openings on the windward side
3. Adding high-level vents or clerestory windows
4. Keeping interior partitions partially open

Traditional tropical houses often include transom vents above doors, which allow airflow even when rooms are closed.

save pin

Answer Box

The most effective passive cooling tropical house design combines orientation, cross ventilation, reflective roofing, and deep shading. When these strategies are integrated early in the design process, indoor temperatures can drop significantly without mechanical cooling systems.

Shading Systems That Lower Indoor Temperatures

Key Insight: Exterior shading is far more effective than interior blinds because it blocks solar heat before it enters the building.

Solar radiation entering through windows quickly becomes trapped heat. Interior curtains reduce glare but do little to prevent thermal gain.

The most effective shading strategies include:

1. Deep roof overhangs
2. Vertical fins on east and west facades
3. Vegetation shading
4. Covered verandas or balconies

In many tropical housing projects, verandas perform three roles simultaneously: shading walls, creating outdoor living space, and cooling air before it enters interior rooms.

A design oversight I see frequently is undersized overhangs. In tropical regions, roof overhangs often need to extend 60–120 cm to be effective.

Combining Passive Cooling With Affordable Materials

Key Insight: Material selection can enhance passive cooling when it supports airflow, reflectivity, and thermal release.

Passive cooling does not require expensive technology. Many effective solutions rely on materials that have been used in tropical construction for centuries.

Examples of affordable passive cooling materials include:

1. Bamboo wall systems with breathable gaps
2. Perforated concrete blocks
3. Light colored exterior finishes
4. Ventilated metal roofing

Perforated block walls, for instance, allow constant airflow while still providing privacy and security. These are widely used in tropical architecture across Vietnam, Brazil, and Mexico.

For builders experimenting with different layouts, many teams now test room arrangements and airflow paths using AI assisted floor planning for optimizing ventilation and room layoutbefore finalizing construction drawings.

save pin

Final Summary

1. Roof design is the most powerful passive cooling opportunity.
2. Building orientation strongly influences natural ventilation performance.
3. Cross ventilation requires pressure differences between openings.
4. External shading prevents heat from entering the building envelope.
5. Affordable materials can significantly enhance passive cooling.

FAQ

What is passive cooling in tropical homes?

Passive cooling uses natural airflow, shading, and heat control strategies to maintain comfortable indoor temperatures without mechanical air conditioning.

How effective is passive cooling tropical house design?

Well-designed passive cooling tropical house design can reduce indoor temperatures by several degrees and significantly lower the need for mechanical cooling.

What roof type is best for tropical climates?

Ventilated roofs with reflective materials or clay tiles perform best because they release trapped heat and reduce solar heat gain.

How do you design cross ventilation in tropical houses?

Place openings on opposite walls, size inlet windows larger than outlets, and allow airflow through interior spaces.

Do tropical homes need insulation?

Insulation can help, but shading, roof ventilation, and airflow strategies usually provide greater cooling benefits.

What materials help with affordable passive cooling for tropical climates?

Bamboo panels, perforated blocks, clay tiles, and reflective roofing materials are common low-cost cooling solutions.

Why do many tropical homes still feel hot?

Common problems include poor orientation, insufficient shading, sealed interiors, and roofs that trap heat.

Can passive cooling replace air conditioning?

In many climates it can significantly reduce dependence on AC, though extremely humid regions may still require supplemental cooling.
