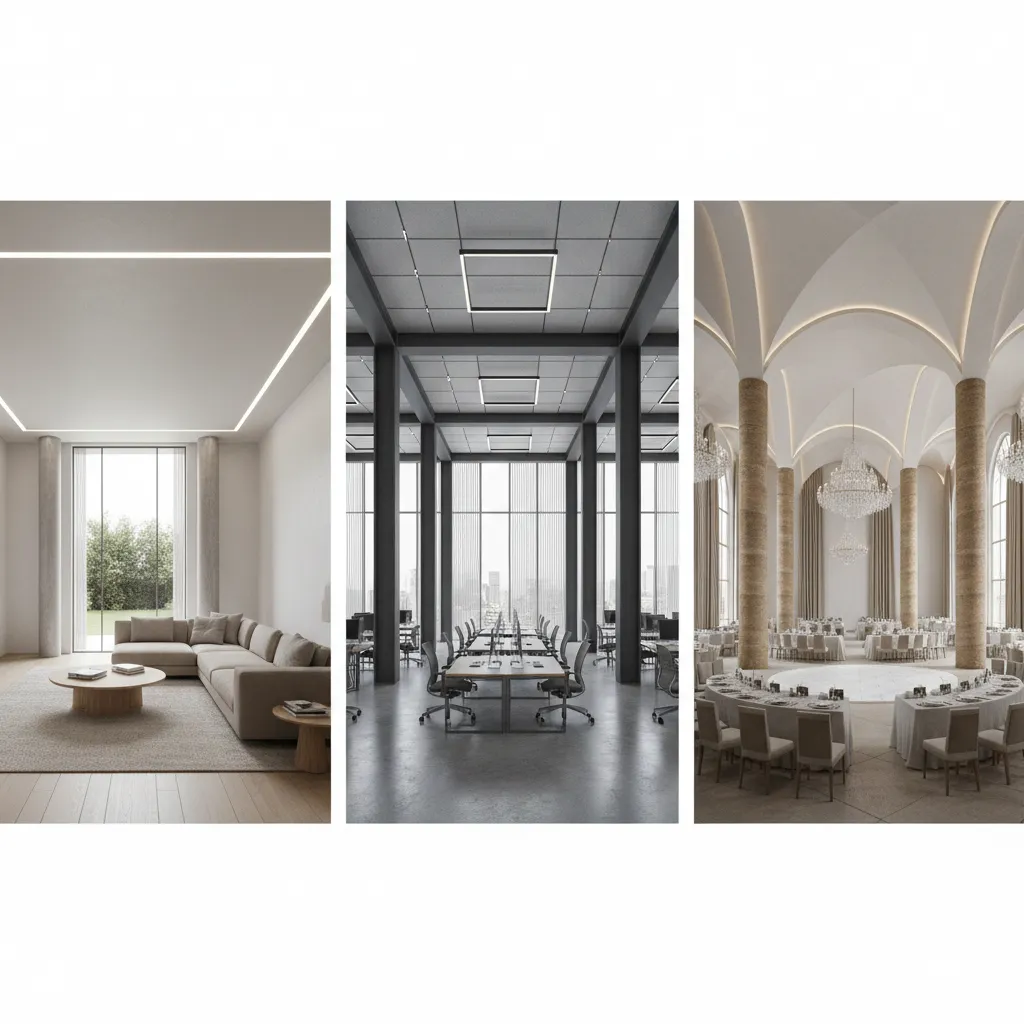

Pillar Design Approaches in Residential Commercial and Banquet Halls: How structural columns change based on building purpose, crowd load, and layout strategy in different types of halls

Direct Answer

Pillar design varies significantly between residential, commercial, and banquet halls because each space handles different structural loads, crowd density, and layout flexibility. Residential halls prioritize minimal columns and comfort, commercial buildings rely on strict column grid systems for efficiency, while banquet halls require wider spans and carefully positioned pillars to keep sightlines and circulation clear.

Quick Takeaways

1. Residential halls typically use fewer columns to keep living spaces open and flexible.
2. Commercial buildings rely on consistent structural column grids for cost efficiency and repeatable layouts.
3. Banquet halls prioritize wide spans and strategic pillar placement to avoid blocking views.
4. Material strength and reinforcement requirements increase as occupancy and span size grow.
5. Column placement directly affects circulation, safety, and usable floor area.

Introduction

One thing I learned after years of designing interiors and reviewing architectural plans is that pillar design is rarely just a structural decision. It quietly shapes how a hall feels, how people move, and how usable the space actually becomes.

In many projects, clients only start thinking about pillars after construction drawings are finished. By then, column placement is already locked in, which means the furniture layout, event capacity, and even lighting design must adapt around it.

The challenge becomes even more obvious when comparing residential halls, commercial buildings, and banquet venues. Each type of space demands a completely different pillar strategy. A column layout that works perfectly in an office tower can destroy the functionality of an event hall.

I often recommend that designers test early layout scenarios before finalizing column placement. Tools that allow quick layout visualization, such as platforms used to experiment with different room layouts before construction, can reveal circulation problems long before structural work begins.

In this guide, I'll break down how pillar design changes depending on building purpose, where designers commonly make mistakes, and what structural patterns consistently perform best across real projects.

save pin

How Hall Purpose Influences Pillar Design

Key Insight: The intended function of a hall determines column spacing, structural load requirements, and acceptable visual obstruction.

Different building types place completely different demands on structural columns. Residential spaces focus on comfort and aesthetics, commercial buildings prioritize efficiency and modular layouts, and event halls prioritize unobstructed views and high crowd loads.

From a structural perspective, three forces shape pillar design decisions:

1. Expected occupancy load
2. Span distance between supports
3. Functional layout requirements

Architects often categorize hall pillar strategies like this:

1. Residential halls — smaller spans, fewer columns, aesthetic integration
2. Commercial halls — strict column grid systems for repeated floor layouts
3. Banquet halls — large spans with minimized interior columns

According to structural design guidelines referenced by the American Institute of Steel Construction, large assembly spaces typically require wider spans to reduce visual obstruction and maintain evacuation efficiency.

This is why copying pillar spacing from one building type into another often causes serious layout problems.

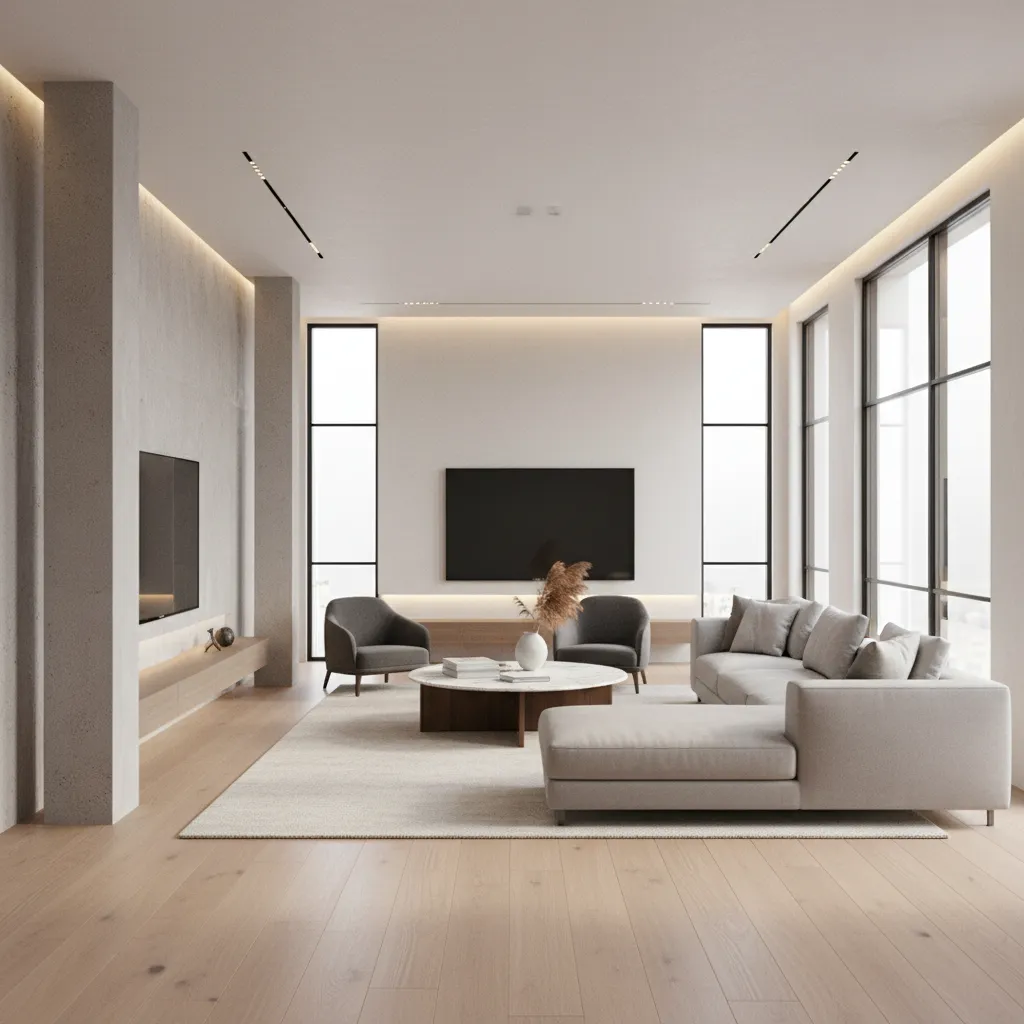

Residential Hall Pillar Layout Principles

Key Insight: Residential halls work best when pillars are minimized and integrated into walls or design elements.

Homeowners rarely want visible columns interrupting their living room or family hall. In residential projects, the goal is to keep pillars discreet while maintaining structural stability.

In many homes I've worked on, the structural engineer tries to align pillars with:

1. Wall intersections
2. Staircase cores
3. Kitchen partitions
4. Exterior structural walls

This alignment allows the structure to remain strong while keeping the living space visually open.

Typical residential column spacing often falls between:

1. 10 to 16 feet for reinforced concrete homes
2. 12 to 20 feet for steel frame homes

A mistake I frequently see in residential hall pillar planning is placing columns symmetrically for structural simplicity but ignoring furniture layout. A column positioned in the center of a sofa zone or TV wall instantly reduces usability.

Before committing to structural layouts, I usually map furniture zones using digital planning tools similar to those used to visualize full floor plans and column placement in 3D. Even a simple preview can reveal awkward pillar locations.

save pin

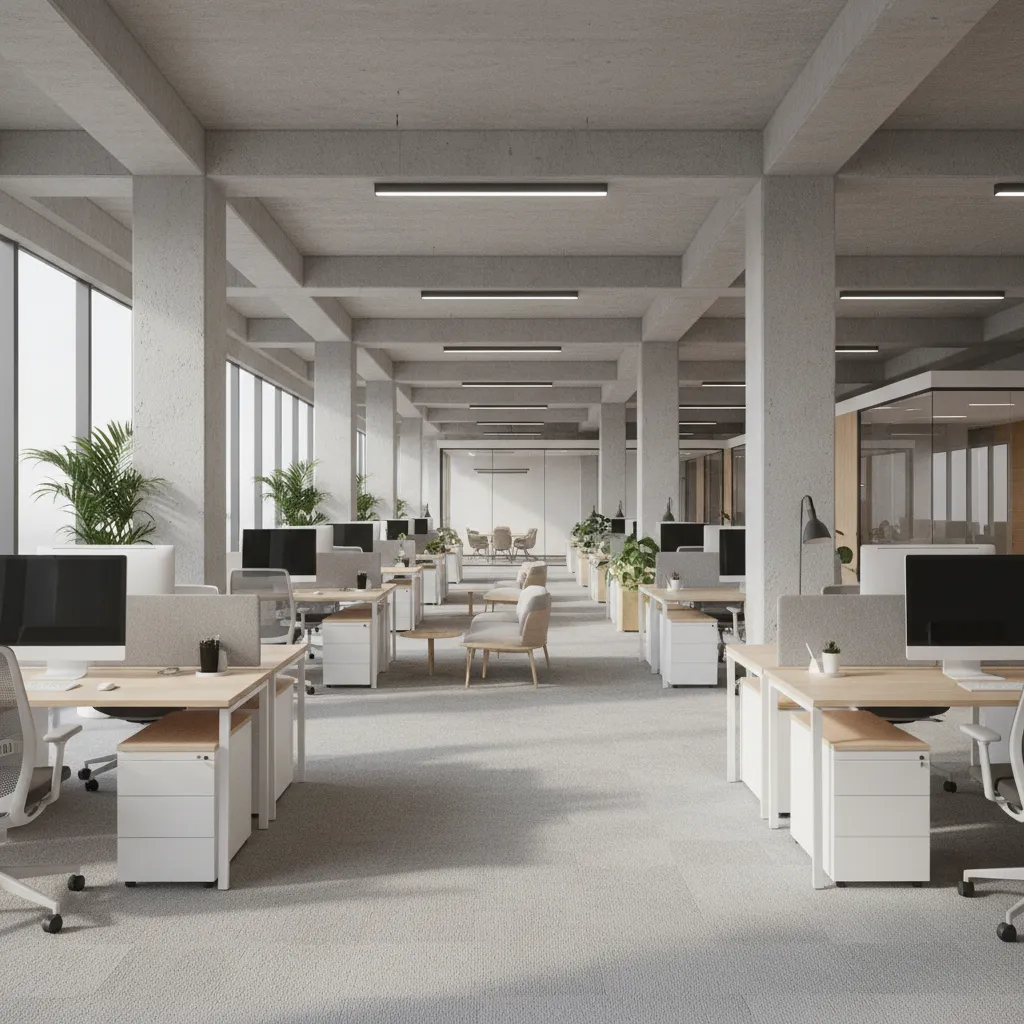

Commercial Building Column Grid Systems

Key Insight: Commercial buildings rely on consistent column grids because they simplify construction, leasing flexibility, and structural efficiency.

Unlike residential spaces, commercial halls are designed around repeatable structural grids. This allows developers to divide spaces into offices, retail units, or conference areas without redesigning the structure.

Typical commercial column grids include:

1. 25 ft × 25 ft grid
2. 30 ft × 30 ft grid
3. 30 ft × 40 ft grid for large offices

The grid approach provides several advantages:

1. Predictable structural loads
2. Standardized construction materials
3. Flexible interior partitions
4. Improved building economics

Commercial developers often coordinate column grids with parking layouts as well. Many office towers align columns so that parking bays below remain efficient.

This is also why office planning frequently starts with structural grids before interior design decisions are made. Designers working on corporate interiors often use planning frameworks similar to those used to optimize office layouts around structural columns.

save pin

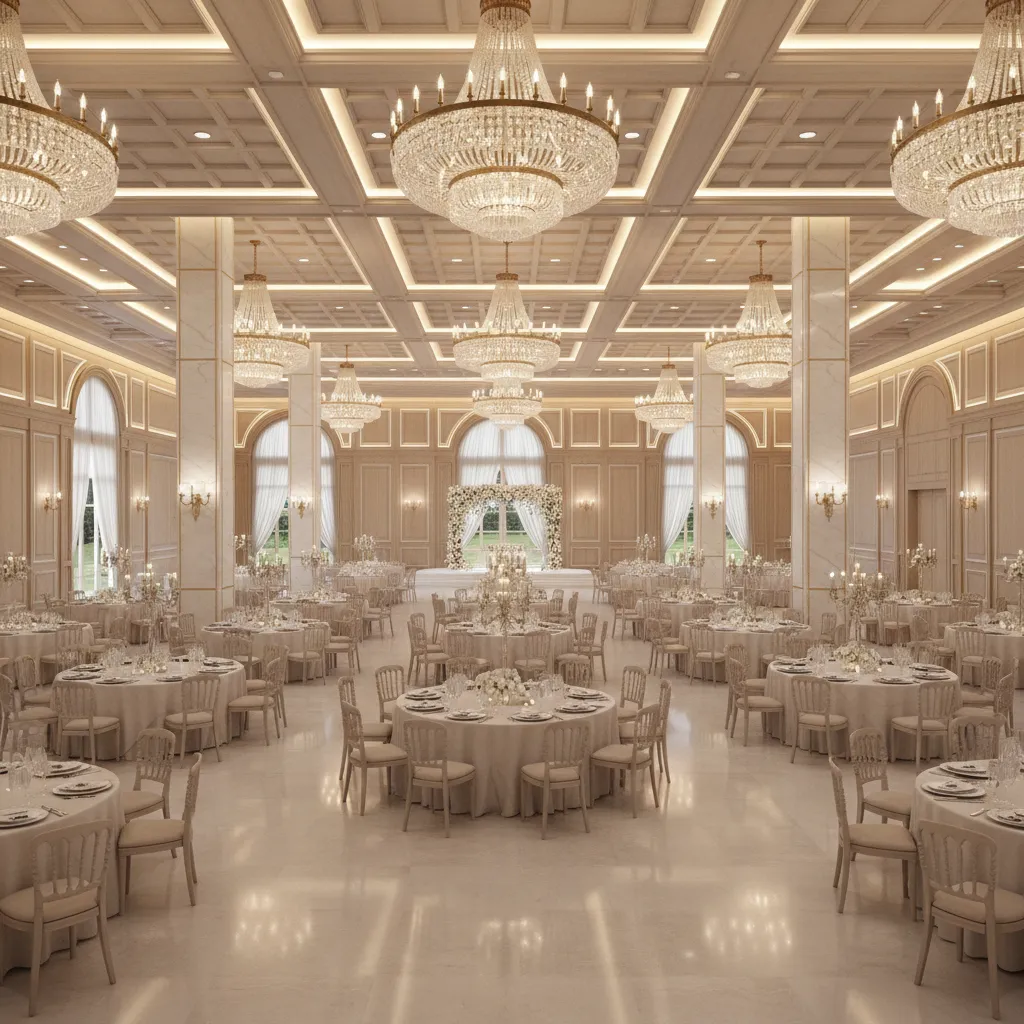

Banquet and Event Hall Structural Requirements

Key Insight: Banquet halls prioritize wide, unobstructed spans to maintain clear sightlines for events.

Event venues operate under very different spatial priorities compared with homes or offices.

A single poorly positioned column can block views of:

1. Wedding stages
2. Performance areas
3. Presentation screens
4. Main dining layouts

Because of this, banquet hall pillar design often focuses on maximizing span distances.

Common structural approaches include:

1. Long-span steel trusses
2. Post-tension concrete beams
3. Perimeter column structures
4. Hybrid steel-concrete framing

Large banquet venues frequently aim for interior spans between 40 and 80 feet depending on structural material.

Industry planning guides from hospitality architects emphasize that even a few interior columns can reduce usable seating capacity by 10–20 percent due to circulation restrictions.

Material and Reinforcement Differences

Key Insight: As hall size and occupancy increase, column materials and reinforcement requirements become significantly stronger.

The structural material used for pillars changes depending on span length, building height, and occupancy load.

Common column materials include:

1. Reinforced concrete columns
2. Structural steel columns
3. Composite steel-concrete columns

Typical comparisons:

1. Residential halls – reinforced concrete columns dominate due to cost efficiency
2. Commercial buildings – steel or composite columns enable taller structures
3. Banquet halls – steel systems allow longer spans and fewer supports

Another overlooked difference is lateral reinforcement. Spaces designed for large crowds must meet stricter structural safety codes, especially in earthquake-prone regions.

Answer Box

Pillar design changes primarily due to span requirements, occupancy load, and visibility needs. Residential halls emphasize comfort and hidden structure, commercial buildings use grid systems, and banquet halls aim for wide column-free spans whenever possible.

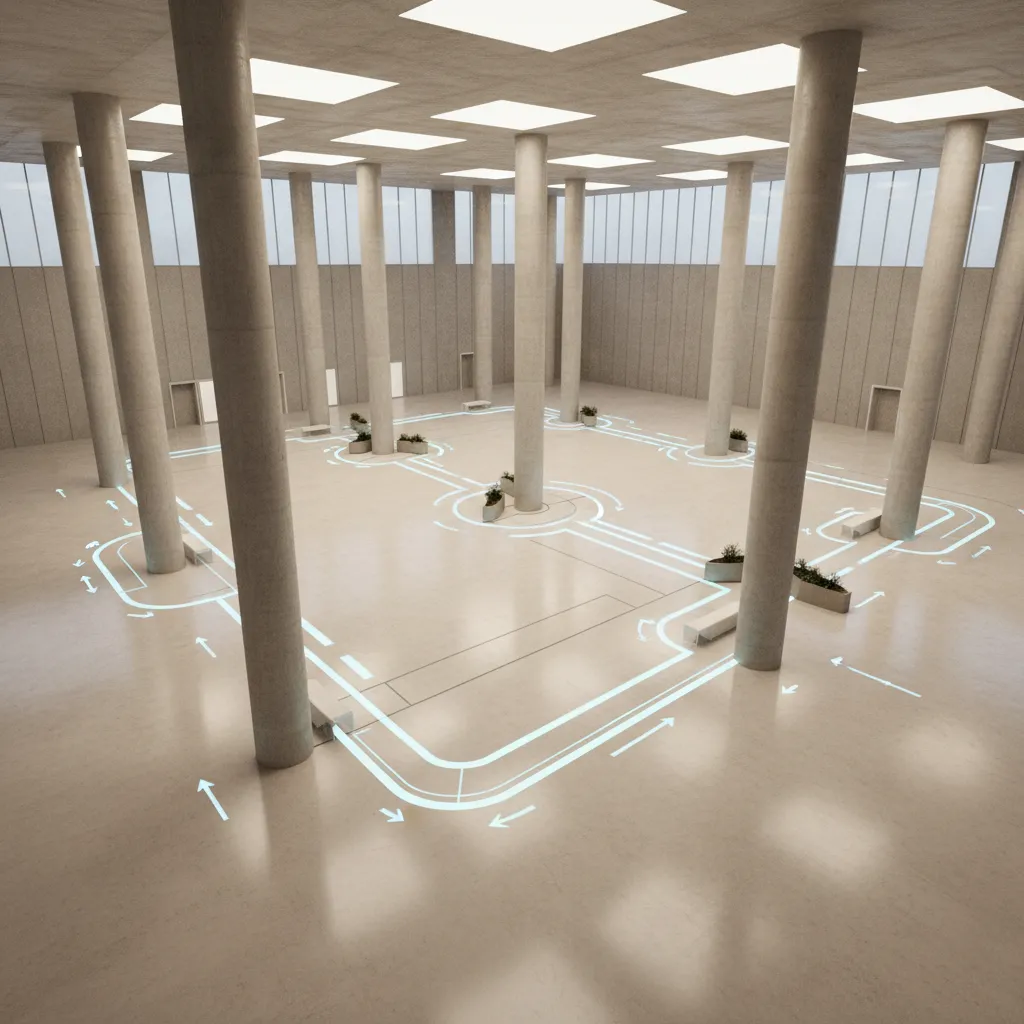

Design Considerations for Large Crowd Spaces

Key Insight: Crowd circulation and safety often matter more than structural symmetry in large halls.

Designers sometimes assume evenly spaced columns automatically produce a better layout. In reality, large gathering spaces require a more strategic approach.

Important planning considerations include:

1. Emergency exit paths
2. Circulation corridors
3. Visibility to stage or focal areas
4. Furniture and table arrangements

Hidden costs also appear when pillars are poorly positioned. Columns placed in high-traffic paths can reduce seating capacity and complicate evacuation planning.

In large event spaces, structural engineers often collaborate with interior planners early to avoid these layout conflicts.

save pin

Final Summary

1. Pillar design must align with the building's purpose.
2. Residential halls favor minimal and hidden columns.
3. Commercial buildings rely on repeatable structural grids.
4. Banquet halls prioritize wide spans and clear sightlines.
5. Early layout testing prevents costly pillar placement mistakes.

FAQ

What is the ideal pillar design for banquet halls?

Banquet hall pillar design focuses on large spans and minimal interior columns. Steel trusses or long-span beams are commonly used to maintain clear sightlines.

How far apart should pillars be in a commercial hall?

Commercial column grids typically range from 25 to 30 feet apart, depending on building height and structural material.

Why do residential halls use fewer columns?

Residential hall pillar planning prioritizes comfort and open layouts. Columns are often integrated into walls or hidden within architectural elements.

What materials are best for large hall pillars?

Steel and composite columns are often preferred for large halls because they support longer spans while maintaining structural strength.

Can pillar placement affect seating capacity?

Yes. Poorly positioned columns can block circulation paths and reduce usable seating space, especially in event venues.

What is a column grid system in commercial buildings?

A column grid is a repeating structural layout used in offices and commercial halls to simplify construction and allow flexible interior partitions.

How does crowd size affect pillar design?

Large crowds increase structural loads and require wider circulation zones, which influences column spacing and placement.

Is pillar design different for event halls compared to residential halls?

Yes. Event hall pillar design prioritizes wide spans and unobstructed views, while residential columns focus on structural support with minimal visual impact.

References

1. American Institute of Steel Construction structural design resources
2. International Building Code guidelines for assembly spaces
3. Hospitality architecture planning standards
