Planning Measurements for an L Shaped Closet: Accurate measurements prevent layout mistakes and help you design a functional L shaped closet before installation begins

Direct Answer

Planning measurements for an L shaped closet starts with three critical numbers: wall length on both sides of the corner, usable closet depth, and corner clearance where the two sections meet. These measurements determine whether hanging rods, shelving, drawers, and walkways will actually function in the finished space. Most successful designs maintain at least 24 inches of hanging depth and clear corner transitions to avoid dead zones.

Quick Takeaways

1. Measure both closet walls independently because corner walls are rarely perfectly square.
2. A minimum 24 inch depth is required for standard hanging clothes.
3. Corner zones often waste space unless shelves or angled rods are planned.
4. Door swing and walkway clearance affect usable storage more than most people expect.
5. A full measurement checklist prevents costly installation mistakes.

Introduction

An L shaped closet looks simple on paper, but after working on dozens of residential storage projects, I can tell you the measurements are where most problems start. The biggest mistake homeowners make when planning an L shaped closet is assuming both walls behave like a straight closet. They don't. Corners change everything.

In real projects, I often see beautiful custom cabinets installed only to discover that hanging rods collide at the corner, drawers can't fully open, or the walkway becomes too tight. All of that comes down to measurement planning.

If you're mapping the layout yourself, it helps to sketch the space before anything gets built. Many homeowners start by using simple layout tools to map the room dimensions and visualize the closet footprint before installation. That early step alone prevents a surprising number of layout errors.

In this guide, I'll walk through the exact measurements I check before designing any L shaped closet, including the dimensions many guides completely ignore.

save pin

Key Dimensions Required for L Shaped Closets

Key Insight: The success of an L shaped closet depends on correctly measuring three structural dimensions before thinking about shelves or cabinets.

When I evaluate a corner closet space, I focus on the structural envelope first. Storage design comes later. If the base measurements are wrong, every cabinet or rod added afterward will inherit the problem.

The three measurements that matter most are:

1. Wall Length A – total usable wall from corner to door or obstruction
2. Wall Length B – the second wall forming the L configuration
3. Closet Depth – distance from wall to door opening or walkway
4. Ceiling Height – determines double hanging possibilities
5. Corner Clearance – usable space where the two walls meet

Typical reference dimensions used in residential closet design:

1. Standard hanging depth: 24 inches
2. Comfortable walkway: 30–36 inches
3. Shelf depth: 12–16 inches
4. Double hanging height: about 80 inches total

According to the National Kitchen and Bath Association storage guidelines, a minimum of 24 inches is required to hang garments without door interference or compression.

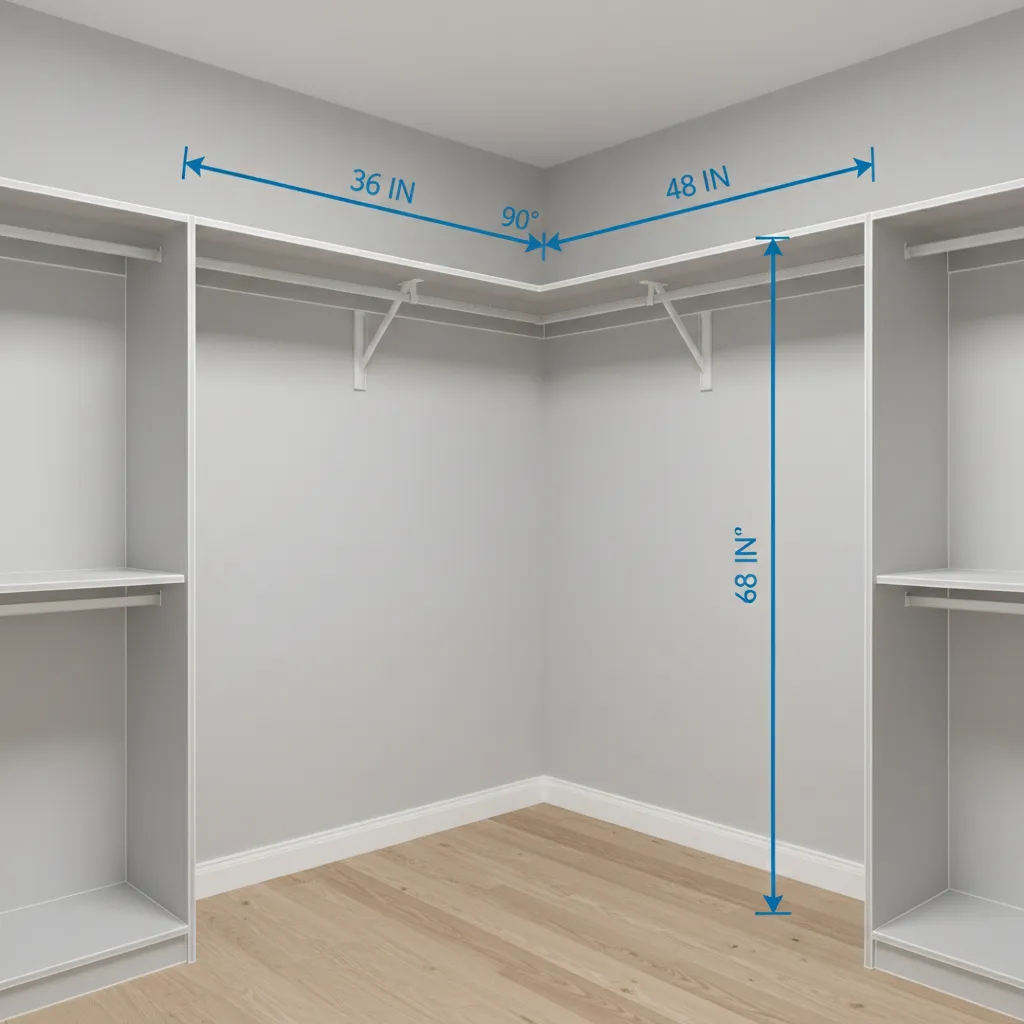

How to Measure Corner Closet Walls Correctly

Key Insight: Closet corners are rarely perfectly square, which means measuring only the base wall length often leads to layout problems.

In older homes especially, I've measured corner deviations of two to three degrees. That doesn't sound like much, but when cabinets meet at a corner, it creates visible gaps or prevents drawers from aligning properly.

Here's the measurement method I recommend:

1. Measure wall length at the floor
2. Measure again at 36 inches high
3. Measure again near the ceiling
4. Check the diagonal corner distance
5. Record any baseboard thickness

If those numbers differ, the corner is not square. That information affects whether you use corner shelves, angled rods, or leave a transition space.

Designers often visualize this step using tools that help test closet wall layouts and corner geometry in a scaled 3D plan. Seeing the corner behavior early prevents installation surprises.

save pin

Minimum Depth for Hanging Sections

Key Insight: Hanging sections fail when closet depth is underestimated, especially in L shaped layouts where corner transitions reduce usable space.

The standard depth recommendation of 24 inches assumes the rod sits about 12 inches from the wall and garments extend forward roughly another 12 inches.

However, in L shaped closets the corner often steals 2–4 inches of usable depth depending on trim and door framing.

Common depth scenarios:

1. 20–22 inches depth – clothes may rub doors or walls
2. 24 inches depth – standard hanging solution
3. 26–28 inches depth – ideal for walk‑in L shaped closets

A trick I often use in tight corners is rotating the hanging rod 45 degrees across the corner. This avoids the dead zone created when two rods collide.

save pin

Spacing for Shelves Drawers and Accessories

Key Insight: Storage spacing determines usability more than total closet size.

Many L shaped closets technically have enough storage volume but still feel cluttered because shelves and drawers were spaced without considering real clothing dimensions.

Typical spacing guidelines I use during layout planning:

1. Shelves for folded clothes: 12–14 inches vertical spacing
2. Shoe shelves: 7–8 inches
3. Drawer height: 6–8 inches for accessories
4. Drawer depth: 16–18 inches
5. Handbag shelves: 15–18 inches tall

Hidden mistake I see frequently: placing drawers directly in the corner zone. Corner drawers rarely open fully unless the walkway is extremely wide.

Door Clearance and Walkway Planning

Key Insight: Door swing and walking space often reduce usable closet storage by 20–30 percent.

Designers usually focus on cabinet dimensions first, but circulation space determines whether the closet feels comfortable.

Minimum movement clearances:

1. Walk-in clearance: 30 inches minimum
2. Comfortable walkway: 36 inches
3. Drawer opening clearance: 20–24 inches
4. Hinged door swing: 24–30 inches

When planning layouts, I often encourage clients to experiment with different closet configurations before committing to cabinetry. Seeing the walking path visually helps reveal problems that measurements alone don't show.

save pin

Measurement Checklist Before Installation

Key Insight: A final measurement checklist eliminates the most expensive closet installation errors.

Before any cabinets are ordered or cut, I always verify the following measurements one more time.

1. Both wall lengths measured at three heights
2. Total closet depth
3. Ceiling height and soffits
4. Door width and swing direction
5. Electrical outlets and switches
6. Baseboard thickness
7. Corner angle or out-of-square walls
8. Walkway clearance after storage installation

This step sounds basic, but in my experience it prevents the majority of costly redesigns during installation.

Answer Box

The most important measurements for an L shaped closet are wall length on both sides, minimum 24 inch hanging depth, and corner clearance where storage sections meet. Verifying corner angles and walkway space prevents the most common layout failures.

Final Summary

1. L shaped closets depend heavily on accurate corner measurements.
2. Maintain at least 24 inches of hanging depth for clothing.
3. Walkway clearance determines usability more than storage volume.
4. A corner plan prevents wasted storage space.
5. Always verify measurements before installation begins.

FAQ

What is the standard depth for an L shaped closet?

Most L shaped closet designs require at least 24 inches of depth for hanging clothing without compression.

How do you measure a corner closet space?

Measure both walls at the floor, middle, and near the ceiling. Then measure the diagonal corner distance to identify out-of-square walls.

What is the minimum walkway space in a walk in closet?

A minimum of 30 inches is required, though 36 inches is considered comfortable.

Can two hanging rods meet at the corner?

They can, but it often wastes space. Angled rods or corner shelves usually work better.

What is the best shelf depth for closets?

Shelves typically range from 12 to 16 inches deep depending on clothing type.

Why do L shaped closets lose storage space in corners?

The intersection of two walls creates dead zones where rods or drawers collide.

What tools help plan closet layouts?

Digital room planners and scaled floor layout tools help visualize closet storage before construction.

Do I need different measurements for custom closets?

Yes. Custom systems require precise measurements because cabinets are manufactured to exact dimensions.

References

National Kitchen and Bath Association Storage Planning Guidelines

Residential Closet Design Standards
