Plumbing and Waterproofing Risks in a 6 x 10 Bathroom Layout: How to prevent hidden plumbing failures and waterproofing mistakes when designing a compact 6×10 bathroom

Direct Answer

Plumbing and waterproofing failures in a 6 x 10 bathroom layout usually come from poor drain positioning, tight fixture spacing, and incomplete waterproofing coverage. Because the room is compact, even small mistakes in pipe routing or floor slope can lead to leaks, slow drainage, or long‑term structural moisture damage.

The safest approach is to plan the plumbing layout first, keep drains aligned with the main stack, and fully waterproof floors, corners, and wall transitions before installing fixtures.

Quick Takeaways

1. Drain placement determines whether a compact bathroom drains properly.
2. Waterproofing failures often occur at corners, seams, and wall-floor joints.
3. Moving plumbing stacks dramatically increases cost and risk.
4. Compact layouts require stricter fixture spacing to avoid installation errors.
5. Early plumbing planning prevents most long-term water damage.

Introduction

After working on dozens of compact renovations, I can tell you that the biggest problems in a 6 x 10 bathroom layout rarely come from aesthetics. They come from plumbing and waterproofing decisions made too late in the process.

Homeowners often focus on tile, vanity style, or lighting. But in a small footprint like 6 by 10 feet, the real challenge is how water moves through the room. Where the drain sits, how the shower slope is built, and whether waterproof membranes are continuous can determine whether the bathroom lasts 20 years or develops leaks within two.

One of the smartest things you can do early in the planning stage is study how fixture placement interacts with pipe routing. A good reference example is this walkthrough showing how designers map fixture locations before construction using a 3D bathroom floor layout. Visualizing the layout early often exposes plumbing conflicts before demolition even begins.

In this guide, I’ll walk through the plumbing layout risks, waterproofing failures I see most often in small bathrooms, and practical ways to avoid expensive repairs later.

save pin

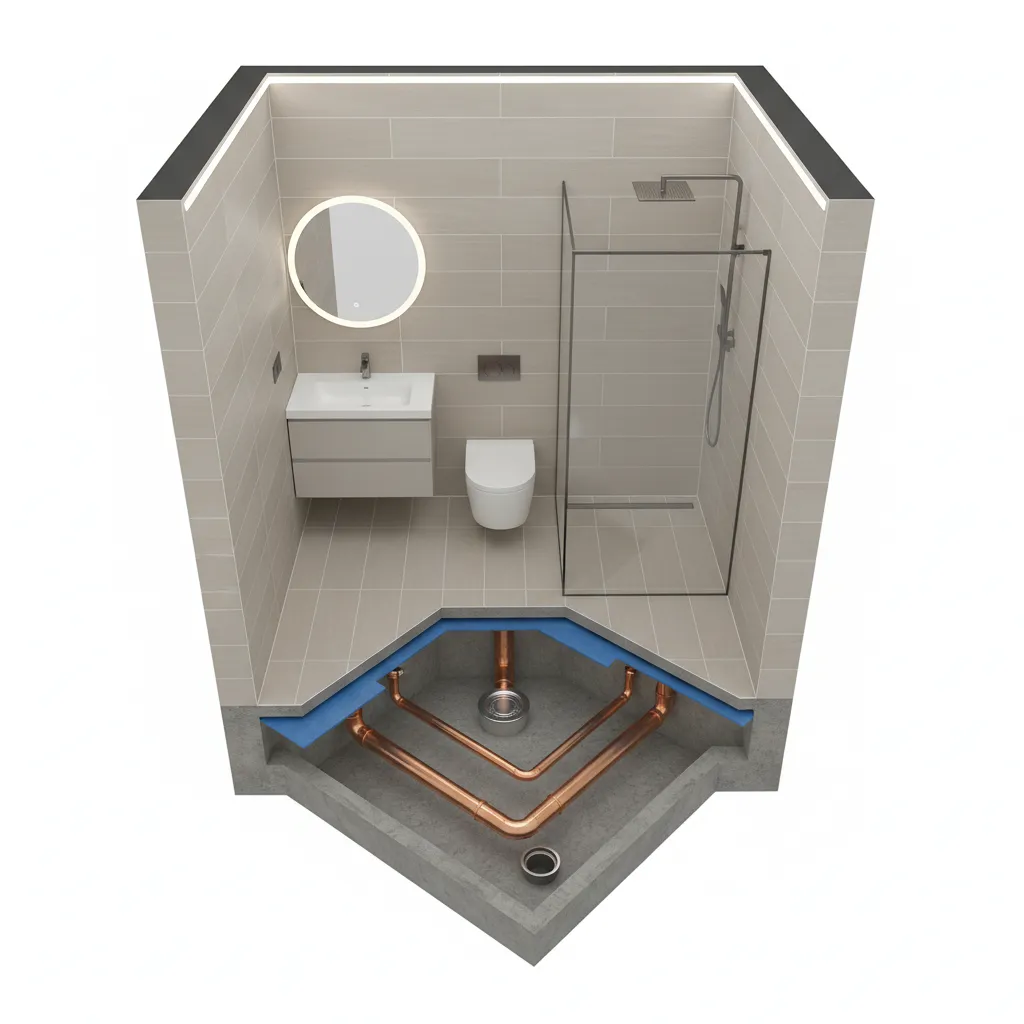

Why Plumbing Planning Is Critical in a 6 x 10 Bathroom

Key Insight: In a 6 x 10 bathroom, plumbing layout decisions dictate the entire room configuration.

Unlike larger bathrooms, compact rooms leave almost no flexibility once pipes are installed. If the drain stack is in the wrong place, the toilet, shower, and vanity must all adjust around it.

Over the years, I've noticed that homeowners often underestimate how restrictive plumbing lines are. Moving a toilet drain just a few feet can require:

1. Opening subfloors
2. Re-sloping drain pipes
3. Adjusting vent stacks
4. Reinforcing joists

According to guidance from the International Residential Code (IRC), horizontal drain pipes must maintain a consistent slope (typically 1/4 inch per foot). In a 10‑foot room, that slope becomes a major constraint.

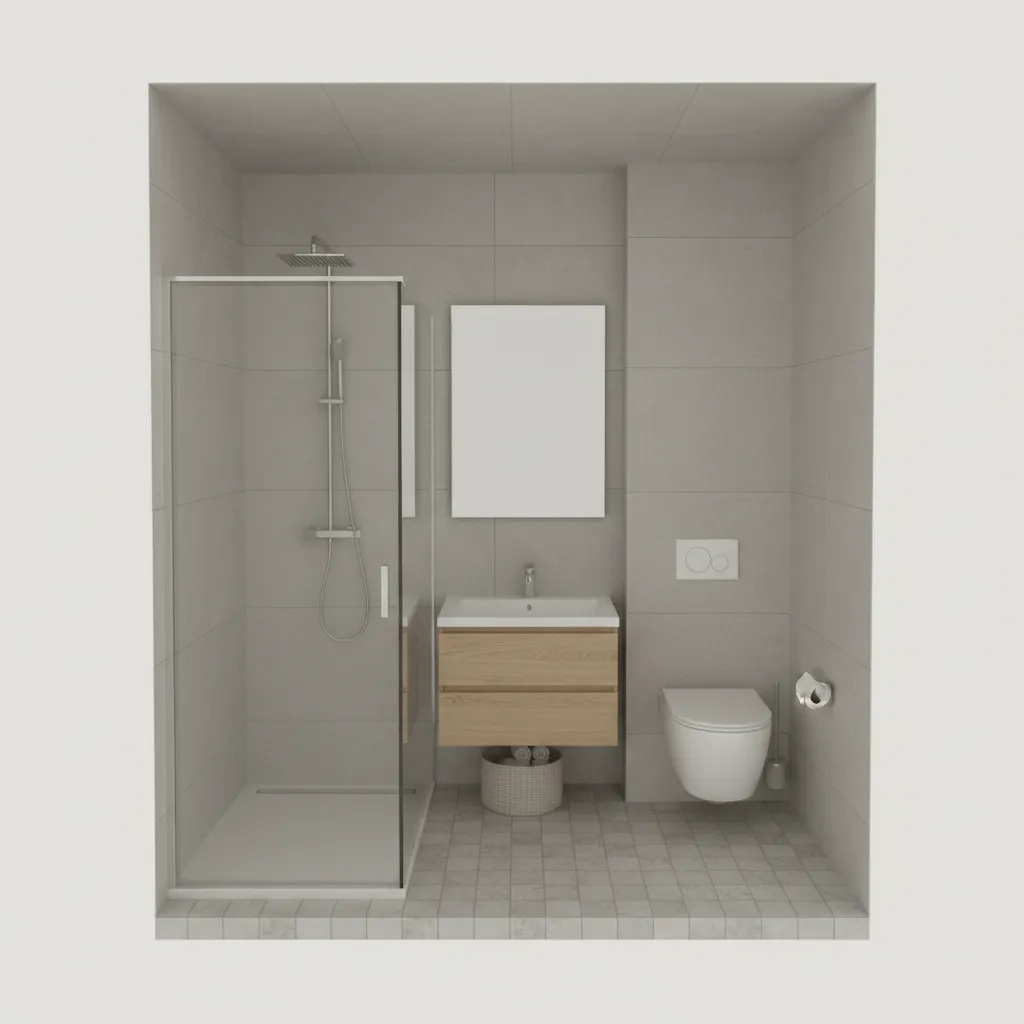

Typical plumbing zones in a 6x10 layout:

1. Toilet positioned near the main soil stack
2. Shower located along the same wet wall
3. Vanity tied into a shared drain line

Designers often group these fixtures along a single "wet wall" to reduce plumbing complexity.

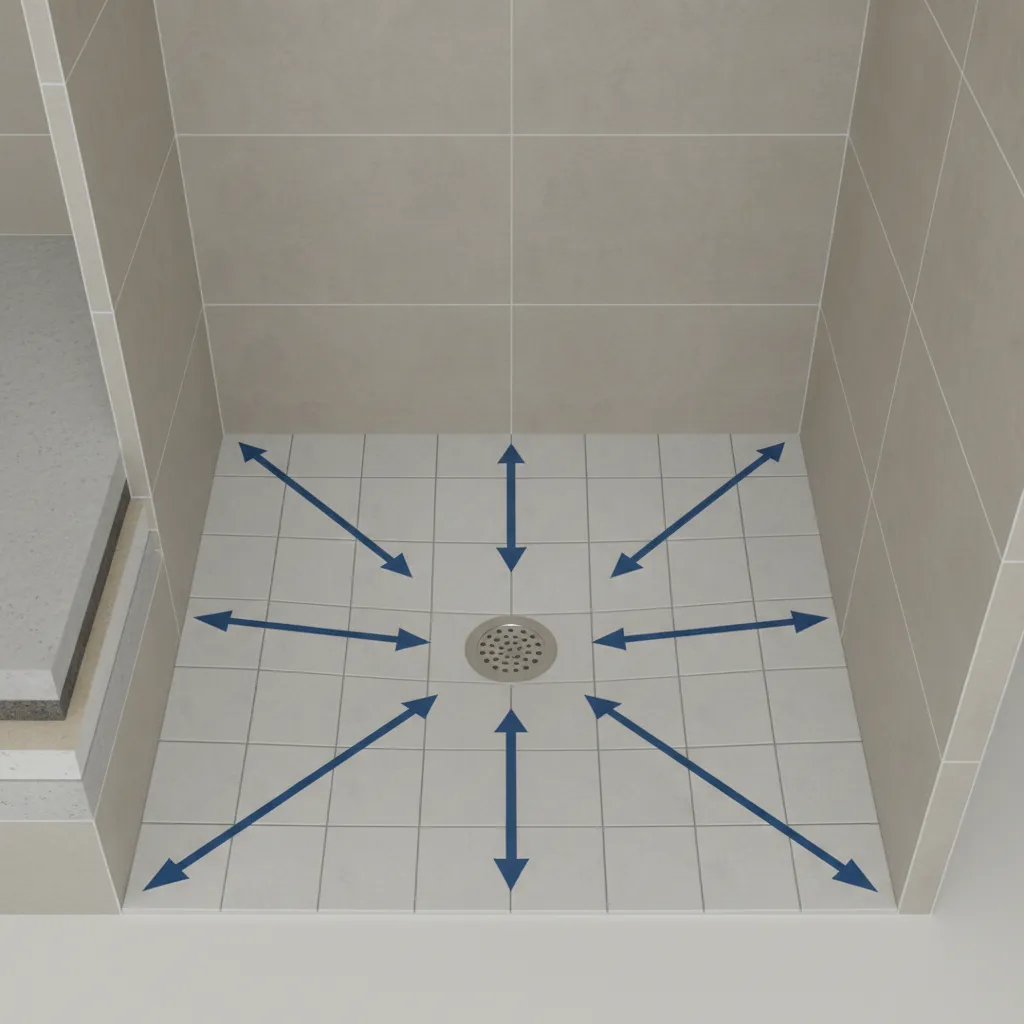

Drain Placement Constraints in Small Layouts

Key Insight:Poor drain placement is the most common technical failure in small bathroom renovations.

In tight bathrooms, drain alignment affects both floor slope and fixture positioning. If the drain sits too far from the shower center, installers must create aggressive slopes that feel uncomfortable underfoot.

save pin

Common drain placement limitations:

1. Shower drains must remain centered within the slope area
2. Toilet drains require minimum spacing from walls
3. Drain pipes must avoid structural joists

The hidden constraint many homeowners overlook is joist direction. If the drain pipe runs perpendicular to joists, plumbers may need to drill structural members, which can weaken the floor system.

This is why many designers test layouts digitally first. Tools that allow you to experiment with fixture spacing inside a small bathroom floor plan can reveal whether drains align properly before construction begins.

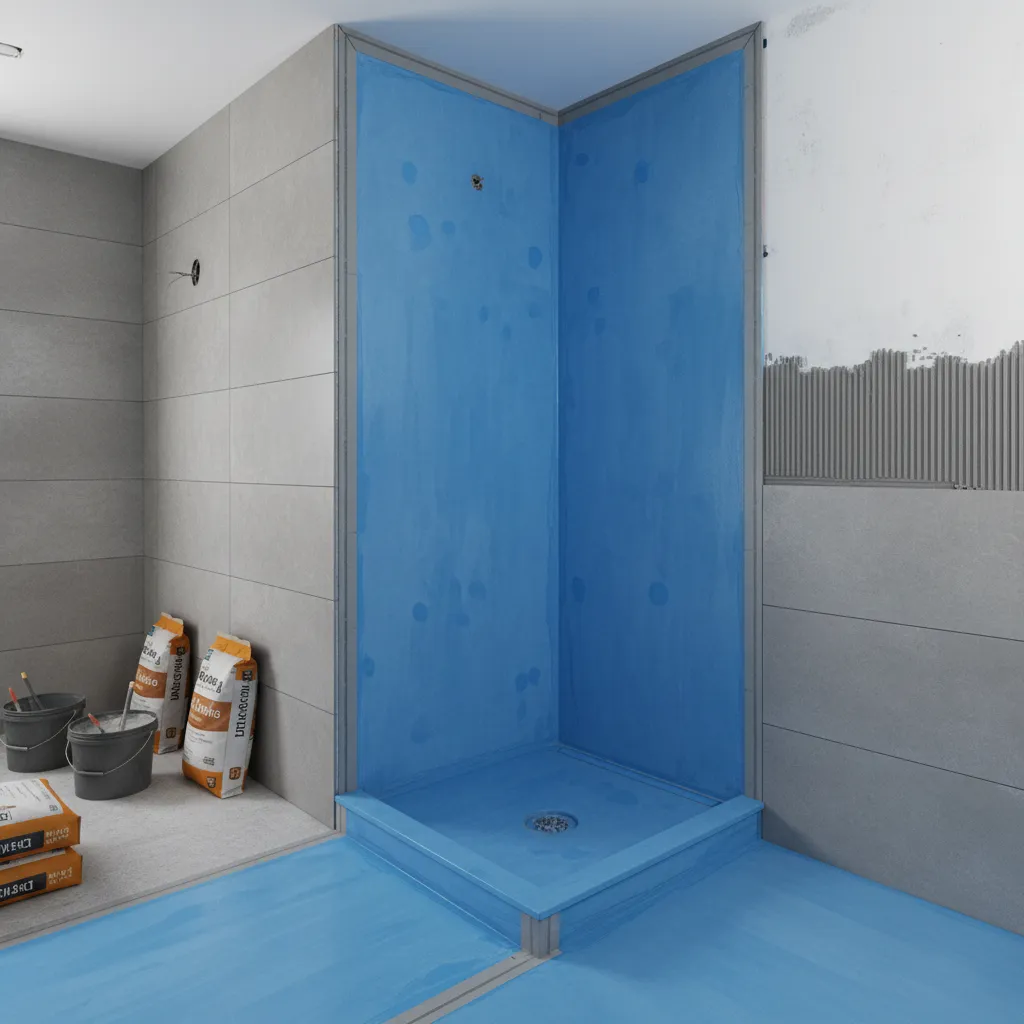

Waterproofing Challenges in Tight Spaces

Key Insight:Most waterproofing failures occur at transitions, not on flat surfaces.

Tile itself is not waterproof. The real protection comes from membranes beneath it. In a compact bathroom, the number of corners and seams increases relative to floor area, which raises failure risk.

save pin

High-risk waterproofing zones:

1. Shower curb edges
2. Wall-floor transitions
3. Pipe penetrations
4. Niches and recessed shelves

Professional installers usually rely on sheet membranes or liquid waterproofing systems to create a continuous barrier. However, many DIY installations stop the membrane at the shower boundary instead of extending it across the entire bathroom floor.

That shortcut often leads to hidden damage if a toilet seal leaks or a washing overflow occurs.

Industry groups like the Tile Council of North America recommend extending waterproofing beyond wet zones in compact bathrooms for this reason.

Common Installation Errors in Small Bathrooms

Key Insight: Installation errors compound quickly in small spaces because tolerances are tighter.

Over the years I’ve reviewed renovation failures where a single mistake forced expensive rework.

Frequent installation mistakes:

1. Improper shower slope causing water pooling
2. Toilet flange installed too low or too high
3. Waterproof membrane punctured during tile installation
4. Drain traps installed without adequate venting

Another surprisingly common issue is fixture crowding. A toilet placed too close to the shower glass may technically fit, but it violates comfortable clearance standards.

Most plumbing codes recommend:

1. 15 inches from toilet center to side wall
2. 24 inches of front clearance

In a 6 x 10 room, those measurements become critical.

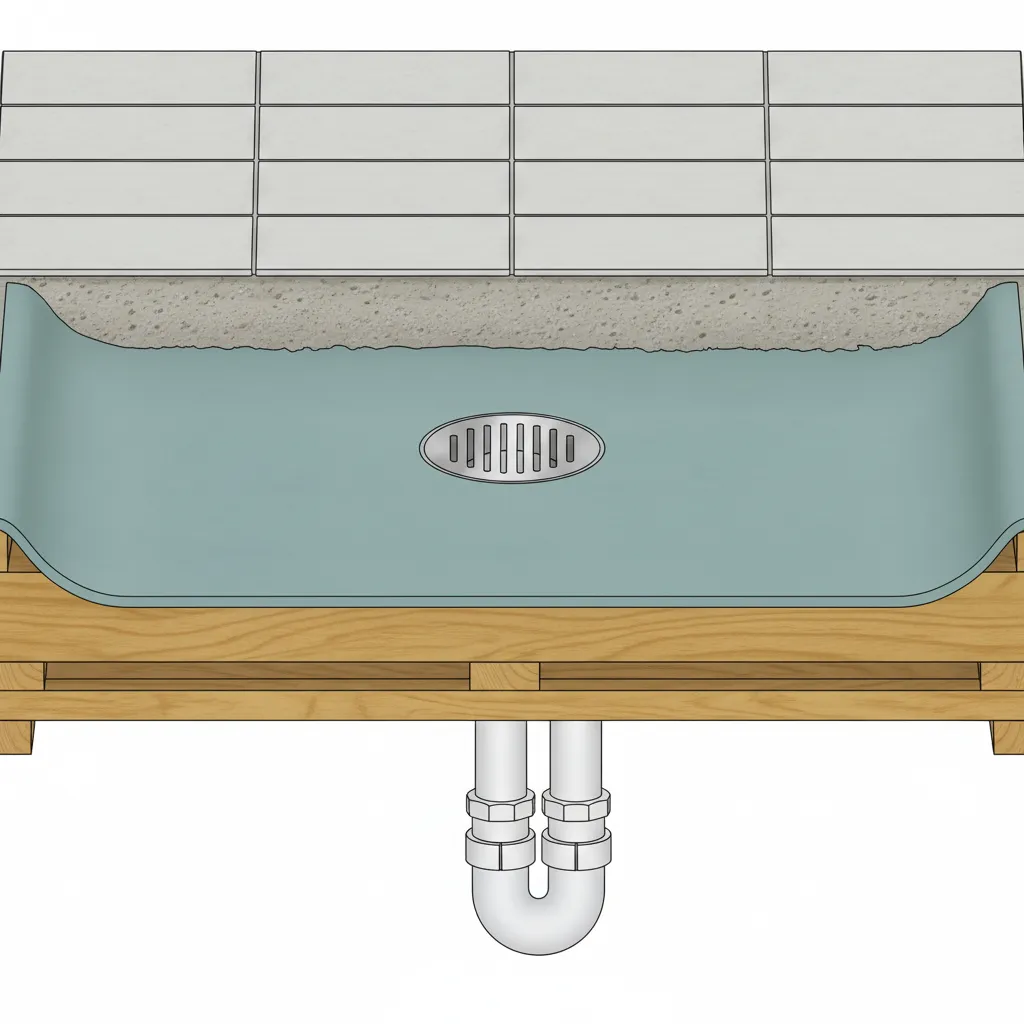

How to Reduce Long-Term Water Damage Risks

Key Insight:Preventing water damage requires both design planning and installation discipline.

Small bathrooms concentrate water exposure into a tiny footprint. When waterproofing fails, moisture spreads quickly into subfloors and wall cavities.

save pin

Practical risk‑reduction strategies:

1. Install a continuous waterproof floor membrane
2. Use prefabricated shower pans with tested slopes
3. Seal all pipe penetrations with waterproof collars
4. Test the shower pan with a 24‑hour flood test

Flood testing is one step many contractors skip under time pressure, but it’s one of the most reliable ways to detect leaks before tile is installed.

Answer Box

The biggest plumbing risks in a 6 x 10 bathroom layout are poor drain alignment, incomplete waterproofing coverage, and incorrect fixture spacing. Planning the plumbing first and waterproofing the entire floor significantly reduces long‑term failure risk.

Working With Contractors on Compact Layouts

Key Insight: Clear planning documents prevent most contractor misunderstandings.

Small bathrooms leave little margin for improvisation. Contractors need precise information before rough‑in plumbing begins.

Documents that help avoid mistakes include:

1. Scaled floor plans
2. Drain center measurements
3. Fixture specification sheets
4. Waterproofing system diagrams

I also recommend reviewing visual layouts together. Many teams now use tools that allow contractors and homeowners to visualize fixture placement inside a realistic bathroom layout before installation. That simple step often reveals clearance issues before pipes are permanently installed.

Final Summary

1. Drain alignment is the most critical technical factor in a 6 x 10 bathroom.
2. Waterproofing must cover the entire floor, not only the shower.
3. Fixture spacing errors are common in compact bathrooms.
4. Early plumbing planning prevents expensive structural damage.
5. Visual layout planning helps contractors avoid installation conflicts.

FAQ

1. What is the biggest plumbing risk in a 6 x 10 bathroom layout?

Incorrect drain placement is the biggest risk. If the drain is poorly aligned with the plumbing stack, drainage problems and expensive pipe rerouting can occur.

2. How far should a toilet be from the wall?

Most building codes require at least 15 inches from the toilet centerline to a side wall and 24 inches of clearance in front.

3. Do small bathrooms need full floor waterproofing?

Yes. Extending waterproof membranes across the entire floor reduces damage from toilet leaks or overflowing fixtures.

4. Can you move plumbing in a 6 x 10 bathroom renovation?

Yes, but moving drains or vent stacks increases cost and complexity significantly.

5. What slope should a shower floor have?

Industry standards recommend about 1/4 inch of slope per foot toward the drain.

6. Is a centered drain necessary in a small shower?

Not always, but poorly placed drains can create uneven slopes and water pooling.

7. What waterproofing method works best for small bathrooms?

Both sheet membranes and liquid membranes work well if installed continuously and sealed properly.

8. How do I plan a plumbing layout for a 6 x 10 bathroom?

Start with the main drain location, align fixtures along a wet wall, and verify spacing before finalizing the floor plan.

References

1. International Residential Code (IRC) Plumbing Guidelines
2. Tile Council of North America Waterproofing Handbook
3. National Kitchen and Bath Association Bathroom Planning Standards
