Plumbing Code Requirements for Adding a Toilet in a Laundry Room: Understand drain size, venting, spacing, and permit rules before installing a toilet in a laundry area.

Direct Answer

Yes, you can legally add a toilet to a laundry room in most jurisdictions, but plumbing codes usually require a 3‑inch drain line, proper venting, minimum spacing clearances, and a building permit with inspection. Local plumbing codes may vary, so confirming requirements with your city’s building department is essential before starting the installation.

Quick Takeaways

1. Most plumbing codes require a 3-inch minimum drain pipe for toilets.
2. Toilets must connect to a properly sized vent to prevent siphoning.
3. Clear spacing between fixtures prevents drainage interference.
4. Permits and inspections are usually mandatory for new plumbing fixtures.
5. Local jurisdictions often modify national plumbing code standards.

Introduction

Adding a toilet to a laundry room sounds simple—especially if the washer already has water supply and drainage nearby. But after working on dozens of residential remodels over the past decade, I can tell you the plumbing code for toilet in laundry room installations is where many DIY projects quietly go wrong.

The most common assumption homeowners make is that they can just tie a toilet into the existing washer drain. In reality, plumbing codes treat toilets very differently from laundry drains. Drain size, venting distance, and fixture spacing all follow strict rules designed to prevent sewer gas issues, trap siphoning, and clogged drain stacks.

Before planning the layout, I usually recommend homeowners sketch the space using a simple floor plan tool to visualize fixture placement before plumbing work begins. Seeing how a toilet, washer, and sink interact spatially often reveals conflicts that aren't obvious on paper.

In this guide, I'll walk through the real plumbing code considerations that apply when adding a toilet to a laundry room—including the rules many online tutorials completely ignore.

save pin

Why Plumbing Codes Matter for Laundry Room Toilets

Key Insight: Plumbing codes exist to protect drainage performance and sanitation—not just bureaucracy.

When a toilet flushes, it releases a large volume of water and waste very quickly. A washing machine drain, by contrast, releases water in bursts through a pump system. When these fixtures share poorly designed plumbing, pressure changes can empty traps, push sewer gas into the room, or cause recurring clogs.

Codes such as the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) establish standards that ensure these systems work together safely.

Common goals of plumbing codes include:

1. Preventing cross‑contamination between fixtures
2. Maintaining water seals in traps
3. Ensuring drainage systems can handle peak discharge
4. Providing service access for maintenance

In my experience, homeowners who skip the code research stage often discover problems months later—usually in the form of sewer odors or slow drainage.

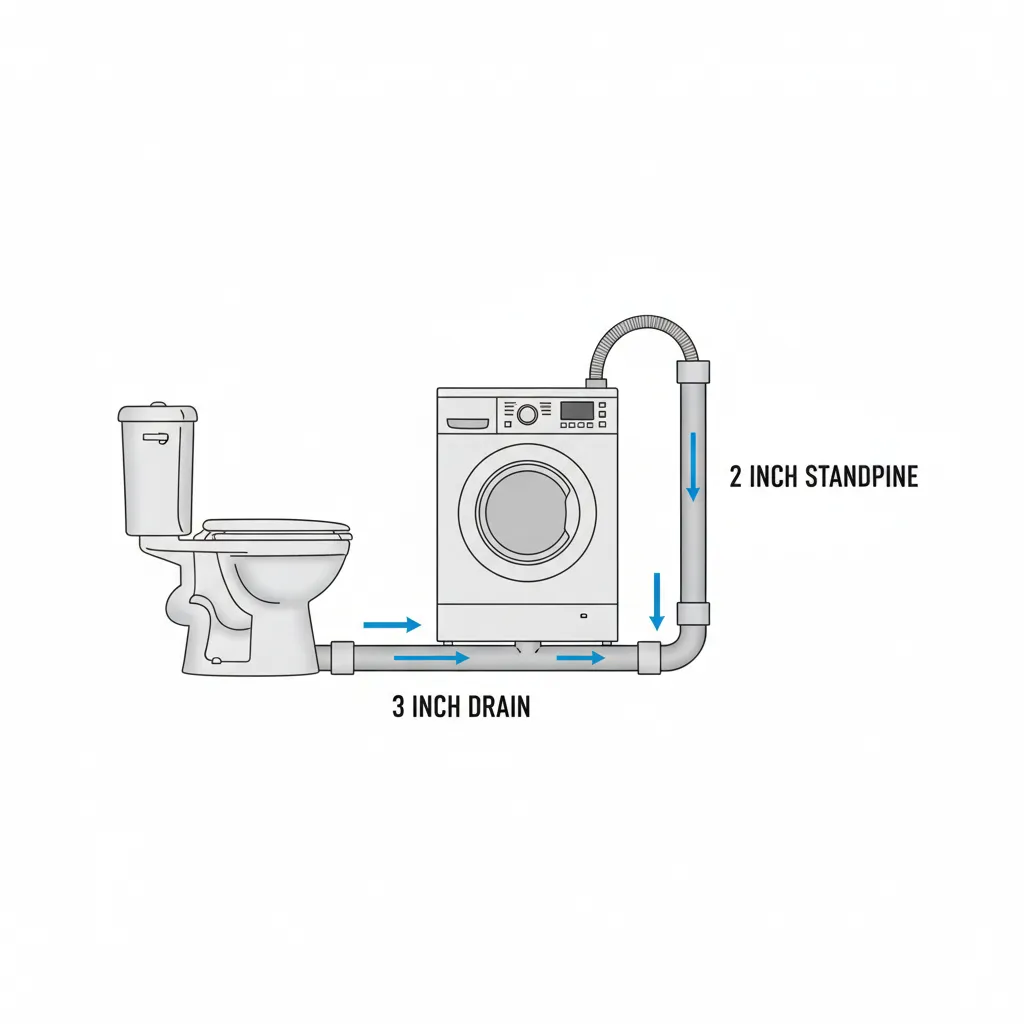

Minimum Drain Pipe Size Requirements

Key Insight: Most plumbing codes require a minimum 3‑inch drain line for a toilet, even if other fixtures nearby use smaller pipes.

A washing machine drain pipe is typically 2 inches in diameter. While that works for laundry discharge, it's not sufficient for a toilet connection.

Typical minimum drain sizes:

1. Toilet: 3 inches (4 inches recommended for long runs)
2. Washing machine standpipe: 2 inches
3. Bathroom sink: 1.25–1.5 inches

The reason is simple: toilets move solid waste. Smaller pipes significantly increase clog risk.

In several remodel projects I've inspected, homeowners attempted to connect a toilet to the existing washer drain line. That almost always fails inspection and often causes backups.

save pin

Toilet Venting and Trap Arm Regulations

Key Insight: Every toilet must be properly vented within a specific distance from the trap to maintain pressure balance.

Venting is one of the most misunderstood parts of residential plumbing. Without proper venting, flushing a toilet can siphon water out of nearby traps—including the washing machine trap.

Typical trap arm limits under the International Plumbing Code:

1. 3-inch pipe trap arm maximum: about 6 feet
2. Vent must connect before exceeding this distance
3. Vent pipe typically minimum 2 inches

Common venting options used in laundry‑bathroom conversions:

1. Connecting to an existing vent stack
2. Installing a new vertical vent through the roof
3. Using an approved air admittance valve (where allowed)

If you're mapping plumbing runs, it helps to visualize the entire pipe path using a 3D layout planner to preview fixture connections and pipe routing. This step prevents vent distance violations that are expensive to fix later.

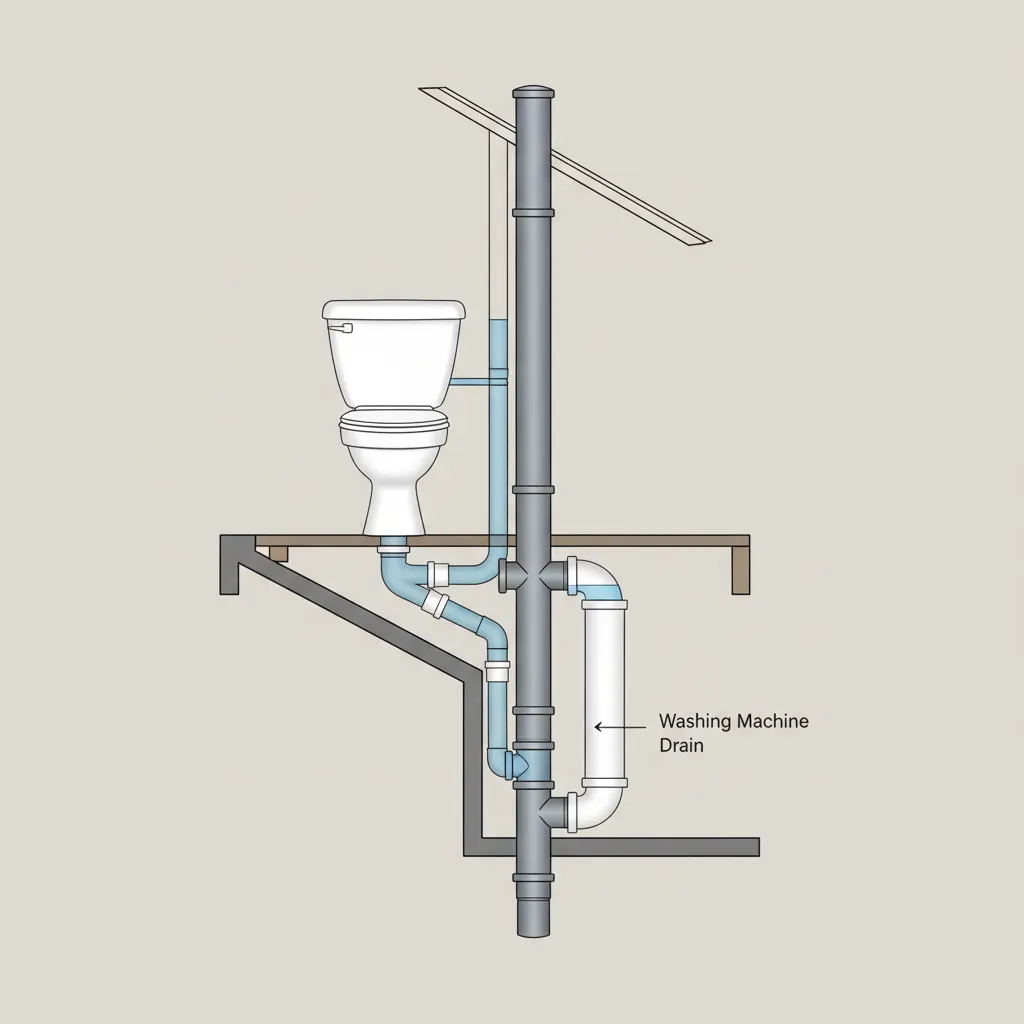

Distance Rules Between Washer Drains and Toilets

Key Insight: Laundry fixtures and toilets must maintain proper spacing to avoid drainage conflicts and service issues.

Although codes vary, there are common clearance rules that inspectors frequently enforce.

Typical spacing guidelines:

1. Minimum 15 inches from toilet centerline to side wall or fixture
2. At least 21 inches of clearance in front of the toilet
3. Laundry standpipe typically located within 18–30 inches above trap

Another issue is fixture branch loading. If a washer pump discharges into the same branch as a toilet without proper pipe sizing, the sudden flow can push wastewater back toward the toilet line.

save pin

Permit and Inspection Requirements

Key Insight: Adding a toilet almost always requires a plumbing permit because it introduces a new sanitary fixture.

Many homeowners assume permits are only required for large remodels. In reality, installing a toilet where none existed previously changes the plumbing fixture count of the house.

Typical permit process:

1. Submit plumbing layout to local building department
2. Receive permit approval
3. Rough‑in inspection before closing walls
4. Final inspection after fixture installation

Skipping this step can cause issues when selling a home. I've seen real estate deals delayed because an unpermitted bathroom addition showed up during inspection.

Common Code Violations in DIY Bathroom Additions

Key Insight: The biggest problems occur when homeowners try to reuse existing laundry plumbing for toilet drainage.

Frequent violations inspectors find include:

1. Toilet connected to a 2-inch drain line
2. Missing or improperly sized vent pipes
3. Washer standpipe connected downstream of toilet trap
4. Insufficient fixture clearance
5. No cleanout access in the new branch line

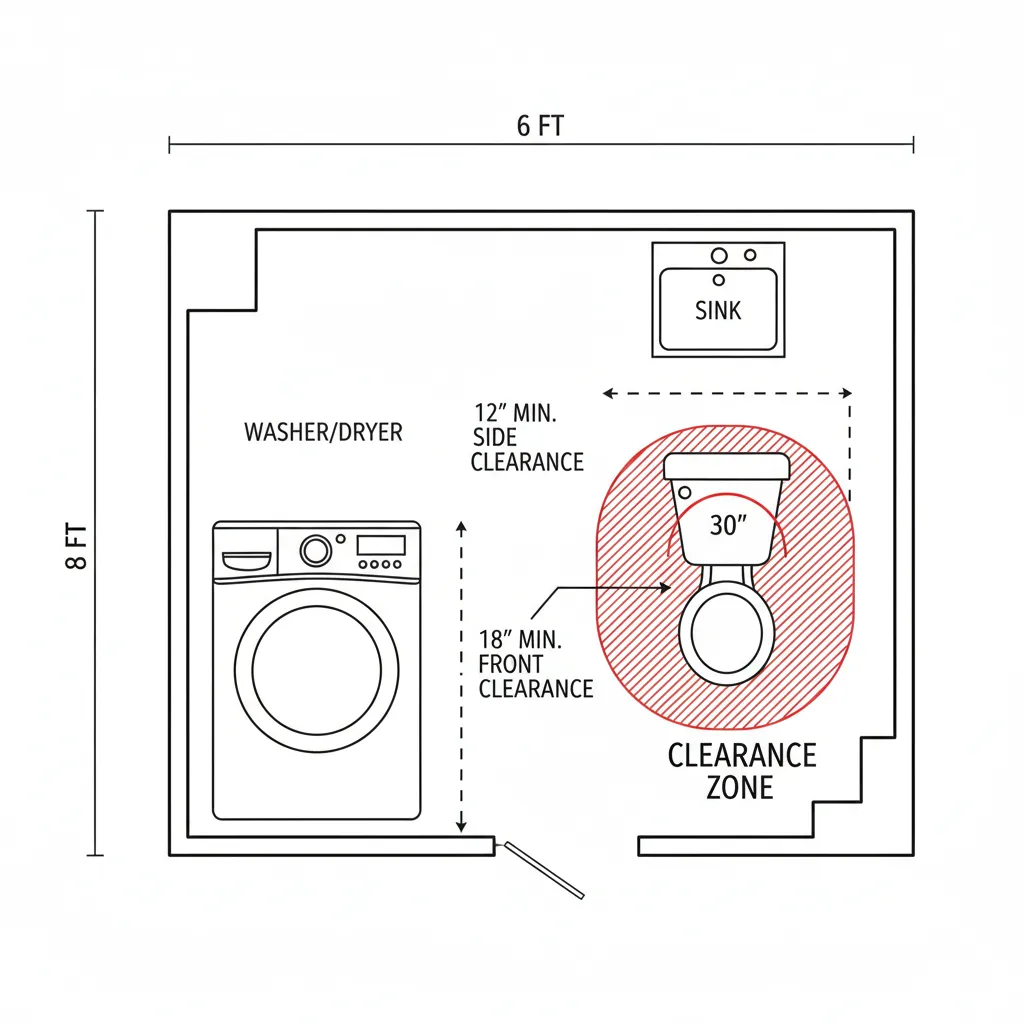

Another overlooked problem is layout planning. Toilets often end up squeezed into awkward corners because the laundry room was never designed for another fixture. Using a bathroom layout planning tool for compact utility spacescan help ensure proper clearances before plumbing begins.

save pin

How Local Codes May Differ by Region

Key Insight: Local jurisdictions frequently modify national plumbing codes, so requirements can change significantly by city.

The two primary plumbing codes used in the United States are:

1. International Plumbing Code (IPC)
2. Uniform Plumbing Code (UPC)

However, cities and states often adopt amendments. Examples I've encountered in projects include:

1. California requiring stricter vent sizing
2. Chicago mandating cast‑iron drain lines
3. Some municipalities banning air admittance valves

The safest step is always calling your local building department before buying materials.

Answer Box

Installing a toilet in a laundry room is legal in most homes, but plumbing codes typically require a 3‑inch drain, proper venting within trap distance limits, and approved permits with inspection. Always verify requirements with your local building authority before installation.

Final Summary

1. Toilets typically require a 3‑inch minimum drain pipe.
2. Proper venting prevents trap siphoning and sewer gas issues.
3. Laundry drains and toilets must follow spacing and branch rules.
4. Permits and inspections are usually mandatory.
5. Local plumbing codes may modify national standards.

FAQ

Can you legally add a toilet to a laundry room?

Yes, but most jurisdictions require plumbing permits, proper venting, and code‑compliant drain sizing.

What is the minimum drain size for a toilet?

Most plumbing codes require a 3‑inch drain pipe for toilet installation.

Can a toilet share a drain with a washing machine?

Sometimes, but only if the branch line is properly sized and vented according to plumbing code.

Do I need a permit to add a toilet to a laundry room?

Yes. Because you're adding a sanitary fixture, most cities require a plumbing permit and inspection.

What vent size is required for a toilet?

Typically a 2‑inch vent pipe, but exact requirements depend on the local plumbing code.

Can a toilet connect to a 2‑inch pipe?

No. Most plumbing codes prohibit toilets on 2‑inch drain lines due to clog risk.

How far can a toilet be from the vent?

Usually around 6 feet for a 3‑inch trap arm under the International Plumbing Code.

What is the biggest mistake when adding a toilet in a laundry room?

Connecting the toilet to the washing machine drain without upgrading pipe size or adding proper venting.
