Plumbing Code Requirements for Adding a Toilet Near a Laundry Area: Understand drain, vent, and permit rules before installing a toilet beside a washing machine.

Direct Answer

Adding a toilet near a laundry area is usually legal, but it must follow plumbing codes governing drain size, venting, fixture spacing, and permits. Most codes require a properly vented 3–4 inch toilet drain and specific spacing between fixtures to prevent contamination and drainage issues. Local regulations may also require inspections before the installation can be approved.

Quick Takeaways

1. Most plumbing codes require a 3–4 inch drain line for a toilet.
2. Toilets must be properly vented and cannot rely solely on the washing machine vent.
3. Minimum spacing rules typically require 15 inches from the toilet centerline to nearby fixtures.
4. Permits and inspections are often mandatory when adding a new toilet.
5. Local code variations can significantly change installation requirements.

Introduction

Adding a toilet beside a washer seems simple on paper, but plumbing code requirements for adding a toilet near a laundry area can quickly turn into the most complicated part of the project. After working on residential renovations for more than a decade, I can say that the biggest surprises rarely come from layout design—they come from drainage, venting, and inspection rules.

Homeowners often assume a toilet can simply connect to the same plumbing line as the washing machine. In reality, that shortcut is where many projects fail inspections. I’ve seen beautifully renovated laundry rooms get delayed for weeks because the vent stack wasn’t sized correctly or the fixture spacing didn’t meet code.

Before worrying about cabinetry or layout, I always recommend mapping the space first. A visual plan helps reveal whether the plumbing lines and clearances will actually work. If you're still figuring out fixture placement, this guide on planning fixture placement inside compact utility roomsis a helpful starting point.

In this article, I’ll walk through the real code requirements professionals check first—drain sizing, venting rules, spacing regulations, and inspection steps—so you can avoid the common compliance problems I see on renovation sites every year.

save pin

Why Plumbing Codes Matter When Adding a Toilet

Key Insight: Plumbing codes exist to prevent contamination, sewer gas leaks, and drainage failures when multiple fixtures share the same system.

Many homeowners view plumbing codes as red tape, but they actually protect the entire drainage system of a home. Toilets discharge solid waste through large-volume flushes, while washing machines release high‑pressure bursts of water. Without correct pipe sizing and venting, those two systems can interfere with each other.

In older homes especially, I've seen washing machines siphon water from nearby toilet traps because the venting wasn't properly designed. That can allow sewer gases to enter the room.

Common hidden mistakes I see in projects:

1. Connecting the toilet to a 2‑inch laundry drain line.
2. Skipping proper venting and relying on existing washer vents.
3. Installing fixtures too close together.
4. Adding plumbing without permits.

Organizations like the International Code Council (ICC) and the Uniform Plumbing Code (UPC) set widely adopted standards that many U.S. municipalities follow.

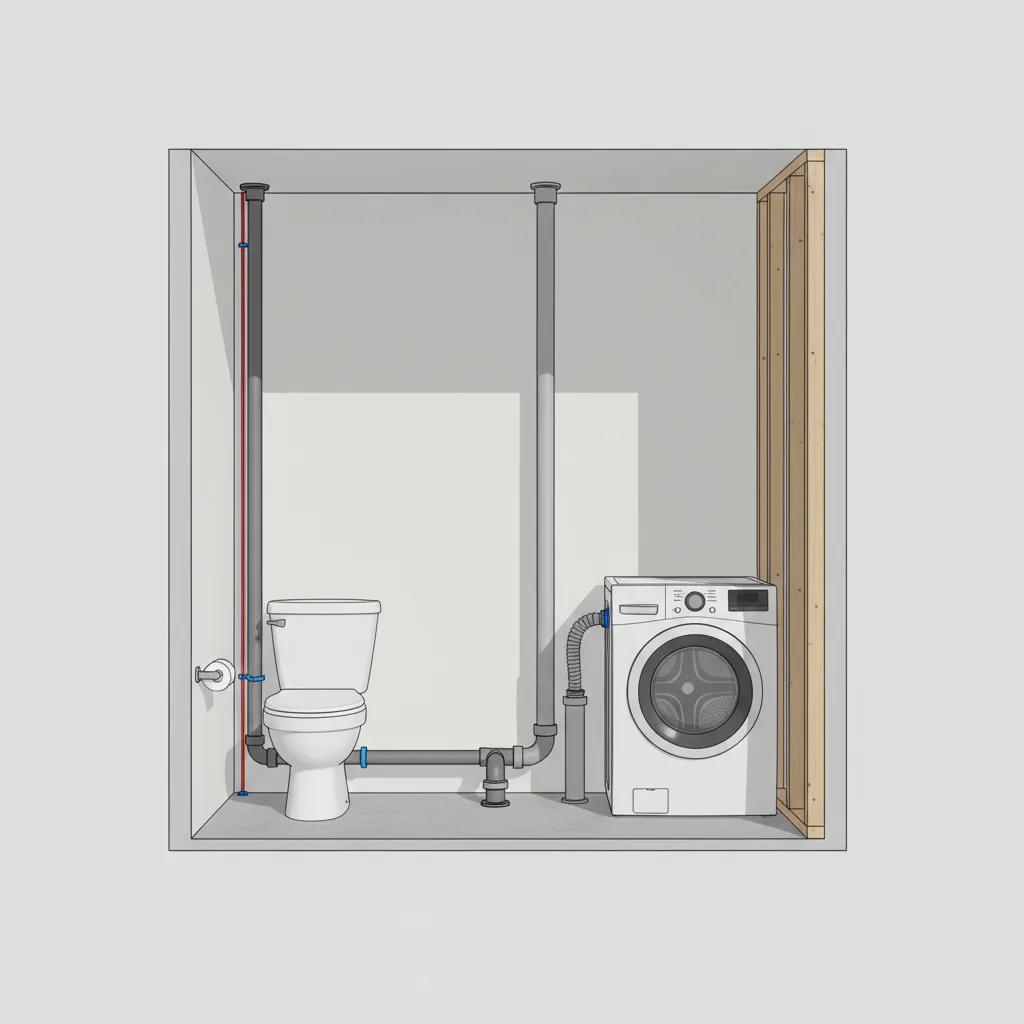

Typical Drain and Vent Requirements

Key Insight: Toilets require larger drain pipes and independent venting to maintain proper pressure balance in the plumbing system.

One of the most misunderstood rules is pipe diameter. Washing machines usually drain through a 2‑inch pipe, but toilets require significantly larger lines.

Typical requirements under major plumbing codes:

1. Toilet drain pipe: 3 inches minimum (4 inches in some municipalities)
2. Washer drain pipe: 2 inches
3. Vent pipe: usually 1.5–2 inches depending on fixture load
4. Slope requirement: 1/4 inch per foot for horizontal drainage

The vent is particularly important. When a washing machine pumps water out rapidly, pressure fluctuations can occur. Without proper venting, that pressure may siphon water from nearby traps—including the toilet.

In several projects I supervised in Los Angeles remodels, we had to add a dedicated vent line even though the washer already had one. The building inspector required it to ensure proper airflow for both fixtures.

save pin

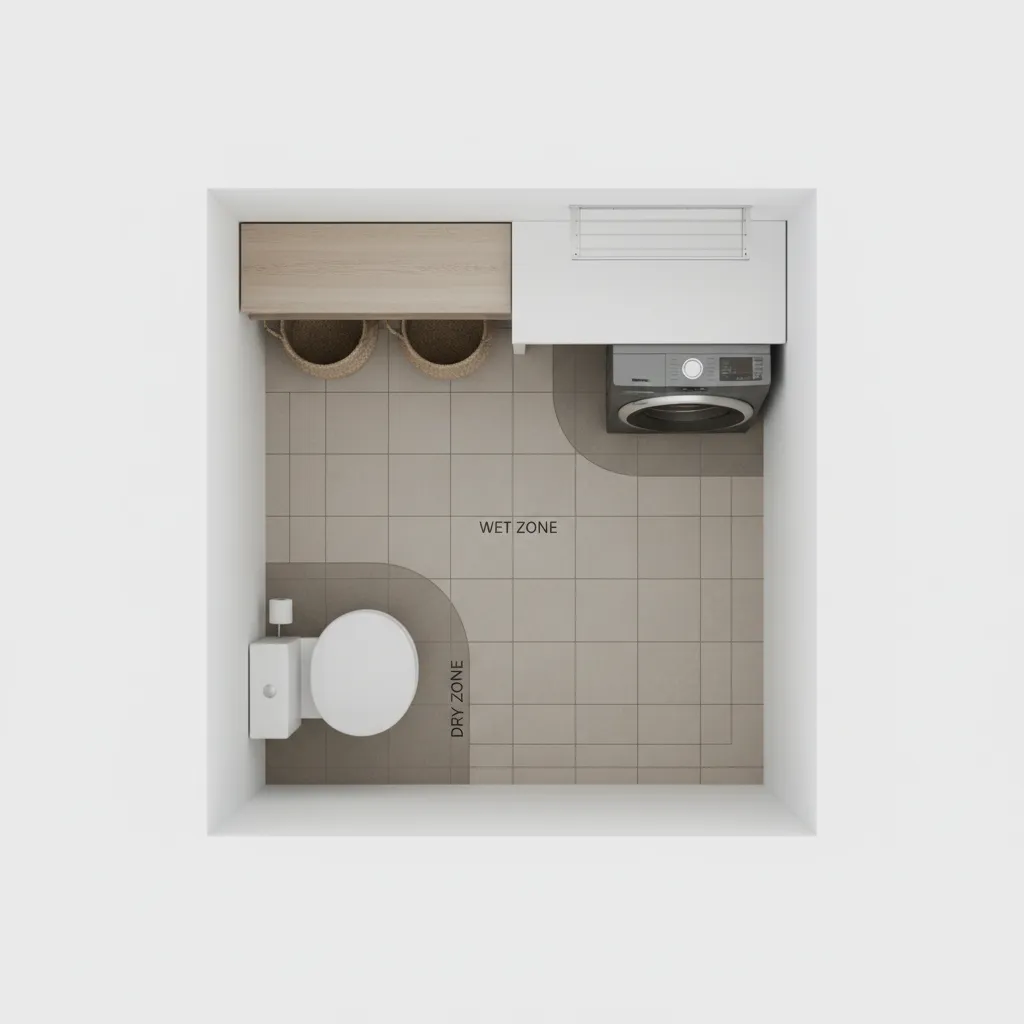

Distance Rules Between Fixtures

Key Insight: Plumbing codes enforce minimum spacing to ensure accessibility, sanitation, and maintenance access.

Space limitations are one of the biggest constraints when placing a toilet in a laundry room. Codes require specific clearances around the fixture.

Common fixture spacing rules:

1. Minimum 15 inches from toilet centerline to any side wall or fixture
2. At least 24 inches of clearance in front of the toilet
3. Recommended 30 inches total width for comfortable use

These measurements might sound generous, but in tight laundry rooms they can become a real design challenge. Before committing to plumbing changes, I often model layouts digitally. If you want to test layouts visually, a guide on visualizing plumbing layouts before construction can help identify spacing conflicts early.

A design trade‑off many people miss:

1. Stacked washer/dryer setups free up space for toilet clearance.
2. Side‑by‑side machines often violate front clearance rules.
3. Relocating the washer drain line may reduce plumbing complexity.

save pin

Permit and Inspection Requirements

Key Insight: Adding a toilet almost always requires a plumbing permit and inspection in the United States.

Even if the work looks minor, installing a new toilet connection changes the building's plumbing system. That triggers permit requirements in most jurisdictions.

The typical permit process:

1. Submit plumbing plan to the local building department.
2. Receive permit approval.
3. Complete rough‑in plumbing installation.
4. Schedule rough plumbing inspection.
5. Finish installation and schedule final inspection.

Skipping this process can create problems when selling the home. Unpermitted plumbing work often appears during home inspections and may require costly corrections.

Answer Box

When installing a toilet near a laundry area, the most important code requirements involve proper drain size, independent venting, minimum fixture spacing, and approved permits. Ignoring any of these factors can lead to failed inspections or drainage problems.

Regional Code Variations Homeowners Should Know

Key Insight: Plumbing rules differ significantly between municipalities even when they reference the same national code.

In the U.S., most areas adopt either the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC). However, local amendments often modify key requirements.

Examples of common regional differences:

1. Some cities require 4‑inch toilet drains instead of 3‑inch.
2. Certain areas mandate backflow protection devices.
3. Vent distance limits may vary by jurisdiction.
4. Basement installations often require ejector pumps.

This is why plumbers always check local building departments before starting work.

save pin

How Plumbers Ensure Code Compliance

Key Insight: Professional plumbers verify compliance through layout planning, vent analysis, and inspection coordination.

In my renovation projects, compliance starts with the layout. Before pipes are moved, we evaluate drain paths, vent stacks, and fixture spacing.

Professional workflow typically includes:

1. Mapping existing plumbing lines
2. Checking vent stack capacity
3. Calculating fixture unit load
4. Confirming clearance requirements
5. Preparing permit drawings

Many designers now use digital visualization to test layout ideas before plumbing work begins. If you're planning a renovation that combines laundry and bathroom elements, this walkthrough on designing compact bathroom layouts that fit tight utility spaces shows how professionals evaluate layouts early.

Final Summary

1. Toilets require larger drain pipes than washing machines.
2. Proper venting is essential when fixtures share plumbing systems.
3. Minimum spacing rules often determine whether installation is possible.
4. Permits and inspections are usually mandatory.
5. Local plumbing codes may override national standards.

FAQ

Can a toilet share a drain with a washing machine?

Sometimes, but only if the pipe size, slope, and venting meet plumbing code requirements. Most installations require a larger dedicated drain line.

What is the plumbing code for a toilet in a laundry room?

The plumbing code for a toilet in a laundry room usually requires a 3–4 inch drain pipe, proper venting, and minimum fixture spacing.

Do I need a permit to add a toilet near my washer?

Yes. Most municipalities require a plumbing permit and inspection for any new toilet installation.

How far should a toilet be from a washing machine?

Typically at least 15 inches from the toilet centerline to another fixture, plus adequate front clearance.

Can I install a toilet in a small laundry room?

Yes, if spacing requirements and venting rules are satisfied.

What drain size is required for a toilet?

Most plumbing codes require a minimum 3‑inch drain pipe for toilets.

Do laundry room bathrooms need special venting?

Yes. Venting requirements for a laundry room toilet usually require proper airflow to prevent trap siphoning.

What happens if plumbing work fails inspection?

You must correct the issues and schedule another inspection before the work can be approved.
