Plumbing Code Requirements for Second-Floor Laundry Room Floor Drains: Understand permits, venting, trap primers, and pipe sizing rules before installing an upstairs laundry floor drain.

Direct Answer

Most residential plumbing codes allow a second-floor laundry room floor drain, but it must follow strict rules for trap sealing, venting, and drainage connection. In many jurisdictions the drain requires a trap primer, proper venting, and connection to the sanitary drainage system with approved pipe sizing. Local building codes and inspections ultimately determine whether the installation is permitted.

Quick Takeaways

1. Second-floor laundry floor drains are usually allowed but must connect to the sanitary drainage system.
2. Most plumbing codes require a trap primer to prevent the drain trap from drying out.
3. Drain lines typically require 2-inch piping and proper venting.
4. Local jurisdictions may modify national plumbing codes with additional rules.
5. Inspections and permits are usually required before installation.

Introduction

Over the last decade designing second-floor laundry rooms, one question comes up almost every time: are floor drains actually allowed upstairs? Homeowners love the idea because it adds protection against washing machine leaks, but plumbing code for second floor laundry drain installations is more nuanced than most guides online suggest.

In several renovation projects I worked on in California and Colorado, inspectors approved upstairs floor drains—but only after we added a trap primer and adjusted pipe sizing. Without those changes, the installation would have failed inspection.

Another issue is planning the layout early. Drain placement affects waterproofing, slope, and appliance spacing. When clients start mapping layouts using tools like interactive tools for planning a functional laundry room layout, it becomes much easier to coordinate plumbing locations before construction begins.

This guide explains the real code considerations professionals follow: drainage standards, trap primer requirements, pipe sizing rules, and how inspectors typically evaluate second‑floor laundry drain installations.

save pin

Why Building Codes Matter for Upstairs Laundry Drainage

Key Insight: Plumbing codes exist to prevent hidden water damage and sewer gas problems in upper‑floor living spaces.

Unlike basement drains, upstairs floor drains sit directly above finished ceilings and living areas. A poorly installed drain can cause structural moisture damage or allow sewer gases into the home.

Major plumbing standards in the U.S. include:

1. International Plumbing Code (IPC)
2. Uniform Plumbing Code (UPC)
3. State or municipal amendments

Both the IPC and UPC allow floor drains in residential buildings, but they require proper traps and venting. Inspectors focus on three primary issues:

1. Trap seal protection
2. Proper venting
3. Approved drainage connections

In my experience, the biggest mistake homeowners make is assuming a floor drain works like a shower drain. It doesn’t. Laundry drains are used infrequently, which means traps dry out unless a primer keeps them filled.

Typical Plumbing Code Rules for Floor Drains

Key Insight: Most codes require floor drains to connect to the sanitary system with a trapped drain line and adequate pipe size.

Although exact requirements vary by jurisdiction, inspectors typically look for these baseline standards.

Common residential floor drain code requirements:

1. P-trap installed directly below the drain
2. Trap seal depth between 2 and 4 inches
3. Minimum 2-inch drain pipe diameter
4. Connection to sanitary waste line
5. Accessible cleanout in some jurisdictions

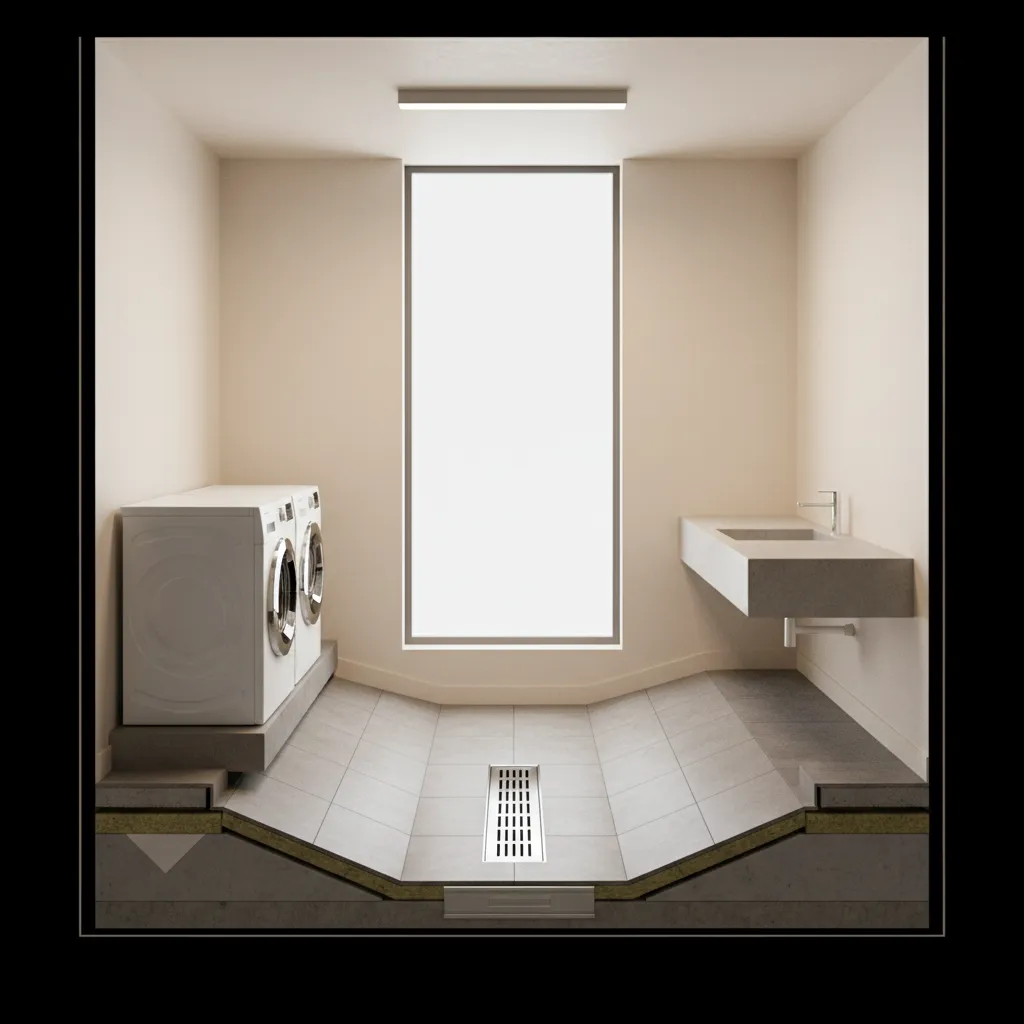

In practice, a properly installed drain also requires floor slope so water actually reaches it. Many designers solve this by slightly recessing the laundry area or using waterproof floor assemblies.

Design planning tools such as creating accurate laundry layouts with a floor plan toolhelp determine where drains, machines, and walls intersect before plumbing rough‑ins begin.

save pin

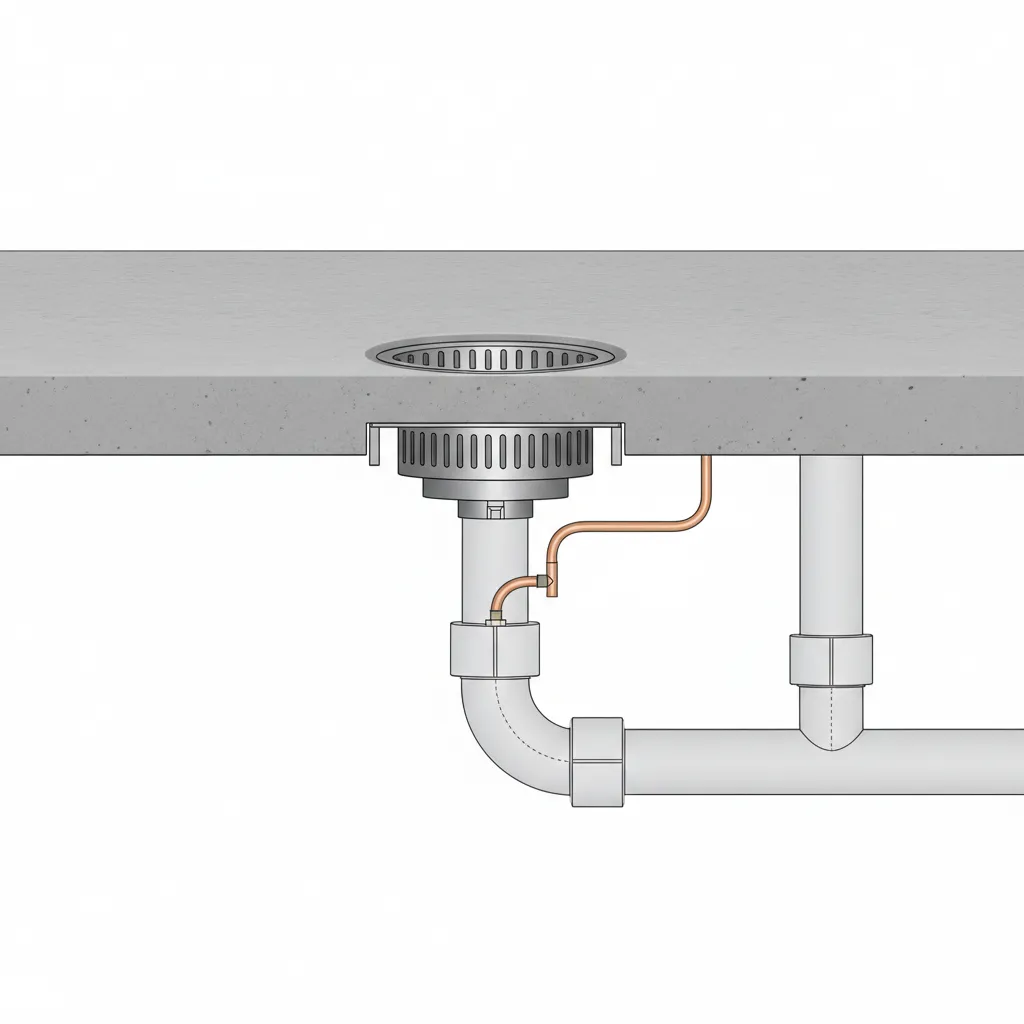

Trap Primers and Venting Requirements

Key Insight: A trap primer is often mandatory because rarely used floor drains lose their water seal.

Every plumbing drain needs a trap to block sewer gases. The problem is that laundry room floor drains may go months without water flowing through them.

That’s where a trap primer comes in.

How trap primers work:

1. They automatically add small amounts of water to the drain trap.
2. They connect to nearby water supply lines.
3. They activate when fixtures such as sinks or toilets are used.

The International Plumbing Code (IPC Section 1002.4) specifically requires trap seal protection for infrequently used drains.

Venting is the second requirement. Without proper venting, the trap can be siphoned dry when nearby fixtures drain.

Typical venting solutions:

1. Connecting the floor drain to an existing vented branch line
2. Installing a dedicated vent
3. Using wet venting where permitted by code

Drain Pipe Sizing and Connection Standards

Key Insight: Undersized drain pipes are one of the most common inspection failures for upstairs laundry installations.

Many homeowners assume a 1.5‑inch pipe is enough because that’s what sinks use. But floor drains are designed to handle sudden water loads from washing machine leaks.

Typical pipe sizing requirements:

1. Minimum 2-inch drain pipe for floor drains
2. Connection to a 3-inch or larger building drain in many systems
3. Proper slope of 1/4 inch per foot

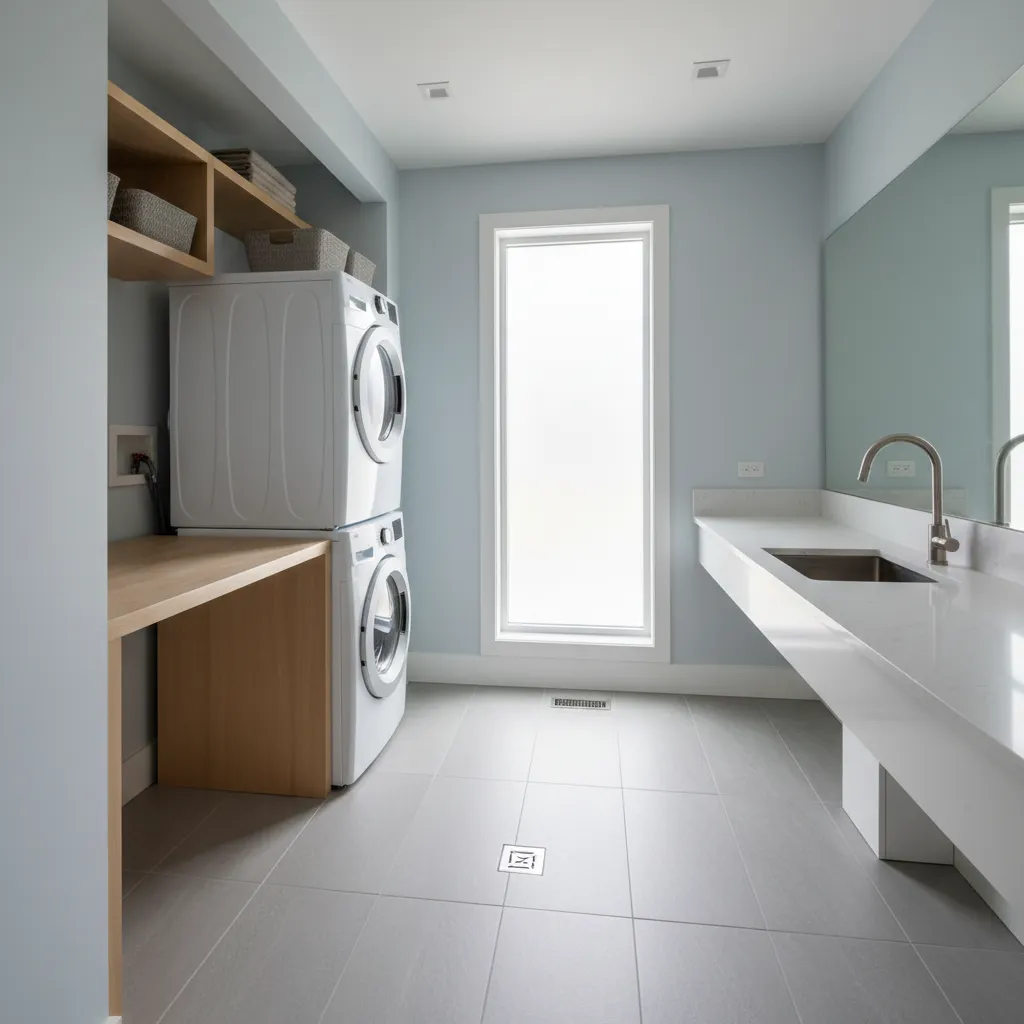

Another overlooked detail is drain placement relative to the washing machine pan or waterproof flooring. Poor placement means water never reaches the drain.

For projects where clients want visual clarity before construction, we often generate layout previews using realistic home interior renderings to visualize plumbing and appliance placement. Seeing the space in 3D often reveals design issues long before installation.

save pin

Answer Box

Most plumbing codes allow a second-floor laundry room floor drain, but it must include a P-trap, trap primer, proper venting, and at least a 2‑inch drain pipe. Local code amendments and inspections ultimately determine compliance.

Regional Variations in Residential Plumbing Codes

Key Insight: The biggest differences in laundry drain rules come from local amendments to national plumbing codes.

Even though the IPC and UPC provide national standards, cities frequently modify them.

Examples of regional variations:

1. California often requires seismic bracing for plumbing assemblies.
2. Some Midwest cities require dedicated drain lines for laundry areas.
3. Canadian codes may require additional waterproofing measures.

Another difference is whether inspectors allow indirect connections or require the drain to tie directly into the sanitary system.

The safest approach is always verifying requirements with the local building department before rough plumbing begins.

Working With Contractors and Inspectors During Installation

Key Insight: Early coordination between designer, plumber, and inspector prevents expensive rework.

On renovation projects, the best outcomes happen when plumbing decisions are made before framing is finalized.

Professional installation checklist:

1. Confirm code requirements with local building department
2. Obtain plumbing permits
3. Plan drain slope and floor waterproofing
4. Install trap primer system
5. Schedule rough plumbing inspection

Skipping the permit stage is risky. Inspectors frequently require ceilings to be opened if a drain installation wasn’t inspected during rough plumbing.

Final Summary

1. Second‑floor laundry floor drains are generally allowed under U.S. plumbing codes.
2. Trap primers are commonly required to maintain the drain trap seal.
3. Most codes require at least a 2‑inch drain pipe.
4. Proper venting prevents siphoning and sewer gas issues.
5. Local code amendments determine final approval.

FAQ

Are floor drains allowed in residential laundry rooms?

Yes. Most plumbing codes allow them, but they must meet requirements for traps, venting, and sanitary connections.

Do you need a trap primer for a laundry floor drain?

Often yes. Plumbing code for second floor laundry drain systems frequently requires trap primers to prevent trap seal evaporation.

What size pipe is required for a floor drain?

Most residential codes require a minimum 2‑inch drain pipe for floor drains.

Does a laundry floor drain need to be vented?

Yes. Proper venting prevents siphoning that could empty the trap and allow sewer gases into the home.

Can a floor drain connect to the washing machine drain line?

Sometimes. It depends on local plumbing code and whether the line is properly vented and sized.

Is a permit required for installing a floor drain?

In most jurisdictions, yes. Plumbing modifications typically require permits and inspections.

What slope should a laundry room floor have?

A slight slope toward the drain—often around 1/8 to 1/4 inch per foot—helps water reach the drain.

Why do some builders avoid upstairs floor drains?

They add plumbing complexity, require trap primers, and increase construction cost.
