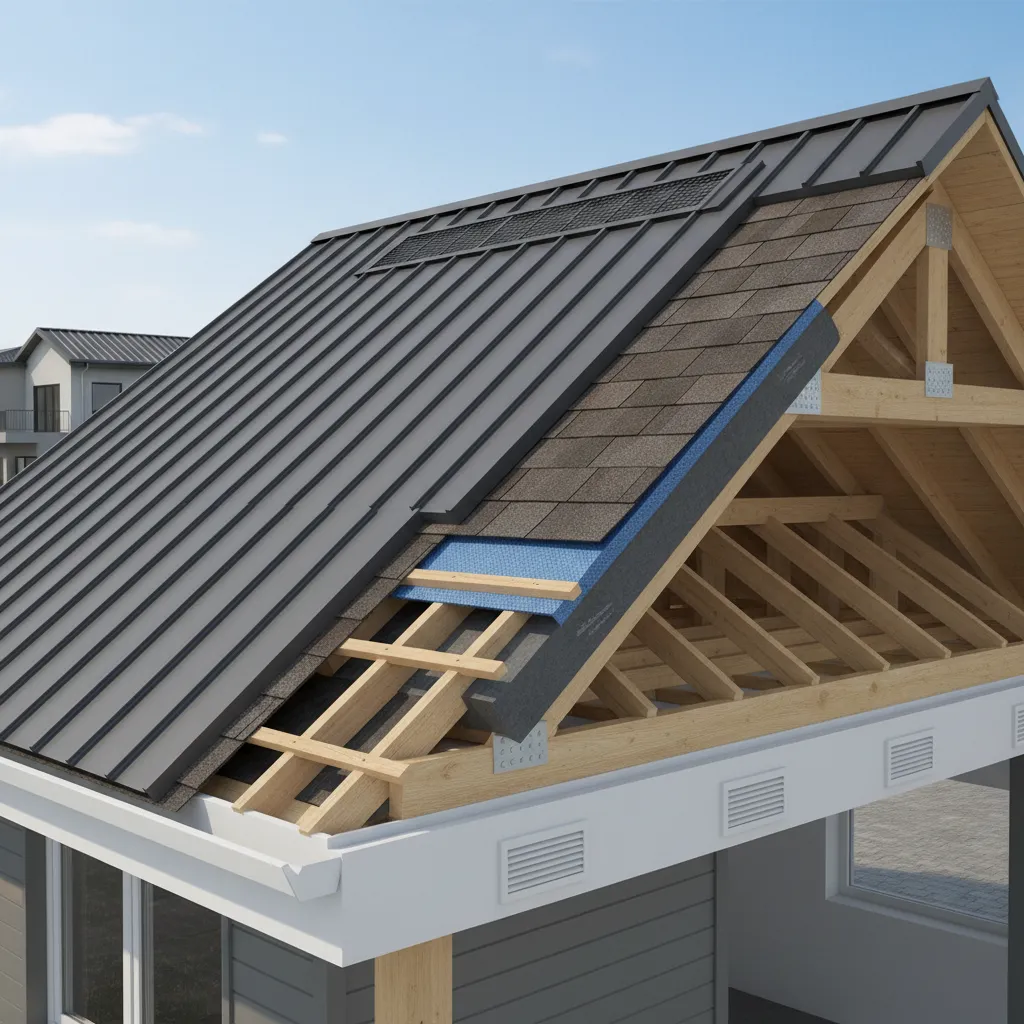

Prevent Condensation Under a Metal Roof Installed Over Shingles: Practical retrofit strategies that stop moisture buildup and protect your roof structure when metal panels are installed over asphalt shingles.

Direct Answer

Condensation under a metal roof installed over shingles usually happens when warm indoor air meets the cooler metal surface without enough ventilation or moisture control. The most reliable fix combines breathable underlayment, continuous airflow from soffit to ridge, and proper separation between metal panels and the existing shingle layer.

When these three elements work together, the roof system allows moisture to escape instead of trapping it beneath the metal.

Quick Takeaways

1. Condensation forms when warm air reaches the cold underside of metal roofing.
2. Existing shingles can trap moisture if airflow paths are blocked.
3. Synthetic breathable underlayment reduces condensation risk significantly.
4. Continuous ridge and soffit ventilation is critical in metal roof retrofits.
5. Many moisture problems appear months after installation, not immediately.

Introduction

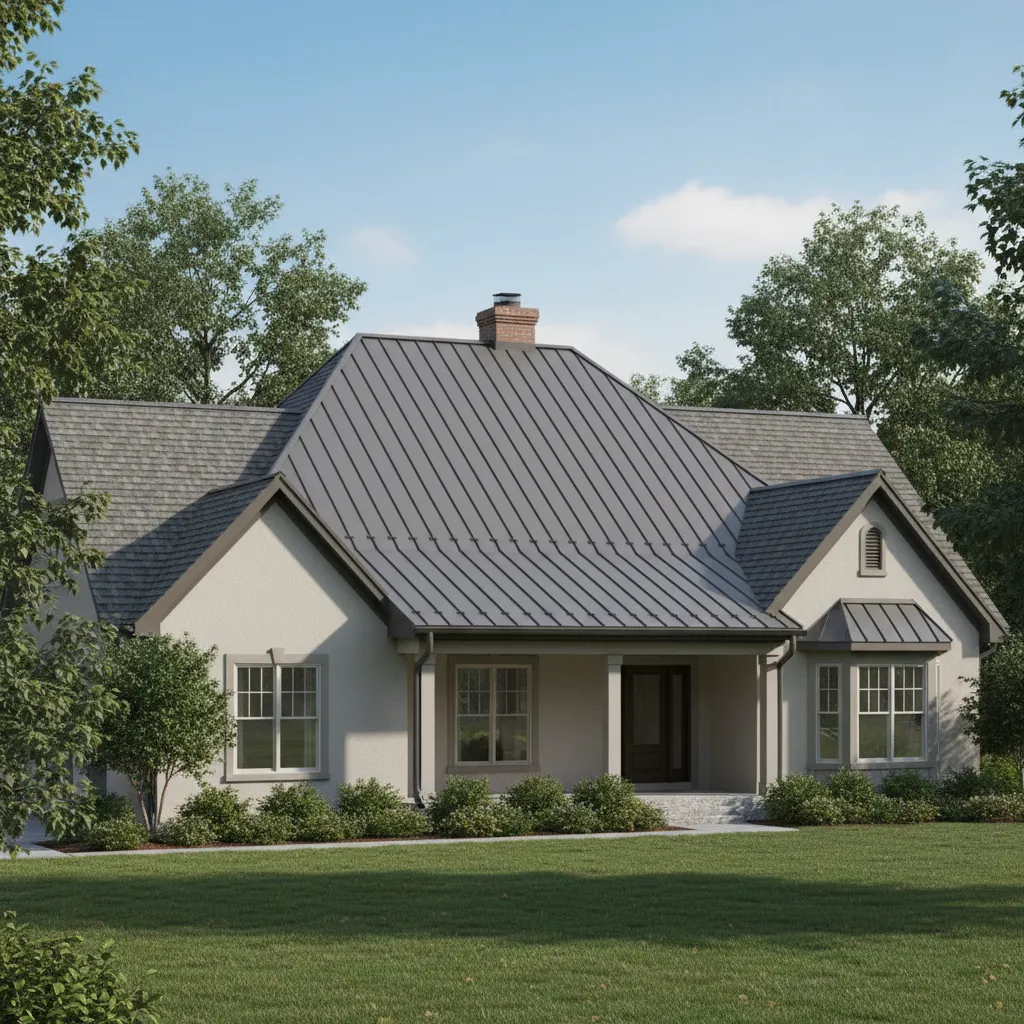

Condensation under metal roof over shingles is one of the most common retrofit problems I see in residential projects. On paper, installing metal panels over existing asphalt shingles seems straightforward. In practice, the moisture behavior of that layered roof system becomes much more complicated.

Over the past decade working on retrofit roofing projects with builders and remodelers, I've noticed the same pattern: the roof looks perfect after installation, but six months later homeowners start noticing damp insulation, musty attic air, or even dripping during cold mornings.

The issue usually isn't the metal roofing itself. It's the interaction between the old shingle layer, the new metal panels, and how air and moisture move through the assembly.

Many contractors underestimate how airflow and moisture escape paths change once metal panels go on top of shingles. If you're planning a retrofit, understanding layout and airflow planning early is crucial. A clear planning approach similar to the process used in a step by step layout planning for complex structureshelps avoid structural surprises later.

In this guide I'll break down why condensation happens, how shingles change the physics of the roof system, and what actually fixes the problem once it appears.

save pin

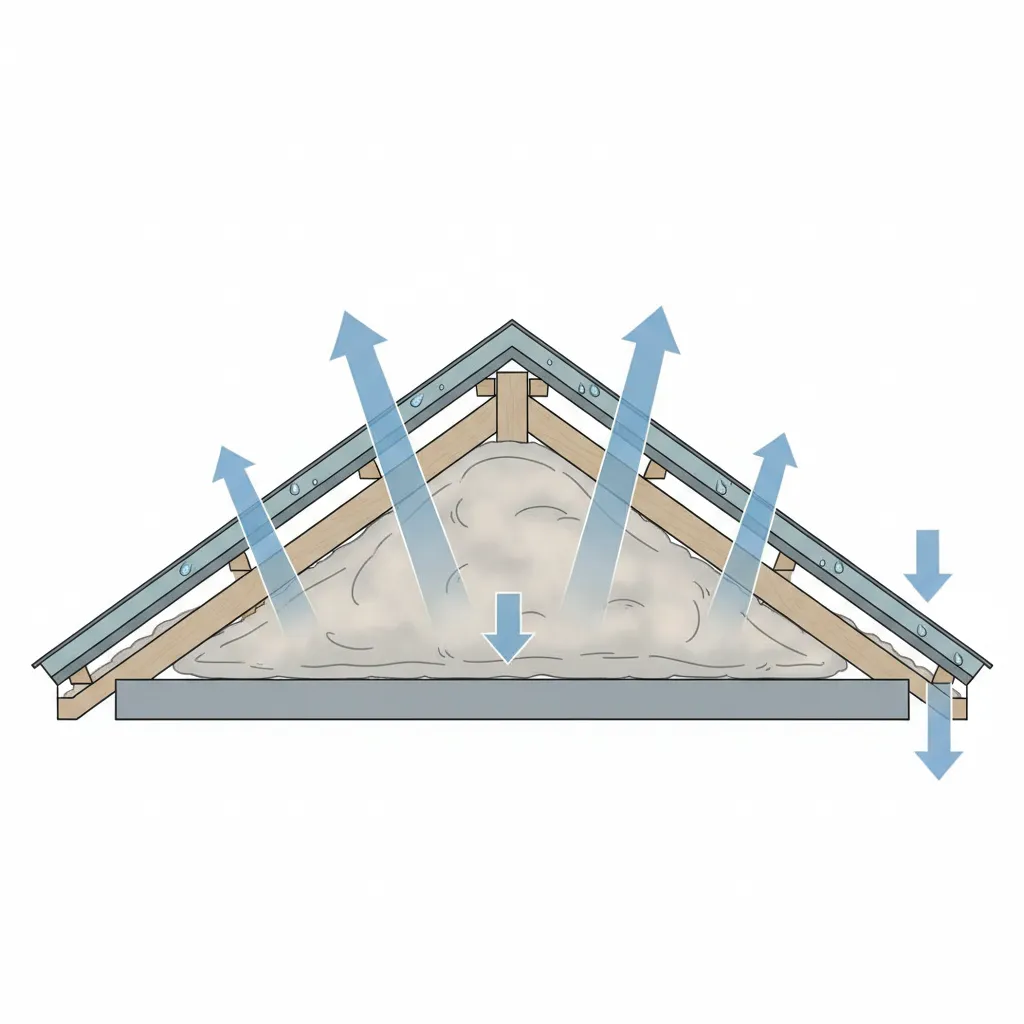

Why Condensation Forms Under Metal Roofing

Key Insight: Condensation forms when warm, moisture‑laden air touches the cooler underside of metal roofing panels.

Metal roofing cools quickly at night. When humid indoor air rises into the attic and contacts that cold metal surface, water vapor turns into liquid droplets. This is the same principle that causes a cold drink to sweat.

In retrofit situations, the problem is amplified because metal roofing reacts to temperature swings much faster than asphalt shingles.

Typical condensation triggers include:

1. Poor attic ventilation
2. High indoor humidity
3. Missing vapor barriers
4. Cold nighttime temperatures
5. Insulation blocking airflow paths

The U.S. Department of Energy consistently emphasizes that moisture control in roof systems depends on airflow and vapor management working together, not independently.

How Existing Shingles Affect Moisture Behavior

Key Insight: Old asphalt shingles can trap moisture between layers, preventing natural drying.

Many homeowners assume leaving shingles in place helps insulation. In reality, the existing layer can become a moisture trap.

Here's what changes when metal is installed over shingles:

1. The shingle surface slows evaporation
2. The air gap between layers may be inconsistent
3. Heat transfer behavior changes dramatically
4. Moisture that would normally dry outward becomes trapped

In several retrofit inspections I've done, condensation appeared primarily where the shingle layer had curled or compressed. Those irregular gaps allowed moist air pockets to form.

This is one of the hidden costs of metal‑over‑shingle installations that rarely gets discussed in standard roofing guides.

save pin

Signs of Moisture Problems in Metal Over Shingle Roofs

Key Insight: Condensation problems usually appear gradually and are often mistaken for roof leaks.

Homeowners often assume the metal roof is leaking, but the water actually forms inside the roof assembly.

Common warning signs include:

1. Dripping during cold mornings
2. Damp attic insulation
3. Mold or mildew smell in attic spaces
4. Rust spots forming on panel undersides
5. Wet roof decking despite no rain

Building envelope consultants frequently note that moisture problems are misdiagnosed as flashing issues, delaying the real fix.

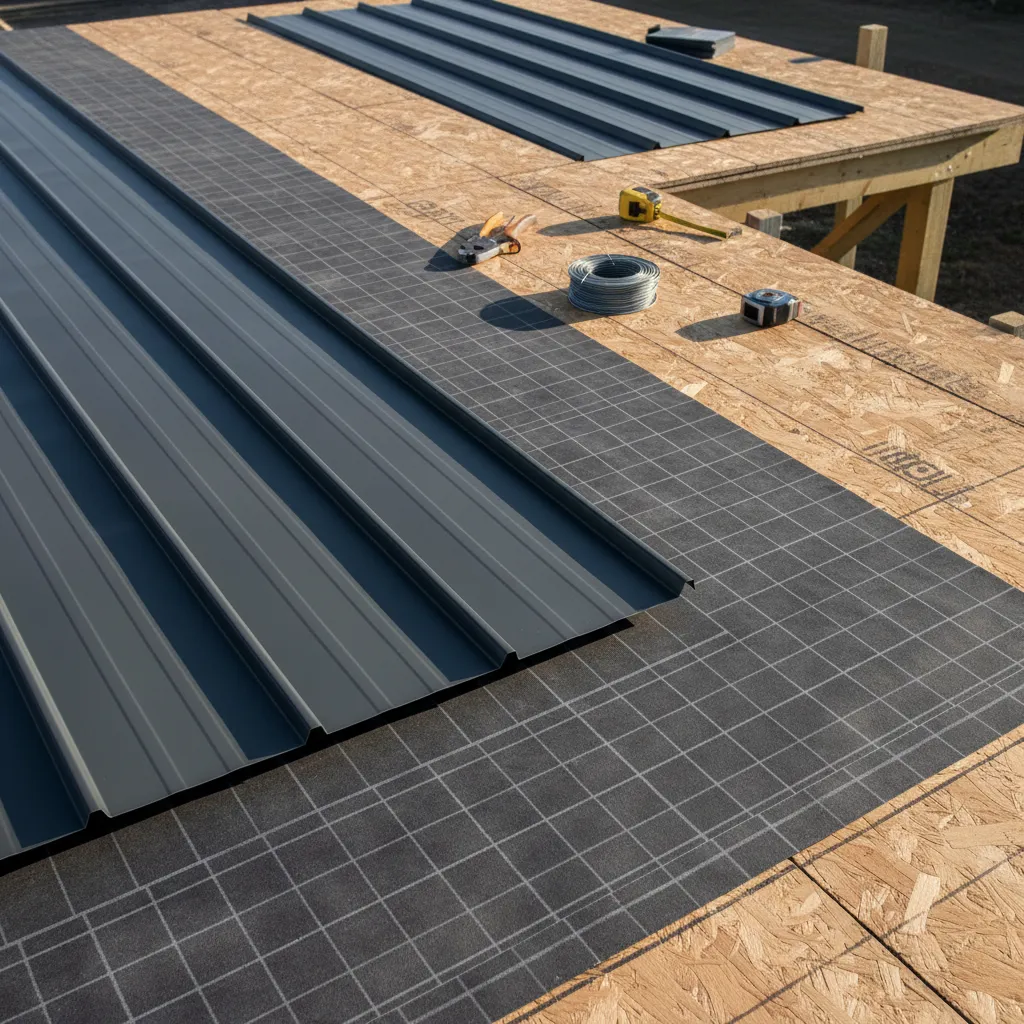

Underlayment Choices That Reduce Condensation Risk

Key Insight: Breathable synthetic underlayment dramatically reduces trapped condensation in retrofit metal roofs.

Underlayment is the most overlooked component in moisture control.

Based on multiple retrofit case studies, these materials perform differently:

1. Traditional felt: absorbs moisture but dries slowly
2. Synthetic breathable membrane: allows vapor to escape
3. Peel‑and‑stick ice shield: excellent barrier but can trap vapor

For metal roof retrofits, breathable synthetic underlayment typically performs best because it balances moisture protection with drying potential.

When planning roof assemblies or renovations, visualizing structural layers early—similar to the workflow used in a digital planning workflow for accurate structural layouts—helps contractors anticipate moisture behavior before installation begins.

save pin

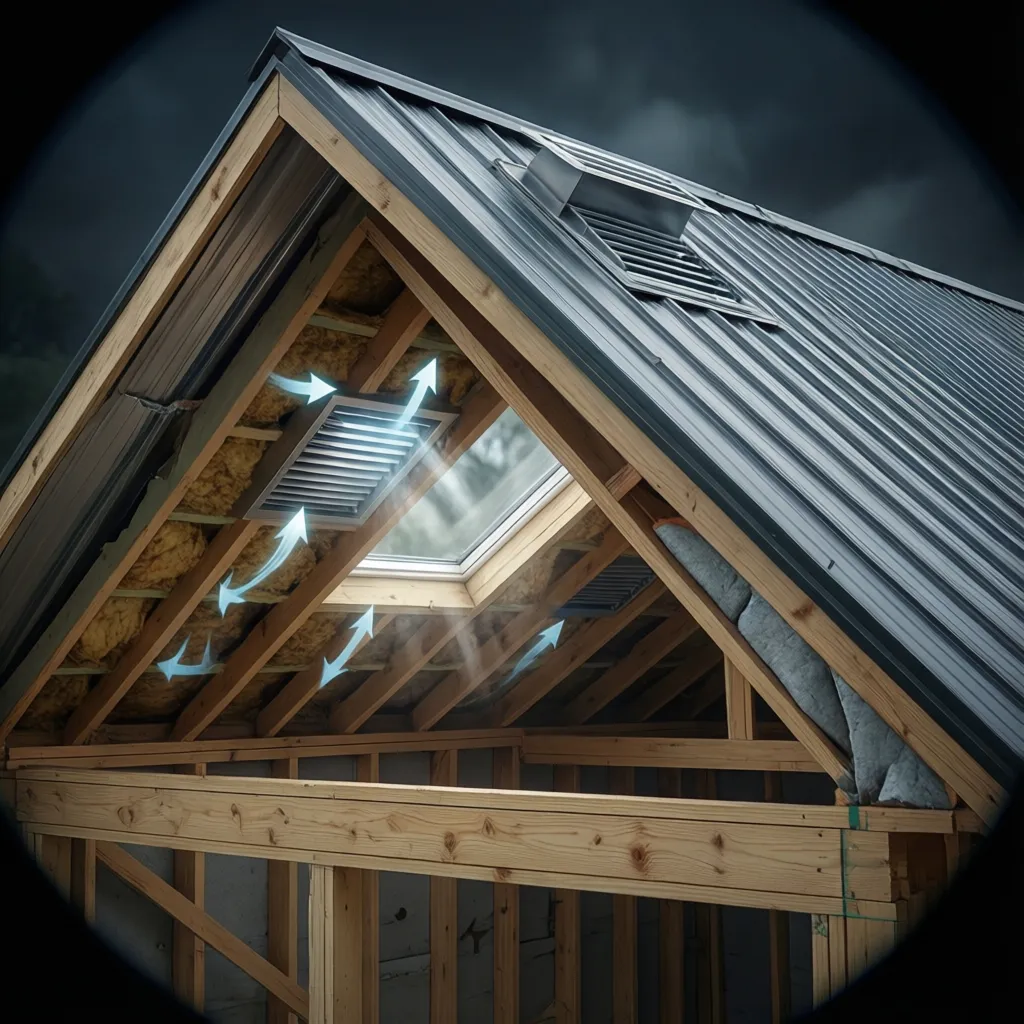

Ventilation Strategies for Retrofit Metal Roofing

Key Insight: Continuous airflow from soffit to ridge is the single most effective condensation prevention method.

Ventilation allows warm humid air to exit before it reaches the underside of the metal panels.

Effective retrofit ventilation includes:

1. Soffit intake vents
2. Continuous ridge vents
3. Vent baffles to keep insulation from blocking airflow
4. Air channels beneath metal panels when possible

The Metal Construction Association notes that balanced intake and exhaust ventilation significantly reduces condensation risk in metal roof systems.

save pin

Fixing Condensation Problems After Installation

Key Insight: Most condensation problems can be solved without removing the entire metal roof.

If moisture has already appeared, several retrofit fixes are commonly used:

1. Add ridge vents if none exist
2. Improve soffit airflow
3. Install ventilation spacers under panels
4. Reduce interior humidity levels
5. Add vapor barriers above insulation

In more severe cases, contractors may install vertical battens to create a ventilated air gap beneath the metal roofing.

Answer Box

The most reliable way to prevent condensation under a metal roof installed over shingles is combining breathable underlayment, proper ventilation, and controlled attic humidity. Without airflow from soffit to ridge, moisture will eventually accumulate regardless of roofing material.

Final Summary

1. Condensation happens when warm air meets cool metal roofing.
2. Existing shingles can trap moisture inside the roof system.
3. Breathable synthetic underlayment reduces condensation risk.
4. Continuous ventilation from soffit to ridge is essential.
5. Most retrofit condensation issues can be corrected without full roof removal.

When planning complex structural upgrades, professionals often rely on visualization tools similar to those used for experimenting with layout concepts before construction begins to identify airflow and structural conflicts early.

FAQ

1. Why is there condensation under my metal roof over shingles?

Warm humid air from the house rises into the attic and contacts the cooler metal roofing surface, causing moisture to form.

2. Is condensation under metal roofing normal?

Small amounts can occur during temperature swings, but persistent moisture usually indicates ventilation or vapor control problems.

3. Can insulation cause condensation problems?

Yes. Insulation that blocks soffit airflow prevents proper ventilation and traps moist air inside the roof system.

4. What underlayment prevents condensation under metal roof over shingles?

Breathable synthetic underlayment is widely recommended because it allows vapor to escape while protecting the roof deck.

5. How do you stop a metal roof sweating problem in a retrofit?

Improve attic ventilation, reduce indoor humidity, and ensure vapor barriers and breathable underlayment are properly installed.

6. Do metal roofs need ventilation?

Yes. Metal roofing cools quickly, so balanced intake and exhaust ventilation is essential for moisture control.

7. Should shingles be removed before installing metal roofing?

Not always. Many retrofits keep the shingles, but moisture control and ventilation must be carefully designed.

8. Can condensation damage roof decking?

Yes. Persistent condensation can lead to mold growth, wood rot, and reduced insulation performance.

References

1. U.S. Department of Energy – Roof Ventilation Guidelines
2. Metal Construction Association Technical Bulletin
3. Building Science Corporation – Moisture Control in Roof Assemblies
