Professional Chess Floor Installation Workflow Used by Contractors: How commercial flooring contractors plan, lay out, and install checkerboard floors for long‑lasting precision

Direct Answer

The professional checkerboard floor installation process follows a strict workflow: subfloor preparation, precision layout planning, controlled tile installation, and final quality checks. Contractors rely on reference grid lines, expansion control, and systematic tile placement to keep the chess pattern perfectly aligned and durable for years.

Most installation failures happen not during tiling—but during layout planning and subfloor preparation.

Quick Takeaways

1. Professional installers start with a grid system, not the first tile.
2. Subfloor flatness tolerance usually stays within 1/8 inch over 10 feet.
3. Checkerboard layouts are centered to avoid narrow edge tiles.
4. Commercial installers use sequence zones to prevent pattern drift.
5. Final inspections verify grout alignment and expansion spacing.

Introduction

After overseeing dozens of tile and stone flooring projects over the past decade, I’ve noticed something interesting: checkerboard floors look simple, but they’re one of the easiest patterns to install incorrectly.

A professional checkerboard floor installation process is not just about alternating colors. Contractors treat it like a geometric system. The moment layout accuracy slips—even by a few millimeters—the entire floor starts to visually drift.

In residential projects, DIY installations often begin by placing tiles along a wall. Professionals almost never do that. Instead, they establish a central grid that controls the entire room.

Before any tile is installed, most contractors simulate the pattern using digital layout tools or planning diagrams. If you're curious how professionals visualize spacing and symmetry before construction even begins, this guide shows how designers map checkerboard tile layouts with a digital floor planning workflow.

In this article, I’ll walk through the exact workflow contractors use in commercial projects—from subfloor inspection all the way to final quality checks. Understanding this process reveals why professional checkerboard floors look balanced, crisp, and durable.

save pin

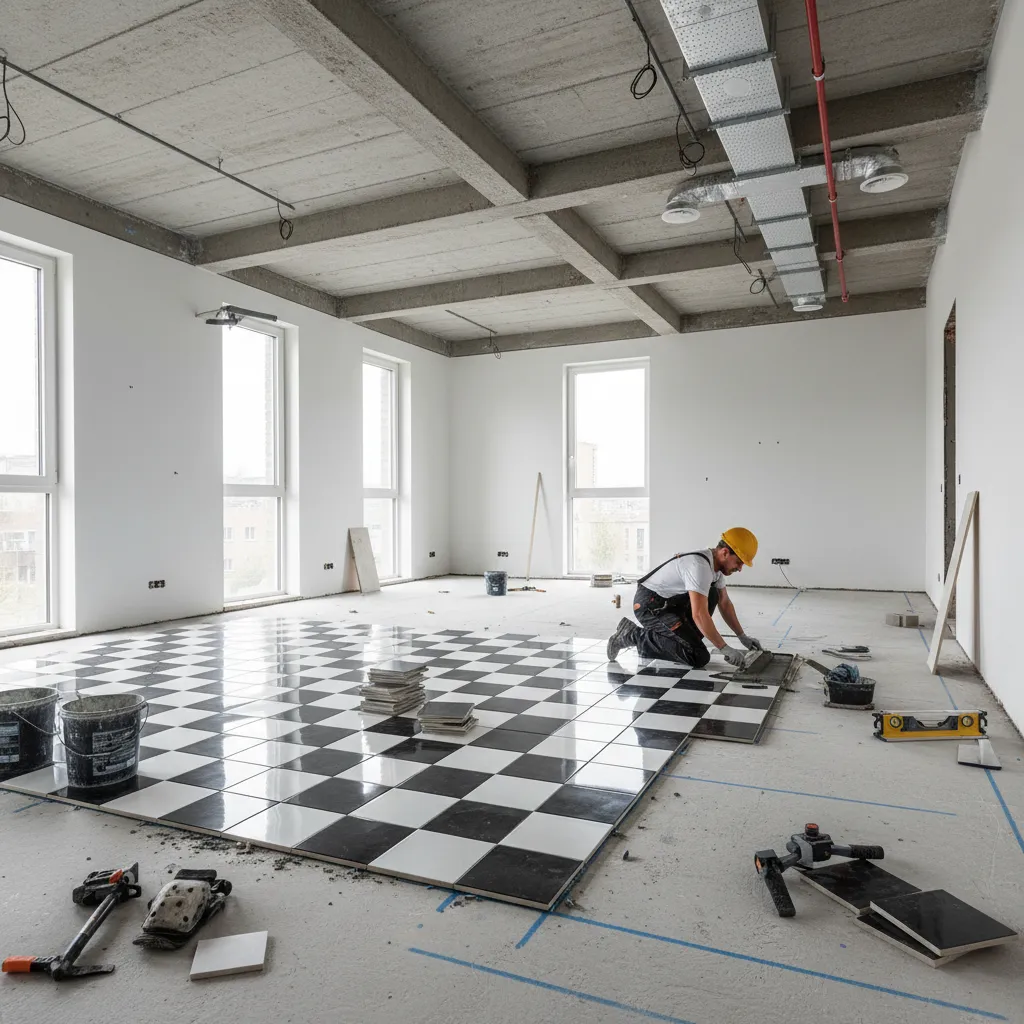

Overview of Professional Checkerboard Flooring Projects

Key Insight: Professional projects treat checkerboard flooring as a controlled layout system rather than a decorative tile pattern.

In commercial spaces—restaurants, lobbies, retail stores—checkerboard flooring must maintain visual alignment across large surfaces. That means installers follow a staged workflow that minimizes pattern shift and structural issues.

Typical contractor workflow:

1. Site inspection and floor measurement
2. Subfloor flatness correction
3. Gridline layout and center alignment
4. Dry layout verification
5. Phased tile installation
6. Grouting and curing
7. Quality inspection

One mistake I frequently see in residential projects is skipping the dry layout stage. Commercial installers almost always place tiles temporarily first to confirm pattern alignment before adhesive is applied.

According to the Tile Council of North America (TCNA), layout planning is considered one of the most critical steps in patterned tile installation because visual alignment errors become obvious across large surfaces.

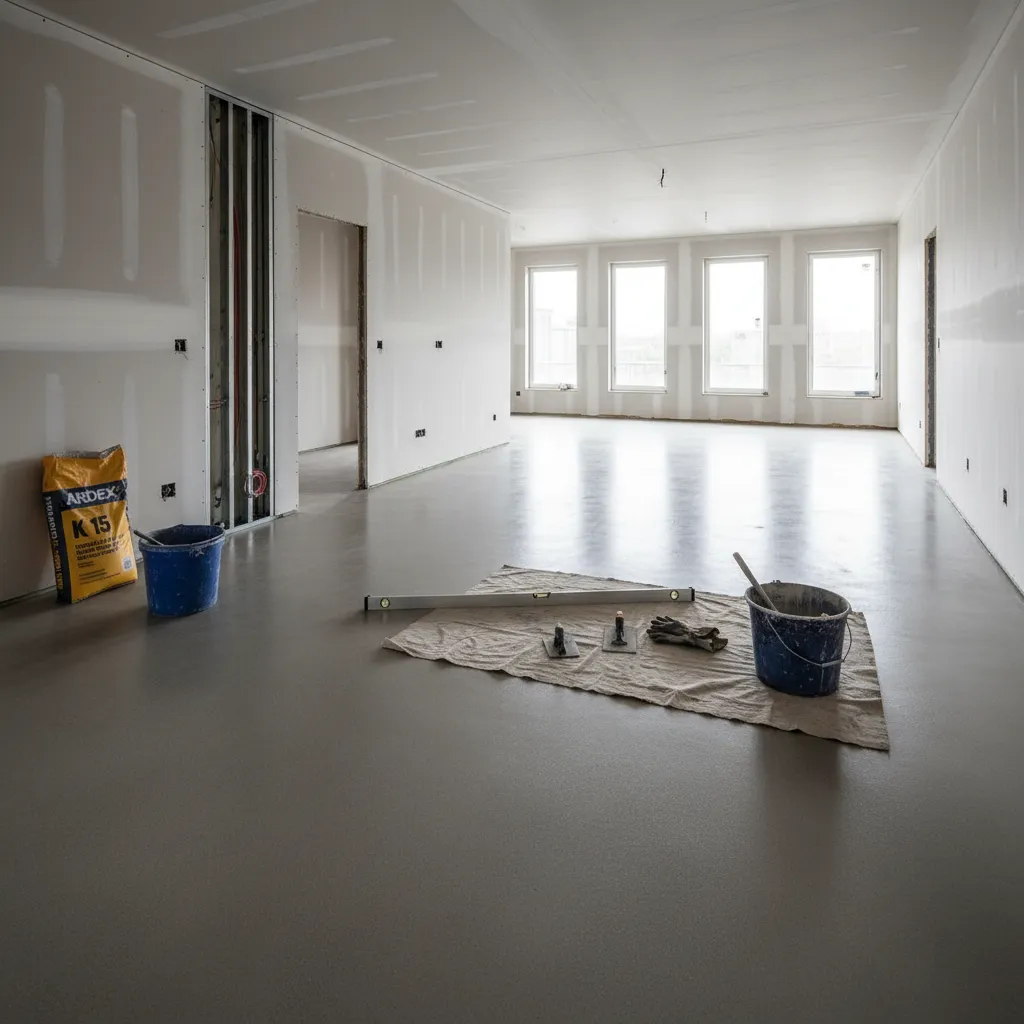

Subfloor Preparation Standards Used by Contractors

Key Insight: Even perfectly aligned tiles will fail if the subfloor is not flat and structurally stable.

Checkerboard floors amplify uneven surfaces because the alternating color pattern highlights height differences. Professional installers follow strict subfloor standards before tile installation begins.

Typical contractor preparation checklist:

1. Flatness tolerance: within 1/8 inch over 10 feet
2. Moisture testing for concrete slabs
3. Crack isolation membrane installation when needed
4. Self‑leveling compound for uneven areas
5. Dust and debris removal

A surprising hidden issue in older buildings is slab moisture. Without proper moisture testing, adhesives can weaken and tiles may loosen over time.

The National Tile Contractors Association recommends moisture and flatness testing before patterned tile installation specifically because geometric layouts reveal substrate flaws much faster than standard tile patterns.

save pin

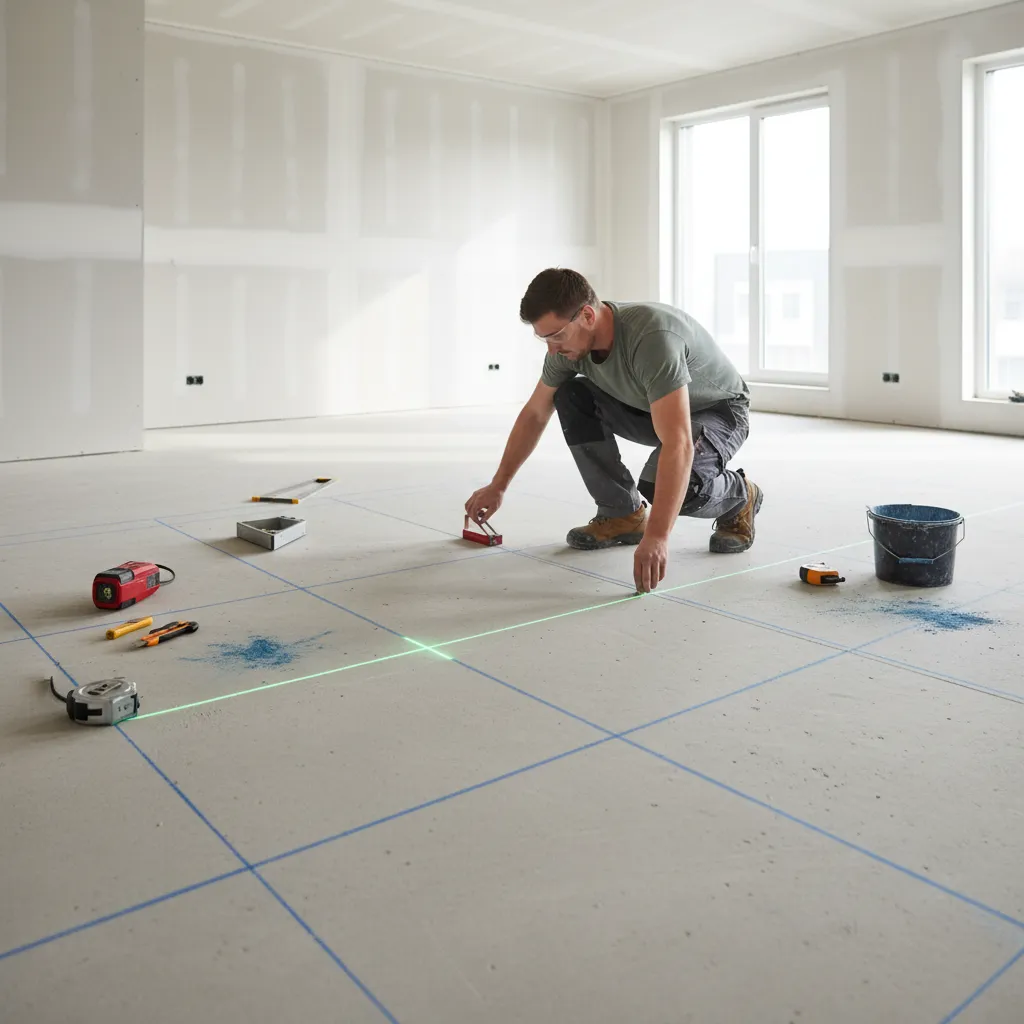

Professional Layout Planning for Chess Pattern Floors

Key Insight: The layout grid—not the first tile—determines whether a checkerboard floor looks professional.

Experienced installers start by identifying the visual center of the room. From there, they snap perpendicular chalk lines to create a reference grid.

This grid controls the entire checkerboard pattern.

Professional layout strategy:

1. Locate the room's visual center
2. Snap perpendicular chalk lines
3. Create quadrant installation zones
4. Dry‑place tiles to verify symmetry
5. Adjust grid to avoid narrow edge cuts

A common design mistake is centering the pattern based purely on room geometry. Professionals instead center based on visual sightlines—like the entrance axis of a room.

For large installations, contractors often preview pattern symmetry with digital planning tools. This approach allows designers to visualize checkerboard floor alignment before installation begins, reducing layout errors on site.

save pin

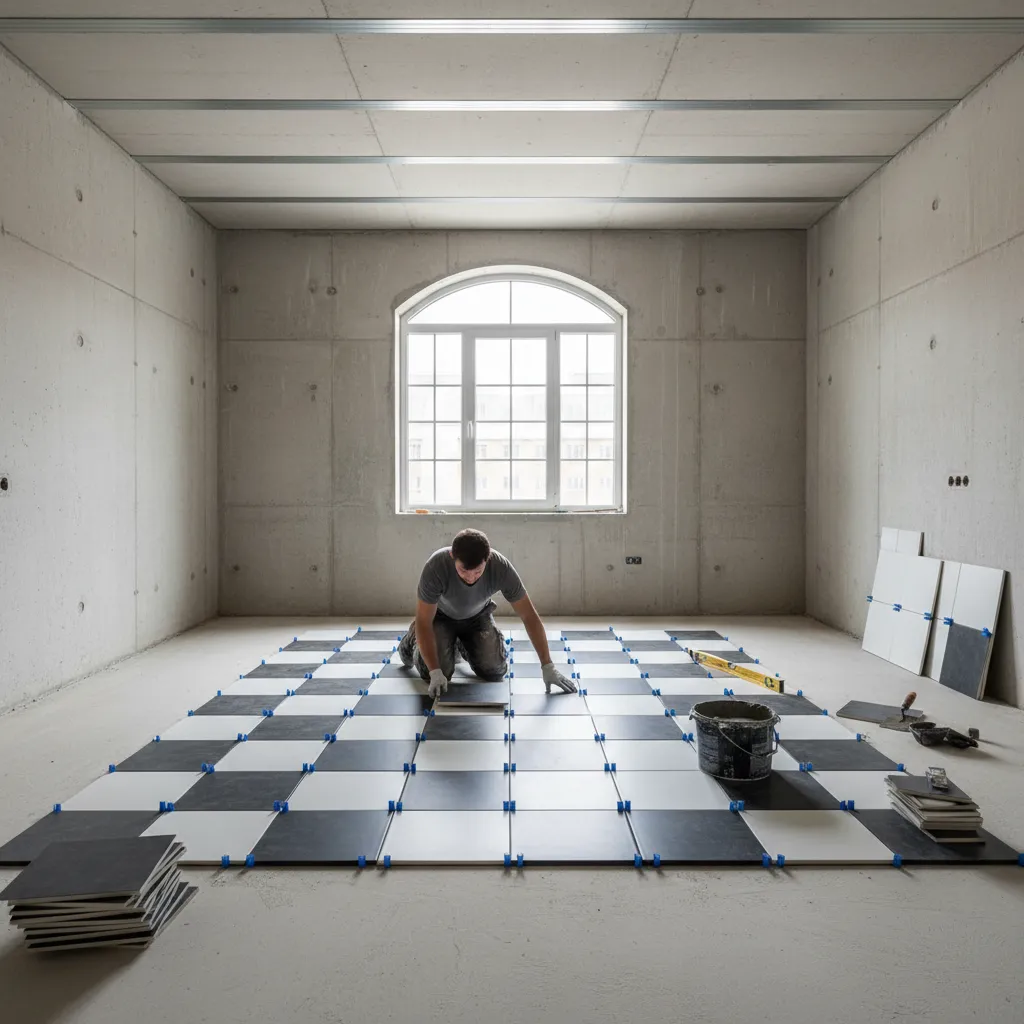

Installation Sequence Used in Commercial Projects

Key Insight: Professional installers work in controlled zones to prevent cumulative pattern drift.

Unlike small DIY installations, commercial floors may span hundreds or thousands of square feet. To maintain alignment, installers divide the grid into installation sections.

Typical installation sequence:

1. Start at grid center intersection
2. Install first quadrant
3. Mirror installation into adjacent quadrant
4. Continue alternating color sequence
5. Maintain consistent joint spacing

Working outward from the center ensures that pattern alignment remains symmetrical across the space.

Another professional technique is "batch tile staging." Installers separate tile colors into organized stacks before installation to avoid pattern mistakes during adhesive working time.

Answer Box

Professional checkerboard floor installation relies on three fundamentals: a perfectly prepared subfloor, a precise grid layout, and a controlled installation sequence from the room’s center outward.

Skipping any of these steps dramatically increases the risk of misalignment and long‑term flooring failure.

Quality Control Checks Before Project Completion

Key Insight: Professional contractors inspect pattern alignment long before grout is applied.

Quality control is typically performed twice: once during installation and once before project handover.

Final inspection checklist:

1. Consistent grout line spacing
2. Pattern alignment across grid lines
3. Tile lippage inspection
4. Expansion joint verification
5. Edge cut consistency along walls

One often overlooked detail is edge tile width. If edge pieces are too narrow, the floor immediately looks unbalanced. Professionals adjust the original grid earlier to prevent this issue.

save pin

Common Professional Tools for Chess Floor Installation

Key Insight: Professional accuracy comes from measurement tools as much as installer skill.

Contractors rely on specialized equipment to keep checkerboard layouts consistent across large surfaces.

Common professional tools include:

1. Laser layout levels
2. Chalk line reels
3. Tile leveling systems
4. Precision tile cutters
5. Digital layout planning software

In recent years, many contractors have started planning layouts digitally before arriving on site. Some teams even generate full layout diagrams using tools similar to those used to build accurate floor plan layouts for tile installations, which helps teams coordinate measurements before work begins.

Final Summary

1. Professional checkerboard flooring starts with precise layout planning.
2. Subfloor flatness is critical for long‑term tile stability.
3. Installers work outward from a central grid system.
4. Commercial workflows prevent pattern drift across large spaces.
5. Quality inspections verify alignment before grout is applied.

FAQ

1. What is the professional checkerboard floor installation process?

It includes subfloor preparation, gridline layout planning, center‑outward tile installation, and final quality inspection to maintain perfect checkerboard alignment.

2. Why do professionals start checkerboard floors from the center?

Starting from the center keeps the pattern symmetrical and prevents uneven tile cuts along room edges.

3. How flat should a subfloor be for tile installation?

Most contractors follow a tolerance of 1/8 inch over 10 feet for patterned tile floors.

4. What causes checkerboard floors to look uneven?

Common causes include poor subfloor leveling, inaccurate grid lines, and inconsistent grout spacing.

5. Do professionals dry‑lay tiles before installing them?

Yes. Dry layout allows installers to verify pattern alignment and avoid narrow edge cuts.

6. What materials are best for checkerboard flooring?

Porcelain tile, marble tile, and vinyl composition tile are common choices in professional installations.

7. How long does professional checkerboard floor installation take?

A standard residential room usually takes one to three days depending on floor preparation and tile size.

8. Is checkerboard flooring harder to install than regular tile?

Yes. The alternating pattern makes alignment errors much more visible, requiring more precise layout control.
