Professional Design Guidelines for Small Bathrooms (Architect Insights): Architect backed spacing rules layout standards and material decisions that make compact bathrooms work better for years

Direct Answer

Professional small bathroom design guidelines focus on three things: clear circulation space, proper fixture spacing, and materials that perform well in high‑moisture compact environments. Architects typically prioritize clearance standards first, then layout efficiency, then lighting and durability. When these fundamentals are respected, even a very small bathroom can feel comfortable and highly functional.

Quick Takeaways

1. Leave at least 24 inches of clearance in front of toilets and sinks whenever possible.
2. Architects design small bathrooms by prioritizing circulation before aesthetics.
3. Wall mounted fixtures can recover 6–10 inches of usable floor space.
4. Layered lighting dramatically improves perceived space in compact bathrooms.
5. Material durability often matters more than visual style in tight bathrooms.

Introduction

Designing a compact bathroom is one of the most technically demanding tasks in residential interior design. Over the last decade working on apartments, ADUs, and small urban homes, I’ve seen the same mistake repeated again and again: people treat small bathrooms as miniature versions of large ones.

They are not.

Small bathroom design guidelines exist because the tolerances are tight. A sink that shifts two inches, or a door that swings the wrong direction, can make the entire room uncomfortable to use.

Architects approach these spaces with strict spatial rules. Clearances, fixture relationships, and circulation paths are calculated before materials or finishes are even discussed.

If you're experimenting with layouts, it helps to visualize spacing early using tools that allow you to test different bathroom layouts before construction. Seeing the real spacing between fixtures often reveals problems immediately.

In this guide I’ll break down the professional standards designers actually use, including fixture spacing rules, lighting strategies, and the material choices that quietly determine whether a small bathroom works for five years or twenty.

save pin

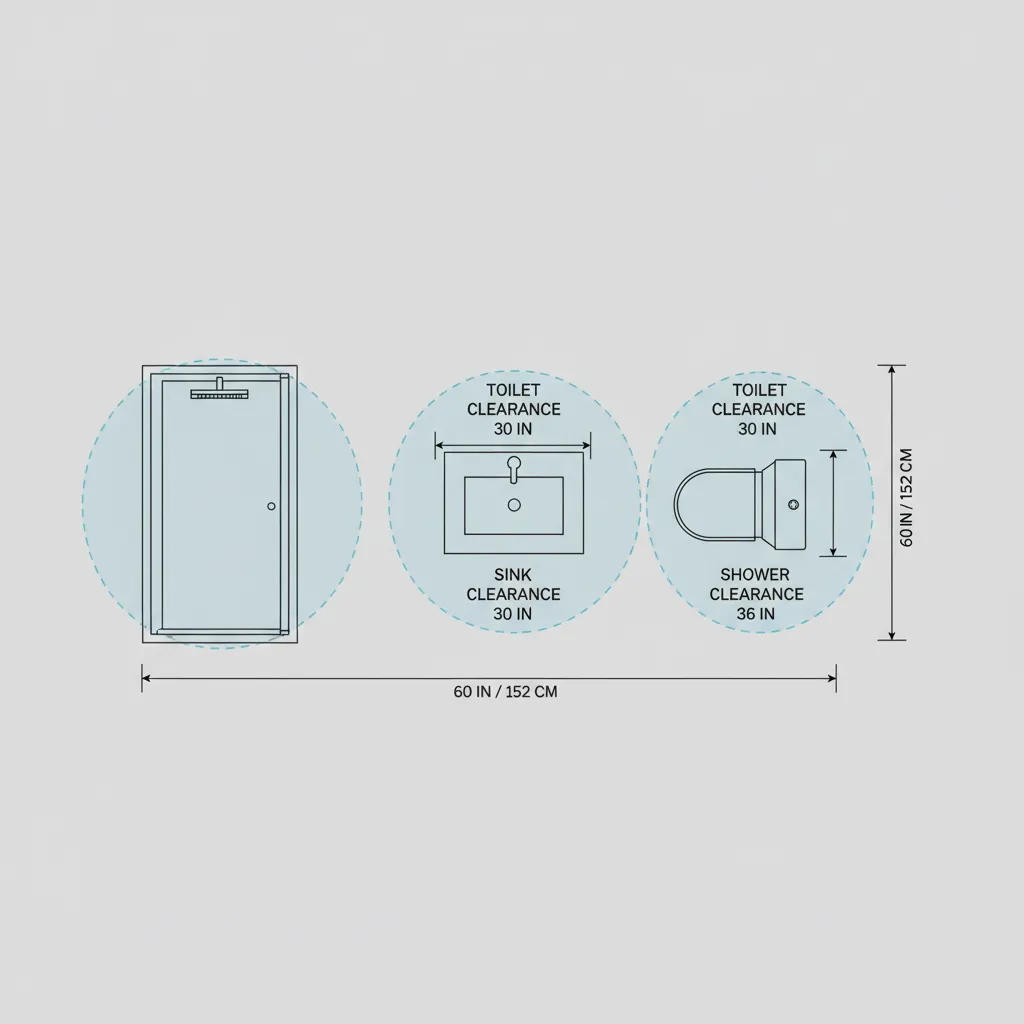

Minimum Clearance Standards for Bathroom Layouts

Key Insight: Clearance space determines whether a bathroom feels usable or cramped, regardless of its actual size.

Professional bathroom layout standards come largely from building codes and accessibility guidelines, but experienced designers typically aim slightly above the minimums whenever possible.

These are the clearance dimensions most architects follow when planning a compact bathroom.

1. Toilet front clearance: minimum 21 inches, ideal 24–30 inches
2. Sink front clearance: 21–30 inches
3. Shower entry clearance: at least 24 inches
4. Distance between toilet center and wall: minimum 15 inches
5. Distance between two sinks: minimum 30 inches center to center

In tight spaces, I often treat these numbers as "negotiable but dangerous." You can reduce them slightly, but every inch you remove increases long‑term usability problems.

The National Kitchen and Bath Association (NKBA) publishes widely referenced planning standards that many residential designers follow as baseline guidance.

save pin

Recommended Fixture Spacing by Designers

Key Insight: Proper fixture spacing prevents the "collision zones" that make small bathrooms frustrating to use.

One of the most overlooked problems in compact bathrooms is fixture interference. Doors hitting toilets, knees hitting vanities, or shower doors blocking circulation.

Experienced designers plan around three functional zones:

1. Entry and circulation zone
2. Sink and grooming zone
3. Bathing zone

Spacing guidelines commonly used in professional layouts include:

1. 15 inches minimum from toilet centerline to side wall
2. 4 inches minimum between toilet and vanity edge
3. 30 inches recommended clear width for sink area
4. 32 inches preferred door width for comfortable entry

A common hidden mistake: oversized vanities. In small bathrooms, a 24‑inch vanity usually performs better than a 36‑inch unit because it preserves circulation.

In many of my projects, switching to a floating vanity instantly improves movement through the room.

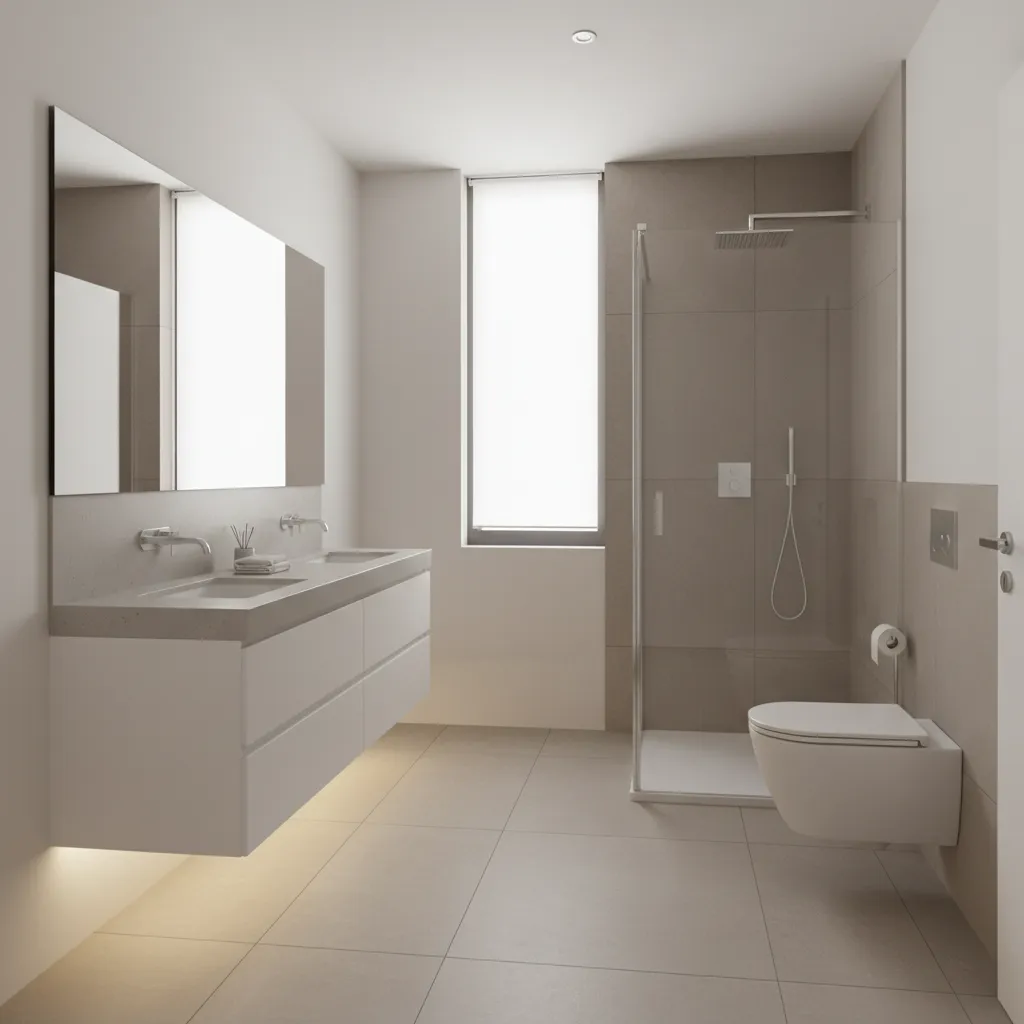

How Architects Approach Small Bathroom Planning

Key Insight: Architects design small bathrooms by organizing circulation first, then fitting fixtures into the remaining zones.

Unlike many DIY layouts, architects rarely start with fixtures. They start with movement.

The process usually looks like this:

1. Define the door swing and entry zone.
2. Protect a clear circulation path through the room.
3. Place the toilet in the most spatially efficient location.
4. Add the sink where it won't interrupt movement.
5. Fit the shower or tub into the remaining wall area.

This order may sound simple, but it prevents the most common design failure: blocking circulation with fixtures.

For homeowners planning layouts themselves, experimenting with a digital room planning workflow that visualizes fixture spacingcan replicate the early layout phase architects use during schematic design.

save pin

Answer Box

The most important professional small bathroom design guidelines involve maintaining proper fixture clearance, protecting circulation paths, and using compact fixtures designed for tight spaces. When these three principles are respected, even a very small bathroom can function comfortably.

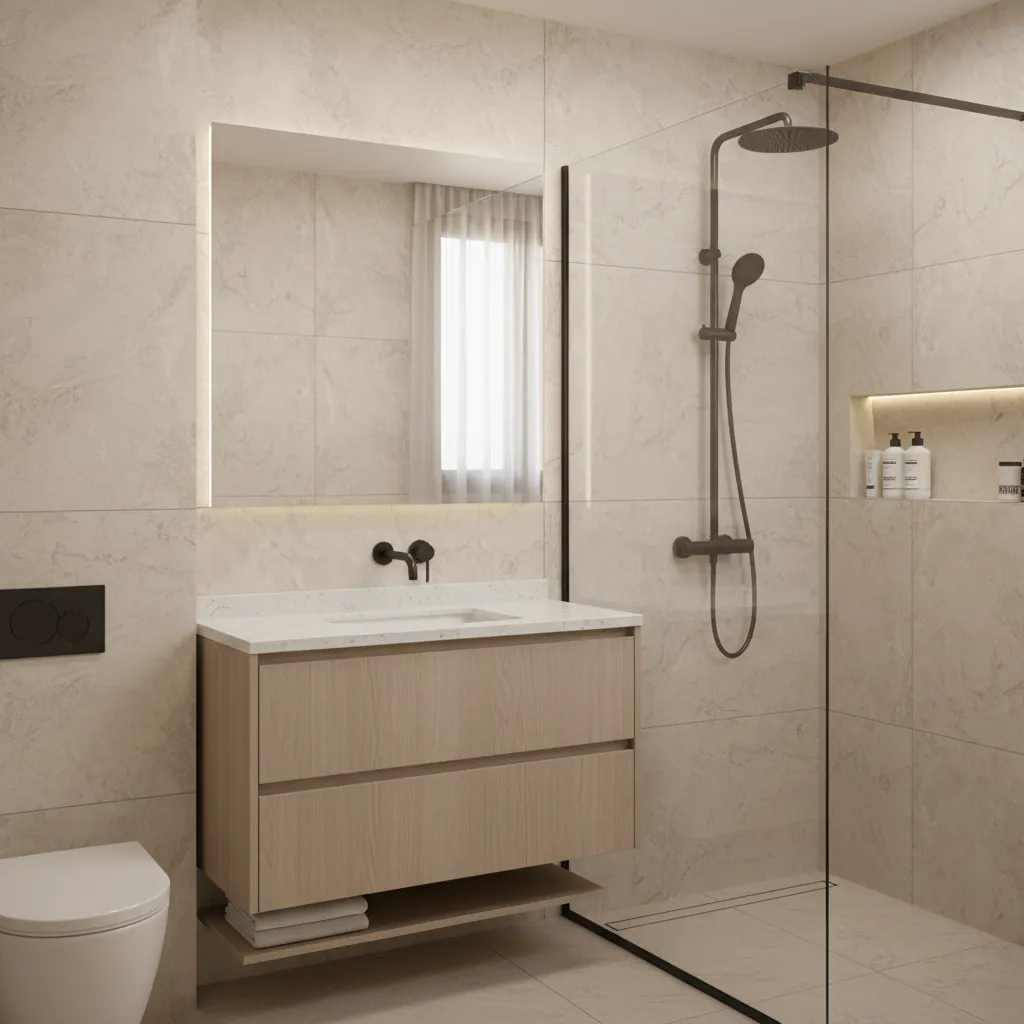

Material Choices That Improve Small Bathroom Functionality

Key Insight: In compact bathrooms, material performance matters more than aesthetic trends.

Small bathrooms experience concentrated humidity, splash zones, and frequent cleaning. Poor material choices often fail quickly.

Materials architects often prioritize include:

1. Large format porcelain tile to reduce grout lines
2. Quartz or solid surface countertops for durability
3. Wall mounted toilets to simplify floor cleaning
4. Tempered glass shower panels to maintain visual openness

One overlooked factor is grout maintenance. In small bathrooms, tiny mosaic tiles can multiply cleaning effort dramatically.

I typically recommend larger tile formats for both durability and visual simplicity.

save pin

Lighting Standards for Compact Bathrooms

Key Insight: Layered lighting makes a small bathroom feel significantly larger and more usable.

Many small bathrooms rely on a single ceiling light. That approach creates shadows and makes grooming tasks harder.

Professional lighting layouts normally include three layers:

1. Ambient lighting from recessed or ceiling fixtures
2. Task lighting around the mirror
3. Accent lighting such as shower lighting or toe‑kick LEDs

Lighting designers often recommend vertical mirror lighting rather than overhead vanity lights. Side lighting reduces shadows on the face and improves grooming accuracy.

The Illuminating Engineering Society (IES) recommends higher lighting levels in grooming zones than in general circulation spaces.

Professional Tips for Long Term Bathroom Usability

Key Insight: The best small bathrooms are designed for maintenance and longevity, not just immediate appearance.

After years of renovations, I’ve noticed the same long‑term problems appear in compact bathrooms.

These professional habits help prevent them:

1. Use sliding or pocket doors to preserve floor space.
2. Install recessed storage niches in showers.
3. Choose wall mounted fixtures when possible.
4. Prioritize ventilation to prevent long term moisture damage.

Another often overlooked step is visualizing the finished space before construction. High quality previews help catch layout or lighting issues early, especially when you generate realistic previews of the finished bathroom design.

Final Summary

1. Proper clearance is the foundation of functional small bathroom design.
2. Architects prioritize circulation paths before placing fixtures.
3. Compact fixtures and wall mounted elements improve usability.
4. Durable materials reduce maintenance in moisture heavy spaces.
5. Layered lighting significantly improves comfort in tight bathrooms.

FAQ

What are the most important small bathroom design guidelines?

Maintain proper fixture clearance, protect circulation space, and choose compact fixtures designed for tight layouts.

How much clearance should be in front of a toilet?

Most building codes require at least 21 inches, but designers prefer 24–30 inches for comfort.

What is the minimum spacing between bathroom fixtures?

Toilets should be at least 15 inches from a side wall and sinks typically require around 30 inches of usable width.

Are floating vanities better for small bathrooms?

Often yes. Wall mounted vanities expose more floor area, making the room feel larger while improving cleaning access.

What lighting works best in compact bathrooms?

Layered lighting with mirror task lights and ambient ceiling lights works better than a single overhead fixture.

Do architects follow specific bathroom layout standards?

Yes. Many designers reference NKBA planning guidelines and local building codes when creating bathroom layouts.

What materials last longest in small bathrooms?

Porcelain tile, quartz surfaces, and tempered glass typically perform well in humid bathroom environments.

How can I plan a professional small bathroom layout?

Start with circulation space, then place the toilet, sink, and shower while respecting clearance standards.
