Professional Hardwood Floor Layout Standards Used by Installers: Learn the real planning rules professionals use to balance hardwood plank layout, reduce waste, and create visually consistent floors.

Direct Answer

Professional hardwood floor layout standards focus on plank staggering, consistent joint spacing, balanced room centering, and accurate reference lines. Installers plan the entire layout before the first board is installed to prevent short end joints, uneven rows, and visual imbalance. These standards help floors look intentional rather than randomly assembled.

Quick Takeaways

1. Professional installers plan plank staggering before installation begins.
2. End joints typically stay at least 6–8 inches apart depending on plank length.
3. Layout usually starts from the room's visual center or longest wall.
4. Reference lines and laser tools ensure rows stay perfectly straight.
5. Planning the layout first significantly reduces material waste.

Introduction

One of the biggest misconceptions about hardwood flooring is that installers simply start along a wall and keep laying boards. In reality, professional hardwood flooring layout rules are far more structured than that.

After working with flooring contractors across multiple residential projects, I noticed something consistent: experienced installers spend a surprising amount of time planning before they install a single plank. That planning determines how natural the final floor will look.

Poor layout decisions create issues like stair-step patterns, weak structural joints, or awkward sliver boards along walls. These mistakes often appear months later when homeowners finally notice something feels "off" about the floor.

Professionals avoid this by mapping the entire floor layout first. Many now even test layout options digitally using tools that help visualize a full room floor layout before installation begins. This allows installers to preview plank flow, adjust board staggering, and confirm balanced edge cuts before materials are cut.

Below are the real industry standards most professional installers follow when planning hardwood flooring layouts.

save pin

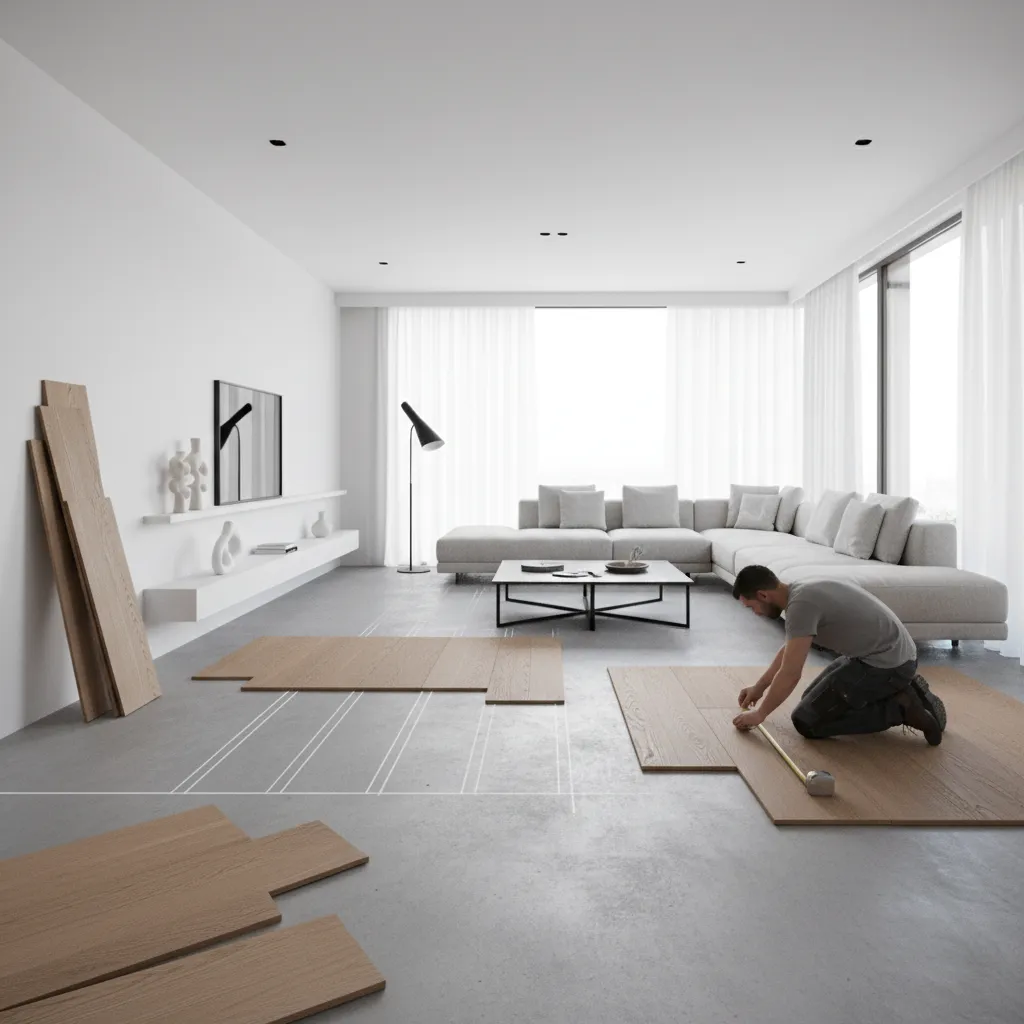

How Professional Installers Plan Floor Layouts

Key Insight: Professionals start with reference lines and room analysis rather than simply beginning against a wall.

Installers first evaluate the room geometry, focal points, and traffic flow. The goal is to ensure the floor visually "flows" through the space instead of appearing skewed or cramped.

Typical professional layout process:

1. Measure room width and length
2. Determine plank direction (usually parallel to longest wall)
3. Calculate board width distribution
4. Snap a straight reference chalk line
5. Dry-lay the first few rows to preview staggering

A surprising reality: many professionals intentionally avoid starting directly against the wall. Walls are rarely perfectly straight, and using them as a reference can slowly skew the entire floor.

Instead, they rely on straight chalk lines or laser guides.

Evidence Layer: The National Wood Flooring Association recommends establishing a control line before installation to maintain alignment across large spaces.

Standard Joint Spacing Rules in Hardwood Flooring

Key Insight: Proper joint spacing prevents structural weakness and avoids obvious repeating patterns.

Hardwood floor joint spacing standards are designed to distribute stress across the floor while keeping the pattern visually natural.

Typical spacing guidelines professionals follow:

1. Minimum 6 inches between end joints (short planks)
2. 8–10 inches for longer planks
3. Never align joints in adjacent rows
4. Avoid predictable repeating spacing patterns

One mistake DIY installers often make is unintentionally forming "H patterns" or stair-step joints. Professionals constantly adjust board placement to prevent this.

Experienced installers even shuffle plank bundles before installation to mix board lengths and natural grain variation.

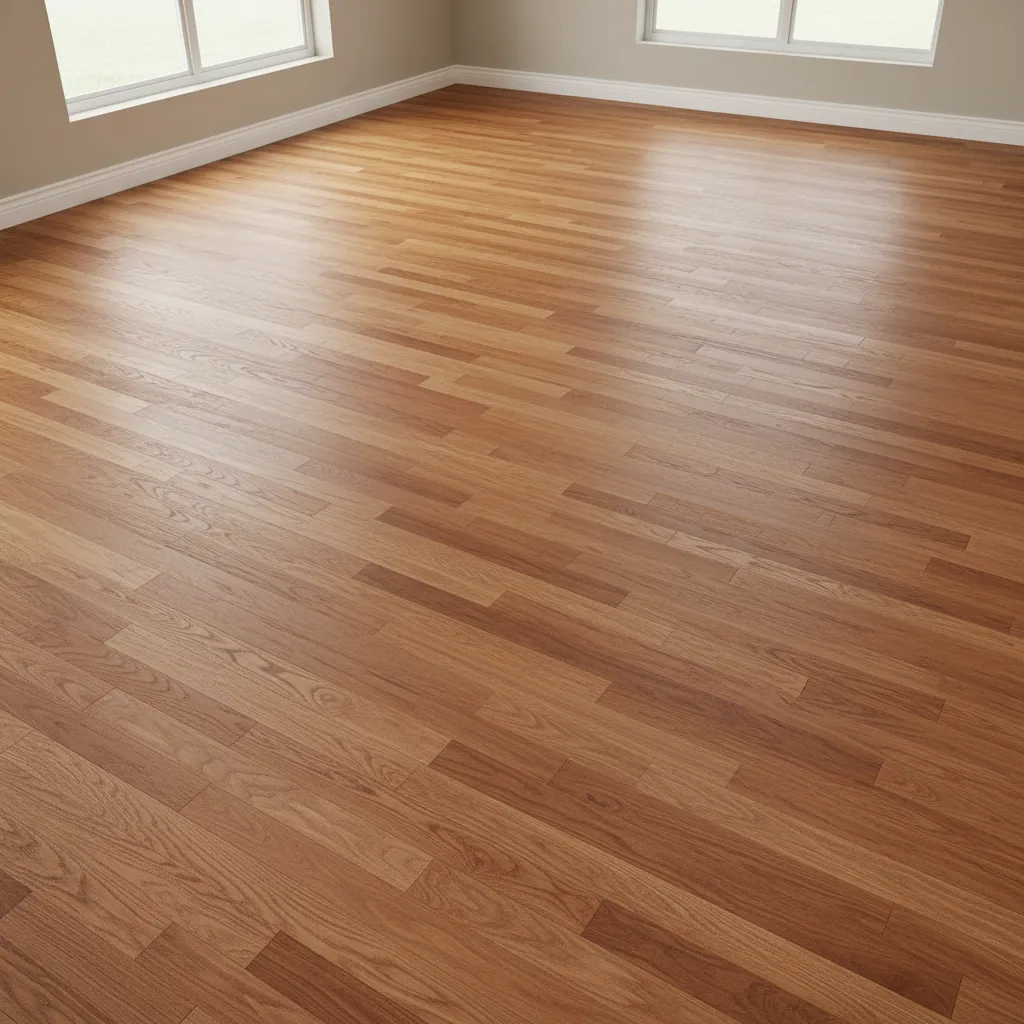

Industry Guidelines for Plank Staggering

Key Insight: Random but controlled staggering creates the most natural hardwood floor appearance.

Installer guidelines for hardwood plank staggering aim to balance randomness with structural integrity.

Professional staggering strategy:

1. Alternate plank lengths naturally
2. Avoid repeating 3-row cycles
3. Maintain minimum joint spacing
4. Distribute shorter planks across the floor

In larger rooms, installers often pre-sort boards into "short", "medium", and "long" stacks. This allows them to intentionally vary joint placement rather than relying on whatever board comes next.

Modern visualization tools can also simulate staggering patterns. Many designers experiment with layout patterns using systems that

save pin

preview staggered plank arrangements in a 3D floor plan before installation begins.

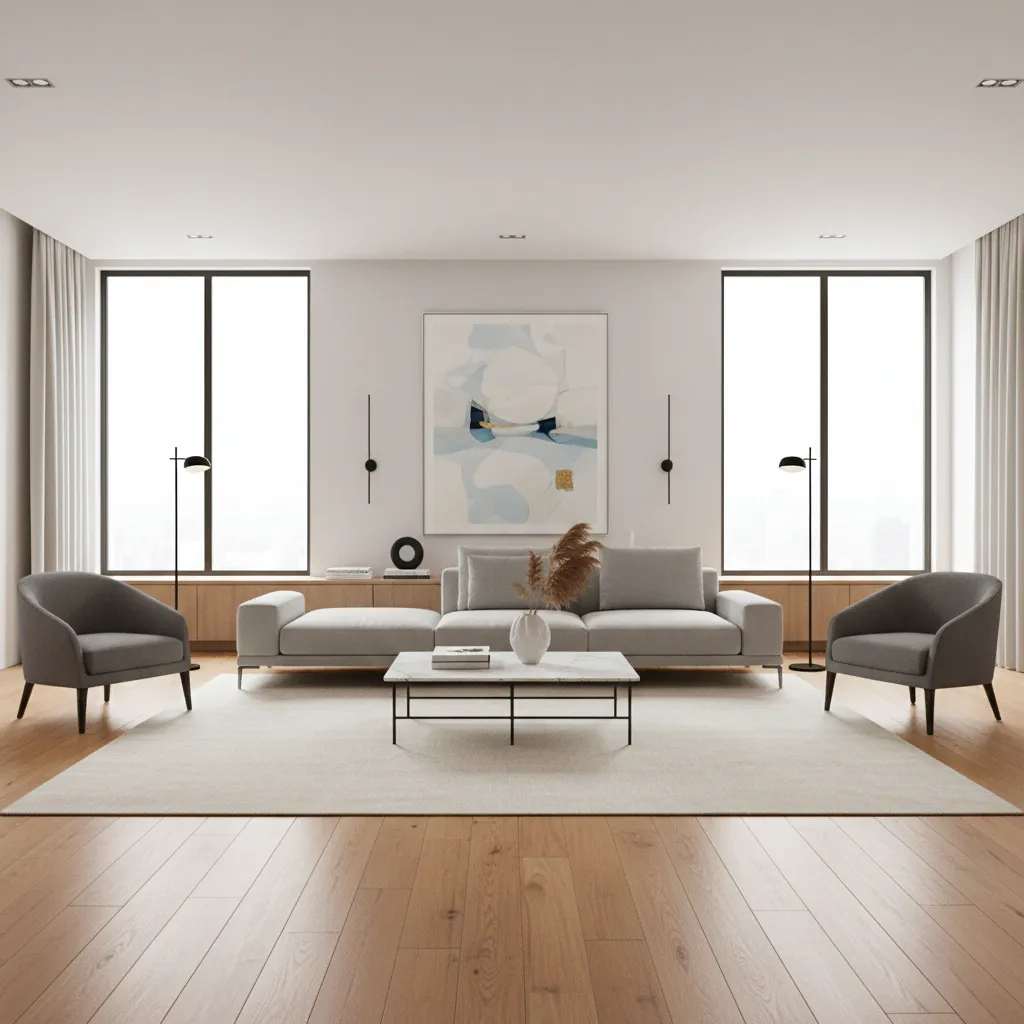

Room Centering and Balance Techniques

Key Insight: A balanced layout ensures neither wall ends up with tiny sliver boards.

One detail rarely mentioned in DIY guides is layout centering. Professionals calculate the first row position to ensure both sides of the room end with similar board widths.

Professional centering method:

1. Measure total room width
2. Divide by plank width
3. Calculate leftover space
4. Adjust first row to split the remainder evenly

This small adjustment prevents awkward edge cuts that can make an otherwise beautiful floor look amateur.

Hidden cost professionals avoid:extremely thin edge boards are more likely to crack or detach over time.

save pin

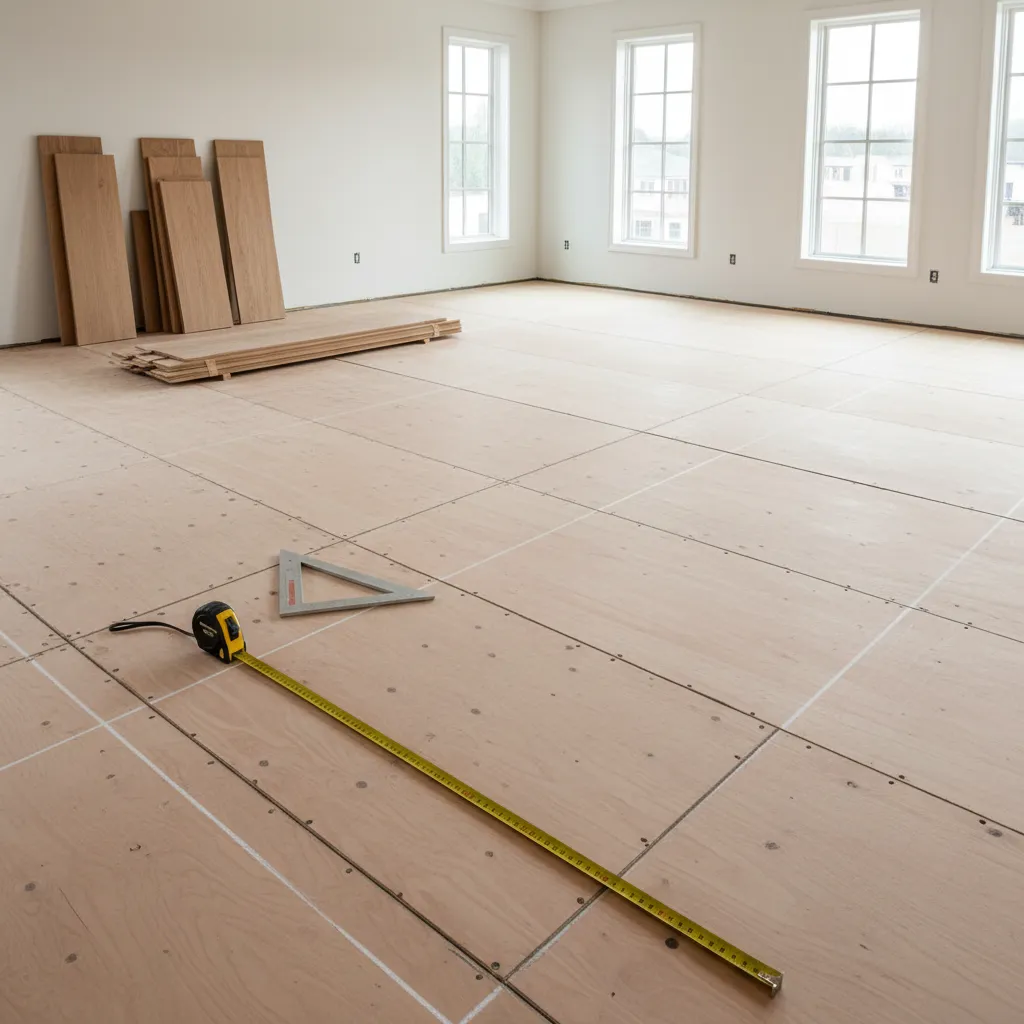

Tools Professionals Use for Layout Accuracy

Key Insight: Accurate layout depends on precision tools rather than visual judgment.

While experienced installers develop a strong visual sense, they still rely heavily on measurement tools to maintain consistency.

Common professional layout tools:

1. Laser level lines
2. Chalk lines
3. Framing squares
4. Moisture meters
5. Digital layout planning software

Digital planning is becoming increasingly common. Many contractors now sketch layouts beforehand using platforms that generate accurate room floor plans before flooring installation.

This reduces cutting errors and helps estimate materials more accurately.

Common Layout Mistakes Professionals Avoid

Key Insight: Most flooring problems start with poor layout decisions rather than poor installation technique.

After reviewing hundreds of flooring installations, a few mistakes appear repeatedly in DIY projects.

Frequent layout errors:

1. Starting directly against a crooked wall
2. Repeating plank patterns unintentionally
3. Ignoring end joint spacing rules
4. Ending rows with extremely short boards
5. Not planning transitions between rooms

One overlooked issue is visual flow across connected rooms. Professionals often extend layout reference lines through hallways so plank rows align across multiple spaces.

Answer Box

Professional hardwood flooring layout standards prioritize balanced plank distribution, controlled staggering, and accurate reference lines. These methods prevent weak joints, repeating patterns, and uneven edges. Planning the layout before installation is what separates professional results from typical DIY floors.

Final Summary

1. Professional layouts rely on reference lines instead of wall alignment.
2. End joints typically maintain 6–10 inch spacing.
3. Controlled staggering prevents repeating plank patterns.
4. Room centering avoids thin edge boards.
5. Digital planning tools increasingly assist installers.

FAQ

What are professional hardwood flooring layout rules?

Professional hardwood flooring layout rules include staggered joints, minimum end-joint spacing, centered board distribution, and straight reference lines for consistent plank alignment.

How far apart should hardwood floor joints be?

Most installers keep joints at least 6–8 inches apart, though longer planks may require 10 inches or more for structural stability.

Do professionals start hardwood floors in the center of a room?

Sometimes. Many installers start from a reference line near the center to ensure both sides of the room end with balanced board widths.

What is the best direction to lay hardwood flooring?

Professionals usually install planks parallel to the longest wall or in the direction of main natural light.

Why do hardwood floors need staggered joints?

Staggering prevents weak structural lines and creates a natural wood pattern rather than visible repeating seams.

What is the biggest mistake in hardwood floor layout?

Starting against a crooked wall is one of the most common mistakes and can cause the entire floor to drift off alignment.

How do professionals plan hardwood floor layout?

They measure the room, calculate board distribution, create reference lines, and preview staggering patterns before installation.

Are there industry standards for hardwood flooring installation?

Yes. Organizations like the National Wood Flooring Association publish guidelines that many installers follow.
