Professional Kitchen Design Rules for 12x20 Spaces: Industry standards, NKBA guidelines, and real designer workflow principles for planning a functional 12x20 kitchen layout.

Direct Answer

Professional kitchen designers follow specific layout and clearance standards when designing a 12x20 kitchen. These include maintaining proper aisle widths, sizing islands proportionally, respecting appliance spacing rules, and organizing the kitchen into efficient work zones. Most of these guidelines come from NKBA kitchen planning standards and real-world workflow experience.

Quick Takeaways

1. A 12x20 kitchen works best with 42–48 inch work aisles.
2. Kitchen islands typically range from 3x6 to 4x8 feet in this layout.
3. Appliance spacing should support the classic kitchen work triangle.
4. Work zones improve workflow more than simply adding cabinets.
5. NKBA guidelines help prevent common clearance mistakes.

Introduction

A 12x20 kitchen sits in an interesting sweet spot. It’s large enough to include an island, multiple work zones, and serious storage—but it’s also narrow enough that bad planning can break the workflow completely.

After working on dozens of rectangular kitchens over the past decade, I’ve seen the same mistake repeatedly: homeowners focus on cabinets and finishes before they understand professional kitchen layout rules. But designers always start with movement, spacing, and task flow.

If you look at professional kitchen design standards for 12x20 kitchen layouts, most of the decisions come down to clearance widths, appliance spacing, and how cooking tasks move across the room.

If you're still experimenting with layouts, using a visual kitchen layout planning workflow that helps test island and cabinet arrangementsmakes it much easier to evaluate spacing before committing to construction.

In this guide, I’ll break down the real standards designers follow—many of them derived from NKBA guidelines for kitchen layout—along with some practical observations that only show up after designing many real kitchens.

save pin

Standard Kitchen Layout Guidelines Used by Designers

Key Insight: Most professional kitchens follow three foundational rules: efficient workflow, proportional spacing, and logical appliance placement.

When I design a rectangular 12x20 kitchen, I almost always evaluate the layout using three core frameworks.

1. The Work Triangle – distance between sink, stove, and refrigerator.
2. Work Zones – prepping, cooking, cleaning, and storage.
3. Traffic Separation – keeping walkways separate from cooking tasks.

The traditional kitchen work triangle recommends:

1. Total triangle distance: 13–26 feet
2. No single leg shorter than 4 feet
3. No single leg longer than 9 feet

While newer kitchens rely more on zones than triangles, the rule still works well in a 12x20 layout because the rectangular shape naturally supports efficient circulation.

The National Kitchen & Bath Association (NKBA) still references these planning concepts in their professional guidelines, which are widely used by architects and interior designers.

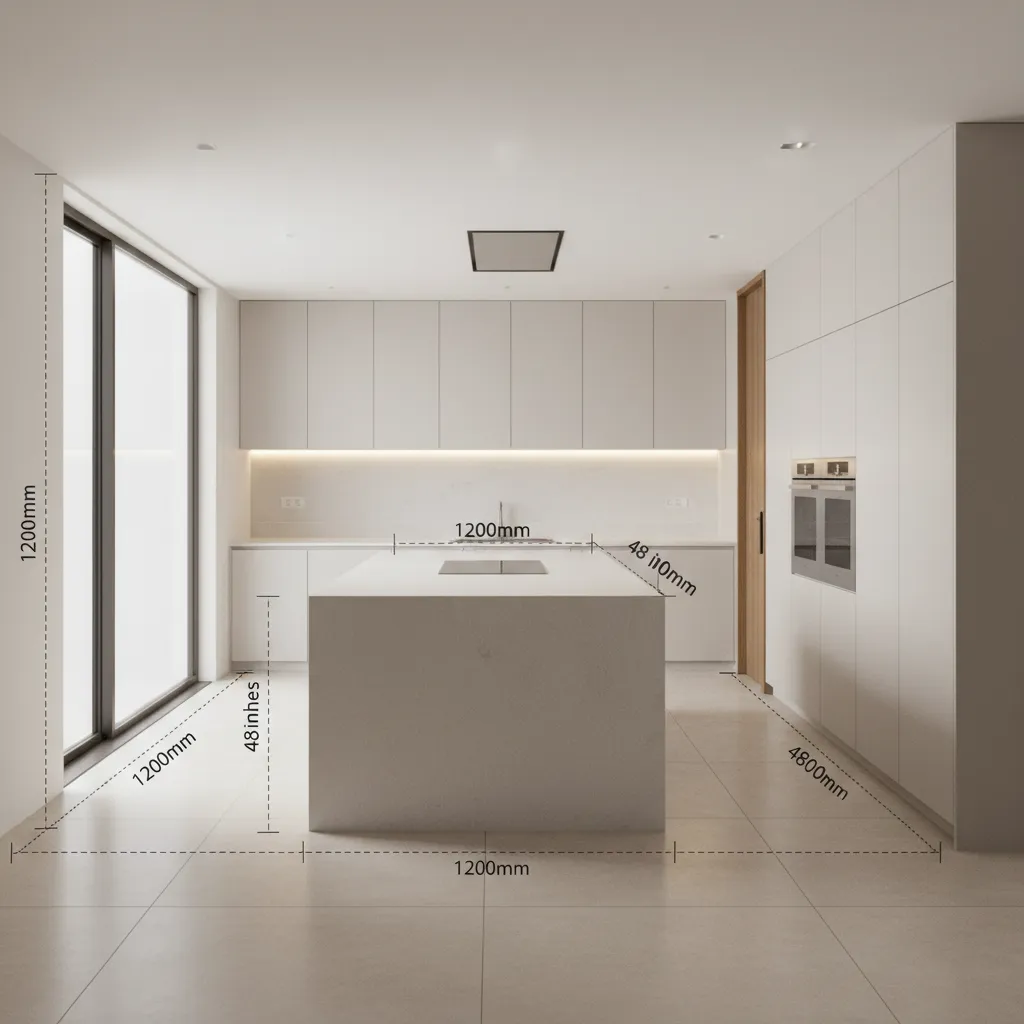

Minimum Walkway and Clearance Requirements

Key Insight: A 12x20 kitchen fails functionally if aisle widths fall below professional clearance standards.

One of the biggest hidden mistakes I see is undersized walkways. A kitchen can look spacious on paper but feel cramped once appliances and cabinets are installed.

Here are standard minimum aisle widths designers follow:

1. Single cook kitchen: 42 inches minimum
2. Two-cook kitchen: 48 inches recommended
3. Walkway behind seating: 44–48 inches
4. Dishwasher clearance: 21 inches in front when open

In a 12-foot-wide kitchen, these numbers matter more than people expect. If you install a 4‑foot island and 24‑inch cabinets on both sides, the remaining walkway must still support safe movement.

This is where planning tools become useful. Many homeowners experiment with dimensions using a floor plan layout tool that helps test cabinet spacing and aisle widthsbefore finalizing the design.

save pin

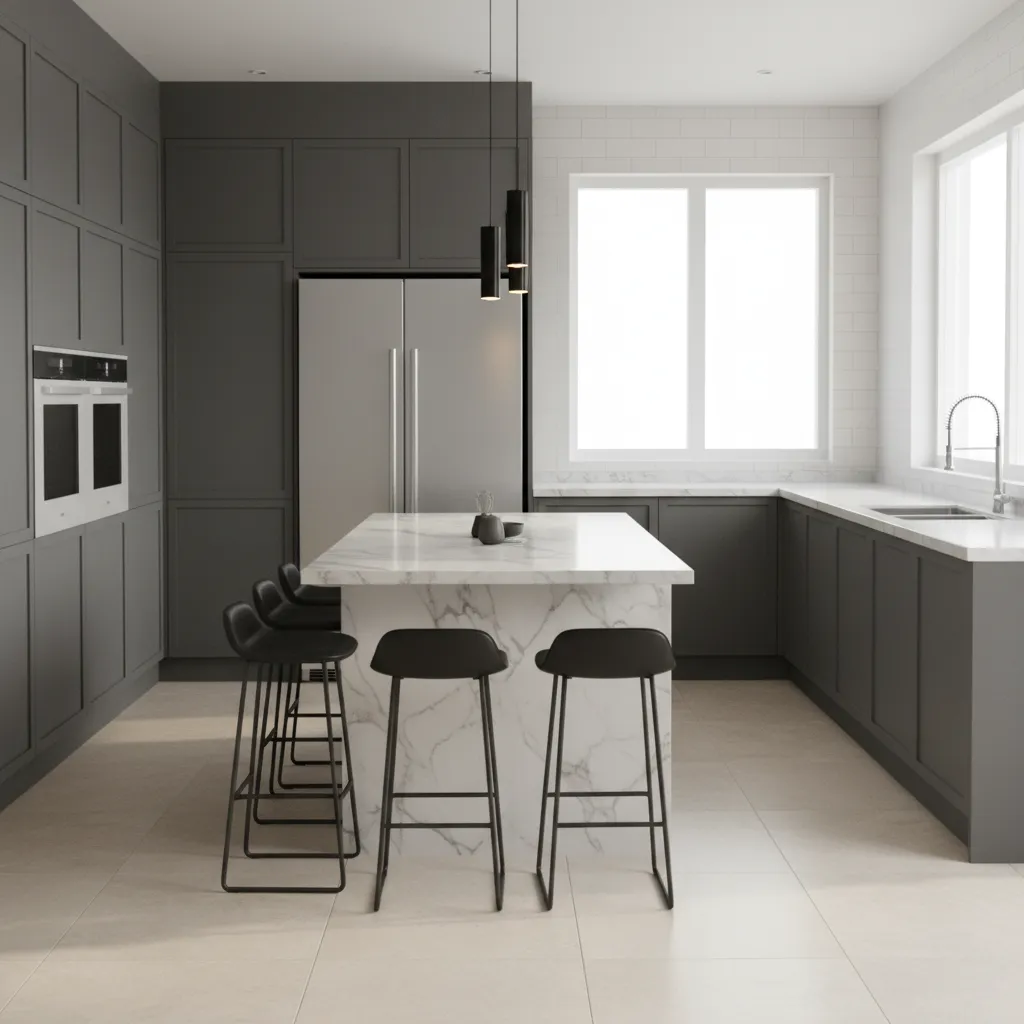

Island Size Recommendations for 12x20 Kitchens

Key Insight: The ideal island size for a 12x20 kitchen is usually between 3x6 feet and 4x8 feet depending on surrounding clearance.

People often try to maximize island size, but that can destroy circulation. A slightly smaller island almost always produces a better kitchen.

Typical island dimensions designers recommend:

1. Compact island: 3 x 6 ft
2. Standard island: 3.5 x 7 ft
3. Large island: 4 x 8 ft

Key clearance rules:

1. At least 42–48 inches on all working sides
2. 36 inches minimum for non-working sides
3. Overhang seating requires 12–15 inches

Hidden mistake I see often: homeowners install oversized islands that block refrigerator or dishwasher access. Functionally, that turns a large kitchen into a frustrating one.

save pin

Professional Appliance Spacing Standards

Key Insight: Appliance placement must prioritize usability, not symmetry.

One of the biggest misconceptions is that appliances should be evenly spaced. Professional kitchen layout rules focus on usability instead.

Recommended appliance spacing standards:

1. 15 inches landing space beside refrigerator
2. 12–18 inches landing space beside cooktop
3. 24 inches landing space near oven
4. 18 inches counter space beside sink

These landing zones allow you to place hot pans, groceries, or dishes safely. Without them, even a beautiful kitchen becomes inconvenient to use.

How Designers Plan Work Zones in Rectangular Kitchens

Key Insight: Zone planning improves workflow more than traditional cabinet-based layouts.

Instead of thinking in terms of cabinets, professional designers divide kitchens into task zones.

A well-designed 12x20 kitchen usually includes:

1. Prep Zone – counter space near sink and trash.
2. Cooking Zone – cooktop, oven, spices, utensils.
3. Cleaning Zone – sink, dishwasher, drying area.
4. Storage Zone – refrigerator and pantry.

This zone approach is why modern kitchens often feel more intuitive than older layouts.

Applying NKBA Design Principles to a 12x20 Layout

Key Insight: NKBA guidelines provide the most widely accepted kitchen clearance standards used by professionals.

The National Kitchen & Bath Association publishes kitchen planning guidelines used by designers across the industry. While they are not strict building codes, they serve as the practical benchmark for kitchen ergonomics.

Some NKBA principles that strongly affect 12x20 kitchens include:

1. Minimum aisle widths of 42–48 inches
2. Proper landing areas beside appliances
3. Separation of cooking and traffic zones
4. Logical workflow between sink, cooktop, and refrigerator

When clients want to preview the final result before construction, I often recommend using a realistic kitchen rendering workflow that visualizes the full space before renovation. Seeing the proportions in 3D often reveals spacing issues that flat floor plans miss.

Answer Box

A functional 12x20 kitchen depends on three professional standards: maintaining 42–48 inch aisles, sizing the island around 3x6 to 4x8 feet, and organizing appliances into efficient work zones following NKBA guidelines.

Final Summary

1. Aisle width is the most critical rule in a 12x20 kitchen.
2. Oversized islands often damage workflow.
3. Appliance landing zones are essential for usability.
4. Zone planning improves cooking efficiency.
5. NKBA guidelines remain the industry reference standard.

FAQ

What is the best layout for a 12x20 kitchen?

Most designers prefer an island layout, L‑shape with island, or galley with island because the rectangular space supports clear work zones.

What is the ideal island size for a 12x20 kitchen?

The ideal island size for a 12x20 kitchen is typically 3x6 to 4x8 feet, depending on surrounding clearance and appliance placement.

What is the minimum aisle width in kitchen design?

Professional kitchen layout rules recommend 42 inches for single cooks and 48 inches for two-cook kitchens.

Do NKBA guidelines apply to residential kitchens?

Yes. NKBA kitchen planning guidelines are widely used by designers and remodelers for residential kitchen design.

How much space should be between island and cabinets?

At least 42–48 inches is recommended to maintain safe workflow and appliance access.

Can a 12x20 kitchen have two islands?

It’s possible but uncommon. Most designers prioritize one properly sized island instead of overcrowding the space.

What is the most common mistake in 12x20 kitchen layouts?

Oversized islands and narrow walkways are the most common layout problems.

Are work triangles still relevant today?

Yes, but modern kitchens rely more on task zones than strict triangle measurements.
