Professional Tile Layout Techniques Used by Installers: How experienced tile installers plan balanced, symmetrical floor layouts before the first tile is ever set

Direct Answer

Professional tile layout techniques focus on establishing precise reference lines, balancing tile cuts at room edges, and testing layouts before installation begins. Experienced installers rarely start against a wall; instead they center layouts, check symmetry, and use professional tools like laser levels and chalk lines to ensure accuracy across the entire floor.

Quick Takeaways

1. Professional installers start layouts from reference lines, not walls.
2. Balanced edge cuts make floors look intentional and symmetrical.
3. Laser levels dramatically improve layout accuracy across large rooms.
4. Dry layout testing prevents expensive tile installation mistakes.
5. Complex rooms require grid systems rather than simple straight lines.

Introduction

After working on residential interior projects for more than a decade, I can say that most tile problems don’t start during installation—they start during layout. Professional tile layout techniques are what separate a clean, balanced floor from one that feels slightly "off" the moment you walk into the room.

Many homeowners assume installers simply begin at one wall and move across the room. In reality, experienced tile installers often spend more time planning the layout than actually placing tiles. That planning stage determines where seams land, how cuts appear at edges, and whether the entire floor feels visually centered.

When I collaborate with contractors during kitchen or bathroom remodels, the first thing we usually do is test the layout digitally or on paper. Tools like a visual floor planning tool used to preview tile placementmake it much easier to predict how tiles will align with cabinets, islands, and doorways.

In this guide, I’ll walk through the exact techniques professional tile installers rely on: reference line systems, symmetry balancing, tool usage, and workflow planning. These methods are what prevent awkward sliver cuts, crooked grout lines, and layout mistakes that are nearly impossible to fix later.

save pin

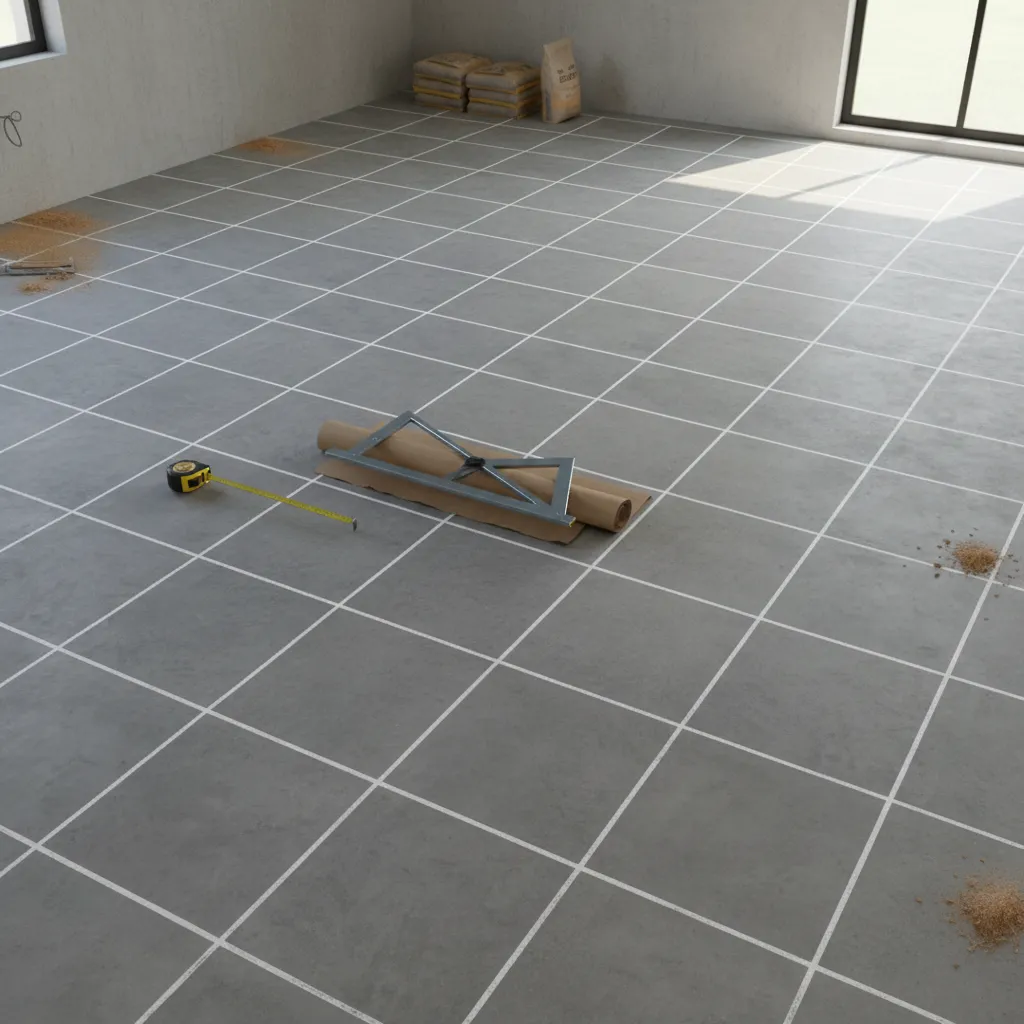

How Professional Tile Installers Plan Floor Layouts

Key Insight: Professional tile installers begin with a centered layout grid to ensure balanced tile cuts along opposite walls.

One of the biggest misconceptions about tile work is that layouts start against a wall. Professionals avoid this because walls are rarely perfectly straight or square.

Instead, installers typically follow this planning sequence:

1. Measure the room width and length
2. Snap perpendicular center lines across the room
3. Dry-lay tiles along those lines
4. Adjust the grid to balance edge cuts

This approach ensures that tiles are visually centered in the space. If adjustments are needed, installers shift the grid slightly until both sides of the room end with reasonably sized tile cuts.

The Tile Council of North America (TCNA) recommends pre‑layout checks specifically to avoid cuts smaller than half a tile whenever possible. That small adjustment can dramatically improve how professional a floor looks.

Industry Standard Reference Line Techniques

Key Insight: Reference lines act as the structural backbone of professional tile layout systems.

Once measurements are complete, installers establish reference lines that guide every row of tile placed afterward.

The most common techniques include:

1. Chalk line cross method – creates a 90° layout grid
2. 3-4-5 triangle method – verifies perfect right angles
3. Laser projection lines – maintains alignment across large spaces

In large open-plan rooms, installers often create multiple parallel layout lines every few tile rows. This prevents small alignment errors from compounding across the room.

For homeowners planning layouts themselves, experimenting with a simple floor plan layout simulator for tile planningcan help visualize how these reference lines divide the room before any tile is installed.

save pin

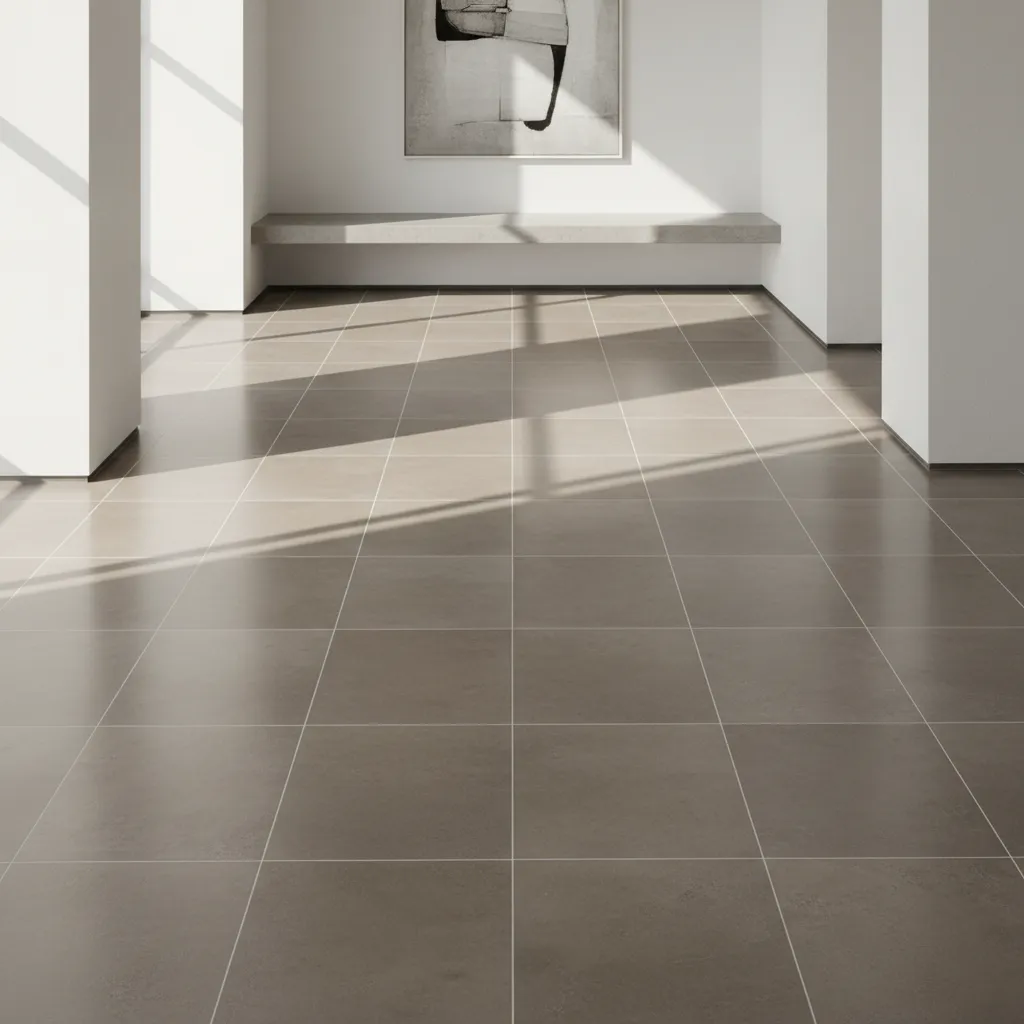

Balancing Edge Cuts for Visual Symmetry

Key Insight: A professional-looking tile floor depends more on balanced edge cuts than perfectly centered tiles.

This is a subtle design principle that many DIY tutorials overlook.

If one side of the room ends with a tiny tile sliver while the opposite side has a full tile, the floor immediately looks uneven—even if everything is technically straight.

Professional installers solve this by shifting the layout grid until edge cuts are balanced.

Common professional guidelines:

1. Avoid tile cuts smaller than half a tile
2. Match edge cut sizes on opposite walls
3. Align grout lines with architectural elements
4. Keep focal areas (doorways, hall entries) visually centered

In open living spaces, installers often prioritize symmetry at the main visual entry point rather than the geometric center of the room. This design-driven adjustment is rarely mentioned in basic tutorials but makes a huge visual difference.

save pin

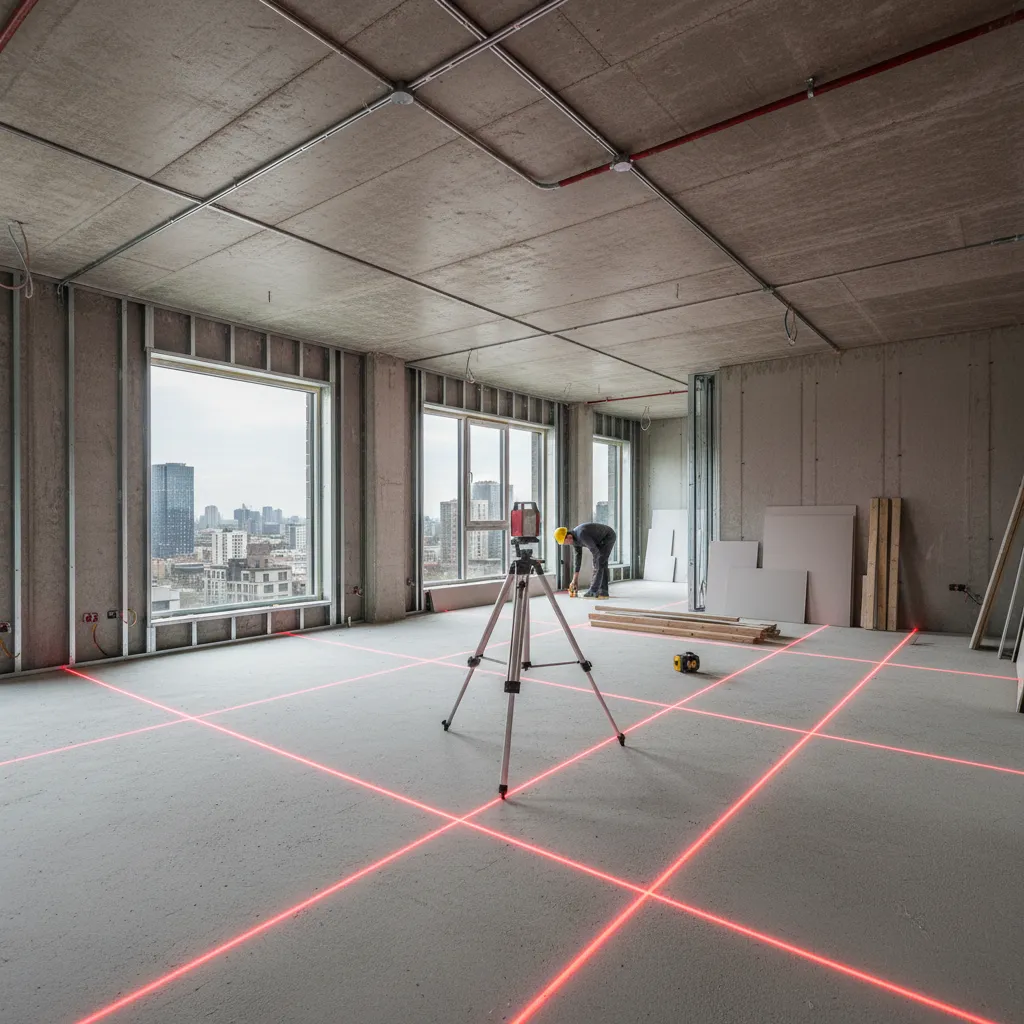

Using Laser Levels and Layout Tools

Key Insight: Modern installers rely heavily on laser tools to maintain straight lines across long distances.

Traditional chalk lines still work, but laser levels have become standard equipment on professional tile jobs.

Key tools professionals commonly use:

1. Rotating laser level for full-room alignment
2. Cross-line laser for perpendicular layout lines
3. Tile spacers and leveling systems
4. Large framing squares for reference checks

Laser lines are especially helpful in large kitchens, hallways, and open-plan homes where grout lines must stay perfectly straight over long spans.

According to contractor surveys published by Pro Tool Reviews, laser layout tools reduce alignment errors and speed up layout preparation significantly compared to manual line snapping alone.

Layout Planning for Complex Room Shapes

Key Insight: Irregular rooms require grid-based layout systems rather than simple straight-line layouts.

Not every room is a perfect rectangle. L‑shaped kitchens, angled hallways, and open-concept spaces introduce layout challenges that require more advanced planning.

Professional strategies include:

1. Breaking the space into multiple layout zones
2. Using transition lines between zones
3. Aligning tile direction with primary sight lines
4. Hiding unavoidable cut tiles under cabinets or appliances

Before starting installation, many installers model the room digitally using a room visualization tool for testing tile layouts. This allows them to preview transitions, grout alignment, and tile direction changes before committing to a layout on the floor.

Answer Box

Professional tile layout techniques focus on centering layouts, balancing edge cuts, and establishing accurate reference lines before installation begins. Most installation problems can be avoided by carefully planning tile placement and verifying alignment with professional tools.

Workflow Professionals Use Before Setting Tiles

Key Insight: Experienced installers follow a structured workflow before the first tile is installed.

A typical professional tile layout workflow looks like this:

1. Measure the full room and identify focal points
2. Mark center reference lines
3. Perform a dry tile layout
4. Adjust layout for balanced edge cuts
5. Snap final grid lines
6. Confirm alignment using laser level
7. Begin tile installation along reference lines

Skipping any of these steps dramatically increases the chances of crooked grout lines or awkward tile cuts later.

Final Summary

1. Professional tile layouts start with reference lines, not walls.
2. Balanced edge cuts create visually symmetrical floors.
3. Laser levels improve accuracy across large rooms.
4. Dry layout testing prevents costly installation mistakes.
5. Complex rooms require grid planning instead of straight layouts.

FAQ

How do professional tile installers start a layout?

Most installers begin by snapping perpendicular reference lines at the center of the room, then dry‑lay tiles to test spacing and edge cuts.

Why don't professionals start tile against a wall?

Walls are rarely perfectly straight. Starting from the center ensures grout lines remain square across the room.

What tools are used in professional tile layout techniques?

Common tools include chalk lines, laser levels, framing squares, tile spacers, and layout grids.

What is the 3-4-5 rule in tile layout?

The 3‑4‑5 triangle method verifies a perfect 90‑degree angle when establishing layout reference lines.

How do tile installers avoid tiny tile cuts?

They shift the layout grid slightly until opposite edges of the room have balanced tile cuts.

Can software help plan professional tile layouts?

Yes. Digital floor planners help visualize grout alignment and tile spacing before installation begins.

Do professionals dry‑lay tiles first?

Yes. Dry layouts allow installers to test spacing, symmetry, and grout alignment before applying mortar.

What is the most important step in tile floor planning?

Accurate reference lines are the foundation of professional tile layout techniques.

References

1. Tile Council of North America (TCNA) Handbook for Ceramic Tile Installation
2. National Tile Contractors Association Installation Guidelines
3. Pro Tool Reviews – Professional Contractor Tool Surveys
