Radiation Shielding Planning for Interventional Radiology Room Layouts: How shielding requirements shape IR suite layout, equipment placement, and control room safety

Direct Answer

Radiation shielding planning in an interventional radiology room layout determines wall construction, control room placement, equipment positioning, and staff circulation. Proper shielding reduces scatter radiation exposure for clinicians and adjacent areas while maintaining clear procedural workflow. In practice, shielding decisions influence almost every spatial dimension of an IR suite.

Quick Takeaways

1. Interventional radiology room radiation shielding must be integrated during early layout planning, not added after architectural design.
2. Lead-lined walls, shielded control rooms, and protective glass are standard components of IR suite shielding design.
3. Equipment placement significantly affects scatter radiation patterns inside the procedure room.
4. Poor shielding layout can create workflow conflicts and increase staff exposure during long procedures.
5. Compliance standards typically follow NCRP, IAEA, or national radiation safety regulations.

Introduction

In my experience designing imaging departments, interventional radiology room radiation shielding is rarely just a compliance checkbox. It directly shapes the entire IR suite layout—from where the control room sits to how far staff must move during procedures.

I have worked on several hospital renovation projects where shielding was treated as a late engineering problem. The result was predictable: awkward control rooms, cramped procedure spaces, and inefficient circulation paths. Fixing those mistakes after construction started became extremely expensive.

Modern IR suites combine complex imaging equipment, long procedure times, and multiple clinical staff in the same room. That means radiation protection must coexist with ergonomics, visibility, and workflow efficiency. Many designers underestimate how early shielding calculations affect architectural planning.

For example, during early planning phases, I often recommend teams experiment with visualizing complex medical room layouts in 3D before construction begins. Seeing equipment, walls, and control rooms together quickly reveals where shielding barriers actually belong.

In this guide, I’ll walk through the practical design decisions behind shielding in interventional radiology rooms, including structural protection, equipment positioning, regulatory considerations, and how to integrate safety without disrupting workflow.

save pin

Why Radiation Shielding Matters in IR Suite Design

Key Insight: Radiation shielding is a structural design driver in IR suites because fluoroscopy procedures generate continuous scatter radiation.

Unlike diagnostic imaging rooms that operate briefly, interventional radiology procedures may run for hours. Continuous fluoroscopy produces scatter radiation that spreads throughout the room and into adjacent spaces.

From a layout perspective, shielding protects three key zones:

1. Medical staff working inside the procedure room
2. Operators in the control room
3. Adjacent corridors, offices, and patient areas

Scatter radiation mainly originates from the patient table where X-rays interact with tissue. The closer a staff member stands to that point, the greater the exposure risk.

Typical IR shielding components include:

1. Lead-lined walls
2. Lead glass viewing windows
3. Shielded control room partitions
4. Ceiling-mounted movable shields
5. Lead curtains attached to procedure tables

The National Council on Radiation Protection and Measurements (NCRP Report No. 147) emphasizes that structural shielding must account for workload, beam direction, and occupancy of surrounding spaces.

Structural Shielding Requirements for Interventional Rooms

Key Insight: Structural shielding thickness depends on beam intensity, workload, and the occupancy level of neighboring spaces.

Architectural walls in an interventional radiology room typically incorporate lead sheets or high-density concrete to absorb radiation.

Design teams evaluate several factors before specifying shielding:

1. X-ray system output
2. Annual procedure volume
3. Distance to adjacent rooms
4. Direction of primary beam
5. Occupancy classification of surrounding areas

Typical structural solutions include:

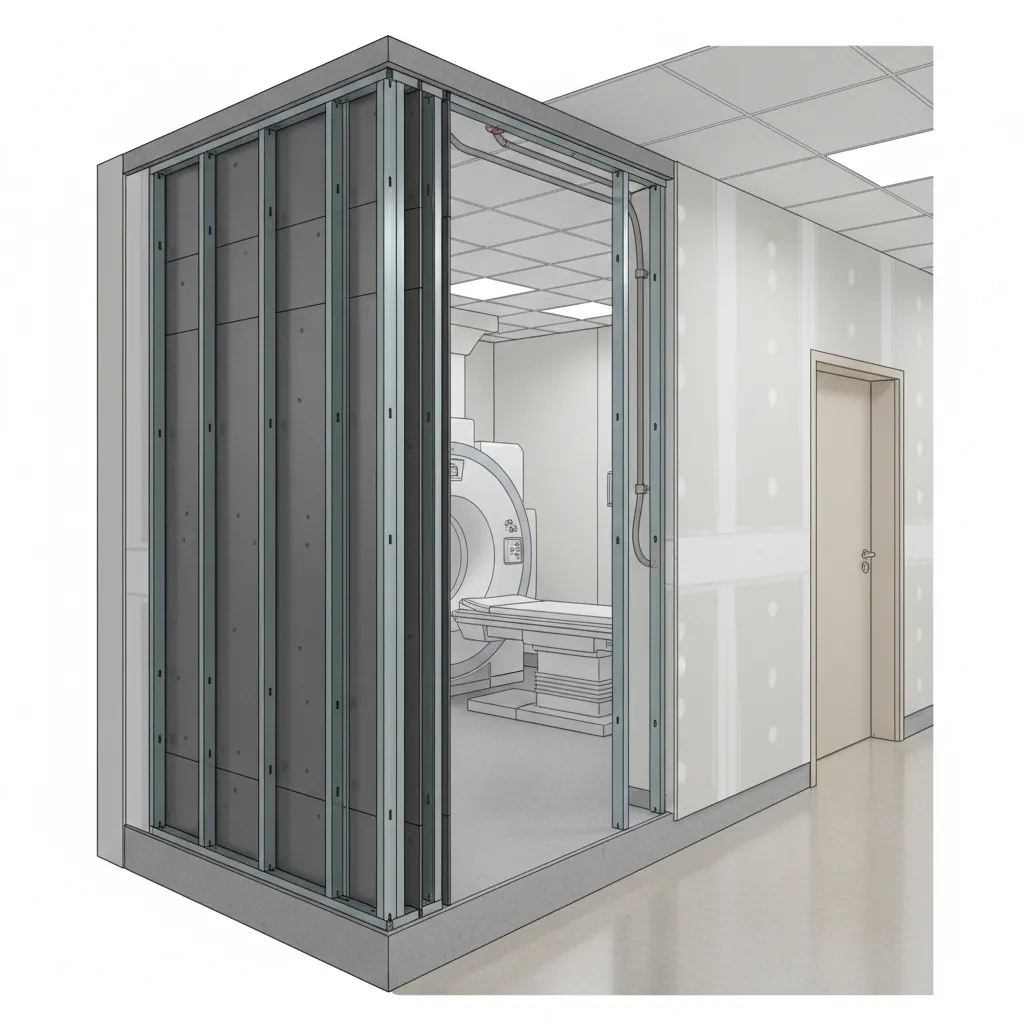

1. 1–3 mm lead lining inside gypsum board walls
2. Lead-lined doors with sealed frames
3. Shielded ceilings if rooms exist above
4. Lead glass viewing windows

One issue I often see in hospital retrofits is inadequate wall reinforcement. Lead-lined walls are significantly heavier than standard partitions, so structural framing must support the additional load.

save pin

Lead Wall, Glass, and Control Room Protection Layout

Key Insight: Control room positioning determines how effectively shielding protects operators during fluoroscopy procedures.

The control room acts as the primary radiation protection barrier for technologists and radiologists operating imaging systems.

Key layout principles include:

1. Place the control room behind a primary shielded wall
2. Use lead glass windows for visual monitoring
3. Ensure door openings are outside the main beam direction
4. Maintain direct visual lines to the patient table

A common mistake is positioning the control room based purely on corridor access instead of radiation direction. When that happens, additional shielding must be added later to compensate for beam exposure.

During design reviews, I often model the operator's sightline to ensure the team can monitor the patient without leaving the protected area. Using tools that allow teams to experiment with medical procedure room layouts before finalizing construction drawings helps identify these conflicts early.

Equipment Positioning and Scatter Radiation Control

Key Insight: The location of the patient table and C-arm system has a major impact on scatter radiation distribution.

In an interventional radiology room, the patient table is typically the main scatter radiation source because X-rays interact with the patient during imaging.

Designers must carefully coordinate equipment placement:

1. C-arm gantry position
2. Patient table orientation
3. Operator standing zones
4. Ceiling-mounted shielding screens

Best practices I use in IR projects include:

1. Position the table so the primary beam avoids doors and control room windows
2. Allow space for mobile shielding barriers near operator zones
3. Provide sufficient ceiling structure for suspended lead shields
4. Keep anesthesiology areas outside the main scatter zone

Studies published in the journal Radiographicsshow that ceiling-mounted shields can reduce operator exposure by more than 80% when properly positioned.

save pin

Answer Box

Effective interventional radiology room radiation shielding depends on early integration of architecture, equipment layout, and regulatory requirements. The most successful IR suites treat shielding as part of spatial planning rather than an engineering add-on.

Regulatory Standards for IR Room Radiation Protection

Key Insight: Regulatory compliance defines minimum shielding levels, but thoughtful design often exceeds those minimums to improve long-term safety.

Most healthcare projects follow guidelines from several organizations:

1. NCRP (National Council on Radiation Protection and Measurements)
2. IAEA (International Atomic Energy Agency)
3. Local health authority regulations
4. Hospital radiation safety committees

Typical requirements include:

1. Shielding calculations performed by a medical physicist
2. Radiation exposure limits for staff and the public
3. Structural barrier verification during construction
4. Post-installation radiation testing

In larger hospitals, physicists also perform scatter simulations to determine whether additional shielding is required near high-occupancy zones like nurse stations.

Integrating Shielding Without Disrupting Workflow

Key Insight: The best IR suites hide heavy shielding inside walls and architecture so clinical workflows remain smooth and unobstructed.

A poorly integrated shielding strategy often leads to cramped rooms, blocked circulation paths, and inefficient procedures.

Successful IR layouts balance protection with workflow by focusing on:

1. Clear staff circulation around the patient table
2. Accessible anesthesia and monitoring zones
3. Unobstructed equipment movement
4. Protected observation areas

During the planning stage, I recommend creating realistic room simulations so architects, radiologists, and physicists can evaluate safety and usability together. Teams often use environments where they can generate realistic visualizations of complex room designs before construction, which makes it easier to detect workflow conflicts created by shielding walls.

save pin

Final Summary

1. Radiation shielding shapes interventional radiology room layouts from the earliest planning stage.
2. Lead-lined walls, shielded control rooms, and glass barriers are core IR suite safety components.
3. Equipment positioning strongly influences scatter radiation patterns.
4. Regulatory guidelines define minimum protection levels but good design goes beyond compliance.
5. Workflow-friendly shielding integration improves both safety and procedural efficiency.

FAQ

1. What is interventional radiology room radiation shielding?

It refers to architectural and equipment barriers designed to absorb or block radiation produced during fluoroscopic procedures in an IR suite.

2. How thick should lead shielding be in an IR room?

Thickness varies depending on workload and equipment output. Many IR suites use 1–3 mm lead lining in walls, but calculations must be performed by a medical physicist.

3. Why is the control room shielded in interventional radiology?

The control room houses operators during imaging. Lead-lined walls and lead glass windows protect staff from continuous scatter radiation.

4. Where does most scatter radiation occur in an IR suite?

Scatter radiation mainly originates from the patient during fluoroscopy as X-rays interact with tissue and surrounding surfaces.

5. Does equipment layout affect interventional radiology room radiation shielding?

Yes. Equipment orientation directly influences beam direction and scatter radiation patterns, which impacts shielding requirements.

6. Who determines IR suite shielding requirements?

Medical physicists typically perform shielding calculations based on equipment specifications, room geometry, and regulatory exposure limits.

7. Can shielding be added after the room is designed?

It can, but late-stage changes often require structural modifications and significantly increase project costs.

8. What standards govern radiation protection in medical imaging rooms?

Common references include NCRP reports, IAEA safety guidelines, and local national radiation safety regulations.
