Rayon Design Floor Plan Ideas: Real Projects, and Pro Design Tips

As a designer, I live and breathe floor plans. They’re the backbone of every project, whether I’m tackling a compact city studio or a sprawling family home. Over the years, I’ve moved from hand sketches to advanced CAD tools, and lately, I’ve been experimenting with Rayon, an online CAD/BIM hybrid that promises precision drafting in a modern, lightweight package.

Still, there are moments when speed and presentation matter more than technical depth—especially during client meetings. In those cases, I often open a floor planner with instant 3D preview so clients can see layout changes in real time while we talk. This blend of precision and speed has completely changed how I work.

5 Real Floor Plan Ideas I Designed with Rayon

Instead of starting with theory, let me show you what I’ve actually built. These are five real-world floor plan ideas I created in Rayon, each with its own design logic and functional goals.

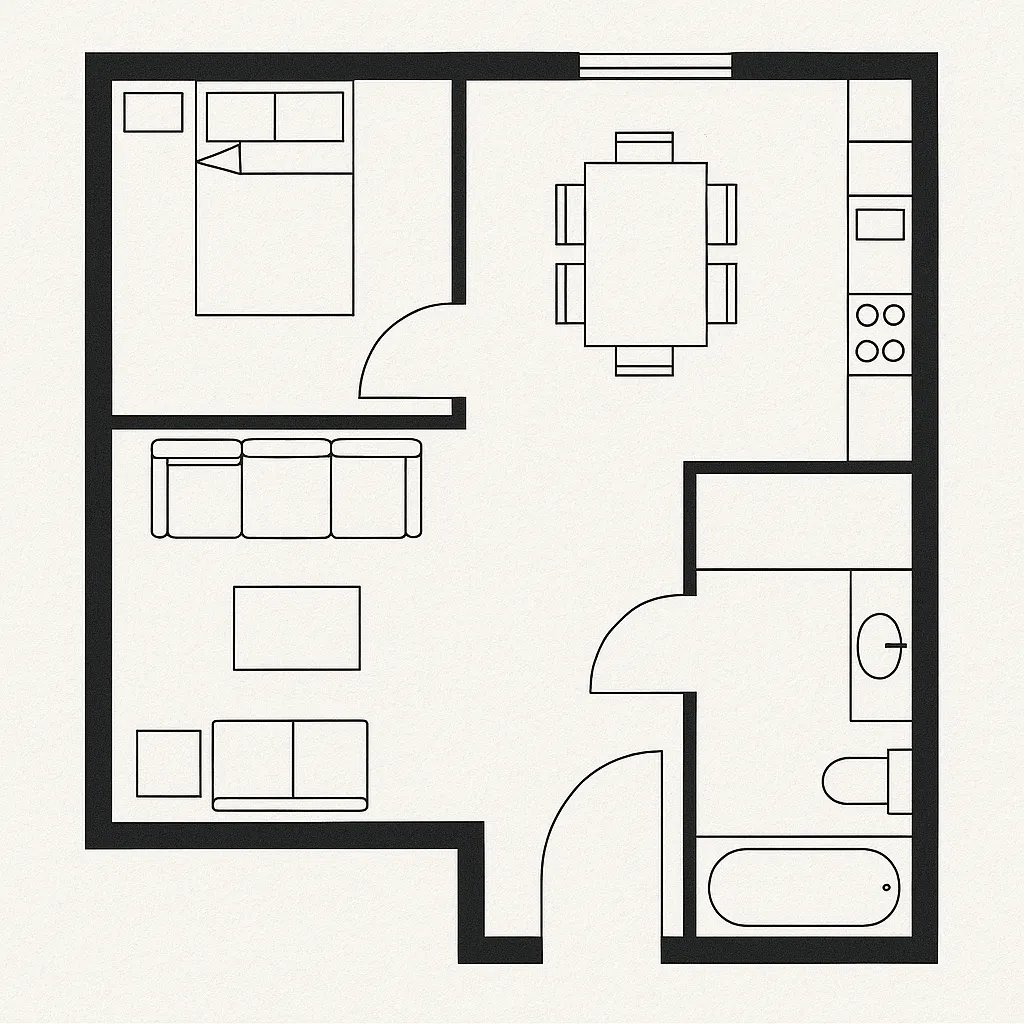

1. Compact Urban Studio

For this 35-square-metre space, the priority was flexibility. I used built-in storage along one wall, a foldable dining table, and a sliding partition to create a sense of separation between sleeping and living areas. In Rayon, I could draft the exact measurements for the sliding track and optimise clearances before moving to 3D.

save pin

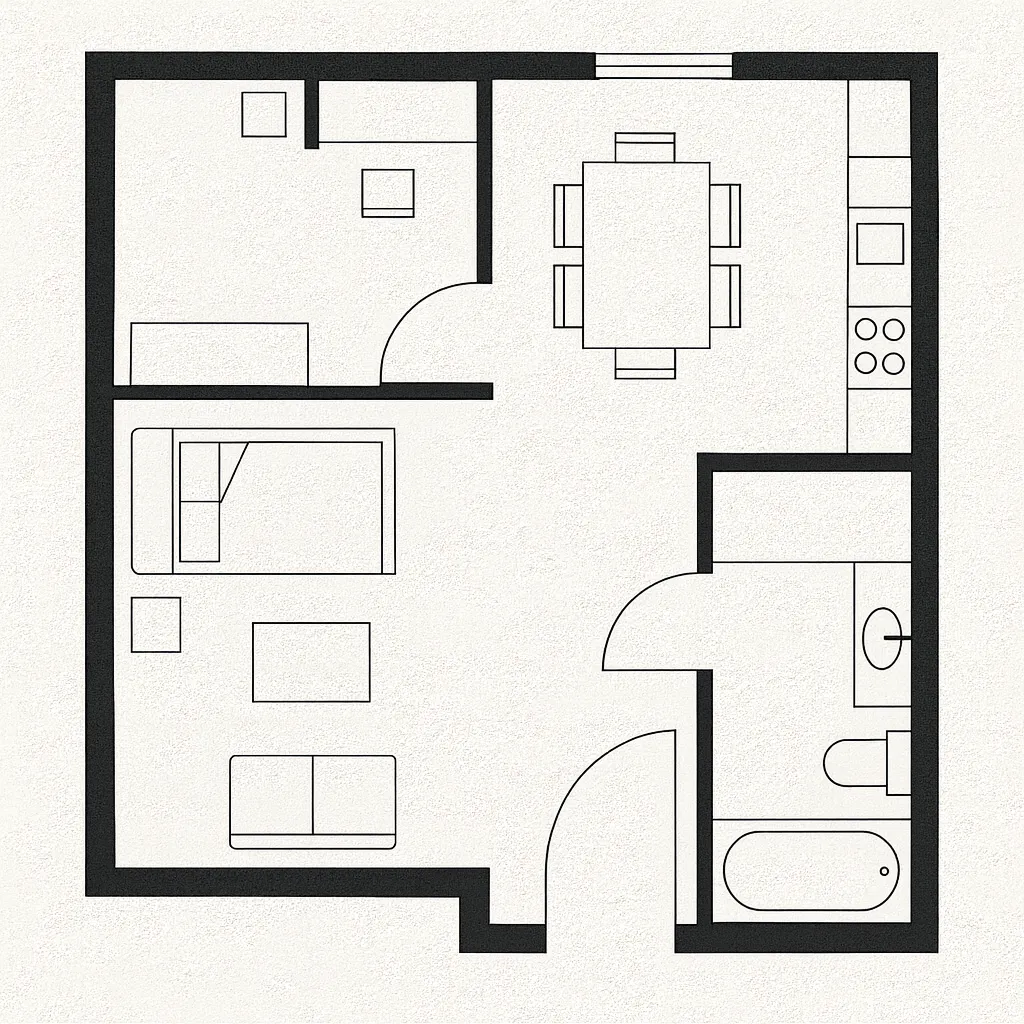

2. Open-Plan Living with Study Nook

This design was all about flow—combining living, dining, and a small study corner without losing visual balance. I used zoning techniques in Rayon, adding soft partitions and furniture placement to subtly define each area.

save pin

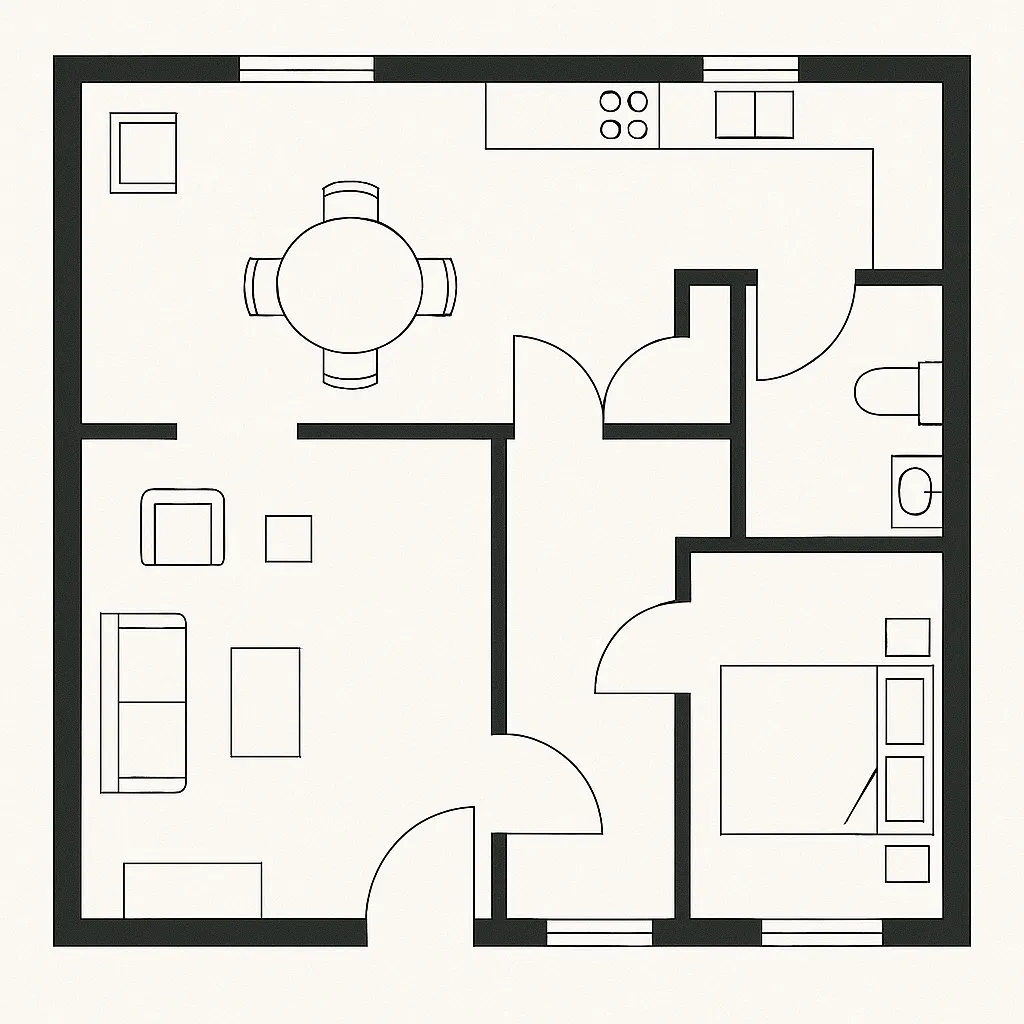

3. Dual-Entry Kitchen for Efficient Workflow

For a busy family that entertains often, I created a kitchen with two access points: one from the living area and one from the service corridor. This way, guests and household chores never collide. Rayon’s snapping tools helped me align cabinetry precisely, ensuring both circulation paths stayed clear.

save pin

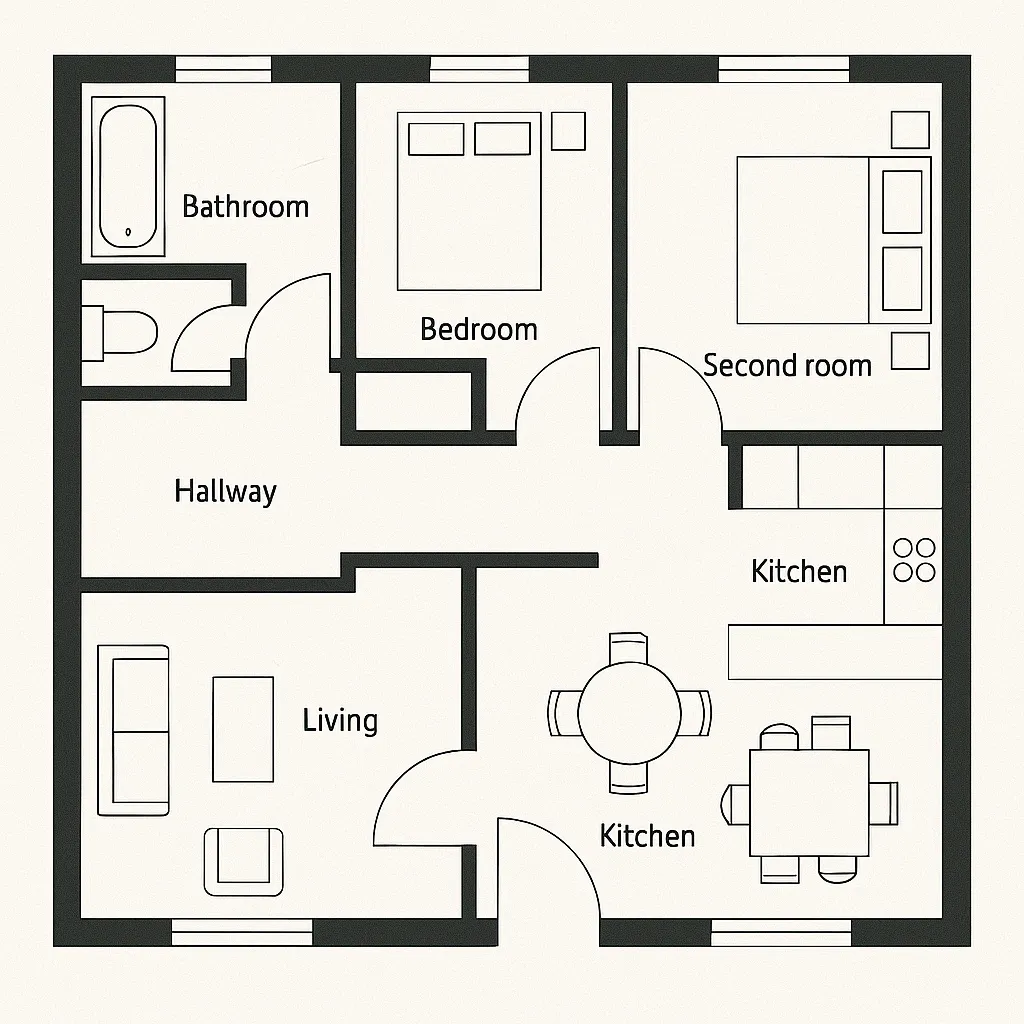

4. Family-Centric Layout for Privacy

Here, the central living area acts as the heart of the home, with bedrooms clustered together for privacy. I experimented with different circulation routes in Rayon, ensuring kids could move around safely without crossing cooking zones.

save pin

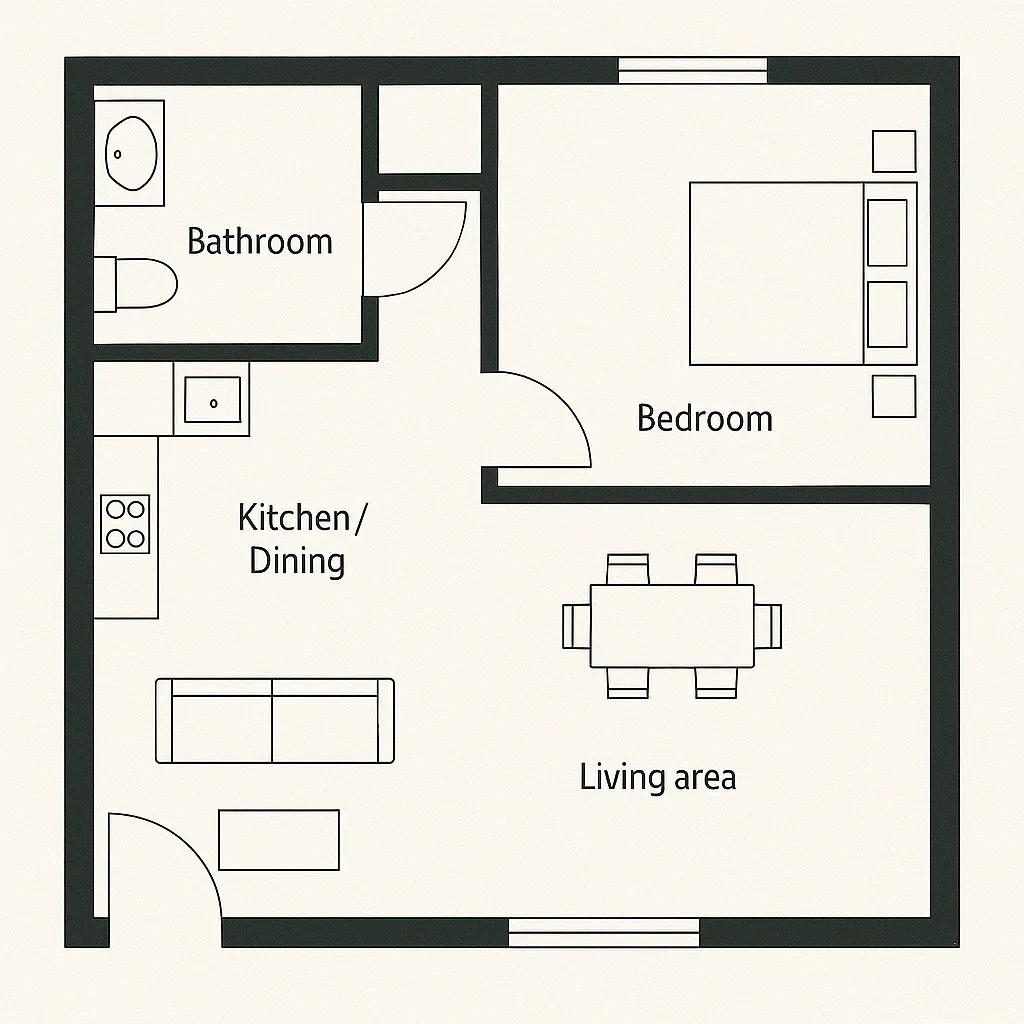

5. Loft-Style One-Bedroom

For a high-ceiling apartment, I maximised vertical space by adding a mezzanine for storage and a reading nook. The 2D draft in Rayon let me play with stair placement and ceiling heights before committing to final measurements.

save pin

For some of these projects—especially when I needed to present variations quickly—I switched to a free online floor planner that let me duplicate layouts, swap furniture instantly, and share a link with clients for immediate feedback.

When I Switch to Another Tool – Blending Rayon with Online Floor Planners

Rayon’s precision is great for early design and documentation, but some scenarios call for a different approach:

1. Multiple Layout Versions: Creating several furniture arrangements quickly for comparison.
2. Real-Time Client Feedback: Letting clients explore the design from any device without installing software.
3. Fast Rendering: Getting a realistic 3D view in seconds instead of waiting for a render queue.

That’s why I often combine Rayon with tools that focus on speed and presentation. In my experience, this hybrid workflow keeps projects moving without sacrificing design quality.

Rayon vs. Online Floor Planner – Feature Comparison

Pro Tips for Getting the Most Out of Rayon in Floor Planning

1. Keep Drafts Clean Early On: The cleaner your base plan, the easier it is to revise.
2. Use Snapping & Measurements: Don’t eyeball it—accuracy saves headaches later.
3. Combine Tools Wisely: Let Rayon handle precision and documentation, and use an instant 3D floor planner for client-facing work.

My Take on Using Rayon for Floor Plan Ideas

Rayon has earned a spot in my toolkit for its drafting precision and intuitive interface. But in the real world, speed and flexibility matter just as much. By combining Rayon with the right presentation-focused floor planner, I can keep clients engaged, make faster decisions, and deliver better results.

If you’re working on floor plans—whether for a compact flat or a large family home—consider experimenting with both. The right blend might just transform your workflow the way it has mine.
