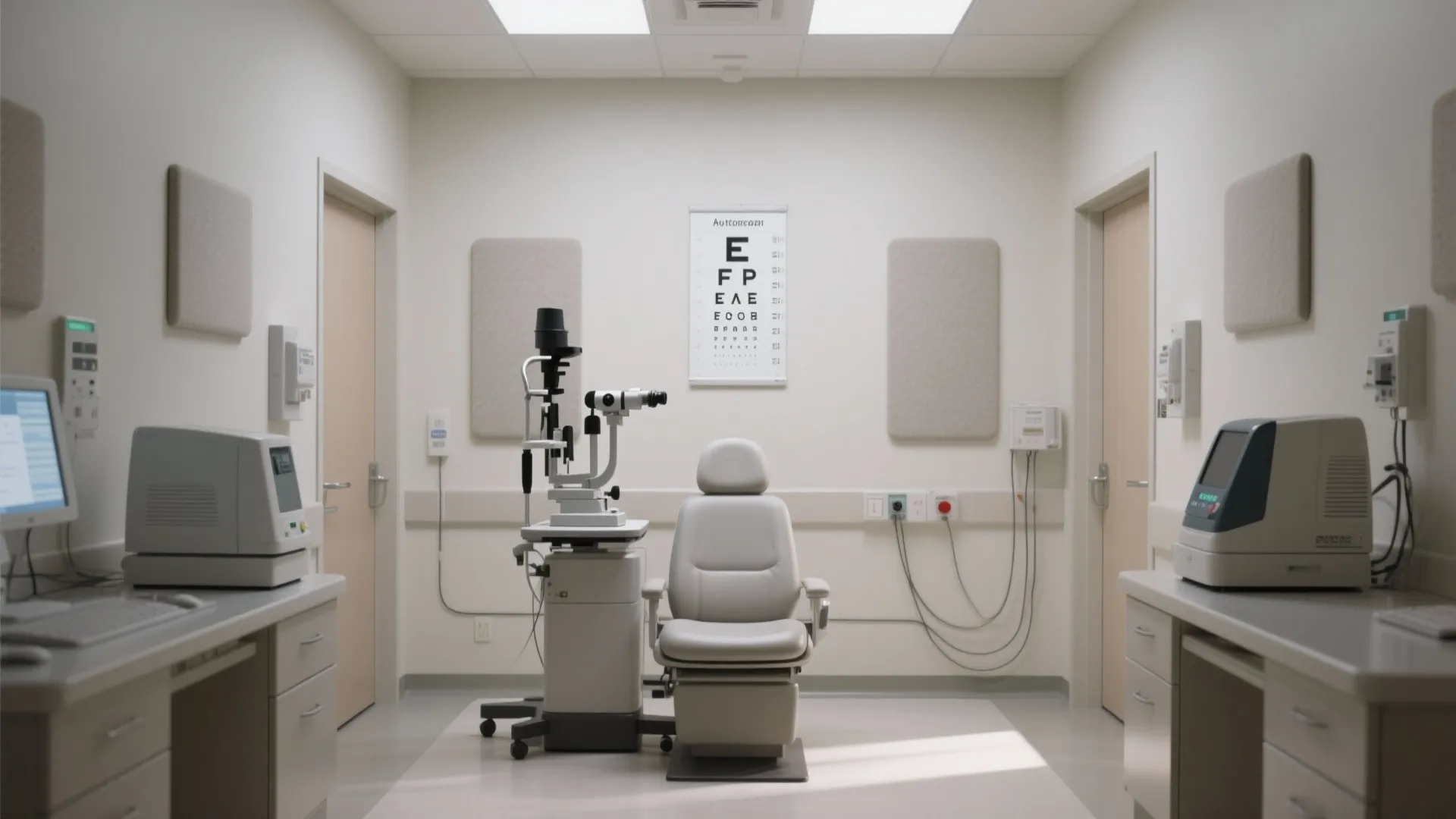

Refraction Room Design in Hospitals: The Ultimate Guide: Fast-Track Guide to Setting Up a Functional Refraction Room

Refraction rooms demand precise control over vision testing conditions, spatial ratios, and staff workflow. In my hospital projects, the rooms that consistently deliver accurate prescriptions share three traits: calibrated lighting, ergonomic sightlines, and quiet, uninterrupted pathways. Data supports this rigor: the WELL Building Standard v2 recommends maintaining uniformly lit clinical areas with glare control and circadian-aware strategies to reduce visual fatigue and error rates, while IES illumination guidance for clinical task areas typically ranges around 300–500 lux at task level, with strict glare mitigation to protect acuity testing integrity. Steelcase’s workplace research further notes that acoustic comfort strongly influences cognitive performance and task accuracy—noise can increase error rates and slow decision-making, which is critical when patients are asked to discriminate fine visual differences.

Beyond lighting and acoustics, behavior and posture matter. Herman Miller’s research on human factors indicates that ergonomically aligned seating, correct monitor heights, and adjustable equipment reduce musculoskeletal strain and improve clinician focus during repetitive testing. In ophthalmic environments, this translates into consistent patient head positioning, stabilized chin rests, and examiner reach zones that avoid awkward postures—details that cut test time and improve repeatability. For color and brightness sensitivity cases, Verywell Mind’s color psychology overview highlights how saturated reds can increase arousal, while cool, desaturated tones can calm; in refraction rooms, neutral palettes with low reflectance help minimize visual bias during acuity charts and lens flip tests.

Core Spatial Ratios and Room Dimensions

Most hospital refraction rooms perform best with a testing distance of 6 meters (20 feet) for standard Snellen charts or validated alternatives (mirrored tunnels or digital projection with calibrated optical path). A practical footprint is 10–14 m² (108–150 ft²) for single-patient rooms, allowing space for equipment, circulation, and storage. Maintain a clear 900–1,000 mm side clearance along the patient chair for examiner movement, plus at least 1,200 mm behind equipment racks for service access. Align the chart or display directly with the patient’s line of sight, at eye level, and avoid diagonal sightlines that introduce perspective distortions.

Lighting: Illuminance, Color Temperature, and Glare Control

Design task lighting to 300–500 lux at the patient plane, with dimmable, flicker-free sources. Keep the acuity chart luminance uniform; avoid hotspots or vignetting. Favor 3,500–4,000 K neutral white for balanced color rendition; lower CCT (3,000 K) can reduce visual stress in sensitive patients but ensure chart contrast remains high. Use indirect luminaires or wall washers to minimize specular reflections on trial lenses and instrument housings. Integrate localized task lights for lens selection and documentation, then dim them during testing to prevent adaptation shifts. Verified guidance on lighting and health outcomes is available from WELL Certified resources and IES standards.

Acoustic Comfort and Noise Isolation

Speech privacy and focused decision-making require sound absorption and sealed door assemblies. Aim for a composite wall STC of 45+ with gasketed doors; introduce a minimum 20–30% coverage of Class A acoustic panels on wall/ceiling surfaces to damp reflections. Soft flooring (rubber or acoustic LVT) reduces impact noise. Avoid locating refraction rooms adjacent to MRI suites, mechanical shafts, and high-traffic corridors. Masking systems should be calibrated below distraction thresholds; excessive masking can interfere with clinician-patient communication during instruction.

Ergonomics: Patient Positioning and Examiner Reach

Place the patient chair on a centered axis with adjustable height and lockable casters. The phoropter should travel smoothly within the examiner’s neutral reach envelope (typically 500–700 mm from shoulder). Keep the chart display at eye height; scale typography accordingly for 6 m testing. Provide wrist-level trays at 900 mm height for trial lens handling and 720–750 mm desk height for documentation. Integrate cable management to prevent trip hazards, and keep the examiner’s stool adjustable, with lumbar support and footrest for micro-adjustments during fine-tuning.

Workflow and Equipment Layout

Space the phoropter, autorefractor, and slit lamp to avoid crossover traffic. In multi-station rooms, set linear bays with 1,500 mm between centers to maintain circulation. Use a mirrored optical path if the footprint is short; validate reflectance quality and mirror alignment to preserve chart legibility. To simulate alternative furniture and equipment arrangements before build-out, a room layout tool can help test clearances, sightlines, and patient flow: room layout tool.

Visual Neutrality and Color Strategy

Keep walls matte and neutral (LRV 40–60) to reduce glare and contextual color bias. Trim and equipment should avoid glossy finishes; satin or matte prevents highlights that distract during lens flips. Introduce color in secondary zones—storage niches, door frames—so that sightlines from the chair remain visually calm. Avoid high-chroma accents within the direct field of view of the patient when charts are illuminated.

Chart Technology: Digital vs. Physical

Digital charts offer stable luminance, randomized optotypes, and quick calibration. Ensure the display meets luminance, contrast, and resolution requirements for acuity testing, and confirm pixel pitch at 6 m distance yields crisp letter edges. If using physical charts, standardize light boxes with diffusers and maintain consistent bulb CCT across rooms. Mirrored systems must be double-checked for distance equivalency and minimal distortion.

Power, Data, and Infection Control

Provide multiple duplex outlets on separate circuits for phoropter, charts, autorefractor, slit lamp, and IT equipment. Add UPS support for sensitive devices. Include data ports for EMR integration and tele-ophthalmology peripherals. Use non-porous surfaces with cleanable seams; specify healthcare-grade vinyl or compact laminate for casework. Hands-free door hardware and touchless sinks near the entrance streamline infection control without contaminating the testing zone.

Safety, Accessibility, and Compliance

Ensure ADA-compliant clearances, lever hardware, and contrasting floor transitions. Mark threshold changes with subtle, non-gloss indicators to avoid glare. If pediatric testing is expected, add adjustable seating, distraction-reducing acoustic baffles, and flexible chart heights. Emergency egress signage should be visible yet non-reflective, and pathways must remain uncluttered.

Commissioning and Calibration

Before opening, run through a commissioning checklist: verify 6 m (or equivalent) optical path; measure illuminance at patient plane; test glare angles on lenses; validate acoustic absorption; calibrate digital charts; and set ergonomics for examiner and patient. Record baseline metrics so future maintenance can restore specific settings quickly after bulb changes or layout tweaks.

Real-World Lessons From Hospital Projects

In a recent ophthalmology suite update, swapping glossy white casework for matte laminate eliminated distracting reflections on trial lenses and reduced patient squinting during chart flips. Another project improved accuracy after replacing mixed-CCT task lights with standardized 3,800 K dimmable luminaires and adding perimeter acoustic panels—clinicians reported fewer retests and faster decision-making. A compact clinic utilized mirrored optical paths to achieve full 6 m testing in a 4.5 m room; careful mirror quality selection prevented letter ghosting and maintained chart contrast.

FAQ

Q1: What illuminance level should a refraction room maintain?

A: Target 300–500 lux at the patient plane with uniform distribution and controlled glare, in line with IES clinical task lighting norms and WELL guidance for visual comfort.

Q2: Which color temperature works best?

A: Neutral white around 3,500–4,000 K balances contrast and comfort. Lower CCTs can calm light-sensitive patients, but ensure charts retain high luminance and legibility.

Q3: How big should the room be?

A: For a single testing bay, 10–14 m² typically accommodates a 6 m optical path, equipment, and circulation. Short rooms can use mirrored paths or calibrated digital charts.

Q4: What acoustic targets matter?

A: Aim for walls with STC 45+ and incorporate Class A absorption on 20–30% of surfaces to reduce reverberation, improving concentration and communication.

Q5: Are digital charts better than traditional light boxes?

A: Digital charts provide consistent luminance, randomized optotypes, and quick calibration. Physical charts can work well if light boxes are standardized and glare is minimized.

Q6: How do I prevent visual bias from interior finishes?

A: Use matte, neutral walls (LRV 40–60) and avoid glossy surfaces within the patient’s sightline. Keep bold color accents out of the primary testing axis.

Q7: What ergonomic details improve testing accuracy?

A: Adjustable patient seating, phoropters within neutral reach, stable chin rests, and correct display eye-height reduce strain and enhance repeatability.

Q8: Where should equipment be placed for best workflow?

A: Separate stations to avoid crossover traffic, maintain 1,500 mm between multi-bay centers, and keep clear side and rear access for examiner movement and maintenance.

Q9: Can ambient noise masking be used?

A: Yes, but calibrate at low levels to support privacy without interfering with clinician instructions; combine with absorption and sealed doors for best results.

Q10: What commissioning steps are essential?

A: Verify optical path length, measure illuminance, check glare angles, calibrate digital charts, test acoustics, and document baseline settings for maintenance.
