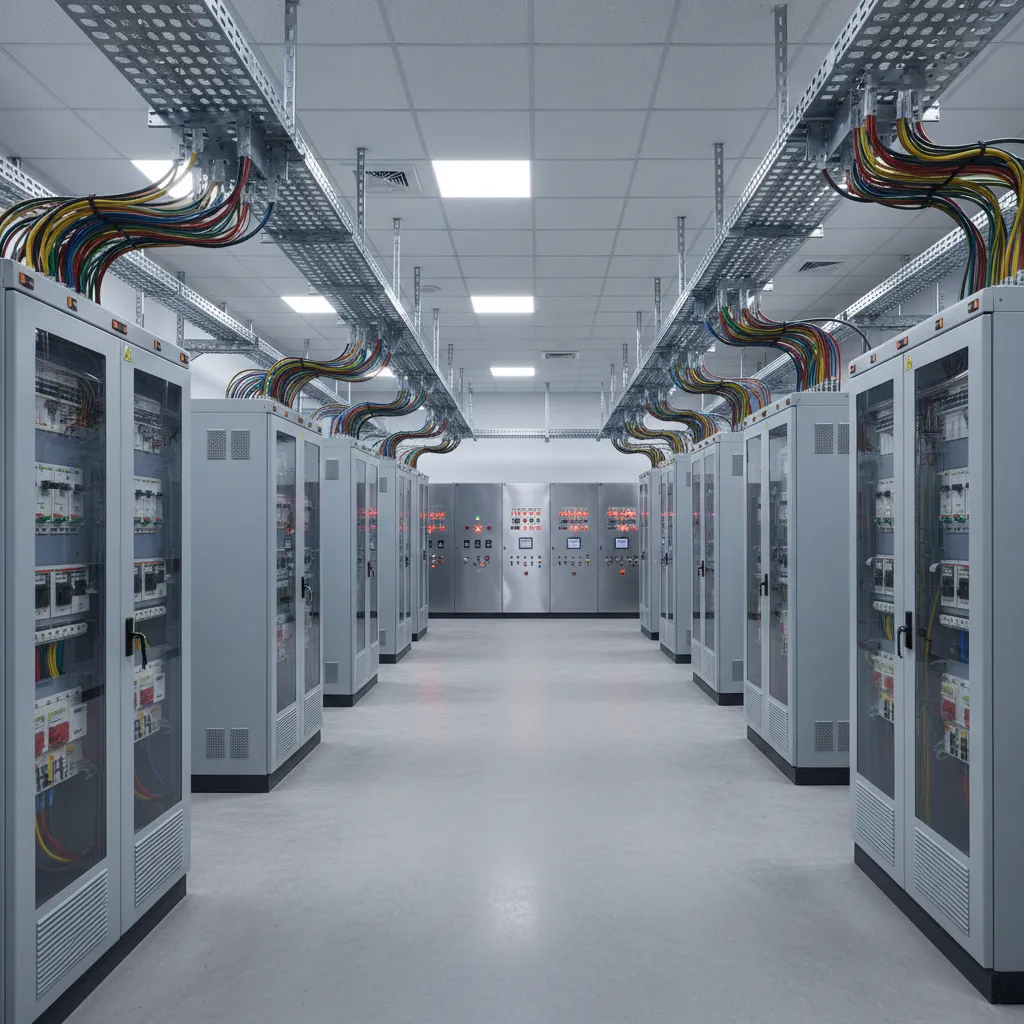

Relay Protection System Risk Management in Power Facilities: How relay room design decisions directly influence protection reliability, operational safety, and long‑term power system resilience

Direct Answer

Relay protection system risk management depends heavily on how the relay room is designed, controlled, and maintained. Environmental stability, redundancy architecture, cybersecurity, and maintenance accessibility directly affect whether protection systems operate correctly during faults. Poor relay room design can introduce hidden risks that only appear during critical system disturbances.

Quick Takeaways

1. Relay room design directly impacts protection system reliability and failure probability.
2. Environmental control and electromagnetic protection are often overlooked risk factors.
3. Redundant relay architecture reduces catastrophic protection failure.
4. Cybersecurity in protection networks is now a critical reliability concern.
5. Maintenance access and monitoring design determine long‑term system resilience.

Introduction

In more than a decade of working with power infrastructure projects, I’ve noticed that relay protection system risk management is rarely treated as a spatial design problem. Engineers often focus on protection algorithms, relay coordination, or firmware reliability. But the physical environment of the relay room quietly shapes whether those systems actually work when they’re needed.

I’ve seen modern substations equipped with advanced digital relays still suffer nuisance trips or delayed protection because of poor cable routing, thermal instability, or electromagnetic interference. In one project, a poorly isolated relay cabinet caused intermittent misoperations during switching events—something that never showed up during factory testing.

This is why relay room reliability design matters far more than most project teams expect. The physical layout, environmental protection, redundancy planning, and security controls inside the relay room directly influence protection system failure risks.

When planning layouts for technical rooms, many engineers now simulate equipment placement and maintenance clearance using interactive 3D layout simulations for technical equipment roomsto identify spatial conflicts before construction.

In this article, I’ll break down the real environmental and operational risks inside relay rooms—and the design strategies that reduce them.

save pin

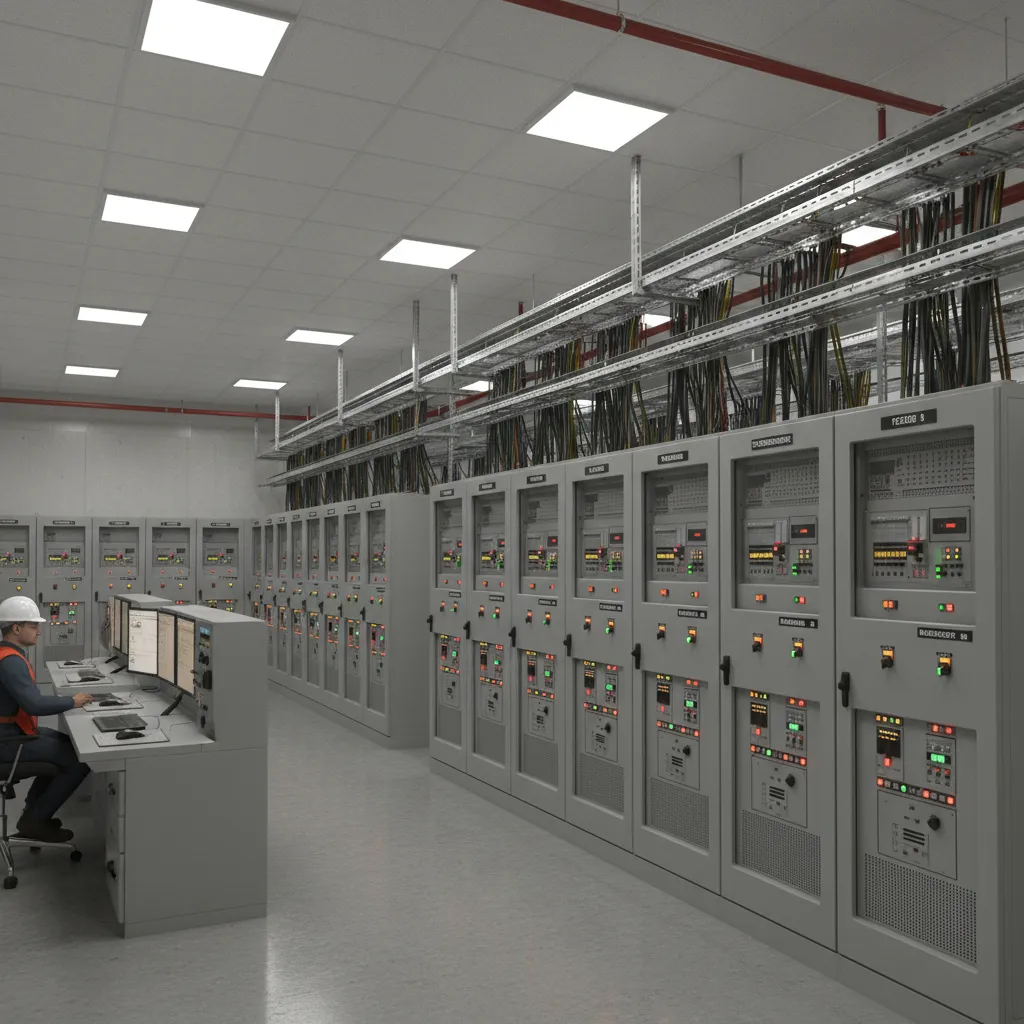

How Relay Room Design Affects Protection Reliability

Key Insight: Protection systems are only as reliable as the physical environment that supports them.

Relay protection devices are highly sensitive electronic systems. Temperature fluctuations, electromagnetic interference, grounding problems, and cable congestion can all affect how relays detect faults or communicate with other devices.

Across multiple substation projects I’ve worked on, three design issues consistently appear in protection misoperation investigations:

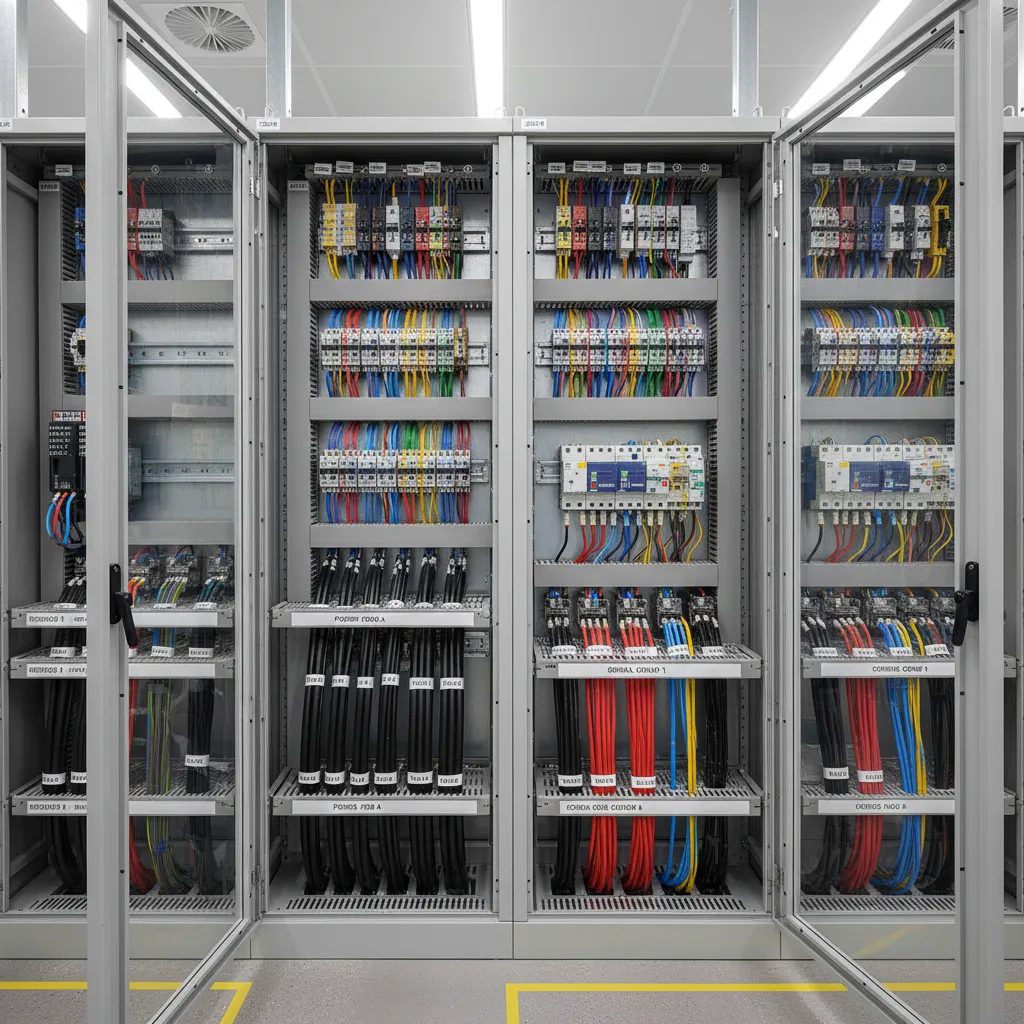

1. Poor cable segregation between control and power wiring
2. Inadequate HVAC design causing temperature drift
3. Insufficient grounding and shielding

IEEE and IEC guidelines both emphasize controlled environmental conditions for protection equipment, yet many facilities still treat relay rooms as simple equipment storage areas rather than precision control environments.

A well-designed relay room should ensure:

1. Stable temperature between 18–27°C
2. Low electromagnetic interference
3. Separated cable trays for signal and power circuits
4. Dedicated grounding grids for protection systems

These design factors significantly reduce substation protection system failure risks.

save pin

Major Risk Factors in Protection System Environments

Key Insight: The most dangerous relay protection risks are environmental factors that remain invisible until a fault event occurs.

In practice, relay protection failures often originate from small environmental problems that accumulate over time.

Common relay room environmental risks include:

1. Electromagnetic interference (EMI) from nearby high-current equipment
2. Ground potential rise during fault events
3. Humidity and condensation affecting circuit boards
4. Cable congestion increasing cross‑signal interference
5. Dust contamination in poorly sealed buildings

One overlooked design mistake is placing relay panels too close to power distribution equipment. Even when devices meet EMC standards, high-energy switching environments can introduce unpredictable disturbances.

Modern facilities increasingly simulate infrastructure layouts early using space planning approaches used for complex equipment environmentsto evaluate ventilation paths, cabinet spacing, and maintenance corridors.

save pin

Redundancy and Fail Safe Design Principles

Key Insight: Redundancy is the backbone of relay system risk control.

Protection systems must assume that individual components can fail. The design goal is not eliminating failure—but ensuring the system still responds correctly when failure occurs.

Typical redundancy strategies include:

1. Dual protection relays for critical feeders
2. Independent DC power supplies
3. Separate communication channels
4. Physically separated protection panels

Protection engineers often refer to this as primary and backup protection philosophy.

But here’s the nuance most design guides miss: redundancy must also exist at the physical infrastructure level.

For example:

1. Separate cable routes for redundant relays
2. Independent grounding paths
3. Different communication switches
4. Independent battery strings

Without physical separation, redundant relays can fail simultaneously due to environmental disturbances.

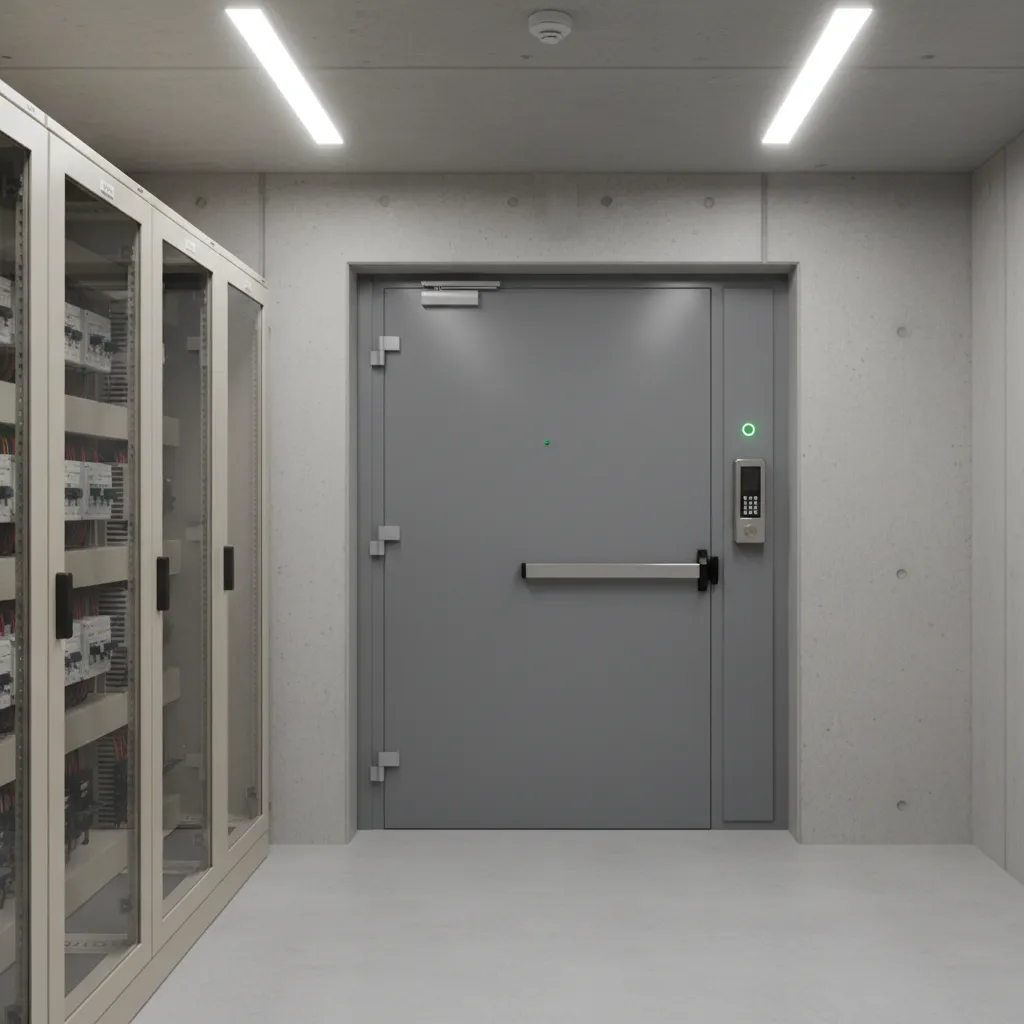

Cybersecurity and Access Control in Relay Rooms

Key Insight: Cybersecurity is now a core component of relay protection reliability.

Digital substations rely heavily on networked protection systems. This introduces cyber risk that traditional relay rooms were never designed to handle.

Key protection system cybersecurity measures include:

1. Network segmentation for protection LANs
2. Role-based access control for relay settings
3. Secure remote maintenance channels
4. Physical access logging for relay rooms

According to guidance from NERC CIP standards, physical access to protection infrastructure must be monitored and controlled because configuration changes can directly affect grid stability.

Design strategies that improve security include:

1. Dedicated relay room access control
2. Video surveillance
3. Locked relay panels
4. Separated engineering workstations

save pin

Maintenance and Monitoring Strategies

Key Insight: Protection reliability depends as much on maintainability as on engineering design.

One mistake I often see is relay rooms that are technically correct but operationally difficult to maintain.

Poor maintenance access leads to skipped inspections, delayed firmware updates, and incomplete testing—each of which increases protection system risk.

Effective relay room maintenance planning includes:

1. Clear front and rear cabinet access
2. Labeled cable routing
3. Test switch accessibility
4. Remote monitoring capability

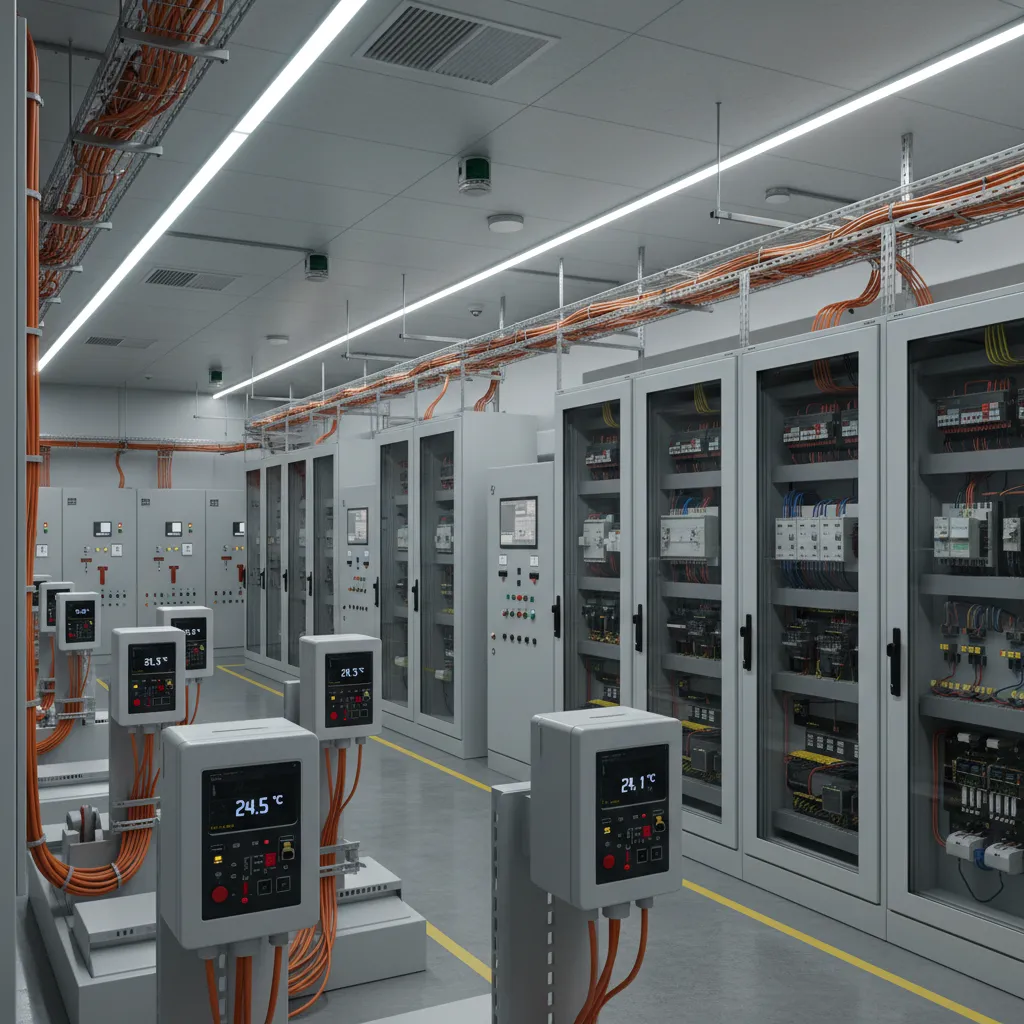

Modern protection systems also benefit from environmental monitoring.

Typical monitoring systems track:

1. Room temperature
2. Humidity levels
3. Power supply stability
4. Communication health

Answer Box

The reliability of a relay protection system depends on both electrical engineering and physical relay room design. Environmental control, redundancy planning, cybersecurity, and maintenance accessibility collectively determine long‑term system resilience.

Designing for Long Term Operational Resilience

Key Insight: The most reliable relay rooms are designed for decades of upgrades and operational change.

Protection technology evolves quickly. Over a 30‑year facility life cycle, relay rooms will likely see multiple equipment replacements, communication upgrades, and expanded protection schemes.

Resilient relay room design therefore prioritizes flexibility.

Recommended long‑term planning strategies:

1. Reserve cabinet space for future relays
2. Oversize cable trays
3. Allow expansion in DC supply systems
4. Plan modular panel layouts

For infrastructure planning teams exploring digital layout simulations, this visual workflow for planning complex technical room layouts demonstrates how spatial modeling can support long‑term reliability decisions.

Final Summary

1. Relay protection reliability is strongly influenced by relay room design.
2. Environmental control and EMI protection are critical risk factors.
3. Redundancy must include both system architecture and physical separation.
4. Cybersecurity and access control now play major roles in protection reliability.
5. Maintenance accessibility determines long‑term operational resilience.

FAQ

What is relay protection system risk management?

Relay protection system risk management involves identifying environmental, operational, and technical risks that could cause protection failures and implementing design strategies to reduce those risks.

Why is relay room design important for protection reliability?

Relay room design controls temperature stability, electromagnetic interference, grounding conditions, and cable organization—all of which directly influence protection system performance.

What are common relay protection system failure risks?

Typical risks include EMI interference, poor grounding, overheating, communication network failures, and improper redundancy planning.

How does redundancy improve relay system reliability?

Redundant relays, independent power supplies, and separate communication channels ensure that a single component failure does not disable protection functions.

Can environmental conditions affect digital relays?

Yes. Temperature fluctuations, humidity, and electromagnetic interference can affect signal processing and communication performance in modern digital relays.

What cybersecurity risks exist in relay protection systems?

Unauthorized access to relay configuration, network intrusion, and insecure maintenance connections can compromise protection system settings.

How often should relay protection systems be tested?

Most utilities perform relay testing every 2–6 years depending on system criticality and regulatory requirements.

What is the goal of relay protection system risk management?

The goal is ensuring that protection systems operate correctly during faults while minimizing the probability of false trips or protection failure.
