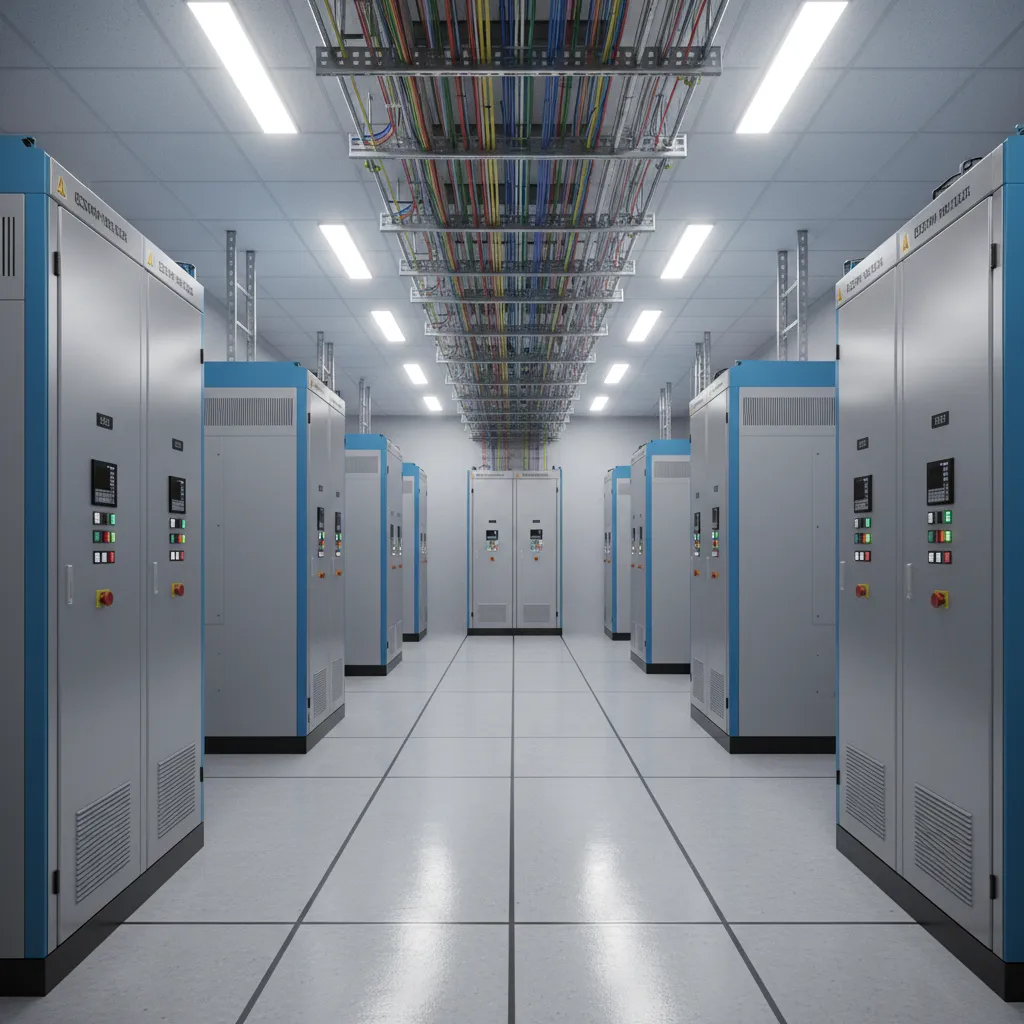

Relay Room Design Standards for Power Utilities and Industrial Facilities: Understand the real standards engineers follow when designing relay rooms for substations and industrial protection systems.

Direct Answer

Relay room design standards define how protection equipment must be housed to ensure reliability, safety, and maintainability in power utilities and industrial facilities. Most projects follow a combination of IEC protection guidelines, IEEE standards, and local electrical codes that govern layout, environmental control, grounding, and access. Proper compliance prevents protection failures that could lead to outages, equipment damage, or safety incidents.

Quick Takeaways

1. Relay rooms must follow both IEC/IEEE protection guidelines and local electrical codes.
2. Environmental control and electromagnetic shielding are often overlooked but critical.
3. Utility substations require stricter redundancy and documentation than most industrial plants.
4. Poor cable routing and grounding are the most common relay room compliance failures.
5. Clear documentation and inspection protocols are essential for regulatory approval.

Introduction

Relay room design standards rarely get attention until something fails. In over a decade working alongside electrical engineers on infrastructure and industrial facilities, I've seen beautifully designed control buildings still struggle with protection reliability simply because the relay room layout ignored core engineering standards.

A relay room is the operational brain of a protection system. It houses protection relays, communication devices, event recorders, and interface panels that monitor the health of transformers, feeders, and transmission lines. If the environment, wiring layout, or grounding system is poorly designed, even high‑end protection equipment can misoperate.

One interesting shift in recent years is how design teams are planning protection spaces digitally before construction. When engineers build layouts using tools that help visualize electrical equipment layouts in 3D planning environments, clashes with cable trays, HVAC, and access paths can be identified long before installation.

This guide breaks down the real relay room design standards used across utilities and industrial facilities, including the IEC and IEEE frameworks engineers rely on, common compliance pitfalls, and the differences between substation and industrial protection rooms.

save pin

Why Standards Matter in Relay Room Design

Key Insight: Relay room standards exist primarily to ensure protection systems remain reliable under fault conditions, environmental stress, and maintenance operations.

Protection systems must react within milliseconds to faults. If relays misoperate or fail to trip due to wiring interference, grounding issues, or environmental conditions, the results can be catastrophic. This is why design standards extend far beyond simple room layout.

In practice, standards address three critical risks:

1. Electromagnetic interference from high current equipment.
2. Environmental degradation such as temperature swings and humidity.
3. Maintenance errors caused by poor panel layout or labeling.

One hidden cost I often see in retrofit projects is underestimating cable management. Poorly organized control wiring becomes nearly impossible to troubleshoot during protection testing.

Core design elements covered by most standards include:

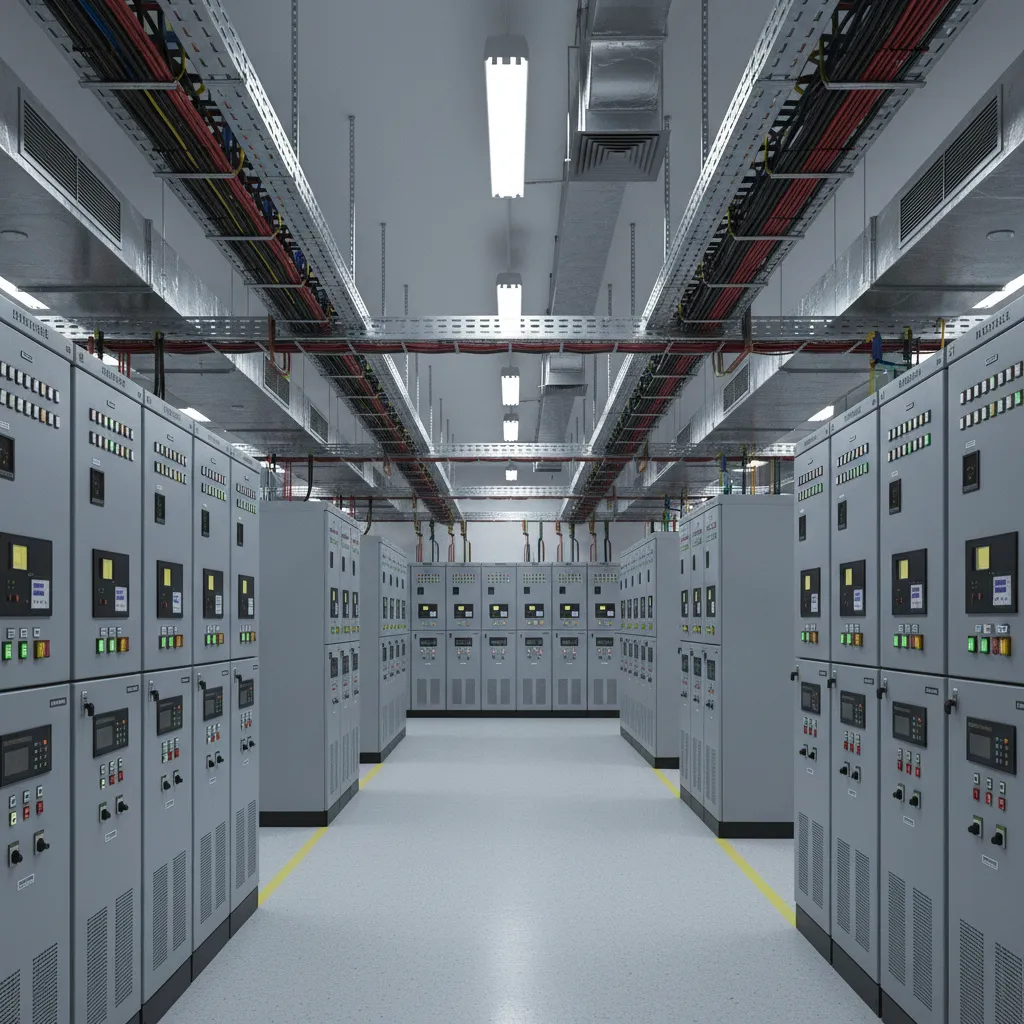

1. Minimum working clearances around relay panels
2. Separate routing for AC and DC control wiring
3. Dedicated grounding systems
4. HVAC requirements for stable relay operation
5. Fire protection and access control

IEEE Power & Energy Society reports that protection misoperations often trace back to configuration and wiring errors rather than relay hardware itself. Design standards attempt to minimize those risks.

IEC and IEEE Guidelines for Protection Rooms

Key Insight: IEC standards dominate globally while IEEE guidelines are widely used in North American utilities, but most large projects combine both frameworks.

When engineers talk about relay room compliance, they usually reference a mix of IEC protection standards and IEEE substation practices.

Key IEC standards influencing relay room design:

1. IEC 60255 – Measuring relays and protection equipment
2. IEC 61850 – Communication networks and systems for substations
3. IEC 61000 – Electromagnetic compatibility requirements

Key IEEE standards commonly applied:

1. IEEE C37 series – Protective relays and associated systems
2. IEEE 525 – Cable installation in substations
3. IEEE 1100 – Powering and grounding sensitive electronic equipment

These standards influence several physical design decisions:

1. Panel spacing and mounting height
2. Cable separation requirements
3. Shielded wiring for communication circuits
4. Ground grid bonding

For teams planning new facilities, early spatial coordination using platforms that help map equipment placement across a full equipment room layoutcan simplify compliance with panel spacing and maintenance clearance rules.

save pin

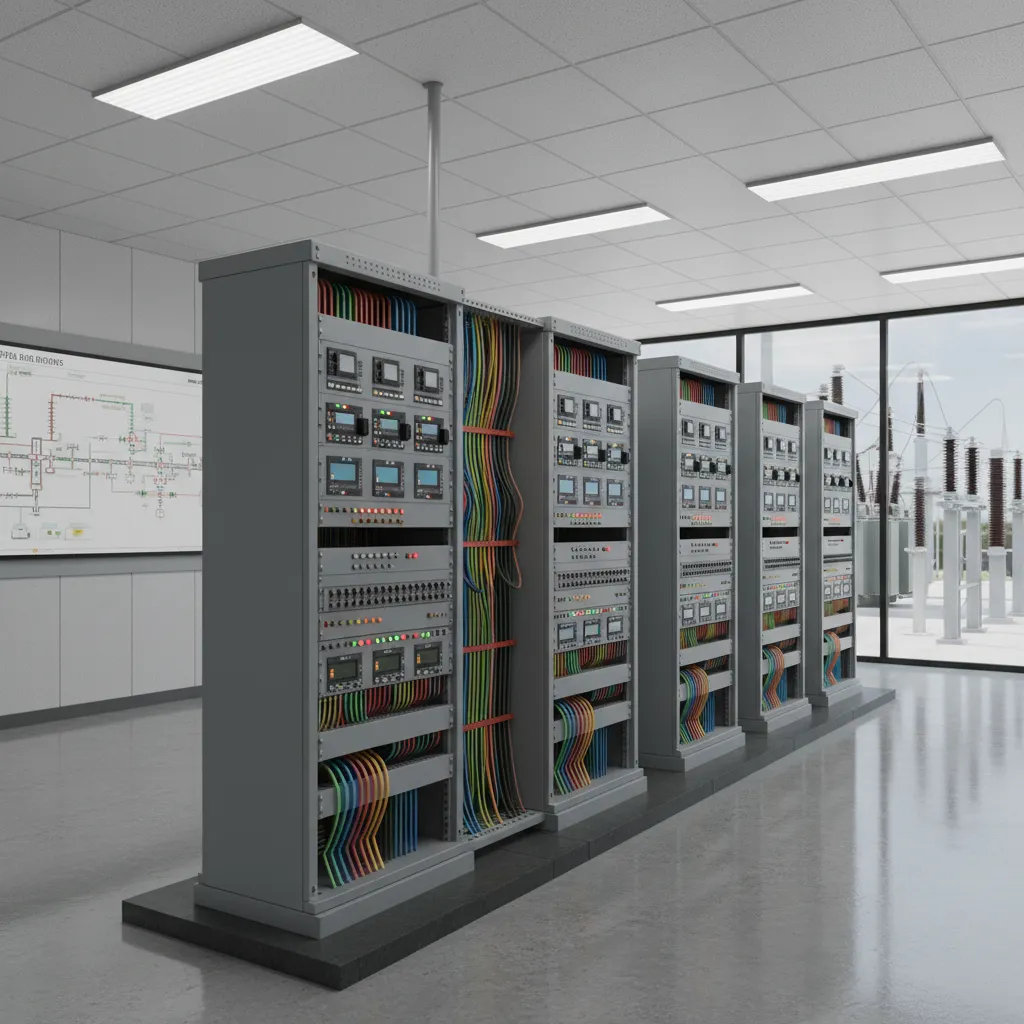

Utility Substation Relay Room Requirements

Key Insight: Utility substations require the most stringent relay room design because protection failures can affect entire transmission networks.

Transmission and distribution substations typically implement stricter redundancy and environmental controls than industrial sites.

Typical substation relay room requirements include:

1. Redundant DC battery supply systems
2. Dual communication networks
3. Dedicated HVAC systems with temperature monitoring
4. Fire‑rated construction
5. Secure access control

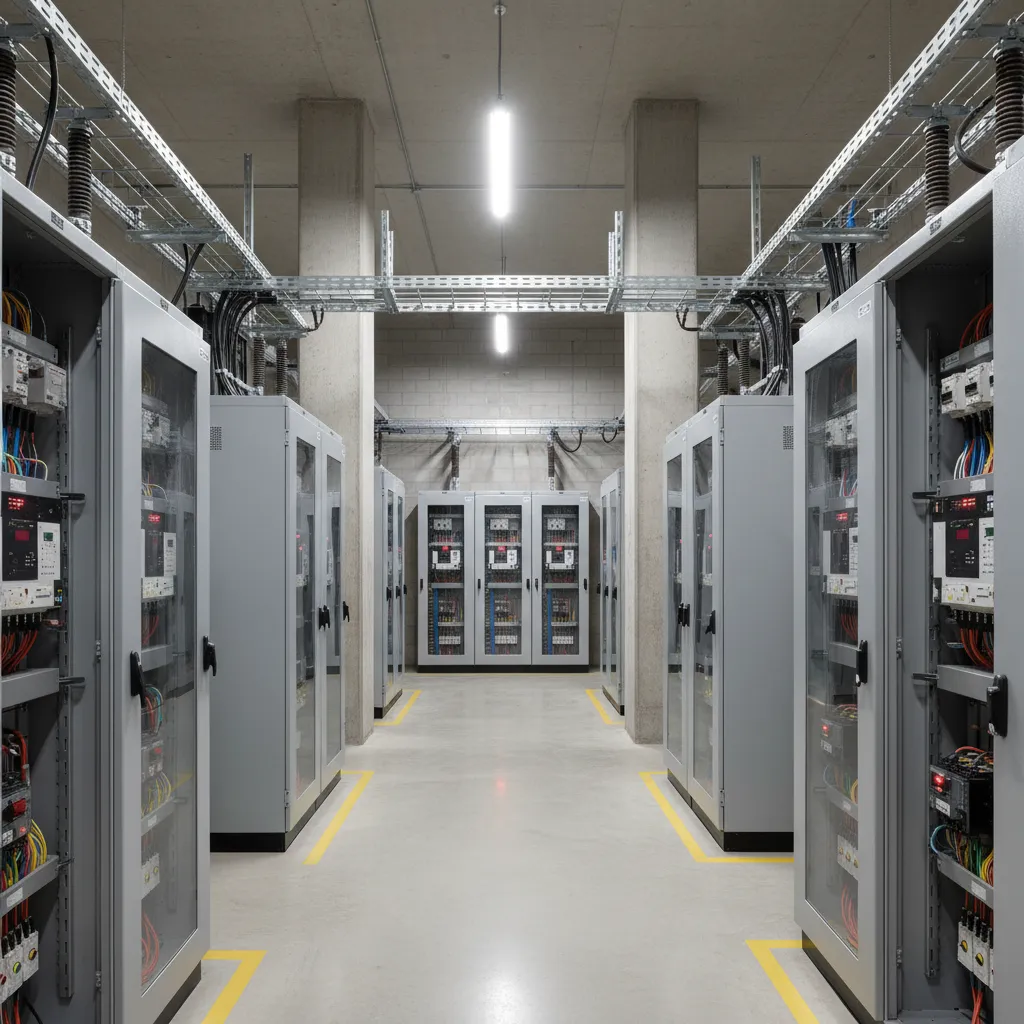

A typical utility relay room layout may include:

1. Protection relay panels
2. SCADA interface panels
3. Communication racks
4. Disturbance recorders
5. Battery monitoring systems

Another overlooked issue is floor loading. Relay racks, batteries, and cable trays can significantly increase structural load requirements. Many older substations struggle with this during modernization projects.

save pin

Industrial Plant Protection Room Practices

Key Insight: Industrial facilities often integrate protection rooms with control infrastructure, which changes layout priorities compared with utility substations.

Industrial power systems in refineries, manufacturing plants, and data centers still rely on protective relays, but the room design tends to be more integrated with control rooms or MCC areas.

Common industrial practices include:

1. Shared communication networks with plant automation
2. Integration with distributed control systems (DCS)
3. Combined protection and control panels

However, this integration introduces a major risk: electromagnetic noise from industrial drives and motors.

To reduce interference, engineers typically implement:

1. Shielded control cables
2. Grounded cable trays
3. Separate power and signal routing
4. Environmental filtering for dust or chemicals

During facility planning, teams sometimes model equipment zones alongside other building systems using digital layouts similar to those used to organize complex technical workspaces and equipment rooms. This helps maintain service clearances and cable routing efficiency.

Safety and Compliance Considerations

Key Insight: Most relay room safety issues arise from grounding design mistakes and insufficient maintenance access.

Electrical safety compliance goes far beyond installing relays inside cabinets. The physical environment must support safe operation and maintenance.

Key safety requirements typically include:

1. Clear working space around relay panels
2. Proper bonding to the substation ground grid
3. Surge protection and shielding
4. Fire detection and suppression
5. Emergency lighting and labeling

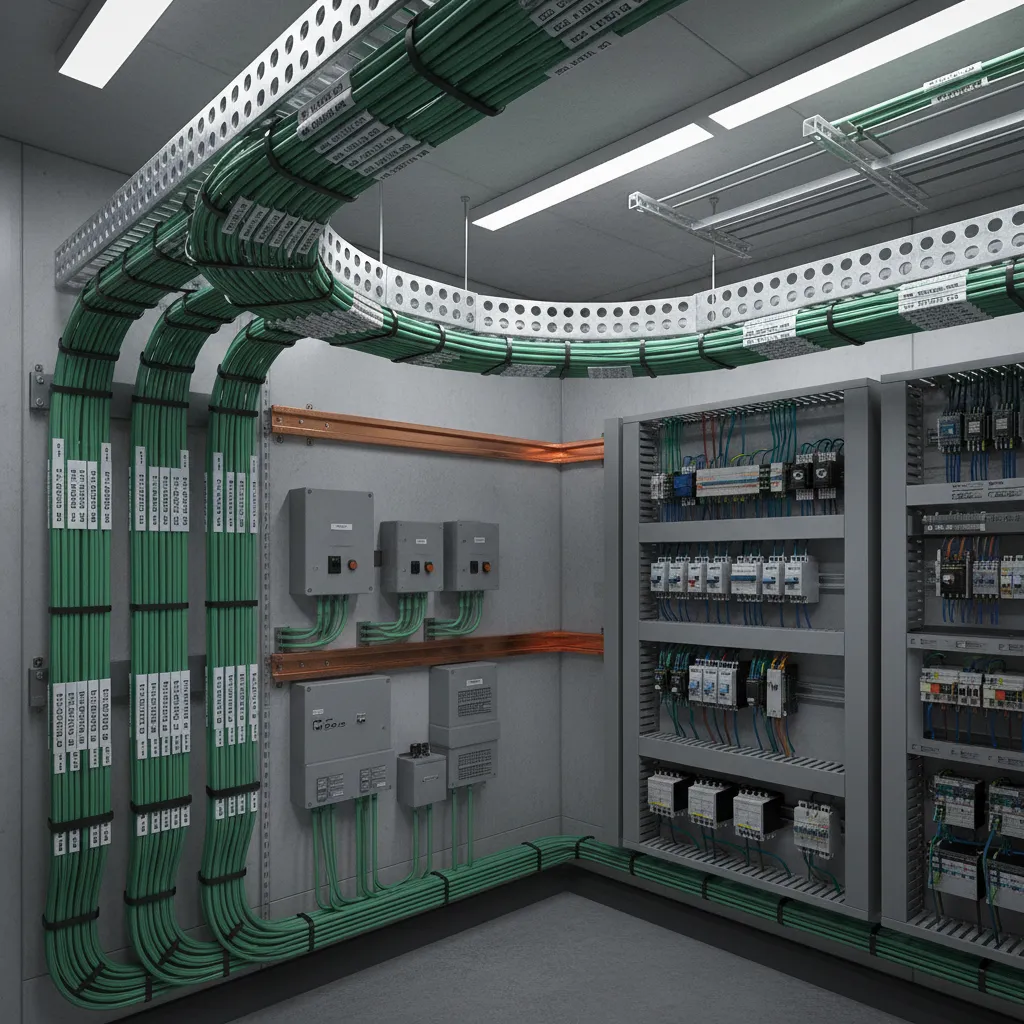

One mistake that shows up repeatedly in audits is inconsistent grounding between relay racks and cable shields. That creates noise loops that can interfere with protection signals.

save pin

Answer Box

Reliable relay room design depends on strict adherence to IEC and IEEE protection standards combined with proper grounding, environmental control, and structured wiring layouts. Utilities typically apply the most rigorous requirements, while industrial facilities integrate protection rooms with plant control infrastructure.

Documentation and Inspection Best Practices

Key Insight: A relay room is only truly compliant if its documentation allows engineers to maintain and test protection systems accurately.

Even a perfectly built room becomes difficult to maintain without structured documentation.

Best practice documentation typically includes:

1. Protection panel schematics
2. Cable routing diagrams
3. Grounding layouts
4. Relay configuration records
5. Testing and commissioning reports

Inspection teams generally verify:

1. Panel spacing and labeling
2. Correct cable segregation
3. Grounding continuity
4. HVAC performance
5. Fire safety compliance

Regular audits help ensure the protection system continues operating reliably as equipment ages or system loads change.

Final Summary

1. Relay room standards ensure protection systems operate reliably during electrical faults.
2. IEC and IEEE frameworks form the foundation of most relay room design practices.
3. Utility substations require stricter redundancy and environmental controls.
4. Industrial facilities must manage electromagnetic interference from plant equipment.
5. Accurate documentation is essential for long‑term protection system reliability.

FAQ

What are relay room design standards?

Relay room design standards are engineering guidelines that define how protection relays, wiring, grounding, and environmental systems must be installed to ensure reliable power system protection.

Which IEC standards apply to relay rooms?

Common standards include IEC 60255 for protection equipment, IEC 61850 for communication systems, and IEC 61000 for electromagnetic compatibility.

What IEEE standards relate to relay room requirements?

The IEEE C37 series covers protection systems, while IEEE 525 and IEEE 1100 address cable installation and grounding practices.

What temperature should a relay room maintain?

Most relay manufacturers recommend stable temperatures between 20–25°C with controlled humidity to prevent electronic drift.

How large should a relay room be?

Size depends on panel count, but designers must allow working clearances, maintenance access, and future expansion.

Why is grounding critical in relay room design?

Proper grounding prevents electromagnetic interference and ensures protective relays measure system faults accurately.

Are relay room design standards different for utilities and industrial plants?

Yes. Utilities usually require higher redundancy and stricter compliance due to grid reliability obligations.

What is the biggest relay room design mistake?

Poor cable management and grounding inconsistencies are among the most common causes of protection system issues.
